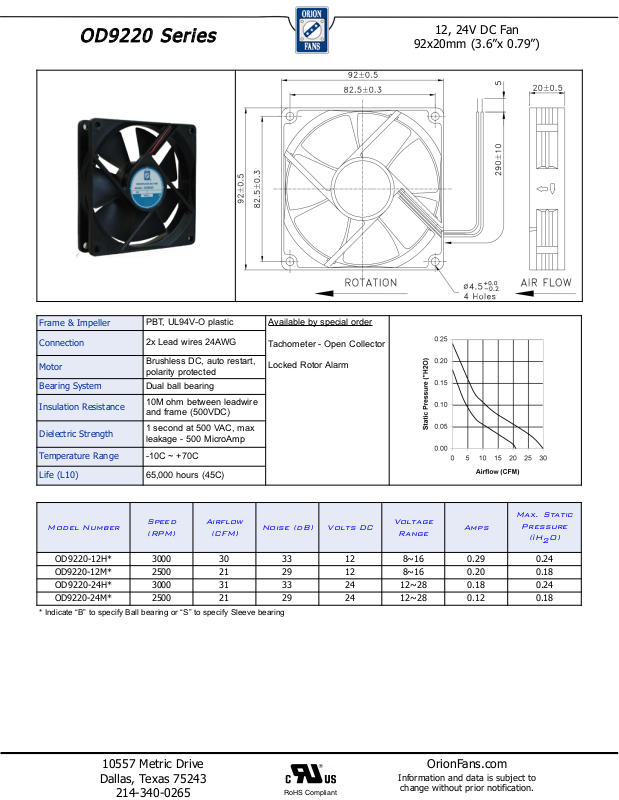

Orion OD9220 Series Data Sheet

OODD99222200 SSeerriiees

s

12, 24V DC Fan

92x20mm (3.6”x 0.79”)

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Temperature Range

fe (L10)

Li

Model Number

OD9220-12H* 3000 30 33 12 8~16 0.29 0.24
OD9220-12M* 2500 21 29 12 8~16 0.20 0.18
OD9220-24H* 3000 31 33 24 12~28 0.18 0.24
OD9220-24M* 2500 21 29 24 12~28 0.12 0.18

* Indicate “B” to specify Ball bearing or “S” to specify Sleeve bearing

PBT, UL94V-O plastic

2x Lead wires 24AWG

Brushless DC, auto restart,
polarity protected

Dual ball bearing

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-10C ~ +70C

65,000 hours (45C)

Speed
(RPM)

Airflow

(CFM)

Available by special order

Tachometer - Open Collector

Locked Rotor Alarm

Noise (dB) Volts DC

Voltage

Range

Amps

Max. Static

Pressure

(ìH2O)

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
