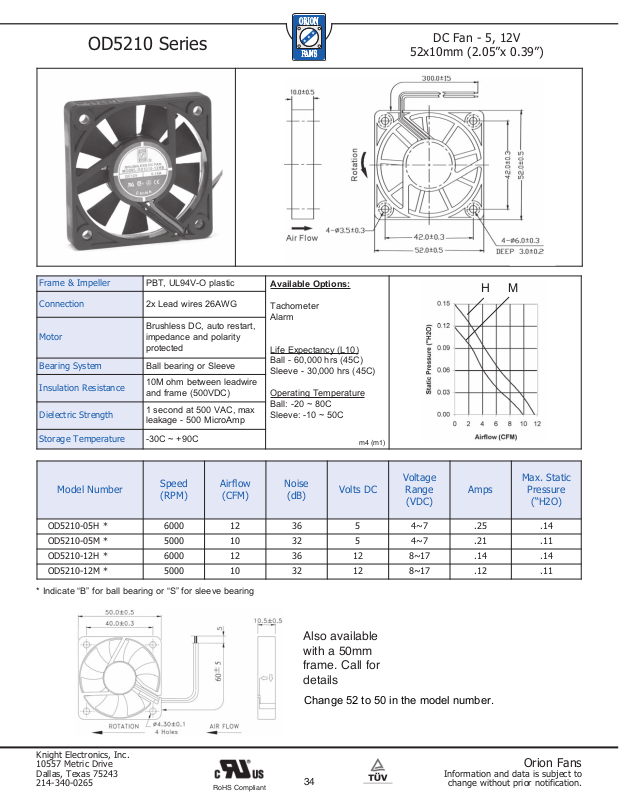

Orion OD5210 Series Data Sheet

OD5210 Series

Change 52 to 50 in the model number.

DC Fan - 5, 12V

52x10mm (2.05”x 0.39”)

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Storage Temperature

Model Number

OD5210-05H * 6000 12 36 5 4~7 .25 .14

OD5210-05M * 5000 10 32 5 4~7 .21 .11

OD5210-12H * 6000 12 36 12 8~17 .14 .14

OD5210-12M * 5000 10 32 12 8~17 .12 .11

PBT, UL94V-O plastic

2x Lead wires 26AWG

Brushless DC, auto restart,
impedance and polarity
protected

Ball bearing or Sleeve

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-30C ~ +90C

Speed
(RPM)

Airflow

(CFM)

Available Options:

Tachometer
Alarm

Life Expectancy (L10)
Ball - 60,000 hrs (45C)
Sleeve - 30,000 hrs (45C)

Operating Temperature
Ball: -20 ~ 80C
Sleeve: -10 ~ 50C

m4 (m1)

Noise

(dB)

Volts DC

Voltage

Range

(VDC)

HM

Amps

Max. Static

Pressure

(“H2O)

* Indicate “B” for ball bearing or “S” for sleeve bearing

Knight Electronics, Inc.
10557 Metric Drive
Dallas, Texas 75243
214-340-0265

RoHS Compliant

Also available
with a 50mm
frame. Call for
details

34

Information and data is subject to

Orion Fans

change without prior notification.
