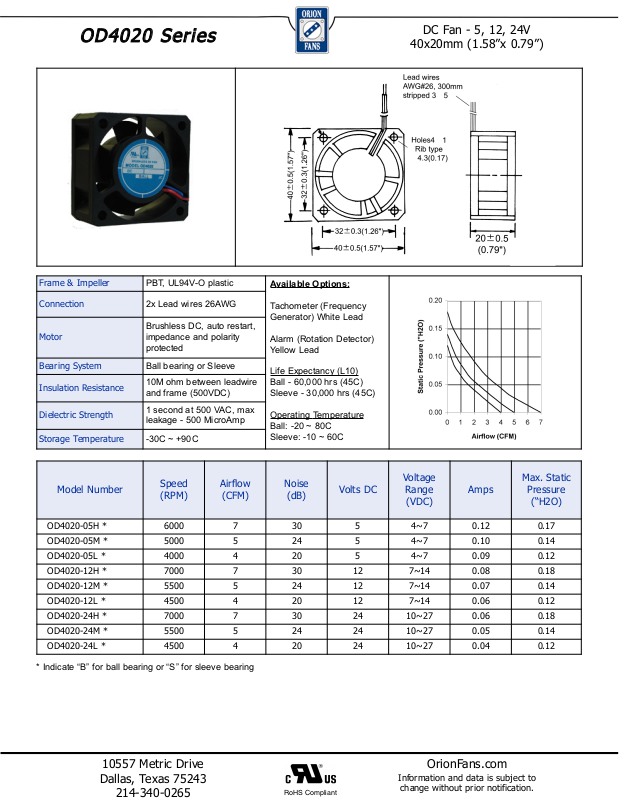

Orion OD4020 Series Data Sheet

OODD44002200 SSeerriiees

s

DC Fan - 5, 12, 24V

40x20mm (1.58”x 0.79”)

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Storage Temperature

Model Number

OD4020-05H * 6000 7 30 5 4~7 0.12 0.17

OD4020-05M * 5000 5 24 5 4~7 0.10 0.14

OD4020-05L * 4000 4 20 5 4~7 0.09 0.12

OD4020-12H * 7000 7 30 12 7~14 0.08 0.18

OD4020-12M * 5500 5 24 12 7~14 0.07 0.14

OD4020-12L * 4500 4 20 12 7~14 0.06 0.12

OD4020-24H * 7000 7 30 24 10~27 0.06 0.18

OD4020-24M * 5500 5 24 24 10~27 0.05 0.14

OD4020-24L * 4500 4 20 24 10~27 0.04 0.12

PBT, UL94V-O plastic

2x Lead wires 26AWG

Brushless DC, auto restart,
impedance and polarity
protected

Ball bearing or Sleeve

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-30C ~ +90C

Speed
(RPM)

Airflow

(CFM)

Available Options:

Tachometer (Frequency
Generator) White Lead

Alarm (Rotation Detector)
Yellow Lead

Life Expectancy (L10)
Ball - 60,000 hrs (45C)
Sleeve - 30,000 hrs (45C)

Operating Temperature
Ball: -20 ~ 80C
Sleeve: -10 ~ 60C

Noise

(dB)

Volts DC

Voltage

Range
(VDC)

Amps

Max. Static

Pressure

(“H2O)

* Indicate “B” for ball bearing or “S” for sleeve bearing

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
