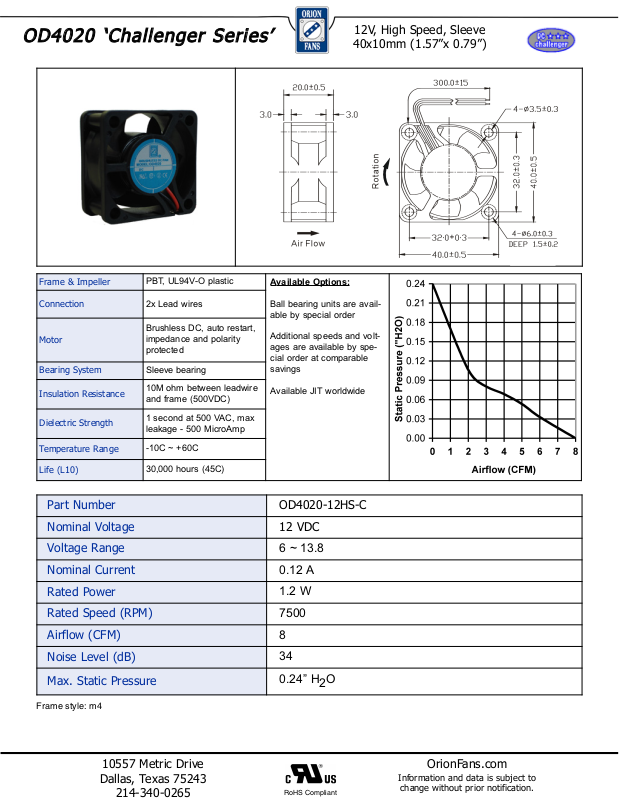

Orion OD4020 Challenger Series Data Sheet

OODD44002200 ‘‘CChhaalllleennggeerr SSeerriieess’

’

40x10mm (1.57”x 0.79”)

12V, High Speed, Sleeve

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Temperature Range

Life (L10)

PBT, UL94V-O plastic

2x Lead wires

Brushless DC, auto restart,
impedance and polarity
protected

Sleeve bearing

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-10C ~ +60C

30,000 hours (45C)

Available Options:

Ball bearing units are avail­able by special order

Additional speeds and volt­ages are available by spe­cial order at comparable
savings

Available JIT worldwide

Part Number OD4020-12HS-C

Nominal Voltage 12 VDC

Voltage Range

Nominal Current

6 ~ 13.8

0.12 A

Rated Power

Rated Speed (RPM)

Airflow (CFM)

Noise Level (dB)

Max. Static Pressure

Frame style: m4

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

1.2 W

7500

8

34

0.24” H2O

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
