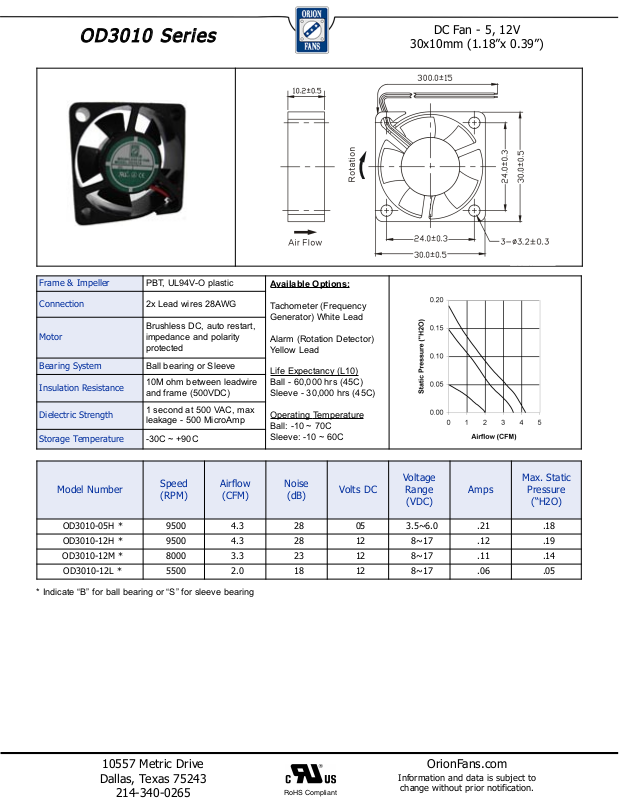

Orion OD3010 Series Data Sheet

OODD33001100 SSeerriiees

s

DC Fan - 5, 12V

30x10mm (1.18”x 0.39”)

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Storage Temperature

Model Number

OD3010-05H * 9500 4

OD3010-12H * 9500 4

OD3010-12M * 8000 3.3 23 12 8~17 .11 .14

OD3010-12L * 5500 2.0 18 12 8~17 .06 .05

PBT, UL94V-O plastic

2x Lead wires 28AWG

Brushless DC, auto restart,
impedance and polarity
protected

Ball bearing or Sleeve

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-30C ~ +90C

Speed
(RPM)

Airflow

(CFM)

.3

.3

Available Options:

Tachometer (Frequency
Generator) White Lead

Alarm (Rotation Detector)
Yellow Lead

Life Expectancy (L10)
Ball - 60,000 hrs (45C)
Sleeve - 30,000 hrs (45C)

Operating Temperature
Ball: -10 ~ 70C
Sleeve: -10 ~ 60C

Noise

(dB)

28 05 3.5~6.0 .21 .18

28 12 8~17 .12 .19

Volts DC

Voltage

Range
(VDC)

Amps

Max. Static

Pressure

(“H2O)

* Indicate “B” for ball bearing or “S” for sleeve bearing

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
