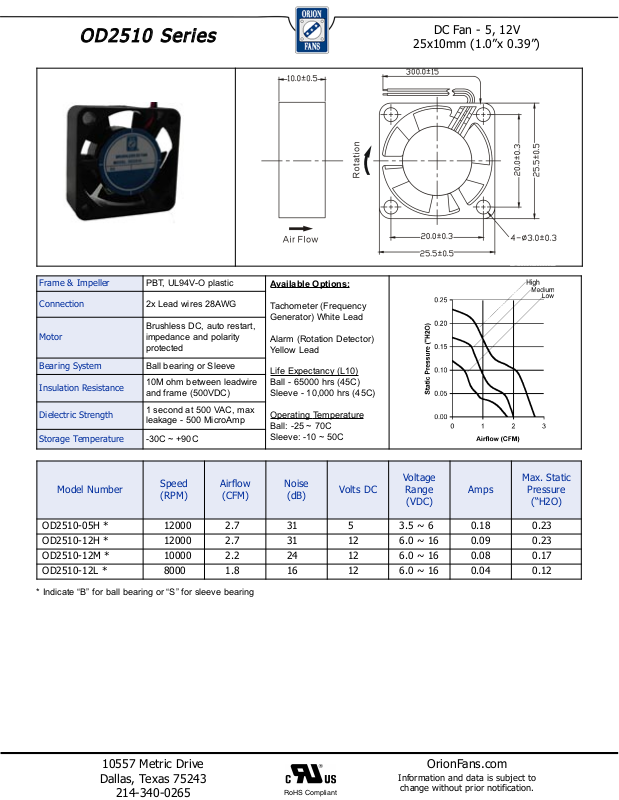

Orion OD2510 Series Data Sheet

OODD22551100 SSeerriiees

s

DC Fan - 5, 12V

25x10mm (1.0”x 0.39”)

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Storage Temperature

Model Number

PBT, UL94V-O plastic

2x Lead wires 28AWG

Brushless DC, auto restart,
impedance and polarity
protected

Ball bearing or Sleeve

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-30C ~ +90C

Speed
(RPM)

Airflow

(CFM)

Available Options:

Tachometer (Frequency
Generator) White Lead

Alarm (Rotation Detector)
Yellow Lead

Life Expectancy (L10)
Ball - 65000 hrs (45C)
Sleeve - 10,000 hrs (45C)

Operating Temperature
Ball: -25 ~ 70C
Sleeve: -10 ~ 50C

Noise

(dB)

Volts DC

Voltage

Range
(VDC)

Amps

Max. Static

Pressure

(“H2O)

OD2510-05H * 12000 2.7 31 5 3.5 ~ 6 0.18 0.23
OD2510-12H * 12000 2.7 31 12 6.0 ~ 16 0.09 0.23
OD2510-12M * 10000 2.2 24 12 6.0 ~ 16 0.08 0.17
OD2510-12L * 8000 1.8 16 12 6.0 ~ 16 0.04 0.12

* Indicate “B” for ball bearing or “S” for sleeve bearing

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
