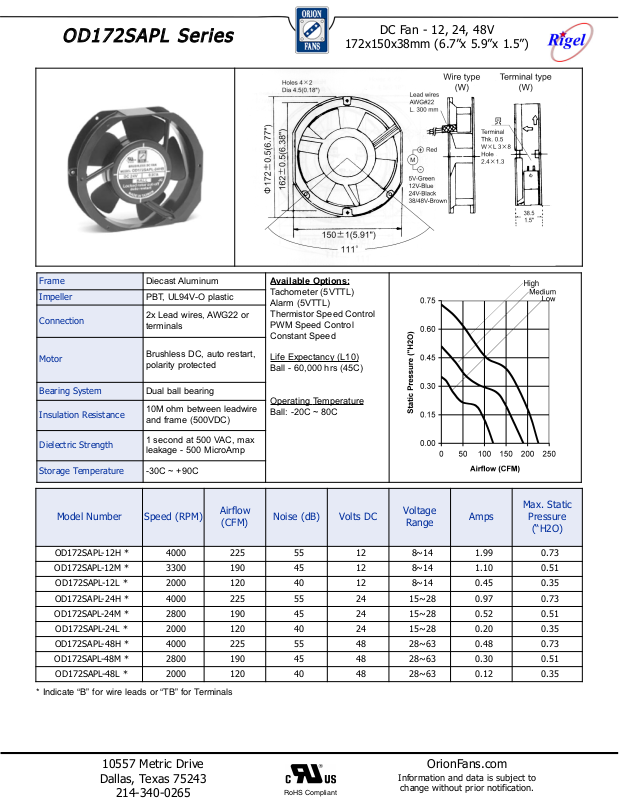

Orion OD172SAPL Series Data Sheet

OODD117722SSAAPPLL SSeerriiees

s

DC Fan - 12, 24, 48V

172x150x38mm (6.7”x 5.9”x 1.5”)

Frame

Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Storage Temperature

Model Number Speed (RPM)

OD172SAPL-12H * 4000 225 55 12 8~14 1.99 0.73

OD172SAPL-12M * 3300 190 45 12 8~14 1.10 0.51

OD172SAPL-12L * 2000 120 40 12 8~14 0.45 0.35

OD172SAPL-24H * 4000 225 55 24 15~28 0.97 0.73

-24M *

OD172S

OD172SAPL-24L * 2000 120 40 24 15~28 0.20 0.35

OD172SAPL-48H * 4000 225 55 48 28~63 0.48 0.73

OD172SAPL-48M * 2800 190 45 48 28~63 0.30 0.51

OD172SAPL-48L * 2000 120 40 48 28~63 0.12 0.35

APL

Diecast Aluminum

PBT, UL94V-O plastic

2x Lead wires, AWG22 or
terminals

Brushless DC, auto restart,
polarity protected

Dual ball bearing

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-30C ~ +90C

Airflow

(CFM)

2800 190 45 24 15~28 0.52 0.51

A

vailable Options:

Tachometer (5VTTL)
Alarm (5VTTL)
Thermistor Speed Control
PWM Speed Control
Constant Speed

Life Expectancy (L10)
Ball - 60,000 hrs (45C)

Operating
Ball: -20C ~ 80C

Noise (dB) V

Temperature

ts DC

ol

tage

ol

V

Range

Amps

Max. Static

e

essur

Pr

(“H2O)

* Indicate “B” for wire leads or “TB” for Terminals

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
