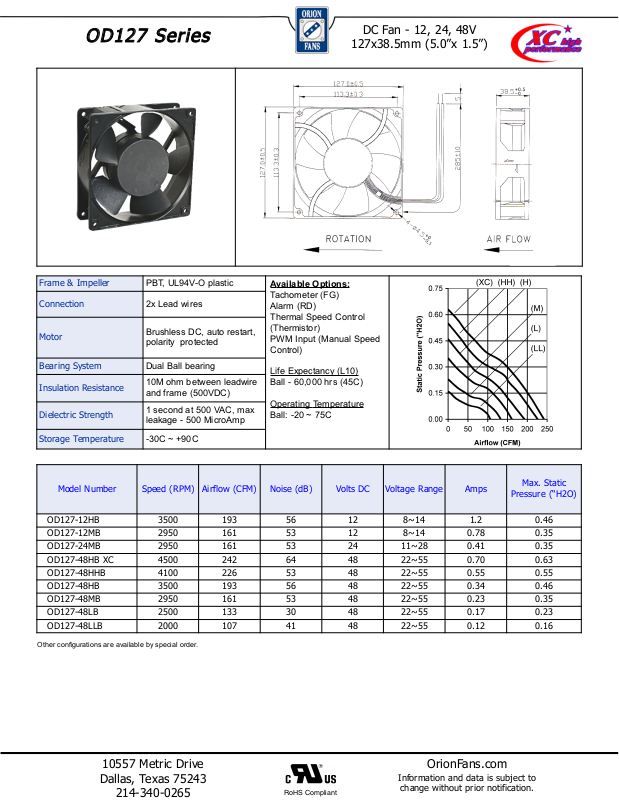

Orion OD127 Series Data Sheet

OODD112277 SSeerriiees

s

DC Fan - 12, 24, 48V

127x38.5mm (5.0”x 1.5”)

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Storage Temperature

Model Number Speed (RPM) Airflow (CFM) Noise (dB) Volts DC Voltage Range Amps

OD127-12HB 3500 193 56 12 8~14 1.2 0.46
OD127-12MB 2950 161 53 12 8~14 0.78 0.35
OD127-24MB 2950 161 53 24 11~28 0.41 0.35
OD127-48HB XC 4500 242 64 48 22~55 0.70 0.63
OD127-48HHB 4100 226 53 48 22~55 0.55 0.55
OD127-48HB 3500 193 56 48 22~55 0.34 0.46
OD127-48MB 2950 161 53 48 22~55 0.23 0.35
OD127-48LB 2500 133 30 48 22~55 0.17 0.23
OD127-48LLB 2000 107 41 48 22~55 0.12 0.16

PBT, UL94V-O plastic

2x Lead wires

Brushless DC, auto restart,
polarity protected

Dual Ball bearing

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-30C ~ +90C

Available Options:

achometer (FG)

T
Alarm (RD)
Thermal Speed Control
(Thermistor)
PWM Input (Manual Speed
Control)

Life Expectancy (L10)
Ball - 60,000 hrs (45C)

Operating Temperature
Ball: -20 ~ 75C

Max. Static

Pressure (“H2O)

Other configurations are available by special order

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

.

OrionFans.com

Information and data is subject to

RoHS Compliant

change without prior notification.
