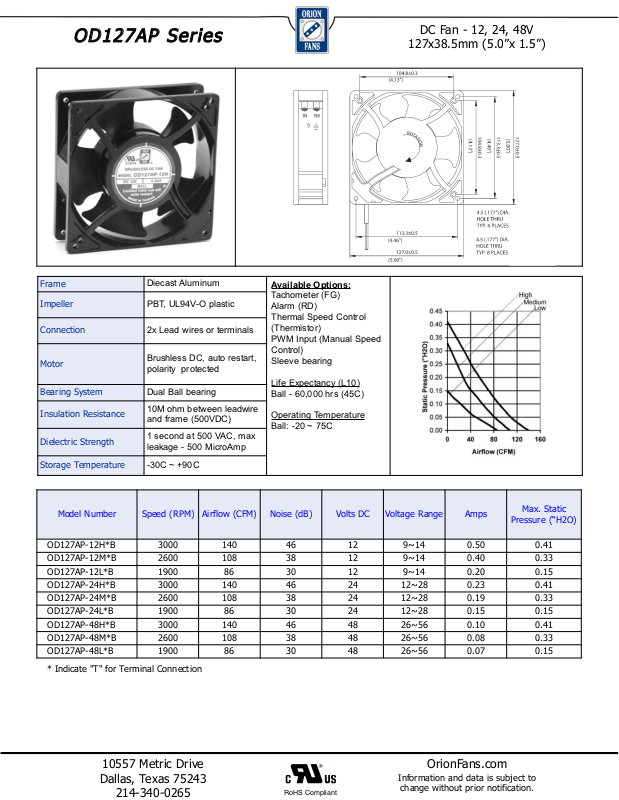

Orion OD127AP Series Data Sheet

OODD112277AAPP SSeerriiees

* Indicate "T" for Terminal Connection

s

DC Fan - 12, 24, 48V

127x38.5mm (5.0”x 1.5”)

Frame

Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Storage Temperature

Model Number Speed (RPM) Airflow (CFM) Noise (dB) Volts DC Voltage Range Amps

OD127AP-12H*B 3000 140 46 12 9~14 0.50 0.41
OD127AP-12M*B 2600 108 38 12 9~14 0.40 0.33
OD127AP-12L*B 1900 86 30 12 9~14 0.20 0.15
OD127AP-24H*B 3000 140 46 24 12~28 0.23 0.41
OD127AP-24M*B 2600 108 38 24 12~28 0.19 0.33
OD127AP-24L*B 1900 86 30 24 12~28 0.15 0.15
OD127AP-48H*B 3000 140 46 48 26~56 0.10 0.41
OD127AP-48M*B 2600 108 38 48 26~56 0.08 0.33
OD127AP-48L*B 1900 86 30 48 26~56 0.07 0.15

Diecast Aluminum

PBT, UL94V-O plastic

2x Lead wires or terminals

Brushless DC, auto restart,
polarity protected

Dual Ball bearing

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-30C ~ +90C

Available Options:

Tachometer (FG)
Alarm (RD)
Thermal Speed Control
(Thermistor)
PWM Input (Manual Speed
Control)
Sleeve bearing

Life Expectancy (L10)
Ball - 60,000 hrs (45C)

Operating Temperature
Ball: -20 ~ 75C

Max. Static

Pressure (“H2O)

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
