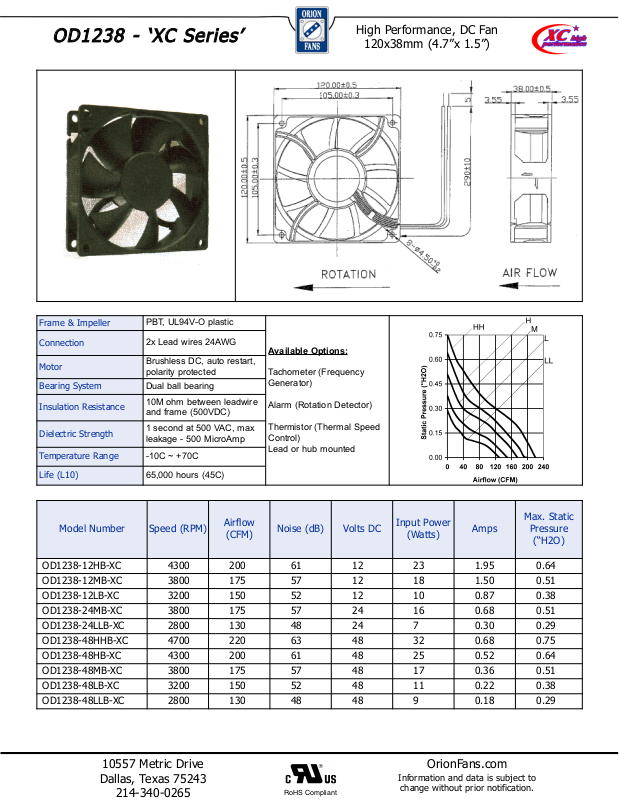

Orion OD1238 XC Series Data Sheet

OODD11223388 -- ‘‘XXCC SSeerriieess’

’

120x38mm (4.7”x 1.5”)

High Performance, DC Fan

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Temperature Range

fe (L10)

Li

Model Number Speed (RPM)

PBT, UL94V-O plastic

2x Lead wires 24AWG

Brushless DC, auto restart,
polarity protected

Dual ball bearing

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-10C ~ +70C

65,000 hours (45C)

Airflow

(CFM)

Available Options:

Tachometer (Frequency
Generator)

Alarm (Rotation Detector)

Thermistor (Thermal Speed
Control)
Lead or hub mounted

ts DC

Noise (dB) V

ol

Input Power

ts)

at

(W

Amps

Max. Static

essur

Pr

(“H2O)

OD1238-12HB-XC 4300 200 61 12 23 1.95 0.64
OD1238-12MB-XC 3800 175 57 12 18 1.50 0.51
OD1238-12LB-XC 3200 150 52 12 10 0.87 0.38

C

X

OD1238-24MB

-

3800 175 57 24 16 0.68 0.51
OD1238-24LLB-XC 2800 130 48 24 7 0.30 0.29
OD1238-48HHB

-XC

4700 220 63 48 32 0.68 0.
OD1238-48HB-XC 4300 200 61 48 25 0.52 0.64
OD1238-48MB-XC 3800 175 57 48 17 0.36 0.51

C

X

OD1238-48LB

-

3200 150 52 48 11 0.22 0.38
OD1238-48LLB-XC 2800 130 48 48 9 0.18 0.29

e

75

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
