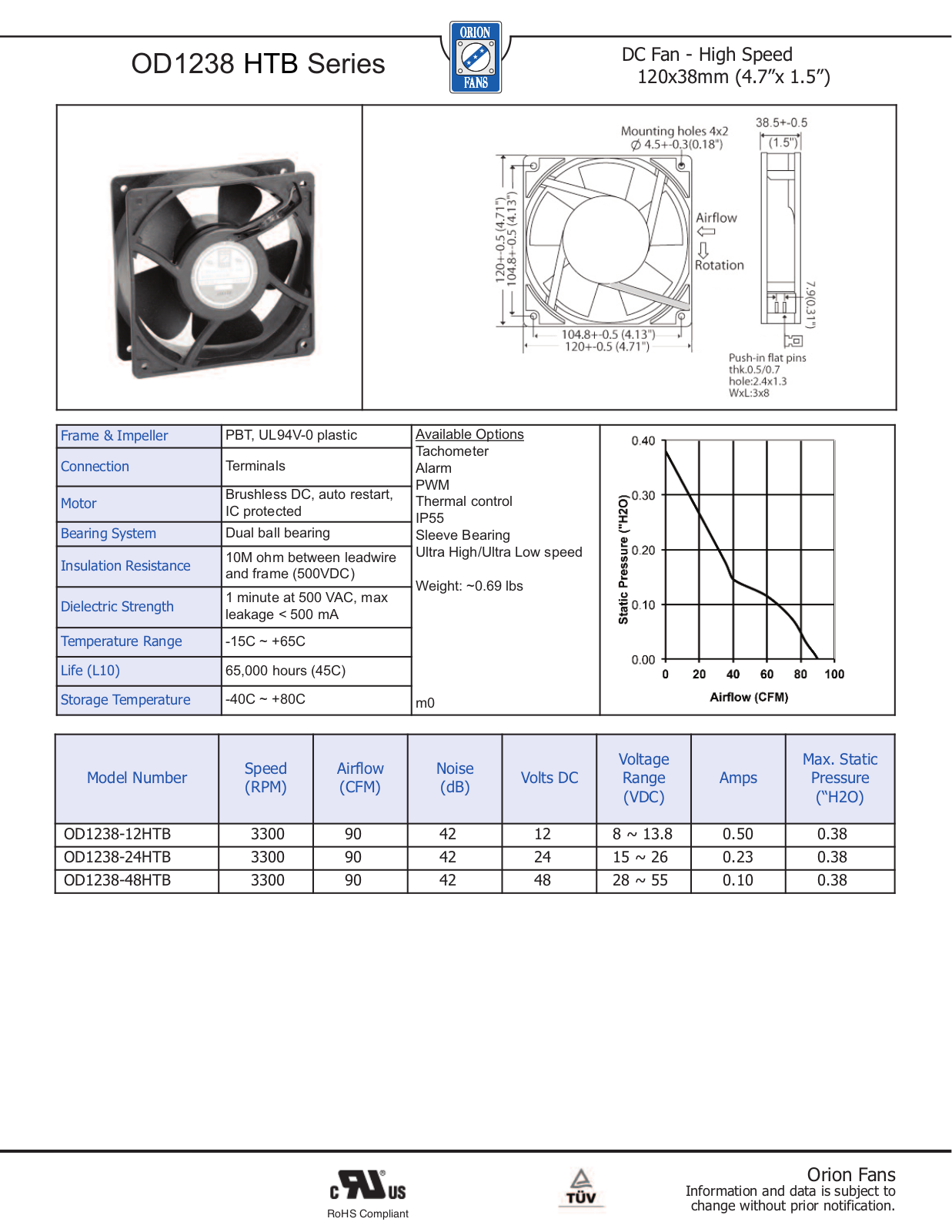

Orion OD1238 HTB Series Data Sheet

OD1238 HTB Series

DC Fan - High Speed

120x38mm (4.7”x 1.5”)

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Temperature Range

Life (L10)

Storage Temperature

Model Number

PBT, UL94V-0 plastic

Terminals

Brushless DC, auto restart, IC protected

Dual ball bearing

10M ohm between leadwire and frame (500VDC)

1 minute at 500 VAC, max leakage < 500 mA

-15C ~ +65C

65,000 hours (45C)

-40C ~ +80C

Speed (RPM)

Airflow

(CFM)

Available Options Tachometer Alarm PWM Thermal control IP55 Sleeve Bearing Ultra High/Ultra Low speed

Weight: ~0.69 lbs

Noise

(dB)

Volts DC

Voltage

Range

(VDC)

Amps

Max. Static

Pressure

(“H2O)

OD1238-12HTB 3300 90 42 12 8 ~ 13.8 0.50 0.38 OD1238-24HTB 3300 90 42 24 15 ~ 26 0.23 0.38 OD1238-48HTB 3300 90 42 48 28 ~ 55 0.10 0.38

RoHS Compliant

Information and data is subject to

Orion Fans

change without prior notification.
