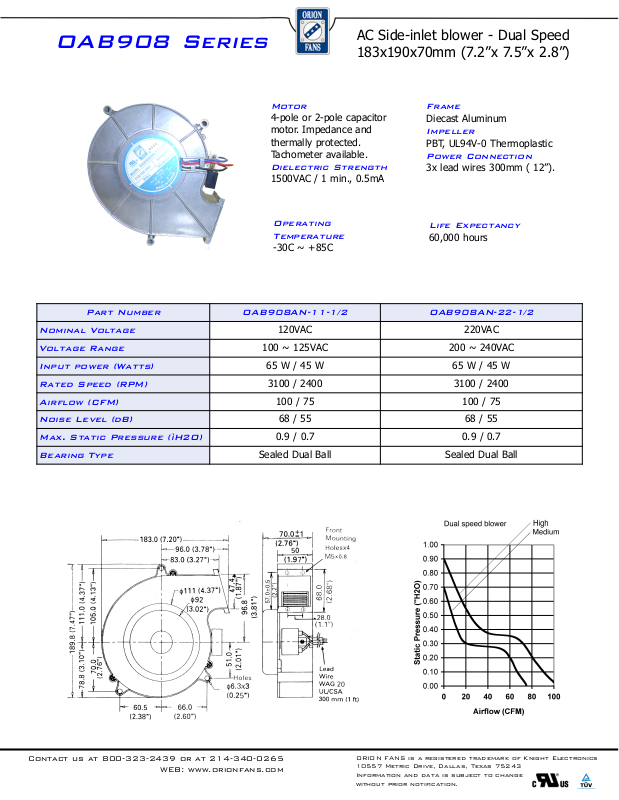

Orion OAB908 Series Data Sheet

OAB908 Series

AC Side-inlet blower - Dual Speed
183x190x70mm (7.2”x 7.5”x 2.8”)

Part Number OAB908AN-11-1/2 OAB908AN-22-1/2

Nominal Voltage

Voltage Range

Input power (Watts)

Rated Speed (RPM)

Motor

4-pole or 2-pole capacitor

. Impedance and

motor
thermally protected.
Tachometer available.

Dielectric Strength

1500VAC / 1 min., 0.5mA

Operating
Temperature

-30C ~ +85C

120VAC 220VAC

100 ~ 125VAC 200 ~ 240VAC

65 W / 45 W 65 W / 45 W

3100 / 2400 3100 / 2400

Frame

Diecast Aluminum

Impeller

PBT, UL94V-0 Thermoplastic

Power Connection

3x lead wires 300mm ( 12”).

Life Expectancy

60,000 hours

Airflow (CFM)

Noise Level (dB)

Max. Static Pressure (ìH2O)

Bearing Type

100 / 75 100 / 75

68 / 55 68 / 55

0.9 / 0.7 0.9 / 0.7

Sealed Dual Ball Sealed Dual Ball

Contact us at 800-323-2439 or at 214-340-0265

WEB: www.orionfans.com

ORION FANS is a registered trademark of Knight Electronics
10557 Metric Drive, Dallas, Texas 75243
Information and data is subject to change
without prior notification.
