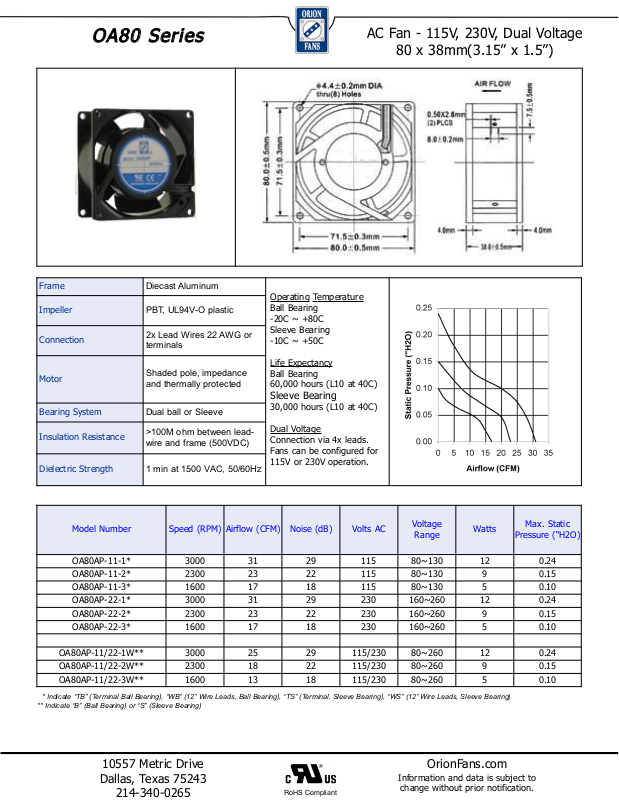

Orion OA80 Series Data Sheet
OOAA8800 SSeerriiees
s
AC Fan - 115V, 230V, Dual Voltage
80 x 38mm(3.15” x 1.5”)
Frame
Impeller
Connection
Motor
Bearing System
Insulation Resistance
Dielectric Strength
Model Number Speed (RPM) Airflow (CFM) Noise (dB) Volts AC
OA80AP-11-1* 3000 31 29 115 80~130 12 0.24
OA80AP-11-2* 2300 23 22 115 80~130 9 0.15
OA80AP-11-3* 1600 17 18 115 80~130 5 0.10
OA80AP-22-1* 3000 31 29 230 160~260 12 0.24
OA80AP-22-2* 2300 23 22 230 160~260 9 0.15
OA80AP-22-3* 1600 17 18 230 160~260 5 0.10
Diecast Aluminum
PBT, UL94V-O plastic
2x Lead Wires 22 AWG or
terminals
Shaded pole, impedance
and thermally protected
Dual ball or Sleeve
>100M ohm between leadwire and frame (500VDC)
1 min at 1500 VAC, 50/60Hz
Operating Temperature
Ball Bearing
-20C ~ +80C
Sleeve Bearing
-10C ~ +50C
fe Expectancy
Li
Ball Bearing
60,000 hours (L10 at 40C)
Sleeve Bearing
30,000 hours (L10 at 40C)
Dual Voltage
Connection via 4x leads.
Fans can be configured for
115V or 230V operation.
V
R
tage
ol
ange
Watts
Max. Static
essur
Pr
e (“H2O)
OA80AP-11/22-1W** 3000 25 29 115/230 80~260 12 0.24
OA80AP-11/22-2W** 2300 18 22 115/230 80~260 9 0.15
OA80AP-11/22-3W** 1600 13 18 115/230 80~260 5 0.10
* Indicate “TB” (Terminal Ball Bearing), “WB” (12” Wire Leads, Ball Bearing), “TS” (Terminal, Sleeve Bearing), “WS” (12” Wire Leads, Sleeve Bearing)
** Indicate “B” (Ball Bearing) or “S” (Sleeve Bearing)
10557 Metric Drive
Dallas, Texas 75243
214-340-0265
RoHS Compliant
OrionFans.com
Information and data is subject to
change without prior notification.
