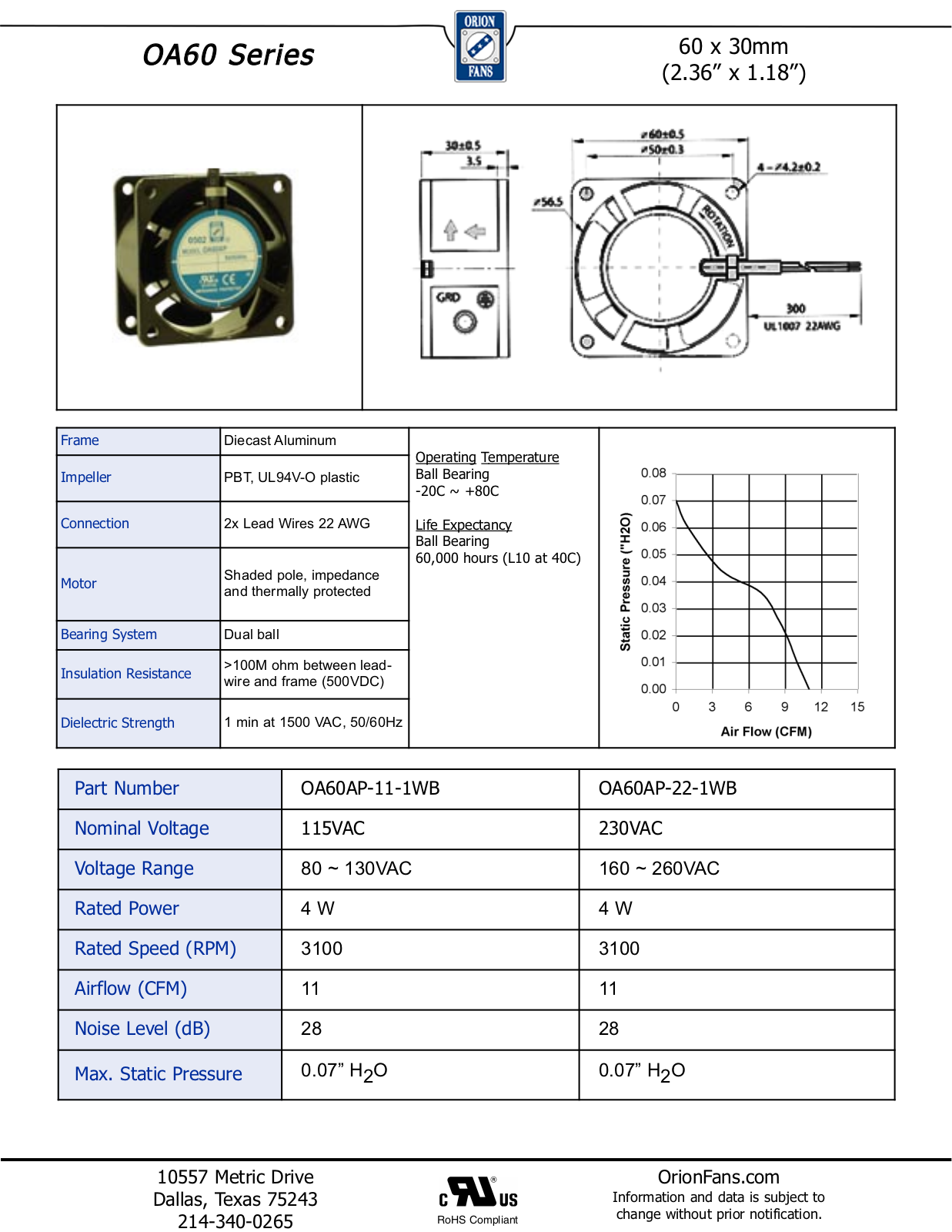

Orion OA60 Series Data Sheet

OOAA6600 SSeerriiees

s

60 x 30mm

(2.36” x 1.18”)

Frame

Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Diecast Aluminum

PBT, UL94V-O plastic

2x Lead Wires 22 AWG

Shaded pole, impedance
and thermally protected

Dual ball

>100M ohm between lead­wire and frame (500VDC)

1 min at 1500 VAC, 50/60Hz

Operating Temperature
Ball Bearing

-20C ~ +80C

fe Expectancy

Li
Ball Bearing
60,000 hours (L10 at 40C)

Part Number OA60AP-11-1WB OA60AP-22-1WB

Nominal Voltage 115VAC 230VAC

Voltage Range

80 ~ 130VAC 160 ~ 260VAC

Rated Power

Rated Speed (RPM)

Airflow (CFM)

Noise Level (dB)

Max. Static Pressure

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

4 W 4 W

3100 3100

11 11

28 28

0.07” H2O 0.07” H2O

OrionFans.com

Information and data is subject to

RoHS Compliant

change without prior notification.
