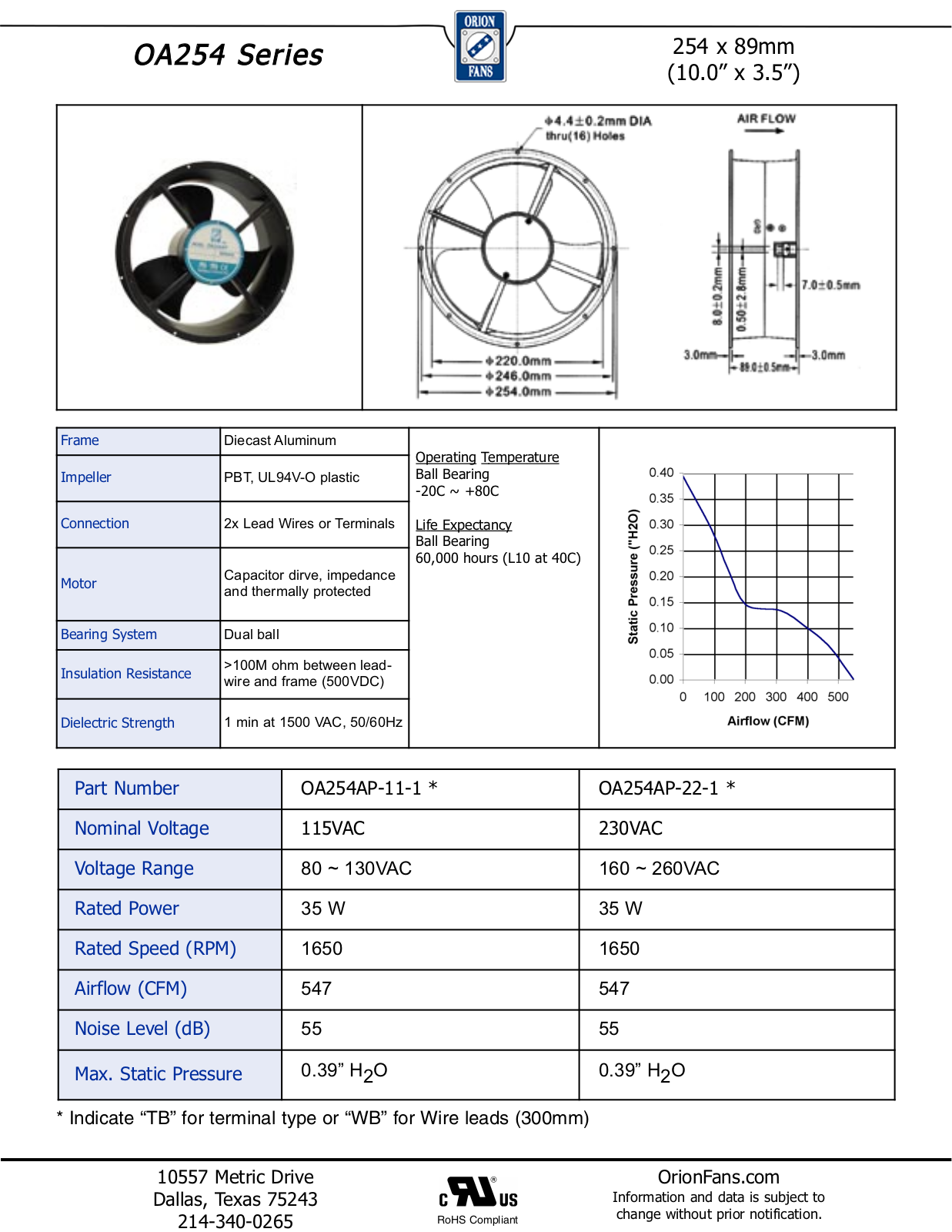

Orion OA254 Series Data Sheet
OOAA225544 SSeerriiees
s
254 x 89mm
(10.0” x 3.5”)
Frame
Impeller
Connection
Motor
Bearing System
Insulation Resistance
Dielectric Strength
Diecast Aluminum
PBT, UL94V-O plastic
2x Lead Wires or Terminals
Capacitor dirve, impedance
and thermally protected
Dual ball
>100M ohm between leadwire and frame (500VDC)
1 min at 1500 VAC, 50/60Hz
Operating Temperature
Ball Bearing
-20C ~ +80C
fe Expectancy
Li
Ball Bearing
60,000 hours (L10 at 40C)
Part Number OA254AP-11-1 * OA254AP-22-1 *
Nominal Voltage 115VAC 230VAC
Voltage Range
80 ~ 130VAC 160 ~ 260VAC
Rated Power
Rated Speed (RPM)
Airflow (CFM)
Noise Level (dB)
Max. Static Pressure
35 W 35 W
1650 1650
547 547
55 55
0.39” H2O 0.39” H2O
* Indicate “TB” for terminal type or “WB” for Wire leads (300mm)
10557 Metric Drive
Dallas, Texas 75243
214-340-0265
RoHS Compliant
OrionFans.com
Information and data is subject to
change without prior notification.
