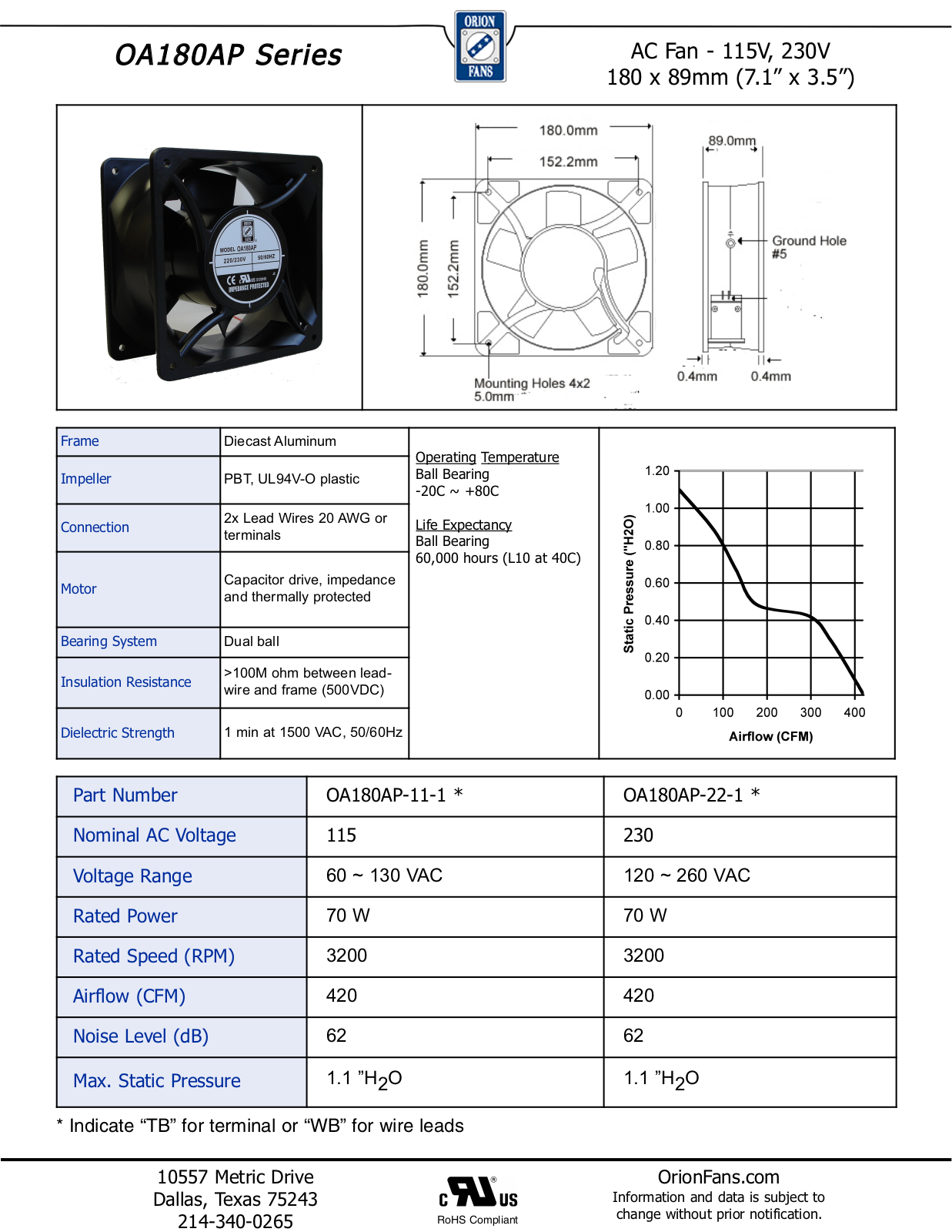

Orion OA180AP Series Data Sheet

OOAA118800AAPP SSeerriiees

s

AC Fan - 115V, 230V

180 x 89mm (7.1” x 3.5”)

Frame

Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Diecast Aluminum

PBT, UL94V-O plastic

2x Lead Wires 20 AWG or
terminals

Capacitor drive, impedance
and thermally protected

Dual ball

>100M ohm between lead­wire and frame (500VDC)

1 min at 1500 VAC, 50/60Hz

Operating Temperature
Ball Bearing

-20C ~ +80C

fe Expectancy

Li
Ball Bearing
60,000 hours (L10 at 40C)

Part Number OA180AP-11-1 * OA180AP-22-1 *

Nominal AC Voltage 115 230

Voltage Range

60 ~ 130 VAC 120 ~ 260 VAC

Rated Power

Rated Speed (RPM)

Airflow (CFM)

Noise Level (dB)

Max. Static Pressure

70 W 70 W

3200 3200

420 420

62 62

1.1 ”H2O 1.1 ”H2O

* Indicate “TB” for terminal or “WB” for wire leads

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

RoHS Compliant

OrionFans.com

Information and data is subject to

change without prior notification.
