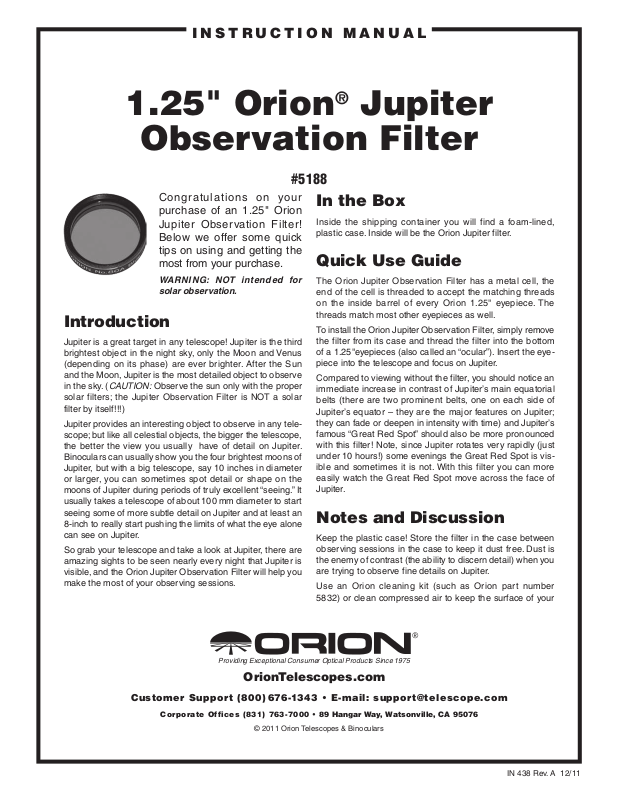

INSTRUCTION MANUAL

1.25" Orion® Jupiter
Observation Filter

#5188

Congratulations on your
purchase of an 1.25" Orion
Jupiter Observation Filter!
Below we offer some quick
tips on using and getting the
most from your purchase.

WARNING: NOT intended for
solar observation.

Introduction

Jupiter is a great target in any telescope! Jupiter is the third
brightest object in the night sky, only the Moon and Venus
(depending on its phase) are ever brighter. After the Sun
and the Moon, Jupiter is the most detailed object to observe
in the sky. (CAUTION: Observe the sun only with the proper
solar filters; the Jupiter Observation Filter is NOT a solar
filter by itself!!!)

Jupiter provides an interesting object to observe in any tele­scope; but like all celestial objects, the bigger the telescope,
the better the view you usually have of detail on Jupiter.
Binoculars can usually show you the four brightest moons of
Jupiter, but with a big telescope, say 10 inches in diameter
or larger, you can sometimes spot detail or shape on the
moons of Jupiter during periods of truly excellent “seeing.” It
usually takes a telescope of about 100 mm diameter to start
seeing some of more subtle detail on Jupiter and at least an
8-inch to really start pushing the limits of what the eye alone
can see on Jupiter.

So grab your telescope and take a look at Jupiter, there are
amazing sights to be seen nearly every night that Jupiter is
visible, and the Orion Jupiter Observation Filter will help you
make the most of your observing sessions.

In the Box

Inside the shipping container you will find a foam-lined,
plastic case. Inside will be the Orion Jupiter filter.

Quick Use Guide

The Orion Jupiter Observation Filter has a metal cell, the
end of the cell is threaded to accept the matching threads
on the inside barrel of every Orion 1.25" eyepiece. The
threads match most other eyepieces as well.

To install the Orion Jupiter Observation Filter, simply remove
the filter from its case and thread the filter into the bottom
of a 1.25"eyepieces (also called an “ocular”). Insert the eye­piece into the telescope and focus on Jupiter.

Compared to viewing without the filter, you should notice an
immediate increase in contrast of Jupiter’s main equatorial
belts (there are two prominent belts, one on each side of
Jupiter’s equator – they are the major features on Jupiter;
they can fade or deepen in intensity with time) and Jupiter’s
famous “Great Red Spot” should also be more pronounced
with this filter! Note, since Jupiter rotates very rapidly (just
under 10 hours!) some evenings the Great Red Spot is vis­ible and sometimes it is not. With this filter you can more
easily watch the Great Red Spot move across the face of
Jupiter.

Notes and Discussion

Keep the plastic case! Store the filter in the case between
observing sessions in the case to keep it dust free. Dust is
the enemy of contrast (the ability to discern detail) when you
are trying to observe fine details on Jupiter.

Use an Orion cleaning kit (such as Orion part number

5832) or clean compressed air to keep the surface of your

Providing Exceptional Consumer Optical Products Since 1975

OrionTelescopes.com

Customer Support [phone] • E-mail: [e-mail]

Corporate Offices [phone] • 89 Hangar Way, Watsonville, CA 95076

© 2011 Orion Telescopes & Binoculars

IN 438 Rev. A 12/11

eyepieces and filters clean of dust and fingerprints for best
results.

The Orion Jupiter Observation Filter works with any telescope,
from a 50mm beginning refractor to a 36" yard scope and
beyond! The details you see however will be better with larger
telescopes. As important as the size of your telescope are
the seeing conditions the night you view Jupiter. Astronomers
call the steadiness or viewing quality, “astronomical seeing”
or simply “seeing.” Nights of good seeing show lots of detail
and very still or steady images; nights of poor seeing show
an object that seems to be “boiling” as you look through tur­bulent air.

Let your telescope “equilibrate” or adjust to the nighttime tem­perature for best results – you will be able to see Jupiter if you
grab your telescope from your heated den and rush outside;
but the details will be better if the telescope can reach the
same temperature as the nighttime air. This can take an hour
or longer, depending on the size of the telescope and the tem­perature difference.

Also, the collimation of your telescope has to be good if you
want the best performance of any filter or eyepiece. Refractor

owners can essentially ignore this requirement, since refrac­tors hardly ever go “out of collimation.” If you have a Newtonian
design reflector, see our video on how to check and collimate
your telescope: http://www.telescope.com/Video-Gallery/
How-To/How-To-Collimate-an-Orion-Reflector-Telescope/pc/­1/c/190/sc/214/p/99861.uts

Unlike deep sky objects, you can observe Jupiter at any time
it is above the horizon at night – the full moon won’t disturb
your view, unless the moon is very close to Jupiter in the sky
(such close approaches between two objects in the night sky
are called conjunctions). Jupiter can even be observed during
the daytime if it is not too close to the sun; but surface detail
will have very low contrast.

The Orion Jupiter Observing Filter can also be used on the
moon.

For more tips on using your telescope go to Orion’s Resource
Center on our website: www.telescope.com (links on the bot­tom of the page).

One-Year Limited Warranty

The Orion 1.25" Jupiter Observation Filter is warranted against defects in materials or workmanship for
a period of one year from the date of purchase. This warranty is for the benefit of the original retail pur­chaser only. During this warranty period Orion Telescopes & Binoculars will repair or replace, at Orion’s
option, any warranted instrument that proves to be defective, provided it is returned postage paid to:
Orion Warranty Repair, 89 Hangar Way, Watsonville, CA 95076. Proof of purchase (such as a copy of the
original receipt) is required.

This warranty does not apply if, in Orion’s judgment, the instrument has been abused, mishandled, or
modified, nor does it apply to normal wear and tear. This warranty gives you specific legal rights, and you
may also have other rights, which vary from state to state. For further warranty service information, con­tact: Orion Customer Service [phone]; [e-mail].
