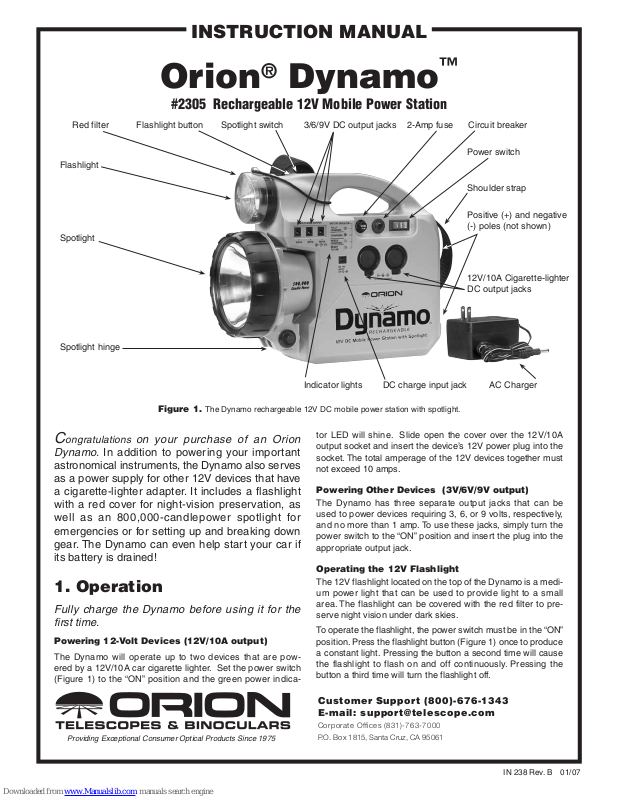

Orion Dynamo Instruction Manual

Page 1
INSTRUCTION MANUAL
Orion® Dynamo
#2305 Rechargeable 12V Mobile Power Station
Red filter Flashlight button Spotlight switch 3/6/9V DC output jacks 2-Amp fuse Circuit breaker
Power switch
Flashlight
Shoulder strap
Positive (+) and negative (-) poles (not shown)
Spotlight
12V/10A Cigarette-lighter DC output jacks
Spotlight hinge

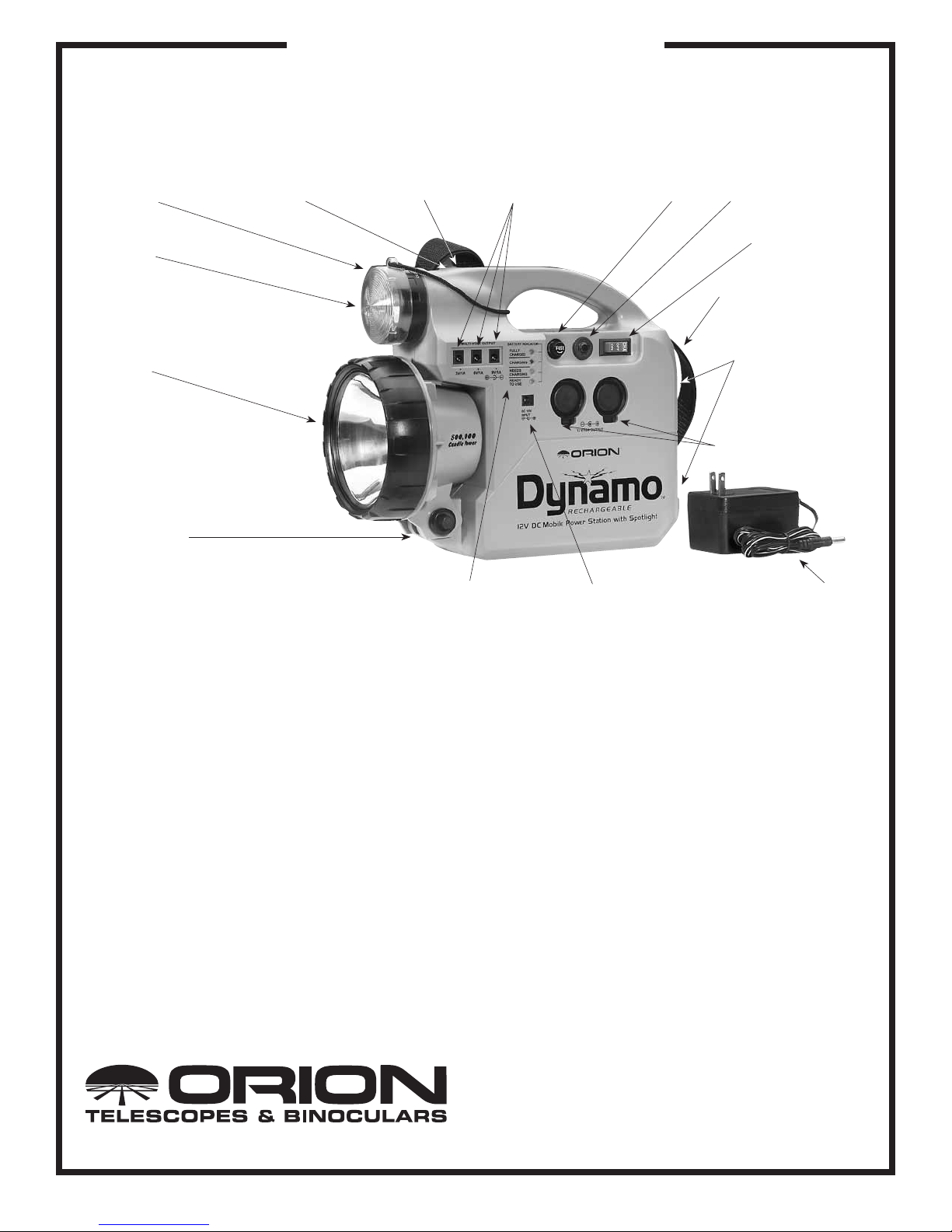

Figure 1.
The Dynamo rechargeable 12V DC mobile power station with spotlight.
Congratulations on your purchase of an Orion
astronomical instruments, the Dynamo also serves as a power supply for other 12V devices that have a cigarette-lighter adapter. It includes a flashlight with a red cover for night-vision preservation, as well as an 800,000-candlepower spotlight for emergencies or for setting up and breaking down gear. The Dynamo can even help start your car if its battery is drained!
1. Operation
Fully charge the Dynamo before using it for the first time.
Powering 12-Volt Devices (12V/10A output)
The Dynamo will operate up to two devices that are pow­ered by a 12V/10A car cigarette lighter. Set the power switch (Figure 1) to the “ON” position and the green power indica-
Indicator lights DC charge input jack AC Charger
tor LED will shine. Slide open the cover over the 12V/10A output socket and insert the device’s 12V power plug into the socket. The total amperage of the 12V devices together must not exceed 10 amps.
Powering Other Devices (3V/6V/9V output)
The Dynamo has three separate output jacks that can be used to power devices requiring 3, 6, or 9 volts, respectively, and no more than 1 amp. To use these jacks, simply turn the power switch to the “ON” position and insert the plug into the appropriate output jack.
Operating the 12V Flashlight
The 12V flashlight located on the top of the Dynamo is a medi­um power light that can be used to provide light to a small area. The flashlight can be covered with the red filter to pre­serve night vision under dark skies.
To operate the flashlight, the power switch must be in the “ON” position. Press the flashlight button (Figure 1) once to produce a constant light. Pressing the button a second time will cause the flashlight to flash on and off continuously. Pressing the button a third time will turn the flashlight off.
Providing Exceptional Consumer Optical Products Since 1975
Customer Support (800)-676-1343 E-mail: support@telescope.com
Corporate Offices (831)‑763‑7000
P.O. Box 1815, Santa Cruz, CA 95061
IN 238 Rev. B 01/07
Page 2
Operating the Spotlight
The spotlight is an 800,000 candlepower light.
To operate the spotlight, the power switch must be in the “ON” position. Set the spotlight switch (Figure 1) to the "ON" posi­tion. The spotlight is hinged to allow flexibility in aiming the beam. Simply take hold of the base of the spotlight and rotate it downward to the position you want.
2. Recharging the Dynamo
If the yellow LED indicator light is lit, then the battery power is low and requires recharging. The battery can be recharged from an AC outlet or from a DC source, such as a car battery.
Recharging the Dynamo with AC Current (wall outlet)
Recharging the Dynamo with an AC current outlet requires the included AC adapter. Do not use substitute adapters to charge the Dynamo.
Press the power switch into the “CHA”, or charge position. Then plug the small end of the AC adapter into the charge input jack (Figure 1) and plug the pronged end of the adapter into a 120­volt AC wall outlet. The red “charging” LED light should come on indicating that the battery is charging. Charging for the first time may take up to 14-16 hours. Subsequent charges should only take 8-10 hours. The green “Ready to Use” LED light will shine when the battery is fully charged. Do not exceed 20 hours of charging time.
Recharging the Dynamo with DC Current
Recharging the Dynamo with DC current should be done with the cigarette lighter receptacle in an automobile. The car’s engine must be operating to properly charge the battery.
Recharging the Dynamo with DC requires the supplied DC recharging adapter. Open the panel in the back of the Dynamo and remove the DC adapter. Press the power switch on the Dynamo into the “CHA” position. Plug the small end of the DC adapter into the charge input jack (Figure 1). Make certain the car engine is running, then plug the other end of the DC adapter into the cigarette lighter receptacle in the car. The red “Charging” LED light will come on indicating that the battery is charging.
Charging should take about 5-8 hours the first time you charge the Dynamo. Subsequent charges should only take 6 hours, unless the Dynamo is severely drained. The green “Ready to Use” LED light will shine when the battery is fully charged. Do not exceed the recommended charge time.
3. Using the Dynamo to Help Start a Vehicle
To use the Dynamo to help start a vehicle:
1) Set the power switch to either the “ON” or “OFF” position.
2) Connect the Positive pole (+) on the Dynamo (Figure 3) to the Positive pole (+) on the car battery.
3) Connect the Negative pole (-) on the Dynamo to the Negative pole (-) on the car battery.
4) Leave the Dynamo attached for approximately 20 minutes.
5) Disconnect the cable from the Negative pole (-) of the car battery.
6) Disconnect the cable from Positive pole (+) of the car battery.
The charge should be enough to allow starting of the vehicle. Remove the jumper cables from the Dynamo and recharge.
4. Storage and Maintenance
To optimize the lifetime of the Dynamo, several steps should be taken for its proper storage and maintenance. Make certain the power switch is in the “OFF” position before putting the Dynamo in storage. Keep stored a dry, cool area when not in use. Fully charge the Dynamo before putting it into stor­age. If you are going to store the Dynamo for long periods of time, you should occasionally recharge it (about every three months). Failure to do so will void your warranty.
Resetting the Circuit Breaker
If the power indicator LED light does not come on when you turn on the power switch, the circuit breaker (Figure 1) will need to be reset. Turn the power switch to the “OFF” posi­tion and press the circuit breaker button to reset it. Keep in mind that if you are drawing more than 10 Amps through the 12V/10A adapters you will always cause the circuit breaker to break.
Replacing the 2-Amp Fuse
If the fuse for the 3V/6V/9V power jacks should blow, it can be replaced with a new 2-amp fuse. Turn the fuse-securing knob (Figure 1) in the indicated direction to free the old fuse. Replace it with the new fuse. Replace the fuse securing knob.
Replacing the Flashlight Bulb
Should the flashlight bulb break or burn out, it can be replaced with a 12V, .5A Krypton bulb, available at most hardware stores. Make certain the power switch is in the “OFF” position before replacing the bulb.
To replace the bulb, unthread the flashlight head (Figure 1) by turning it counterclockwise. Make certain the old bulb has had time to cool down. Replace the old bulb with the new bulb and thread the flashlight head back onto the flashlight.
The Dynamo can be used to help start a vehicle that has a drained battery. This is not a “jump start” in the classic sense; instead the car receives a trickle charge from the battery. The Dynamo does not have sufficient power to charge a severely drained car battery. You will need jumper cables to use the Dynamo in this manner.
2
Page 3
Replacing the Spotlight Bulb
Should the spotlight bulb break or burn out, it can be replaced with an H3, 12V, 55W halogen bulb, available at hardware stores. Make certain the power switch is in the “OFF” position before replacing the bulb.
To replace the bulb, unthread the spotlight head (Figure 1) by turning it counterclockwise. Make certain the old bulb and the reflector have had plenty of time to cool down before you touch either one. Separate the reflector from the bulb as shown in Figure 2. Remove the wire retaining clip and replace the bulb. Replace the retaining clip and insert the bulb back into the reflector. Rethread the entire assembly back into the Dynamo.
Reflector Remove this clip
Specifications
Primary DC output: Two 12V cigarette-lighter type sockets, maximum 10 amp total, tip positive.
Primary DC output regulation: 10 amp circuit breaker.
Secondary DC output: 3V, 6V, and 9V output jacks, maximum 1 amp output, tip positive.
Secondary DC output regulation: 2 amp fuse.
Flashlight: 12V, .5 A Krypton bulb, with red filter.
Spotlight: H3, 12V, 55W Halogen bulb, 800,000 candlepower, angle adjustable
Internal battery: 12V, 7 amp-hour rechargeable sealed lead­acid battery
Recharging current requirements: 120V, 60Hz AC or 14.5 to
15.5V DC
Operating temperature: 32° F to 86° F
Weight: 8.4 lbs.
Dimensions: 11.3" x 9.3" x 5.2"
Bulb
Figure 2. The spotlight reflector dish and bulb.
Bulb
90-day Limited Warranty
This Dynamo is warranted against defects in materials or workmanship for a period of 90 days from the date of purchase. This warranty is for the benefit of the original retail purchaser only. During this warranty period Orion Telescopes & Binoculars will repair or replace, at Orion’s option, any warranted instrument that proves to be defective, provided it is returned postage paid to: Orion Warranty Repair, 89 Hangar Way, Watsonville, CA 95076. If the product is not registered, proof of purchase (such as a copy of the original invoice) is required.
This warranty does not apply if, in Orion’s judgment, the instrument has been abused, mishandled, or modified, nor does it apply to normal wear and tear. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. For further warranty service information, contact: Customer Service Department, Orion Telescopes & Binoculars, P. O. Box 1815, Santa Cruz, CA 95061; (800)-676-1343.
3
