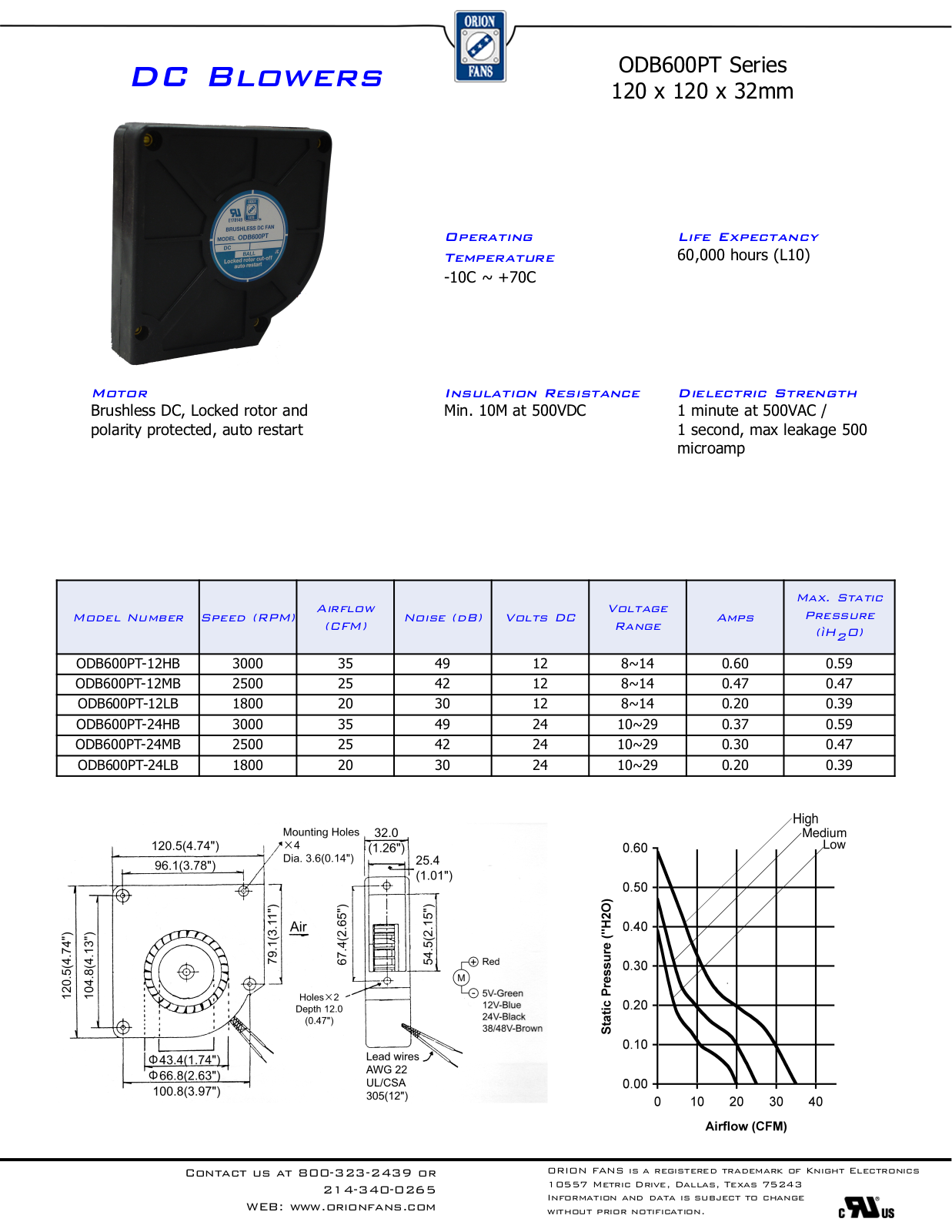

Orion DC Blowers Data Sheet

DC Blowers

ODB600PT Series

120 x 120 x 32mm

Operating
Temperature

Life Expectancy

60,000 hours (L10)

-10C ~ +70C

Motor

Brushless DC, Locked rotor and
polarity protected, auto restart

Insulation Resistance

Min. 10M at 500VDC

Dielectric Strength

1 minute at 500VAC /
1 second, max leakage 500
microamp

Model Number Speed (RPM)

ODB600PT-12HB 3000 35 49 12 8~14 0.60 0.59
ODB600PT-12MB 2500 25 42 12 8~14 0.47 0.47

ODB600PT-12LB 1800 20 30 12 8~14 0.20 0.39
ODB600PT-24HB 3000 35 49 24 10~29 0.37 0.59
ODB600PT-24MB 2500 25 42 24 10~29 0.30 0.47

ODB600PT

-24LB

1800 20 30 24 10~29 0.20 0.39

Airflow

(CFM)

Noise (dB) Volts DC

Voltage

Range

Amps

Max. Static

Pressure

(ìH2O)

Contact us at 800-323-2439 or

214-340-0265

WEB: www.orionfans.com

ORION FANS is a registered trademark of Knight Electronics
10557 Metric Drive, Dallas, Texas 75243
Information and data is subject to change
without prior notification.
