Orion 9RCRD User Manual

Installation and User's Guide

RACK MOUNT READY SERIES

(9.7 inches Dual Monitor)

http://www.orionimages.com

All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein

Installation and User's Guide

1. SAFETY INSTRUCTION

Follow this safety instruction to use the monitor properly and prevent the damages.

This safety instruction has “Warning” & “Caution” as below

Warning -

Caution -

If the user does not follow this instruction,
it may cause the serious damage to the user.

If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.

Keep this user’s guide book for later use.

Warning

Never remove the back over and
touch the inside of the monitor.
If you need a service, please
contact the service center.

Never push objects of any kind into
this product as they may result in
a risk of fire or electric shock.

Keep away the monitor from the
direct sunlight and a heating appliance.

Connect the power code to the wall
outlet tightly. If the power code or plug
are defective and the wall outlet is not
tight, please do not use them.

2

Warning

Installation and User's Guide

Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.

When lightning and thundering, unplug the
monitor from the wall outlet and never touch
it.

When smoking and noising from the monitor,
unplug the product from the wall outlet and
contact a service center.

For cleaning do not use liquid cleaners.
Never touch the power plug with wet-hands.

Unplug this product from the wall outlet, when
It does not operate for a long time.

:

:

IIN

N

How to fix

G

G

A

W

RNN

A

W

R

Do not open this product as it contains high voltage inside.
It may create an electric shock.
It the user disassembles and remove the back cover, it does not make sure
to make up for the damages and do a service and exchange the monitor.

3

Cautions

Installation and User's Guide

Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.

The openings must not be blocked by
curtain, rug or other similar surface.

Before carrying the monitor, tum it off and
Unplug the signal cables and the power code
From the wall outlet.

Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.

When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.

Take the power plug out from the wall
outlet.
Do not pull the cable. It may snap the inner­wires and cause overheating and fire.

4

Cautions

Installation and User's Guide

Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.

For cleaning, unplug the monitor from the
Wall outlet. Do net use the liquid cloth.
Use the soft cloth.

Do not press the LCD panel with hands or
the sharpened material hardly.

Do not use the chemical liquid for cleaning.
It may cause fading and breakage.

5

Installation and User's Guide

g

2. FCC RF INTERFERENCE STATEMENT

N

TE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfe
particular installation. If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio, TV technician for help.
Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the
grantee or manufacturer could void the users authority to operate such equipment.

renc

e will not occur in a

DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus
set out in the radio interference re

ulation of Canadian Department of communications.

6

Installation and User's Guide

TABLE OF CONTENTS

1. SAFETY INSTRUCTION
1-1 Warning

1-2 Caution

2. FCC STATEMENT

3. INSTALLATION
3-1 Parts
3-2 How to Install

4. OSD MENU SETTING
4-1 INPUT Select
4-2 MENU Selection
4-3 PICTURE MENU on OSD
4-4 VOLUME MENU on OSD
4-5 SYSTEM MENU on OSD
4-6 FUNCTION MENU on OSD
4-7 HOT KEY Function Definition

5. FEATURES

6. APPENDIX

7. LIMITED WARRANTY

2

6

8

11

16

17

18

8. TROUBLESHOOTING

19

7

3. INSTALLATION

3-1 Parts

Installation and User's Guide

LCD Monitor

Adapter

VGA Cable

Power Cable

User Manual

8

3-2 How to Install

KEY BUTTON

SHORT KEY FUNCTION

OSD Key Function

MENU / EXIT
SOURCE /
AUTO /

VOL
SELECT

LED LAMP

Activates and exits the OSD
Select input source, and move the OSD menu
Move the OSD menu and auto adjustment of RGB source
Decrease the level of volume and move the previous menu.
Increase the level of volume and select the OSD menu

Turns the power ON or OFF. There will be a few seconds delay
before the display appears. The power LED(next to the power
switch) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again and
the power LED goes Red.

Power ON Indicator

Installation and User's Guide

9

CONNECTION

Installation and User's Guide

1

2 3 4

5 6 7

1. HDMI Input

3. AV1 Input / Output

Composite signal in / out for AV 1

5. AUDIO1 Input

Stereo audio signal input.
This input for AV1 and S-VIDEO

1

2 3 4

2. RGB Input

4. AV21 Input / Output

Composite signal in / out for AV 2

6. S-Video Input

Y/C separated signal input

7. PC AUDIO Input 8. DC 12V Input

5 687

10

4. OSD MENU SETTING

4-1 INPUT Select

Inputs can be set to AV1, AV2, S-VIDEO, HDMI and PC mode.

AV1
AV2
SVIDEO
HDMI
PC

Installation and User's Guide

1.

Press the SOURCE button and then ▲/▼ Button
to move the source

2.

Press the ►button to select the source

3.

Press the MENU/EXIT Button to exit the INPUT
menu.

4-2 MENU Selection

1.

Press the MENU/EXIT key to access the main menu.

2.

Use the ▲ and ▼ arrow key to highlight a selection.

3.

Press the ►/SELECT key to select an item

4.

Use the ▲ and ▼ arrow key to highlight a selection.

5.

►

Use the and ► arrow key to adjust the setting on a selected item.

11

4-3 PICTURE MENU on OSD

4-3-1 INPUT SOURCE (AV1, AV2, S-VIDEO, HDMI)

OSD Menu is working on after it connects the source signal.


Installation and User's Guide

Contrast

Brightness

Tint

Color

Sharpness

Color Tone

Scale

Picture Mode

1.

Press the MENU/EXIT Button and then / ► Button to select the PICTURE menu.

2.

Press the ▲ or ▼ Button and then button to select the Button to select the

Normal

Full

Standard

►

57

50

50

55

51

adjustment item you need.

3.

Press the or ►Button to active the item.

►

Ex) if you select the BRIGHTNESS, then the below picture appears on the bottom screen.

Brightness

80

4.

Press the MENU/EXIT button to move to the previous menu.

12

4-3-2 INPUT SOURCE (PC Mode only)

Installation and User's Guide


Contrast

Brightness

Color Tone

Auto

Color Auto

1.

Press the MENU/EXIT Button and then / ► Button to select the PICTURE menu.

2.

Press the ▲ or ▼ Button and then button to select the Button to select the

►

50

50

adjustment item you need.

3.

Press the or ►Button to active the item.

4.

‘Auto’ function is adjusting the location of screen by receiving the sync signal from PC.

►

Ex) Resolution change

5.

‘Color Auto’ is adjusting the optimum color coordination automatically.

4-4 VOLUME MENU on OSD

AV1, AV2, S-VIDEO, PC, HDMI

Volume

1.

Press the /SELECT button for adjusting the volume up and down.

50

13

4-5 SYSTEM MENU on OSD

AV1, AV2, S-VIDEO, PC, HDMI

Installation and User's Guide

Sleep Timer

Language

H-Position

V-Position

Duration

Halftone

DPMS

No Operation

Reset

SYSTEM

OFF

English

OFF

OFF

50

50

15

100

Sleep Timer

Language

H-Position

V-Position

Duration

Halftone

DPMS

No Operation

Reset

SYSTEM

AV1, AV2, S-VIDEO, HDMI PC (VGA)

1.

Press the MENU/EXIT Button and then / ► Button to select the PICTURE menu.

2.

Press the ▲ or ▼ Button and then button to select the Button to select the

►

adjustment item you need.

3.

Press the or ►Button to active the item.

4.

‘Sleep Timer’ function is adjust the time to turn power off automatically.

5.

‘Duration’ function is adjust the time to display OSD menu.

6.

‘Halftone’ function is adjust the transparency of the OSD menu.

7.

‘DPMS’ function is adjust the time to turn power off during no input signal.

►

OFF

English

50

50

15

100

OFF

OFF

[Option]

‘No Operation’ function is adjust the time to turn power off during no input key button.

14

4-6 FUNCTION MENU on OSD

PC Mode only

H-Position

V-Position

Clock

Phase

Installation and User's Guide

FUNCTION

50

50

100

100

1.

Press the MENU/EXIT Button and then / ► Button to select the PICTURE menu.

2.

Press the ▲ or ▼ Button and then button to select the Button to select the

►

adjustment item you need.

3.

Press the or ►Button to active the item.

4.

Press the MENU/EXIT button to move to the previous menu.

►

4-7 HOT KEY Function Definition

OSD Key Function

MENU / EXIT
MODE / DOWN

VOL+ / RIGHT

VOL- / LEFT
AUTO / UP
POWER

OSD ON / OFF, Exit
Source Change, Menu down
Volume menu On / Volume Up

Volume Down
Auto Adjust, Menu up
POWER ON / OFF

15

5. FEATURE

Display

Screen Size

Panel Type
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Aspect Ratio
Viewing Angle (H/V)
Display Color
Response Time
Video System

Interface

Video In / Out (BNC Type)
HDMI In
S-Video In
VGA In (15 PIn D-Sub)
Audio In (RCA Type)
PC Stereo In

Audio

Built-In Speaker

Dimension / Weight

Dimension
Net. Weight

Power

Consumption: < On

Electrical Ratings

*Design and specifications are subject to change without notice

Installation and User's Guide

9.7 Inch

LED BLU

1024 x 768 @ 60Hz

0.192 x 0.192 mm

262,144 Colors (6 bit)

2 / 2 x Dual Monitor

1 x Dual Monitor
1 x Dual Monitor
1 x Dual Monitor

1 x Dual Monitor

1 x Dual Monitor

18.98" x 8.66" x 1.97"

5.2 kg (11.46 lbs)

AC100 ~ 240V (50/60Hz)

400cd/m

800 : 1

4 : 3

178 / 178

< 35ms

NTSC / PAL

Yes

< 35W

DC12V / 3A

2

16

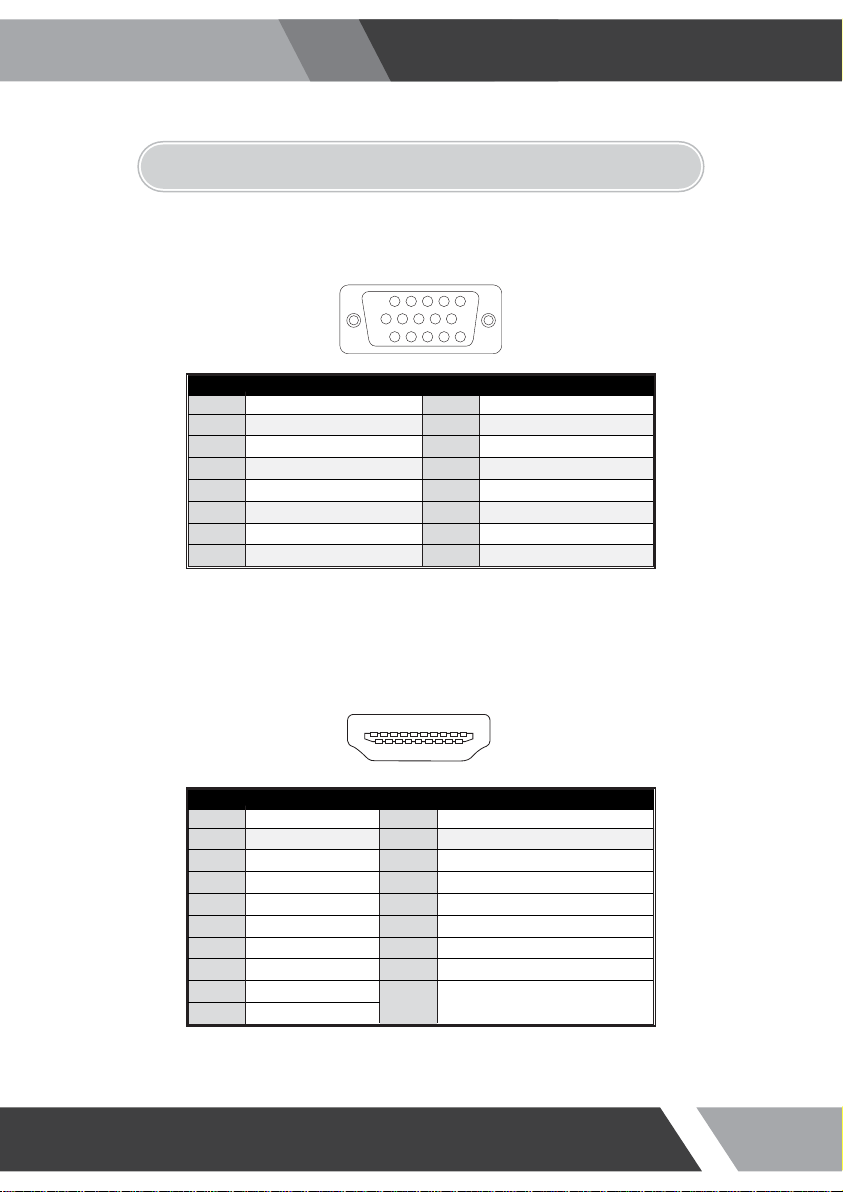

6. APPENDIX

6-1 D-SUB Connector PIN Assignment

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15

PIN No. PIN Name PIN No. PIN Name

RED VIDEO

1
2

GREEN VIDEO

3

BLUE VIDEO

4

GROUND

5

GROUND
RED GROUND

6
7

GREEN GROUND
BLUE GROUND

8

NC

9
10

SIGNAL CABLE DETECT

11

GROUND

12

SDA (for DDC)

13

H-SYNC
V-SYNC

14
15

SCL (for DDC)

Installation and User's Guide

6-2 HDMI Type A PIN Assignment

18 16 14 12 10 8 6 4 2

PIN No. PIN Name PIN No. PIN Name

TMDS Data2+

1
2

TMDS Data2 Shield

3

TMDS Data2-

4

TMDS Data1+

5

TMDS Data1 Shield
TMDS Data1-

6
7

TMDS Data0+
TMDS Data0 Shield

8

TMDS Data0-

9

TMDS Clock+

10

135791113151719

TMDS Clock Shield

11
12

TMDS Clock-

13

CEC

14

Reserved (HDMI 1.0-1.3c), HEC Data -

15

SCL (PC serial Clock for DDC)
SDA (PC serial Clock for DDC)

16
17

DDC/CEC/HEC Ground

18

+5V Power (max 50 mA)
Hot Plug Detect (All Versions) and

19

HEC Data +(Optional, HDMI 1.4+ with
Ethernet)

17

Installation and User's Guide

7. 2 Year Limited Warranty

All ORION IMAGES products carry a limited warranty from ship date against defects in materials
and workmanship. ORION IMAGES is not liable for improper installation that results in damage
to mounts, adapters, display equipment or personal injury.

Contact ORION IMAGES

In the event of missing and/or damage equipment, or technical questions, the following information can
help in the completion of the installation.

ORION IMAGES Corp. (USA)

Address: 7300 Bolsa Avenue, Westminster, CA 92683

Tel: [phone] / Fax: [phone]
mail: [e-mail]
Website: http://www.orionimages.com

18

Installation and User's Guide

8. TROUBLESHOOTING

* When the following troubles are occurred, follow the trouble shooting. Before contacting a
service center.

Troubleshooting

The screen doesn’t
show up

The screen is too light
or to dark

The screen size is not fit
for the PC signal

The screen color shows
strange in the PC signal

Troubleshooting Tip

1. Make sure if the power supply is connected property

2. Turn on the power.

3. Select the input signal right for the connected port.

Control the BRIGHTNESS

Press the AUTO key among keys in the front.
(It is used only in the PC signal)

In the FUNCTION menu of OSD menu, perform the
AUTOADJUST.

19
