INSTRUCTION MANUAL

Orion StarShoot™

Solar System Color Imaging Camera IV

#52175

Providing Exceptional Consumer Optical Products Since 1975

OrionTelescopes.com

Customer Support (800) 676-1343

E-mail: support@telescope.com

Corporate Offices (831) 763-7000

89 Hangar Way, Watsonville, CA 95076

IN 404 Rev. B 06/11

Welcome to a new world of adventure. Your new StarShoot Solar System Color Imaging Camera IV (SSSSI-IV) is capable of capturing detailed, fullcolor images of astronomical objects in our solar system. The planets, Moon, and Sun (with optional solar ﬁlter) can all be imaged to

Figure 1. To use the SSSSI-IV, a

telescope, mount and computer are required.

create spectacular views on your computer which can be saved for emailing or printing later. The SSSSI-IV can even be used during the day to take images of terrestrial subjects. You’ll ﬁnd that this inexpensive, yet capable and easy to use, camera will enhance all of your journeys with your telescope.

Please read this instruction manual before attempting to use the camera or install the needed software.

Parts List

• StarShoot Solar System Color Imaging Camera IV (SSSSI-IV)

• USB Cable

• CD-ROM

• Dual Format Windows PC / Mac OS X CD-ROM

System Requirements (refer to Figure 1)

Telescope

The SSSSI-IV can be used with virtually any telescope that is compatible with 1.25" format eyepieces. The camera simply is inserted into a focuser in the same way as a standard eyepiece (Figure 1). If you use a star diagonal, you should remove it before installing the SSSSI-IV. If your telescope does not have enough inward focus travel, you will need to use an optional 1.25"

Barlow lens to extend the telescope’s focal plane to the camera’s imaging plane (Barlow sold separately).

For most types of astro-imaging with the SSSSI-IV, using a telescope with a focal length of at least 1000mm is recommended. Otherwise, the image scale may be too small. To increase the effective focal length of your system, use a Barlow lens or other type of tele-extender lens.

Mount

While using an equatorial (EQ) mount is recommended to achieve the best results, one is not absolutely required for imaging with the SSSSI-IV, as the maximum exposure time is only a fraction of a second, astronomical objects will not drift signiﬁcantly through a telescope attached to an altazimuth mount or Dobsonian base during single image captures. Use a sturdy mount that is appropriately sized for the telescope tube being used.

For obtaining the best planetary images, however, we do recommend an equatorial mount. Planetary imaging requires combining many individual images, and having an equatorial mount will prevent the planet from drifting out of the ﬁeld of view of the camera during the time it takes to acquire the large number of images necessary. A motor drive (single-axis) is recommended too for convenient capture of sequential images without manual re-adjustment of the telescope’s position.

Computer

A computer is required for normal use of the SSSSI-IV. For astro-imaging in the ﬁeld at night, a laptop computer is highly recommended.

For windows users the camera driver and Orion Capture software requires Windows XP, Vista or 7.

For Mac users the camera driver and Webcam Monitor software requires OS X and Quicktime 6.5.1 or later on Mac OSX 10.3.

The following hardware is required:

• Processor – Pentium III™ or equivalent, or higher (Windows); Power PC G3/G4/G5 or Intel-Based Macintosh computers (Mac OS X)

• Recommended minimum memory size is 256 MB.

• Disk Space – 100 MB minimum, 500 MB or more recommended for

saving images.

• Video Display – 800 X 600, 16-bit color or higher. 1024x768 or higher is recommended.

• Mouse (external or built-in)

• Internet connection required to display on-line help and downloading

image processing software

• High Speed USB 2.0 port

2 3

Software and Driver Installation

Before the camera can be used, image capture software and a camera driver must be installed onto your computer.

Windows Installation

Turn on your computer and allow the Windows operating system to load as normal. Insert the included CD-ROM into your computer’s CD-ROM drive, and the Launcher will appear (Figure

2). This allows you to install the Orion StarShoot Solar System Imager camera driver and the Orion image capture software (Orion AmCap).

Camera Driver Installation

Do not connect the SSSSI-IV to your computer yet.

1. Insert the CD-ROM into the drive. The Launcher will appear. If you are using Windows Vista, the AutoPlay window will appear ﬁrst. Select Run

autorun.exe.

2. Click Install Camera Driver.

3. The D-PEN Software Installation will start.

4. You are now ready to install. Click Install. The installation will proceed.

5. When installation is complete click the Finish button.

Once the driver is installed, the computer will recognize the SSSSI-IV whenever it is plugged in.

Capture Software Installation

Now that the camera driver software is installed, the capture software must also be installed.

1. Return to the Launcher and click Install Capture Software.

2. The Orion AmCap Setup Wizard appears. Click Next.

3. Select a destination folder and Click Next.

4. Click Next again to start the installation.

Figure 2. The launcher provides an

easy menu for software installation. (Windows)

Figure 3. When initially connecting

the SSSSI-IV to a computer, a Found New Hardware notiﬁcation will

appear and automatically install the camera to your computer. (Windows)

5. When the wizard is complete, click close. This has installed the capture software.

6. Plug in the camera into your computer’s USB port.

7. A Found New Hardware notiﬁcation will appear in your Windows task bar (Figure 3). The found new hardware wizard will launch. Select next. Select install the software automatically. Select next. Select Continue Anyway and the hardware wizard will begin Installation.

8. Wait a few moments and the camera will automatically install on your computer. When Device Installed Successfully notiﬁcation appears you will be ready to use the camera.

9. Open Orion AmCap from the icon on your desktop. The Live Video Window should appear (Figure 4). The software will recognize many cameras so check that D-PEN is selected from the device menu.

Mac Installation

Turn on your computer and allow the Mac operating system to load as normal. Insert the included CD-ROM into your computer’s CD-ROM drive, and the Launcher will appear (Figure 5). This allows you to install the Orion StarShoot Solar System IV Imager camera driver (Sonix SN9C201 Webcam Driver) and the WebCam Monitor capture software.

Camera Driver & Capture Software Installation

Do not connect the SSSSI-IV to your computer yet.

Double Click “Sonix SN9C201 WebCam Driver Install.pkg”.

The Software Installation will start. Follow the on screen instructions.

Once the driver is installed, the computer will recognize the SSSSI-IV whenever it is plugged in.

The camera driver software (SN9C201 driver) and WebCam Monitor capture software is now installed. Now connect the SSSSI-IV to your computer.

Figure 4. The live video window.

(Windows)

Figure 5. The launcher provides an

easy menu for software installation. (Mac OS X)

4 5

1. Open WebCam Monitor from the icon on your desktop. The WebCam list window will show connected cameras. Click within this window to see available cameras. It might take a moment for the SN9C201 WebCam to display on this window (Figure 6). Click settings for this camera.

2. The Video settings window will now open (Figure 7). Select format SXVGA for highest resolution of 1280 x 960.

3. Exposure time, gamma and white balance can also be adjusted on this screen.

4. Select the adjustments tab to modify Hue, Saturation, Brightness, Contrast and Sharpness (Figure 8).

5. Select ok. The Live Video Window should appear (Figure 9).

Figure 6. Mac OS X WebCam List.

Image Processing Software

Windows

Website links are provided in the launcher to download popular free Image processing software to be used with your AVI ﬁles to enhance your astro Images.

Image Processing Software such as RegiStax or AviStack; can Align and Stack(combine) hundreds of individual images into a single resultant image and perform some additional image processing to bring out subtle details or to make the image appear more pleasing overall.

Figure 7. Mac OS X Video Settings.

Mac OS X

Included on CD is the Lynkeos software that can be used to stack and process movies and images. This program can be copied (dragged) into the applications folder or run from the CD itself.

Lynkeos is a Cocoa (Mac OS X) application dedicated to the processing of astronomical (mainly planetary) images.

It is a "Universal binary" running natively on PowerPC and Intel Macintosh. It is optimized for vectorized instructions sets (Altivec or SSE) and for multi-processor and multi-core machines.

Lynkeos is free software under the GNU General Public License. Source code is available for developers (http:// lynkeos.sourceforge.net)

To use AVI or MPEG sequences you will need to now run the FFMpeg installer. Double click ffmpeg.pkg and follow on screen Installation instructions.

To load or save images in FITS format you will need to go to the website http://lynkeos.sourceforge.net. Select Download from the menu options on left hand side to be taken to the download area to select the latest App, Plug Ins and Libraries.

For latest software and documentation please visit: http://lynkeos.sourceforge.net.

Run Lynkeos and select help to access tutorials and other general help features.

Figure 8. Hue, Saturation,

Brightness, Contrast and Sharpness settings. (Mac OS X)

Figure 9. Live Video Window (Mac

OS X).

Image Processing Software Installation

Return to the launcher and select RegiStax or AviStack to be directed to a website to download the latest software.

For detailed information on the image processing software consult the websites of each software provider. Tutorials and user groups can be found online also.

6 7

Getting Started During Daylight

We recommend using the SSSSI-IV for the ﬁrst time during the day. This way, you can become familiar with the camera and its functions without having to stumble around in the dark. Set up your telescope and mount so the optical tube is pointing at an object at least a couple of hundred feet away. Insert an eyepiece and focus as you normally would.

To obtain ﬁrst images with the SSSSI-IV, follow these step-by-step instructions:

Windows

1. Plug the camera into your computer’s USB port. Notice the red LED shining through the blue window on the back of the camera; this LED light indicates the camera is connected and receiving power from the computer.

2. Double click the Orion AmCap icon now installed on your computer’s

Figure 10. Changing resolution

via options->Video Capture Pin. (Windows)

desktop.

3. Orion AmCap will automatically connect directly to your camera with a Live Video Window. Your Live Video Window will only show light and dark before the camera is coupled to your telescope.

4. When the camera is connected to the computer, the Live Video Window (and subsequent images captured with the camera) will display at 640x480 resolution. To change to full resolution mode, select Video Capture Pin from Options menu, select 1280x1024 under the Output Size heading, then click OK (Figure 10). The Live Video Window will now display at full resolution, and will occupy most of the computer monitor’s screen. Any images captured with the camera will now also be at full resolution. To move the Live Video Window out of the way, click on the top bar of the window and drag it to the desired location on the computer screen.

5. To connect the camera to the telescope, simply replace the telescope’s

1.25" eyepiece with the camera. Make sure the securing thumbscrew on the focuser drawtube is tightened after the camera is inserted.

6. You will now need to refocus the camera for the centered object. Focusing will be the hardest thing to learn in the initial stages. If you are starting out in daylight, as is recommended, you may need to turn the exposure and/or brightness control of the camera down before attempting to focus. This is done by selecting Video Capture Filter in the Options menu and moving the exposure or brightness slider (Figure 11). If the daytime image brightness is still too bright to produce an acceptable image on your computer screen, you may need to stop-down the aperture of your telescope.

7. Look at the Live Video Window on the computer screen and adjust the focus knob accordingly to determine best image focus.

Note: The camera’s ﬁeld of view is fairly small. It is approximately equivalent to the ﬁeld of view through the telescope when looking through a typical (i.e. not wide-ﬁeld) 5mm focal length eyepiece.

8. Image orientation can be changed by rotating the camera within the focuser drawtube. Simply loosen the thumbscrew on the drawtube and rotate the camera until the desired image orientation is achieved. Retighten the thumbscrew on the focuser drawtube when done. You may need to slightly refocus (using the telescope’s focus knob) if the focuser drawtube has moved a bit inward or outward when the camera was rotated.

9. Select Capture File from the File menu and name your ﬁle including the AVI extension name. IE mymovie.avi. Click Open.

10. Enter the amount of disk space to allocate as a buffer for this data. Movie ﬁles need a large amount of disk space. Enter a value such as 50 Megabytes or higher. Press

Figure 11. Changing exposure

via options->Video Capture Filter. (Windows)

ok. The size of the captured data may be much higher than this value depending upon number and size of frames captured.

11. Select Set Frame Rate under the Capture menu. Check the box Use Frame Rate and type 15. Press ok.

12. Select Set Time Limit under the Capture menu. Check the box Use Time Limit and type 20. Press ok.

13. Select Start Capture under the Capture menu.

14. Press ok when you are ready to capture Images.

An AVI movie sequence of 300 frames (15 frames per second x 20 seconds) will now be recorded.

The total number of captured frames is displayed on the bottom bar. If frames are being dropped this will be displayed and the frame rate or resolution should be set to a lower value to prevent this.

You have now taken your ﬁrst images with the SSSSI-IV! This simple method of imaging is exactly how the camera is used to capture terrestrial subjects during daylight hours. Close-up images of birds and other wildlife or faraway vistas can all be obtained in this way with the SSSSI-IV. Solar images can

8 9

also be taken during the day with an optional full-aperture solar ﬁlter over the front of the telescope.

Take some time to use the camera and Orion AmCap software during the day to become familiar and comfortable with their basic operation. For best results, you can optimize your images with the camera controls.

Mac OS X

1. Plug the camera into your computer’s USB port.

2. Double click the WebCam Monitor icon now installed on your computer’s desktop.

3. Click within the WebCam list window. Wait for the SN9C201 driver to show up on the WebCam List window and click settings (Figure 6).

4. To change to full resolution mode, select SXVGA (1280x960) next to the format heading, then click OK (Figure 7). The Live Video Window will now display at full resolution, and will occupy most of the computer monitor’s screen. Any images captured with the camera will now also be at full resolution. To move the Live Video Window out of the way, click on the top bar of the window and drag it to the desired location on the computer screen.

5. Your Live Video Window will only show light and dark before the camera is coupled to your telescope.

6. To connect the camera to the telescope, simply replace the telescope’s

1.25" eyepiece with the camera. Make sure the securing thumbscrew on the focuser drawtube is tightened after the camera is inserted.

7. You will now need to refocus the camera for the centered object. Focusing will be the hardest thing to learn in the initial stages. If you are starting out in daylight, as is recommended, you may need to turn the exposure and/or brightness control of the camera down before attempting to focus. This is done by selecting Video settings on the live video window or settings on the WebCam List window and moving the exposure or brightness slider (Figure 7, 8). If the daytime image brightness is still too bright to produce an acceptable image on your computer screen, you may need to stop-down the aperture of your telescope.

8. Look at the Live Video Window on the computer screen and adjust the focus knob accordingly to determine best image focus.

9. Image orientation can be changed by rotating the camera within the focuser drawtube. Simply loosen the thumbscrew on the drawtube and rotate the camera until the desired image orientation is achieved.

Retighten the thumbscrew on the focuser drawtube when done. You may need to slightly refocus (using the telescope’s focus knob) if the focuser drawtube has moved a bit inward or outward when the camera was rotated.

10. Click Grab Picture on the Live Video window to take single image then select export picture under the ﬁle heading on WebCam Monitor, then select output compression type as desired then click ok. Select desired location and click save.

11. Click Record Video on the Live Video window to capture a movie in MOV format. Select desired location and click save. Click Stop Record when ﬁnished recording.

Take some time to use the camera and WebCam Monitor software during the day to become familiar and comfortable with their basic operation. For best results, you can optimize your images with the camera controls.

Camera Controls

Windows

For best images, you can adjust the camera controls though Orion AmCap to ﬁne tune the image. You can see how the camera controls affect an image in the Live Video Window.

From the Options menu choose Video Capture Filter and you can access the camera controls. Here you will ﬁnd the Brightness, Contrast, Gamma, Hue, Saturation (level of color), Sharpness (keep this low as it can add noise), and Exposure controls. The Exposure control is a gain adjustment that allows additional ﬂexibility in adjusting image brightness. You can manually adjust this by moving the slider. To return the camera controls to their default settings, click the Default button.

The other camera controls are available by selecting Video Capture Pin from the Options menu. This accesses the Stream Format property sheet, which allows you to set additional parameters. The Frame Rate, while generally should be left at 15 frames/second for the sharpest planetary images, can be toggled down to 7.5 frames/second for brightest exposures. This value may be overridden If the use Frame Rate box Is checked in the Capture -> Set Frame Rate menu. (You can also use the Video Capture Filter selection described previously to adjust image brightness.) Check the

10 11

Flip Horizontal box to change the orientation of the image display in the Live Video Window. The Output Size can be used to shrink the image size

if desired; the camera defaults to 640x480, but you should raise this to the highest setting 1280 x 1024 (Windows) for the maximum possible resolution.

Try several different settings to get a feel of how the camera controls work and affect the resultant image on the computer screen. The Brightness and Exposure controls are the ones you will use the most. The telescope being used, seeing conditions, and object being imaged will dictate how these camera controls should be set. Usually Exposure will be set ﬁrst, then Brightness is adjusted as needed.

Mac OS X

For best images, you can adjust the camera controls though WebCam Monitor to ﬁne tune the image. You can see how the camera controls affect an image in the Live Preview Video Window.

From the settings menu you can access the camera controls. Here you will ﬁnd the Brightness, Contrast, Gamma, Hue, Saturation (level of color), Sharpness (keep this low as it can add noise), and Exposure controls (Figure 7, 8). The Exposure control is a gain adjustment that allows additional ﬂexibility in adjusting image brightness. You can manually adjust this by moving the slider. To return the camera controls to their default settings, click the Default button.

The other camera controls are available by selecting Compression from the Settings menu. Compression is normally set to NONE. The Frames per Second, while generally should be left at Best setting for the sharpest planetary images, can be toggled down for brightest exposures. Check the

Flip Horizontal box to change the orientation of the image display in the Live Video Window. The Output Size (Format) can be used to shrink the

image size if desired but you should raise this to the highest setting 1280 x 960 (Mac OS X) for the maximum possible resolution.

Astronomical Imaging

Now that you’re familiar with basic camera and software operation, it’s time to take the SSSSI-IV out at night under the stars to capture some astronomical images. We recommend starting with the Moon, as it is easy to acquire into the camera’s ﬁeld of view, and typically does not require stacking of multiple exposures as planetary images do.

Imaging the Moon

Imaging the Moon is much like imaging terrestrial objects during the day. Since the exposure is very short, it is not critical that the telescope be precisely polar aligned.

When the moon is past half full, it is hard to get detail due to the tremendous glare off of the lunar surface. Most detail, even on a sliver of a moon, will be at the terminator (that tiny thin line between the shadow and

Figure 12. The moon’s surface

detail looks the best along the terminator.

light, see Figure 12). To get more of the moon in the image, a focal reducer will need to be used. For close-ups of craters use a Barlow lens (see “Using Focal Reducers and Barlow Lenses”).

Imaging Planets

The best planetary images will be obtained by stacking (combining) many individual images in order to improve image contrast, brightness, and detail (Figure 13, 14).

A great way to obtain images for stacking is to take several seconds

Figure 13. Jupiter with Ganymede

and shadow in transit. Left. Live image Right. 500 frames Aligned, stacked

and enhanced using Registax Image Processing Software (Windows). Image taken with Orion 180mm MakCass telescope.

of video of the planet, then break the video into individual frames for stacking. Since the SSSSI-IV has a maximum frame rate of 15 frames per second at maximum resolution, you can literally obtain hundreds of images for stacking in seconds! You save time by taking one video instead of dozens of individual pictures!

Since you will be taking multiple images over a period of time, it is important you have a decent polar alignment

Figure 14. Saturn. Left. Live image

Right. 100 frames Aligned, stacked

and enhanced using Lynkeos Image Processing Software (Mac OS X). Image taken with Orion 180mm MakCass telescope.

in order to keep the planet within the ﬁeld of view of the camera. To this end, having a motor drive (at least single-axis) will also be helpful. Otherwise, you will periodically need to rotate the R.A. slow-motion knob to keep the planet within the camera’s ﬁeld.

12 13

Planets such as Jupiter and Venus are bright and will require short exposures.

For lower light planets such as Saturn the Auto White Balance should be disabled by un-checking the auto box and the Red, Green & Blue Gain values adjusted to a higher setting as well as using longer exposure times (or auto exposure).

Select Video Capture Filter from AmCap (Windows)

WebCam List  settings  SN9C201 (Mac OS X) in order to access Auto White and exposure settings.

Loss of Camera Connection

If the computer connection to the camera is interrupted, you will need to re-establish connection. This can happen due to several reasons; if a cable becomes unplugged, the computer “freezes”, or the software/hardware otherwise temporarily loses the data coming from the camera.

To re-establish camera connection, ﬁrst close the Orion AmCap (Windows) or WebCam Monitor (Mac OS X) program on your computer. Then, unplug and re-plug the camera into the computer’s USB port. Now, open Orion AmCap (Windows) or WebCam Monitor (Mac OS X), and the Live Video Window should appear indicating re-established connection between camera and computer.

Tips

Focusing

One of the hardest things to do in planetary imaging is achieving good focus. You can make this process easier by simply watching the Live Video window to focus. Depending upon the viewing conditions you may notice that the image goes in and out of focus, this is due to viewing conditions. This is to be expected and one of the reasons why post processing software can bring out the best in your captured images. Focus as best as possible with the average frame being at best focus to ensure more in focus frames than out of focus. Image processing software can then be used to select the best frames to combine for best results and can also reject the poorest frames.

Refocus often throughout your imaging session. This ensures at least some of your images will have an excellent focus. It is also not uncommon for telescope movements to alter the focus slightly, so be sure to refocus for any new astro-imaging targets.

Choosing a Site for Astro-imaging

Once you have a focused image, you may ﬁnd your image shifting and washed out. This can be caused by many environmental factors. Poor seeing (movement of molecules in the air, such as heat rising) and poor transparency (moisture, smoke, or other sky contaminants) will all serve to reduce image quality. That is why most major astronomical telescopes are on high mountains in thin air, to get above much of the seeing and transparency problems. Also, wind will move your telescope and affect images. Your eyes viewing through an eyepiece can change slightly to compensate for disturbances like these, but the camera cannot. Keep these factors in mind when choosing an observing site for astronomical imaging.

For the best astro-images, we recommend ﬁnding a location with dry air, some altitude, and away from city or streetlights. Even a nearby hilltop in the countryside can provide better viewing conditions than many convenient backyard locations.

Using Focal Reducers and Barlow Lenses

Focal reducers serve to decrease the focal length of your telescope. This increases the ﬁeld of view seen by the camera (decreases camera magniﬁcation). This can be useful for obtaining images of wider objects, such as the full Moon or a landscape vista.

Barlow lenses, or other tele-extenders, increase the focal length of your telescope, which makes the camera ﬁeld of view narrower (increases camera magniﬁcation). This is useful for high-power planetary images. Keep in mind that when the focal length is doubled, the image will become four times dimmer, so a longer exposure may be necessary.

For best planetary imaging, you should shoot with an effective focal ratio (telescope focal length ÷ telescope aperture) of F/20 or greater. This will give you a good combination of image brightness and image scale for planets. For most telescopes, a Barlow lens will be required to obtain this focal ratio. For example, Schmidt-Cassegrain telescopes usually have a focal ratio of F/10. A 2x Barlow lens doubles the effective focal length of the telescope, which makes the focal ratio f/20. Similarly, a 3x Barlow lens will yield of focal ratio of F/30. You can also try using multiple Barlows to obtain even greater effective focal ratios. There is a limit to how large a focal ratio your telescope and seeing conditions can handle, however. Experimentation will be needed to see what your telescope is capable of in the seeing conditions on a given night. If the image appears somewhat dim and fuzzy on the computer screen, you may want to consider removing the Barlow lens.

(Focal Reducers and Barlow lenses available through Orion, check the catalog or OrionTelescopes.com for more information).

Filters

For some types of planetary imaging, you may want to use color ﬁlters to bring out subtle details. Any standard Orion 1.25" ﬁlter will thread into the front of the SSSSI-IV’s barrel. Try using different color ﬁlters on a planet to see which ﬁlters help best show planetary details.

14 15

Neutral-density Moon ﬁlters and variable-polarizer ﬁlters are useful to reduce the glare from the moon. They can also be used to reduce the glare from Venus.

Solar Filter

Warning: Always use a full aperture solar ﬁlter when viewing the sun.

With a properly ﬁtting full-aperture solar ﬁlter attached to your telescope, you can use the SSSSI-IV to take images of the Sun and the sunspots on its surface.

(Filters available through Orion, check the catalog or OrionTelescopes.com for more information).

Flip Mirror

As easy as ﬂipping a switch, the Imaging Flip Mirror enables the astrophotographer to ﬁnd, center and focus a target visually with a 1.25" telescope eyepiece, then photograph it with a CCD camera. All without swapping out any equipment. It’s a real timer saver, making the normally tedious task of focusing with the CCD camera alone easier and quicker.

(Available through Orion, check the catalog or OrionTelescopes.com for more information).

USB Extension Cable

In many instances, it is likely that a longer cable for the SSSSI-IV will be needed in order to comfortably setup telescope, camera, and computer. We recommend purchasing a 10' USB extension cable if you need more cord length (available through Orion, check the catalog or OrionTelescopes.com for more information).

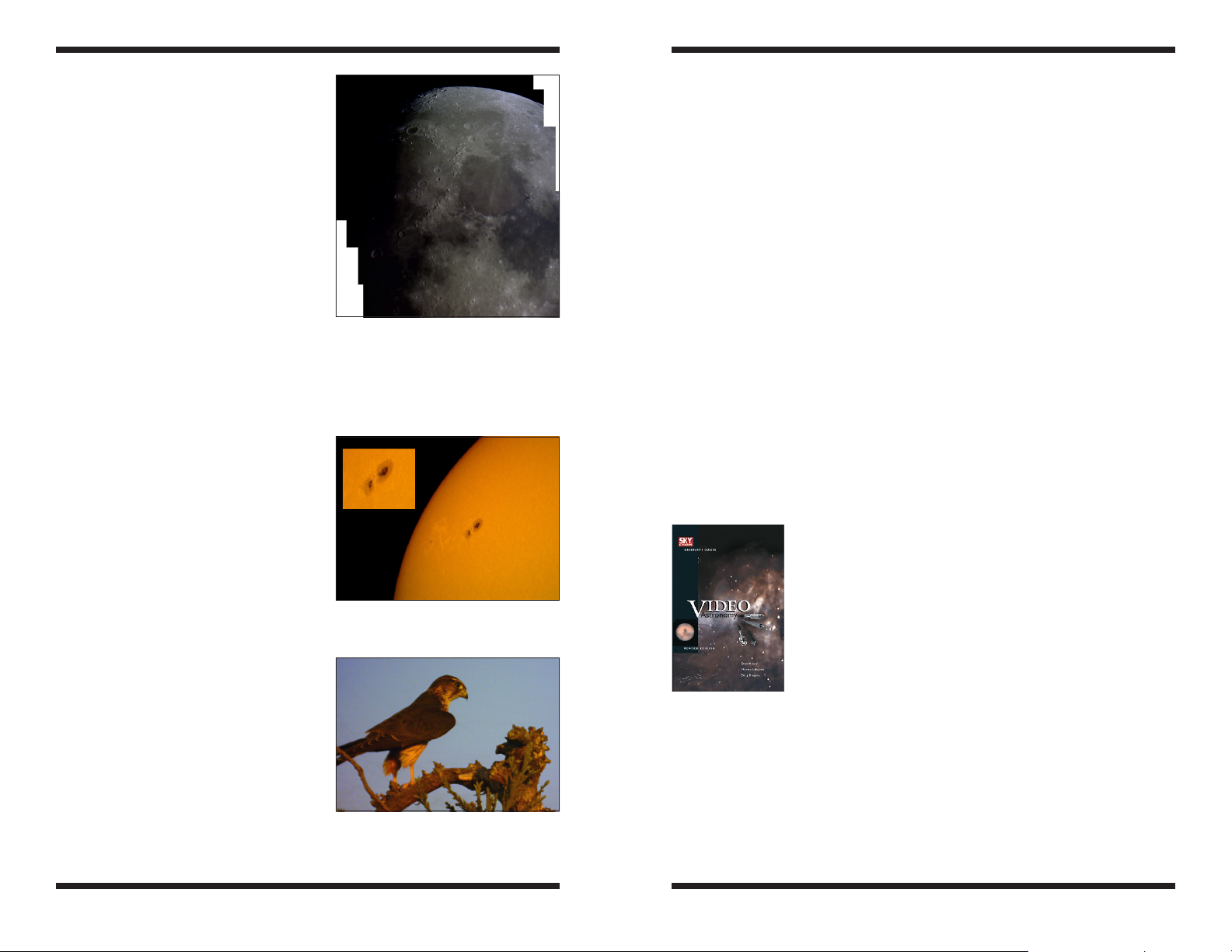

Figure 15. Use software to

assemble individual frames to create a higher resolution image. Image taken using Orion Apex 90mm MakCass telescope and Orion 0.5x Focal reducer. 4 Individual images assembled In Adobe Photoshop.

Figure 16. Image taken using Orion

Apex 90mm Mak-Cass telescope and Orion 0.5x Focal reducer.

Figure 17. Small bird of prey. Image

taken using Orion Apex 90mm MakCass telescope.

Things to Do

Moon

Learn your way around our closest celestial neighbor.

• Image the craters, mountains and valleys.

• Image the different phases from New moon to Full Moon

• Image the detail at the terminator

• Create a moon mosaic (Figure 15)

Planets

• Take a movie of the position of the great red spot of Jupiter during the Gas Giant’s <10 hour day.

• Image Jupiter’s moons and their shadows as they transit across the Gas Giant

• Follow in Galileo’s footsteps by Imaging the different phases of Venus

Solar

• Using a full aperture Solar Filter to image sunspots (Figure 16)

Terrestrial

• Image wildlife from a far distance so as not to disturb feeding and nesting spots (Figure 17)

Orion 52175 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
