All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein
Installation and User's Guide
1. SAFETY INSTRUCTION
Follow this safety instruction to use the monitor properly and prevent the damages.
This safety instruction has “Warning” & “Caution” as below
Warning -
Caution -
If the user does not follow this instruction,
it may cause the serious damage to the user.
If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Keep this user’s guide book for later use.
Warning
Never remove the back over and
touch the inside of the monitor.
If you need a service, please
contact the service center.
Never push objects of any kind into
this product as they may result in
a risk of fire or electric shock.
Keep away the monitor from the
direct sunlight and a heating appliance.
Connect the power code to the wall
outlet tightly. If the power code or plug
are defective and the wall outlet is not
tight, please do not use them.
2
Warning
Installation and User's Guide
Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.
When lightning and thundering, unplug the
monitor from the wall outlet and never touch
it.
When smoking and noising from the monitor,
unplug the product from the wall outlet and
contact a service center.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-hands.
Unplug this product from the wall outlet, when
It does not operate for a long time.
:
:
IIN
N
How to fix
G
G
A
W
RNN
A
W
R
Do not open this product as it contains high voltage inside.
It may create an electric shock.
It the user disassembles and remove the back cover, it does not make sure
to make up for the damages and do a service and exchange the monitor.
3
Cautions
Installation and User's Guide
Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.
The openings must not be blocked by
curtain, rug or other similar surface.
Before carrying the monitor, tum it off and
Unplug the signal cables and the power code
From the wall outlet.
Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.
When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.
Take the power plug out from the wall
outlet.
Do not pull the cable. It may snap the innerwires and cause overheating and fire.
4
Cautions
Installation and User's Guide
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
For cleaning, unplug the monitor from the
Wall outlet. Do net use the liquid cloth.
Use the soft cloth.
Do not press the LCD panel with hands or
the sharpened material hardly.
Do not use the chemical liquid for cleaning.
It may cause fading and breakage.
5
Installation and User's Guide
g
2. FCC RF INTERFERENCE STATEMENT
N
TE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfe
particular installation. If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio, TV technician for help.
Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the
grantee or manufacturer could void the users authority to operate such equipment.
renc
e will not occur in a
DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus
set out in the radio interference re
ulation of Canadian Department of communications.
6
Installation and User's Guide
TABLE OF CONTENTS
1. SAFETY INSTRUCTION
1-1 Warning
1-2 Caution
2. FCC STATEMENT
3. INSTALLATION
3-1 Parts
3-2 How to Install
4. OSD MENU SETTING
4-1 Mode Setting
4-2 PC Main Menu
4-3 PC Function Menu
4-4 PC OSD Menu
4-5 Video Picture Menu
5. FEATURES
6. LIMITED WARRANTY
7. TROUBLESHOOTING
2
6
8
12
17
18
19
7
3. INSTALLATION
3-1 Parts
Installation and User's Guide
LCD Monitor
Adapter
BatteryUser Manual
VGA CablePower Cable
Remote Controller
8
3-2 How to Install
KEY BUTTON
Installation and User's Guide
SHORT KEY FUNCTION
Key NameKey Function
Power ON / OFF
Open OSD menu window
Select the item value and the input source
Navigate to right menu
Navigate to left menu
Navigate to up menu, “Auto Adjust” in VGA(RGB) input only
Navigate to down menu
9
CONNECTION
Installation and User's Guide
231456
1
DC adapter inputVIDEO signal input / looping out
2
HDMI
HDMI signal input
3
VGA
VGA (PC RGB) signal input
4
VIDEO IN / OUTDC12V
5
AUDIO (VIDEO)
Stereo audio input for VIDEO or S-VIDEO
6
AUDIO (PC)
Stereo audio input for VGA
10
REMOTE CONTROLLER
POWERAUTO
VOL+
VOL-
OK
SOURCE
MENU
MUTE
Installation and User's Guide
SHORT KEY FUNCTION
Key NameKey Function
POWER
AUTO
VOL VOL +
MENU
SOURCE
MUTE
Power ON / OFF
Excute Auto-Adjustment automatically optimizing the displayed image
Decrease the volume
Increase the volume
OK
Select the item
Navigate to up menu on Sub Menu
▲
Navigate to down menu on Sub Menu
▼
Navigate to previous menu on Top Menu. Decreases Gauge Value of Sub Menu
◀
Navigate to next menu on Top Menu. Increases Gauge Value of Sub Menu
▶
Open / Close OSD menu
Select the input source
Sound ON /OFF
11
Installation and User's Guide
4. OSD MENU SETTING
4-1 Mode Setting
AV
PC
HDMI
1. Press the button and then / button to move the source
2. Press the button to select the source
* Press the button to exit the Mode Setting menu
Inputs can be set to AV, PC & HDMI mode
AV
Select VIDEO mode
PC
Select VGA(RGB) mode
HDM
Select HDMI mode
12

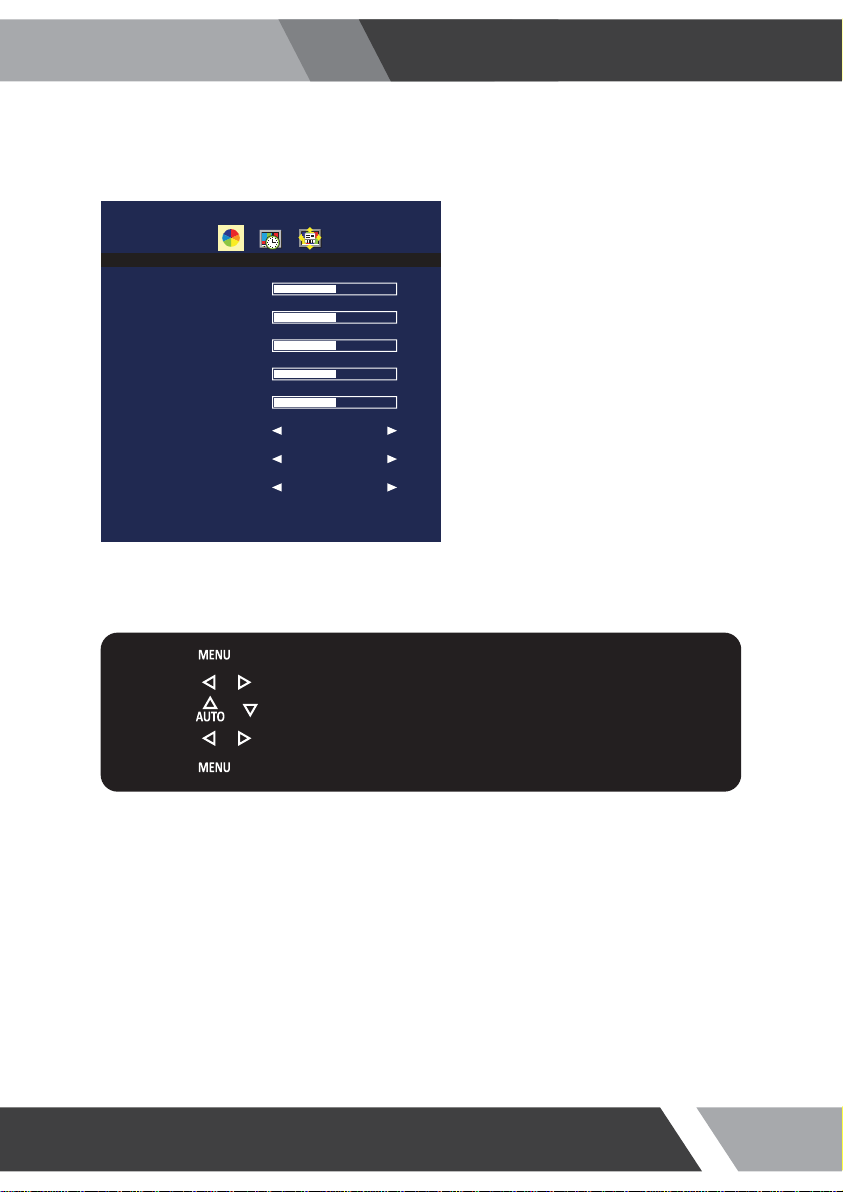

4-2 PC Main Menu
Contrast
Brightness
H-Position
V-Position
Clock
Phase
Color Mode
Auto
Installation and User's Guide
PC
1. Press the button to access menu
2. Press the / button to select the menu
3. Press the / button to choose an item
4. Press the / button to adjust the setting on a selected item
5. Press the button to move the previous menu
13
4-3 PC Function Menu
Sleep TimerOFF
Auto Color
Auto Backlight
Installation and User's Guide
Function
OFF
1. Press the button to access menu
2. Press the / button to select the menu
3. Press the / button to choose an item
4. Press the / button to adjust the setting on a selected item
5. Press the button to move the previous menu
14
4-4 PC OSD Menu
H-Position
V-Position
Duration
Halftone
Information
Memory Recall
Installation and User's Guide
OSD
1. Press the button to access menu
2. Press the / button to select the menu
3. Press the / button to choose an item
4. Press the / button to adjust the setting on a selected item
5. Press the button to move the previous menu
15
4-5 AV, HDMI Picture Menu
Contrast
Brightness
Hue
Saturation
Sharpness
Color Tone
Scale
Picture Mode
Installation and User's Guide
Normal
Full
User
1. Press the button to access menu
2. Press the / button to select the menu
3. Press the / button to choose an item
4. Press the / button to adjust the setting on a selected item
5. Press the button to move the previous menu
16
5. FEATURE
15RCR
Screen Size15.0 inches
Resoluti on1024*768 pixels
Pixel Pitch0.297*0.297 mm
Brightness250 cd/m^2
Contrast R atio500:1
Aspect Rati o4:3
Viewing Angle (H/V)160/160 degrees
Displa y Color16.2 millio n
Respo nse Time8 ms
Video Syste mNTSC/PAL
Panel Life Time (hours)50,000 hours
Video In/Out (BNC Type)1/1
VGA In (15Pin D-Sub)1
HDMI In1
Audio In (RCA Type)1
PC Stereo In1
AudioBuilt in Speak ersY (1W*2)
Transmitte rRemote ControlY
Multi Disp lay FunctionN
Filter Type2D Com b Filter
Noise reductio nY
Auto source sequencingY
Multi Lingual LanguageEng
DimensionOutline Dim ension18.98*2.87*10.39 inches
Cabinet col orBlack
Cabinet Mat erialElectro- Galvanized Steel
AC 100~240 V (50/60Hz)
DC 12 V
Operat ing Temp erature0~60 celsi us
Storage Tempera ture-20~65 celsius
VESA Mounts Size100*100 mm
U Factor Heig ht Space6U
Ceiling Mo untCMK- 01
WallWB-5, 10, 30, 31
Rack MountTiltab le Rack Mount
Electrical Ratings
Circumstance
Mounts
Power
General Features
Displa y
Interface
Special
Features
Cabinet
Installation and User's Guide
17
Installation and User's Guide
6. 2 Year Limited Warranty
All ORION IMAGES products carry a limited warranty from ship date against defects in materials and workmanship.
ORION IMAGES is not liable for improper installation that results in damage to mounts, adapters, display
equipment or personal injury.
Contact ORION IMAGES & OIC KOREA
In the event of missing and/or damage equipment, or technical questions, the following information can
help in the completion of the installation.
ORION IMAGES Corp. (USA)
Address: 7300 Bolsa Avenue, Westminster, CA 92683
Tel: 714-766-6300 / Fax: 714-766-6310
Email: rma@orionimages.com
Website: http://www.orionimages.com
18
Installation and User's Guide
7. TROUBLESHOOTING
* When the following troubles are occurred, follow the trouble shooting. Before contacting a
service center.
Troubleshooting
The screen doesn’t
show up
The screen is too light
or to dark
The screen size is not fit
for the PC signal
The screen color shows
strange in the PC signal
Troubleshooting Tip
1. Make sure if the power supply is connected property
2. Turn on the power.
3. Select the input signal right for the connected port.
Control the BRIGHTNESS
Press the AUTO key among keys in the front.
(It is used only in the PC signal)
In the FUNCTION menu of OSD menu, perform the
AUTOADJUST.
19
