Oricom PMR888 Quad User Guide

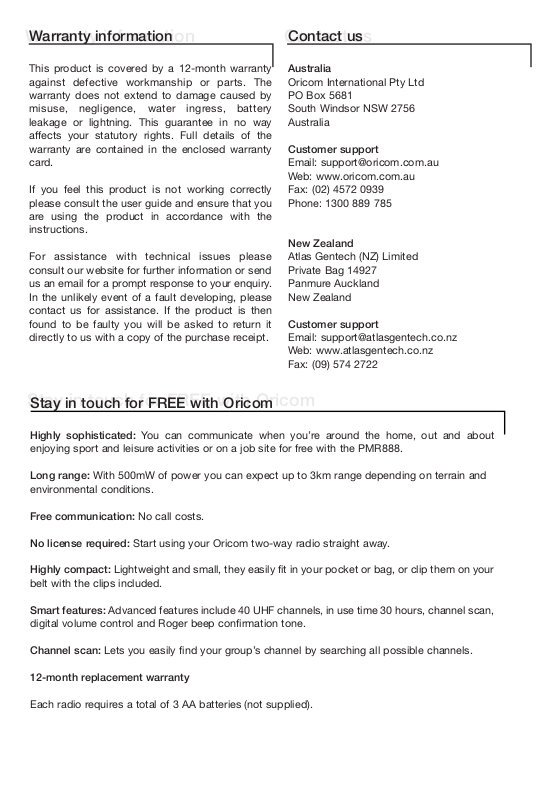

Contact us
Warranty information
Stay in touch for FREE with Oricom
Stay in touch for FREE with Oricom
Highly sophisticated: You can communicate when you’re around the home, out and about
enjoying sport and leisure activities or on a job site for free with the PMR888.
Long range: With 500mW of power you can expect up to 3km range depending on terrain and environmental conditions.
Free communication: No call costs.
No license required: Start using your Oricom two-way radio straight away.
Highly compact: Lightweight and small, they easily fit in your pocket or bag, or clip them on your
belt with the clips included.
Smart features: Advanced features include 40 UHF channels, in use time 30 hours, channel scan, digital volume control and Roger beep confirmation tone.
Channel scan: Lets you easily find your group’s channel by searching all possible channels.
12-month replacement warranty
Each radio requires a total of 3 AA batteries (not supplied).
Warranty information
This product is covered by a 12-month warranty against defective workmanship or parts. The warranty does not extend to damage caused by misuse, negligence, water ingress, battery leakage or lightning. This guarantee in no way affects your statutory rights. Full details of the warranty are contained in the enclosed warranty card.
If you feel this product is not working correctly please consult the user guide and ensure that you are using the product in accordance with the instructions.
For assistance with technical issues please consult our website for further information or send us an email for a prompt response to your enquiry. In the unlikely event of a fault developing, please contact us for assistance. If the product is then found to be faulty you will be asked to return it directly to us with a copy of the purchase receipt.
Contact us
Australia
Oricom International Pty Ltd PO Box 5681 South Windsor NSW 2756 Australia
Customer support
Email: support@oricom.com.au Web: www.oricom.com.au Fax: (02) 4572 0939 Phone: 1300 889 785
New Zealand
Atlas Gentech (NZ) Limited Private Bag 14927 Panmure Auckland New Zealand
Customer support
Email: support@atlasgentech.co.nz Web: www.atlasgentech.co.nz Fax: (09) 574 2722
User Guide
Oricom PMR888 Quad Pack UHF Two-Way Radios
Your Oricom PMR888 radio controls
Your Oricom PMR888 display
Antenna
PTT
On/Off/Volume control
Microphone
Speaker
Menu down
Menu up
Display
Complies with all relevant Australian and New Zealand approval requirements including radio communications (Electronmagnetic Radiation Human Exposure) standard 2003.
Battery level
Duplex mode
Channel
Monitor
VOX accessory socket
1.
Keypad lock
Scan
Roger beep
CTCSS code
VOX
Call tone
Mode
Your Oricom PMR888 radio controls
Your Oricom PMR888 display
N13134
Installing the batteries
Attaching the belt clip
Use and care
Safety and General Information
Exposure to Radio Frequency
This pack contains
Safety and general information
Exposure to Radio Frequency (RF) energy
Your radio contains both a receiver and transmitter. When it is turned on it receives and transmits RF energy. Your Oricom unit is designed to comply with local regulatory requirements concerning exposure of human beings to RF energy (Specific Absorption Rate Data (SAR)).
Use and care
• This unit is not waterproof; do not immerse it in water.
• If the unit gets wet turn it off, remove the batteries and dry it with a soft cloth.
• Do not use it until it is completely dry.
This pack contains
PMR888
• 4 UHF radios
• 4 Belt clips
Attaching the belt clip (4 included)
Your radio comes with a swivel belt clip.
To attach, align belt clip post with the hole in the back of the radio and gently push until it clicks into place.
To remove, push release tab on top of the belt clip down to release catch and pull belt clip from the radio back.
Installing the batteries
Each radio uses 3 AA alkaline batteries (not supplied).
Warnings
• Do not mix old and new batteries.
• Do not charge alkaline batteries they could explode and cause injury.
1. Ensure radio is turned off.
2. Locate the clip on the back. Use your fingernail to gently prise open the battery cover.
3. Insert the batteries observing
the correct polarity.
4. Replace the battery cover.
clip
2.
charge contacts
Turning your radio on and off
Turn the volume button clockwise to turn your radio on. The radio chirps and the display will briefly show all feature icons that your radio has available. Turn the volume button anticlockwise until it clicks to turn your radio off.
Adjusting the volume level
Use the volume button to adjust your volume to a comfortable listening level.
Selecting the channel
The channel is the frequency your radio uses to transmit on.
1. Press and the channel number will begin to flash.
2. Use or to select the channel.
3. Press “PTT” to set a new channel.
Note: Channels 22 and 23 can not be used for voice communication and are blocked. An error tone will be heard if you select these.
Roger beep
When you turn on this feature, your two-way radio transmits a unique tone when you finish transmitting. In the same way as saying “Roger” or “over”, it lets others know you are finished talking.
1. To enable or disable the Roger beep, press and hold as you turn your radio on.
2. When the Roger beep is enabled will show in the display.
3. When you release the “PTT” button you will hear the Roger beep.
Talking and listening
It is good radio etiquette to monitor the channel for activity before you transmit, to ensure that you do not interrupt other users already on the channel.
Press and hold to check for channel activity. If you hear static, the channel is clear for use. Your radio has 38 channels. If you are in a group and you wish to talk to each other, all radios must be set to the same channel and interference eliminator code (CTCSS). If you experience interference and need to change channel, ensure that you change the channel and code of all radios in your group.
1. For maximum clarity, hold the radio 5 to 7 cm from your mouth.
2. Press and hold “PTT” and speak into the microphone. The LED indicator light glows continuously when transmitting.
3. To receive messages, release “PTT”.
Note: If the PTT is held down for longer than 60 seconds a tone will be heard, the unit will stop transmitting and return to standby mode.
Channel scan
By scanning, you can monitor channels and codes for transmission and lock in on the one that interests you. More importantly, you can find someone in your group who has accidentally changed channels and is talking during your scan.
1. To start scanning, briefly press and release .
2. If you activate scan while your code is set to 0, the radio will check for any activity on each channel, regardless of the code in use on that channel.
3. If you activate scan while the code is set on 1 to 38, the radio will check for any activity on each channel, except the code 0 in use on that channel.
4. While the radio is scanning, the scan icon will display and the radio will scroll through the channels.
5. When activity is detected on a channel, the radio will stop scanning and you will hear whatever transmissions are detected. The radio’s display will show the channel and code on which the activity was detected.
6. If you want to respond to the transmission, press “PTT” within 5 seconds and you can respond.
7. The radio will resume scanning after 5 seconds of inactivity on the channel.
8. To stop scanning, briefly press and release .
3.
Interference eliminator codes
Interference eliminator codes help to minimise interference by providing you with a choice of code combinations.
1. Press twice and the code number begins to flash.
2. Use the or button to change the code.
3. Press “PTT” to set a new code.
You can specify a different code for each channel.
1. To set a channel and code combination, press once and then press or to select
the channel.
2. Press again and then press or to
select a code.
3. The radio does not support interference
eliminator codes on channels 5 or 35. On these channels press . The radio will skip the code settings.
4. Press “PTT” to exit the menu and to save the
channel and code combination. To set another channel and code combination, repeat these steps.
Scan advance
If scan stops on a channel that you don’t want to listen to, briefly press or to resume scanning for the next active channel.
Nuisance delete
If scan continuously stops on an undesired channel, press and hold or for at least 3 seconds, then release. This will temporarily remove the undesired channel from the scan list.
To restore the channel to the scan list, turn the radio off and then on. You cannot remove your home channel from the scan list (your home channel is the channel your radio was set to when you activated scan).
Monitor mode
This feature allows you to listen for weak signals on the current channel.
1. Pressing and holding allows you to monitor
your channel for activity.
2. Adjust volume up or down.
Keypad lock
The keypad lock disables all the buttons. But allows you to use the button to monitor the channel. Press and hold for 3 seconds to lock or unlock the keypad. When the radio is locked will appear in the display.
Sending a call tone
A call tone alerts others in your group that you want to talk. Your radio has 10 call tones to choose from.
Select call tone
1. With the radio on, press three times until “C” appears in the display.
2. Current call tone setting will begin to flash.
3. Press or to change and hear the call tones while the setting number is flashing.
4. Press “PTT” to set a new call tone.
5. To send a call tone press “CALL”.
Note: The Australian UHF CB Radio Standard restricts tone calling to 3 seconds. This unit will only transmit for a maximum 3 seconds in any 60 seconds. Note: The radio does not support the call tone feature on channels 5 or 35.
Time-out timer
The time-out timer feature helps extend battery life by preventing accidental transmission. The radio will emit a continuous warning tone after the “PTT” button is pressed for 60 continuous seconds and will stop transmitting.
The battery level meter
The battery meter located in the display indicates how much battery power you have remaining. When the battery meter has one segment left, the radio chirps after releasing “PTT” every 10 minutes.
In use time
The in use time is 30 hours, based on 5% receiving, 5% transmitting and 90% standby mode. (Using quality alkaline batteries)
4.
Setting VOX and I-VOX sensitivity levels
Hands free use (VOX)
Alerts
Duplex mode
Repeater stations re-transmit your signal over a wider area giving you extended range depending on the location, height and availability of the local repeater station.
Your Oricom radio supports duplex mode on channels 1 - 8 only. In duplex mode, the units support the use of a repeater in your area. If the repeater channel in your area is channel 1, when you are in duplex mode the transmit channel will be channel 31.
To enter duplex mode select your repeater channel number in your area (1-8) then press or on that channel until is displayed beside the channel number (1-8). You are now in repeater mode.
For more information on the locations of repeater sites in Australia and New Zealand visit our website.
Alerts
Channel busy indicator
The red LED will flash twice per second to indicate that the channel is in use.
Call tone
Press the “CALL” button to transmit your call tone, alerting users on the same channel and code that you are about to talk. Your radio has 10 call tones to choose from. Setting the call tone to 0 disables this feature.
Hands-free use (VOX)
VOX allows you to transmit “hands-free” by talking while using the optional VOX headset accessories (not supplied).
WARNING: When using audio accessories with your radio, turn your radio off before you place the VOX accessory on your head or in your ear.
How to use the VOX feature
1. Turn off your radio.
2. Open the accessory cover and insert the audio accessory into the accessory jack.
3. Switch on your radio. The “VOX” icon will appear in the display to indicate that the VOX feature is active.
4. To transmit, speak into the accessory microphone. To receive, stop talking.
5. Pressing the “PTT” button or removing the audio accessory will disable VOX operation.
How to use the unique I-VOX feature
I-VOX allows you to transmit hands-free by using the microphone without using the optional VOX accessory.
1. Turn off your radio.
2. Turn on your radio while pressing the “PTT” button. The “VOX” icon will appear in the display to indicate that the I-VOX feature is active.
3. To transmit, speak into the radio microphone. To receive, stop talking.
4. Pressing “PTT” will disable I-VOX operation.
5. To turn I-VOX on again, turn radio off. Then on again.
Note: There is a short delay after you start talking before the radio transmits.
Setting VOX and I-VOX sensitivity levels
Adjusting your radio’s VOX and/or microphone sensitivity level helps to minimise the possibility of unintended noises triggering a transmission, or enhances the ability to pick up quiet voices. If a VOX accessory is fitted to your radio these instructions will help you to adjust the VOX sensitivity and if no accessory is fitted you will adjust the microphone sensitivity. If I-VOX is active, you will adjust the I-VOX sensitivity level.
1. Press four times and a flashing number will appear.
2. Select sensitivity levels of 1, 2 or 3 by using or . 1-If you speak loudly, or are in a noisy environment. 2-Suitable for most applications. 3-If you speak softly, or are in a quiet environment.
Note: When you connect the VOX accessory, the radio will automatically select the previous VOX sensitivity level. If I-VOX is active, the radio will automatically select I-VOX level.
5.
Using the optional twin charging kit
Using your Oricom PMR888R
UHF Channels and frequencies
* Repeater access channels
IMPORTANT NOTE
Channels 5 and 35 are emergency channels. Channel 11 is a calling channel. Channels 22 and 23 are for Telemetry and Telecommand use, voice communications are not allowed on these channels by law.
Using the optional twin charging kit
Using the optional twin charging kit (not supplied)
Charging pod
To use the charging kit, place the charging pod on any flat surface.
1. With the radio off, remove the battery cover.
2. Insert the Ni-Mh battery packs into the radios.
3. Replace the battery cover.
4. Plug one end of the AC power adaptor into the charging pod and then the plug pack adaptor into the main power.
5. Slide the radios into the charging pod ensuring
the charging contacts line up. The red light on the charge kit glows when radios are properly inserted.
6. The radios/batteries will be fully charged within
16 hours. Note: When moving between hot/cold environments do not charge the battery until the battery temperature acclimates (usually about 20 minutes).
Ordering optional accessories
The optional charging kit CHKIT888 and VOX headset (VOX888) can be ordered directly from Oricom International.
The charging kit (CHKIT888) includes: 1 twin charging pod. 1 AC power adaptor. 2 rechargeable Ni-Mh battery packs. The charging kit is availible at a cost of $49.95*.
VOX headset (VOX888) These are available at a cost of $29.95* each.
Contact Oricom on: 1300 889 785 or visit www.oricom.com.au
Payment can be made by Mastercard, Bankcard or Visa card.
*Correct at time of printing (Prices include gst and postage).
Channel Frequency
1* 476.425 MHz
2* 476.450 MHz
3* 476.475 MHz
4* 476.500 MHz
5* 476.525 MHz
6* 476.550 MHz
7* 476.575 MHz
8* 476.600 MHz
9 476.625 MHz
10 476.652 MHz
11 476.675 MHz
12 476.700 MHz
13 476.725 MHz
14 476.750 MHz
15 476.775 MHz
16 476.800 MHz
17 476.825 MHz
18 476.850 MHz
19 476.875 MHz
20 476.900 MHz
21 476.925 MHz
24 477.000 MHz
25 477.025 MHz
26 477.050 MHz
27 477.075 MHz
28 477.100 MHz
29 477.125 MHz
30 477.150 MHz
31* 477.175 MHz
32* 477.200 MHz
33* 477.215 MHz
34* 477.250 MHz
35* 477.275 MHz
36* 477.300 MHz
37* 477.325 MHz
38* 477.350 MHz
39 477.375 MHz
40 477.400 MHz
6.
