Operating Instructions
DTX4000 80 Channel UHF Citizen Band Radio
This unit complies with all relevant Australian
and New Zealand approval requirements
AS/NZS 4365:2011
The ACMA increased the number of available UHF CB channels.
To provide additional channel capacity within the UHF CB Band the ACMA has increased the number of available
channels by changing from wideband to narrowband channels and adding the additional channels between the
existing 40 channels. Some of the new channels are locked and cannot be used, see channel chart later in this user
guide for more information.
When did this take place?
Early in 2011 new AS/NZS Standards came into effect allowing operators to use additional narrowband channels and
also use narrowband transmissions on some current wideband channels. This increased the number of channels up
to 80, 75 of which are useable voice channels.
What issues may users experience during the transition phase?
When a new narrowband radio receives a transmission from an older wideband radio the speech may sound loud
and distorted – simply adjust your radio volume for the best listening performance. When an older wideband radio
receives a signal from a new narrowband radio the speech may sound quieter - simply adjust your radio volume for
best listening performance. When operating a narrowband radio or Channel 41 - 80 interference is possible from
wideband radios transmitting on high power or on adjacent frequency.
The issues described above are not a fault of the radio but a consequence of mixed use of wideband and narrowband
radios.
It is expected that as older wideband radios are removed from service that this issue will be resolved. Most radios in
use will be narrowband eliminating this issue.
This information is current at time of printing. For further up to date information please visit
www.acma.gov.au
3
Table of contents
Introduction ..................................................................................4
Important information ...................................................................5
Installation of your Oricom Radio...................................................6
Controls and Indicators .................................................................8
Operations .................................................................................. 12
UHF CB channels and frequencies ..............................................27
Customer Support .......................................................................31
Express Warranty (Australia) .......................................................32
Need Help?
If you need assistance setting up or using your Oricom product now or in
the future, call Oricom Support.
Australia 1300 889 785 or (02) 4574 8888
www.oricom.com.au
Mon-Fri 8am – 6pm AEST
New Zealand 0800 67 42 66
www.oricom.co.nz
Mon-Fri 10am – 8pm NZST
4
Introduction
Introduction
Thank you for choosing the Oricom DTX4000 5 watt UHF CB Radio.
Key Features
Dual receive
IP54 dust and splash resistant
12/24 volt operation
3 memory groups of 16 channels per group
Removable and reversible front panel
Multi-colour backlit display
Back light brightness (5 pre-set levels plus auto)
Fast scanning 80 channels within 3 seconds
Rotary volume/channel and squelch control
Duplex
38 CTCSS & 104 DCS codes
Heavy duty diecast metal chassis
Slide-in mounting bracket
Auto power off (off/1h/2h/4h)
3.5mm external jack (for optional external speaker or PA adaptor)
Optional Accessories
Remote head mounting kit
External speaker
PA adaptor jack
PC programming cable and software to allow programming of memory
location
Rear Microphone cable
5
Important information
Please read before installing or operating your
Oricom Radio
The operation of your UHF radio in Australia and New Zealand is subject
to conditions in the following licenses:
In Australia the ACMA Radio communications (Citizen Band Radio
Stations) and in New Zealand by MED the General User Radio License
for Citizen Band Radio.
Safety Information and Warnings
WARNING
Potentially Explosive Atmospheres
Turn your radio OFF when in any area with a potentially
explosive atmosphere. Sparks in such areas could cause an
explosion or re resulting in injury or even death.
NOTE: Areas with potentially explosive atmospheres are often,
but not always clearly marked. They include fueling areas such
as below deck on boats; fuel or chemical transfer or storage
facilities; areas where the air contains chemicals or particles,
such as grain, dust, or metal powders; and any other area where
you would normally be advised to turn off your vehicle engine.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn
your radio OFF near electrical blasting caps or in a “blasting
area” or in areas posted: “Turn off two way radios.” Obey all
signs and instructions.
Electromagnetic Interference/Compatibility
Nearly every electronic device is susceptible to electromagnetic
interference (EMI). To avoid the possibility of electromagnetic
interference and/or compatibility conicts, turn off your radio
in any location where posted notices instruct you to do so such
as health care facilities.
6
Installation of your Oricom Radio
CAUTION
When installing your radio in your vehicle, check that
during installation you do not damage any wiring or vehicle
components that may be hidden around the mounting position.
Ensure the installation does not interfere with the operation of
the vehicle and meets all regulatory and safety retirements for
accessories tted to your vehicle.
For optimum performance your radio needs to be installed
correctly. If you are unsure about how to install your radio, we
suggest you have your radio professionally installed by a UHF
specialist or Auto electrician. When installing the radio, avoid
mounting it close to heaters or air conditioners. Never press
the PTT or CALL button before connecting the antenna to the
radio.
Wiring Methods
There are two possible wiring congurations for connecting to the
Vehicles power supply.
A. Radio stays ON when the ignition is switched OFF
Connect the radio’s negative (black) lead to the vehicle chassis, or
directly to the batteries negative terminal.
Connect the radio’s positive (red) lead via the 2 Amp fuse to the
battery’s positive terminal. Alternatively, the positive lead could be
connected at the fuse box at a point that has DC Power continuously
available (preferably the battery side of the ignition switch) via the 2
Amp fuse.
B. Radio turns OFF with the ignition switch
Connect the radio’s negative (black) lead to the vehicle’s chassis, or
directly to the batteries negative terminal.
7
Installation of your Oricom Radio
The radio’s positive (red) lead should connect to an accessory point in
the vehicle’s fuse box via the 2 Amp fuse.
Antenna information
The antenna (not supplied) is of critical importance, to maximize your
output power and receiver senstivity.
A poorly installed, inferior quality antenna or one not designed for the
correct frequency band will give poor performance. You should only
purchase an antenna designed for the 477MHz frequency band.
Antenna installation
1. Connect the antenna to the rear antenna socket using a PL259 coaxial
connector (not supplied).
2. To obtain maximum performance from the radio, select a high quality
antenna and mount it in a good location. Never press the PTT or
CALL button before connecting the antenna to the radio.
Optional External Speaker
Depending on the installation it may be necessary to use an external
speaker (not supplied) to give improved volume and clarity. This can be
plugged into the EXT –SPK socket on the rear of the unit.
8
Controls and Indicators
Controls and Indicators
Front View
SCAN
RM
MR
MW
SWP
SRX
MENU
GTS
SQ
CH
1
2
3 7
4
5 6
1. Power on/off and Volume/channel/squelch selector and SVL
(sub receiver volume)
2. Scan (open scan/memory group scan)/scan skip memory
3. Memory recall/memory write
4. Main & Sub channel swapping/SRX on/off
5. Menu/Group tone scan
6. Microphone connector
7. LCD display
9
Controls and Indicators
Rear View
1
2
3 4
1. 3.5mm external jack for optional 8 ohm speaker and PA speaker
2. Power supply connection
3. Rear microphone jack for Optional extension Microphone cable
4. Antenna Connection
Microphone
1. Push to talk
2. Volume/Channel/SQ/SVL down
3. SWP/Mode selector
4. Volume/Channel/SQ/SVL up
2 43
1
10
Controls and Indicators
LCD Icons & Indicators
10
1
2
45 6
7
8
9
3
1. Sub Receiver Busy 6. Signal strength & TX power & SWR meter
2. Sub Receiver On 7. Group display (A, B, C group)
3. Duplex On 8. Group address channel
4. Main Receiver Busy 9. Status display
5. CTCSS or DCS On 10. Channel display
TO MOUNT: SLIDE
INTO UNIVERSAL
MOUNTING BRACKET
TO REMOVE:
SLIDE OUT HOLDING
BRACKETS AWAY FROM
TRANSCEIVER
Installation of the DTX4000 and tting optional accessories
Mounting the Transceiver
The universal mounting bracket supplied with your transceiver allows
overhead/dash mounting.
Mount the transceiver via the bracket, securely with the supplied screws,
in the desired location, ensuring the surface is sturdy and can support the
weight of the radio.
11
Controls and Indicators
(OPTIONAL ACCESSORY)
2m EXTENSION CABLE
-----------------------------------------
the REMOTE HEAD
Connect the REMOTE
HEAD with 2m
EXTENSION CABLE
This mounting bracket and
screws are part of the
optional accessory kit
red:
+
black:
attery
TO CHASSIS
FUSE
(OPTIONALACCESSORY)
EXTRA MIC LEAD
(OPTIONALACCESSORY)
EXTERNAL SPEAKER
(OPTIONAL ACCESSORY)
- - - - - - - - - - - - - - - - - - - - - - --
- - - - - - - - - - - - - - - -
_________or ________
O
ANTENNA CONNECTOR
4
5
MICROPHONE HANGER - Fit the supplied
micrphone hanger in the desired location.
6
6
4
RED for extension
speaker
Yellow for PA
speaker
DC POWER CABLE - Connects to 12V or
24V Battery. Pay attention to polarities.
EXTERNAL APEAKER JACK
PA ADAPTOR JACK (OPTIONAL ACCESSORY)
EXTERNAL SPEAKER (OPTIONAL ACCESSORY)
Installation Diagram
Fitting the Optional Remote Head
12
Operations
Operations
Turning on the Power
Press and hold the Channel selector.
SCAN
RM
MR
MW
SWP
SRX
MENU
GTS
SQ
CH
Setting the Volume
Turn the channel selector clockwise to adjust the sound level for
comfortable reception.
On the microphone push the up or down buttons to increase or
decrease the volume. If held down the volume will increase or decrease
quickly.
SCAN
RM
MR
MW
SWP
SRX
MENU
GTS
SQ
CH
Selecting a channel
Press channel selector once. The "CH" appear on the LCD.
Select the channel by rotating the channel selector up or channel down.
On the microphone push the mode button and select the channel by
pushing the up or down buttons.
SCAN
RM
MR
MW
SWP
SRX
MENU
GTS
SQ
CH
13
Operations
Setting the Squelch Level
1. Press channel selector 2 times. The current squelch level is
displayed.
2. Select the squelch level by rotating the channel selector.
1 - Max sensitivity (Min. squelch)
15 - Min. sensitivity (Max/Tight squelch)
Off - Open squelch
SCAN
RM
MR
MW
SWP
SRX
MENU
GTS
S Q
CH
Setting SRX (Sub Receiver) Volume
1. Press Channel selector 3 times "SVL" is displayed.
2. Rotate the Channel selector to adjust the SRX volume.
Note :
*
If a button is not pressed within 2 seconds the radio will
automatically exit the sub display of "VOL" "CH" "SQL" and "SVL".
PTT (Push-To-Talk) button
Pressing the PTT button activates the transmitter.
The RF (radio frequency) level will appear on the LCD as you are
transmitting.
To receive, release the PTT button and then TX will disappear on the
display.
When transmitting, hold the Mic two inches from your mouth and speak
clearly in a normal voice across the front of the Mic area.
14
Operations
Scanning
The Scan feature allows you to search for active channels automatically.
There are 3 scanning modes;
Open Scan, Group Memory Scan and Group tone Scan (a special case
of Group Memory Scan).
Open scan
Press SCAN/RM and scanning starts. The OS-SC sub menu display
appears on the LCD.
When a signal is found, scanning will stop at that channel to allow the
signal to be heard, then resume scanning when the channel is clear
again.
The scan resume time can be set as an optional
pause of P8 (default).
ch 1-2-3-4-5-6-7 ….. 77-78-79-80
Open Scan, the scan direction cannot be changed by
rotation of the channel control or microphone buttons.
To stop the scan press the SCAN/RM button or press the PTT
Remove Memory in Scanning
While the radio stops scanning on a busy
channel, press hold SC/RM button for 2
seconds.
Channel will be remove from current
scanning. The removed channel will be reinstated after the scan is
stopped and restarted.
Scan 1-2-3-4-5-6-7 ….. 77-78-79-80
RM Scan 1-3-4-5-6-7 ….. 77-78-79-80
Note: Up to 10 channels can be removed for the current scan.
SCAN
RM
SCAN
RM
2 sec
15
Operations
For this example we are removing CH02 during the scan.
Because it is only noise.
1. Press SC/RM button for 2 seconds.
2. Scanning will resume.
3. Channel 02 is removed during scan.
Group Memory Scan
Memory scan must be stored to the memory channels in groups A to C.
Refer to memory recall function.
1. Press MR/MW button to change the setting between A, B, C and
blinking A, B, C.
When blinking, then all groups will be scanned starting in selected
group.
2. Press Scan button to start group scan.
The MS-SC sub menu display appears on the LCD.
3. To stop Group memory Scan, press SCAN/RM button or PTT press.
Group tone Scan
Group tone scan is the default scan mode and is enabled to allow
continual communication across congested channels.
Group Tone Scans channel stored into Group memory scan and only
opens the squelch for signals with the correct sub code (38 CTCSS or
104 DCS tone).
To achieve this, all radios in your group must have the same channels in
A, B, C memory (group memory channels) and use the same Subcode
(38 CTCSS and 104 DCS tone).
SCAN
RM
16
Operations
1. Press hold MENU/GTS button to Group Tone Scan.
All group tone scan stored into Group memory channel and CTCSS
01 (67Hz) is set for Group Tone Scan.
The Group tone code can be change by menu mode.
2. To stop Group memory Scan, Press MENU/GTS button or PTT press.
Memory Recall
This feature allows the user to active the stored
channels in the MR button.
To access channel in the MR button, simply press
the "MR" button, and the "A" will appear at the right
side on the LCD. Press memory button you want to
access From A to C Group.
Continuous Press MR button will be change to A->B->C->A blinking ->B
blinking -> C brining ->A.
If SC/RM button press and start of all memory Group scanning at
during the blinking A to C.
The DTX4000 has no information stored in the memory channels.
Memory Write
Select the channel you want to store.
For this example we write CH09 to B group and group channel 8.
1. Press hold MR/MW button. The memory write.
The appear A and group channel 1 blinking.
2. Press MR/MW button change for the B group.
3. Press channel selector change of CH mode.
4. Channel selector rotation until 8 is shown in group channel display.
5. Press hold MR/MW button to save & exit from memory write.
MR
MW
press hold
17
Operations
SWP (Swapping Dual RX channel)

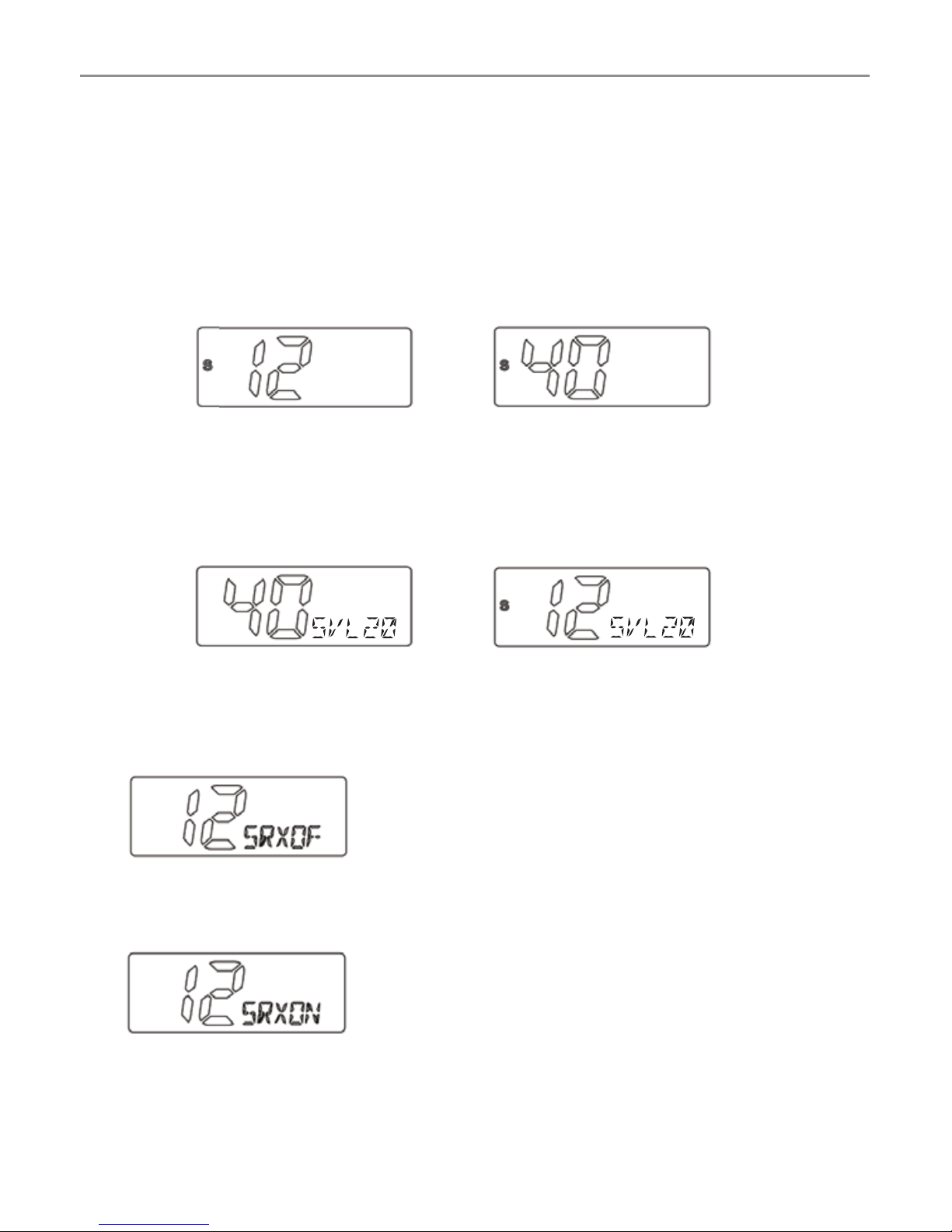

The DTX4000 can receive two channels simultaneously.
The main receiver default channel is 12 and Sub receiver default channel
is 40.
The Sub channel can be turned on and off by pressing and holding the
SRX button the "S" indicator on the display will be on if the SRX is on.
It is not possible to transmit on the SRX you must swap the SRX and
Main RX to transmit on that channel.
To adjust the volume of the SRX channel push the channel change dial
3 times the display will show SVL and the level.
SRX On/Off
Press hold SWP/SRX button to turn SRX off.
To return to Dual RX mode press and hold the SRX button for
2 seconds.
18
Operations
Menu list
*
Press menu button to access menu.
*
Use the channel dial to change the value of each setting.
*
If a button is not pressed within 8 seconds the radio will
automatically exit the menu mode.
*
You can exit the menu by briey pressing PTT button.
*
Please see below menu modes.
SCAN
RM
MR
MW
SWP
SRX
MENU
GTS
SQ
CH

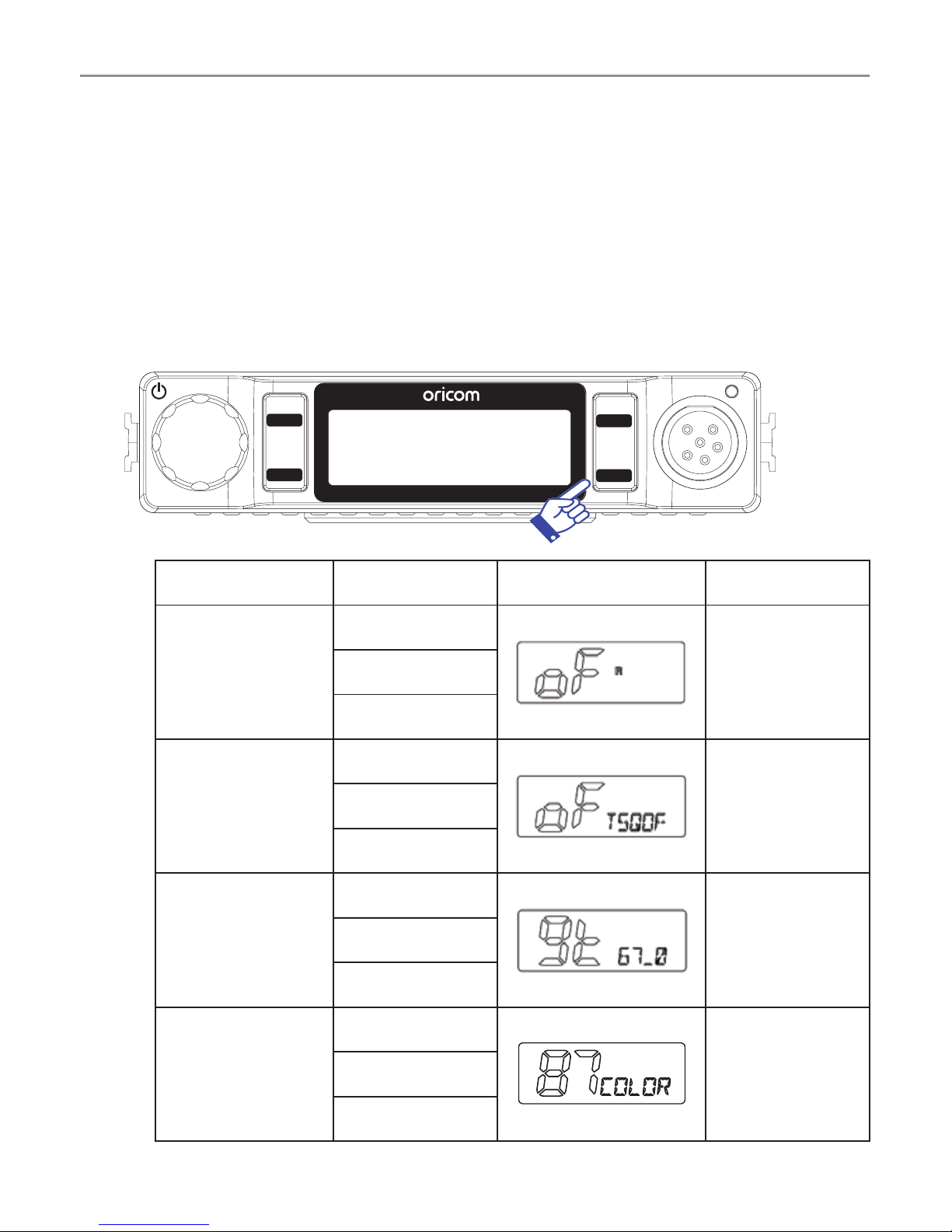

Function Step Display Default
Duplex On/Off
Off
On
On
CTCSS and DCS

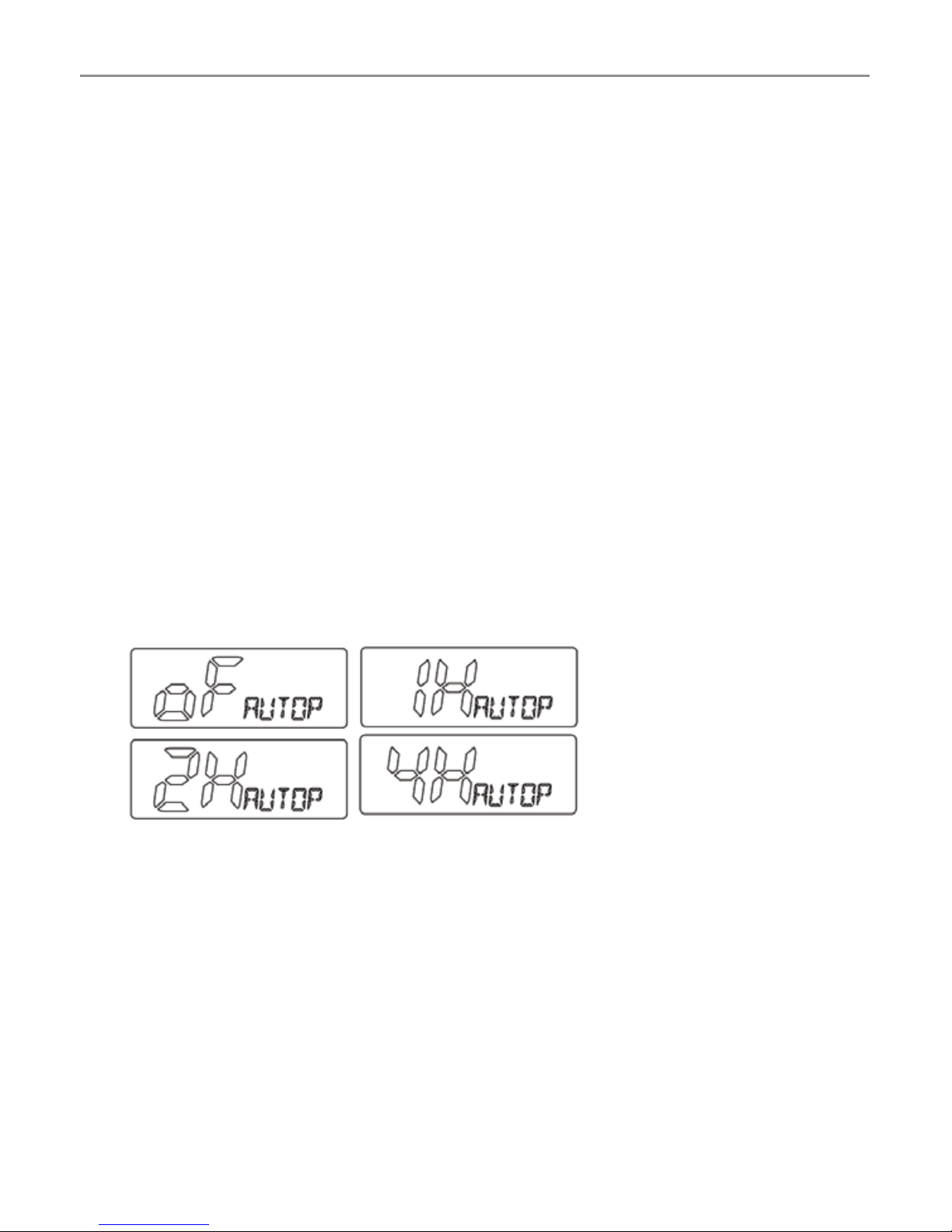

Off
Offto
104
Group Tone
Scan
CT1(67Hz)
CT1 (67Hz)
DCS104
Backlight LED
colour
0
87(Sky Blue)to
95
19
Operations
Bright of
Dimmer
auto
4to
5
Reset
User
User reset
Factory
Squelch tail
Off
Off
On
Busy channel
lock
Off
Off
On
Key Beep
Off
Off
On
Logo Display
On
On
Off
TPI
On
On
Off
20
Operations

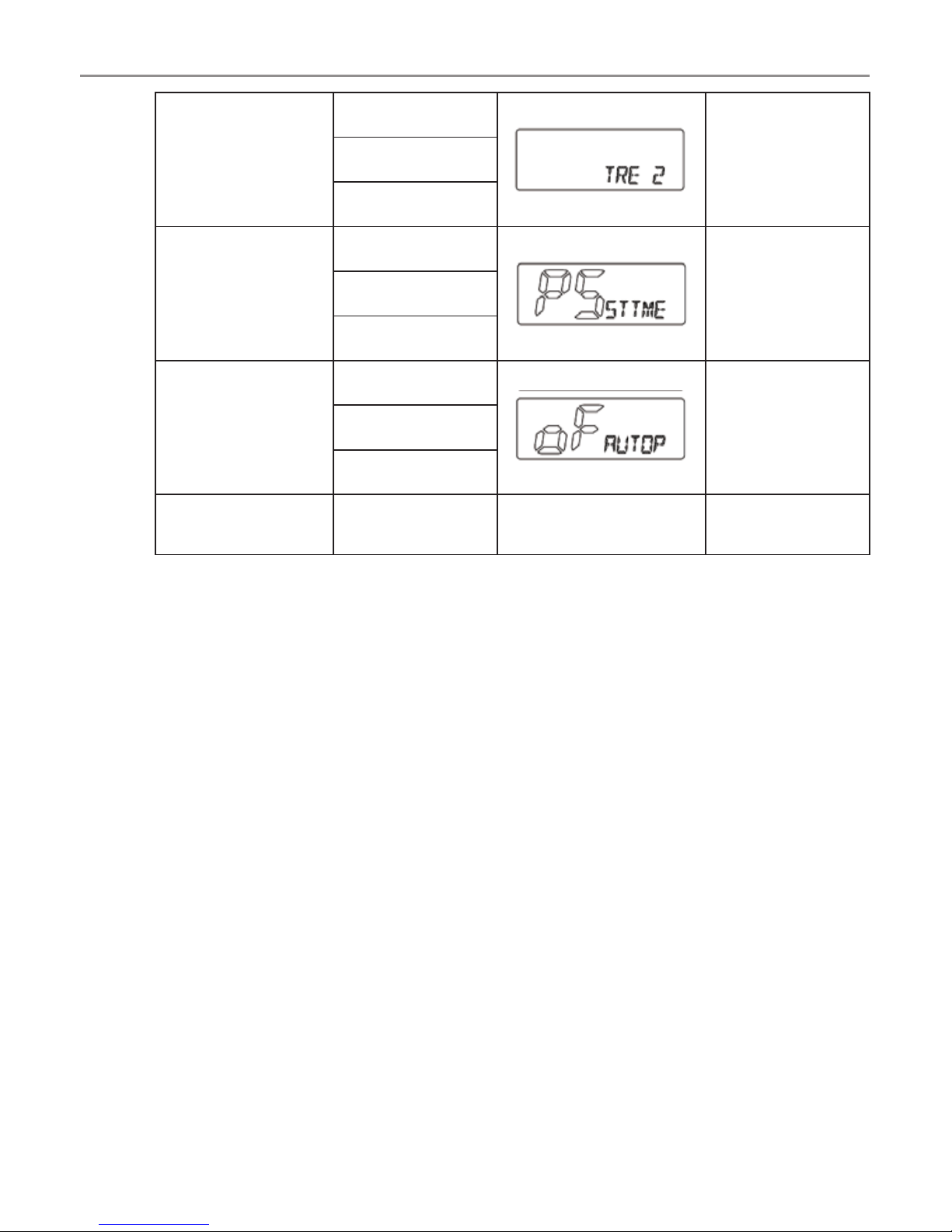

Treble
0
2to
7
Scan resume
time
p5
P5to
5,10,15
Auto power Off
Off
Offto
1H,2H,4H
Software
version
VER-- 1
PA (Public Address)
To use and external PA speaker connect the optional PA cable to the
External speaker jack on the rear of the radio, connect the PA speaker
to the yellow coloured socket and the external CB speaker to the red
coloured socket the output will be directed to the PA speaker when PA
function is selected.
How to operate the Public Address
1. Press and hold the PTT while turning the power on
2. Press the PTT and speak into the microphone the audio will be
output through the PA speaker
3. Adjust the volume using the volume control
4. To Exit PA mode turn radio off and back on
21
Operations
Duplex
General

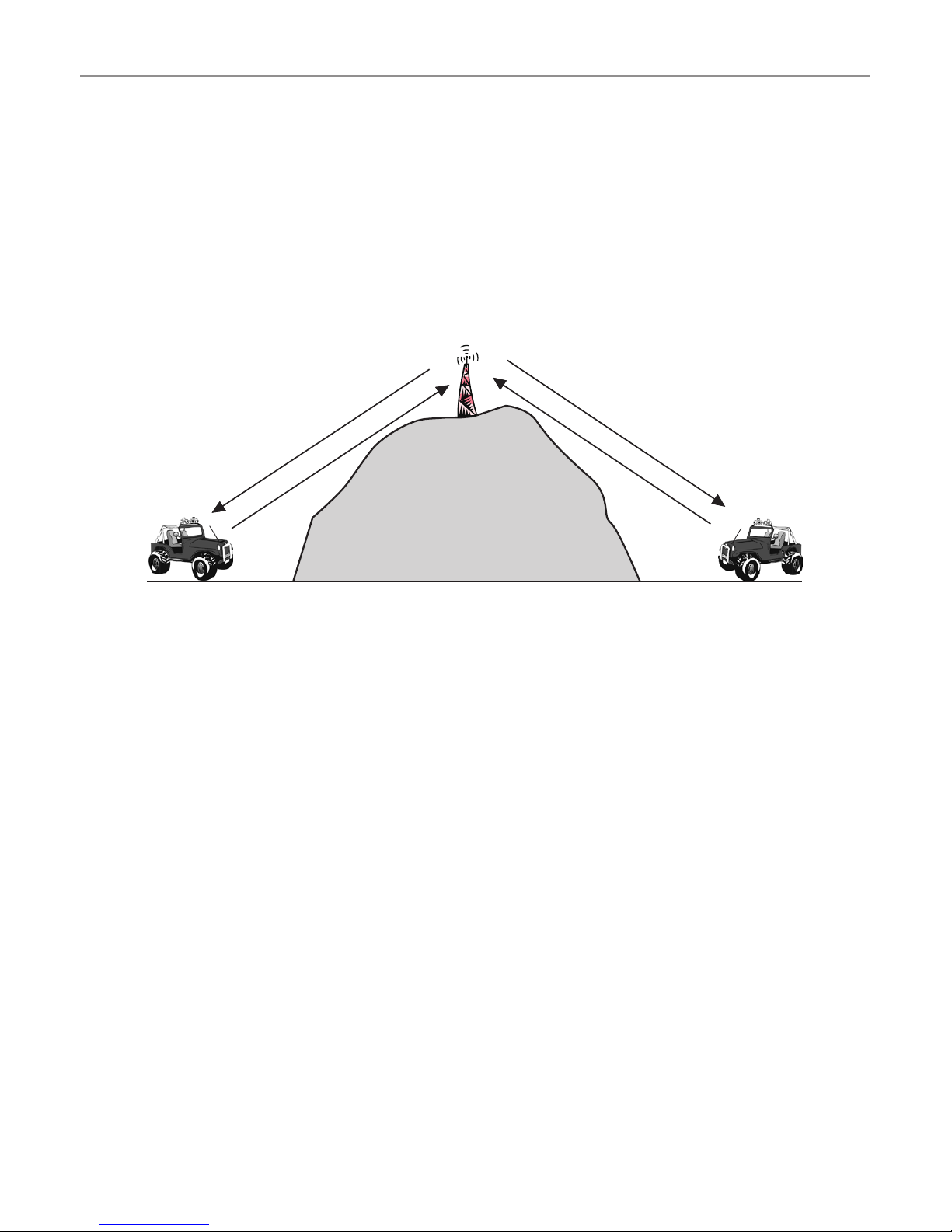

Your radio has a Repeater Access function to allow use of local repeater
station (if available in your area). Repeaters are shared radio systems
installed by interested parties (clubs, local business etc.) that pick
transmissions on specic channels and re-transmit (or repeat) the
received signal to another channel.
Channel 2
Channel 32
C
h
a
n
n
e
l 2
Channel 32
Repeater Station
The Repeater Access function can be set (from channel 1 to 8 and 41
- 48) used by local repeater stations. When activated, your radio will
receive the Repeater on its specic channel (all repeater outputs are on
channel 1 to 8 and 41 to 48) but transmit to the repeater channel 31
through 38 and 71 to 78.
(Factory default is set to On for all repeater channels).
e.g.
CH01 on Duplex mode will receive on CH01 but transmit on CH31.
CH02 on Duplex mode will receive on CH02 but transmit on CH32.
If you transmit on CH01 duplex mode, you are actually transmitting on
CH31.
The repeater station down converts your signal and retransmits on
CH01.
Your transceiver allows you to pre-select Duplex operation individually
on each channel.
22
Operations
CH and
Number
Simplex mode Transmit/Receiver Duplex Mode transmit/Receiver
Frequency (MHz) Frequency (MHz)
1 476.425 477.175 CH31
2 476.450 477.200 CH32
3 476.475 477.225 CH33
4 476.500 477.250 CH34
5 476.525 477.275 CH35
6 476.550 477.300 CH36
7 476.575 477.325 CH37
8 476.600 477.350 CH38
41 476.4375 477.1875 CH71
42 476.4625 477.2125 CH72
43 476.4875 477.2375 CH73
44 476.5125 477.2625 CH74
45 467.5375 477.2875 CH75
46 476.5625 477.3125 CH76
47 476.5875 477.3375 CH77
48 476.6125 477.3625 CH78
For this example we are adopting CH01 as the channel being used for
repeater use.
1. Press Menu to display Duplex setting.
2. Turn the channel selector to change the setting between ON or OFF.
3. Press PTT to save & exit from the menu mode.
4. R icon is displayed when a selected channel is set to Duplex mode.
23
Operations
CTCSS and DCS setting.
This feature allows you to receive signals only from callers who have
selected the same CTCSS and DCS code.

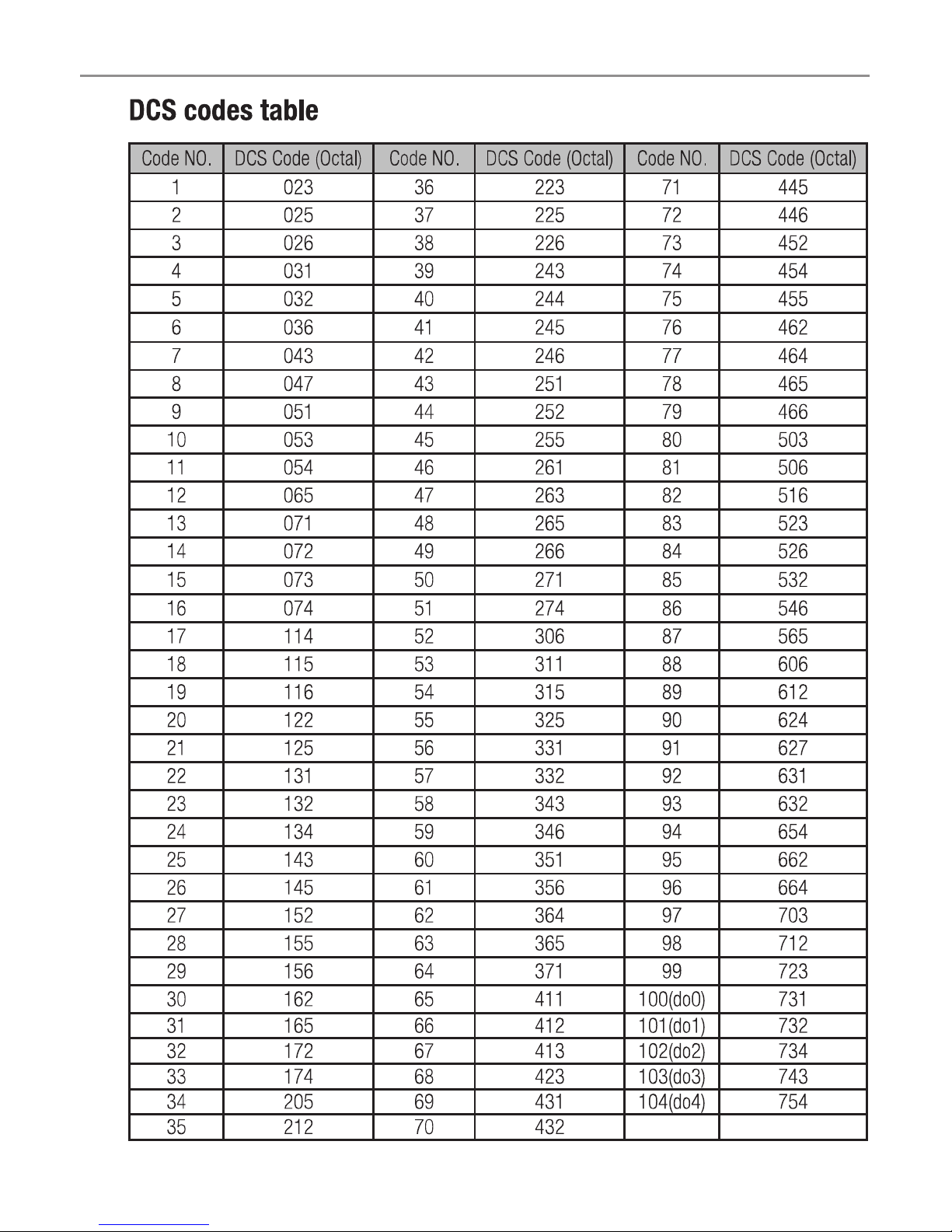

DCS is similar to CTCSS. It provides 104 extra, digitally coded, squelch
codes that follow after the 38 CTCSS codes. CTCSS 1 - 38, followed by
DCS 1 - 104. (displays A0 to A4 for 100 to 104)
CTCSS and DCS are not available on CH05 and CH35. For your reference
a list of the available channels, corresponding frequencies and guidelines
for their use and selection is in the CTCSS and DCS channel list.
For Australia, channel 05 and 35 are reserved for Emergency calls.
Group Tone setting
The group tone scan default tone selected is CTCSS 01 (67Hz).
You can select from CTCC 01 - 38 to DCS 01 to 104 code for Group
tone scan.
96 multi colour Backlight
You can select from 96 different multi colour backlighting for the LCD
backlight.
Backlight dimmer
You can reduce the brightness of the backlight by selecting levels 1 to
5, off or Auto, which will adjust the level of brightness depending on
ambient light.
Factory Reset
If the radio's display locks up or stops functioning properly, you might
need to reset your UHF radio.
Before you reset your UHF radio, try turning it off and on again.
If your UHF radio is still not functioning correctly you may need to reset
the UHF radio.
24
Operations
To reset
Press and hold SCAN/RM button while turning the power on.
The display "AL-reset" or "User-reset" will indicate reset type.
The reset type can select in menu mode.
The user reset will not delete any stored memory channels.
Squelch Tail
Squelch Tail is the noise heard after the transmitting party release PTT
and is heard by the receiving party.
If Squelch tail in turned ON, on both radios this squelch noise will be
muted.
Busy channel Lock
If the channel is already in use, you can prevent the UHF CB radio from
transmitting. This is particularly important when using CTCSS/DCS.
Key Beep
The Beep tone emits a tone when you press any of the buttons on the
microphone (except PTT button).
Logo Display
The logo display function can control disable and enable.
The off means Logo skip and power ON.
25
Operations
TPI
TPI Transmit Power Indicator
VSWR Voltage Standing Wave Ratio is a measurement of how good the
antenna (and cable) is matched to the radios output. It is best measured
at the antenna as the cable can effect this measurement.
TPI indicates the level of RF power delivered to the antenna connector.
This allows you to see how good the antenna is matched to the
transceiver.
Generally a VSWR of less than 2 is an acceptable match.
Correct Antenna install with 5W
VSWR 1.2 with 4.5W
VSWR 2.6 with 4W
VSWR 3.5 with 3.5W
VSWR 4.4 with 3W
< 3W
The VSWR and Power test can vary depending on installation
conditions. If TPI feature is turned off in the settings menu, the TPI
indicator will show 5 bars during TX.
If an incorrect or no antenna is connected and power output is less than
3.5W, “ANT-X” will be displayed when TPI feature is turned on or off.
When “ANT-X” is displayed, the radio has enabled protection mode and
reduced RF output.
26
Operations
Treble
Allows adjustment of the level of higher audio frequencies in 8 steps
use channel selector to select desired level.
Scan resume time
If 5, 10, or 15 sec is selected, SCAN will start again after 5, 10, or
15 second pause even though a signal is still present.
If P5 is selected, SCAN will stop as long as a signal is present and will
resume SCAN again 5 seconds later.
Auto power OFF
The auto power off function activated when no receiving and
transmitting of radio.
The automatic power off time can be adjusted to OFF, 1, 2, or 4 hours in
menu mode.
27
UHF CB channels and frequencies
UHF CB channels and frequencies
IMPORTANT NOTE: The operation of your UHF radio in Australia and
New Zealand is subject to conditions in the following licenses:
In Australia the ACMA Radio communications (Citizen Band Radio
Stations) and in New Zealand by MED the General User Radio License
for Citizen Band Radio.
EMC Technologies (NZ) Ltd
Test Report No 101127.1
Report date: 25
th
November 2010
6.2 Nominal Carrier
Table 1 Nominal Carrier Frequency
Channel
Tx Rx
Channel
Tx Rx
Freq Freq Freq Freq
MHZ MHz MHz MHz
01* 476.4250 476.4250 21 476.9250 476.9250
41* - 476.4375 61‡ — —
02* 476.4500 476.4500 22† 476.9500 476.9500
42* - 476.4625 62‡ — —
03* 476.4750 476.4750 23† 476.9750 476.9750
43* - 476.4875 63‡ — —
04* 476.5000 476.5000 24 477.0000 477.0000
44* - 476.5125 64 477.0125 477.0125
05* 476.5250 476.5250 25 477.0250 477.0250
45* - 476.5375 65 477.0375 477.0375
06* 476.5500 476.5500 26 477.0500 477.0500
46* - 476.5625 66 477.0625 477.0625
07* 476.5750 476.5750 27 477.0750 477.0750
47* - 476.5875 67 477.0875 477.0875
08* 476.6000 476.6000 28 477.1000 477.1000
48* - 476.6125 68 477.1125 477.1125
9 476.6250 476.6250 29 477.1250 477.1250
49 476.6375 476.6375 69 477.1375 477.1375
10 476.6500 476.6500 30 477.1500 477.1500
50 476.6625 476.6625 70 477.1625 477.1625
11 476.6750 476.6750 31* 477.1750 477.1750
51 476.6875 476.6875 71* 477.1875 -
12 476.7000 476.7000 32* 477.2000 477.2000
52 476.7125 476.7125 72* 477.2125 -
13 476.7250 476.7250 33* 477.2250 477.2250
53 476.7375 476.7375 73* 477.2375 -
14 476.7500 476.7500 34* 477.2500 477.2500
54 476.7625 476.7625 74* 477.2625 -
15 476.7750 476.7750 35* 477.2750 477.2750
55 476.7875 476.7875 75* 477.2875 -
16 476.8000 476.8000 36* 477.3000 477.3000
56 476.8125 476.8125 76* 477.3125 -
17 476.8250 476.8250 37* 477.3250 477.3250
57 476.8375 476.8375 77* 477.3375 -
18 476.8500 476.8500 38* 477.3500 477.3500
58 476.8625 476.8625 78* 477.3625 -
28
UHF CB channels and frequencies
EMC Technologies (NZ) Ltd
Test Report No 101127.1
Report date: 25
th
November 2010
6.2 Nominal Carrier
Table 1 Nominal Carrier Frequency
Channel
Tx Rx
Channel
Tx Rx
Freq Freq Freq Freq
MHZ MHz MHz MHz
01* 476.4250 476.4250 21 476.9250 476.9250
41* - 476.4375 61‡ — —
02* 476.4500 476.4500 22† 476.9500 476.9500
42* - 476.4625 62‡ — —
03* 476.4750 476.4750 23† 476.9750 476.9750
43* - 476.4875 63‡ — —
04* 476.5000 476.5000 24 477.0000 477.0000
44* - 476.5125 64 477.0125 477.0125
05* 476.5250 476.5250 25 477.0250 477.0250
45* - 476.5375 65 477.0375 477.0375
06* 476.5500 476.5500 26 477.0500 477.0500
46* - 476.5625 66 477.0625 477.0625
07* 476.5750 476.5750 27 477.0750 477.0750
47* - 476.5875 67 477.0875 477.0875
08* 476.6000 476.6000 28 477.1000 477.1000
48* - 476.6125 68 477.1125 477.1125
9 476.6250 476.6250 29 477.1250 477.1250
49 476.6375 476.6375 69 477.1375 477.1375
10 476.6500 476.6500 30 477.1500 477.1500
50 476.6625 476.6625 70 477.1625 477.1625
11 476.6750 476.6750 31* 477.1750 477.1750
51 476.6875 476.6875 71* 477.1875 -
12 476.7000 476.7000 32* 477.2000 477.2000
52 476.7125 476.7125 72* 477.2125 -
13 476.7250 476.7250 33* 477.2250 477.2250
53 476.7375 476.7375 73* 477.2375 -
14 476.7500 476.7500 34* 477.2500 477.2500
54 476.7625 476.7625 74* 477.2625 -
15 476.7750 476.7750 35* 477.2750 477.2750
55 476.7875 476.7875 75* 477.2875 -
16 476.8000 476.8000 36* 477.3000 477.3000
56 476.8125 476.8125 76* 477.3125 -
17 476.8250 476.8250 37* 477.3250 477.3250
57 476.8375 476.8375 77* 477.3375 -
18 476.8500 476.8500 38* 477.3500 477.3500
58 476.8625 476.8625 78* 477.3625 -
19 476.8750 476.8750 39 477.3750 477.3750
59 476.8875 476.8875 79 477.3875 477.3875
20 476.9000 476.9000 40 477.4000 477.4000
60 476.9125 476.9125 80 477.4125 477.4125
* The primary use for these channels is repeater operation using
750 kHz offset. Channels 1-8 inclusive are used for mobile reception
and channels 31-38 for mobile transmission. Note that additional
channels 41-48 and 71-78 may also become available for repeater
operation to supplement channels 1-8 and-31-38 respectively as
approved by the ACMA CBRS Class Licence in Australia and the MED
GURL in New Zealand. This radio is user upgradable at no cost if the
Class Licence is amended to allow repeater use on channels 41-48
and 71-78. Details will be made available on our website on how to
upgrade the radio to use the repeater channels, if and when approval
by the ACMA CBR S Class Licence in Australia and the MED GURL
in New Zealand. In addition, any designated repeater channel may be
used for simplex operation in areas where it is not used for repeater
operation.
† Speech telephony shall be inhibited on these channels.
‡ At the time of production Channels 61, 62 and 63 are guard channels
and are not available for use.
Channel 5 and 35 (paired for Duplex repeaters) are reserved as
emergency channels and should be used only in an emergency.
CTCSS and DCS will not operate on these channels.
A list of currently authorised channels can be obtained from the ACMA
website in Australia and the MED website in New Zealand. Channel 11
is a calling channel generally used to call others and channel 40 is the
customary road vehicle channel.
Once contact is established on the calling channel, both stations should
move to another unused "SIMPLEX" channel to allow others to use the
calling channel.
Channels 22 and 23 are for Telemetry and Telecommand use, voice
communications are not allowed on these channels by law.
Channel 9 and above are the best choices for general use in Simplex mode.
29
UHF CB channels and frequencies
38 CTCSS CODE LIST
CODE Frequency(Hz) CODE Frequency(Hz)
OFF OFF 20 131.8
1 67.0 21 136.5
2 71.9 22 141.3
3 74.4 23 146.2
4 77.0 24 151.4
5 79.7 25 156.7
6 82.5 26 162.2
7 85.4 27 167.9
8 88.5 28 173.8
9 91.5 29 179.9
10 94.8 30 186.2
11 97.4 31 192.8
12 100.0 32 203.5
13 103.5 33 210.7
14 107.2 34 218.1
15 110.9 35 225.7
16 114.8 36 233.6
17 118.8 37 241.8
18 123.0 38 250.3
19 127.3
30
UHF CB channels and frequencies
31
Customer Support
Customer Support
If you have any problems setting up or using this product you will nd useful tips and information in the Troubleshooting section of this user guide as
well as “Frequently Asked Questions” on our website www.oricom.com.au.
If you have further questions about using the product after reviewing the
resources above or would like to purchase replacement parts or accessories
please call our Customer Support Team. Our dedicated local support team
are more likely to be able to help you than the retailer where you made your
purchase.
Important
Please retain your purchase receipt and attach to the back page of this user
guide as you will need to produce this if warranty service is required. Take a
few moments to register your product online: www.oricom.com.au.
32
Express Warranty (Australia)
Express Warranty (Australia)
This Express Warranty is provided by Oricom International Pty Ltd ABN 46
086 116 369, Unit 1, 4 Sovereign Place, South Windsor NSW 2756, herein
after referred to as “Oricom”.
Oricom products come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount
to a major failure. Oricom warrants that the product is free from defects
in materials or workmanship during the Express Warranty Period. This
Express Warranty does not extend to any product from which the serial
number has been removed or was purchased outside of Australia.
Nothing in this Express Warranty excludes, restricts or modifies any
condition, warranty, guarantee, implied term, right or remedy pursuant to
the Australian Consumer Law and which may not be so excluded, restricted
or modied. For such conditions, terms, guarantees and warranties that
cannot be excluded, restricted or modified, Oricom limits the remedies
available to extent permitted in the relevant legislation.
The Express Warranty Period will be 5 years from the date of purchase
of the product evidenced by your dated sales receipt. You are required to
provide proof of purchase as a condition of receiving Express Warranty
services.
You are entitled to a replacement product or repair of the product at our
discretion according to the terms and conditions of this document if
your product is found to be faulty within the Express Warranty Period.
This Express Warranty extends to the original purchaser only and is not
transferable.
Products distributed by Oricom are manufactured using new materials or
new and used materials equivalent to new in performance and reliability.
Spare parts may be new or equivalent to new. Spare parts are warranted
to be free from defects in material or workmanship for thirty (30) days or
for the remainder of the Express Warranty Period of the Oricom branded
33
Express Warranty (Australia)
product in which they are installed, whichever is longer. During the Express
Warranty Period, Oricom will where possible repair and if not replace the
faulty product or part thereof. All component parts removed under this
Express Warranty become the property of Oricom. In the unlikely event
that your Oricom product has a recurring failure, Oricom may always,
subject to the Competition and Consumer Act 2010, at its discretion, elect
to provide you with a replacement product of its choosing that is at least
equivalent to your product in performance.
No change to the conditions of this Express Warranty is valid unless it is
made in writing and signed by an authorised representative of Oricom.
Oricom will not be liable under this Express Warranty, and to the extent
permitted by law will not be liable for any defect, loss, damage or injury
arising out of or in connection with a:
1. Failure by you to adhere to the warnings and follow the instructions set
out in this user guide for the proper installation and use of the product;
2. Wilful misconduct or deliberate misuse by you of the product;
3. Any external cause beyond our control, including but not limited to power
failure, lightning or over voltage; or
4. Modication to the product or services carried out on the product by
anyone other than Oricom or Oricom’s authorised service provider.
How to make a claim under your Express Warranty in
Australia
Oricom has a simple warranty process for you to follow:
• Please call or email our Customer Support Team, 1300 889 785 or
support@oricom.com.au.
• A Customer Support Team member will verify after troubleshooting with
you if your product qualies under warranty. If so, they will give you a
Product Return Authorisation number.
• We will then email or fax a Return Authorisation form and a Repair Notice
(if necessary), together with instructions on how to return the goods for
warranty service.
34
Express Warranty (Australia)
Please note that if a Customer Support Team member advises that your
product does not qualify for return, this warranty does not apply to your
product. Products that are authorised to be returned to Oricom in Australia
must include all of the following:
• A completed Return Authorisation form
• A copy of your Proof of Purchase (please keep your original copy)
• The faulty product, including all accessories.
Send the approved returns to:
Oricom International Pty Ltd
Locked Bag 658
South Windsor NSW 2756 Australia
Please note that this Express Warranty excludes expenses incurred by you
in returning any faulty product to us. You must arrange and pay any expenses incurred (including postage, delivery, freight, transportation or insurance
of the product) to return the faulty product to us, however, we will arrange
delivery of the repaired or replaced faulty product to you.
Important Information
Repair Notice
Please be aware that the repair of your goods may result in the loss of any
user-generated data (such as stored telephone numbers, text messages and
contact information). Please ensure that you have made a copy of any data
saved on your goods before sending for repair. Please also be aware that
goods presented for repair may be replaced by refurbished goods or parts
of the same type rather than being repaired.
Express Warranty (Australia)
Contact details for Oricom support and warranty claims in Australia
Oricom International Pty Ltd
Locked Bag 658
South Windsor, NSW 2756
Australia
Email: support@oricom.com.au
Phone: 1300 889 785 or (02) 4574 8888
(Monday to Friday 8am to 6pm AEST)
Web: www.oricom.com.au
Fax: (02) 4574 8898
Contact details for Oricom support and warranty claims in New Zealand
Email: support@oricom.co.nz
Phone: 0800 674 266
(Monday to Friday 10am to 8pm NZST)
Web: www.oricom.co.nz
Ref:07072017
Loading...
