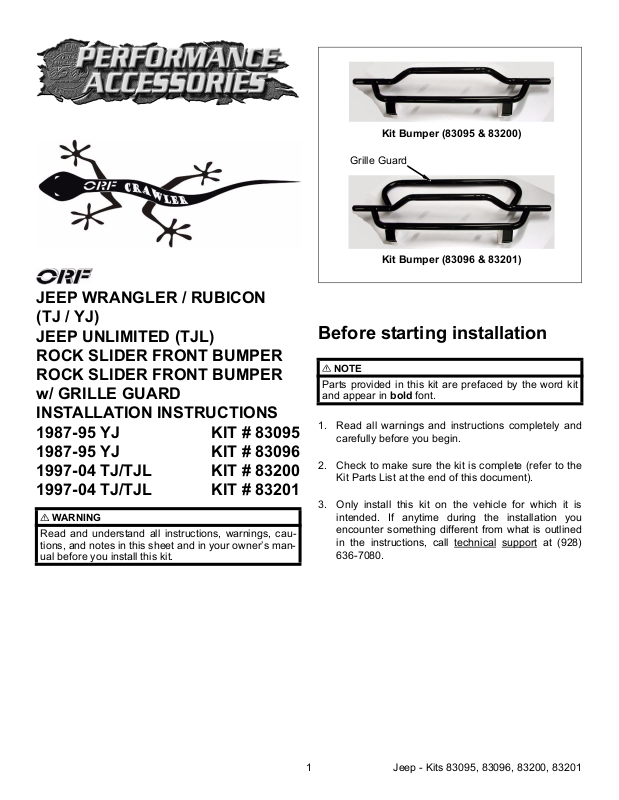

Page 1
JEEP WRANGLER / RUBICON
(TJ / YJ)
JEEP UNLIMITED (TJL)
ROCK SLIDER FRONT BUMPER
ROCK SLIDER FRONT BUMPER
w/ GRILLE GUARD
INSTALLATION INSTRUCTIONS
1987-95 YJ KIT # 83095
1987-95 YJ KIT # 83096
1997-04 TJ/TJL KIT # 83200
1997-04 TJ/TJL KIT # 83201
WARNING
Read and understand all instructions, warnings, cautions, and notes in this sheet and in your owner’s manual before you install this kit.
Kit Bumper (83095 & 83200)
Grille Guard
Kit Bumper (83096 & 83201)
Before starting installation
NOTE
Parts provided in this kit are prefaced by the word kit
and appear in bold font.
1. Read all warnings and instructions completely and carefully before you begin.
2. Check to make sure the kit is complete (refer to the Kit Parts List at the end of this document).
3. Only install this kit on the vehicle for which it is
intended. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call
636-7080.
technical support at (928)
1 Jeep - Kits 83095, 83096, 83200, 83201
Page 2
Install kit
Accessories
1. Stock front bumper.
a. Remove four torx bolts and tow hooks.
b. Remove two torx bolts from underside of
bumper.
c. Remove stock bumper from vehicle.
2. Winch. (Skip this step if not installing a winch)
NOTE
It is not possible to install winch with kit bumper
installed.
a. Set winch plate and winch in place.
b. While lifting front of winch plate, set kit bumper
on frame under winch plate.
The following accessory is also available:
Kit # 87011: Multi-Light Mount
NOTE
Four holes on the front of the kit bumper will accommodate a Hi-Lift jack, a Multi-Light Mount, or both.
Multi-Light Mount (Kit # 87011)
Winch
Frame
Kit Bumper
Winch
Plate
3. Front kit bumper.
a. Install kit bumper on frame using original fasten-
ers.
NOTE
If kit bumper mounting tabs fit tightly over frame, bend
tabs with an adjustable wrench.
Mounting Tab
Kit Parts List
Qty. Description
1 Bumper, front
4 Cap, plastic
Rev. 01, Copyright 08/04 Performance Automotive
Group
b. If not installing the optional Multi-Light Mount
(87011) on the kit bumper, plug the holes with
the kit plastic caps.
2 Jeep - Kits 83095, 83096, 83200, 83201
