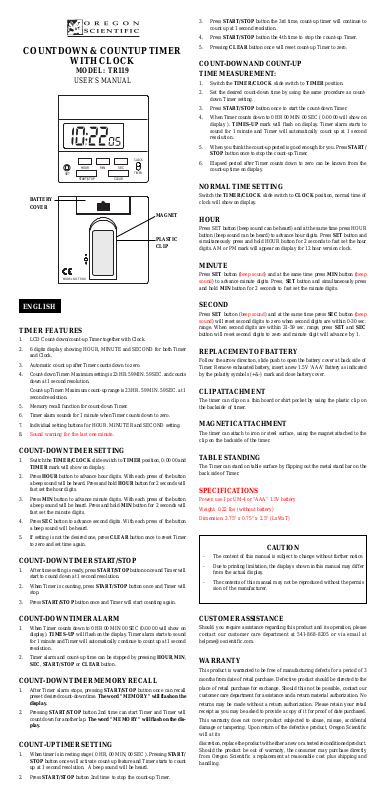

Oregon TR119 User Manual

COUNTDOWN & COUNTUP TIMER

WITH CLOCK

MODEL: TR119

USER’S MANUAL

CLOCK

TIMER

CLEARSTART/STOP

MAGNET

PLASTIC
CLIP

BATTERY
COVER

HOUR MIN SEC

SET

MODEL NO. TR 119

3. Press START/STOP button the 3rd time, count-up timer will continue to

count up at 1 second resolution.

4. Press START/STOP button the 4th time to stop the count-up Timer.

5. Pressing CLEAR button once will reset count-up Timer to zero.

COUNT -DOWN AND COUNT-UP
TIME MEASUREMENT:

1. Switch the TIMER/CLOCK slide switch to TIMER position.

2. Set the desired count-down time by using the same procedure as count­down Timer setting.

3. Press START/STOP button once to start the count-down Timer.

4. When Timer counts down to 0 HR 00 MIN 00 SEC ( 0:00 00 will show on
display ). TIMES-UP mark will flash on display. Timer alarm starts to
sound for 1 minute and Timer will automatically count up at 1 second
resolution.

5. When you think the count-up peried is good enough for you. Press STAR T/
STOP button once to stop the count-up Timer.

6. Elapsed period after Timer counts down to zero can be known from the
count-up time on display.

NORMAL TIME SETTING

Switch the TIMER/CLOCK slide switch to CLOCK position, normal time of
clock will show on display.

HOUR

Press SET button (beep sound can be heard) and at the same time press HOUR
button (beep sound can be heard) to advance hour digits. Press SET button and
simultaneously press and hold HOUR button for 2 seconds to fast set the hour
digits. AM or PM mark will appear on display for 12 hour version clock.

MINUTE

Press SET button (beep sound) and at the same time press MIN button (beep

sound) to advance minute digits. Press, SET button and simultaneously press

and hold MIN button for 2 seconds to fast set the minute digits.

ENGLISH

TIMER FEATURES

1. LCD Count-down/count-up Timer together with Clock.

2. 6 digits display showing HOUR, MINUTE and SECOND for both Timer
and Clock.

3. Automatic count up after Timer counts down to zero.

4. Count-down Timer: Maximum setting is 23 HR. 59MIN. 59 SEC. and counts
down at 1 second resolution.

Count-up Timer: Maximum count-up range is 23 HR. 59 MIN. 59 SEC. at 1
second resolution.

5. Memory recall function for count-down Timer.

6. Timer alarm sounds for 1 minute when Timer counts down to zero.

7. Individual setting buttons for HOUR. MINUTER and SECOND setting.

8. Sound warning for the last one minute.

COUNT-DO WN TIMER SETTING

1. Switch the TIMER/CLOCK slide switch to TIMER position, 0:00 00 and
TIMER mark will show on display.

2. Press HOUR button to advance hour digits. With each press of the button
a beep sound will be heard. Press and hold HOUR button for 2 seconds will
fast set the hour digits.

3. Press MIN button to advance minute digits. With each press of the button
a beep sound will be heard. Press and hold MIN button for 2 seconds will
fast set the minute digits.

4. Press SEC button to advance second digits. With each press of the button
a beep sound will be heard.

5. If setting is not the desired one, press CLEAR button once to reset Timer
to zero and set time again.

COUNT-DO WN TIMER ST ART/ST OP

1. After time setting is ready, press ST AR T/ST OP button once and Timer will
start to cound down at 1 second resolution.

2. When Timer is counting, press START/STOP button once and Timer will
stop.

3. Press START/STOP button once and Timer will start counting again.

SECOND

Press SET button (beep sound) and at the same time press SEC button (beep

sound) will reset second digits to zero when second digits are within 0-30 sec.

range. When second digits are within 31-59 sec. range, press SET and SEC
button will reset second digits to zero and minute digit will advance by 1.

REPLACEMENT OF B A TTERY

Follow the arrow direction, slide push to open the battery cover at back side of
Timer. Remove exhausted battery, insert a new 1.5V ‘AAA’ Battery as indicated
by the polarity symbols (+&-) mark and close battery cover.

CLIP A TTA CHMENT

The timer can clip on a thin board or shirt pocket by using the plastic clip on
the backside of timer.

MAGNETIC A TTA CHMENT

The timer can attach to iron or steel surface, using the magnet attached to the
clip on the backside of the timer.

TABLE STANDING

The Timer can stand on table surface by flipping out the metal stand bar on the
back side of Timer.

SPECIFICATIONS

Power: use 1 pc UM-4 or “AAA ” 1.5V ba ttery
Weight: 0.22 lbs (without battery)
Dimension: 2.75" x 0.75" x 2.5" (LxWxT)

CAUTION

- The content of this manual is subject to change without further notice.

- Due to printing limitation, the displays shown in this manual may differ
from the actual display.

- The contents of this manual may not be reproduced without the permis
sion of the manufacturer.

COUNT -DOWN TIMER ALARM

1. When Timer counts down to 0 HR 00 MIN 00 SEC (0:00 00 will show on

display). TIMES-UP will flash on the display. Timer alarm starts to sound
for 1 minute and Timer will automatically continue to count up at 1 second
resolution.

2. Timer alarm and count-up time can be stopped by pressing HOUR,MIN,

SEC, STAR T/STOP or CLEAR button.

COUNT-DO WN TIMER MEMOR Y RECALL

1. After Timer alarm stops, pressing START/STOP button once can recall
preset desired count-down time. The word "MEMORY" will flash on the

display.

2. Pressing STAR T/STOP button 2nd time can start Timer and Timer will
count down for another lap. The word "MEMORY" will flash on the dis-

play.

COUNT-UP TIMER SETTING

1. When timer is in resting stage ( 0 HR, 00 MIN, 00 SEC ). Pressing STAR T/
STOP button once will activate count-up feature and Timer starts to count

up at 1 second resolution. A beep sound will be heard.

2. Press START/STOP button 2nd time to stop the count-up Timer.

CUSTOMER ASSIST ANCE

Should you require assistance regarding this product and its operation, please
contact our customer care department at 541-868-8205 or via email at
[e-mail].

WARRANTY

This product is warranted to be free of manufacturing defects for a period of 3
months from date of retail purchase. Defective product should be directed to the
place of retail purchase for exchange. Should this not be possible, contact our

customer care department for assistance and a return material authorization. No
returns may be made without a return authorization. Please retain your retail

receipt as you may be asked to provide a copy of it for proof of date purchased.
This warranty does not cover product subjected to abuse, misuse, accidental

damage or tampering. Upon return of the defective product, Oregon Scientific
will at its

discretion, replace the product with either a new or a tested reconditioned product.
Should the product be out of warranty, the consumer may purchase directly
from Oregon Scientific a replacement at reasonable cost plus shipping and
handling.
