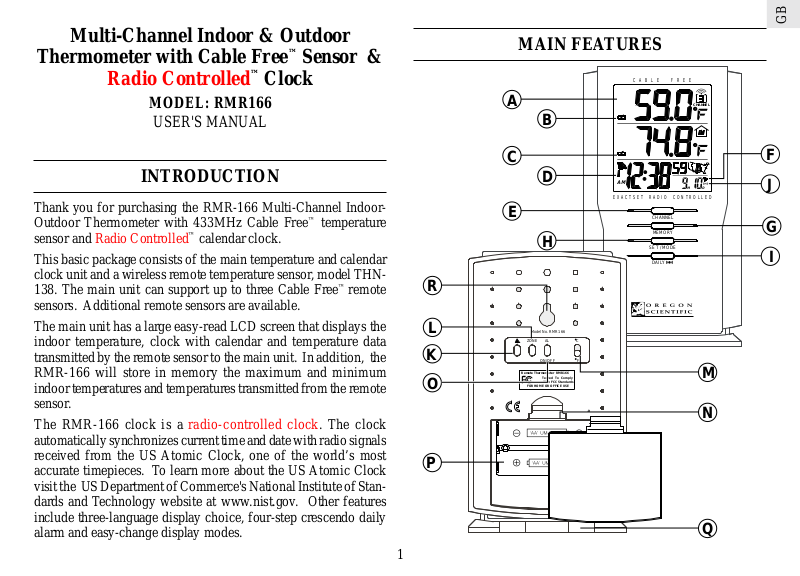

Oregon RMR166 User Manual
Multi-Channel Indoor & Outdoor
Thermometer with Cable Free™ Sensor &
Radio Controlled™ Clock
MODEL: RMR166
USER'S MANUAL
INTRODUCTION
Thank you for purchasing the RMR-166 Multi-Channel IndoorOutdoor Thermometer with 433MHz Cable Free
sensor and Radio Controlled
™
calendar clock.
This basic package consists of the main temperature and calendar
clock unit and a wireless remote temperature sensor, model THN-
138. The main unit can support up to three Cable Free
sensors. Additional remote sensors are available.
The main unit has a large easy-read LCD screen that displays the
indoor temperature, clock with calendar and temperature data
transmitted by the remote sensor to the main unit. In addition, the
RMR-166 will store in memory the maximum and minimum
indoor temperatures and temperatures transmitted from the remote
sensor.
The RMR-166 clock is a radio-controlled clock. The clock
automatically synchronizes current time and date with radio signals
received from the US Atomic Clock, one of the world’s most
accurate timepieces. To learn more about the US Atomic Clock
visit the US Department of Commerce's National Institute of Standards and Technology website at www.nist.gov. Other features
include three-language display choice, four-step crescendo daily
alarm and easy-change display modes.
™
temperature
™
remote
GB
MAIN FEATURES
CABLE FREE
A
B
C
D
AM
EXACTSET RADIO CONTROLLED
E
H
R
L
K
O
Model No. RMR166
AL
ZONE
ON/OFF
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
C
F
RMR166Remote Thermometer
-D
P
1
CHANNEL
MEMORY
SET / MODE
DAILY
CHANNEL
P
M
E
C
M
D
F
J
G
I
M
N
Q
GB
A. THREE-LINE LCD DISPLAY
Easy- read display of remote sensor and indoor temperatures,
and calendar clock functions
B. [
] REMOTE SENSOR LOW BATTERY ICON
Indicates the remote-sensor battery power is low and batteries
need replacing
] MAIN UNIT LOW BATTERY ICON
C. [
Indicates the main unit battery power is low and batteries need
replacing
D. [
] US ATOMIC CLOCK SIGNAL RECEPTION ICON
Graphically displays the radio signal reception strength
E. [CHANNEL] BUTTON
Identifies and selects the remote sensor channels of 1 - 3
] ALARM-ON ICON
F. [
When displayed indicates that the daily alarm is activated
G. [MEMORY] BUTTON
Displays and switches between Maximum/Minimum
temperatures
H. [SET/MODE] BUTTON
Switches between display modes and saves user-selections
made during setting the function values
I. [DAILY ((.))] BUTTON
Sets the time for the alarm
J. [((.))] ALARM ICON
Indicates that the alarm time is displayed
K. [ ▲ ] BUTTON
Advances the value of a setting
L. [ ZONE ] BUTTON
Selects the US time zone
°C/°F SLIDE SWITCH
M.
Selects between degrees Centigrade (°C) and Fahrenheit (°F)
N. [RESET] BUTTON
Returns all settings to their original default values
O. [ALARM ON/OFF] BUTTON
Activates or disables the alarms
P. BATTERY COMPARTMENT
Accommodates two (2) "AA" (UM-3) size batteries
Q. REMO VABLE TABLE STAND
For standing the main unit on a flat surface
R. WALL-MOUNT RECESS
For mounting the unit on a wall
2
REMOTE SENSOR FEATURES
A
433MHZ CABLE FREE
F
A. LED LIGHT
Flashes when the remote sensor transmits data to the main unit
B. CHANNEL SLIDE SWITCH
Assigns and identifies the channel of the remote sensor
C. RESET BUTTON
B
C
D
Returns all settings to their original default values
D. BATTERY COMPARTMENT
Accommodates two “AA” (UM-3) size batteries
E. BATTERY COMPARTMENT DOOR
F. WALL-MOUNT HOLDER
Holds the remote sensor for wall-mounted display
G. MO VABLE TABLE STAND
For standing the remote unit on a flat surface
BEFORE YOU BEGIN
For best operation:
E
1. When using more than one remote sensor assign a different
channel to each of the remote sensors.
2. Insert batteries in the remote sensor BEFORE inserting the
batteries into the main unit.
3. Press [RESET] on the main unit after installing batteries. Place
G
the main unit close to the remote unit as this will expedite
initial synchronization between the remote sensor and the main
unit.
4. Position the remote sensor within the effective transmission
range of 21 - 32 yards (20 - 30 meters) from the main unit.
3
GB
GB
See “Wireless Transmission” for important information about
wireless data transmission.
NOTE: Although the remote sensors have been designed for out
door use, do not place the remote sensor in direct sunlight,
rain or snow.
REMOTE SENSOR BATTERY
INSTALLATION & CHANNEL SELECTION
1. Remove the screws on the battery compartment door.
2. Using the [CHANNEL] slide switch select the channel num-
ber of 1, 2 or 3 for that remote sensor..
RESET
MAIN UNIT BATTERY INSTALLATION
1. Gently lift the tab on the battery compartment door and
remove door.
2. Install 2 AA (UM-3) size alkaline batteries according to the
polarities as shown. Press [RESET].
ZONE
Remote Thermometer
FOR HOME OR OFFICE USE
3. Insert 2 AA (UM-3) size alkaline batteries according to the
polarities as shown. Press [RESET].
4. Replace the battery compartment door and secure the screws.
NOTE: Once a channel is assigned to a remote sensor, it can only
be changed by removing the batteries or resetting the unit.
3. Replace the battery compartment door.
LOW BATTERY WARNING
The RMR-166 features low battery warning icons for the main
unit and remote sensor(s). The main unit low battery warning icon
will be displayed on the second line of the LCD screen. The low
4
