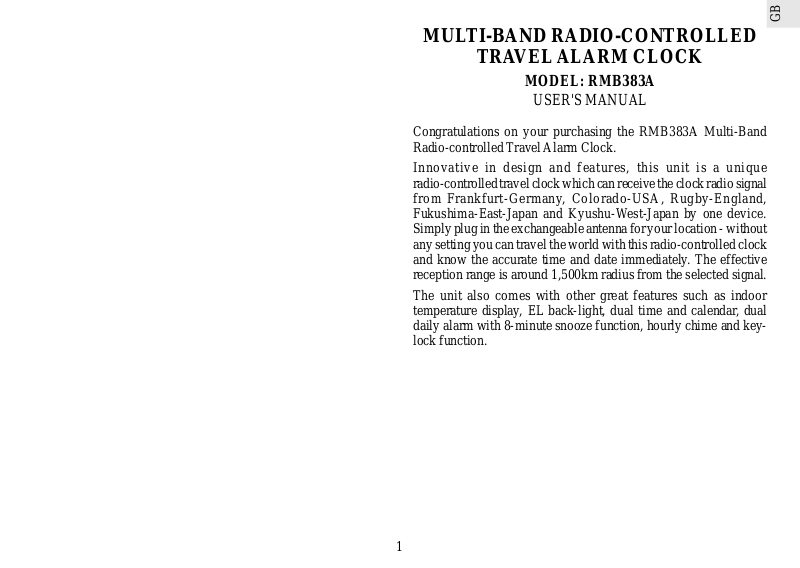

MULTI-BAND RADIO-CONTROLLED

TRAVEL ALARM CLOCK

MODEL: RMB383A

USER'S MANUAL

Congratulations on your purchasing the RMB383A Multi-Band
Radio-controlled Travel Alarm Clock.

Innovative in design and features, this unit is a unique
radio-controlled travel clock which can receive the clock radio signal
from Frankfurt-Germany, Colorado-USA, Rugby-England,
Fukushima-East-Japan and Kyushu-West-Japan by one device.
Simply plug in the exchangeable antenna for your location - without
any setting you can travel the world with this radio-controlled clock
and know the accurate time and date immediately. The effective
reception range is around 1,500km radius from the selected signal.

The unit also comes with other great features such as indoor
temperature display, EL back-light, dual time and calendar, dual
daily alarm with 8-minute snooze function, hourly chime and key­lock function.

1

GB

GB

MAIN FEATURES

1. LCD DISPLAY

2. MAIN UNIT

3. PLUGGED-IN ANTENNA

A

C

1

D

2

B

E

3

F
G

CONTROL BUTTONS

A. [ SNOOZE

Press to activate the snooze function or turn on the back-light
for 5 seconds

B. [ ] BUTTON

Press to toggle between the 2 daily alarms or press and hold to
enter the setting routine

C. [▲] AND [▼] BUTTONS

Press to change the value of a setting

D. [MODE] BUTTON

Press to change the display mode or press and hold to enter the
setting routine

E. [TEMP] BUTTON

Press to display the indoor temperature or press and hold to
change the temperature display unit

F. [RESET] BUTTON

Press to return all settings to default values

G. [RELEASE] PUSH BUTTON

Press to release the plugged-in antenna

2

] BUTTON

BATTERY INSTALLATION

This unit is operated by 2 pieces of UM-4 or AAA-sized 1.5V
batteries.

Battery Installation:

1. Remove the battery compartment door.

2. Insert two AAA-sized (UM-4) 1.5V batteries as shown.

3. Press [RESET] .

4. Replace the battery compartment door.

Note: Make sure the polarities are correct.

When the power level of the installed batteries is low, the low battery
indicator [

] will light up. In this case, replace with new batteries.

2. JAPAN-WEST/ USA/ UK (JJY-60/ WWVB-60/ MSF-60
signal)

3. JAPAN-EAST (JJY-40 signal)

Simply plug in the antenna as shown and the auto-reception of the
radio signal will be activated automatically.

GB

ANTENNA SELECTION

To utilize the radio-controlled clock function, first you must select
an antenna to be applied.

The following antennas are included in the package:

1. EUROPE (DCF-77 signal)

The respective icon for the plugged in antenna will be shown on the
top-right corner of the LCD display accordingly.

3
