Oregon RM932A User Manual

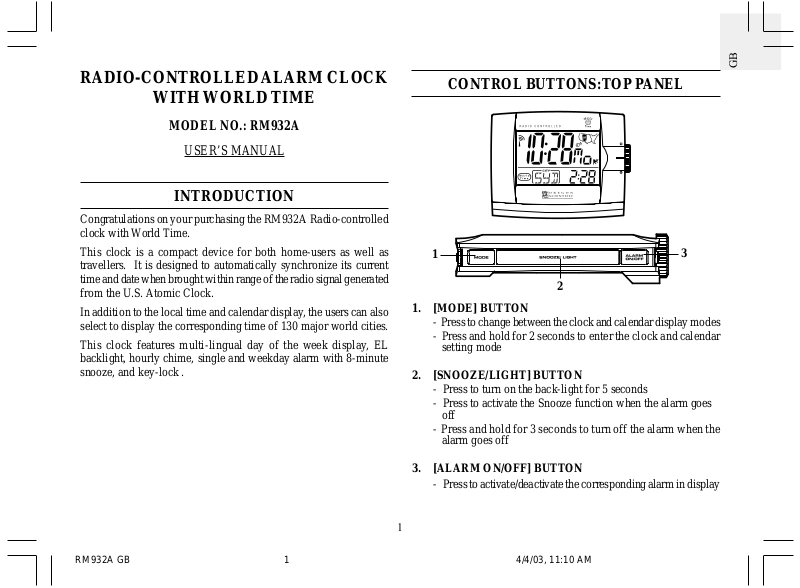

RADIO-CONTROLLED ALARM CLOCK

WITH WORLD TIME

MODEL NO.: RM932A

USER’S MANUAL

INTRODUCTION

Congratulations on your purchasing the RM932A Radio-controlled clock with World Time.

This clock is a compact device for both home-users as well as travellers. It is designed to automatically synchronize its current time and date when brought within range of the radio signal generated from the U.S. Atomic Clock.

In addition to the local time and calendar display, the users can also select to display the corresponding time of 130 major world cities.

This clock features multi-lingual day of the week display, EL backlight, hourly chime, single and weekday alarm with 8-minute snooze, and key-lock .

CONTROL BUTTONS:T OP P ANEL

1. [MODE] BUTTON

- Press to change between the clock and calendar display modes

- Press and hold for 2 seconds to enter the clock and calendar setting mode

2. [SNOOZE/LIGHT] BUTTON

- Press to turn on the back-light for 5 seconds

- Press to activate the Snooze function when the alarm goes off

- Press and hold for 3 seconds to turn off the alarm when the alarm goes off

3. [ALARM ON/OFF] BUTTON

- Press to activate/deactiv ate the corresponding alarm in display

RM932A GB 4/4/03, 11:10 AM1

CONTROL BUTTONS:SIDE PANEL

4. [RF CLOCK] BUTTON

- Press and hold for 3 seconds to activate/deactiva te the autoreception of RF clock signal

1. [ALARM] BUTTON

- Press to toggle among the calendar, weekday alarm and single alarm modes

- Press and hold for 2 seconds to enter the setting modes of the corresponding alarm in display

2. ROTARY KNOB [UP] AND [DOWN] BUTTONS

- Scroll up or down to increase/ decrease the value of a setting

3. [WORLD TIME] BUTTON

- Press to enter the world time setting mode

RM932A GB 4/4/03, 11:10 AM2

CONTROL BUTTONS:REAR PANEL

1. [RESET] BUTTON (inside battery compartment)

- Press to return all settings to default values

2. [KEY-LOCK] SLIDE SWITCH

- Slide to lock the key-functions

3. WALL-MOUNT HOLDER

4. FOLDABLE TABLE STAND

BEFORE YOU BEGIN

Before operation, remember to slide the key-lock switch to the left to release all key operations.

When the battery power level is low, the low battery indicator

] will light up. Replace the batteries accordingly.

[

ACTIVA TING THE BA CK-LIGHT

Press [SNOOZE/LIGHT] button to turn on the back-light for 5 seconds.

BATTERY INSTALLATION

"AAA" UM4 1.5V

1. Remove the battery compartment door.

2. Insert two (2) “AAA” 1.5V batteries as shown.

3. Press RESET.

4. Replace the battery compartment door.

RM932A GB 4/4/03, 11:10 AM3

DISPLAY MODES

Press [MODE] button to display the following in sequence:

1 Current Time with Seconds

World City Name Abbreviation & Time

2) Current T ime with Weekday World City Name Abbreviation & Time

3) Calendar World City Name Abbreviation & Time

To display the dual alarm times, press [ALARM] button.

ABOUT RADIO RECEPTION

This clock is designed to automatically synchronize its calendar clock once it is brought within range of the U.S. Atomic Clock. When the unit is within range, its radio-control mechanism will override all manual settings unless auto-reception of radio signal has been manually deactivated.

When the clock is receiving radio signal, the radio reception icon will start to blink. A complete reception generally takes about 2 to 10 minutes, depending on the strength of the radio signal. When the reception is complete, the radio reception icon will stop blinking. The strength of the reception for the last full hour will be indicated.

For better reception, place the unit away from metal objects and electrical appliances to minimize interference.

Should you wish to deactivate the RF controlled function, press and hold [RF CLOCK] button for 3 seconds. The radio reception icon will disappear. To reactivate the RF controlled function, press and hold [RF CLOCK] button for 3 seconds again and the radio reception icon will be re-displayed.

- Strong

- Weak

- No Reception

- Receiving

RM932A GB 4/4/03, 11:10 AM4

SETTING THE CLOCK AND CALENDAR

CLOCK MANUALLY

1. Press and hold [MODE] button for 2 seconds.

2. Use the [ROTARY KNOB] to scroll through Pacific, Mountain,

Central, Eastern, or ADD. Press [MODE] to confirm.

3. Add is selected, the World-time city will be flashing. Use

[ROTARY KNOB] to select the city.

4. Repeat the same procedures to set the hours, minutes, year, month, day, language of day-of-week and hourly-chime on/off by using [ROTARY KNOB] button.

5. Press [MODE] button to save the changes and exit.

6. For the language for day-of-week, you can select “E” for English, “D” for German, “F” for French, “I” for Italian or “S” for Spanish. The day-of-week can be expressed as an abbreviation in five different languages. The languages and their selected abbreviations for each day of the week are shown in the language chart below.

Language

English

German

French

Italian

Spanish

Day-of-the-week

Monday Tuesday Wed. Thursday Friday Saturday Sunday

Note: When changes are made to the minute, the seconds will start from zero. The unit will also save all changes and return to normal display automatically after the unit has been left idle for approximately one minute.

ABOUT THE HOURLY-CHIME FUNCTION

When the Hourly-Chime is set to the on-mode, the indicator [ ] will light up and a beep sound will be given out at the beginning of each hour.

RM932A GB 4/4/03, 11:10 AM5
