Oregon BAR988HG User Manual

BAR988HG English Cover R5 OP 8/20/04, 11:26 AM1

Black

Slimline Weather Station

Model: BAR988HG / BAR986HG

User Manual

Slimline Weather Station

Model: BAR988HG / BAR986HG

User Manual

CONTENTS

Introduction .............................................................. 3

Product Overview .................................................... 4

Front View .............................................................. 4

Back View .............................................................. 5

LCD Display ...........................................................6

Remote Sensor (RTGR328N) ................................ 9

Getting Started ....................................................... 10

Batteries ............................................................... 10

AC Adaptor (Main Unit) ........................................ 11

Change Settings .................................................. 11

Remote Sensor ....................................................... 11

Set Up Thermo / Hygro Sensor (RTGR328N) ..... 12

Sensor Data Transmission .................................. 13

Search for Sensor ................................................13

Clock and Calendar ............................................... 13

Radio-Controlled Clock ........................................14

Turn Radio-Controlled Clock ON / OFF ...............14

Set Clock ............................................................. 15

Switch Clock Display ........................................... 15

Alarms ..................................................................... 15

Set Daily Alarm .................................................... 15

Set Pre-Alarm ...................................................... 16

Activate Alarm ...................................................... 16

Snooze ................................................................ 16

Barometer ............................................................... 16

View Barometer Area ........................................... 16

Select Measurement Unit .................................... 17

View Barometer History ....................................... 17

Bar Chart Display ................................................. 17

Set Altitude........................................................... 17

Weather Forecast ................................................... 18

Weather Forecast Icons ....................................... 18

UV Measurement .................................................... 18

New Additional UV Features ................................ 19

Temperature and Humidity .................................... 20

View Temperature and Humidity Area ................. 20

Select Measurement Unit .................................... 20

Select Sensor Channel ........................................ 20

Minimum / Maximum Records ............................. 20

Temperature and Humidity Trend ........................ 21

Comfort Zone .......................................................21

Heat Index ........................................................... 21

1

EN

BAR988HG English R5 OP 8/20/04, 11:25 AM1

Black

EN

Backlight ................................................................. 22

Reset System ......................................................... 22

Safety and Care ...................................................... 22

Warnings .................................................................22

Troubleshooting .....................................................23

Specifications .........................................................23

About Oregon Scientific ........................................ 25

EC-Declaration of Conformity ...............................26

2

BAR988HG English R5 OP 8/20/04, 11:25 AM2

Black

INTRODUCTION

Thank you for selecting the Oregon Scientific
BAR988HG / BAR986HG Slimline Weather Station. This
powerful device bundles time keeping, weather
monitoring, indoor and outdoor temperature and humidity
readings, barometric trends and altitude adjustment, into
a single tool you can use from the convenience of your
home.

In this box, you will find:

• Main unit

• Remote sensor (RTGR328N)

• Optional UV sensor (UVR138)

• 6V AC adapter

• Batteries

BAR988HG --- BAR988HG Main Unit + RTGR328N
Remote Sensor

BAR986HG --- BAR988HG Main Unit + RTGR328N
Remote Sensor + UVR138 UV Sensor

The THGR328N (5-Channel) and THGR228N

NOTE

(3-Channel) remote sensors are also compatible with
this weather station. Additional sensors are sold
separately. Please contact your local stockist for more
information.

Keep this manual handy as you use your new product.

TM

It contains practical step-by-step instructions, as well
as technical specifications and warnings you should
know.

EN

3

BAR988HG English R5 OP 8/20/04, 11:25 AM3

Black

EN

PRODUCT OVERVIEW

FRONT VIEW

1

2

3

4

5

6

1. LCD display

2. MODE: Change settings / display

3. MEMORY: View current, maximum and minimum

7

temperature / humidity / UV readings

4. HISTORY: View historical barometer and UV
readings

8

5. ALARM /

6. SNOOZE / LIGHT: Activate 8-minute snooze or

: View alarm status; set alarm

backlight

9

7. SELECT: Switch Areas

8. CHANNEL: Switch remote sensor display

9. UP: Increase setting / activate radio-controlled clock

10

10. DOWN: Decrease setting / deactivate radio-
controlled clock

4

BAR988HG English R5 OP 8/20/04, 11:25 AM4

Black

BACK VIEW

1

1. Ventilation holes

2. Battery compartment (bottom)

3. AC adaptor socket

4. °C / °F switch (in battery compartment)

5. RESET button (in battery compartment)

6. mb / inHg switch (in battery compartment)

You can adjust the angle of the clock display as
shown below:

EN

2

BAR988HG English R5 OP 8/20/04, 11:25 AM5

Black

3

4
5

6

5

EN

LCD DISPLAY

1. Weather Forecast Area: Animated weather forecast

2. Temperature / Humidity / Comfort Zone Area:
Readings and trend lines; comfort zone; sensor
channel number

1

3. UVI / Barometer Area: UV level and barometric
pressure bar chart; UV Index and barometric
readings

4. Clock / Alarm / Calendar Area: Radio-controlled
clock; alarms; calendar

2

3

4

6

BAR988HG English R5 OP 8/20/04, 11:25 AM6

Black

Weather Forecast Area

Temperature / Humidity / Comfort Zone Area

EN

1

2

3

1. Low battery icon for main unit

2. AC adaptor icon - displays when unplugged

3. Weather display

BAR988HG English R5 OP 8/20/04, 11:25 AM7

Black

1

2

3

4
5

1. Selected Area icon

2. Temperature trend

3. Channel number (1-5) / reception status

4. Low battery icon for remote sensor

5. Humidity trend

6. MAX / MIN temperature

7. Temperature - °C / °F

8. Heat Index

9. MAX / MIN humidity

10. Humidity

11. Comfort levels

7

6
7

8
9

10

11

EN

UVI / Barometer Area

1

2

3

4
5

6

7

1. Barometric pressure is showing

2. UV is showing

3. Low battery icon for UV sensor

4. UVI value is showing

5. UV exposure time countdown has started

6. UV index level

7. UV exposure time for user

8. Barometer / UV chart

9. SPF applied to user for UV exposure

10. User skin type for UV exposure

11. User no. (for UV Mode) or hour history for UV /
Barometric pressure reading

12. Altitude / barometric pressure / UVI reading

Clock / Alarm / Calendar Area

1

2

3

8

9
10

11

12

4
5

1. Pre-Alarm is set

2. Pre-Alarm display / Pre-Alarm setting

3. Channel with RF clock reception is locked

6

7

4. RF clock reception icon

5. Daily Alarm is set

6. Offset time-zone

7. Time / date / calendar

8

BAR988HG English R5 OP 8/20/04, 11:25 AM8

Black

REMOTE SENSOR (RTGR328N)

1

2

3

1. LCD display

2. LED status indicator

3. Ventilation duct

1

2

3

1. Signal reception

2. Channel number

3. Low battery icon

4. Time

5. Temp (°C or °F)

6. Humidity %

7. Temp / Humidity

9

EN

4

5

6

7

BAR988HG English R5 OP 8/20/04, 11:25 AM9

Black

EN

1

2
3
4
5

6

7

8

1. Wall mount

2. CHANNEL switch (1-5)

3. RESET

4. °C / °F

5. SEARCH

6. EU / UK radio signal format switch

7. Battery compartment

8. Fold-out stand

GETTING STARTED

BATTERIES

Batteries are supplied with this product:

• Main unit 4 x UM-4 (AAA) 1.5V

• Remote unit 2 x UM-3 (AA) 1.5V

Insert batteries before first use, matching the polarity as
shown in the battery compartment. For best results,
install batteries in the remote sensor before the main
unit. Press RESET after each battery change.

To install the main unit batteries:

Do not use rechargeable batteries.

NOTE

shows when batteries are low.

10

BAR988HG English R5 OP 8/20/04, 11:25 AM10

Black

NOTE

It is recommended that you use alkaline

batteries with this product for longer performance.

UNIT

LOCATION

Main Weather Forecast Area
Remote Temperature / Humidity Area

UV Sensor UVI / Barometric Pressure Area

AC ADAPTOR (MAIN UNIT)

The batteries serve as a back-up power supply. For
continuous use, please install the AC adaptor at the base
of the unit:

shows in the Weather Forecast Area when the AC

adapter is not plugged in.

CHANGE SETTINGS

1. Press SELECT to switch between Areas.
indicates the selected Area.

2. Most Areas have alternate display options
(for example, Clock / Alarm or Barometer / UVI).
Press MODE to switch options, or ALARM /
switch between clock and alarm.

3. Press and hold MODE for 2 seconds to enter setting
mode.

4. Press UP or DOWN to change settings.

5. Press MODE to confirm.

REMOTE SENSOR

This product is shipped with the RTGR328N Thermo /
Hygro Sensor. The main unit can collect data from up to
6 sensors (5 Thermo / Hygro Sensors and 1 UV Sensor).
The THGR328N and THGR228N sensors are also
compatible with this weather station. (Additional sensors
are sold separately. Contact your local stockist for more
information.)

11

EN

to

BAR988HG English R5 OP 8/20/04, 11:25 AM11

Black

EN

The RTGR328N Sensor collects temperature and
humidity readings, and signals from official time-keeping
organizations for the radio-controlled clock.

To fold out the stand:

SET UP THERMO / HYGRO SENSOR (RTGR328N)

1. Open the battery compartment with a small Phillips
screwdriver.

2. Insert the batteries.

3. Set the channel and radio signal format. The switches
are located in the battery compartment.

SWITCH OPTION

Channel If you are using more than one

sensor, select a different channel
for each sensor.

Radio Signal

EU (DCF) / UK (MSF)

Format

4. Press RESET. Then set the temperature unit.

SWITCH OPTION

Temp °C / °F

5. Close the battery compartment.

BAR988HG English R5 OP 8/20/04, 11:25 AM12

Black

1

2

For best results:

• Insert the batteries and select the unit, channel,
and radio signal format before you mount the
sensor.

• Place the sensor out of direct sunlight and
moisture.

• Do not place the sensor more than 70 metres
(230 feet) from the main (indoor) unit.

• Position the sensor so that it faces the main
(indoor) unit, minimizing obstructions such as
doors, walls, and furniture.

• Place the sensor in a location with a clear view to
the sky, away from metallic or electronic objects.

• Position the sensor close to the main unit during
cold winter months as below-freezing
temperatures may affect battery performance and
signal transmission.

12

NOTE

The transmission range may vary and is subject

to the receiving range of the main unit.

You may need to experiment with various locations to
get the best results.

SEARCH FOR SENSOR

To search for a Thermo / Hygro sensor, press SELECT
to navigate to the Temperature / Humidity Area.

will
show next to the Area. Then, simultaneously press and
hold MEMORY and CHANNEL for 2 seconds.

EN

SENSOR DATA TRANSMISSION

Data is sent from the sensor(s) every 60 Seconds. The
reception icon shown in the Temperature / Humidity Area
indicates the status.

ICON DESCRIPTION

Main unit is searching
for sensors.

At least 1 channel has
been found.

Sensor 1 is sending
data. (The number
shows which sensor is
selected.)

--- shows in Temp /
Humidity Area

The selected sensor
cannot be found.
Search for the sensor
or check batteries.

BAR988HG English R5 OP 8/20/04, 11:25 AM13

Black

To search for the UV sensor, press SELECT to navigate
to the UVI / Barometer Area.

will show next to the
Area. Then, press and hold MEMORY and CHANNEL
for 2 seconds.

NOTE

If the sensor is still not found, check the

batteries.

CLOCK AND CALENDAR

This product tracks the time and date based on radio­controlled signals from the RTGR328N remote sensor,
or manual settings that you enter.

13

EN

RADIO-CONTROLLED CLOCK

The time and date are automatically updated by radio­controlled clock signals from official time-keeping
organizations in Frankfurt (Germany) and Rugby
(England) unless you disable this feature. The signals
are collected by the remote sensor (RTGR328N)
whenever it is within 1500 km (932 miles) of a signal.

Initial reception takes 2-10 minutes, and is initiated when
you first set up the unit, and whenever you press RESET.
Once complete, the reception icon will stop blinking.

The

icon shown in the Clock Area indicates

2 factors:

• Connection between the main unit and the sensor
that collects RF signals (

• RF signal reception (

)

)

How these signals work together:

ICON MEANING

The unit has contact with the
sensor and has synchronized the
time.

The unit has contact with the
sensor but the time has not been
synchronized.

ICON MEANING

The unit has lost contact with the
remote sensor but the time is
synchronized.

The unit has lost contact with the
remote sensor and the time is not
synchronized.

The unit cannot reach the remote
sensor.

To force a manual search for RF clock reception,

NOTE

press and hold SEARCH on the sensor (RTGR328N)
for 2 seconds.

TURN RADIO-CONTROLLED CLOCK ON / OFF

If you wish to manually set the clock, you must first
disable the radio-controlled feature. To do this, navigate
to the Clock / Alarm Area. Then, press and hold DOWN
on the main unit for 2 seconds. To enable it, navigate to
the Clock / Alarm Area, then press and hold UP for
2 seconds.

RF clock enabled:

14

BAR988HG English R5 OP 8/20/04, 11:25 AM14

Black

RF clock disabled:

SET CLOCK

You only need to do this if you have disabled the radio­controlled clock, or if you are too far from a RF signal.

1. Press SELECT to navigate to the Clock Area.

will show next to the Area.

2. Press and hold MODE for 2 seconds.

3. Select the time zone offset hour (+ / -23 hours),

12 / 24 hour format, hour, minute, year, date / month
format, month, date and display language.

4. Press UP or DOWN to change the setting.

5. Press MODE to confirm.

NOTE

The language options are (E) English,
(F) French, (D) German, (I) Italian, and (S) Spanish. The
language you select determines the weekday display.

SWITCH CLOCK DISPLAY

Press SELECT to navigate to the Clock Area.

will

show next to the Area.

Press MODE to toggle between:

• Clock with seconds

• Clock with day

• Clock with time-zone offset

• Calendar

ALARMS

This product has 2 alarms: The Daily Alarm and a
Pre-Alarm for snowy weather. The Daily Alarm can be
set to go off at the same time every day. The Pre-Alarm
sounds only when the Daily Alarm is activated and the
recorded temperature from Channel 1 Sensor falls to
2°C (35.6°F) or below.

SET DAILY ALARM

1. Press SELECT to navigate to the Clock Area.
will show next to the Area.

2. Press ALARM /
at the top.)

3. Press and hold ALARM /

4. Select the hour and minute. Press UP or DOWN to
change settings.

5. Press ALARM /

6. The Daily Alarm icon
is set.

15

to view the alarm. (AL will show

for 2 seconds.

to confirm.

will appear when the alarm

EN

BAR988HG English R5 OP 8/20/04, 11:25 AM15

Black

EN

SET PRE-ALARM

The Pre-Alarm can be set to sound 15, 30, 45, or
60 minutes before the Daily Alarm. It will sound whenever
the recorded temperature from Channel 1 Sensor falls
to 2°C (35.6°F) or below.

For example, if you set the alarm to 7:00 AM, and the
Pre-Alarm to 45 minutes, the Pre-Alarm will sound at
6:15 AM provided the outdoor temperature at Channel
1 Sensor is 2°C or below.

1. Set up and activate the Daily Alarm.

2. Press ALARM /

to switch to Pre-Alarm view.

(PRE-AL will show at the top.)

3. Press and hold ALARM /

4. Press UP or DOWN to select 15, 30, 45 or
60 minutes. This is the amount of time the Pre-Alarm

for 2 seconds.

will sound BEFORE the Daily Alarm. The Pre-Alarm
is automatically activated when you select a time.

5. Press ALARM /

shows when the Pre-Alarm is set.

The Daily Alarm will NOT function until the next

NOTE

to confirm.

day if the Pre-Alarm has been triggered. Also, if you
deactivate the Daily Alarm, the Pre-Alarm is
automatically deactivated.

ACTIVATE ALARM

Navigate to the Clock Area, then press ALARM /
switch to Daily Alarm or Pre-Alarm view. To activate or
deactivate the alarm, press UP or DOWN.

When the alarm time is reached, the backlight will be on
for 8 seconds and crescendo alarm will sound for
2 minutes. Press any key (except snooze) to silence
the alarm. It will sound at the same time the next day.

SNOOZE

Press SNOOZE / LIGHT to temporarily disable the alarm
for 8 minutes.

or

will blink while snooze is on.

BAROMETER

This product tracks fluctuations in barometric pressure
to provide the weather forecast, and the current and past
24 hours barometric pressure history measurements are
recorded by the main (indoor) unit.

VIEW BAROMETER AREA

Press SELECT to navigate to the Barometer Area.

is NOT shown, press MODE.

If

16

to

BAR988HG English R5 OP 8/20/04, 11:25 AM16

Black

Barometric data is shown in 2 areas at the bottom of the
display. The upper area shows a 24-hour bar chart.
The lower area shows current and historical readings.

SELECT MEASUREMENT UNIT

Slide the mb / inHg switch (in the clock battery
compartment), to change the display unit.

VIEW BAROMETER HISTORY

Navigate to the Barometer Area. Then press HISTORY
repeatedly to scroll through the measurements. The
number shown in the HR box indicates how long ago
each measurement was taken (e.g. 2 hours ago, 3 hours
ago, etc.).

EN

BAR CHART DISPLAY

The bar chart visually shows atmospheric changes from
the current hour (0) to 24 hours prior (-24).

SET ALTITUDE

Set the altitude to match how far above or below sea
level you are living. This ensures that the barometric
pressure readings are accurate.

1. Navigate to the Barometer Area.

2. Press and hold HISTORY for 2 seconds.

17

BAR988HG English R5 OP 8/20/04, 11:25 AM17

Black

EN

3. Press UP or DOWN to set the altitude in 10-metre
increments (-100m to 2500m).

4. Press HISTORY to confirm.

ICON DESCRIPTION

Cloudy

WEATHER FORECAST

This product forecasts the next 12 to 24 hours of weather
within a 30-50 km (19-31 mile) radius. The forecast is
based on barometric pressure trend readings.

The top area shows an animated icon indicating the
forecasted weather.

WEATHER FORECAST ICONS

ICON DESCRIPTION

Clear

Day / Night

Partly cloudy

Day / Night

BAR988HG English R5 OP 8/20/04, 11:25 AM18

Black

Rainy

Snowy

NOTE

The night time icon displays from 6 PM to 6 AM.
When the Channel 1 sensor records a temperature of
2°C (35.6°F) or lower, the RAINY icon becomes SNOWY.

UV MEASUREMENT

The UVR138 Ultra-Violet Radiation Sensor is included
with the BAR986HG and is available as an optional item
for the BAR988HG. The UV sensor gives you the
following information at your fingertips:

• 10-hour Ultra-Violet Index (UVI) record.

• Automatic calculation of acceptable UV exposure
times based on pre-set user profiles (4 users
maximum).

18

• UVI Danger Alert when UV Index reaches unsafe
levels.

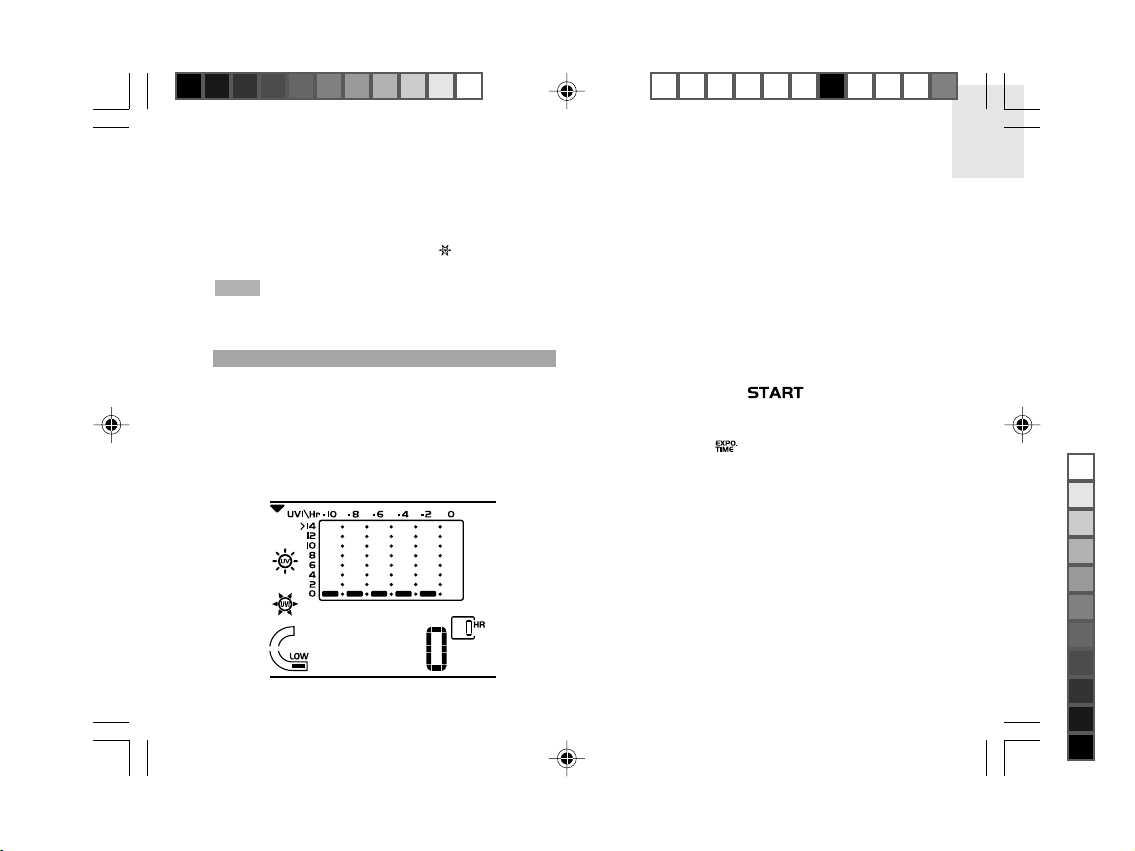

UV data is shown in the same area as the Barometer.
Press SELECT to navigate to the Barometer Area, then
press MODE to display the UV icon

NOTE

Refer to the UVR138 User Manual for more

information and see below to learn about the new

and data.

additional UV features.

NEW ADDITIONAL UV FEATURES

UV EXPOSURE TIME COUNTDOWN

To set the exposure time countdown you need set to the
Skin Type and Sun Protection Factor (SPF) as follows:

1. Press SELECT to navigate to the Barometer Area,
then press MODE to select the UV display.

2. Press CHANNEL to select user 1-4.

3. Press and hold MODE for 2 seconds to enter the
Skin Type Setting Mode of the selected user.

4. Press UP or DOWN to choose 1 of the 4 skin type
settings. Then press MODE to confirm and enter the
SPF Set Up Mode.

5. Press UP or DOWN to increase or decrease the SPF
value. Then press MODE to confirm and enter the
UV Exposure Time Countdown Setting Mode.

6. Press UP or DOWN to enable or disable countdown.
Press MODE to exit the UV Exposure Time
Countdown Mode and start the exposure time
countdown. The remaining user UV exposure time
will display and the

7. When the countdown has reached "0", an alarm will
sound for 2 minutes. Press any button to turn the
alarm off. The

will flash.

icon will flash for 2 minutes even

if you have stopped the alarm sound.

MAXIMUM / MINIMUM MEMORY FOR UVI

To view the maximum and minimum memory for UVI:

1. Press SELECT to navigate to the Barometer Area.

2. Press MODE to select the UV display.

3. Press MEMORY to show maximum, minimum and
current UVI readings.

4. Press and hold MEMORY for 2 seconds to clear the
UVI memory.

19

EN

BAR988HG English R5 OP 8/20/04, 11:25 AM19

Black

EN

NOTE

The UV sensor must be activated before you
try and set the additional features. Please refer to the
UVR138 User Manual for more information.

SELECT MEASUREMENT UNIT

Slide the °C / °F switch (inside the clock battery
compartment), to the setting you want.

TEMPERATURE AND HUMIDITY

The weather station can display the following information
from any of the 5 remote sensors:

• Current, minimum, and maximum temperatures
and relative humidity percentages.

• Comfort level indicator and trend line (rising,
falling, or steady).

Data is collected and displayed approximately every
60 seconds.

VIEW TEMPERATURE AND HUMIDITY AREA

Press SELECT to navigate to the Temperature and
Humidity Areas.

Temperature data is given at the top; Humidity is below.

BAR988HG English R5 OP 8/20/04, 11:25 AM20

Black

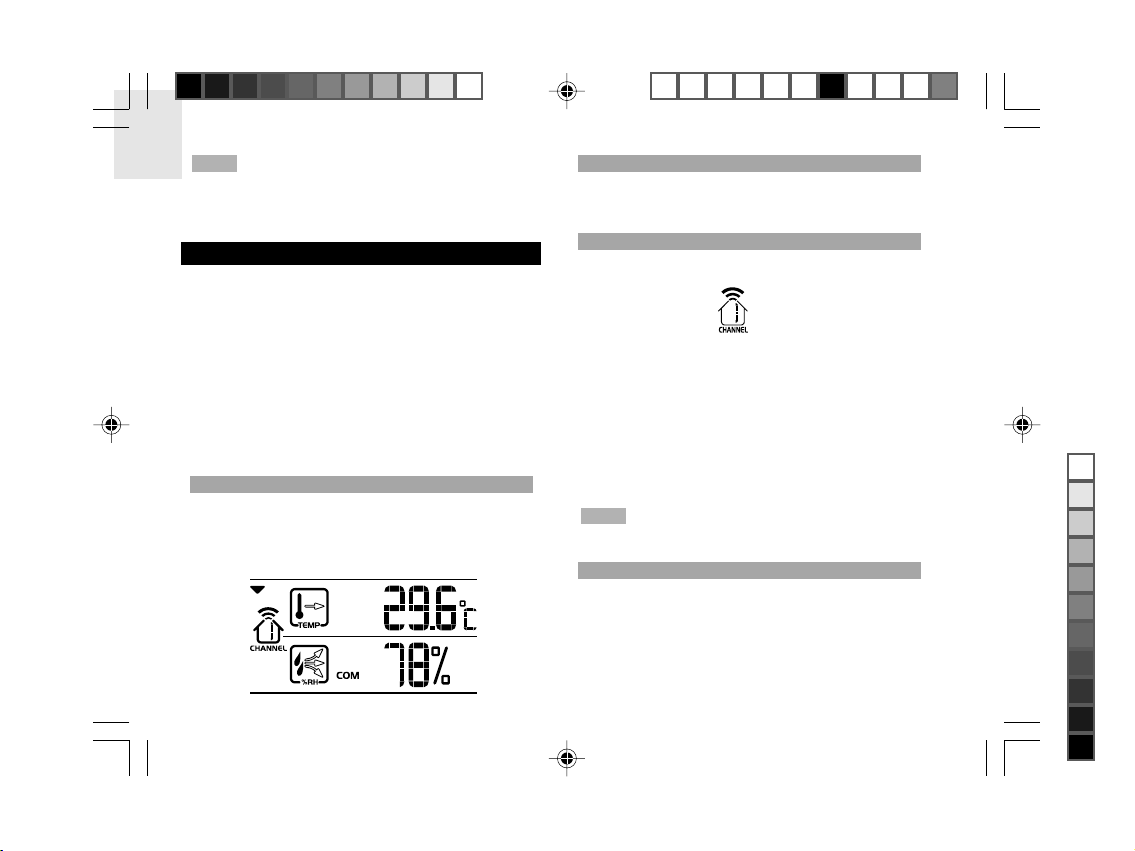

SELECT SENSOR CHANNEL

Press CHANNEL to switch between sensors 1-5.

The house icon shows the selected remote sensor.

• To auto-scan between sensors, press and hold
CHANNEL for 2 seconds. Each sensor's data will
be displayed for 3 seconds.

• To end auto-scan, press CHANNEL or MEMORY
with the Temperature / Humidity Area selected.

If you select a sensor that collects only

NOTE

temperature data, the humidity will not be shown.

MINIMUM / MAXIMUM RECORDS

• Press MEMORY repeatedly to view current,
maximum and minimum records for the selected
sensor.

• To clear the records, press and hold MEMORY
for 2 seconds. A beep will sound to confirm that
the memory has been cleared.

20

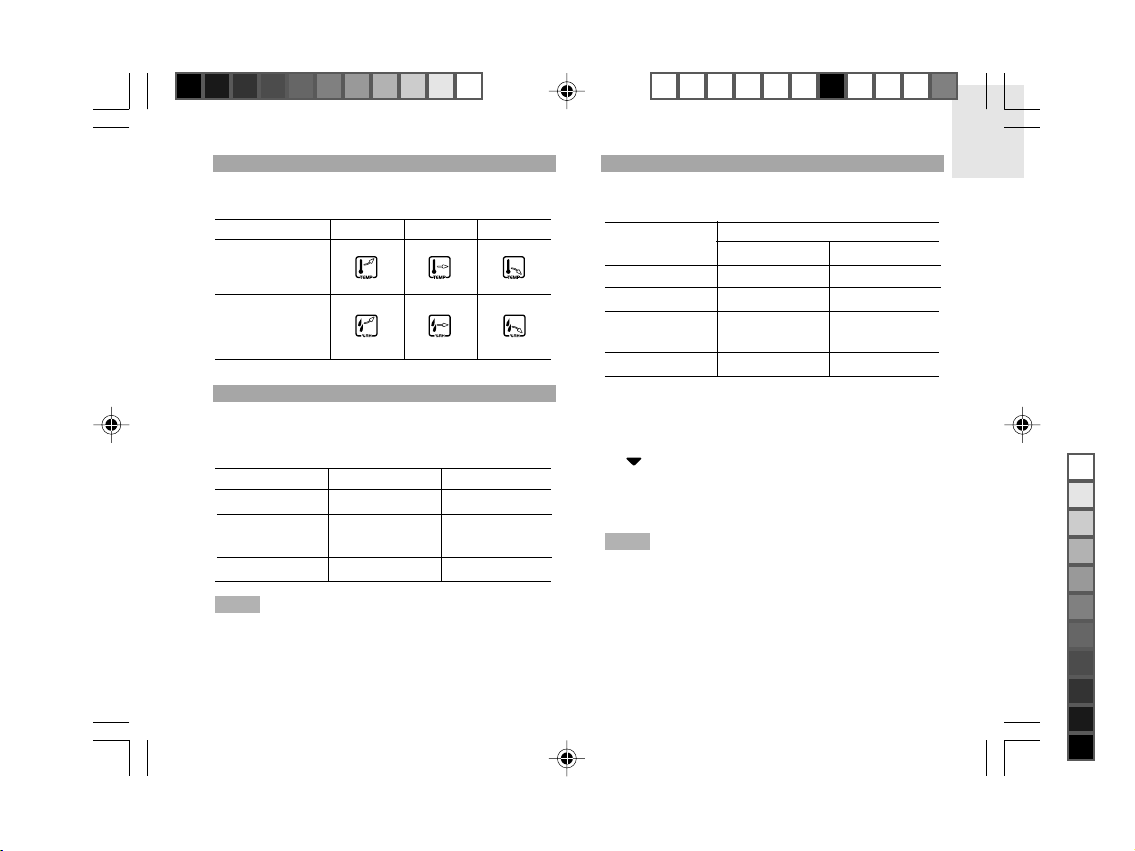

TEMPERATURE AND HUMIDITY TREND

The trend lines are shown next to the temperature and
humidity readings.

TREND RISING STEADY FALLING

TEMPERATURE

HUMIDITY

COMFORT ZONE

The Comfort Zone indicates how comfortable the climate
is, based on current temperature and humidity
measurements.

ZONE TEMPERATURE HUMIDITY

WET

COM

Any >70%

20-25°C

40-70%

(68-77°F)

DRY

NOTE

This information is shown in the Humidity Area

Any

<40%

when the current measurement is displayed.

HEAT INDEX

The Heat Index advises 4 levels of warning if the
temperature is high.

DANGER
CATEGORY

Extreme Danger

Danger 40.5-54.4

Extreme

TEMPERATURE

°C °F

>54.5

32.2-40.5

>130

105-130

90-105

Caution

Caution 26.6-32.2

80-90

To display the Heat Index:

1. Press SELECT to navigate to the Temperature Area.

will show next to the Area.

2. Press MODE to reach the Heat Index display.

3. Press CHANNEL to select the desired channel.

NOTE

If the temperature is below 26°C / 80°F, or the
desired channel is not working, the Heat Index will
display "NA".

21

EN

BAR988HG English R5 OP 8/20/04, 11:25 AM21

Black

EN

BACKLIGHT

Press SNOOZE / LIGHT to illuminate the backlight for
8 seconds.

RESET SYSTEM

The RESET button is located at the bottom of the unit.
Press RESET when you change the batteries and
whenever performance is not behaving as expected (for
example, unable to establish radio frequency link with
remote unit or radio-controlled clock).

NOTE

When you press RESET, all settings will return

to default value, and you will lose all stored information.

SAFETY AND CARE

Clean the product with a slightly damp cloth and alcohol­free, mild detergent. Avoid dropping the product or
placing it in a high-traffic location.

WARNINGS

This product is designed to give you years of service if
handled properly. Oregon Scientific will not be
responsible for any deviations in the usage of the device
from those specified in the user instructions or any
unapproved alterations or repairs of the product.
Observe the following guidelines:

• Never immerse the product in water. This can

cause electrical shock and damage the product.

• Do not subject the main unit to extreme force,

shock, or fluctuations in temperature or humidity.

• Do not tamper with the internal components.

• Do not mix new and old batteries or batteries of

different types.

• Do not use rechargeable batteries with this

product.

• Remove the batteries if storing this product for a

long period of time.

• Do not scratch the LCD display.

NOTE

The technical specification of this product and
contents of this user guide are subject to change without
notice. Images not drawn to scale.

22

BAR988HG English R5 OP 8/20/04, 11:25 AM22

Black

TROUBLESHOOTING SPECIFICATIONS

PROBLEM SYMPTOM REMEDY

Barometer Strange

readings

Calendar Strange

date /

Set altitude / unit
(→ 17)

Change language
(→ 15)

month

Clock Cannot

adjust
clock

Cannot
auto-synch

Disable radio­controlled clock
(→ 14)

1. Adjust
batteries (→ 10)

2. Press RESET
(→ 22)

3. Manually
activate radio­controlled clock
(→ 14)

Temp Shows

"LLL" or

Temperature is
out-of-range

"HHH"

Remote
sensor

Cannot
locate

Check batteries

(→ 12)
remote
sensor

Main Unit Dimensions

L x W x H 120 x 86 x 188 mm

Weight 376 grams (0.83 lbs)

Remote Unit Dimensions

L x W x H 70 x 24.5 x 116 mm

Weight 108 grams (0.24 lbs)

Temperature

Unit °C or °F

Indoor Range -5 °C to 50 °C

Outdoor Range -20 °C to 60 °C

Resolution 0.1 °C (0.2° F)

Comfort 20 °C to 25 °C

Memory Min / Max

Relative Humidity

Range 25% to 95%

Resolution 1%

23

EN

(4.72 x 3.39 x 7.40 inches)

without battery

(2.76 x 0.96 x 4.57 inches)

without battery

(23 °F to 122 °F)

(-4 °F to 140 °F)

(68 °F to 77 °F)

BAR988HG English R5 OP 8/20/04, 11:25 AM23

Black

EN

Comfort 40% to 70%

Memory Min / max

Barometer

Unit mb / hPa or inHg

Resolution 1 mb (0.03 inHg)

Altitude -100 to 2500 metres

(-328 to 2734 feet)

Display Sunny (day / night),

partly cloudy (day /
night), cloudy, rainy,
snowy

Calendar DD / MM or MM / DD;

Day of the week in 1 of
5 languages (E, G, F, I, S)

Alarm Daily & Pre-Alarm;

2-minute crescendo

Snooze 8-minute snooze

Power

Main Unit

Power adapter 6V AC adapter

Batteries 4 x UM-4 (AAA) 1.5V

Remote Unit (RTGR328N)

RF frequency 433 MHz

Range Up to 70 metres (230 feet)

with no obstructions

Transmission Approx. every 1 minute

Channel No. 1, 2, 3, 4 or 5

Unit °C or °F

Radio-Controlled Clock

Synchronization Auto or disabled

Clock display HH:MM:SS

Hour format 12hr AM/PM (MSF format)

24hr (DCF format)

BAR988HG English R5 OP 8/20/04, 11:25 AM24

Black

Thermo / Hygro Remote Unit

Batteries 2 x UM-3 (AA) 1.5V

NOTE

It is recommended that you use alkaline

batteries with this product for longer performance.

24

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products such as digital
cameras; MP3 players; children's electronic learning
products and games; projection clocks; health and
fitness gear; weather stations; and digital and conference
phones. The website also includes contact information
for our customer care department in case you need to
reach us, as well as frequently asked questions and
customer downloads.

We hope you will find all the information you need on
our website, however if you'd like to contact the Oregon
Scientific Customer Care department directly, please
visit:

www2.oregonscientific.com/service/support

OR

Call 949-608-2848 in the US.

For international enquiries, please visit:
www2.oregonscientific.com/about/international/
default.asp

EN

25

BAR988HG English R5 OP 8/20/04, 11:25 AM25

Black

EN

EC-DECLARATION OF CONFORMITY

This product contains the approved transmitter module
that complies with the essential requirements of Article
3 of the R&TTE 1999 / 5 / EC Directive, if used as
intended and the following standards have been applied:

Safety of information technology equipment

(Article 3.1.a of the R&TTE Directive)
Applied Standard EN 60950-1 : 2001

Electromagnetic compatibility

(Article 3.1.b of the R&TTE Directive)
Applied Standards

ETSI EN 301 489-1-3 (Ver.1.4.1) : 2002-08

Efficient use of radio frequency spectrum

(Article 3.2 of the R&TTE Directive)
Applied Standards

ETSI EN 300 220-3 (Ver1.1.1) : 2000-09

Additional information:

The product herewith complies with the requirements of
the Low Voltage Directive 73 / 23 / EC, the EMC Directive
89 / 336 / EC and carries the CE marking accordingly.

Carmelo Cubito
Agrate Brianza (MI) / Italy January 2004
Manufacturer's EU R&TTE Representative

COUNTRIES RTTE APPROVAL COMPLIED

All EC countries, Switzerland CH

and Norway N

26

BAR988HG English R5 OP 8/20/04, 11:26 AM26

Black

BAR988HG English Back R5 OP 8/20/04, 11:26 AM1

Black

© 2004 Oregon Scientific. All rights reserved.

086-003590-014
