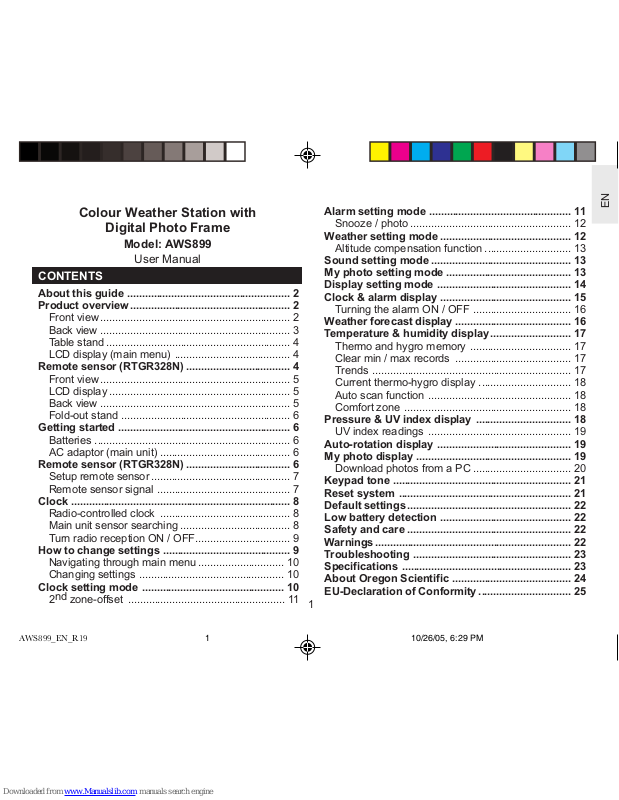

Oregon Scientific AWS899 User Manual

Colour Weather Station with

Digital Photo Frame

Model: AWS899

User Manual

CONTENTS

About this guide ....................................................... 2

Product overview...................................................... 2

Front view ................................................................ 2

Back view ................................................................ 3

Table stand .............................................................. 4

LCD display (main menu) ....................................... 4

Remote sensor (RTGR328N) ................................... 4

Front view ................................................................ 5

LCD display ............................................................. 5

Back view ................................................................ 5

Fold-out stand ......................................................... 6

Getting started .......................................................... 6

Batteries .................................................................. 6

AC adaptor (main unit) ............................................ 6

Remote sensor (RTGR328N) ................................... 6

Setup remote sensor ............................................... 7

Remote sensor signal ............................................. 7

Clock .......................................................................... 8

Radio-controlled clock ............................................ 8

Main unit sensor searching ..................................... 8

Turn radio reception ON / OFF................................ 9

How to change settings ........................................... 9

Navigating through main menu ............................. 10

Changing settings ................................................. 10

Clock setting mode ................................................ 10

2nd zone-offset ..................................................... 11

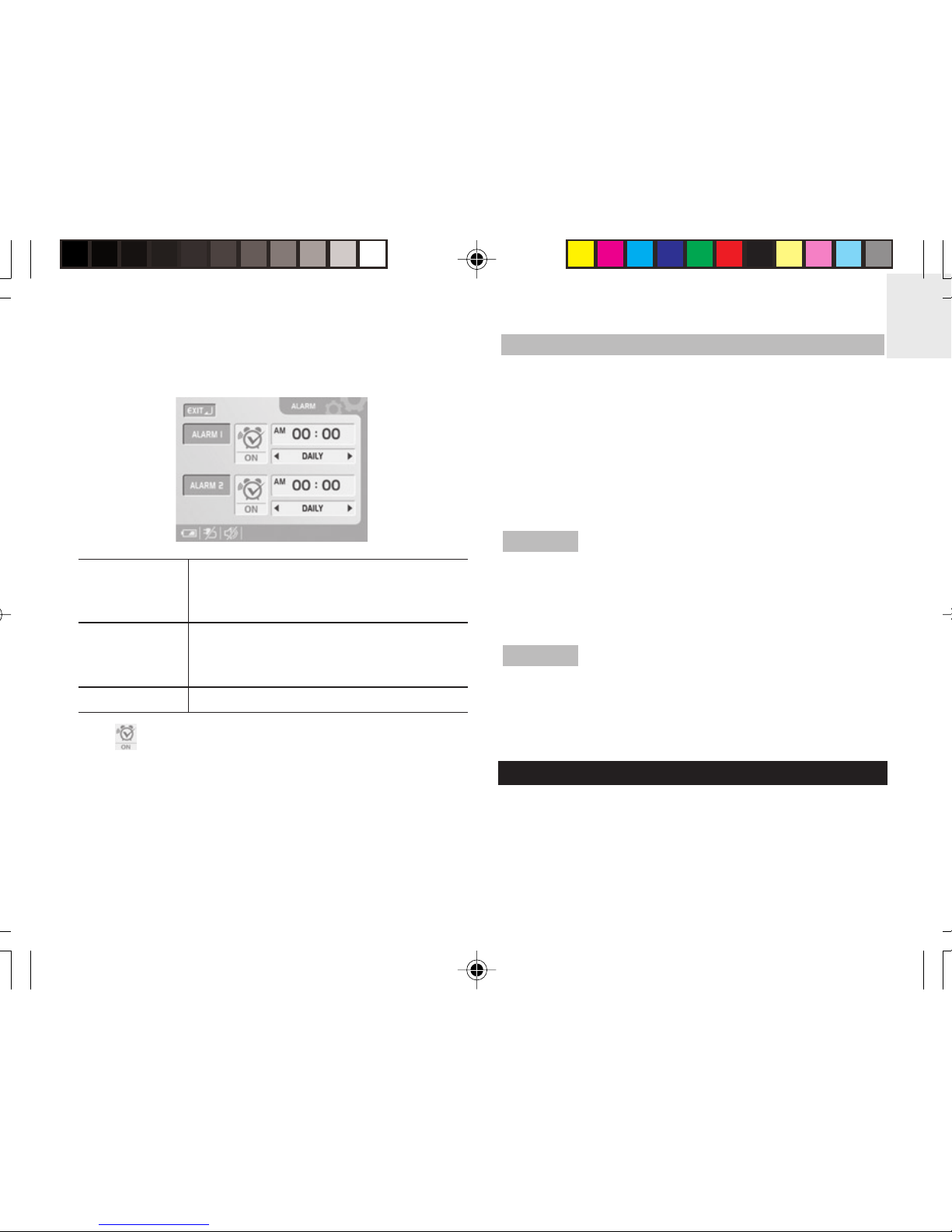

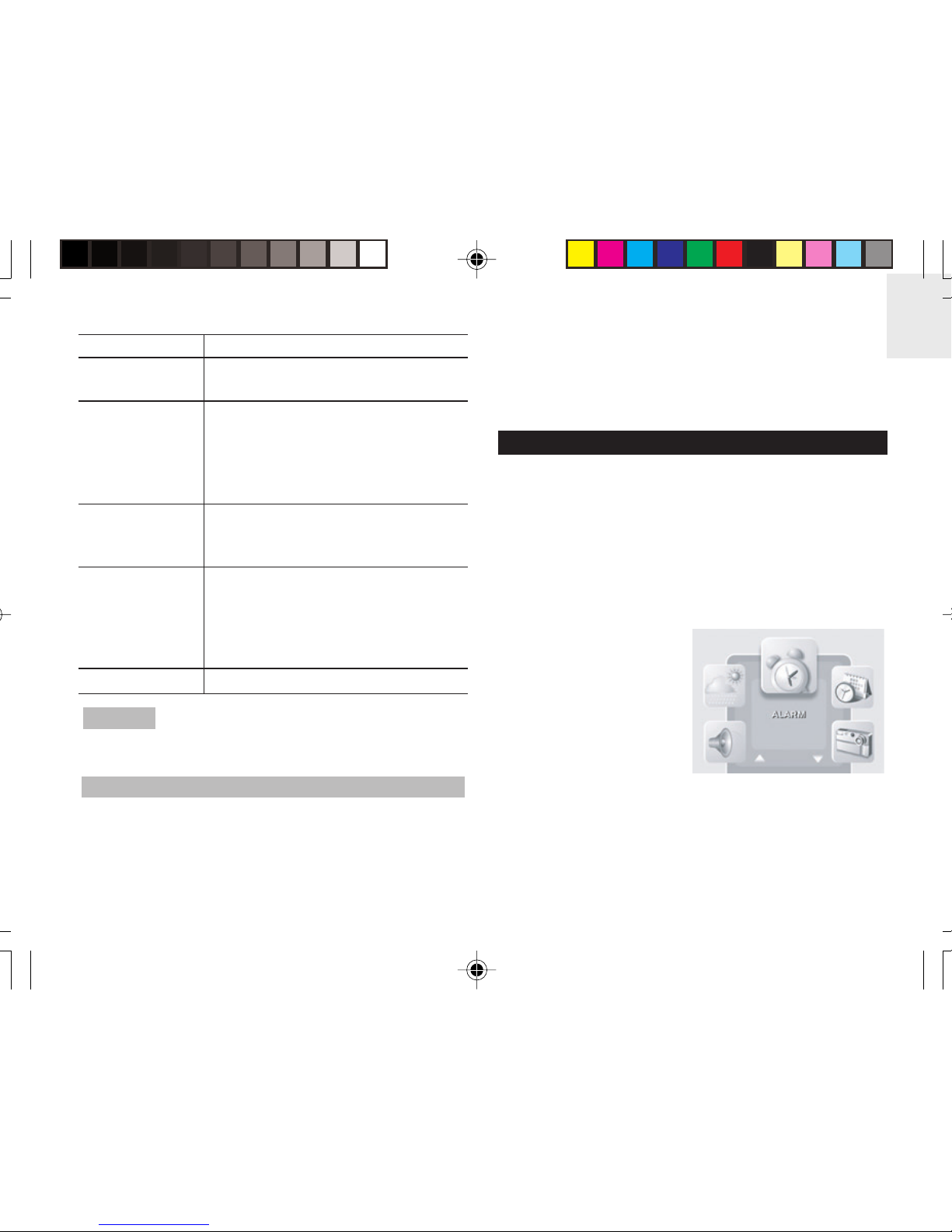

Alarm setting mode ................................................ 11

Snooze / photo ...................................................... 12

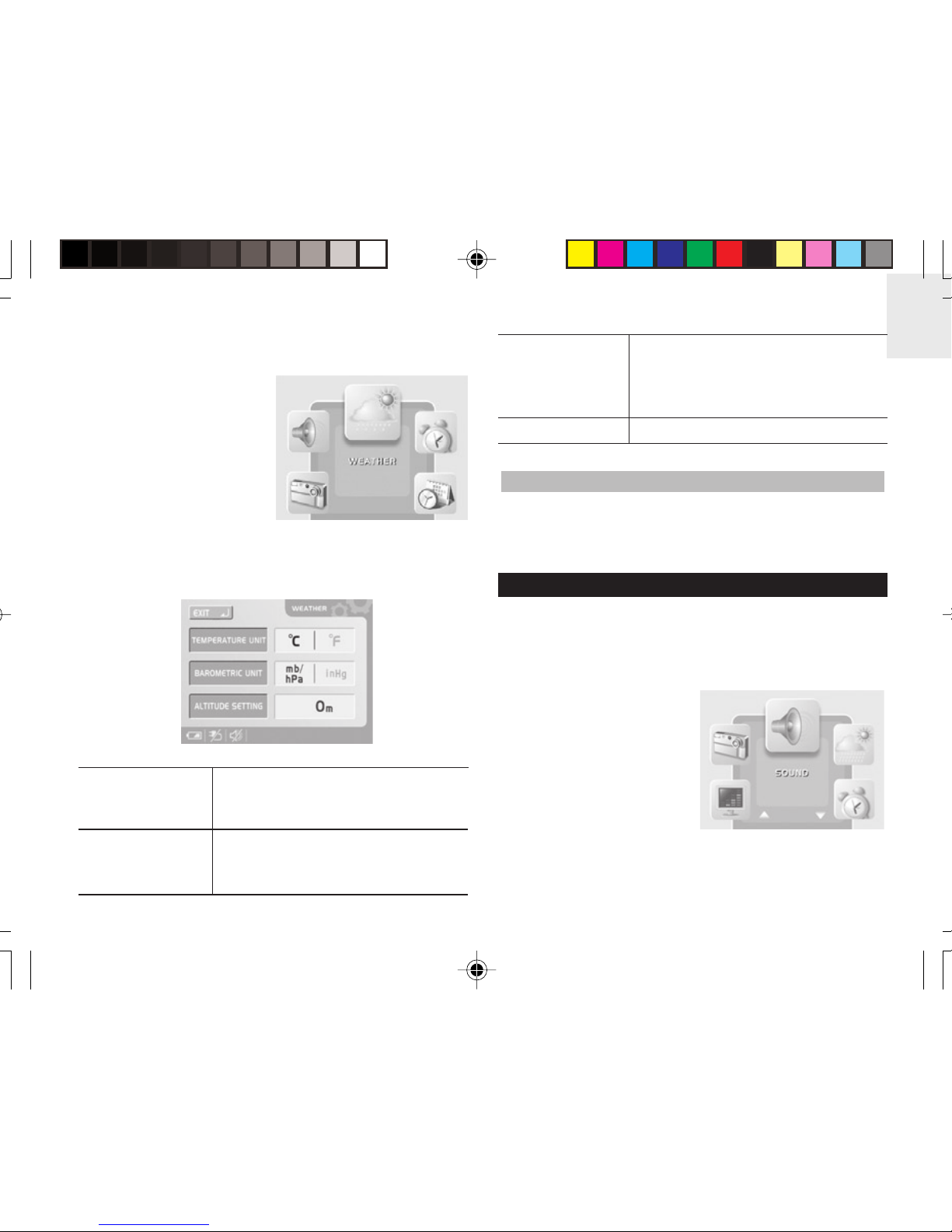

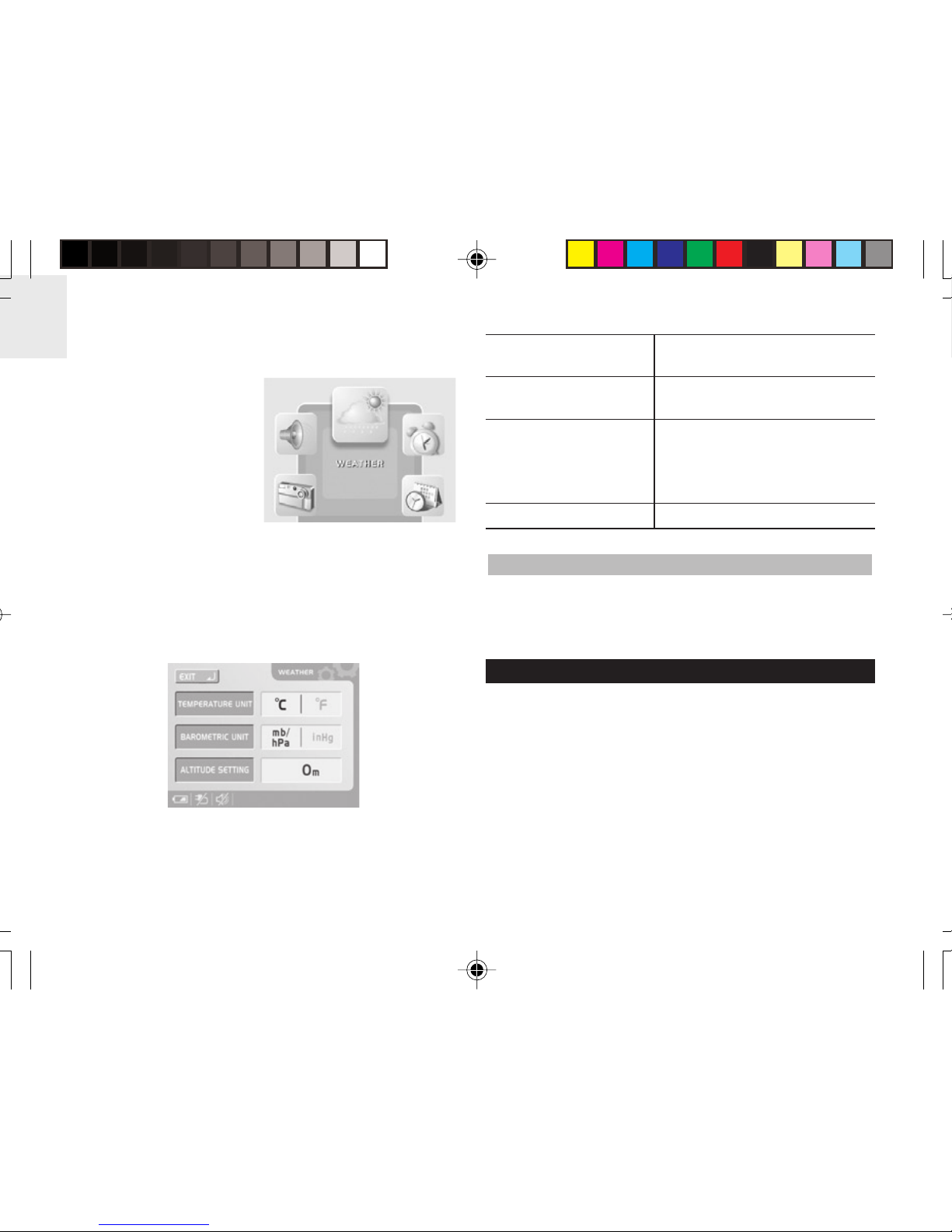

Weather setting mode ............................................ 12

Altitude compensation function ............................. 13

Sound setting mode ............................................... 13

My photo setting mode .......................................... 13

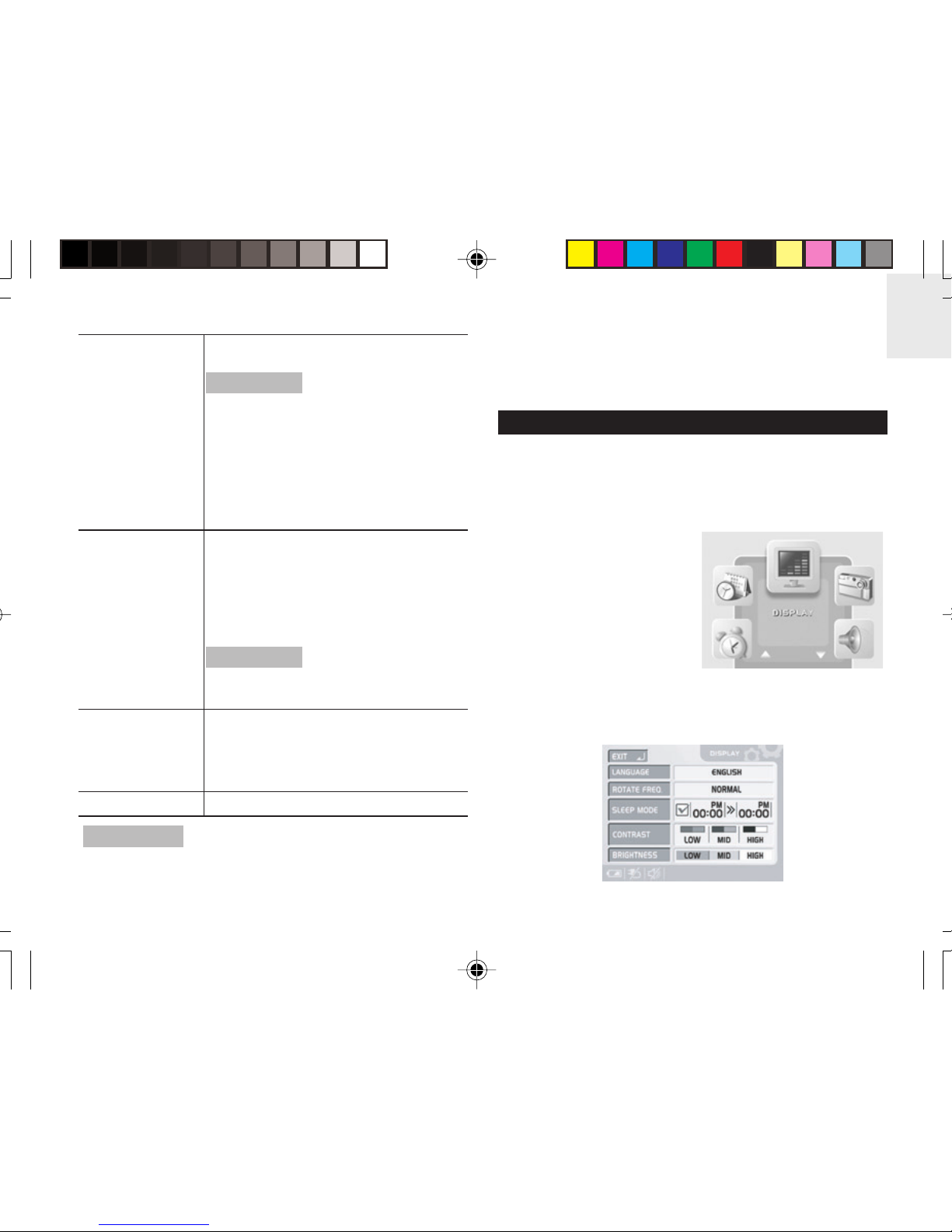

Display setting mode ............................................. 14

Clock & alarm display ............................................ 15

Turning the alarm ON / OFF ................................. 16

Weather forecast display ....................................... 16

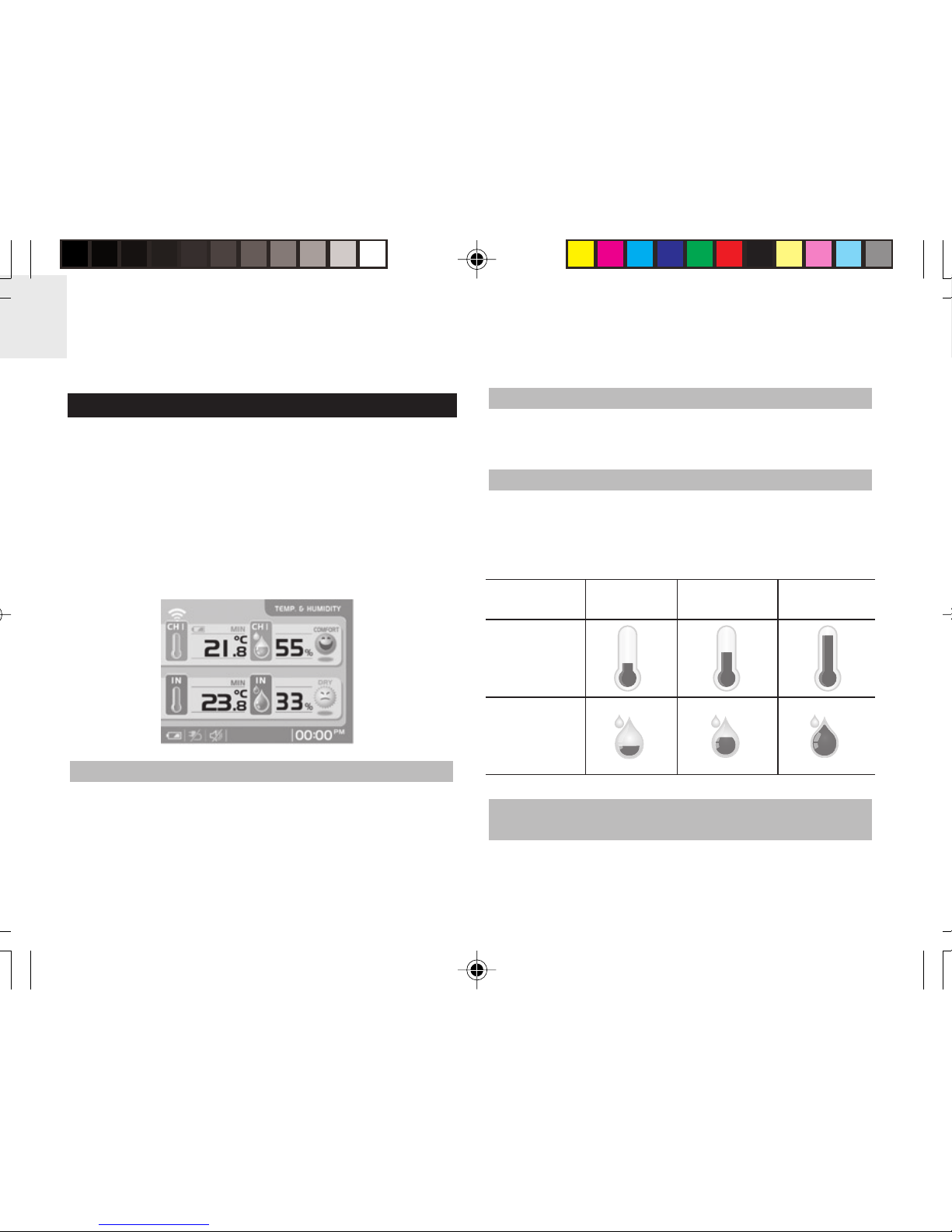

Temperature & humidity display ........................... 17

Thermo and hygro memory .................................. 17

Clear min / max records ....................................... 17

Trends ................................................................... 17

Current thermo-hygro display ............................... 18

Auto scan function ................................................ 18

Comfort zone ........................................................ 18

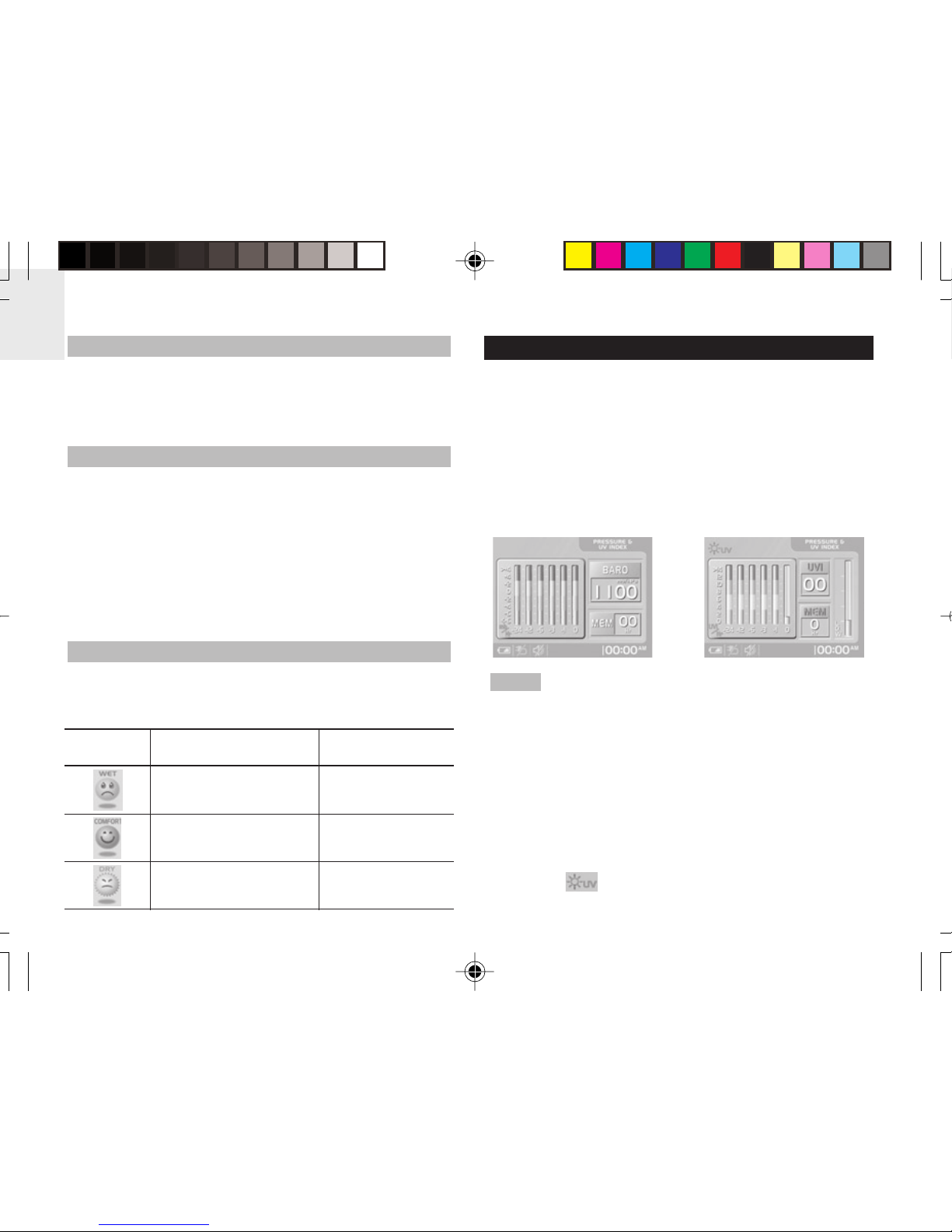

Pressure & UV index display ................................ 18

UV index readings ................................................ 19

Auto-rotation display ............................................. 19

My photo display .................................................... 19

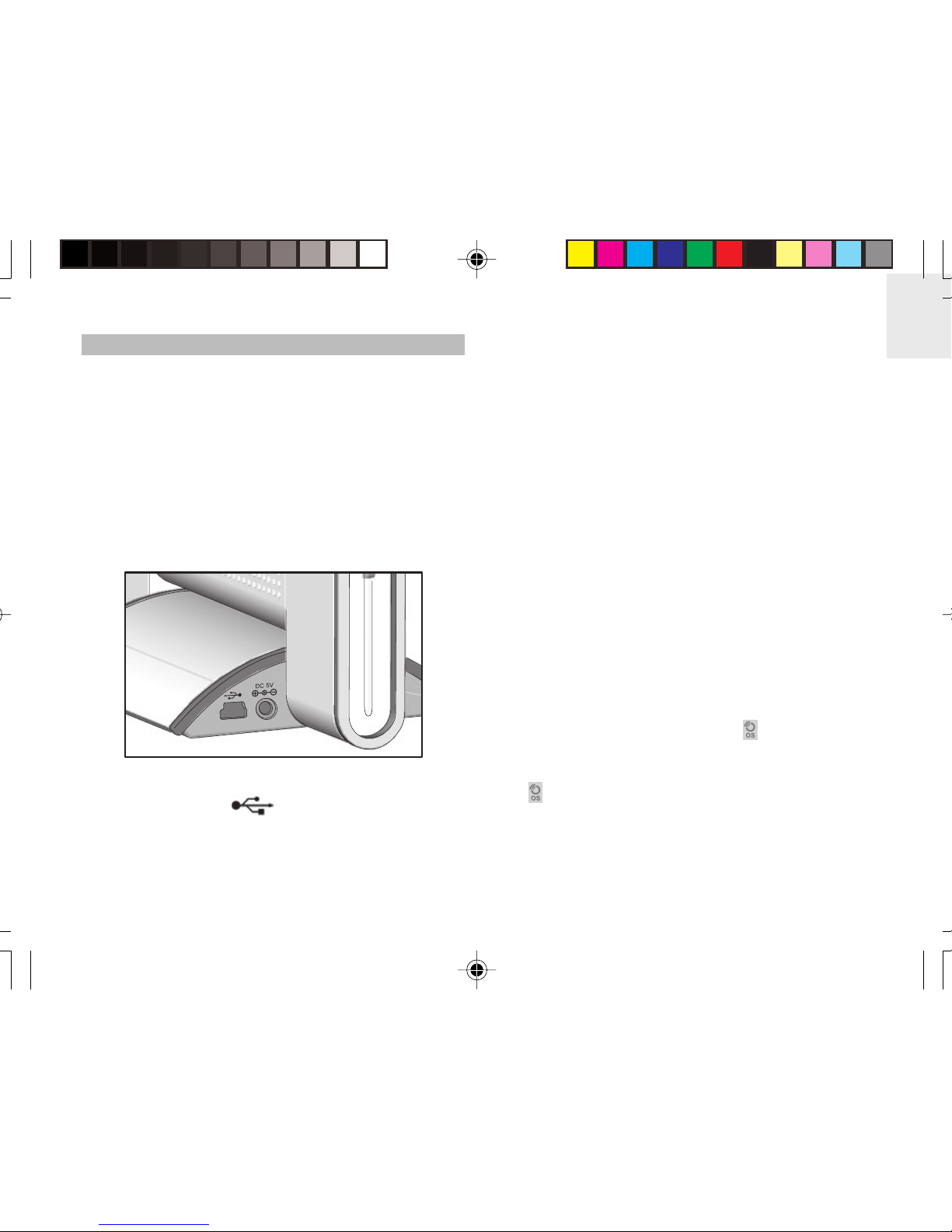

Download photos from a PC ................................. 20

Keypad tone ............................................................ 21

Reset system .......................................................... 21

Default settings ....................................................... 22

Low battery detection ............................................ 22

Safety and care ....................................................... 22

Warnings.................................................................. 22

Troubleshooting ..................................................... 23

Specifications ......................................................... 23

About Oregon Scientific ........................................ 24

EU-Declaration of Conformity ............................... 25

AWS899_EN_R19 10/26/05, 6:29 PM1

ABOUT THIS GUIDE

Thank you for selecting the Oregon ScientificTM Colour Weather Station with Digital Photo Frame (AWS899). This powerful device bundles animated weather forecasting, barometric pressure monitoring, indoor / outdoor wireless temperature and humidity readings, photo viewer with slide show option, time / date keeping, and dual alarm features into a single tool you can use from the convenience of your home.

Keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know.

In this box, you will find:

• Main unit

• Remote thermo / hygro sensor (RTGR328N)

• USB cable and CD-ROM

• Batteries

• AC adaptor

The UV sensor (UVR138) is optional with this product.

PRODUCT OVERVIEW

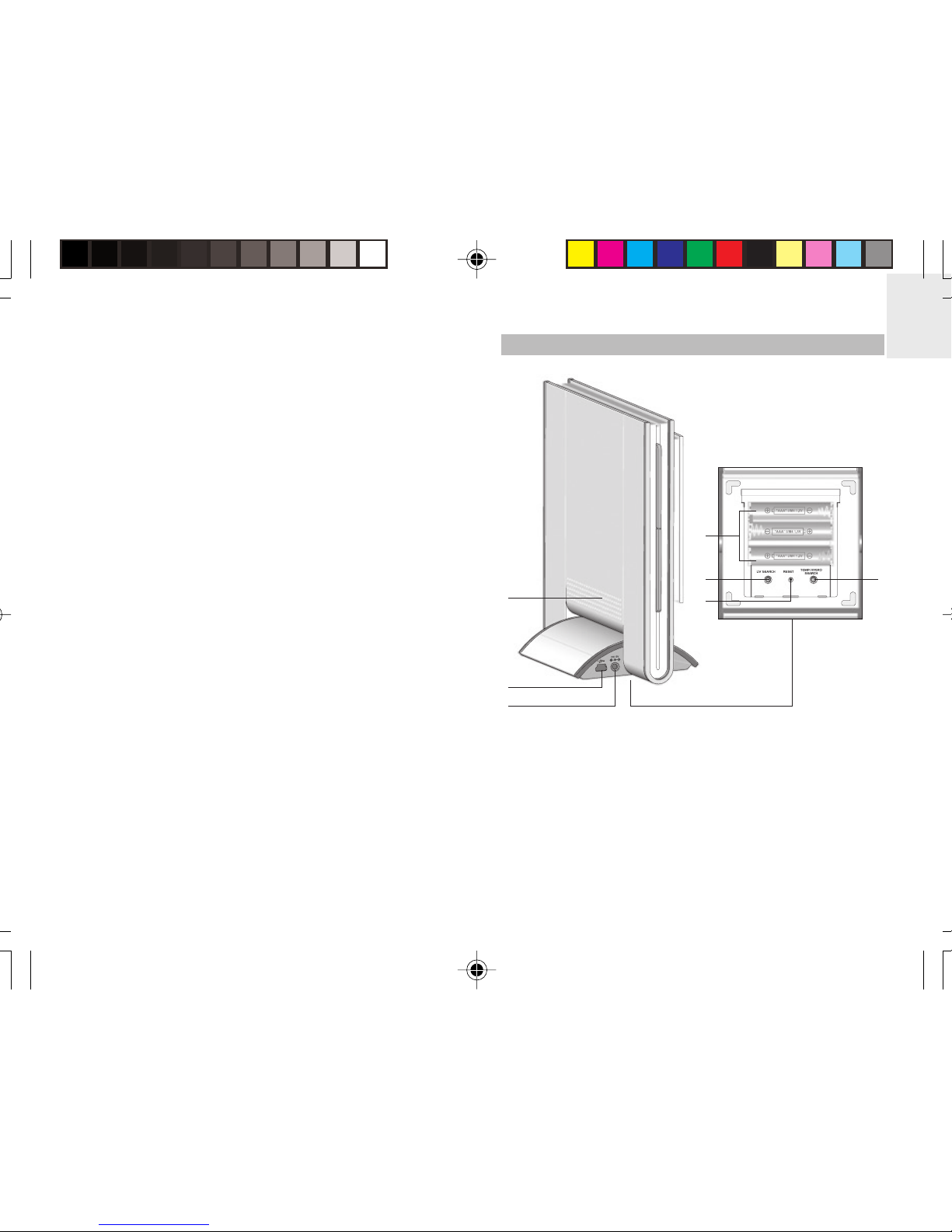

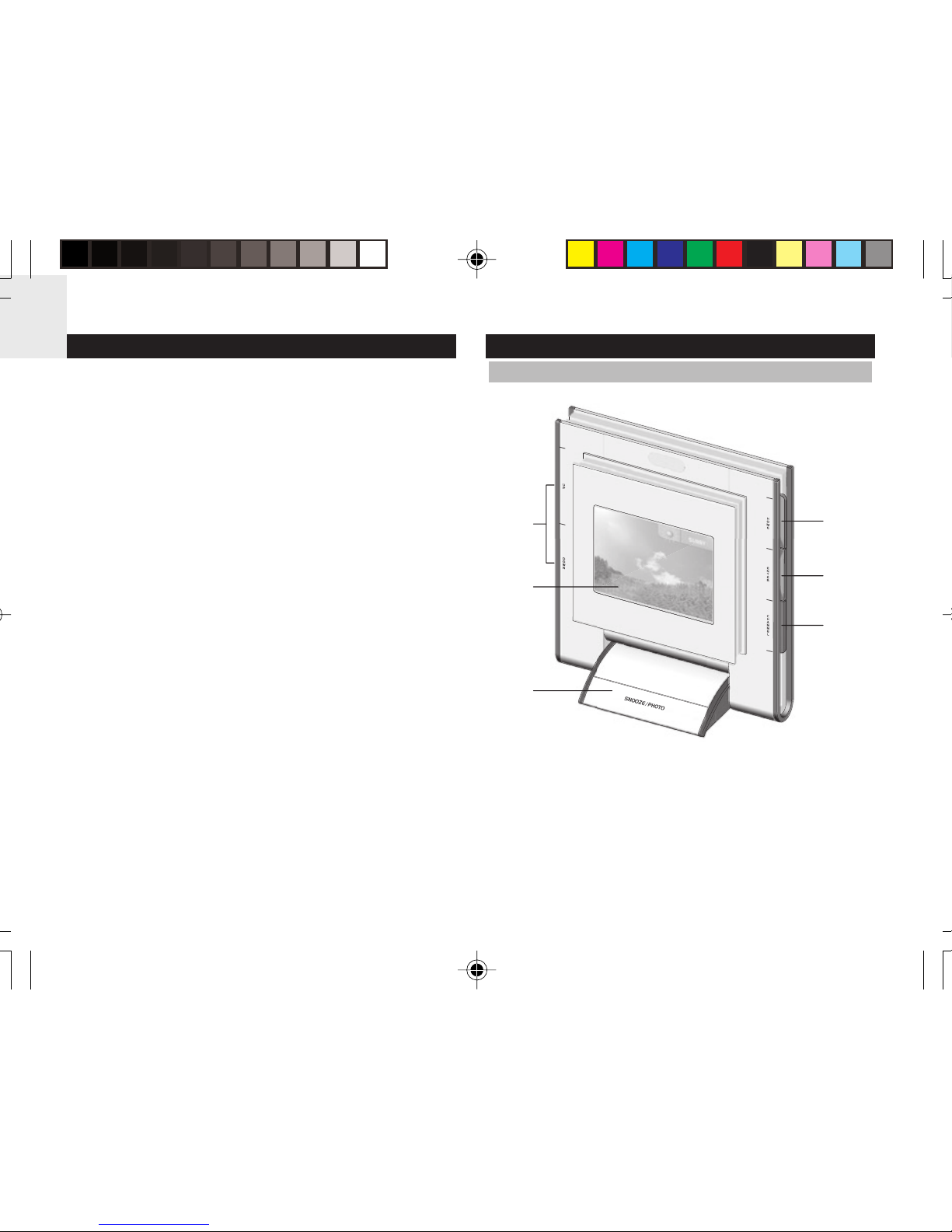

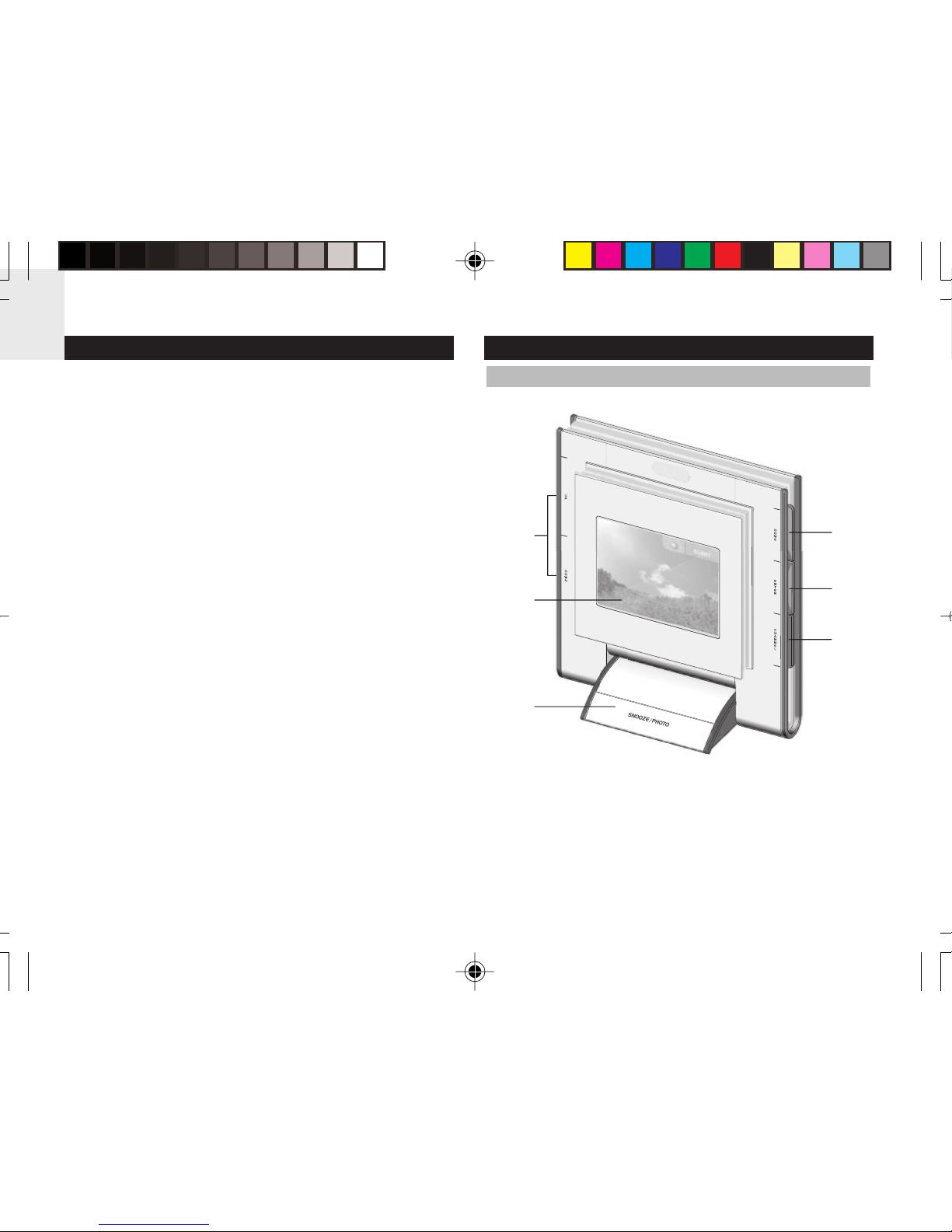

FRONT VIEW

AWS899_EN_R19 10/26/05, 6:29 PM2

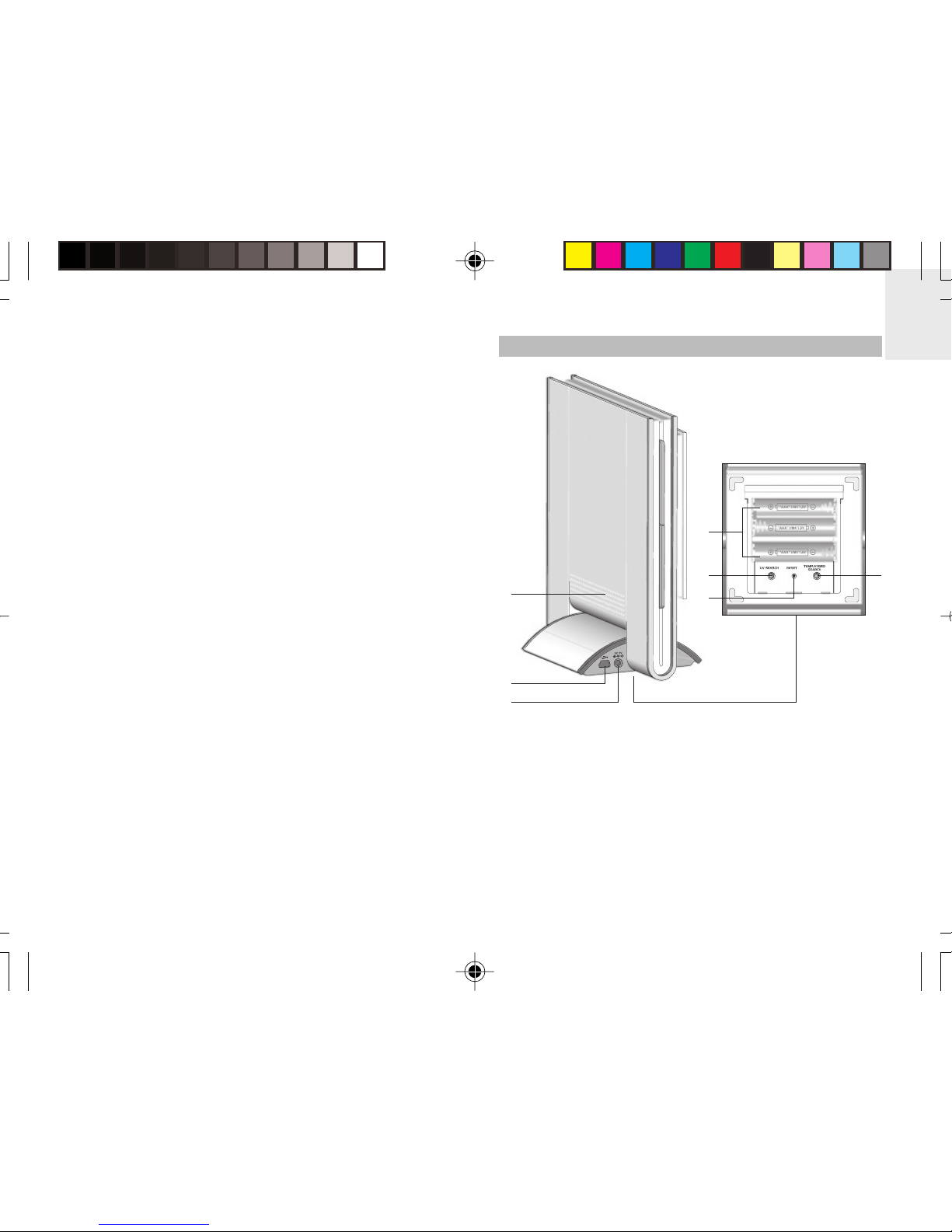

BACK VIEW

1. Speaker

2. USB cable socket

3. AC / DC 5V adaptor socket

4. Battery compartment (open)

5. UV SEARCH: Press and hold to search for UV sensor

6. RESET hole

7. TEMP / HYGRO SEARCH: Press and hold to search for thermo / hygro sensor

1. UP / DOWN: Press to disable alarm sound; press to scroll through menu options

2. LCD display

3. SNOOZE / PHOTO: Press to stop the daily alarm and activate the 8-minute snooze function when the alarm goes off; press to enter MY PHOTO Display immediately

4. HOME: Press to return to Main Menu; press again to exit and go back to the previous display mode

5. ENTER: Press to select an option / disable alarm sound

6. CHANNEL: In the TEMP & HUMIDITY Display - press to toggle among channels; press and hold to activate channel auto-scan. In PRESSURE & UV INDEX Display - press to toggle between the UV and barometric pressure display

2 3

AWS899_EN_R19 10/26/05, 6:29 PM3

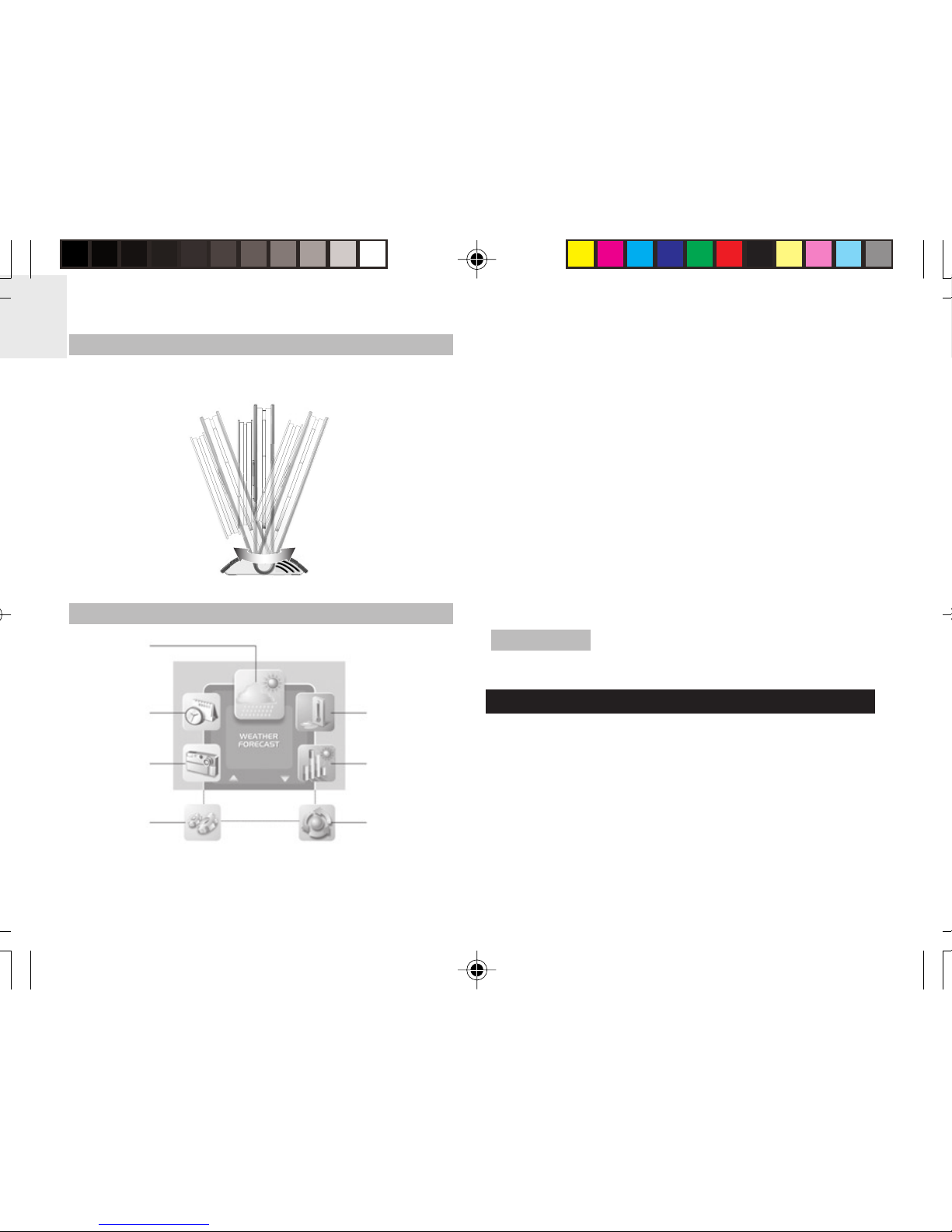

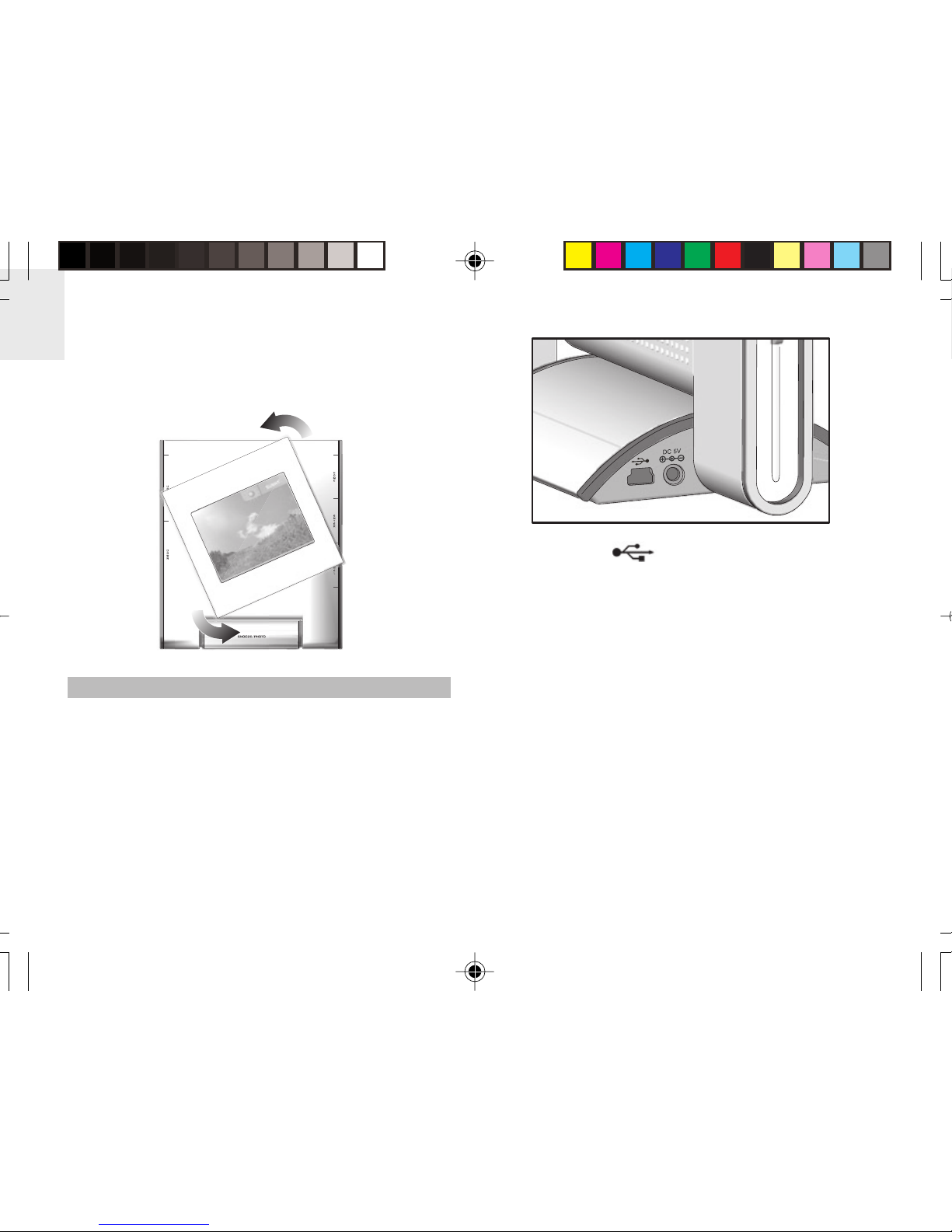

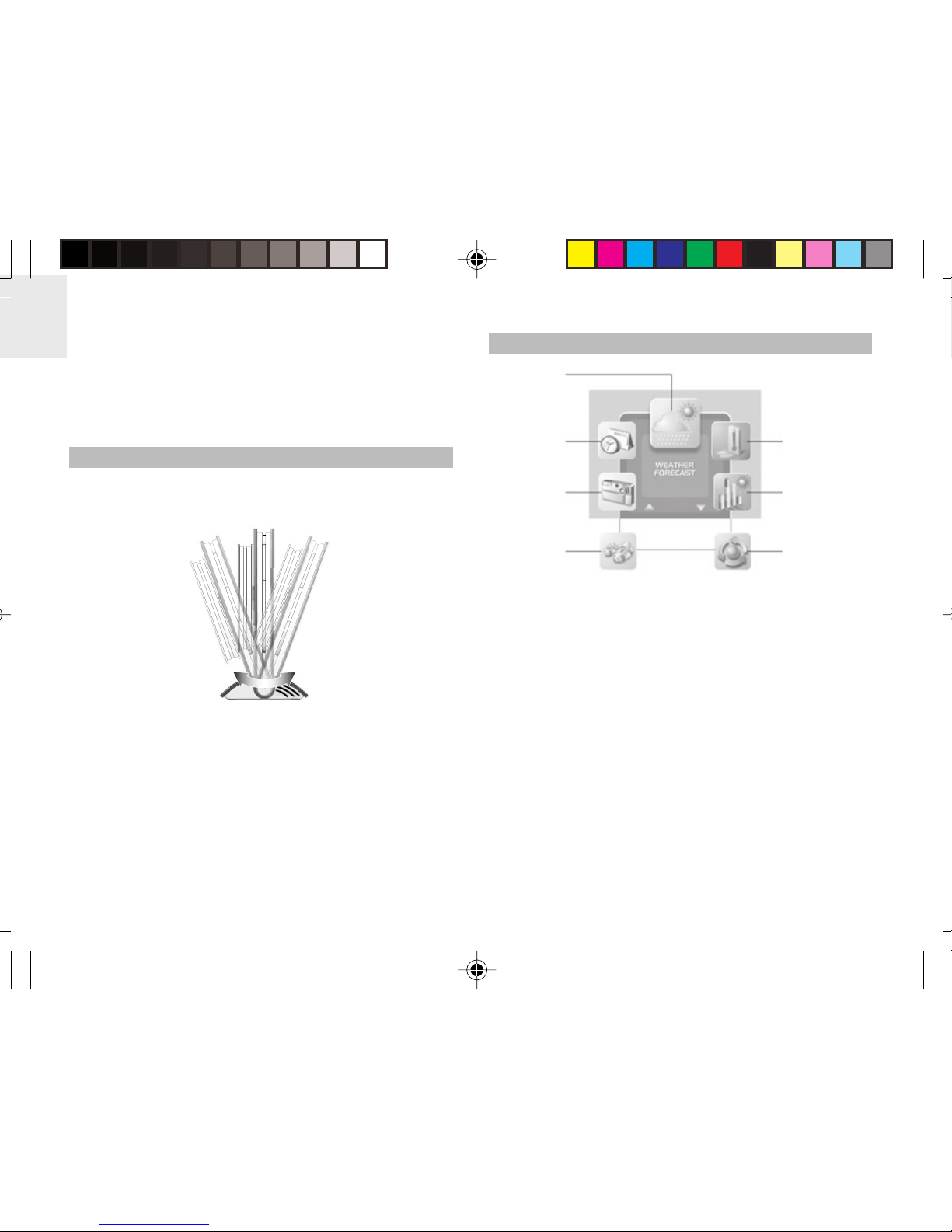

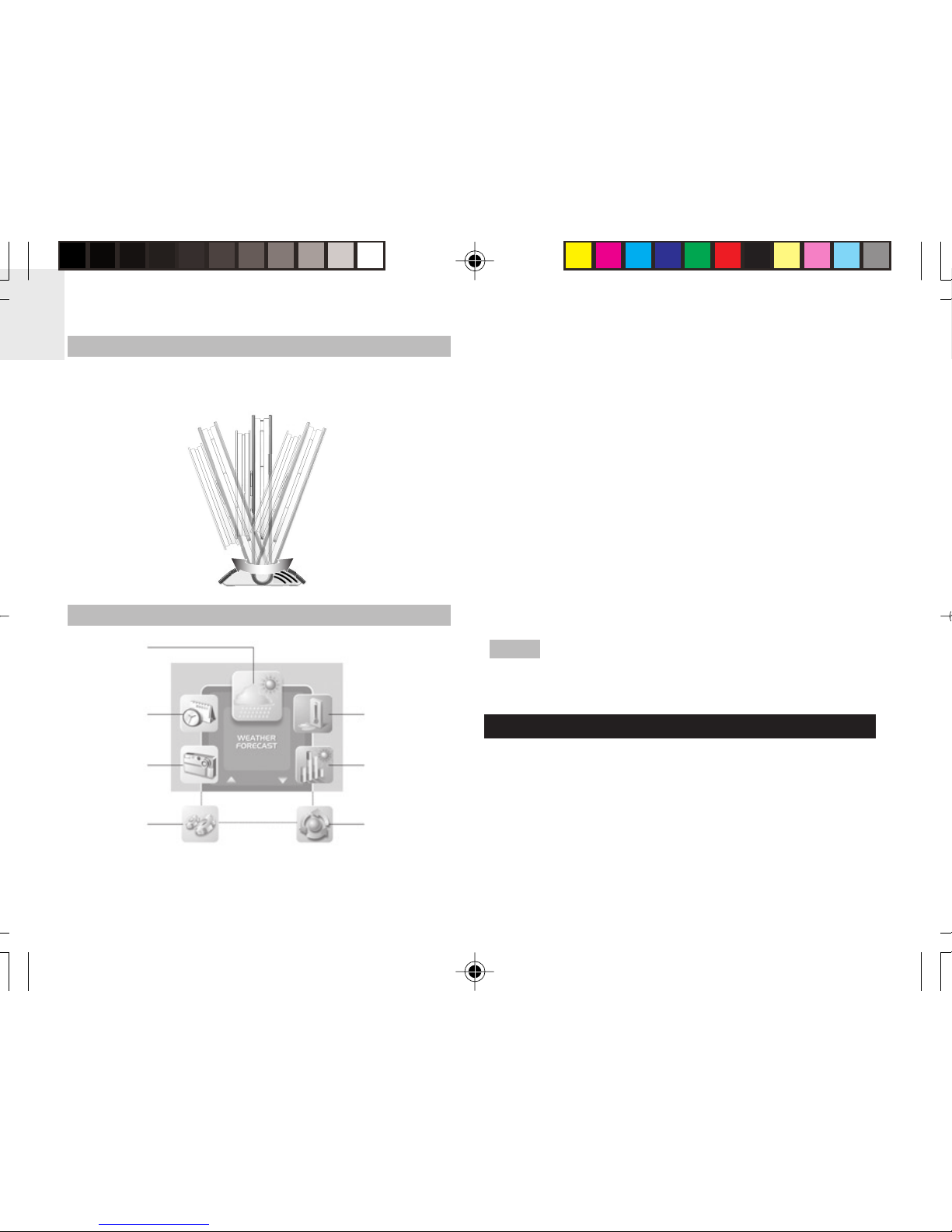

TABLE STAND

For easier viewing, you can tilt the unit to your desired level.

LCD DISPLAY (MAIN MENU)

1. WEATHER FORECAST Display

2. CLOCK & ALARM Display

3. MY PHOTO Display

4. SETTINGS Mode: Within this mode is the following sub-menu:

• ALARM Setting Mode

• WEATHER Setting Mode

• SOUND Setting Mode

• MY PHOTO Setting Mode

• DISPLAY Setting Mode

• CLOCK Setting Mode

5. AUTO-ROTATION Display

6. PRESSURE & UV INDEX Display

7. TEMP & HUMIDITY Display

NOTE Displays and Setting Modes will be described within the related sections.

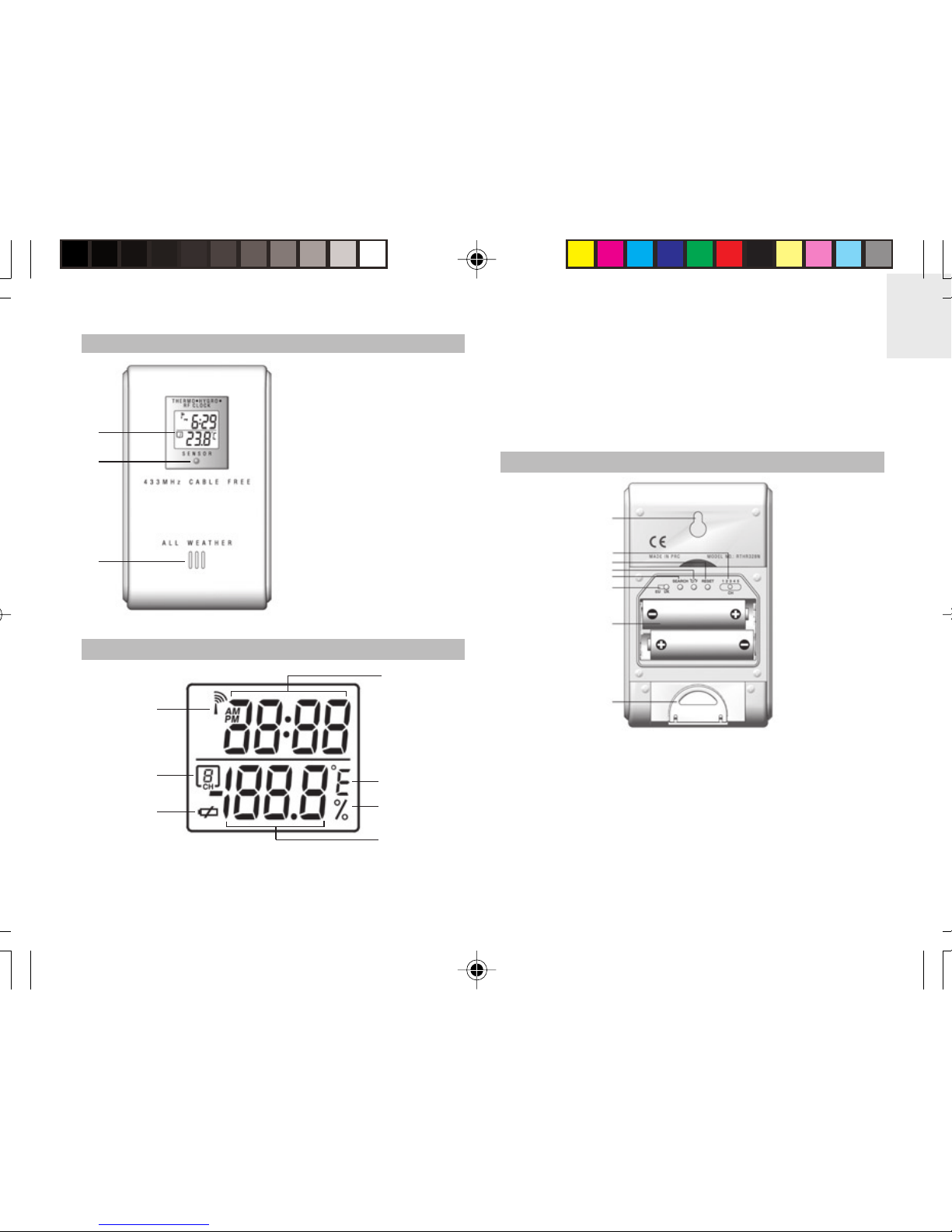

REMOTE SENSOR (RTGR328N)

This sensor works as an RF clock receiver for the main unit. If you want to purchase additional remote sensors, select a model that does not include the RF function such as:

• THGR228N / THGR238N / THR228N (3-channel

sensor)

• THGR328N (5-channel sensor)

AWS899_EN_R19 10/26/05, 6:29 PM4

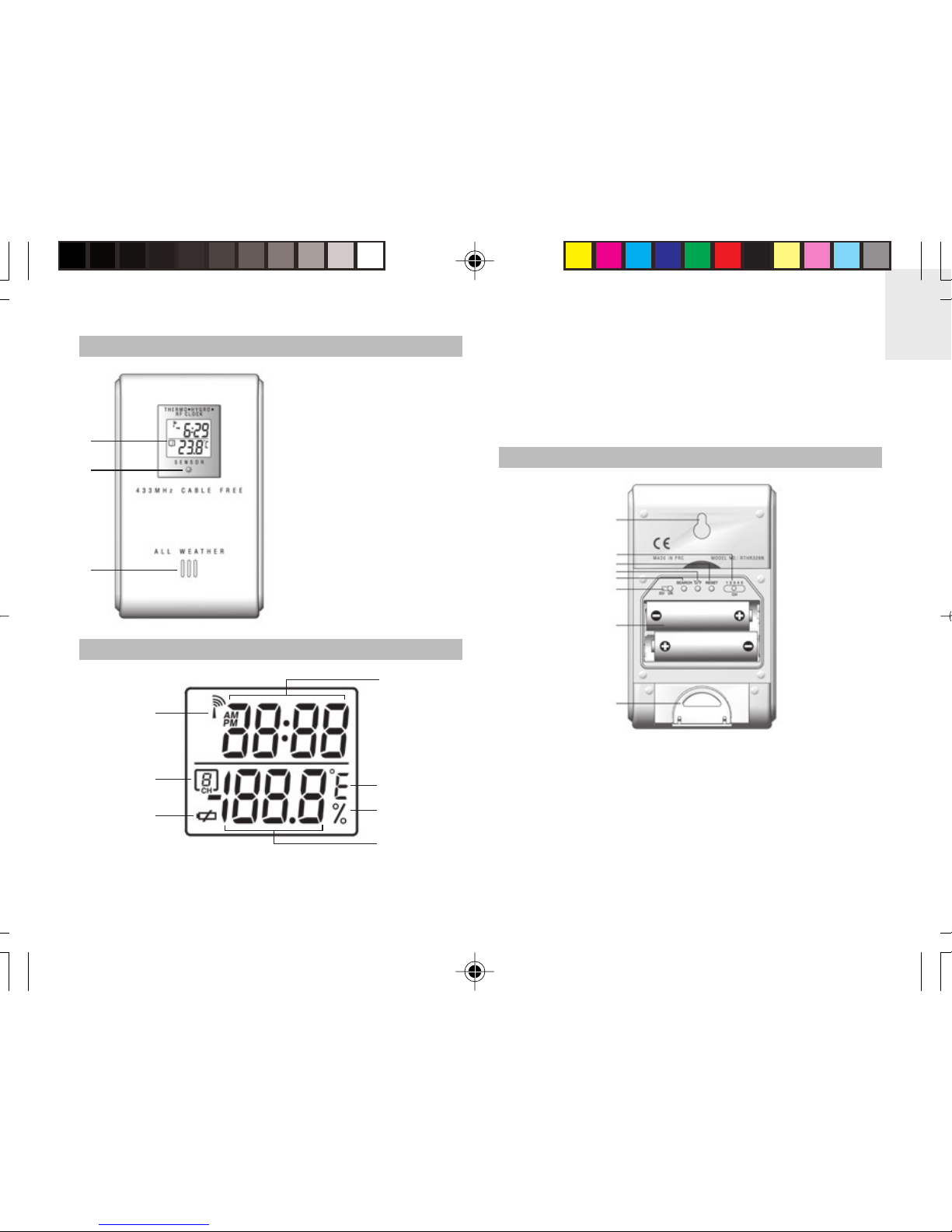

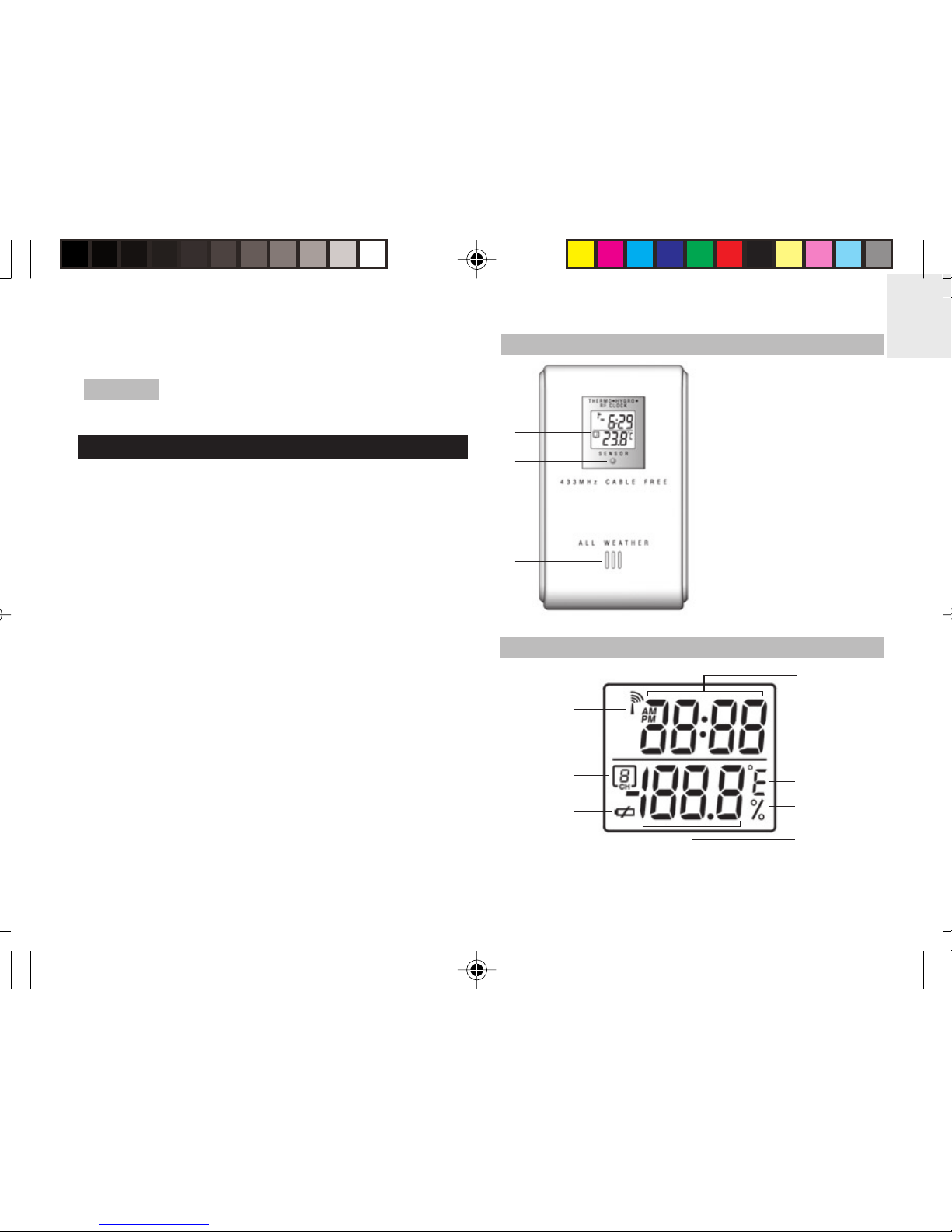

FRONT VIEW

1. LCD display

2. LED status indicator

3. Ventilation duct

1. RF clock reception

2. Channel no.

LCD DISPLAY

3. Low battery indicator

4. Time

5. Temperature (˚C or ˚F)

6. Relative humidity

7. Temperature / Humidity reading

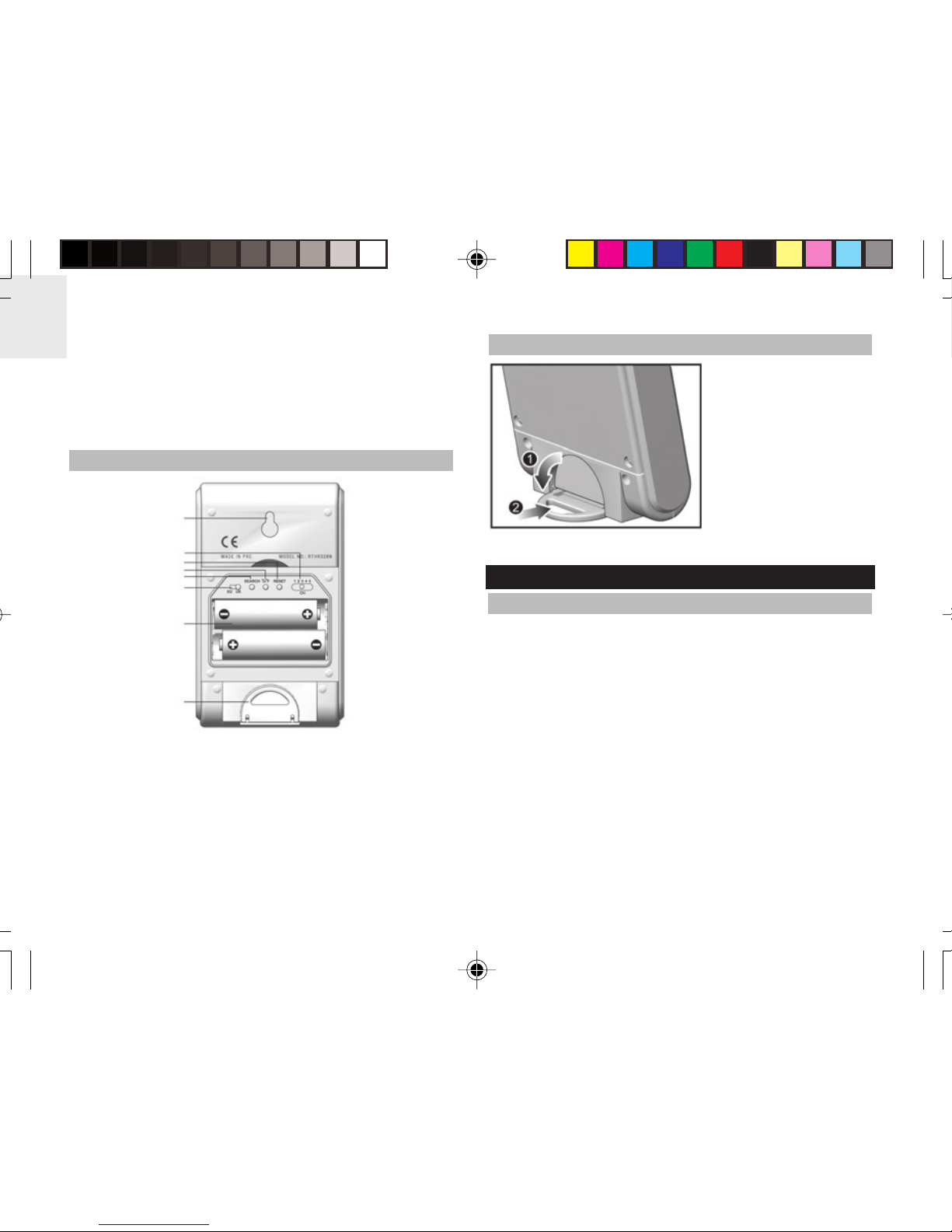

BACK VIEW

1. Wall mount (recess hole)

2. CHANNEL switch

3. RESET

4. ˚C / ˚F switch

5. SEARCH button

6. EU/UK radio signal format switch

7. Battery compartment

8. Fold-out stand

3 4 5 6

AWS899_EN_R19 10/26/05, 6:29 PM5

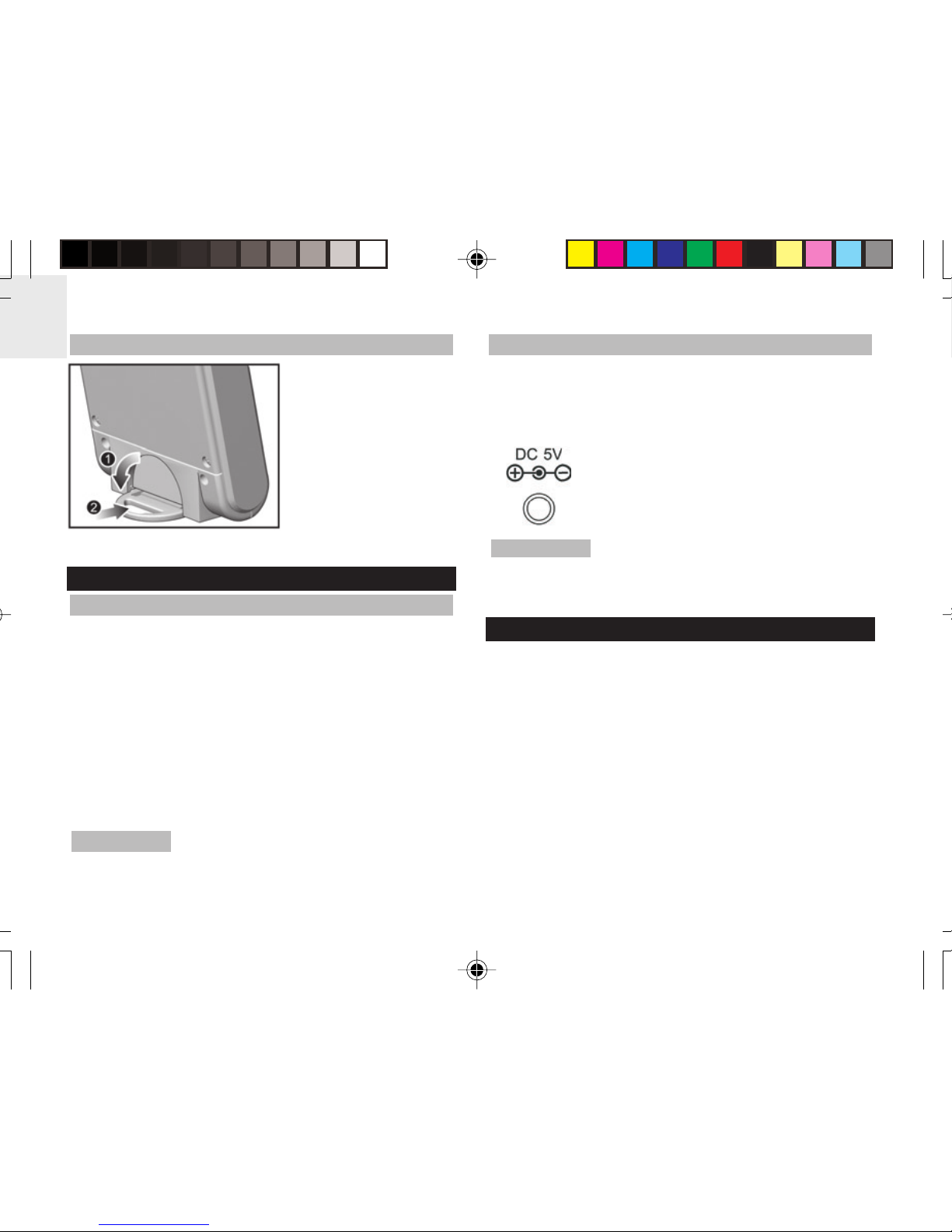

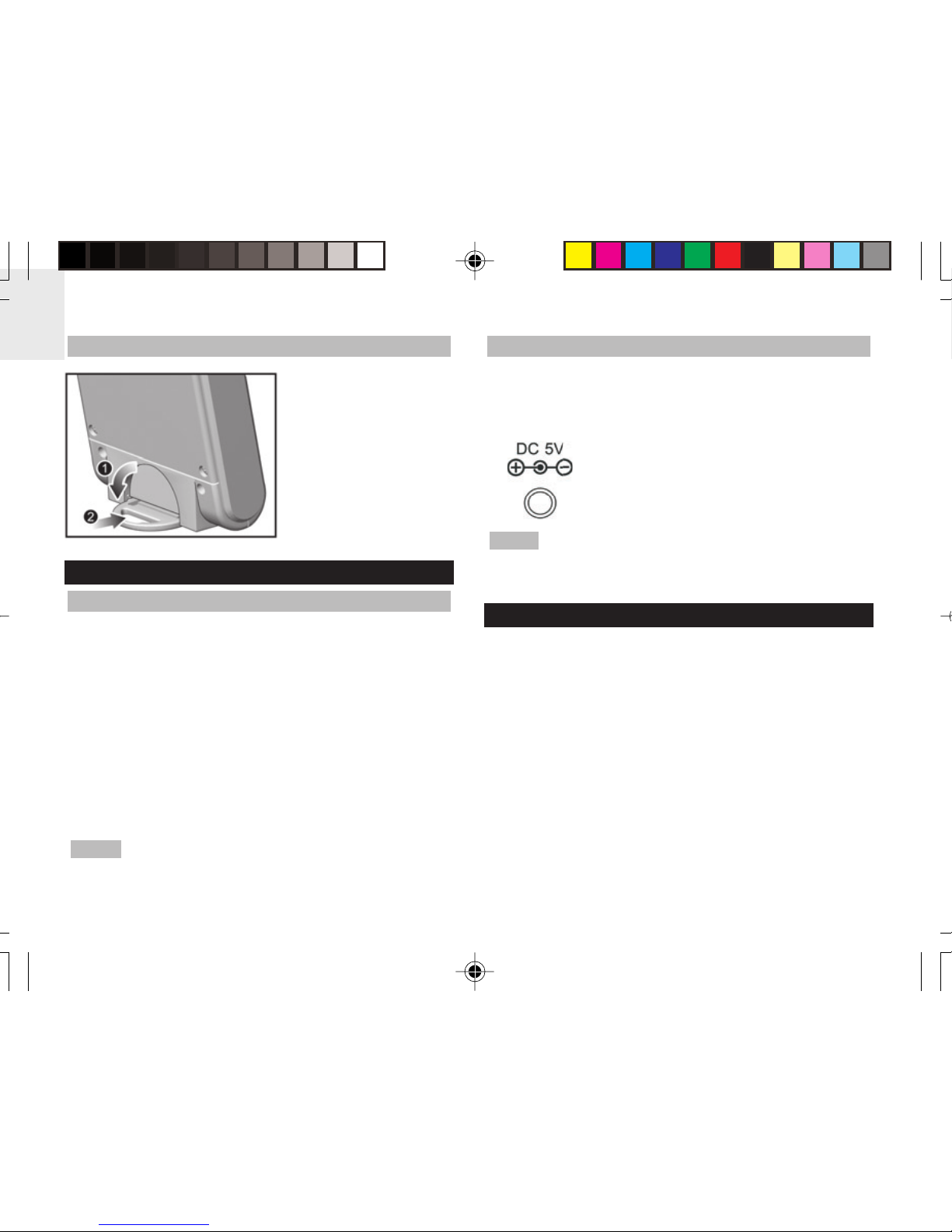

1. Fold-out the stand

2. Lock it into place

FOLD-OUT STAND

GETTING STARTED

BATTERIES

Batteries for the remote and main units are supplied with this product. Press the RESET button whenever you change batteries.

The main unit uses:

• 3 x UM-4 (AAA) 1.5V batteries The thermo / hygro sensor uses:

• 2 x UM-3 (AA) 1.5V batteries The optional UV sensor uses:

• 4 x UM-3 (AA) 1.5V batteries

NOTE Insert the batteries in the remote unit before you set up the main unit. Do not use rechargeable batteries.

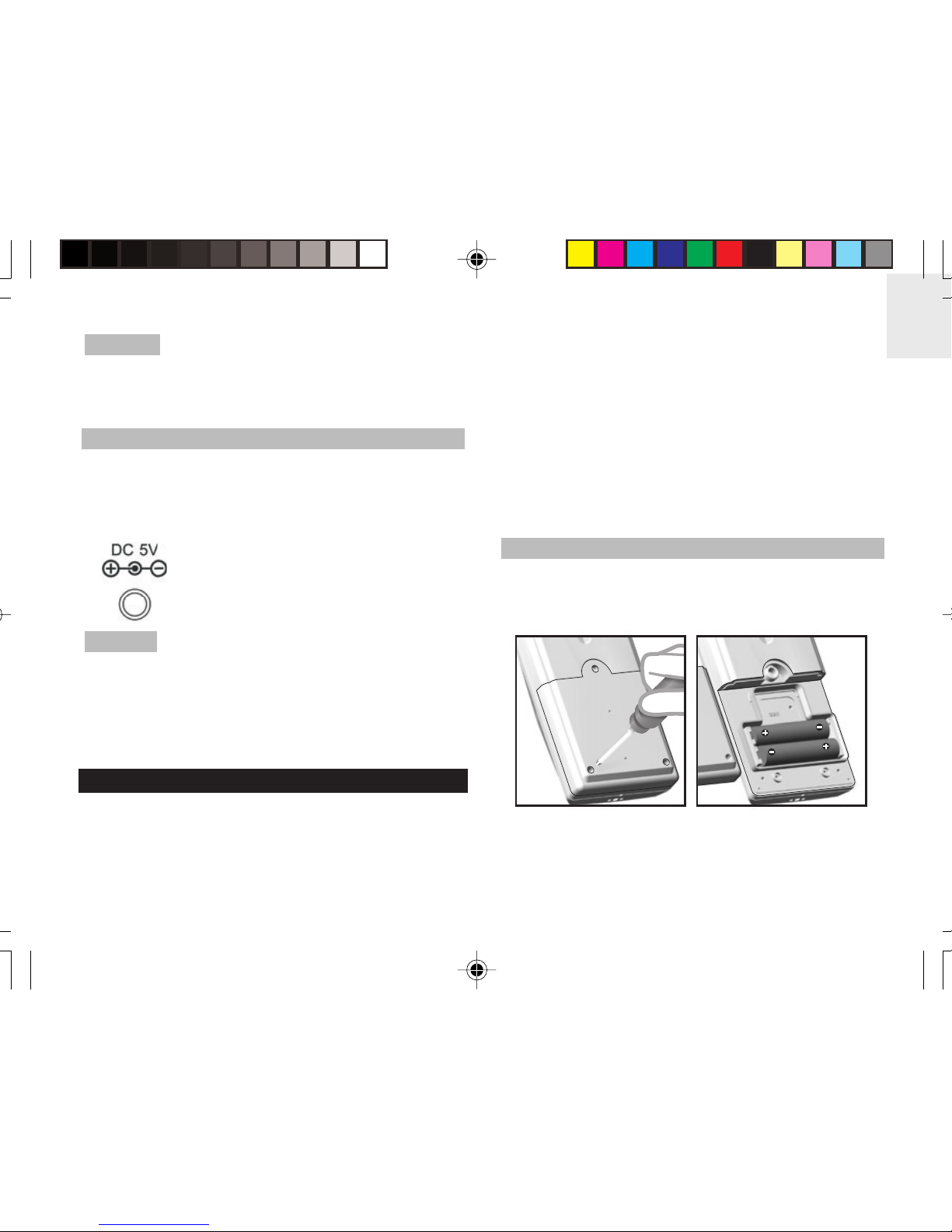

AC ADAPTOR (MAIN UNIT)

When the main unit is plugged into the power socket or batteries are inserted for the first time, an opening animation will be shown before the Main Menu screen.

NOTE Batteries are for memory backup purposes only; the AC adaptor should power the main unit.

Connect the AC adaptor to your weather station’s AC socket located on the side of the main unit base stand.

REMOTE SENSOR (RTGR328N)

This product is shipped with a RTGR328N Thermo-Hygro Sensor. The main unit can collect data from up to 6 sensors (5 Thermo-Hygro Sensors and 1 UV Sensor).

The following sensors are compatible with the main unit:

• THGR228N

• THGR238N

• THR228N

• THGR328N The RTGR328N sensor collects temperature and

humidity readings, and signals from official timekeeping organizations for the radio-controlled clock.

AWS899_EN_R19 10/26/05, 6:29 PM6

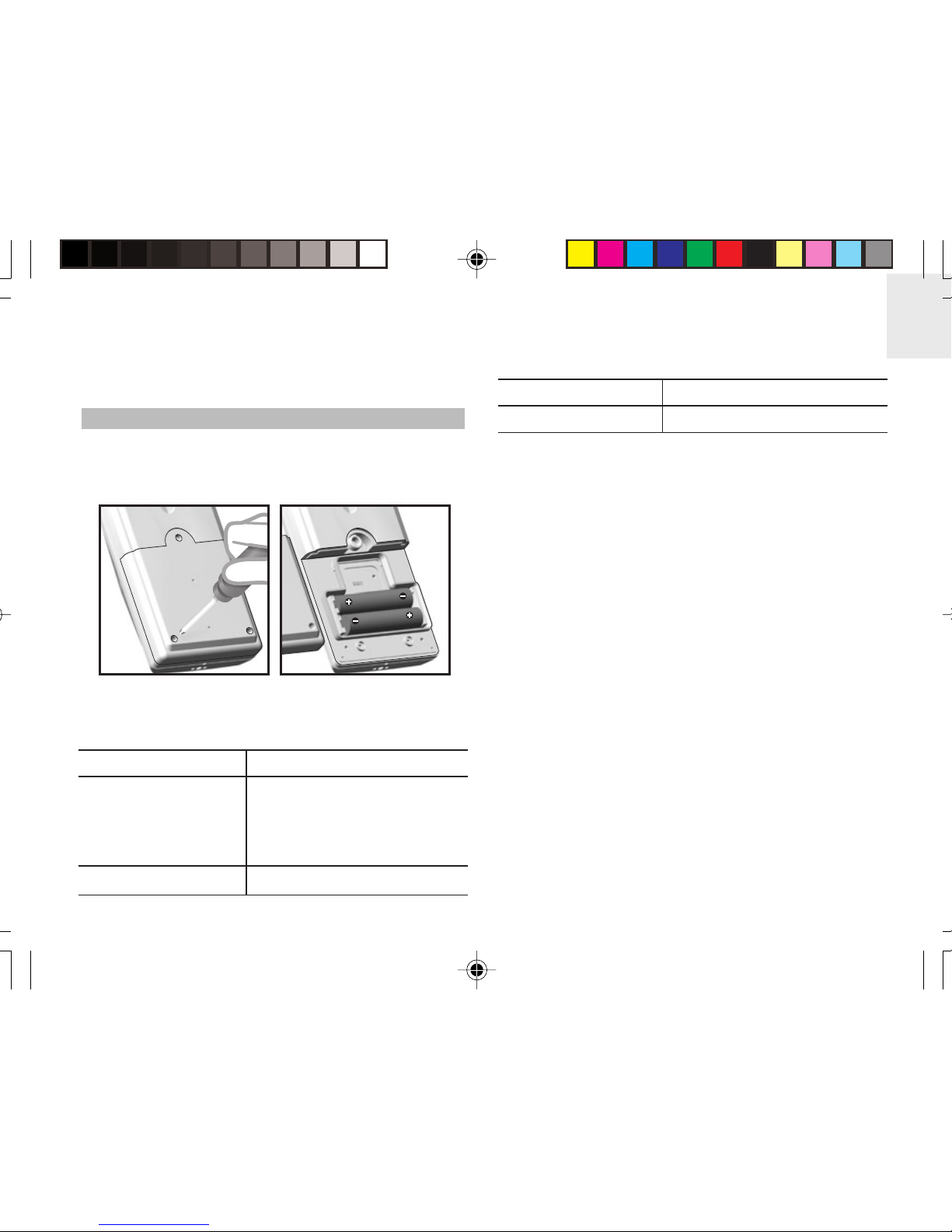

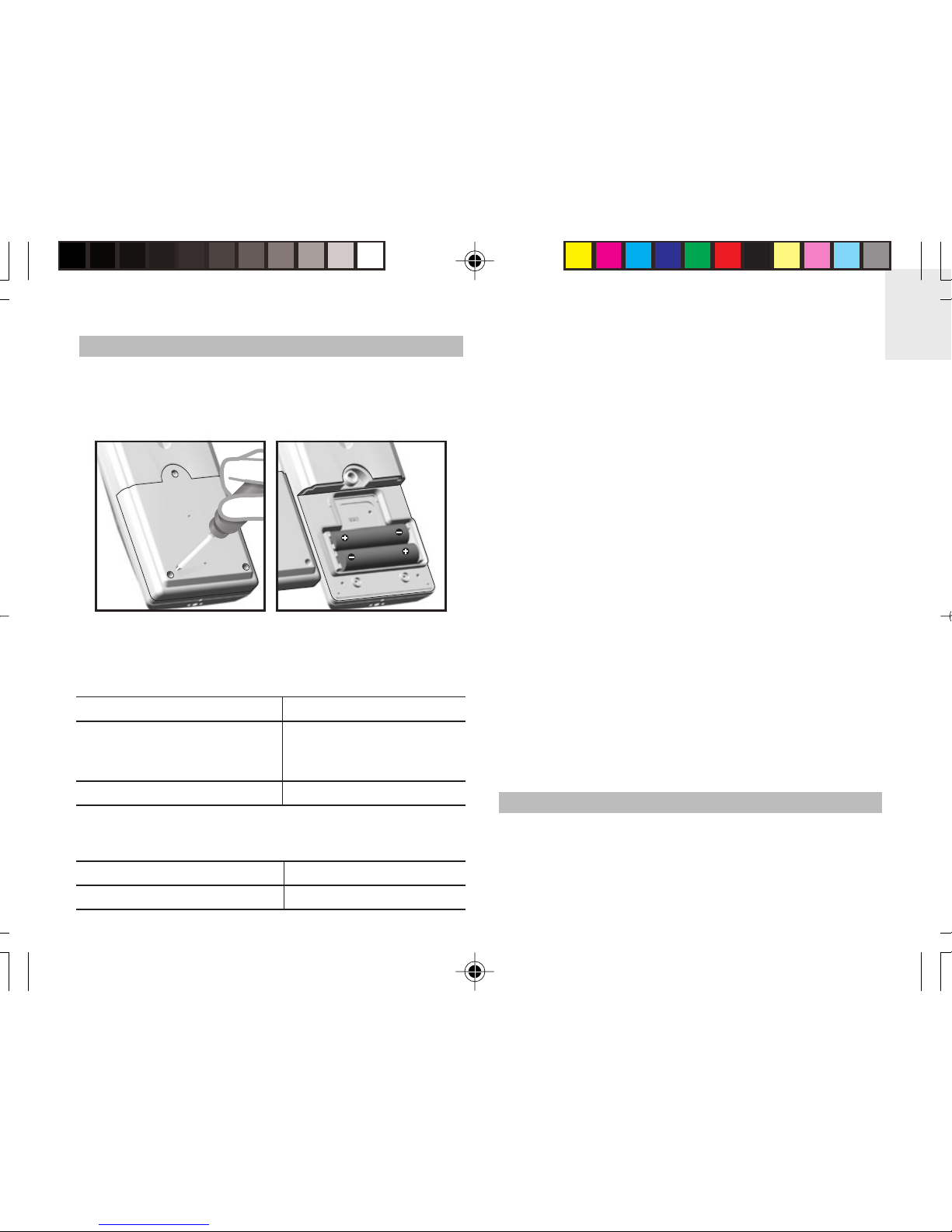

SETUP REMOTE SENSOR

1. Open the battery compartment with a small Phillips screwdriver.

2. Insert the batteries.

3. Set the channel and radio signal format. The switches are located in the battery compartment.

4. Press RESET. Then set the temperature unit.

SWITCH OPTION

Channel If you are using more than one

sensor, select a different channel for each sensor.

Radio Signal Format EU (DCF) / UK (MSF)

SWITCH OPTION

Temp ˚C / ˚F

5. Close the battery compartment and place the sensor in your desired location.

For best results:

• Insert the batteries and select the channel before you mount the sensor.

• Place the sensor out of direct sunlight and moisture.

• Do not place the sensor more than 30 metres (100 feet) from the main (indoor) unit.

• Position the sensor so that it faces the main (indoor) unit, minimizing obstructions such as doors, walls, and furniture.

• Place the sensor in a location with a clear view to the sky, away from metallic or electronic objects.

• Position the sensor close to the main unit during cold winter months as below-freezing temperatures may affect battery performance and signal transmission.

You may need to experiment with various locations to get the best results.

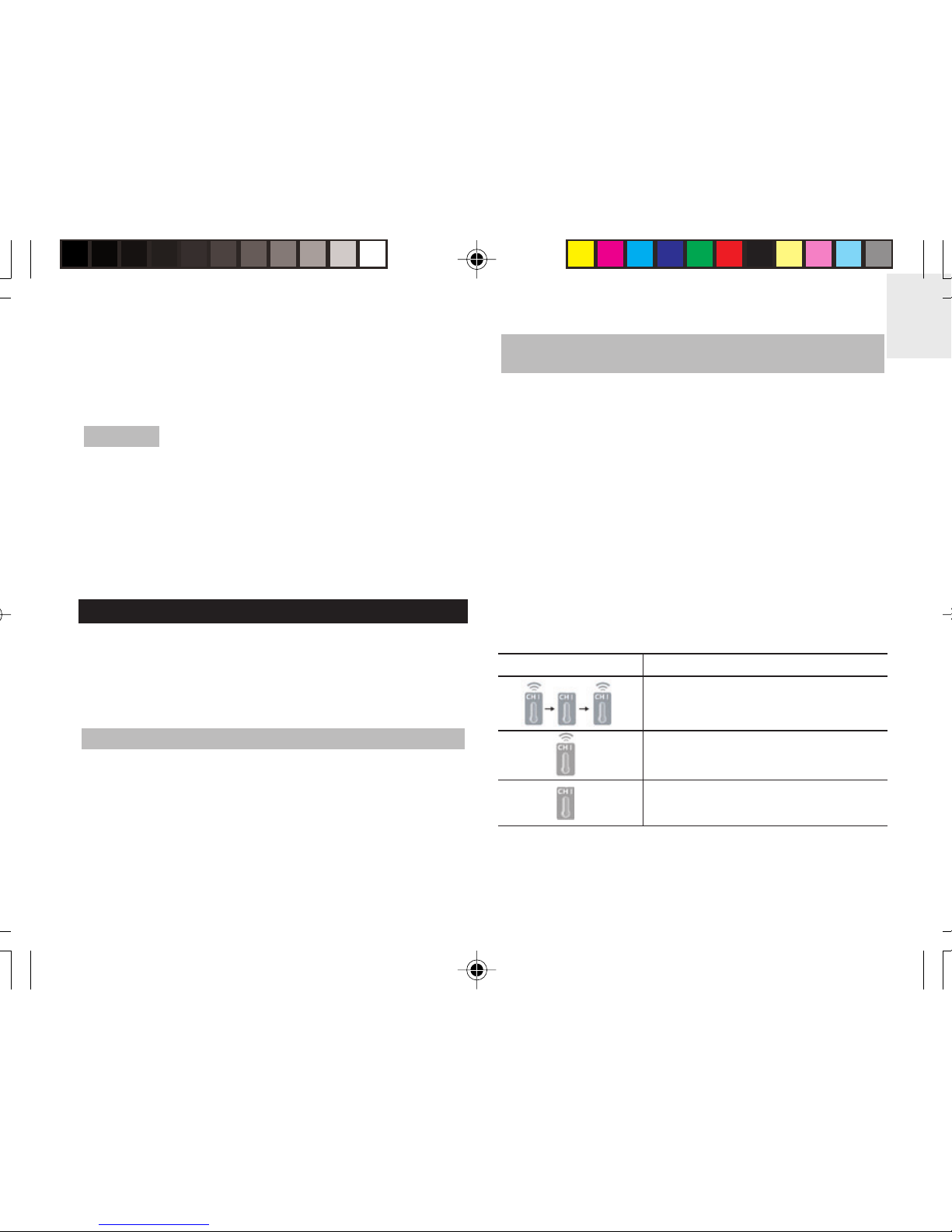

REMOTE SENSOR SIGNAL

Initial reception takes 2-10 minutes, and is initiated when you first setup the unit, and whenever you press RESET. Once complete, the reception icon will stop blinking and show the signal strength by displaying between 1 and 4 waves.

AWS899_EN_R19 10/26/05, 6:29 PM7

ICON MEANING

Searching for sensor

Sensor found

No Sensor

Press SEARCH to manually activate a search for the radio-controlled clock signal. The reception icon will blink until the clock signal is found or the search period times out.

NOTE Signals from household devices such as doorbells, electronic garage doors, and home security systems may cause temporary reception failure. This is normal and does not affect general product performance. The reception will resume once the interference ends.

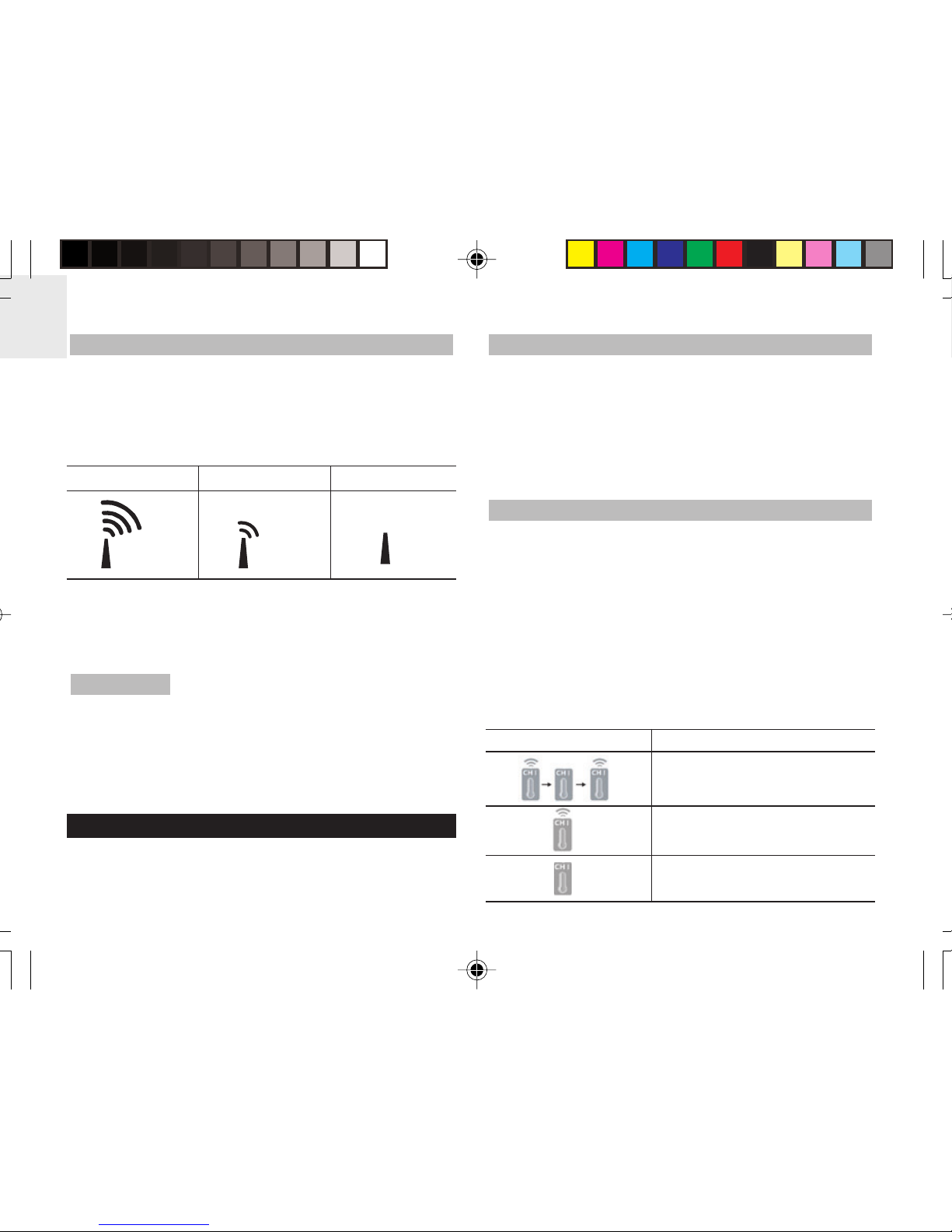

CLOCK

This product tracks the time and date based on radiocontrolled signals from the RTGR328N remote sensor, or manual settings that you enter.

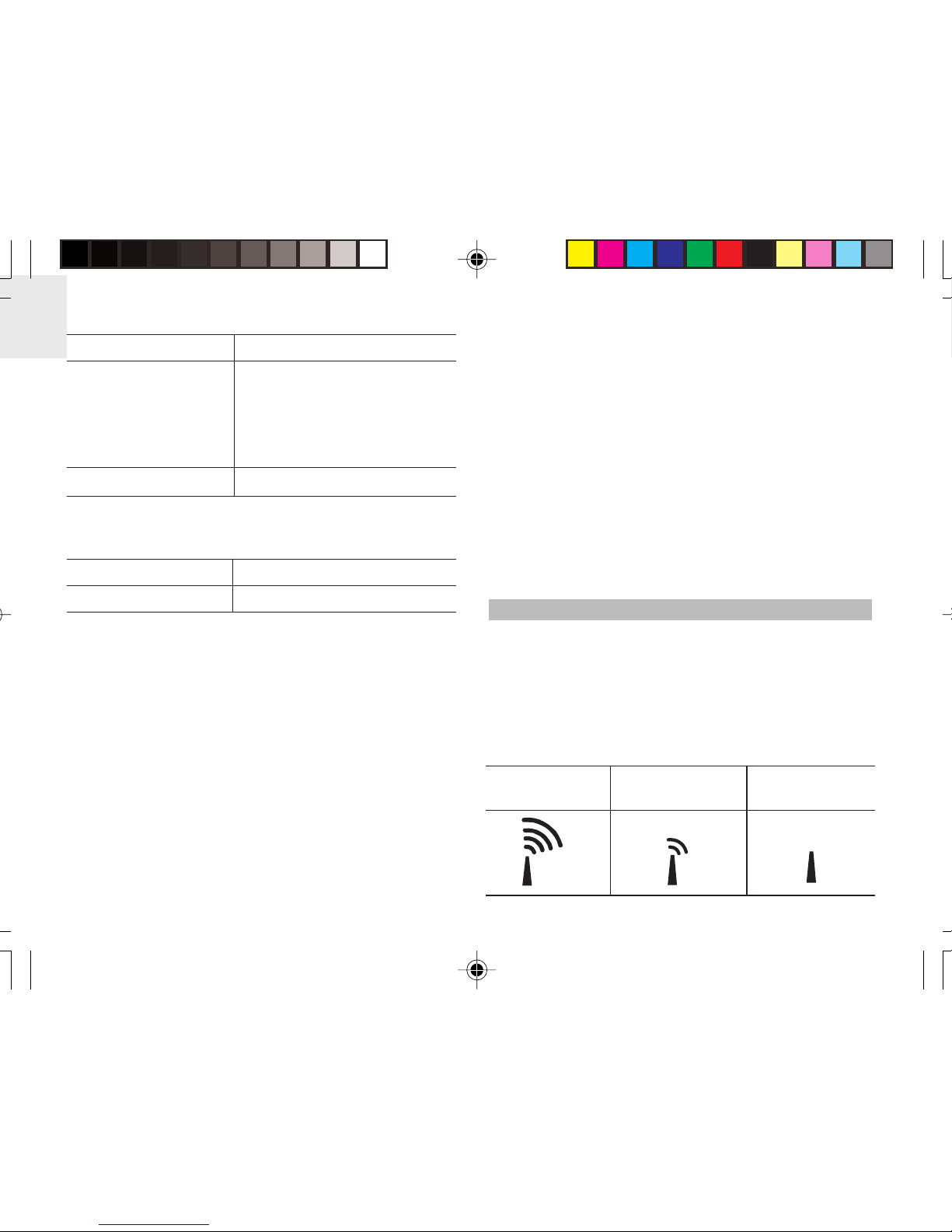

STRONG SIGNAL

WEAK SIGNAL NO SIGNAL

RADIO-CONTROLLED CLOCK

The time and date are automatically updated by radiocontrolled clock signals from official time-keeping organizations in Frankfurt (Germany) and Rugby (England) unless you disable this feature. The signals are collected by the remote sensor (RTGR328N) whenever it is within 1500 km (932 miles) of a signal.

MAIN UNIT SENSOR SEARCHING

Initial reception takes 2-10 minutes, and is initiated when you first set up the unit, and whenever you press RESET. Press and hold TEMP / HYGRO SEARCH for 2 seconds to manually activate sensor searching. Once complete, the reception icon will stop blinking.

To view the status of the main unit’s signal with the outdoor temperature and humidity channel(s), go to the TEMP & HUMIDITY Display:

AWS899_EN_R19 10/26/05, 6:29 PM8

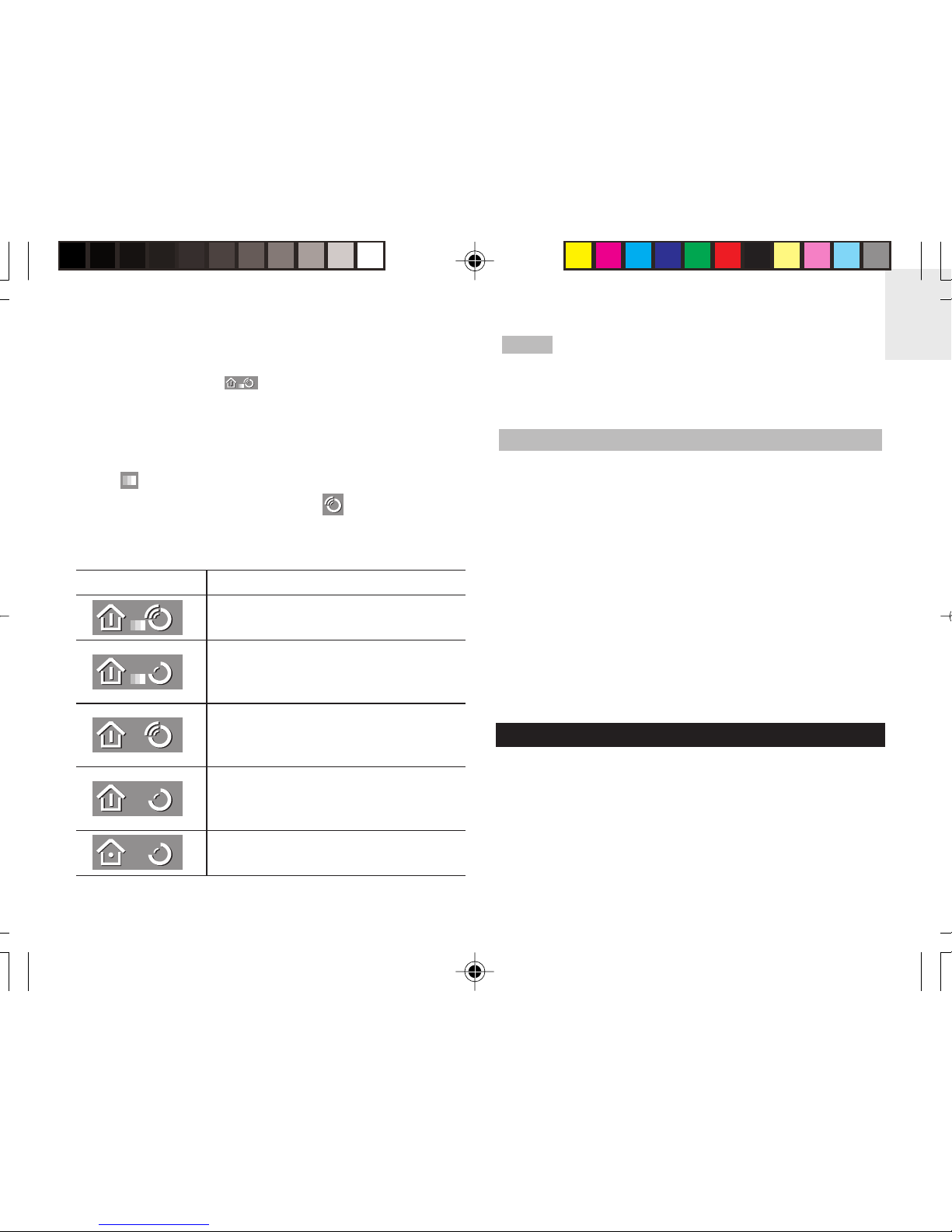

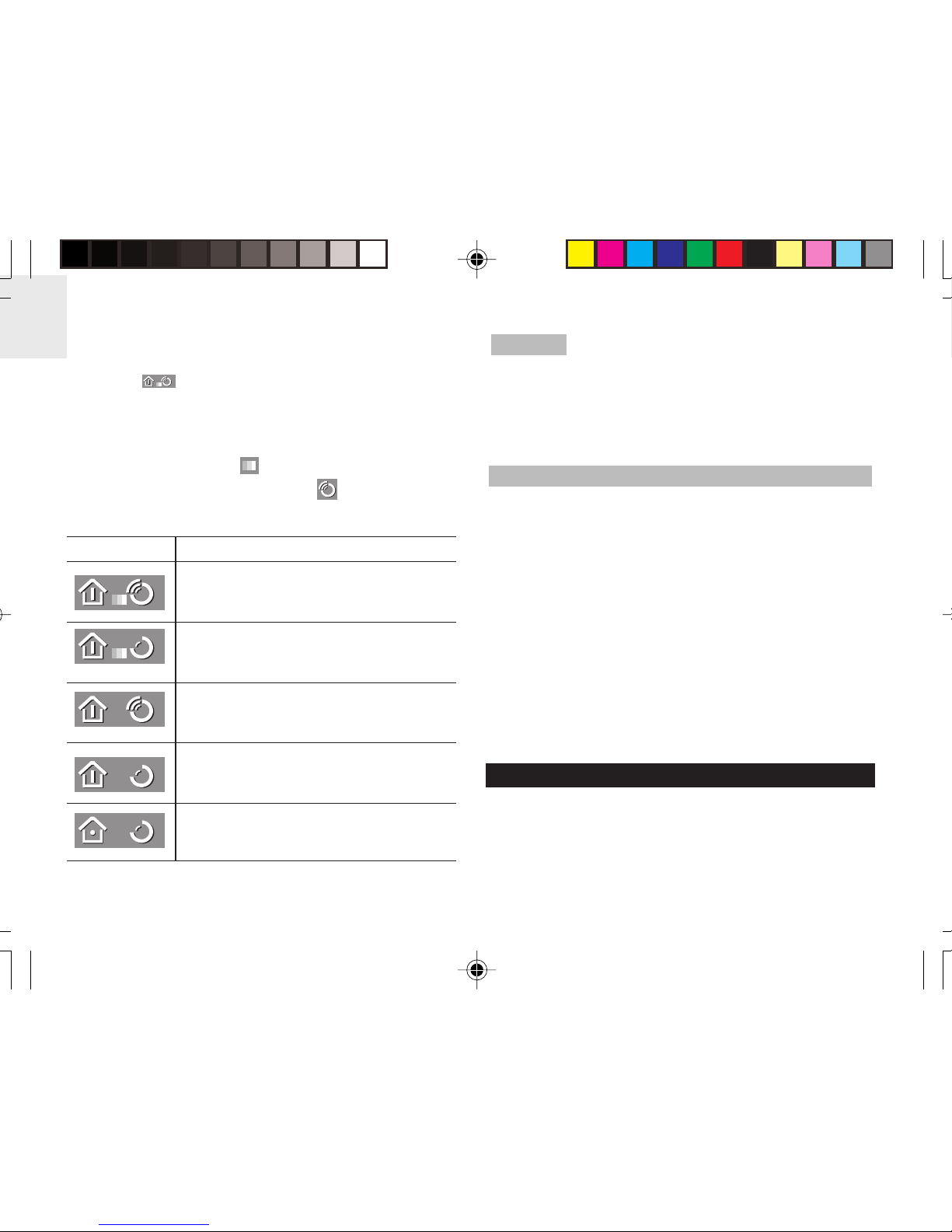

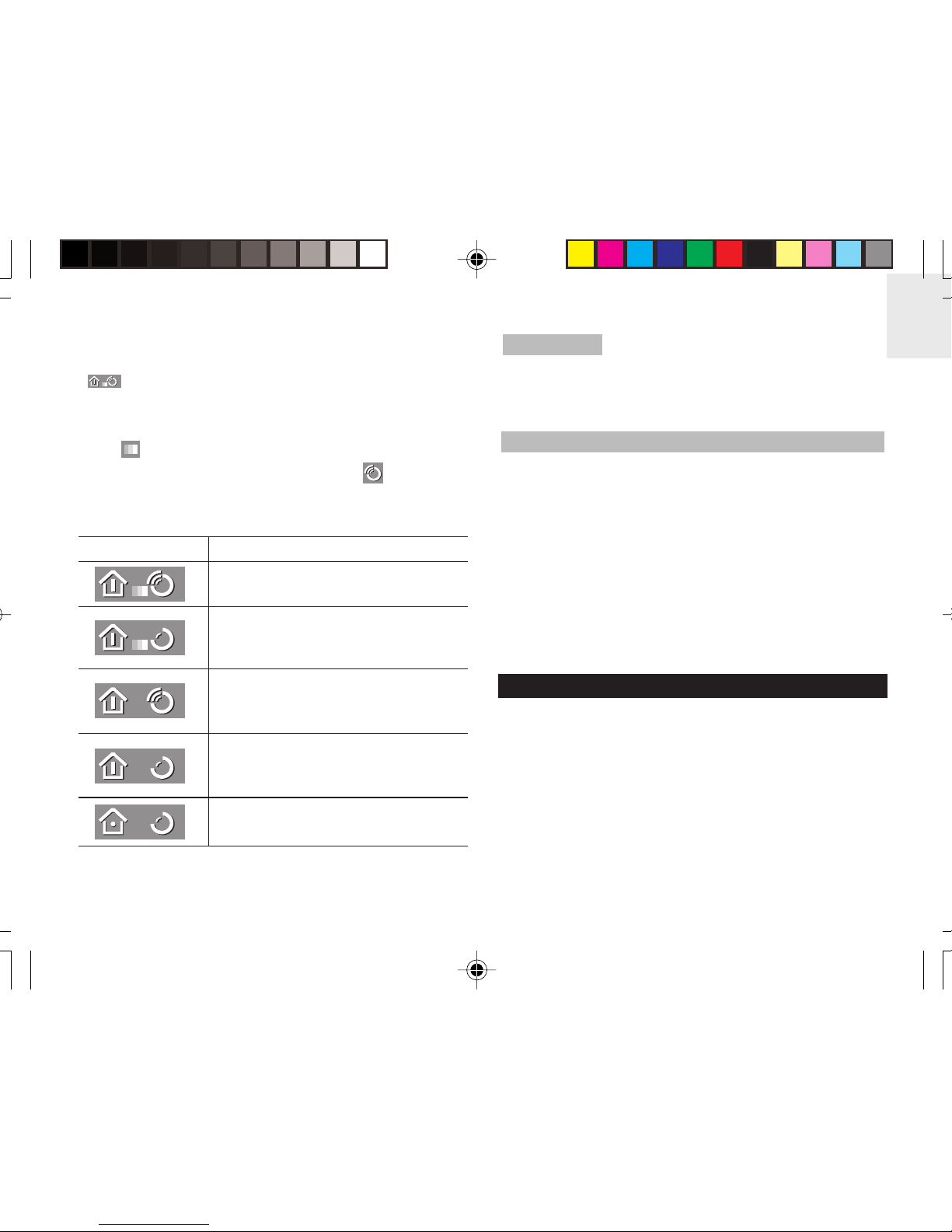

To view the status of the main unit’s signal with the radio-controlled clock signals, look for the icon shown in the CLOCK & ALARM Display area. It indicates 2 factors:

• Connection between the main unit and the sensor ( )

• RF signal reception ( )

How these signals work together:

ICON MEANING

The unit has contact with the sensor and has synchronized the time.

The unit has contact with the sensor but the time has not been synchronized.

The unit has lost contact with the remote sensor but the time is synchronized.

The unit has lost contact with the remote sensor and the time is not synchronized.

The unit cannot reach the remote sensor.

NOTE To force a manual search for RF clock reception, press and hold TEMP / HYGRO SEARCH on the main unit for 2 seconds.

TURN RADIO RECEPTION ON / OFF

When you are in the CLOCK & ALARM Display you can turn the reception on or off.

To turn the radio reception ON: Press and hold UP for 2 seconds.

To turn the radio reception OFF: Press and hold DOWN for 2 seconds.

Alternatively, you can turn it ON / OFF in the CLOCK Setting Mode (see relevant section).

HOW TO CHANGE SETTINGS

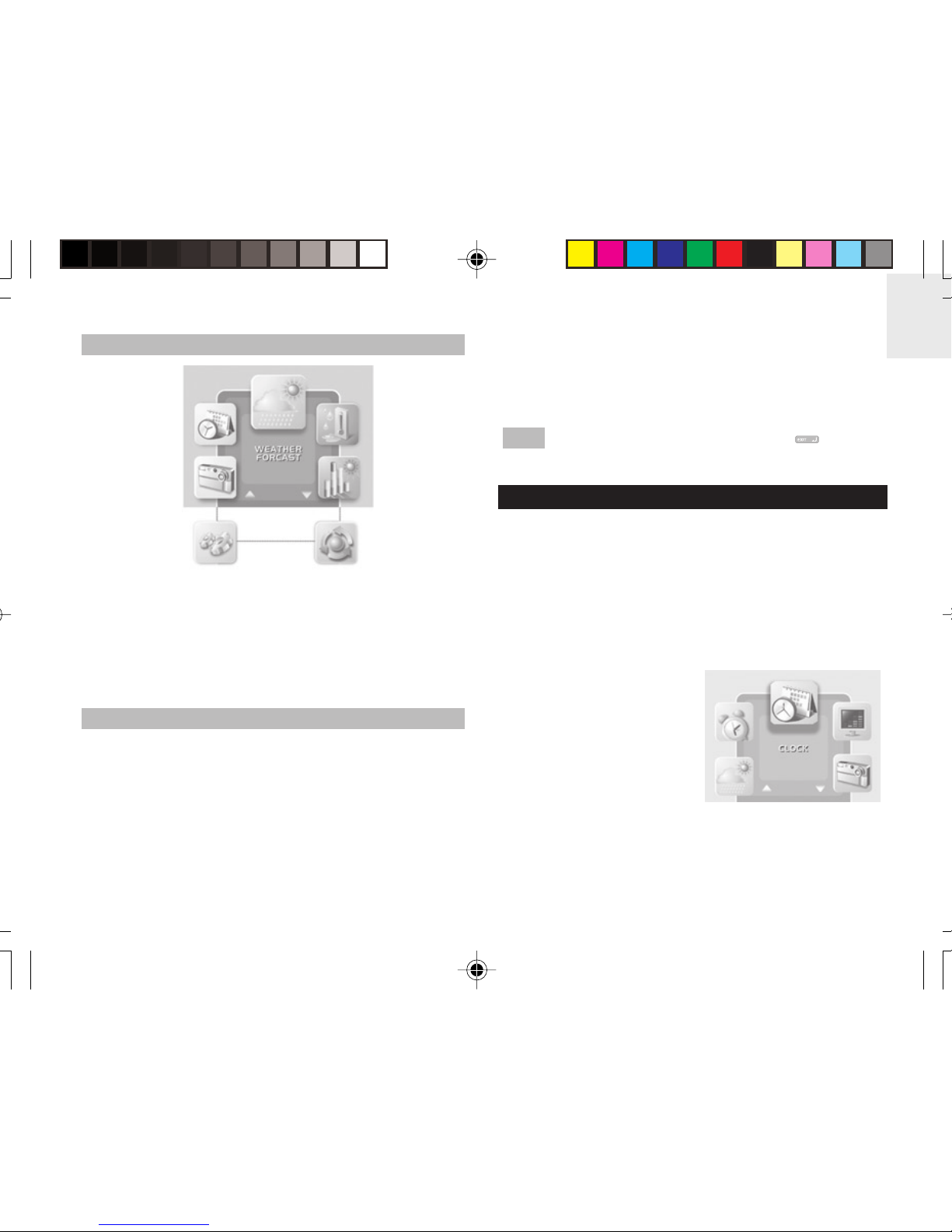

All settings and display options for this product are accessible from the Main Menu.

AWS899_EN_R19 10/26/05, 6:29 PM9

2. Choose the settings that you want to adjust and edit as shown in the Changing Settings section.

CHANGING SETTINGS

To change the settings, navigate to the SETTINGS Mode from the Main Menu as shown above. Then:

1. Press UP or DOWN to highlight the option you wish to change.

2. Press ENTER to select it.

3. Use the UP or DOWN buttons to change values.

4. Press ENTER to confirm changes.

TIP Selecting the exit icon

will return you to the

previous screen.

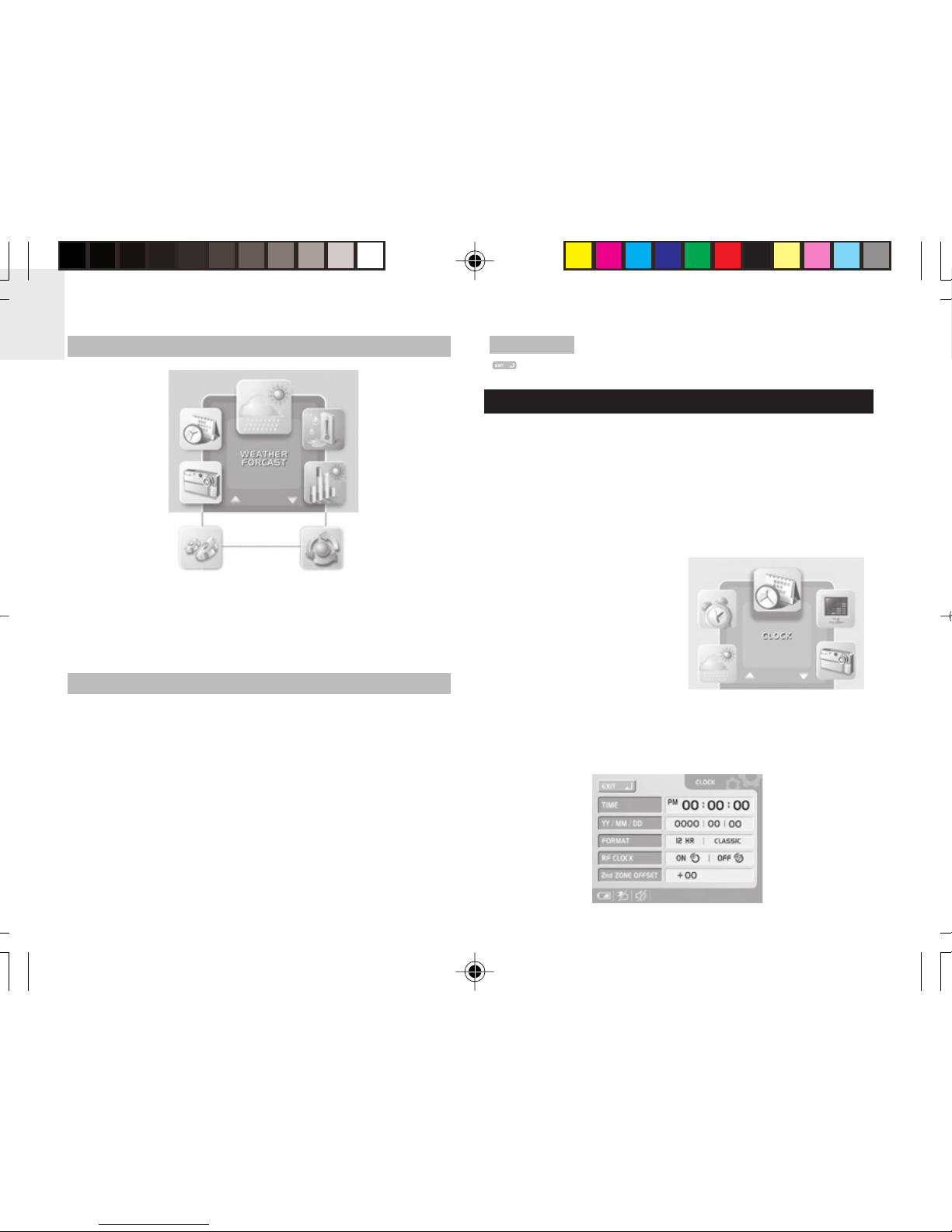

CLOCK SETTING MODE

Auto-synchronization should be deactivated before you manually set the clock. To do this, follow the instructions stated below and turn the RF clock function OFF in CLOCK Setting Mode.

From the Main Menu, access the SETTINGS Mode.

Press UP / DOWN to select CLOCK Setting Mode, then press ENTER.

To access the Main Menu from any screen press HOME. Press UP or DOWN to highlight a desired option then press ENTER to activate it.

NAVIGATING THROUGH MAIN MENU

AWS899_EN_R19 10/26/05, 6:29 PM10

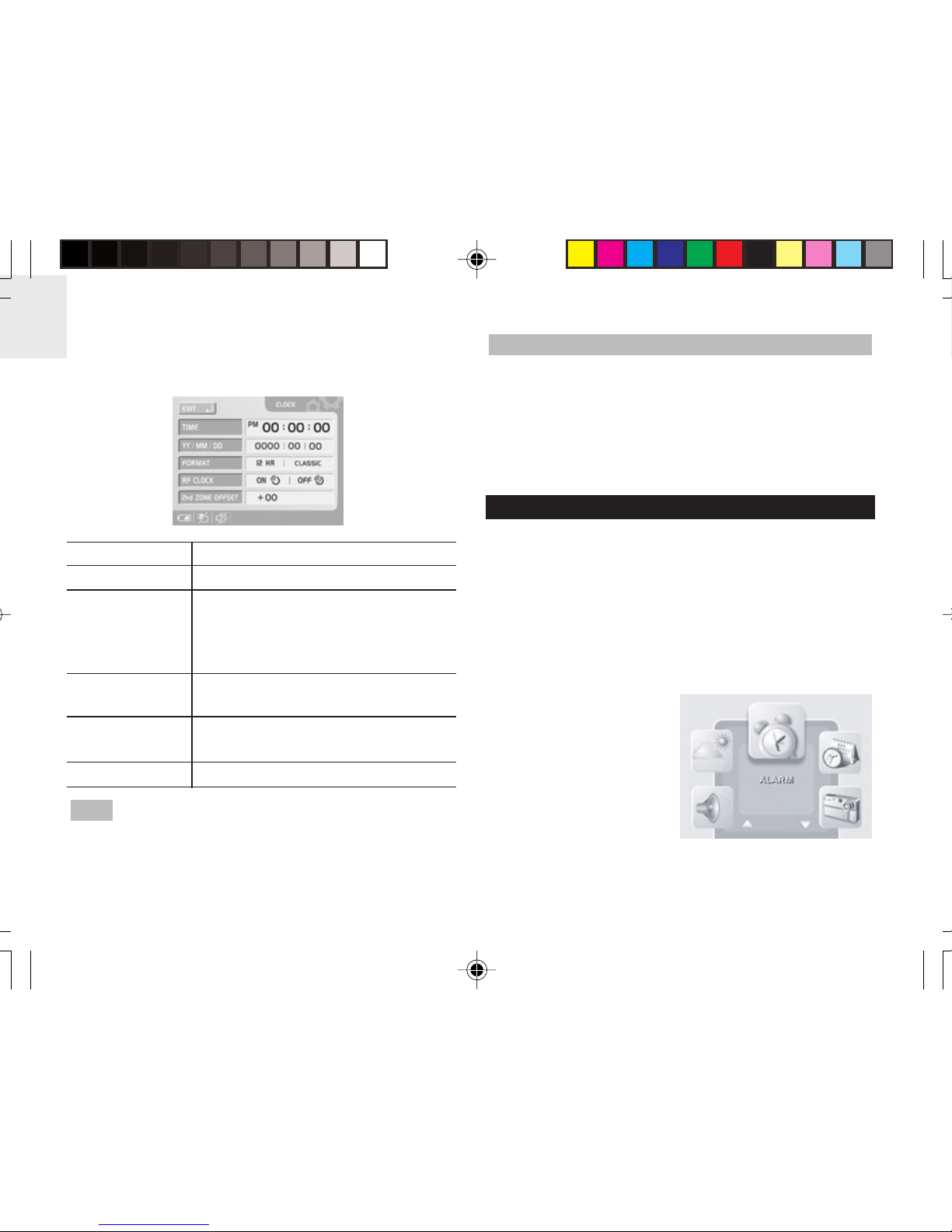

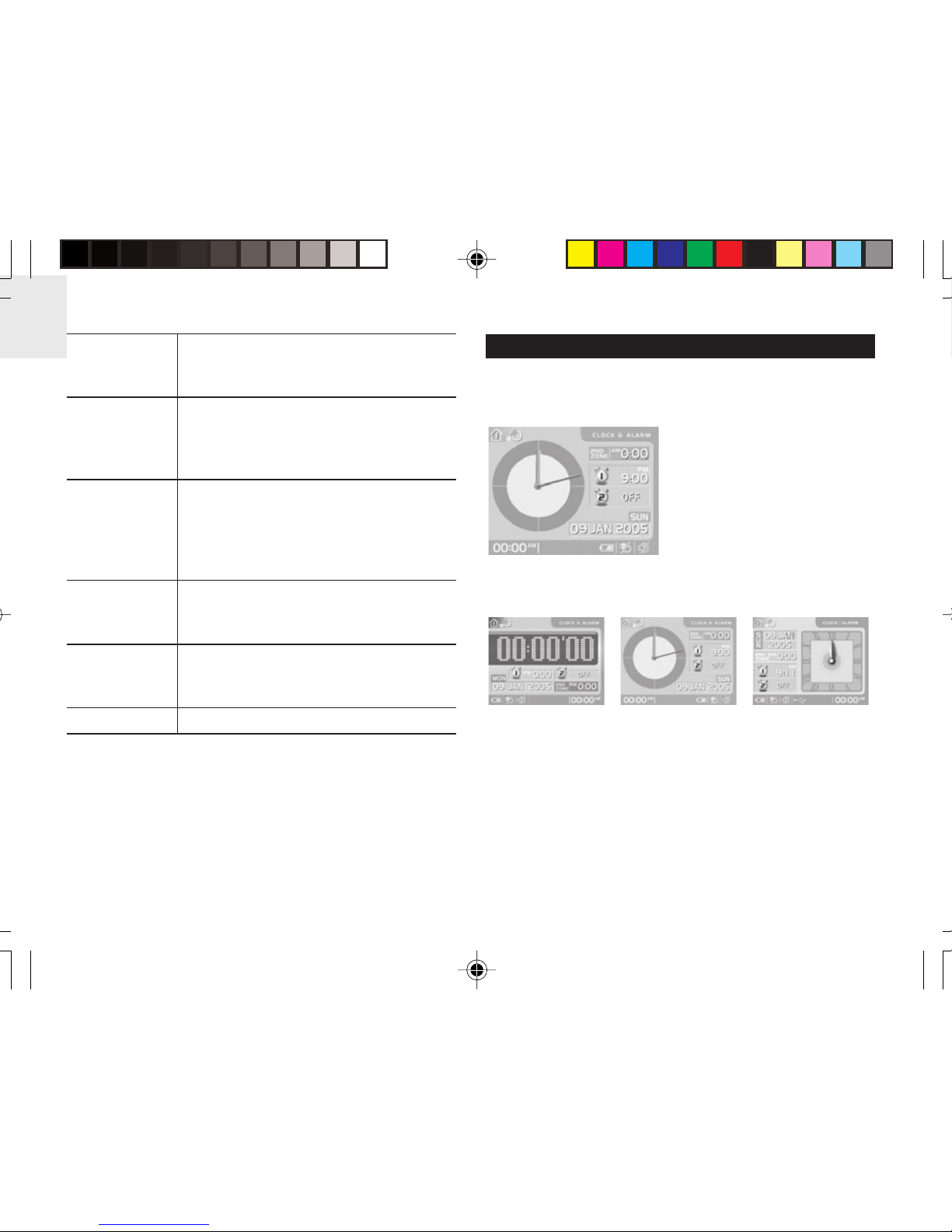

TIME Set hour and minute

YY-MM-DD Set Year, Month and Date FORMAT

Set 12 or 24 hour format and ANALOG, DIGITAL or CLASSIC clock display format

RF CLOCK

Set auto synchronization ON or OFF

2nd ZONEOFFSET

Set 2nd zone-time

EXIT Return to previous page

TIP Press HOME to return to Main Menu.

2nd ZONE-OFFSET

You can offset current local time to correspond with the time from another region (2nd zone).

For example, if the current local time is 1:30pm and the time in another region is 3:30pm, you should adjust the 2nd ZONE-OFFSET to +02 to compensate.

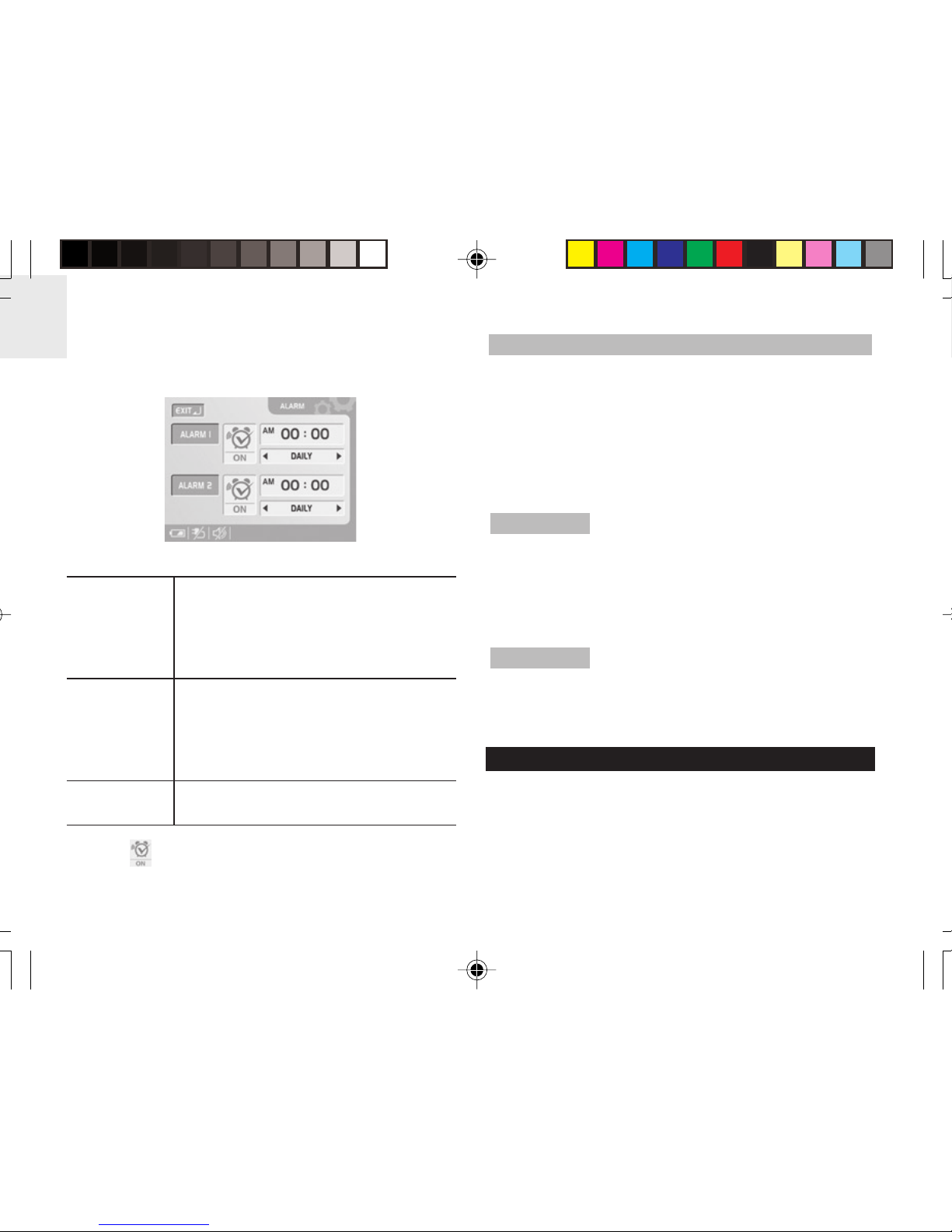

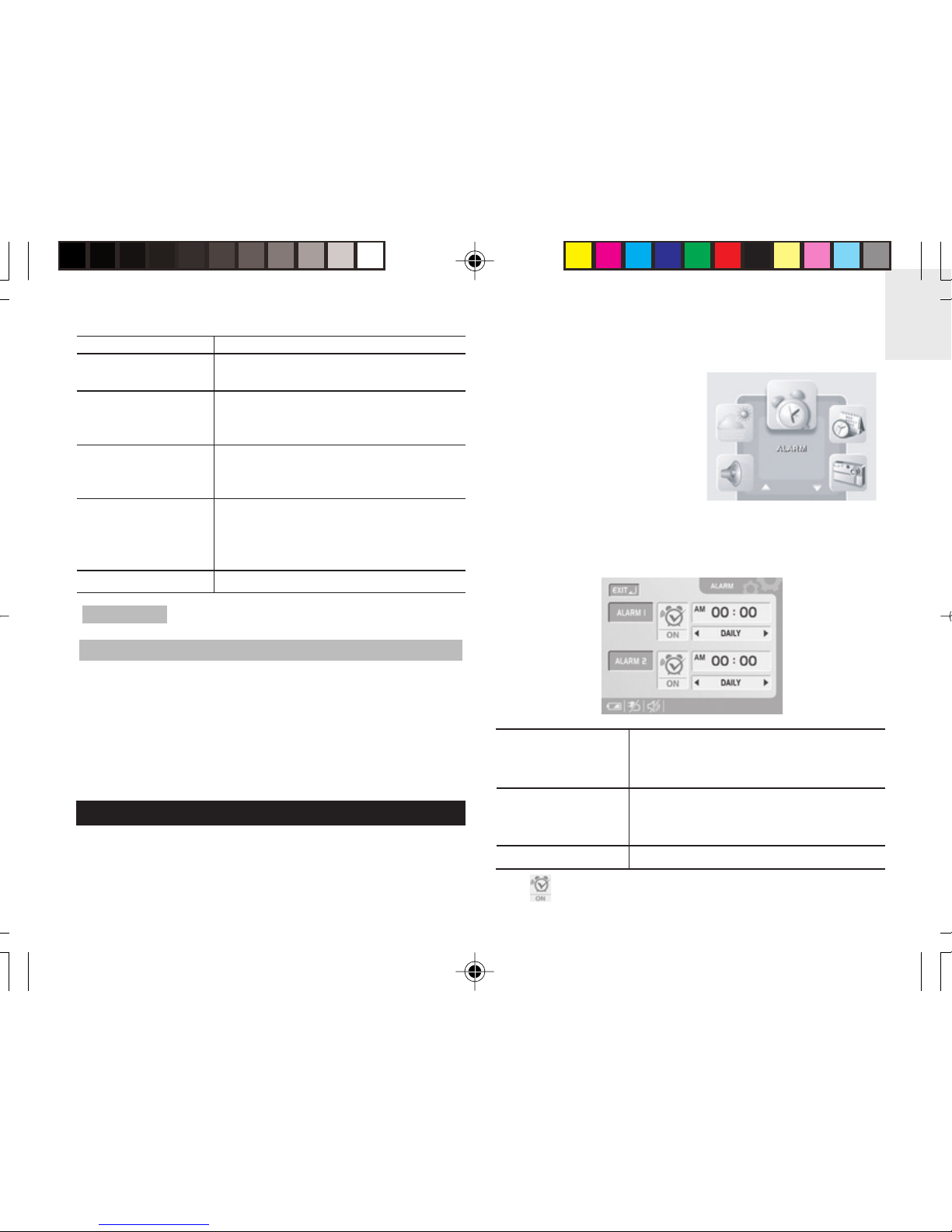

ALARM SETTING MODE

When activated, the crescendo alarm will sound until it shuts off at two minutes.The unit is equipped with 2 alarms (alarm 1 and alarm 2) that can be individually set to go off daily, or every weekday (ie Monday to Friday only).

1. From the Main Menu, access the SETTINGS Mode.

Press UP / DOWN to select ALARM Setting Mode then press ENTER.

2. Choose the settings that you want to adjust and edit as shown in the Changing Settings section.

ALARM 1 Set alarm ON / OFF, hour, minute

and daily / weekday alarm type

ALARM 2

Set alarm ON / OFF, hour, minute and daily / weekday alarm type

Return to previous pageEXIT

will indicate that an alarm is active.

AWS899_EN_R19 10/26/05, 6:29 PM11

TEMPERATURE UNIT

Select ˚C or ˚F temperature units

BAROMETRIC UNIT

Select mb/hPa or inHg pressure units

ALTITUDE SETTING

Set the compensated altitude [-100m to 2500m] (default 0m)

EXIT Return to previous page

SNOOZE / PHOTO

Press SNOOZE to temporarily disable the alarm for 8 minutes. The CLOCK & ALARM Display screen will appear and the alarm icon will swing while snooze is activated.

To deactivate the snooze function, press and hold

ENTER. NOTE When the snooze function is enabled, changing

the clock, calendar or alarm setting will disable the snooze setting.

To view the photo in your Personal frame, press

PHOTO at any time. NOTE For your Personal photo to be displayed, the

WALLPAPER option must already be selected in MY PHOTO Setting Mode.

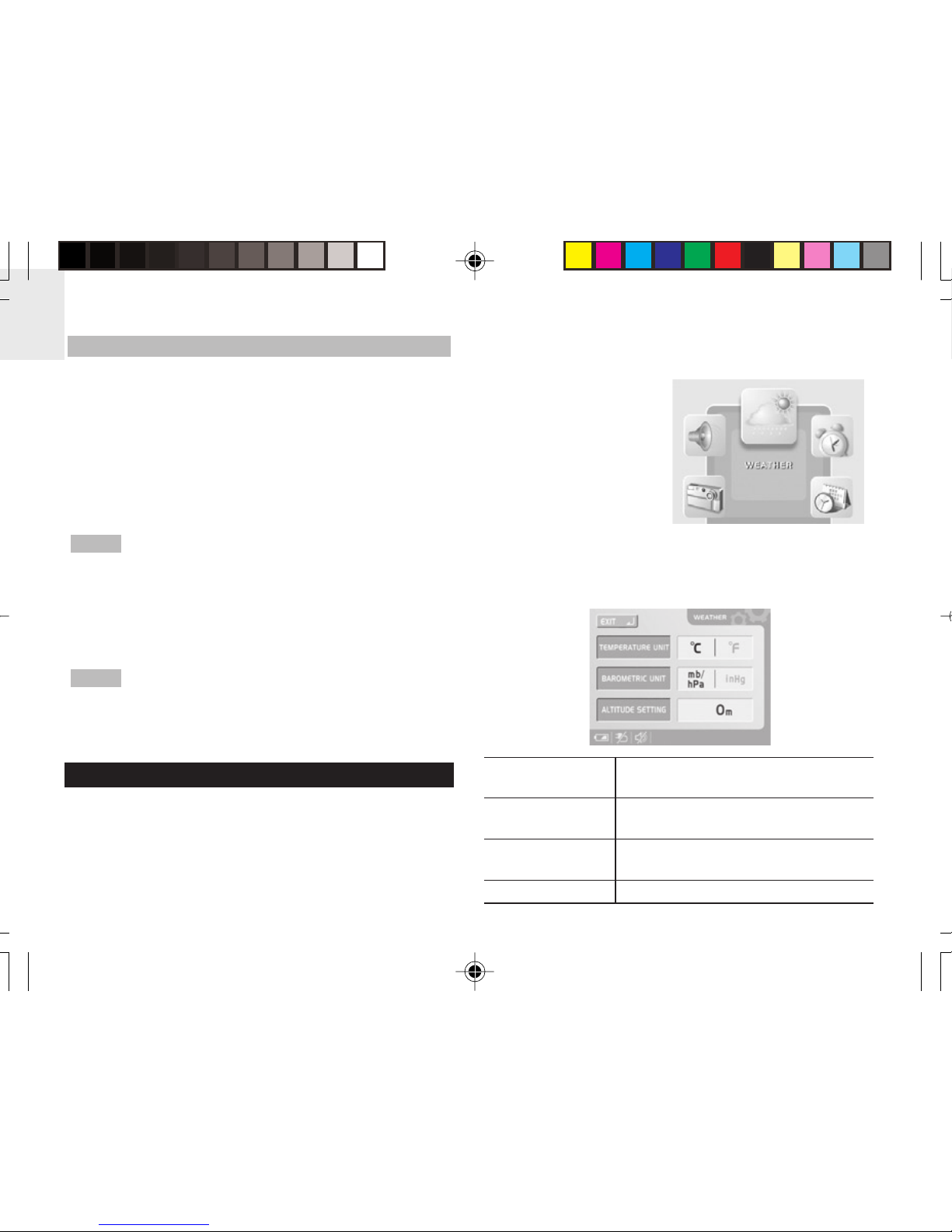

WEATHER SETTING MODE

In this mode you can adjust various weather calibration settings, such as the unit of temperature and barometric display along with altitude settings for more accurate weather forecasting.

From the Main Menu, access the SETTINGS Mode.

Press UP / DOWN to select WEATHER Setting Mode, then ENTER.

2. Choose the settings you want to adjust and edit as shown in the Changing Settings section.

AWS899_EN_R19 10/26/05, 6:29 PM12

ALTITUDE COMPENSATION FUNCTION

Set the altitude corresponding to how far above or below you are to sea level to make barometric measurements accurate.

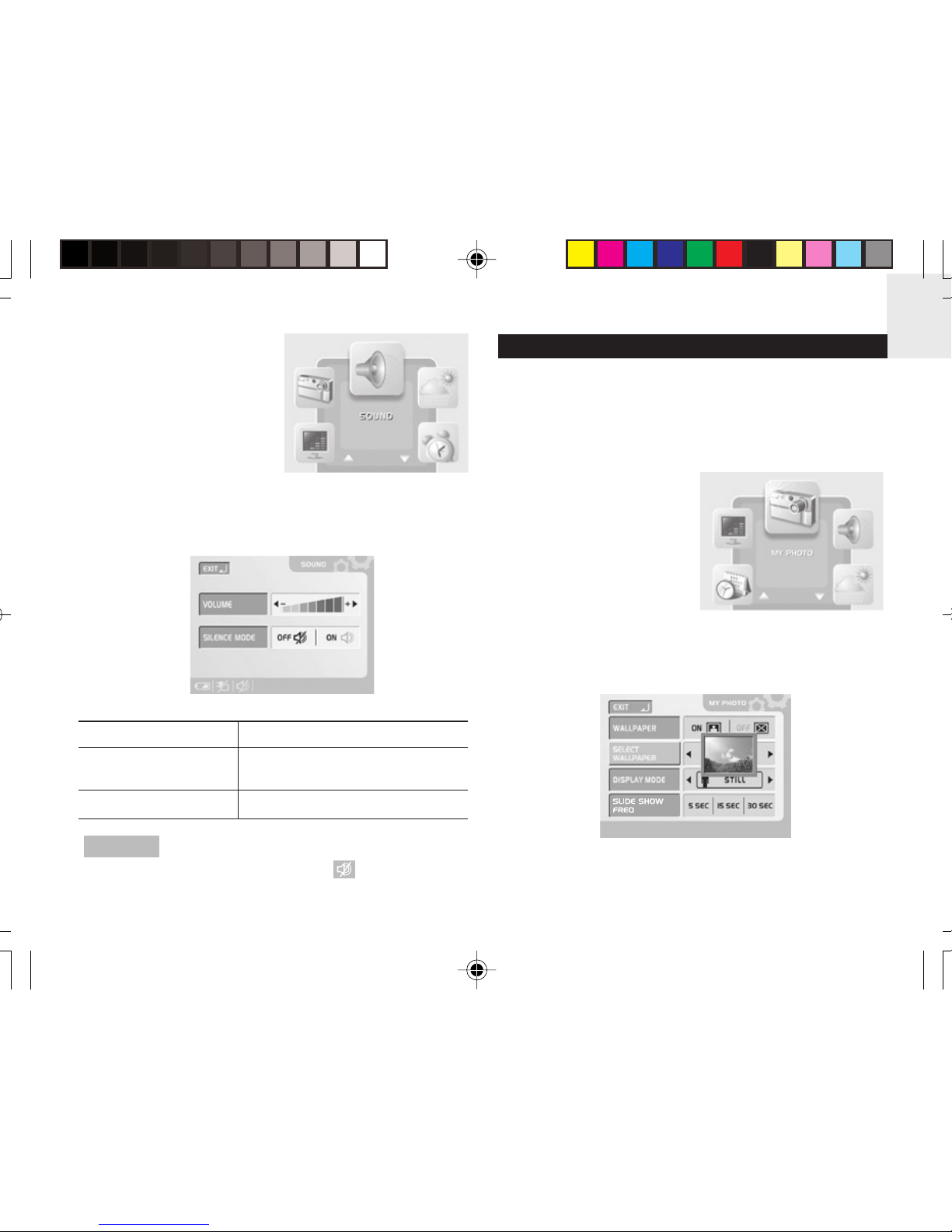

SOUND SETTING MODE

In this mode you can adjust the sound options for the unit.

1. From the Main Menu, access the SETTINGS Mode.

Press UP / DOWN to select SOUND Setting Mode.

2. Choose the settings that you want to adjust and edit as shown in the Changing Settings section.

VOLUME Adjust system volume levels SILENCE MODE (ON) No sound will be heard and

the keytone will be turned off

EXIT Return to previous page

MY PHOTO SETTING MODE

In this mode you can select a still picture or slide show (set of 6 photos) to display on the screen as wallpaper.

1. From the Main Menu, access the SETTINGS Mode.

Press UP / DOWN to select MY PHOTO Setting Mode.

NOTE When the SLIENCE MODE is ON, the mute icon

will be shown.

AWS899_EN_R19 10/26/05, 6:29 PM13

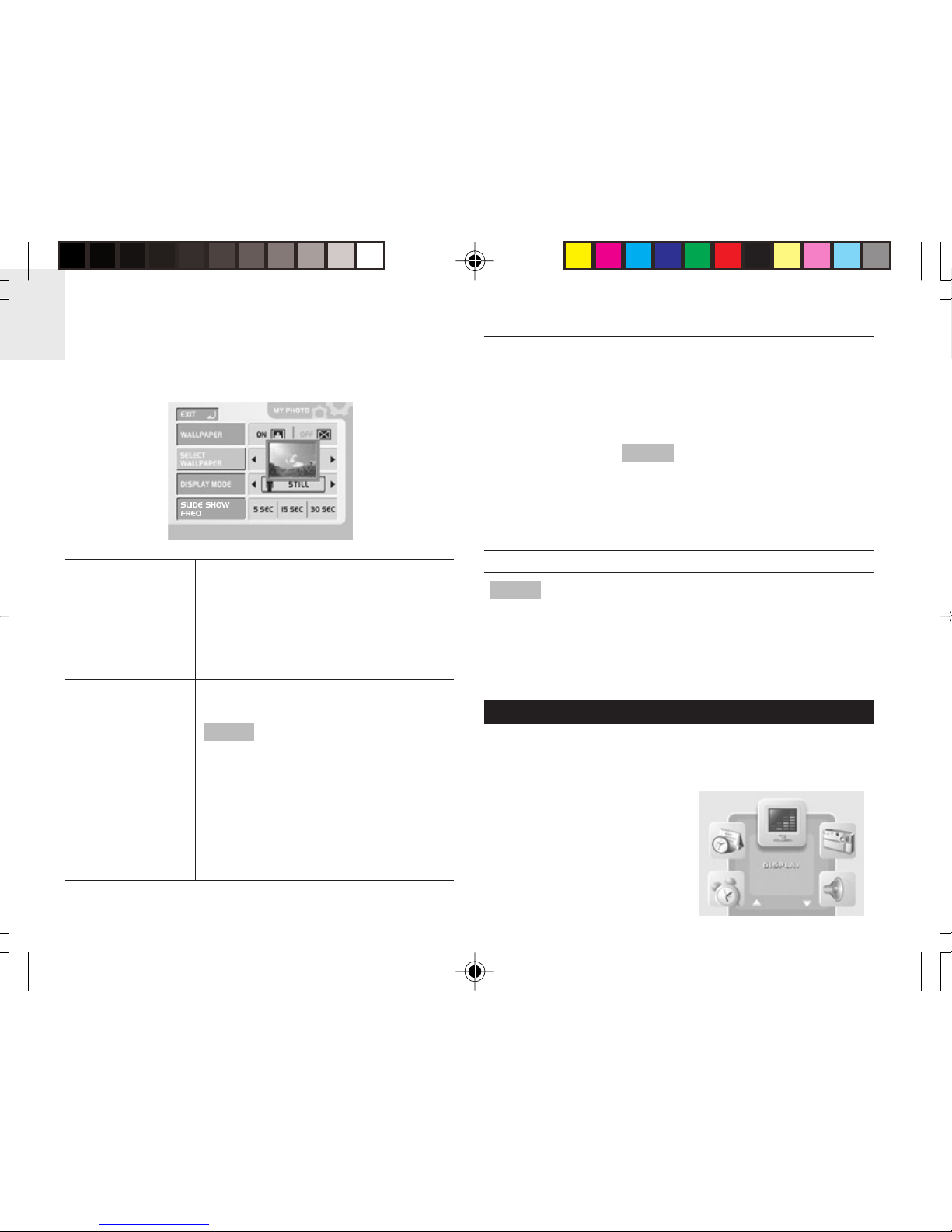

DISPLAY SETTING MODE

In this mode you can customize various system settings.

1. From the Main Menu, access the SETTINGS Mode. Press UP / DOWN to

select DISPLAY Setting Mode.

DISPLAY MODE

Select STILL or SLIDE SHOW You can select to display just one

photo as Wallpaper or all 6 downloaded photos in sequence

NOTE If no picture has been downloaded, only STILL option can be chosen

SLIDE SHOW Select the slide show display speed FREQ – 5 SEC, 15 SEC or 30 SEC

EXIT Return to previous page

NOTE The WALLPAPER option must be set to ON to

access the other settings on this screen. Also, the SLIDE SHOW option must be selected as the display mode to access the SLIDE SHOW FREQ setting.

WALLPAPER Select ON / OFF. When enabled, the

selected photo will be shown on the display when SNOOZE / PHOTO is pressed in standby

SELECT Select 1 of the 6 pictures available WALLPAPER

NOTE If you have not downloaded

any new pictures you can only select the default picture “Smart Living”. Once you have downloaded your own pictures you can only select 1 of these and not the default picture

2. Choose the settings that you want to adjust and edit as shown in the Changing Settings section.

AWS899_EN_R19 10/26/05, 6:29 PM14

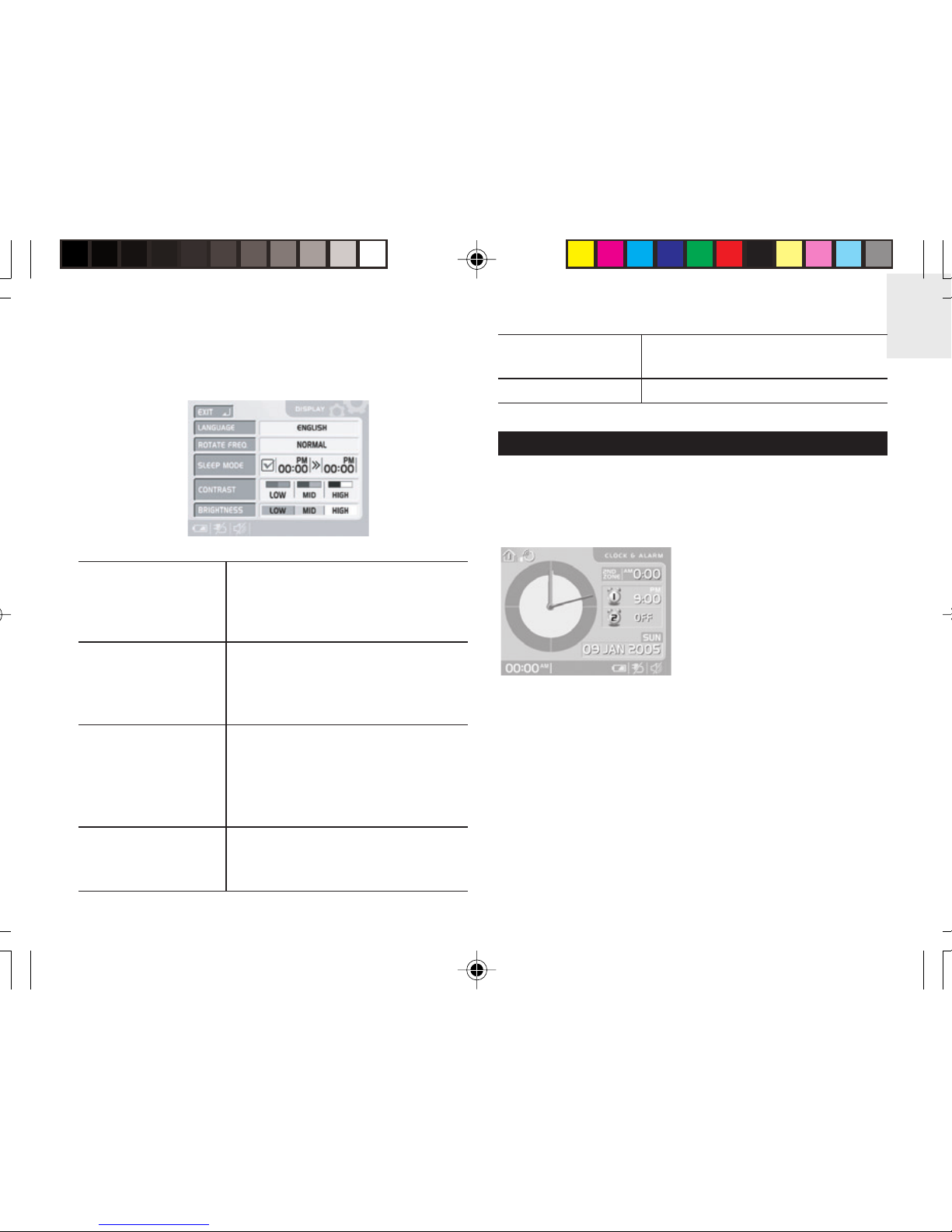

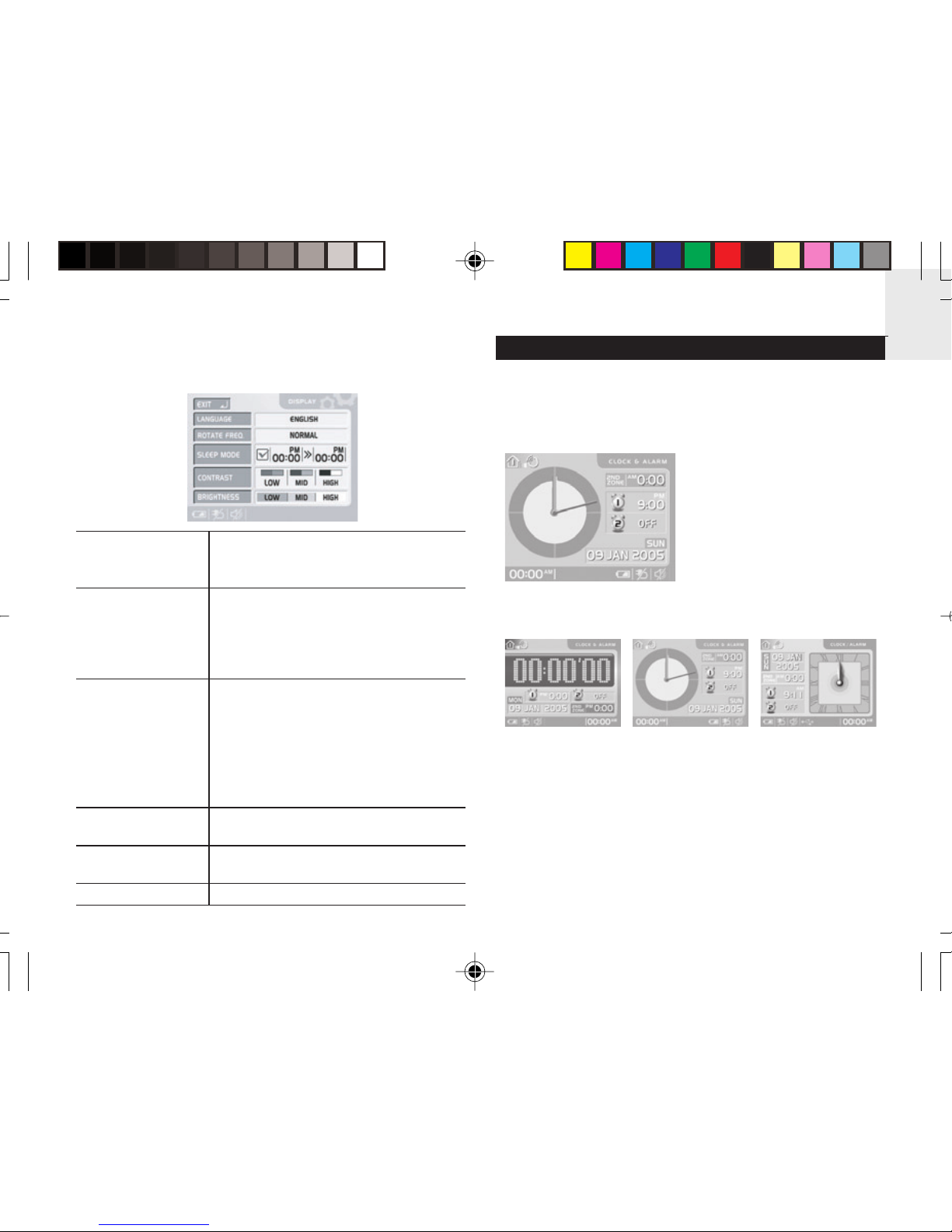

LANGUAGE

Choose from 1 of 5 languages: ENGLISH, SPANISH, ITALIAN, FRENCH and GERMAN.

ROTATE

Adjust the time each screen display will show

FREQ

itself when the auto rotation display feature is turned on - FAST, NORMAL or SLOW

SLEEP MODE

Set the display to sleep from the sleep start time to the sleep end time. When in sleep mode all operations are still active but the display screen is turned off and the speaker is mute

CONTRAST

Set the screen contrast - LOW, MID or HIGH

BRIGHTNESS

Set the screen brightness - LOW, MID or HIGH

EXIT

Return to previous page

2. Choose the settings that you want to adjust and edit as shown in the Changing Settings section.

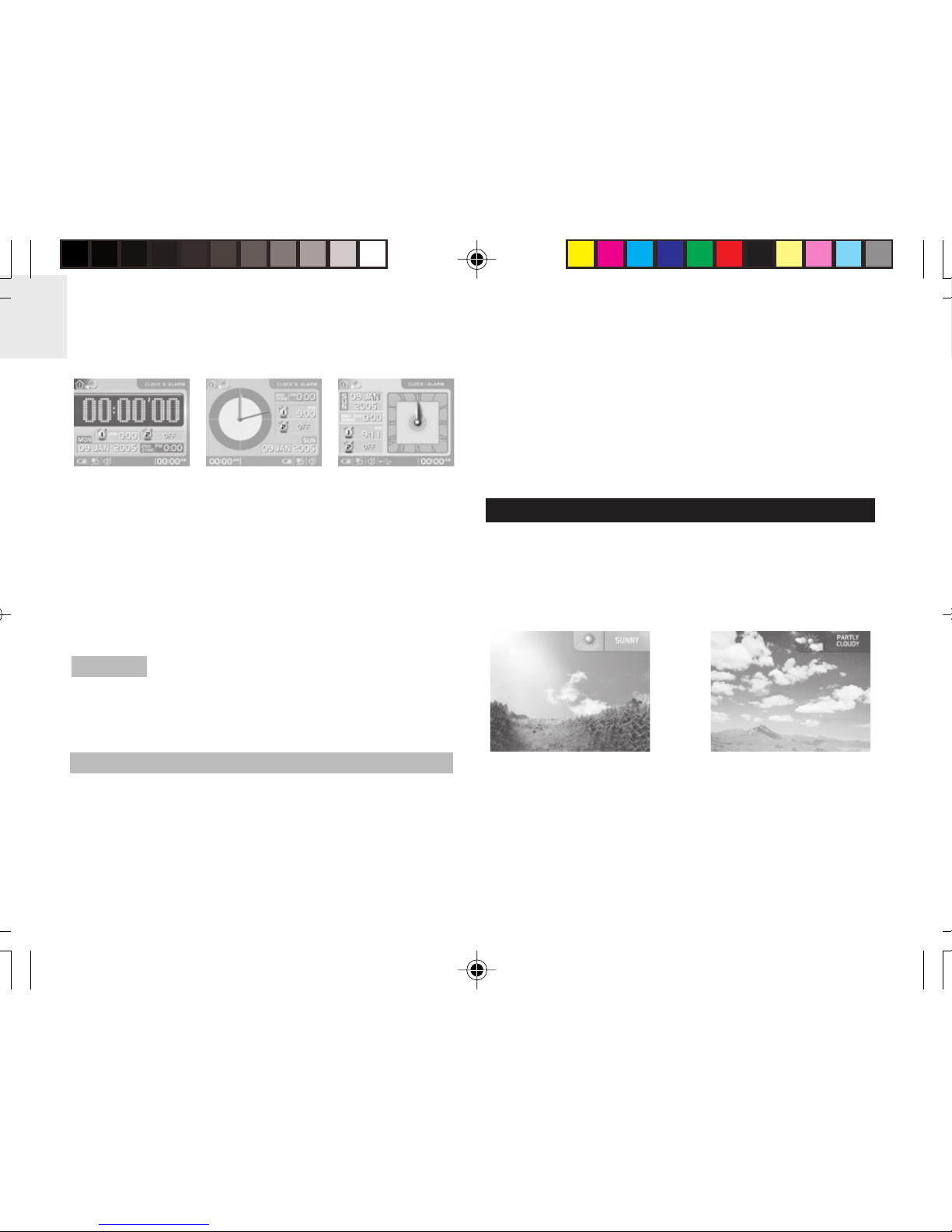

CLOCK & ALARM DISPLAY

This is basically a viewing mode where time, date and alarm information is conveniently displayed. In this mode you can turn alarms 1 or 2 ON / OFF.

• Current time

• Zone time

• Calendar

• Two alarm settings

You can view the time, date, and alarm in one of the following ways:

Press and hold CHANNEL for 2 seconds to toggle between the different displays.

*When in Analog display mode, press UP and DOWN to change the colour of the clock (orange, green or blue).

Analog*Digital Classic

AWS899_EN_R19 10/26/05, 6:29 PM15

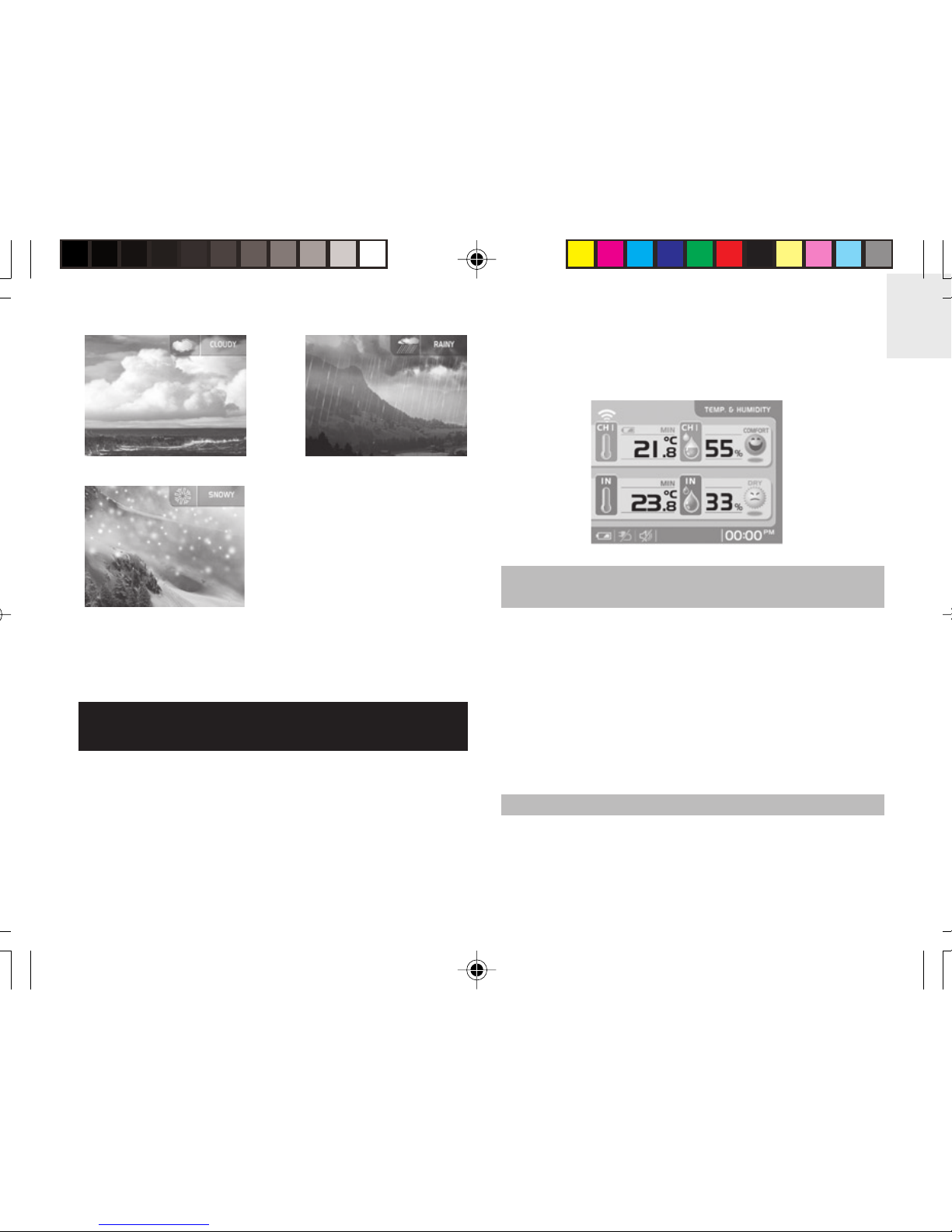

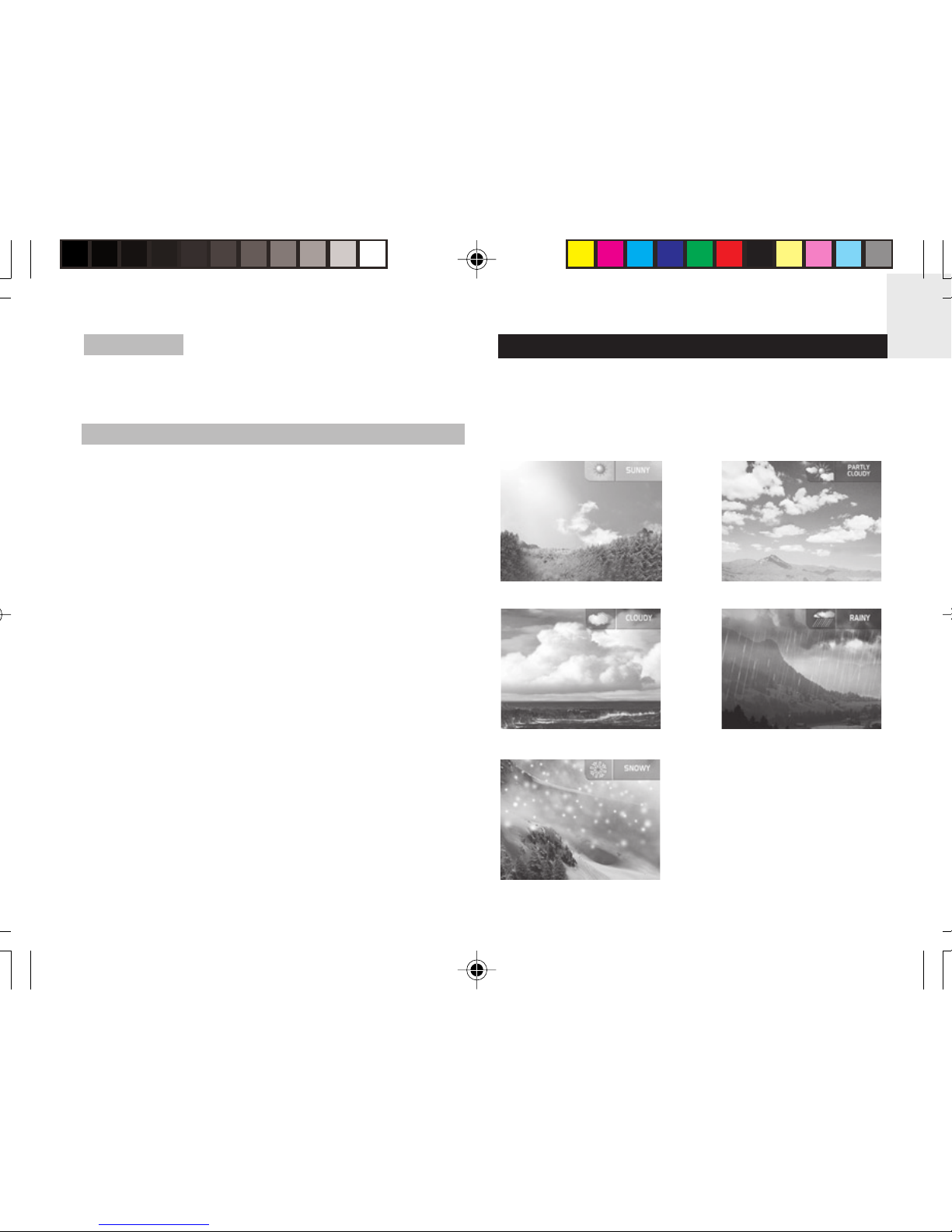

Cloudy Rainy

Snowy

WEATHER FORECAST DISPLAY

This product forecasts the next 12 to 24 hours of weather within a 30 to 50 km (19 - 31 mile) radius with 70 to 75 percent accuracy. A weather forecast with sound effect is always active:

Sunny Partly Cloudy

TURNING THE ALARM ON / OFF

In the CLOCK & ALARM Display you can switch ON / OFF alarm 1 or 2 separately without going into the setting mode:

1. Press CHANNEL to select alarm 1 or 2.

2. Press UP / DOWN to switch alarm on or off.

3. Press ENTER or wait 10 seconds to confirm the changes.

NOTE You can set which clock is displayed from the CLOCK Setting Mode. Access the FORMAT option to toggle between DIGITAL, ANALOG and CLASSIC views.

AWS899_EN_R19 10/26/05, 6:29 PM16

THERMO AND HYGRO MEMORY

To display a (MIN/MAX) reading, select a channel by pressing CHANNEL.

The weather forecast symbol is updated every 15 minutes.

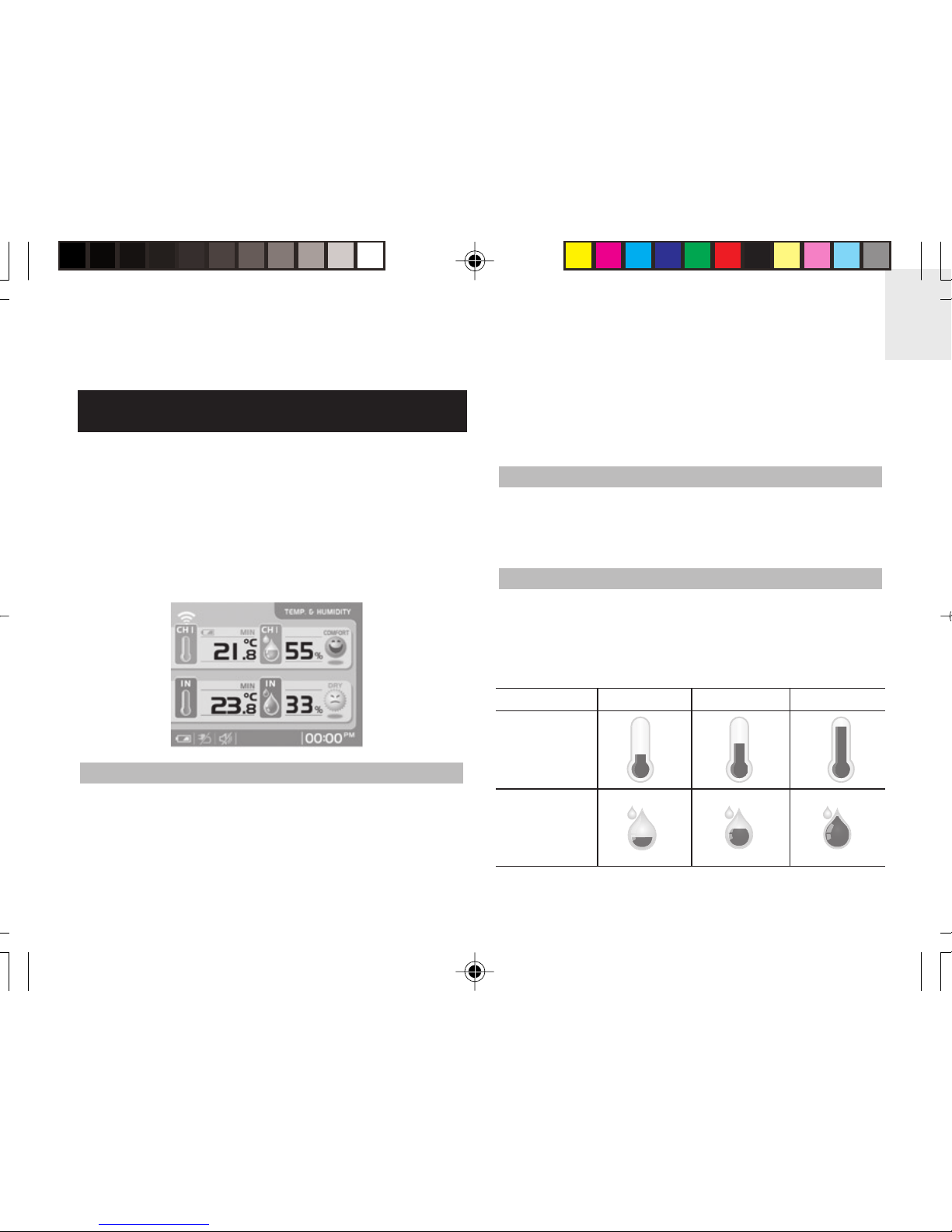

TEMPERATURE & HUMIDITY DISPLAY

With the press of a button, you can check the current indoor or outdoor temperature, relative humidity comfort level, trend, and record measurements. Outdoor measurements are taken by the remote sensors then relayed back to the main unit.

From the Main Menu, access the TEMP & HUMIDITY Display.

When the desired channel has been selected:

• MAX: Press and HOLD

for 2 seconds.

• MIN: Press and HOLD

DOWN for 2 seconds.

CLEAR MIN / MAX RECORDS

Press and hold UP and DOWN (simultaneously) for 2 seconds until you hear a beep.

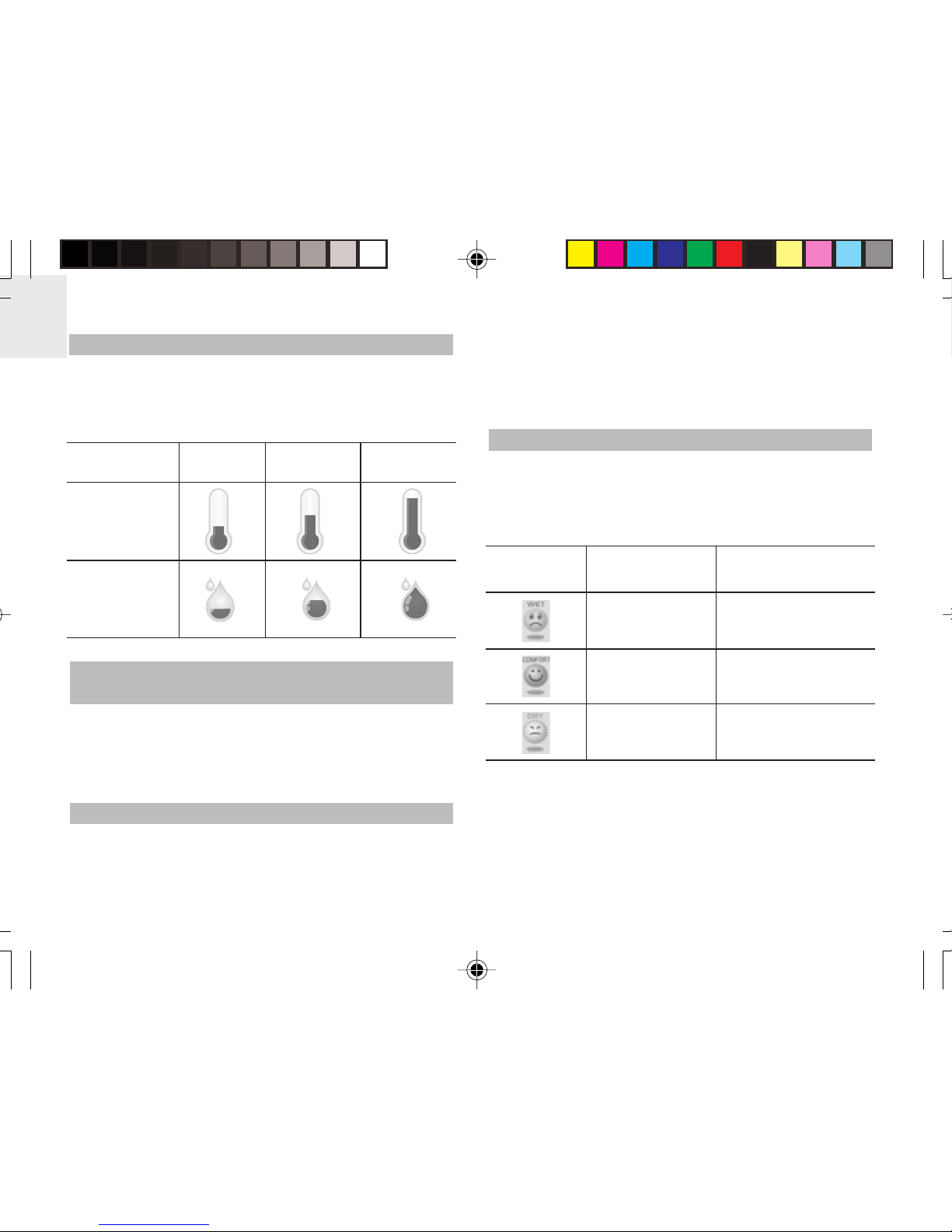

TRENDS

A trend will show the changes along with the recorded maximum and minimum values taken over a 24-hour period. For each channel the following symbols represent:

DATA FALLING

NO CHANGE

RISING

Temperature

Humidity

AWS899_EN_R19 10/26/05, 6:29 PM17

NOTE On the bottom of the Baro and UVI bar charts

-1 means 1 hour ago, -6 means 6 hours ago etc. To display current and past readings, press UP and

DOWN. To toggle between the Baro and UVI displays, press

CHANNEL.

If the main unit finds no UV sensor, the UV icon will be turned off and the UVI value will show [--].

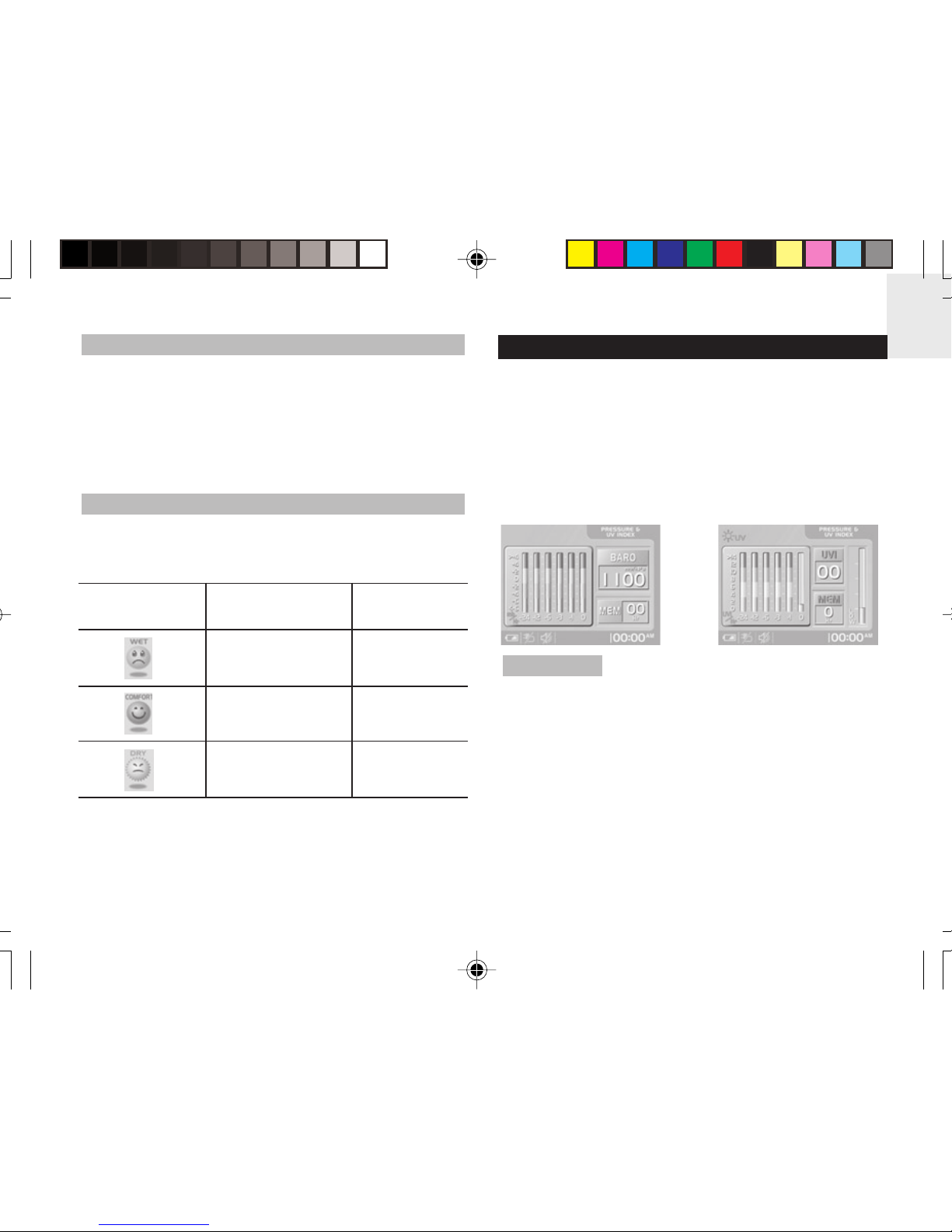

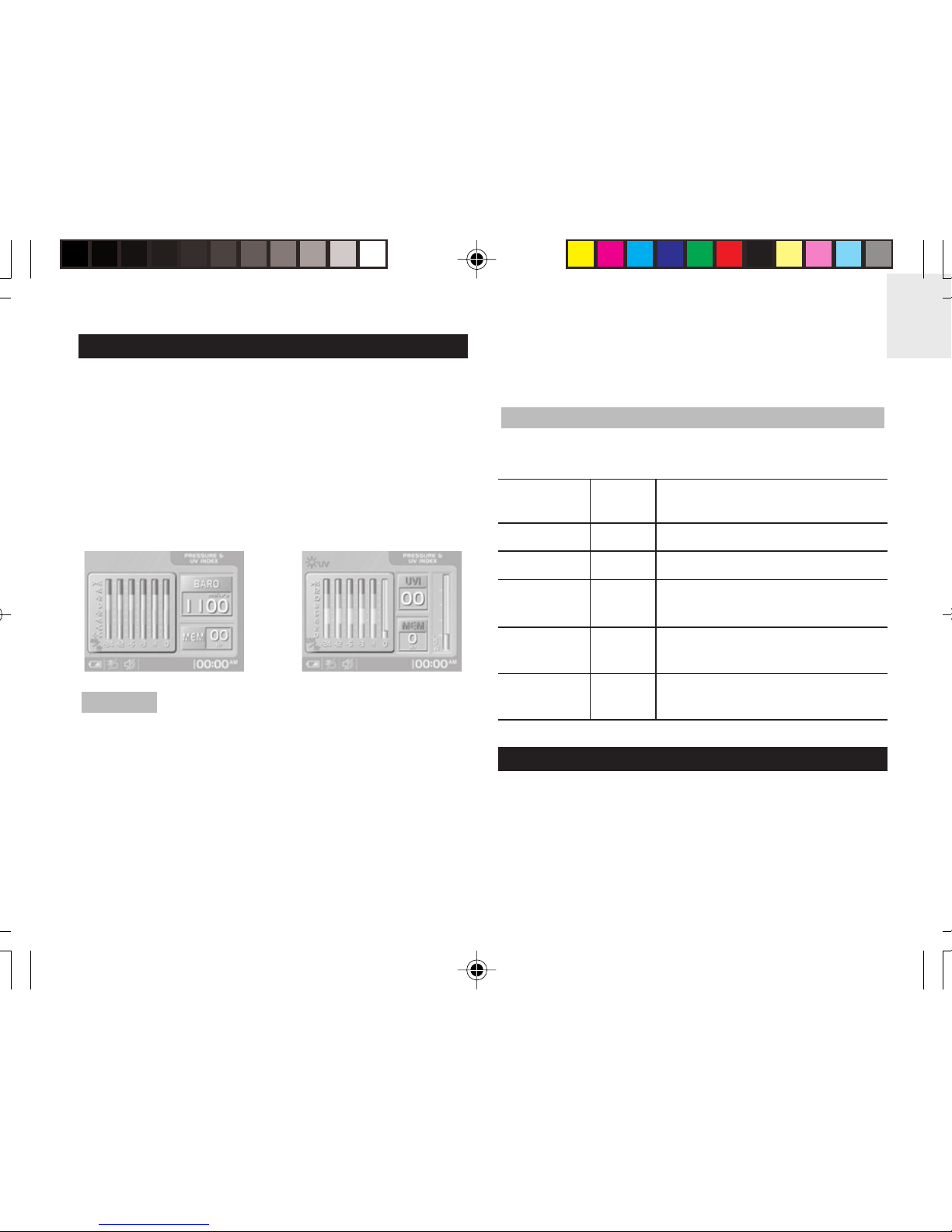

PRESSURE & UV INDEX DISPLAY

This product tracks barometric pressure changes over the past 24 hours to provide a weather forecast. And if you purchase the optional UV sensor, it will also record the past 10 hours UV measurements.

To access the displays below, select the PRESSURE & UV INDEX Display from the Main Menu.

COMFORT ZONE

The indoor and outdoor comfort zones are always shown, they display the relationship between temperature and humidity.

ZONE TEMPERATURE

RELATIVE HUMIDITY

Any >70%

20 - 25 ˚ C

(68 - 77 ˚ F)

40 - 70%

Any <40%

CURRENT THERMO-HYGRO DISPLAY

Press CHANNEL to switch between 5 outdoor channels. A current trend corresponding to the selected channel will be displayed.

AUTO SCAN FUNCTION

When enabled, the thermo-hygro display for each channel will be displayed for 4 seconds before changing to the next channel.

To start auto scan, press and hold CHANNEL until you hear a beep (press CHANNEL again to exit auto scan mode).

AWS899_EN_R19 10/26/05, 6:29 PM18

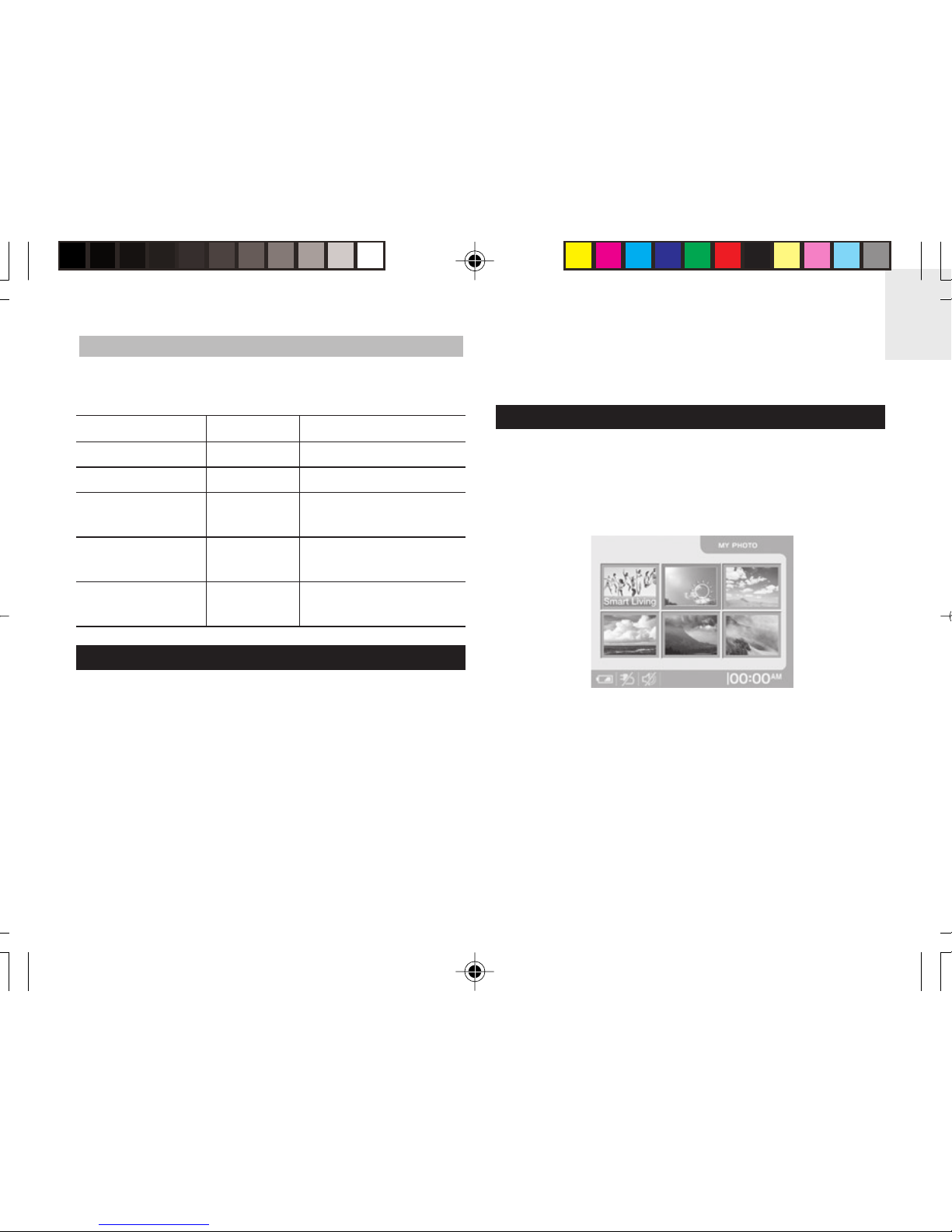

UV INDEX READINGS

To interpret the UV readings on the LCD display, see the table below.

UV UV MESSAGE INDEX PRECAUTION

Low 1-2 Apply sunscreen Med 3-5 Wear protective clothing High 6-7 Wear sunglasses and protective

clothing

Very High 8-10 Avoid the sun between 10am

and 4pm

Extremely 11-25 Very strong rays stay indoors High

AUTO-ROTATION DISPLAY

When this function is enabled, the unit will automatically switch between the following screen displays:

• WEATHER FORECAST

• CLOCK & ALARM

• TEMP & HUMIDITY

• PRESSURE & UV INDEX

To enable the function, simply select the AUTOROTATION Display option and press ENTER.

You can adjust the speed at which the screen display is shown via the rotation frequency option in the DISPLAY Setting Mode.

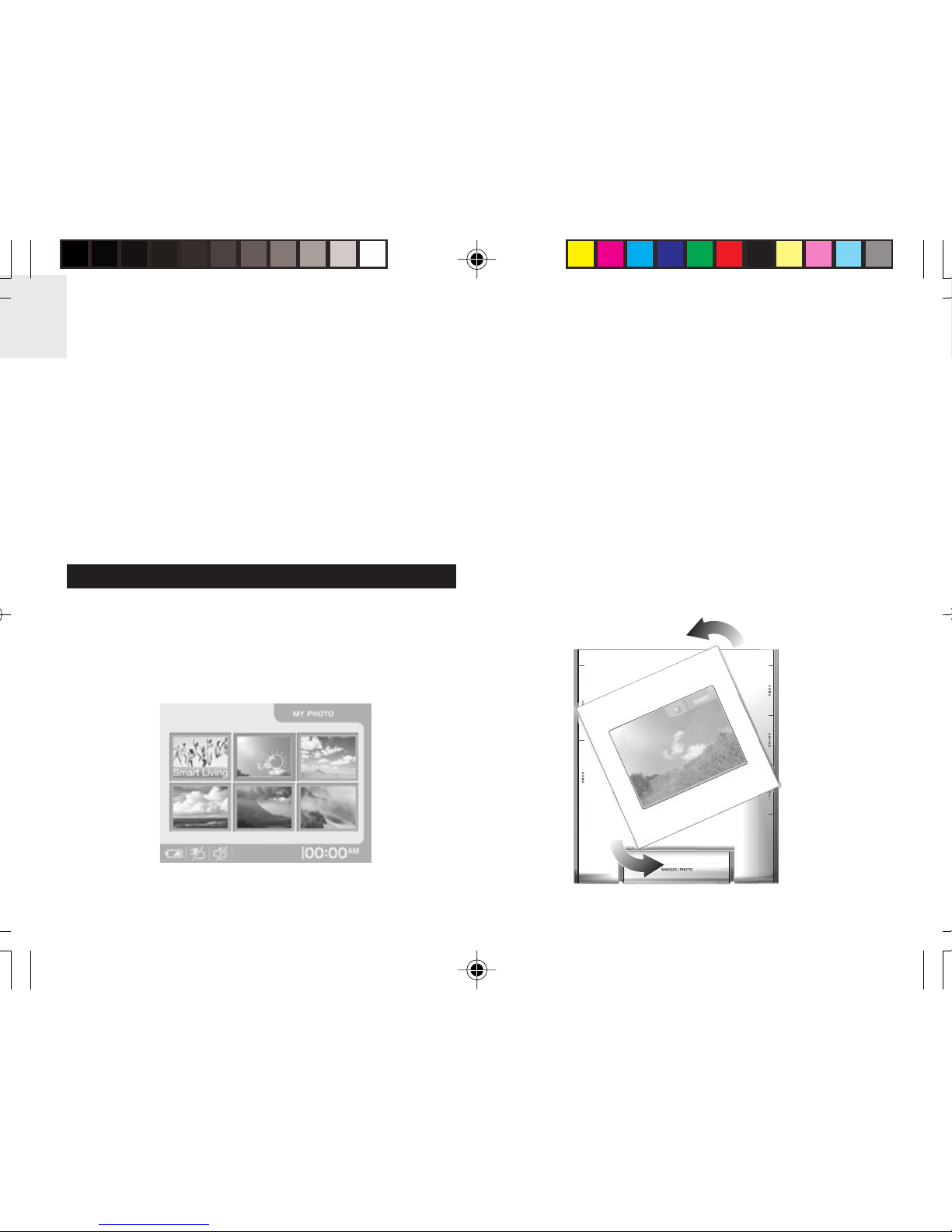

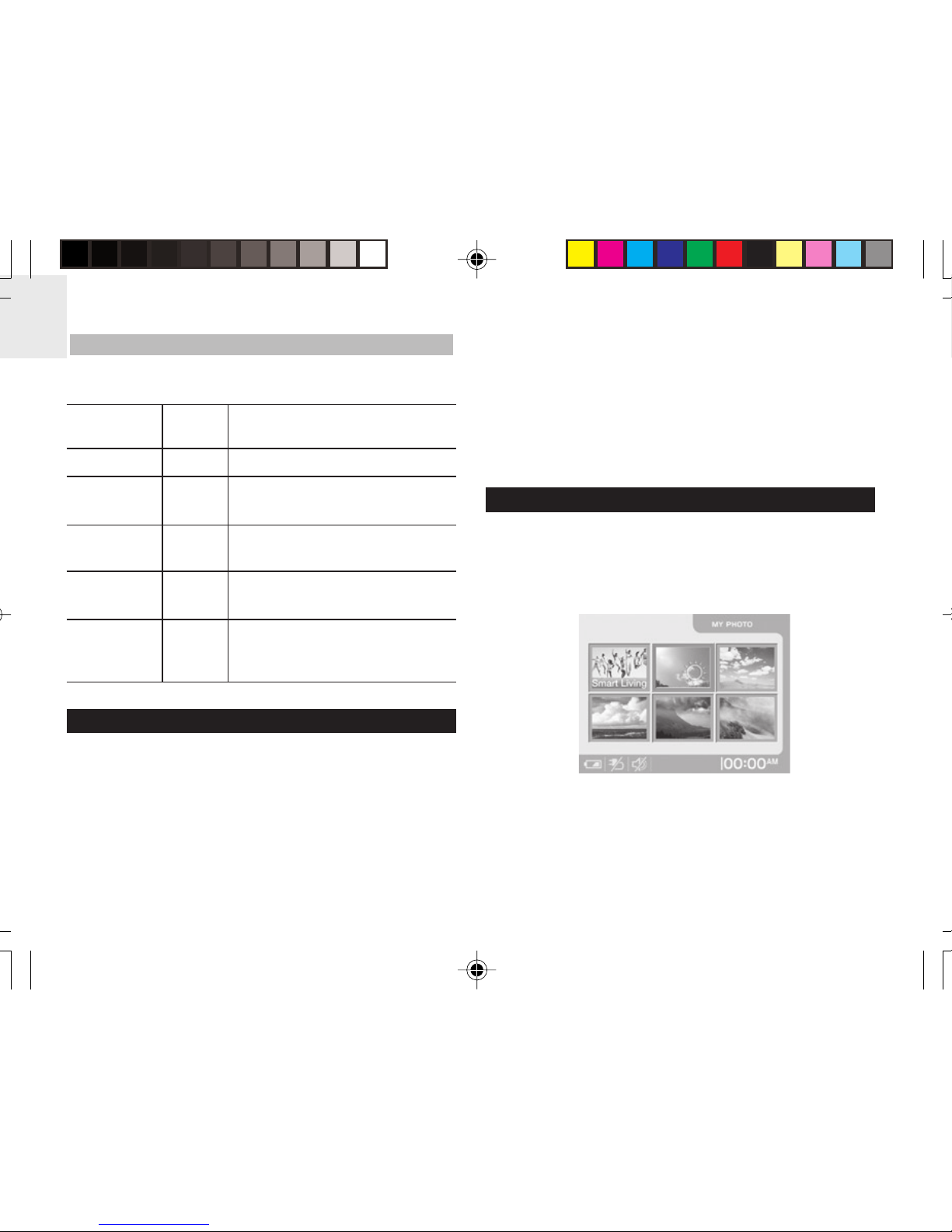

MY PHOTO DISPLAY

In this screen you can view all 6 default photos, or 6 photos you have downloaded from your PC. To access the display below, select the MY PHOTO Display from the Main Menu.

There are 6 photo frames in this display mode and they are classified as:

1. Personal

2. Sunny

3. Partly Cloudy

4. Cloudy

5. Rainy

6. Snowy To switch between a downloaded photo and a default

photo, press CHANNEL.

AWS899_EN_R19 10/26/05, 6:29 PM19

The USB icon , should appear at the bottom of the main unit display.

3. Power up your computer and load the CD-ROM application software included in this package.

4. When the PC application software (Arcsoft Photo Base) opens, you will see 6 photo albums whose names match the 6 photo frames on your unit i.e. Personal, Sunny, Partly Cloudy etc.

5. You can only download 1 photo at a time. Simply choose which frame location you wish to download your photo into i.e. Sunny. Then open the “Sunny” album at the bottom part of the PC display.

6. Copy the photo into the “Sunny” album if you have not already saved it at this location. (If you want to edit a photo you need to do this before copying it into an album.)

To view a photo as landscape or portrait format, turn the display screen as shown below.

DOWNLOAD PHOTOS FROM A PC

To download a photo:

1. Check your PC uses Windows 2000 or Windows XP. (If your computer does not support these programmes, you will not be able to use the download option.)

2. Plug in the USB cable (see below for insertion point into the main unit).

AWS899_EN_R19 10/26/05, 6:29 PM20

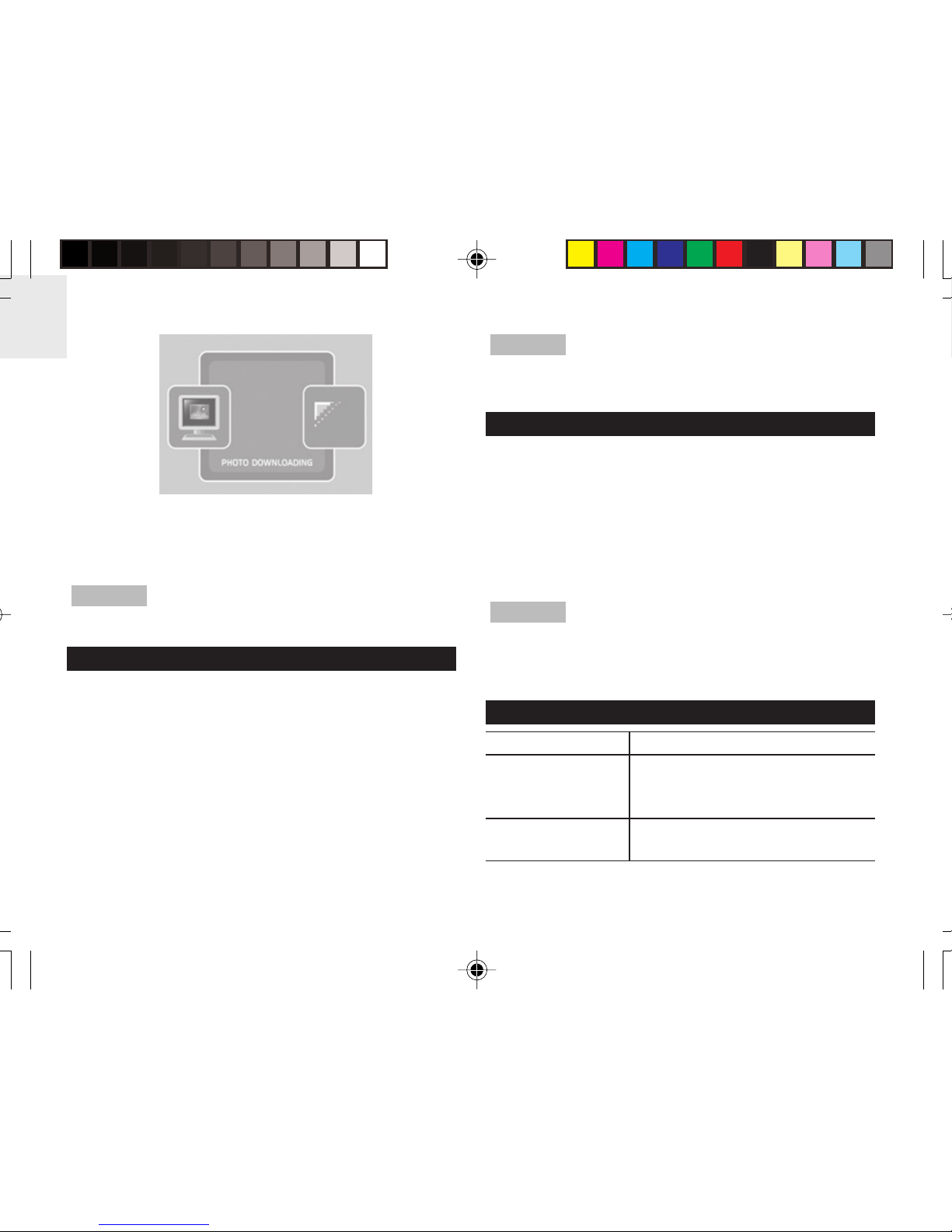

7. Select the desired photo (when selected the photo will be highlighted in blue).

8. Press the icon at the top right corner on the display to start the transfer process. If the procedure

has been incorrectly done i.e. the icon will not be highlighted.

9. When the process is complete the downloaded photo will automatically show on the main unit display.

NOTE To switch back to the default weather picture, press CHANNEL.

KEYPAD TONE

To activate the keypad tone:

1.Navigate to SETTINGS.

2.Select SOUND Setting Mode.

3.Select SILENCE MODE - OFF. To deactivate the keypad tone follow the instructions

above but select ON at point 3.

NOTE If you select SILENCE MODE - ON, both the keypad tone and the background sound for the weather forecast will be deactivated.

RESET SYSTEM

The RESET buttons are located on the back of the main unit and in the battery compartment for the remote unit. Press these buttons whenever you change the batteries, or whenever performance is not behaving as expected (e.g., unable to establish radio frequency link with remote unit or automatic clock, etc.).

NOTE After resetting the system all system information will be erased and returned to factory defaults. The main unit will also check battery condition.

AWS899_EN_R19 10/26/05, 6:29 PM21

LOW BATTERY DETECTION

When battery levels get too low, the

icon will appear. Also, when no adaptor is connected, the icon will be displayed.

NOTE The main unit will display the channel battery status when the corresponding channel is selected.

SAFETY AND CARE

Wash the unit with a slightly damp cloth and mild detergent. Avoid dropping the unit or placing it in a hightraffic location.

WARNINGS

This product is designed to give you years of service if handled properly. Observe the following guidelines:

• Never immerse the unit in water. This can cause

electrical shock and damage the unit.

• Do not subject the main unit to extreme force, shock,

or fluctuations in temperature or humidity.

• Do not tamper with the internal components.

• Do not mix new and old batteries or batteries of

different types.

• Do not use rechargeable batteries with this product.

• Remove the batteries if storing this product for a

long period of time.

• Do not scratch the LCD display.

DEFAULT SETTINGS

1/1/2005

Time 00:00:00 (24 hour format)

or 12:00:00 am (12 hour

format) Clock display Time-second display mode Daily / weekday alarm Alarm disabled Sleep Mode Sleep start at 12:00 a.m.

and sleep end at 6:00 a.m.

& function disabled

Silence Mode Off Weather

Partly cloudy

Date

Wallpaper function Off

Pressure display Current pressure Altitude 0m Thermo-hygro display Current indoor Indoor temperature trend Steady Indoor humidity trend Steady Sensor search Enabled Receive RF clock Enabled

Press RESET to restore all settings to factory defaults.

AWS899_EN_R19 10/26/05, 6:29 PM22

Temp Shows

“LLL” or “HHH”

Temperature is out-of-range

Clock Cannot

autosynch

1. Adjust batteries

2. Press RESET

3. Manually activate auto-synch

• Do not make any changes or modifications to this product. Unauthorized changes may void your right to use the product.

• The contents of this user guide are subject to change without notice.

• Images not drawn to scale.

Set altitude / unit

Calendar Unusual

date / month

Change language

Clock Cannot

adjust clock

Disable autosynchronization

PROBLEM SYMPTOM REMEDY

TROUBLESHOOTING

Check here before contacting our customer service department.

Barometer Unusual

readings

Remote unit Cannot

locate remote unit

Check batteries Check location

Display No display Sleep Mode may be on.

Press any key to activate the display again.

SPECIFICATIONS

Main unit dimensions

L x W x H 168 x 146 x 85mm

(6.7 x 5.8 x 3.4 inches)

Weight 508g (with batteries)

Remote unit dimensions

L x W x H 70 x 24.5 x 116mm

(2.76 x 0.96 x 4.57 inches)

Weight 156g (with batteries)

Temperature

Unit ˚C or ˚F Indoor Range -5 ˚C to 50 ˚C

(23 ˚F to 122 ˚F)

Outdoor Range -20 ˚C to 60 ˚C

(-4 ˚F to 140 ˚F) Resolution 0.1 ˚C (0.2 ˚F) Comfort 20 ˚C to 25 ˚C (68 ˚F to 77 ˚F)

AWS899_EN_R19 10/26/05, 6:29 PM23

Radio-controlled clock

Synchronization Auto or disabled Clock display HH:MM:SS Hour format 12hr AM/PM (MSF format)

24hr (DCF format)

Calendar DD/MM; weekday selection in

5 languages (E, G, F, I, S) Alarm 2 minute crescendo Snooze 8 minutes

Power

Main unit 5V AC adaptor

3 x UM-4 (AAA) 1.5V alkaline

batteries (back-up) Remote unit 2 x UM-3 (AA) 1.5V alkaline

batteries

Memory Minimum / maximum Trend +/- 0.5˚ change

Relative humidity

Range 25% to 95% Resolution 1% Comfort 40% to 70% Memory Minimum / maximum Trend 3% change

Barometer

Unit mb/hPa or inHg Range 500 to 1050 mb

(14.77 to 31.01 inHg) Resolution 1mb (0.03 inHg) Altitude -100 to 2500 metres

(-328 to 8202 feet) Display Sunny, partly cloudy, cloudy,

rainy, snowy

Remote unit

RF frequency 433 MHz Range up to 30 metres (100 feet) with no

obstructions Transmission every 1 minute Channel No. 1, 2, 3, 4 or 5 Unit ˚C or ˚F

AWS899_EN_R19 10/26/05, 6:29 PM24

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, declares that this Colour Weather Station AWS899 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products such as digital cameras; MP3 players; children’s electronic learning products and games; projection clocks; health and fitness gear; weather stations; and digital and conference phones. The website also includes contact information for our Customer Care department in case you need to reach us, as well as frequently asked

questions and customer downloads. We hope you will find all the information you need on our website, however if you’re in the US and would like to contact the Oregon Scientific Customer Care department directly, please visit: www2.oregonscientific.com/service/support

OR Call 1-800-853-8883. For international inquiries, please visit:

www2.oregonscientific.com/about/international

COUNTRIES RTTE APPROVAL COMPLIED

All EU countries, Switzerland CH

and Noway N

AWS899_EN_R19 10/26/05, 6:29 PM25

Colour Weather Station with

Digital Photo Frame

Model: AWS899

User Manual

AWS899_EN_R19 10/26/05, 6:29 PM26

086L003791-013

AWS899_EN_R19 10/26/05, 6:29 PM27

Farb-Wetterstation mit elektronischem

Bilderrahmen

Modell: AWS899

Bedienungsanleitung

INHALT

Einleitung ................................................................ 2

Produktübersicht.................................................... 2

Vorderansicht......................................................... 2

Rückansicht ........................................................... 3

Tischaufsteller ....................................................... 4

LCD-Anzeige (Hauptmenü) ................................... 4

Funksendeeinheit (RTGR328N)............................. 5

Vorderansicht......................................................... 5

LCD-Anzeige.......................................................... 5

Rückansicht ........................................................... 6

Ausklappbarer Ständer.......................................... 6

Vorbereitung zum Einsatz ..................................... 6

Batterien ................................................................ 6

Netzadapter (Empfangseinheit)............................. 7

Funksendeeinheit (RTGR328N)............................. 7

Einrichten der Funksendeeinheit ........................... 7

Signal der Funksendeeinheit ................................. 8

Uhr ........................................................................... 9

Funkgesteuerte Uhr............................................... 9

Empfangseinheit – Suche nach Funksendeeinheiten

.... 9

Ein-/Ausschalten des Funkempfangs .................. 10

Ändern von Einstellungen................................... 10

Navigation durch das Hauptmenü ....................... 11

Einstellungen ändern........................................... 11

Uhreneinstellungsmodus .................................... 11

Zeitzonenabgleich ............................................... 12

Alarmwecker-Einstellungsmodus ....................... 12

Schlummerfunktion/Foto ..................................... 13

Wettereinstellungsmodus .................................... 13

Höhenkompensierungsfunktion ........................... 14

Toneinstellungsmodus ......................................... 14

Einstellungsmodus für eigene Fotos .................. 15

Anzeigeeinstellungsmodus ................................. 16

Uhren- und Weckalarmanzeige ........................... 17

Ein-/Ausschalten der Weckalarmfunktion............ 18

Wettervorhersageanzeige .................................... 18

Anzeige von Temperatur und Luftfeuchtigkeit ... 19

Aufzeichnung von Temperatur und Luftfeuchtigkeit

.. 19

Min/Max-Werte löschen....................................... 19

Trends.................................................................. 20

Anzeige der aktuellen Temperatur- und

Luftfeuchtigkeitswerte .......................................... 20

Automatische Abfrage ......................................... 20

Komfortzonenindikator ........................................ 20

Luftdruck- und UV-Indexanzeige ........................ 21

UV-Indexmessung ............................................... 21

Autorotation .......................................................... 21

Anzeige eigener Fotos ......................................... 22

Herunterladen von Fotos vom PC........................ 23

Tastenton ............................................................... 24

System zurücksetzen ........................................... 24

Standardeinstellungen ......................................... 24

Batterieladestandsermittlung .............................. 25

Sicherheits- und Pflegehinweise ......................... 25

Warnhinweise ....................................................... 25

Fehlersuche und Abhilfe ...................................... 26

Technische Angaben ............................................ 26

Über Oregon Scientific ......................................... 28

EU-Konformitätserklärung ................................... 28

AWS899_DE_R7 10/26/05, 6:28 PM1

EINLEITUNG

Danke, dass Sie sich für die Farb-Wetterstation mit elektronischen Bilderrahmen (AWS899) von Oregon Scientific™ entschieden haben. Dieses äußerst leistungsfähige Gerät vereint die animierte Darstellung von Wettervorhersagen, die Messung von barometrischem Luftdruck, Innen- und Außentemperatur (per Funkverbindung) sowie Luftfeuchtigkeit und Anzeige der Uhrzeit, dazu Datums- und Weckerfunktionen mit zwei Weckzeiten und die Wiedergabe von Fotos mit Präsentationsfunktion in einem einzigen Apparat, den Sie bequem zu Hause verwenden können.

Halten Sie diese Bedienungsanleitung in Reichweite, wenn Sie das Gerät zum ersten Mal verwenden.

Sie finden hier praktische Schritt-für-SchrittAnleitungen, außerdem die technischen Angaben und wichtige Warnhinweise.

Verpackungsinhalt :

• Empfangseinheit

• Funksendeeinheit für Temperatur-/ Luftfeuchtigkeitsmessung (RTGR328N)

• USB-Kabel und CD-ROM

• Batterien

• Netzadapter

Ein UV-Sensor (UVR 138) zur Messung von UVWerten ist optional erhältlich.

PRODUKTÜBERSICHT

VORDERANSICHT

AWS899_DE_R7 10/26/05, 6:28 PM2

RÜCKANSICHT

1. Lautsprecher

2. USB-Kabelanschluss

3. Anschluss für Netzadapter 5 V

4. Batteriefach (geöffnet)

5. UV SEARCH (SUCHE NACH UV-SENSOR) : Betätigen und gedrückt halten, um nach UV-Sensor zu suchen.

1. UP / DOWN (AUFWÄRTS/ABWÄRTS) : Diese Tasten betätigen, um den Weckalarm auszustellen. Taste gedrückt halten, um zwischen Menüoptionen zu wechslen.

2. LCD-Anzeige

3. SNOOZE/PHOTO (SCHLUMMER/FOTO) : Diese Taste betätigen, um bei Ertönen des täglichen Weckalarms diesen anzuhalten und die achtminütige Schlummerfunktion zu aktivieren bzw. um die Anzeige MY PHOTOS (MEIN FOTO) direkt aufzurufen.

4. HOME (START) : Diese Taste betätigen, um zum Hauptmenü zurückzukehren. Erneut betätigen, um das Hauptmenü zu beenden und zur vorherigen Anzeige zurückzukehren.

5. ENTER (EINGABE) : Diese Taste betätigen, um eine Option auszuwählen/den Weckalarmton zu deaktivieren.

6. CHANNEL (KANAL) : Diese Taste in der Anzeige TEMPERATURE & HUMIDITY (TEMPERATUR & LUFTFEUCHTIGKEIT) betätigen, um zwischen Kanälen zu wechseln bzw. gedrückt halten, um die automatische Kanalsuche zu starten. In der Anzeige PRESSURE & UV INDEX (LUFTDRUCK & UV-INDEX) betätigen, um zwischen der Anzeige von UV- und Luftdruckwerten zu wechseln.

2 3

AWS899_DE_R7 10/26/05, 6:28 PM3

+ 177 hidden pages

Oregon Scientific AWS899 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
