Oreck U4090H2 User Manual

ENGLISH



USA: 1-800-989-3535 CANADA: 1-888-676-7325 COMMERCIAL: 1-800-242-1378

 www.oreck.com

www.oreckcommercial.com 

VISIT ONE OF OUR OVER 450 STORE LOCATIONS 

SIMPLY AMAZING

FRANÇAIS

GUIDE D’UTILISATION PAGE 6

ESPAÑOL

GUIA DEL USUARIO PAGE 11

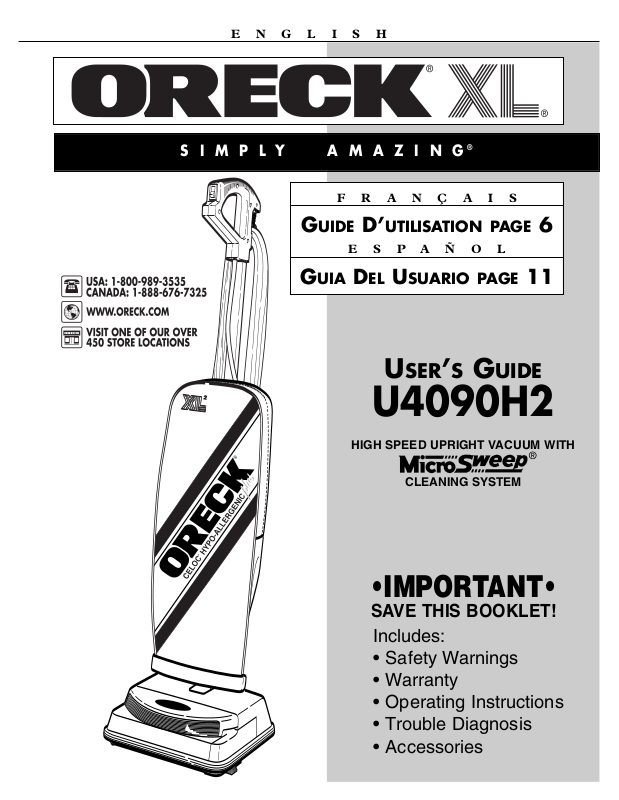

USER’S GUIDE

U4090H2

HIGH SPEED UPRIGHT VACUUM WITH

CLEANING SYSTEM

•IMPORTANT•

SAVE THIS BOOKLET!

Includes:

• Safety Warnings

• Warranty

• Operating Instructions

• Trouble Diagnosis

• Accessories

PRESS UNTIL SNAP IS HEARD

ENFONCEZ JUSQU’À

ENTENDRE UN BRUIT

PRESIONE HASTA

ESCUCHAR UN

CHASQUIDO DE SUJECI ÓN

2 3

Connector Assembly

Upper Handle

6 10

11 12 13 14

7 8 9

1916 17 20

OLD

NEW

26 27

ube

T Tubo

Intake Opening

Ouverture d’admission

Abertura de admisión

Fan Housing

Boîtier du

ventilateur

Bastidor del

ventilador

Intake Opening

Ouverture d’admission

Abertura de admisión

24 252321

Retainer Spring

Ressort de retenue

Resorte retenedor

Connector Deflector Opening Ouverture du connecteur déflecteur Abertura del deflector de la conexión

O-ring

Anneau torique

Anillo tórico

ENGLISH

BEFORE OPERATING CLEANER,

IMPORTANT SAFETY

READ ALL INSTRUCTIONS IN

THIS MANUAL CAREFULLY.

When using an electrical appliance, basic

Table of Contents

Maintenance and Customer Service, Polarized Plug Notice,

Accessories, Important Safety Instructions . . . . . . . . . . . . . . . page 2

Warranty, Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . page 3

Parts List, Assembly, Operating Instructions,

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4

To Replace Filter Dust Bag, How to Replace a Worn Belt, To Adjust or Replace Brush, Using an Oreck Fresh Air

Bulb Replacement, Stuffing or Blockage . . . . . . . . . . . . . . . . . page 5

Tab,

Maintenance and Customer Service

Your Oreck vacuum cleaner is a product of precise engineering. The motor bearings are permanently lubricated and should not be oiled. If you require additional information or have problems with your Oreck appliance, you may call ORECK customer service at:

US: 1-800-989-3535 Canada: 1-888-676-7325

Please specify the model number and serial/code number which can be found on the data plate on the back of the vacuum.

Save your sales or purchase slip. Should your Oreck appliance require warranty service in the U.S.A., present this slip to the Authorized Service Center as your proof of purchase date or, in Canada, call customer service.

Polarized Plug Notice

This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact an electrician to replace the obsolete outlet. Do not defeat the purpose of the polarized plug.

Accessories (Sold Separately)

USA: 1-800-989-3535 CANADA: 1-888-676-7325

ITEM PART #

Dust Bag, 8 Pack, Saniseal®Hypo-Allergenic

1. Dust Bag, 8 Pack, Regular CCPK8

2. Belts, 3 Pack 0300604 Oreck Fresh Air

4. Light Bulb 00965-0019

abs AIRTABS

CCPK8DW

• Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.

Do not use outdoors or on wet surfaces.

•

• Do not operate the unit while in the upright and locked position.

• Do not let the unit run while in any one stationary position for any period of time. Keep the unit moving while in operation.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center or call customer service at:

Canada: 1-888-676-7325.

• Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

• Do not run appliance over cord.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.

• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

• Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without filter bag assembly in place.

• Turn off all controls before unplugging. Use extra care when cleaning on stairs.

• Do not use to pick up flammable or combustible liquids,

• such as gasoline or lighter fluid, or use in areas where they may be present.

• Do not use appliance in an enclosed space where flammable, explosive or toxic vapors are given off by oil base paint, paint thinner, some mothproofing substances, or in an area where flammable dust is present.

• Do not pick up toxic material such as chlorine bleach, drain cleaner

Use caution when vacuuming over area rug edges

• and fringe.

INSTRUCTIONS

precautions should always be followed,

including the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER

WARNING

To reduce the risk of fire,

electric shock, or injury:

US: 1-800-989-3535

, gasoline, etc. with this appliance.

SAVE THESE INSTRUCTIONS

Household Use Only

ENGLISH

arranty

ORECK MANUFACTURING COMPANY: (Oreck Manufacturing Company gives you the following limited warranty for this product only if it was originally purchased for residential use, not resale, from Oreck or an Oreck Authorized Retail Dealer.)

Oreck will repair or replace, free of charge, to the original purchaser, any part which is found to be defective in material or workmanship within eight (8) years of the date of purchase; ten (10) years on housing. This limited warranty applies to normal domestic use. Any commercial use of this product will void this limited warranty. This limited warranty covers the revolving roller brush for one (1) year for residential use only.

This limited warranty does not cover the replacement of expendable or consumable parts such as carbon motor brushes, edge brushes, drive belts, bulbs, disposable bags and other parts subject to normal wear unless they are defective in material or workmanship.

This limited warranty does not apply to any part subjected to accident, abuse, commercial use, alteration, misuse, damage caused by act of God, the use of voltages other than indicated on the serial number displayed on this product or service of this product by other than Oreck or a participating Factory Authorized Service Center.

Oreck does not authorize any person or representative to assume or grant any other warranty obligation with the sale of this product.

Oreck’s limited warranty is valid only if you retain proof of purchase from Oreck or an Oreck Authorized Retail Dealer for this product. If you purchase this product from any other source, your purchase is “AS IS,” which means Oreck grants you no warranty, and that you, not Oreck, assume the entire risk of the quality and performance of this product, including the entire cost of any necessary servicing or repairs of any defects.

Oreck’s liability for damages to you for any costs whatsoever arising out of this statement of limited warranty shall be limited to the amount paid for this product at the time of original purchase, and Oreck shall not be liable for any direct, indirect, consequential or incidental damages arising out of the use or inability to use this product.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN

TION TO THE WARRANTY PERIOD, AND NO WARRANTIES,

DURA WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD.

Some states do not allow limitations on the duration of implied warranties, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

roubleshooting Guide

ARNING: Unplug cord from electrical

W outlet before servicing.

SAVE SERVICE CALLS...CHECK THESE FIRST:

• Is the disposable filter dust bag full?

• Are pores of filter dust bag clogged with powder or fine dust?

• Is anything clogging the revolving brush, lower tube, intake opening, fan housing or connector assembly opening?

• Is the belt in place and turning the brush?

• Are the brush ends in the proper location?

• Does the brush turn freely? Are hair, string or rug fibers wound around the brush?

PROBLEM POSSIBLE SOURCE AREAS TO CHECK

CLEANER

WILL NOT RUN

CLEANER

DOES NOT PICK UP

Not plugged in properly.

No electricity in wall outlet.

Filter bag is full.

Nozzle or intake pivot clogged.

Belt is broken or stretched.

Brush is worn.

Bag tube clogged.

Bag pores are clogged with fine dust.

Impeller fan is broken.

Revolving brush is not even at both ends.

Be sure cleaner is firmly plugged into wall outlet.

Check electrical source–fuse or circuit breaker.

Replace filter bag. See “To Replace Paper Filter Dust Bag.”

Clear obstruction.

Replace belt.

See “To Adjust or Replace Brush.”

Clear obstruction.

Replace filter bag and/or clean outer bag. See “Celco Hypo-Allergenic Filter System.”

Return to Service Center for repair.

Check brush roll end cards. Make sure words “ “NEW” match at each end.

OLD” or

ALL OTHER SERVICING SHOULD BE DONE BY AN ORECK

AUTHORIZED SER

VICE CENTER.

CALL CUSTOMER SERVICE HOT LINE

US: 1-800-989-3535 Canada: 1-888-676-7325

Whenever calling, please be sure to have your model and serial number from data plate.

ENGLISH

Parts List

To assist you in identifying components of your vacuum, the parts have been numbered as follows:

1 Handle section, upper 2 Tube, lower 3 Power head 4 Outer bag 5 Paper filter dust bag 6 Power cord 7 Retaining spring 8 Bag tension bar 9 Zip fastener 10 On/off switch 11 Cord clamp 12 Plastic loop/cable clamp 13 Connector assembly 14 Fan housing

Cord assembly

Assembly

fig. 1 Before assembling appliance, remove two screws from the

connector assembly. Remove cardboard insert by pulling upward.

fig. 2 With ON/OFF switch facing the front of the unit, slide upper

handle section over matching section of the connector assembly. Insert short screw into top hole and long screw into the bottom hole then tighten firmly until handle is no longer loose.

fig. 3 Attach cord to cord clip by pressing cord above and

below clip ensuring the cord is fully rested in clip.

Operating Instructions

Make sure disposable paper filter dust bag is in place. DO NOT operate the cleaner without a paper filter dust bag. Plug the power cord into an electrical outlet and press the on handle assembly when ready to operate.

Up-Position Lock

fig. 4 Place foot on power head and lean handle back gently to release

lock for vacuum use. Return handle to the full upright position to engage lock.

NOTE: Do not operate the unit while in the upright and locked position. Do not let the unit run while in any one stationary position for any period of time. Keep the unit moving while in operation.

For Easy Power Cord Storage

rap power cord around cord hook on handle and cord hook on

fig. 5 W

connector. Secure to "U" shaped part on plug.

Operating Recommendations

This new ORECK and strongest units in its class. You’ll love the way it cleans, gets under things, and it’s SO lightweight and easy to use.

The following are a few simple suggestions regarding its operation:

1. When inserting a new disposable paper filter dust bag—FIRST PUFF OUT and OPEN THE BAG.

When the disposable filter dust bag is full, REPLACE IT

3. If at any time the machine does not pick up properly or makes an unusual noise, STOP OPERATION and service.

4. Although your upright will pick up pins, paper clips, and other small

On Low (l) - On High (ll) - OFF(O) switch

High-Speed Upright is one of the finest, fastest,

objects, it is recommended that these be removed from the floor before you vacuum. Failure to do so may result in permanent damage to the motor suction fan and its housing.

WARNING: Do not use your vacuum cleaner on damp or wet

5. surfaces. This will cause damage to the vacuum cleaner and is dangerous to the user. Damage caused by use on wet or damp surfaces is not covered under warranty.

REPLACE THE BELT EVERY 6 MONTHS.

7. Change the disposable filter dust bag at least once a month— even if it is not full! The collected dust in the dust bag can cause odor, attract moisture, and can affect the efficiency of the cleaner.

DO NOT run the vacuum cleaner over the cord. The revolving

8. brush could damage the cord.

9. Use caution when vacuuming over area rug edges & fringe.

General Information

The performance of your new cleaner greatly depends upon care and maintenance. The instructions in this manual will guide you in performing basic care and maintenance. To obtain the most satisfying years of service read the instructions and keep them handy for future reference.

Disposable Paper Filter Dust Bags

Disposable paper filter dust bags play a very important role in the efficiency of your ORECK vacuum cleaner. The purpose of the filter bag is to trap dirt, but at the same time it must be porous enough to allow air to pass through. If the filter bag becomes clogged, no air can pass through the cleaner and cleaning cannot take place, regardless of the cleaner’s power.

To keep your cleaner operating at maximum efficiency, change the dust bag frequently.

DUST BAG.

Be sure the disposable paper filter dust bag is installed properly.

All paper dust bags are not the same. Your ORECK disposable dust bags have been designed to be used with the ORECK cleaner. Using bags other than genuine ORECK TYPE CC disposable bags will affect the cleaning ability of your cleaner and could cause damage to it.

The Belt

The belt on your vacuum cleaner controls the speed of the revolving brush and is very important for the effective operation of the cleaner. If the belt becomes stretched or cut, it will cause the revolving brush to stop completely or slow down. See instructions in the manual for replacing belt.

An extra belt is stored in the baseplate of your cleaner. When buying replacement belts, use ONLY ORECK genuine belts. Belts other than Oreck belts will not operate the revolving brush correctly and may create undue stress which will cause damage to the motor and brush bearings. Using belts other than ORECK belts will void the warranty.

Lubrication

The vacuum cleaner motor bearings are factory lubricated and sealed. Further lubrication is not required.

General Cleaner Care

DO NOT FILL ABOVE THE LINE INDICATED ON THE

At least once a month, check for and remove excessive lint, string or hair from revolving brush.

ipe the outside of the cleaner with a

W damp cloth. Also clean the connector deflector assembly area, base of cleaner and fan housing area. If there is dust in the outer bag, vacuum it or shake it out.

little preventative maintenance will keep
