U
SER’S
GUIDE
•IMPORTANT•
SAVE THIS BOOKLET!
Includes:
• Safety Warnings
•Warranty
• Operating Instructions
•Trouble Diagnosis
• Accessories
LB8005
SIMPLY AMAZING™
LOW BOY
INDUSTRIAL
FLOOR MACHINE
2
BEFORE OPERATING CLEANER,
READ ALL INSTRUCTIONS IN
THIS MANUAL CAREFULLY.
Table of Contents
Maintenance and Customer Service, Accessories, Caution,
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Grounding Instructions, Warranty . . . . . . . . . . . . . . . . . . . . . page 3
Operating Instructions, Troubleshooting Guide . . . . . . . . . . . page 4
Maintenance and Customer Service
Your Oreck Low Boy is a product of precise engineering. The motor
bearings are permanently lubricated and should not be oiled. If you
require additional information or have problems with your Oreck
appliance, you may call ORECK customer service at:
0800 67 68 69
Please specify the model number and serial/code number which can be
found on the data plate on the back of the vacuum.
Save your sales or purchase slip. Should your Oreck appliance require
warranty service in the U.S.A., present this slip to the Authorized Service
Center as your proof of purchase date or, in Canada, call customer
service.
Accessories
ITEM PART #
1. Green Bristle Holder: included with machine. 53304-01
2. Drive Pad Holder 53269-51-0327
3. Scrub Brush: Hard Surface cleaning. 82001
4. NY/LO Grit 82003
5. Carpet Bonnet 82008
6. Lambs Wool Bonnet 82009
7. Pad, Black 82004
8. Pad, White 82005
9. Pad, Brown 82006
CAUTION
This appliance must be connected to a grounded metal, permanent
wiring system; or an equipment-grounding conductor must be run with
the circuit conductors and connected to the equipment-grounding
terminal or lead on the appliance.
ALWAYS UNPLUG THE MACHINE BEFORE INSTALLING OR
REMOVING ACCESSORIES. ALWAYS WEAR SHOES WHEN USING
ELECTRICAL EQUIPMENT.
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS FLOOR MACHINE
WARNING
To reduce the risk of fire,
electric shock, or injury:
IMPORTANT SAFETY
INSTRUCTIONS
• Use indoors only.
• Risk of explosion - Floor sanding can result in an
explosive mixture of fine dust and air. Use floor sanding
machine only in well ventilated area.
• Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
• Do not leave appliance unattended when plugged in.
Unplug from outlet when not in use and before servicing.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not
working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service
center or call customer service at: 0800 67 68 69
• Do not pull or carry by cord, use cord as a handle, close
door on cord, or pull cord around sharp edges or corners.
Keep cord away from heated surfaces.
• Do not run appliance over cord.
• Use extra care when cleaning on stairs.
• Connect to a properly grounded outlet only. See
grounding instructions.
• Unplug before installing or removing pads/cleaning
brushes.
• Warning - To reduce the risk of fire, use only commercially available floor cleaners and waxes intended for
machine application.
• Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any
opening blocked; keep free of dust, lint, hair and anything
that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body
away from openings and moving parts.
• Turn off all controls before unplugging.
• Do not use appliance in an enclosed space where
flammable, explosive or toxic vapors are given off by oil
base paint, paint thinner, some mothproofing substances,
or in an area where flammable dust is present.
• Only use the brushes provided with the appliance or
those specified in the instruction manual. The use of other
brushes may impair safety.
• The appliance is suitable for commercial use, for example
in hotels, schools, hospitals, factories, shops, offices and
rental businesses.
SAVE THESE INSTRUCTIONS
3
Low Boy Model LB8005 is
intended for Commercial Use.
IMPORTANT:
Where Necessary for Plug to be Fitted
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral Brown: Live Green: Earth
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows;
The wire which is coloured Blue must be
connected to the terminal which is
marked with the letter N or coloured
Black.
The wire which is coloured Brown must
be connected to the terminal which is
marked with the letter L or coloured Red.
Green is to be connected to the earth pin
of the 3 pin plug.
The wire which is coloured Green must
be connected to the terminal which is
marked with the letter E.
If a 13 amp plug is fitted, fit a 13 amp fuse.
Warranty
ORECK MANUFACTURING COMPANY: (ORECK gives you the
following limited warranty for this product only if it was originally
purchased for use, not resale, from ORECK or an ORECK Authorized
Retail Dealer.)
ORECK will repair or replace, free of charge, to the original purchaser,
any part which is found to be defective in material or workmanship
within one (1) year of the date of original purchase.
PAD DRIVER, CARPET BONNET, LAMBS WOOL BONNET,
BRUSHES, PADS and other parts subject to normal wear are not
covered by this limited warranty.
This limited warranty does not apply to any part subjected to accident,
abuse, or alteration, misuse, damage caused by fire or act of God, the
use of voltages other than indicated on the serial number plate of this
product or service of this product by other than ORECK or an ORECK
Factory Authorized Service Center.
ORECK does not authorize any person or representative to assume or
grant any other warranty obligation with the sale of this product.
ORECK’S limited warranty is valid only if you retain proof of purchase
from ORECK or an ORECK Authorized Retail Dealer for this product. If
you purchase this product from any other source, your purchase is “AS
IS,” which means ORECK grants you no warranty, and that you, not
ORECK, assume the entire risk of the quality and performance of this
product, including the entire cost of any necessary servicing or repairs
of any defects.
ORECK’S liability for damages to you for any costs whatsoever arising
out of this statement of limited warranty shall be limited to the amount
paid for this product at the time of original purchase, and ORECK shall
not be liable for any direct, indirect, consequential or incidental
damages arising out of the use or inability to use this product.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not
apply to you.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD, AND NO WARRANTIES,
WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS
PERIOD.
Some states do not allow limitations on the duration of implied
warranties, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.

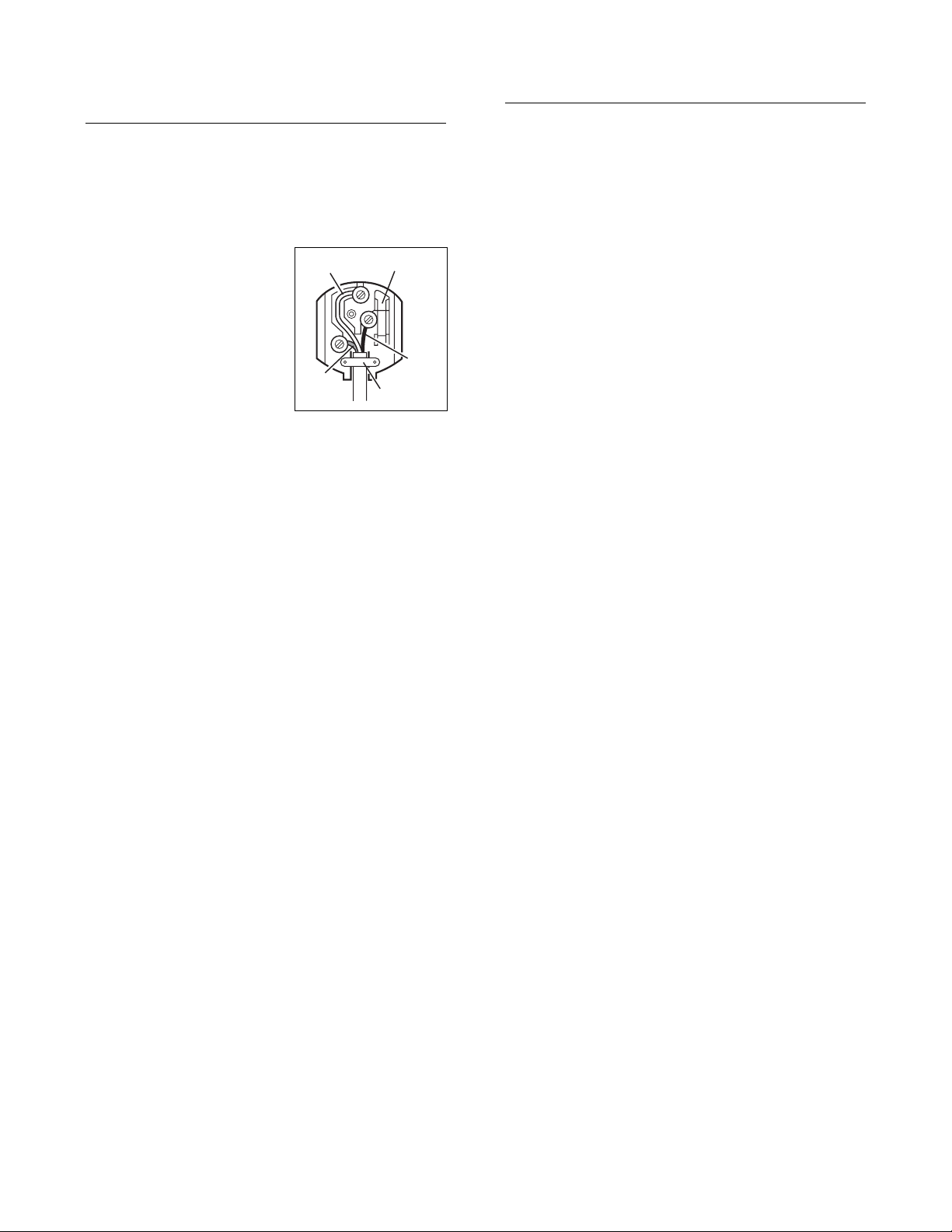

GREEN
BLUE
N
13 AMP FUSE
E
L
13 AMP
BROWN
CORD CLAMP
Operating Instructions
WARNING: Unplug cord from electrical
outlet before servicing and when leaving
unattended.
To Operate:
IMPORTANT - Always wear shoes
when using your Low Boy.
Raise the handle pin release with foot.
Lean handle back. While handle is
released and with both hands on
handle grips, squeeze the ON/OFF
lever located on the right grip to turn
on.
To Attach the Drive Pad Holder or
Brush:
Lay the machine on its back to reveal
the bottom pan. Align the indentations
in the pad holder with the brackets
around the bottom pan. Place your
hands on opposite sides of the pad
holder and using the heel of your
hands, push the pad holder onto the
pan.
Use the included key to rotate the
swing arms clockwise to lock the pad
holder to the bottom pan. Place a pad
on the floor and position the machine
so that as the handle is raised the pad
holder is centered on the pad.
To Attach the Pad:
Lay the floor machine on its back with
the handle lying on the floor. This
exposes the brush holder pan. Just
place the pad over the round brush
holder pan making sure it is in place.
CAUTION: NEVER put the pad on the
machine by placing it on the floor and
moving the running machine over it, or
placing the machine over the pad and
then starting the motor.
4
53307-01 REV A © 2001 Oreck Holdings, LLC. All Rights Reserved. All word marks, logos, regestered trademarks and product configurations are
8/01 ECN# R-6062 owned and used under the authorization of Oreck Holdings, LLC.
To Guide the Machine
Hold the handle with both hands and push with the palms of your hands
to move in the forward direction, then cup your hands and pull to bring
back. The design of the machine eliminates the fatigue associated with
controlling other floor machines.
Care of your Oreck Low Boy Floor Machine
This is a precision machine. Dropping unreasonable bumping or rough
handling may result in damage. Remove brushes after use. The bristles
may be damaged due to the weight of the machine. Store your machine
in the upright position. After each use, remove wax or cleaning
solutions. After sanding, blow sawdust off motor and locking
mechanism.
Lubrication: With the handle in its
lowest position, periodically place one
drop of oil (3-in-One) on the thrust
bearings.
THRUST BEARINGS
Troubleshooting Guide
WARNING: Unplug cord from electrical
outlet before servicing.
F
LOOR MACHINE
WILL NOT RUN
H
ANDLE WILL NOT
UNLOCK
HANDLE IS HARD TO
RAISE OR LOWER
Not plugged in
properly.
No electricity in wall
outlet.
Motor circuit
breaker has
tripped.
Locking pin needs
cleaning
Lower handle pivot
bearings need oiling
Be sure cleaner is
firmly plugged into
wall outlet.
Check electrical
source–fuse or
circuit breaker.
Reset motor circuit
breaker.
Clean locking
mechanism
Oil pivot bearings.
P
ROBLEM POSSIBLE SOURCE AREAS TO CHECK
Whenever calling, please be sure to have your model and serial
number from data plate.
CALL CUSTOMER SERVICE HOT LINE
0800 67 68 69
ALL OTHER SERVICING SHOULD BE DONE BY AN
ORECK AUTHORIZED SERVICE CENTER.
