Planar Antennas For Wireless
Communication Applications
PROFESSIONAL APPLICATION
> Main use:
• General transmitting and receiving
applications from 880 MHz up to 5.875 GHz
Point-to-point telecommunications
•
> Delivered document:
• Conformity certifi cate (measured VSWR)
> Related services:
• Maintenance and customization
76
➊ TECHNICAL PERFORMANCE
• Optimized gain
• Power handling up to 10 W
Electrical characteristics
Part Number PA 088-A PA 180-A PA 192-A PA 240-A PA 250-A PA 330-A PA 515-A
Frequency range 880 – 1710 – 1800– 1920– 2400 – 2500 – 3300 – 5150 –
960 MHz 1880 MHz 1900 MHz 2170 MHz 2500 MHz 2900 MHz 3700 MHz 5875 MHz
Gain ≥ 10 dBi ≥ 11 dBi ≥ 10 dBi ≥ 10 dBi ≥ 13 dBi ≥ 13 dBi ≥ 14 dBi ≥ 16 dBi
GSM DCS
Side lobes H plan < -18 dB - < -15 dB < -15 dB < -15 dB < -12 dB < -10 dB < -20 dB
Side lobes V plan - < -18 dB < -15 dB < -15 dB < -15 dB < -12 dB < -10 dB < -20 dB
Beamwidth at
3dB H plan 40° ± 6° 50° ± 6° 45° ± 5° 45° ± 2° 36° ± 2° 35° ± 5° 35° ± 5° 20° ± 5°
Beamwidth at
3dB V plan 60° ± 6° 40° ± 6° 60° ± 5° 60° ± 2° 36° ± 2° 35° ± 5° 35° ± 5° 20° ± 5°
VSWR 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1
CW power 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W
Type Patch array Patch array Patch array Patch array Patch array Patch array Patch array Patch array
Impedance 50 Ohms 50 Ohms 50 Ohms 50 Ohms 50 Ohms 50 Ohms 50 Ohms 50 Ohms
Polarization Linear Linear Linear Linear Linear Linear Linear Linear
Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical
➋ DESIGN
• Easy to integrate in existing installation
• Connector on the side
• Fix to mast or on wall
PA 240 Typical radiation pattern cut PA 240-A Typical VSWR
Mechanical characteristics
Part Number PA 088-A PA 180-A PA 192-A PA 240-A PA 250-A PA 330-A PA 515-A
Dimensions
Length (A) 300 mm 180 mm 180 mm 180 mm 180 mm 180 mm 180 mm
Width (B) 180 mm 180 mm 180 mm 180 mm 180 mm 180 mm 180 mm
Thickness (C) 40 mm 15 mm 15 mm 15 mm 15 mm 15 mm 15 mm
Weight (max) 1.3 Kg 0.50 Kg 0.50 Kg 0.50 Kg 0.50 Kg 0.50 Kg 0.50 Kg
Radome Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate
(White) (White) (White) (White) (White) (White) (White)
Connector SMA Female SMA Female SMA Female SMA Female SMA Female SMA Female SMA Female
Operating
temperature -35°C - +75°C -35°C - +75°C -35°C - +75°C -35°C - +75°C -35°C - +75°C -35°C - +75°C -35°C - +75°C
Mechanical drawing
B
> Jamming & Telecommunication
A
C
77
>

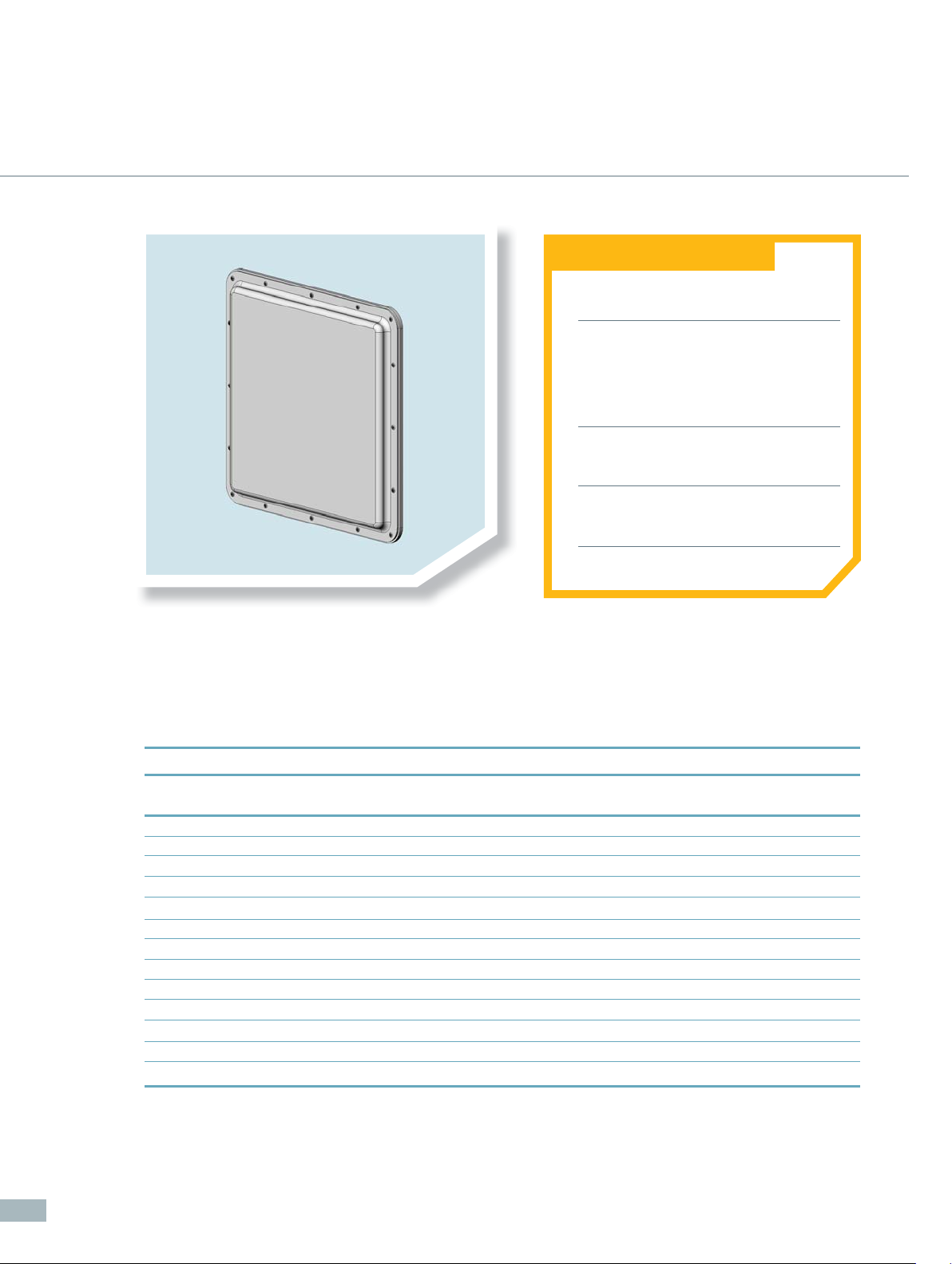

Planar Antennas For WLAN Applications
PROFESSIONAL APPLICATION
> Main use:
• General transmitting and receiving
applications from 2.1 to 5.8 GHz
• Radar doppler and radio link point-
to-point
> Delivered document:
• Conformity certifi cate (measured VSWR)
> Related standard:
• IEC-68-2
> Related services:
• Maintenance and customization
➊ TECHNICAL PERFORMANCE
• Optimized gain
• Handling power up to 20 W
• Low profi le
Electrical characteristics
Part Number PA 210-A PA 220-A PA 580-A
Frequency range 2100 – 2300 MHz 2200 – 2400 MHz 5725 – 5875 MHz
Gain ≥ 14 dBi ≥ 14 dBi ≥ 18 dBi
VSWR 1.8:1 1.8:1 1.8:1
CW Power 20 W 20 W 20 W
Type Patch array antenna Patch array antenna Patch array antenna
Impedance 50 Ohms 50 Ohms 50 Ohms
Polarization Linear Vertical Linear Vertical Linear Vertical
DC ground Yes Yes Yes
Radiation pattern Directive Directive Directive
Side lobes H plan < -13 dB < -13 dB < -15 dB
Side lobes V plan < -13 dB < -13 dB < -15 dB
Beamwidth at 3dB H plan 30° ± 4° 30° ± 4° 20° ± 4°
Beamwidth at 3dB V plan 30° ± 4° 30° ± 4° 20° ± 4°
➋ DESIGN
• Easy to integrate in existing installations
• Connector on the back
74
PA 220-A Typical radiation pattern cuts (co & cross polarization) PA 220-A Typical VSWR
Mechanical characteristics
Part Number PA 210-A PA 220-A PA 580-B
Dimensions
Length (A) 235 mm 235 mm 235 mm
Width (B) 235 mm 235 mm 235 mm
Thickness (C) 17 mm 17 mm 17 mm
Weight (max) 1 Kg 1 Kg 1 Kg
Radome ABS ASA (White)* ABS ASA (White)* ABS ASA (White)*
Connector N Female N Female N Female
Operating temperature -40°C - +55°C -40°C - +55°C -40°C - +55°C
* Different colors available upon request
Mechanical drawing
C
A
> Jamming & Telecommunication
B
75
>

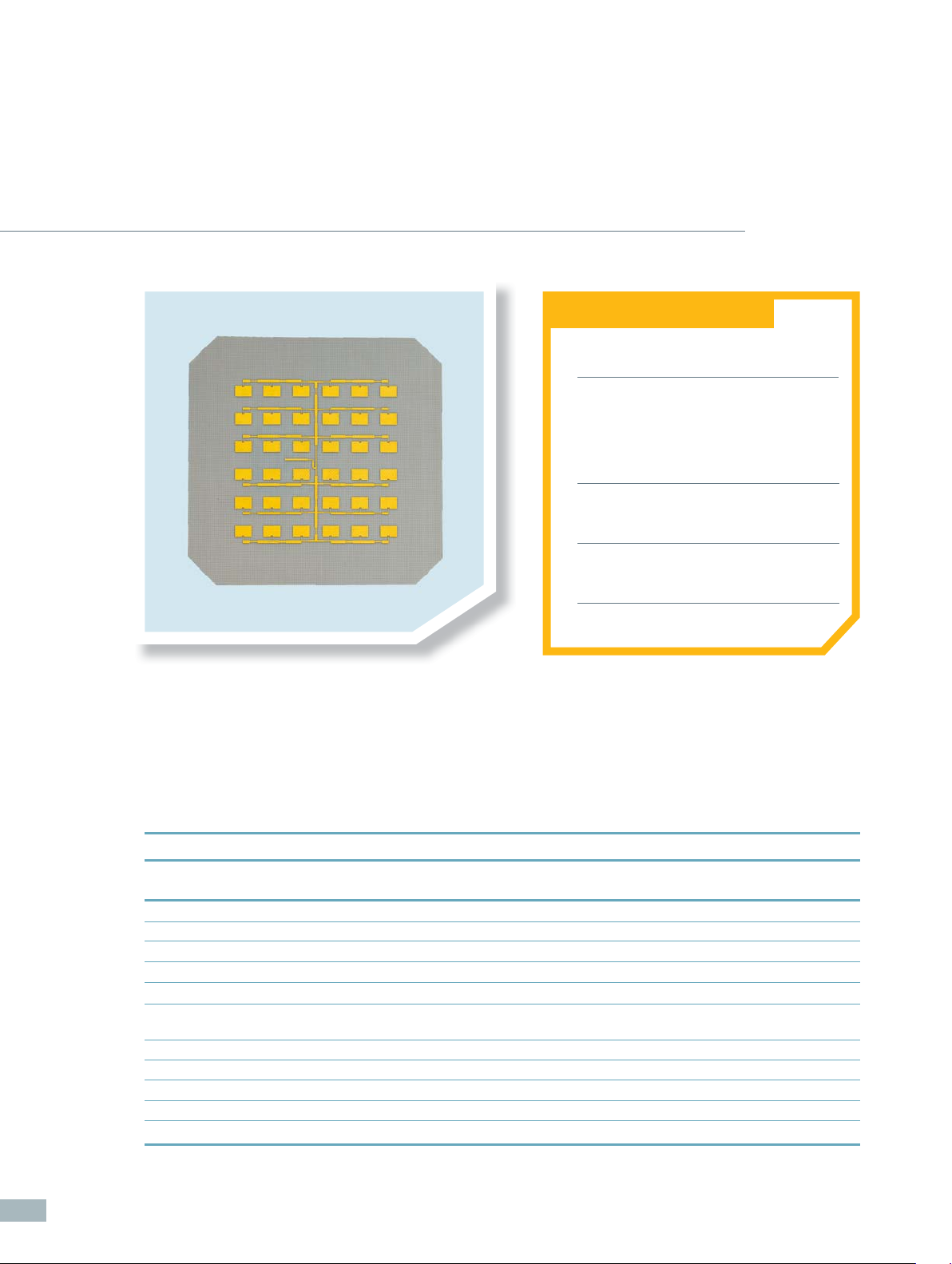

Planar Antennas For Integrated
Applications
PROFESSIONAL APPLICATION
> Main use:
• General transmitting and receiving
applications at 24 GHz
• Radar doppler and radio link point-
to-point
> Delivered document:
• Conformity certifi cate (measured VSWR)
> Related standard:
• IEC-68-2
> Related services:
• Maintenance and customization
➊ TECHNICAL PERFORMANCE
• High gain
• Power handling up to 20 W
• Linear or circular polarization
Electrical characteristics
Part Number PA 2400-A PA 2400-B PA 2400-C PA 2400CP-A
Frequency range 24.025 – 24.225 GHz 24.025 – 24.225 GHz 24.025 – 24.225 GHz 24.025 – 24.225 GHz
Gain 26 dBi 23 dBi 20 dBi 21 dBic
VSWR 2.0:1 2.0:1 2.0:1 2.0:1
CW power 20 W 20 W 20 W 20 W
Type Patch array Patch array Patch array Patch array
Patch array antenna
Impedance 50 Ohms 50 Ohms 50 Ohms 50 Ohms
Polarization Linear Linear Linear RHCP
Radiation pattern Directive Directive Directive Directive
Side lobes H plan < -20 dB < -20 dB < -16 dB < -16 dB
Side lobes V plan < -25 dB < -25 dB < -18 dB < -18 dB
Beamwidth at 3 dB 8° x 8° 13° x 8° 13° x 13° 11° x 11°
➋ DESIGN
• Optimized WR42 microstrip transition allows
the connection of electronic parts with
a standard fl ange
• Can be easily integrated in existing systems
72

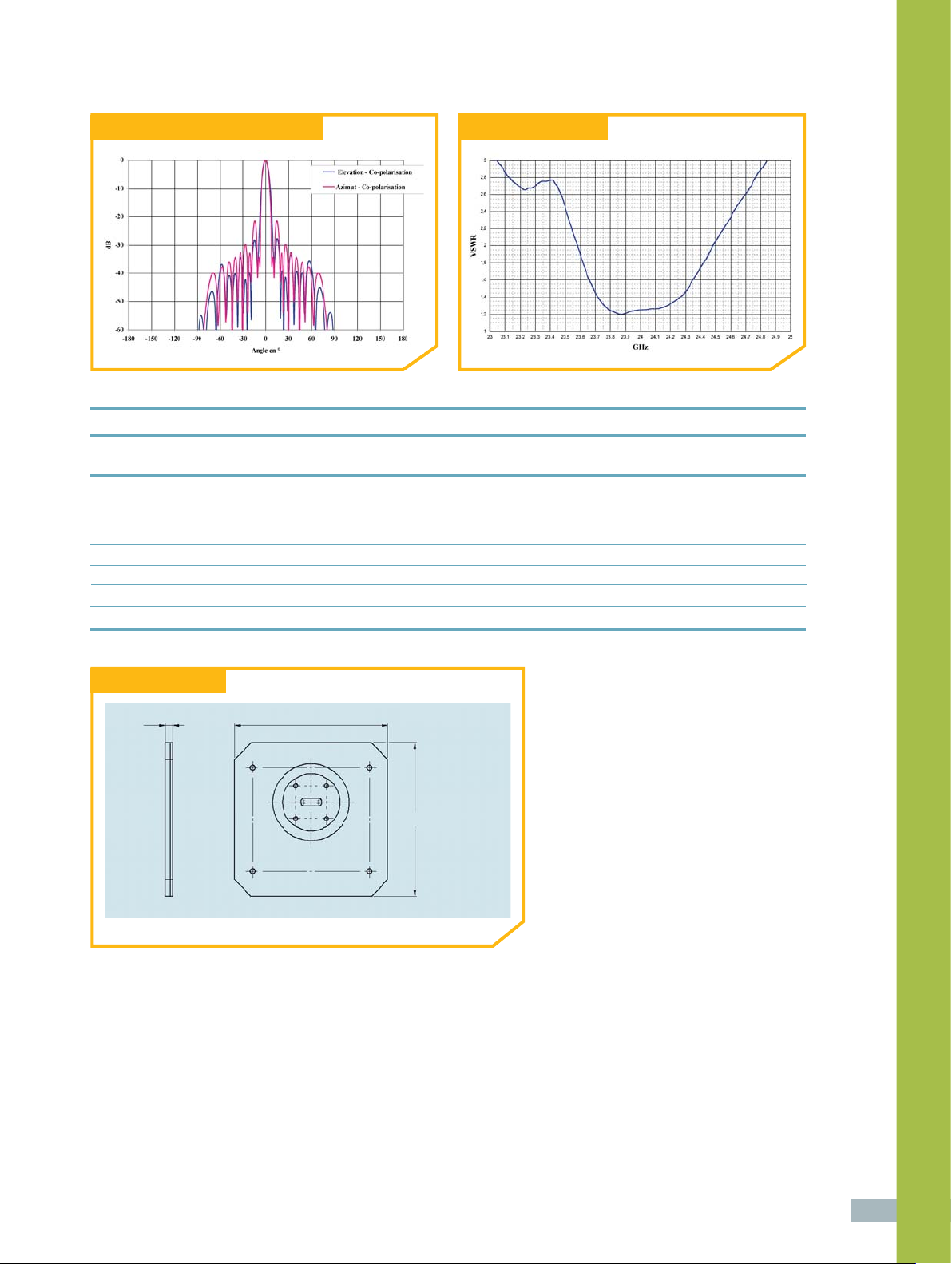

Typical radiation Pattern for PA 2400-A PA 2400 Typical VSWR
Mechanical characteristics
Part Number PA 2400-A PA 2400-B PA 2400-C PA 2400CP-A
Dimensions
Length (A) 130 mm 130 mm 80 mm 80 mm
Width (B) 130 mm 70 mm 80 mm 80 mm
Thickness (C) 5 mm 5 mm 5 mm 5 mm
Weight < 250 g < 200 g < 100 g < 100 g
Radome No No No No
Connector WR42 WR42 WR42 WR42
Operating temperature -40°C - +50°C -40°C - +50°C -40°C - +50°C -40°C - +50°C
Mechanical drawing PA2400-C and PA2400CP-A
AC
B
> Jamming & Telecommunication
73
