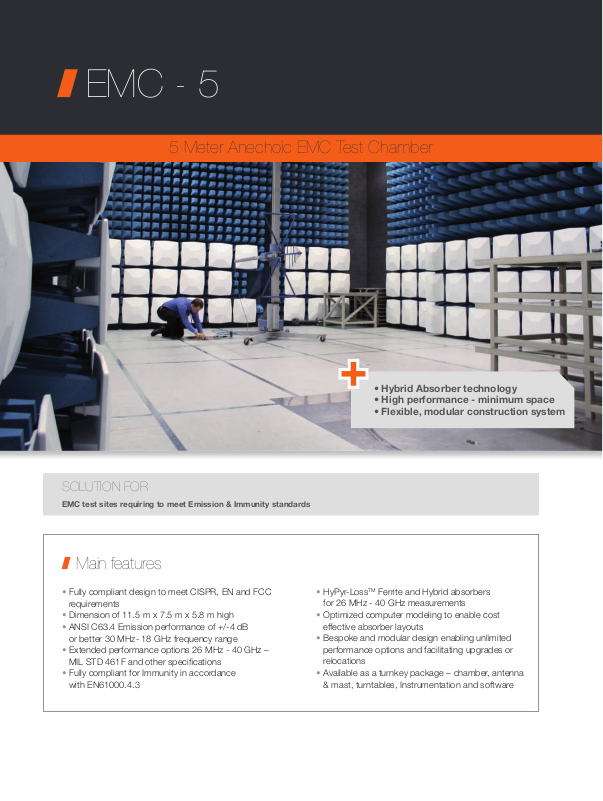

EMC - 5
5 Meter Anechoic EMC Test Chamber
SOLUTION FOR
EMC test sites requiring to meet Emission & Immunity standards
Main features
• Fully compliant design to meet CISPR, EN and FCC
requirements
• Dimension of 11.5 m x 7.5 m x 5.8 m high
ANSI C63.4 Emission performance of +/-4 dB
•
or better 30 MHz- 18 GHz frequency range
Extended performance options 26 MHz - 40 GHz –
•
MIL STD 461F and other specifications
Fully compliant for Immunity in accordance
•
with EN61000.4.3
+
HyPyr-LossTM Ferrite and Hybrid absorbers
•
for 26 MHz - 40 GHz measurements
Optimized computer modeling to enable cost
•
effective absorber layouts
Bespoke and modular design enabling unlimited
•
performance options and facilitating upgrades or
relocations
Available as a turnkey package – chamber, antenna
•
& mast, turntables, Instrumentation and software
• Hybrid Absorber technology
• High performance - minimum space
• Flexible, modular construction system
This 5 meter test range ensures fully compliant Emission and Immunity testing. It combines
TM
the SmartShield high performance chamber with our specifically matched HyPyr-Loss
ferrite
and hybrid absorber solution. The unique modular design of the EMC-5 chamber requires less
volumetric space than chambers with traditional absorbers.
The EMC-5 enables 4 meter antenna scans above
the ground plane and will accommodate large dimension
EUTs with turntables of 3 m diameter or more. Measurement
results are outstanding and proven in many of our customer’s
accredited facilities.
The ferrite based design is able to safely withstand
continuous field intensity of up to 200 V/m and intermittent field intensity of up to 500 V/m, exceeding
most safety requirements in commercial facilities.
Specialized absorbers meeting extended power handling
about 1000V/m are also available.
Our vast management experience of more than 26 years
combined with specialized design tools such as Solidworks
3D, allow us to offer customized, turnkey capabilities. We
are able to modify and develop existing designs to meet any
specific requirements.
With customer satisfaction as priority, our advanced
development and production facilities, accredited with
ISO 9001 & ISO 14001, ensure all products achieve low
maintenance and long life.
The EMC-5 is just one of a range of pre-defined EMC
test chamber designs. Others include:
• EMC-MC (Mini compact)
• EMC-3C (Compact 3 m test range)
• EMC-3 (Compliant 3 m test range)
• EMC-10 (Compliant 10 m test range)
PRODUCT CONFIGURATIONS
Dimensions (shielding) 11.5 m x 7.5 m x 5.8 m
Performance range 26 MHz - 40 GHz
Emission performance CISPR-16 fully compliant 5 m site
Immunity performance EN 61000.4.3 fully compliant 5 m site
Standard equipment • SmartShield RF shielded room
• Absorber lining: HyPyr-LossTM Ferrite
& Hybrid lining
• Raised floor
QTY TYPE
1 3.0m X 3.0m personnel door
1 Mains filter 240 V 50/60 Hz, 32 A
8 Attenuvents (300 mm x 300 mm)
1 Consumer unit
10 Single phase sockets
4 Lights
4 n-type connectors
4 BNC type connectors
2 Fiber optic penetration waveguides
1 Penetration tube w/ cap - 5 cm
Accessories • Access doors- manual, semi & fully automatic
• Turntable, masts & controllers
• Dynamometers
• 3 phase mains filters
• Control data/ line filters
• Test and measurement EMC systems
• Exhaust extraction
• Air conditioning
• CCTV & audio system
• Fire detection/suppression
• Chamber validation/calibration
• Control room
• Amplifier room
TECHNICAL DATA
Full compliance testing • IEC 61000-4-3/EN 61000-4-3
for Radiated Immunity • ISO 11452
• SAE J551
• CISPR 25
Full compliance testing • ANSI-C63.4
for Radiated Emissions • FCC parts 15 & 18
• EN 50147-2
• EN 5011/CISPR 11
• EN 55016/ CISPR 16
• EN 55022/CISPR 22
• VCCI V - 3/ 2004.04
• SAE J-551
• CISPR 25
Quality standards • ETSI - UKAS accredited
• ISO17025; ISO9001
• Environmental standard ISO 14001
