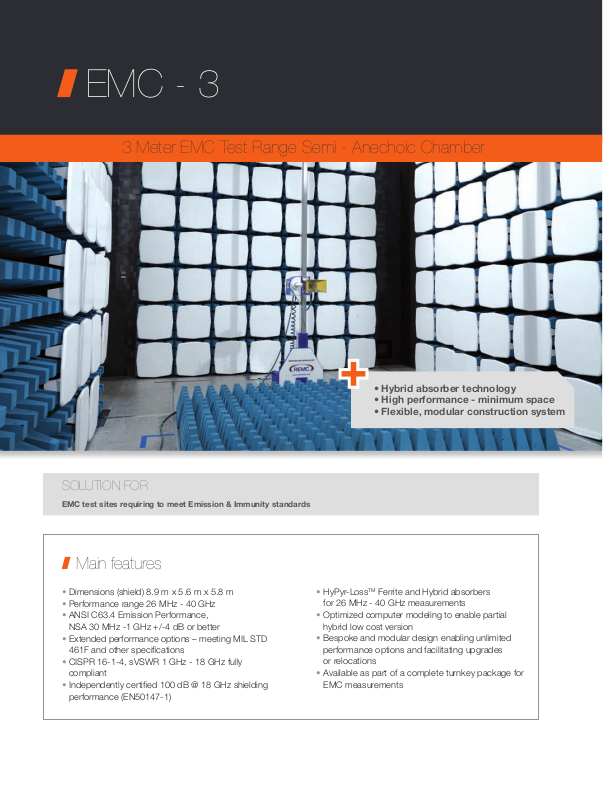

EMC - 3

3 Meter EMC Test Range Semi - Anechoic Chamber

SOLUTION FOR

EMC test sites requiring to meet Emission & Immunity standards

Main features

• Dimensions (shield) 8.9 m x 5.6 m x 5.8 m

• Performance range 26 MHz - 40 GHz

ANSI C63.4 Emission Performance,

•

NSA 30 MHz -1 GHz +/-4 dB or better

Extended performance options – meeting MIL STD

•

461F and other specifications

CISPR 16-1-4, sVSWR 1 GHz - 18 GHz fully

•

compliant

Independently certified 100 dB @ 18 GHz shielding

•

performance (EN50147-1)

+

HyPyr-LossTM Ferrite and Hybrid absorbers

•

for 26 MHz - 40 GHz measurements

Optimized computer modeling to enable partial

•

hybrid low cost version

Bespoke and modular design enabling unlimited

•

performance options and facilitating upgrades
or relocations

Available as part of a complete turnkey package for

•

EMC measurements

• Hybrid absorber technology

• High performance - minimum space

• Flexible, modular construction system

This is the ultimate 3 meter anechoic chamber ensuring fully compliant emission and immunity
testing. The high performance and compact dimensions are achieved by the use of our Smart­Shield high performance shielding system combined with specifically developed HyPyr-Loss

TM

hybrid absorber materials for EMC test chamber applications.

The advanced technology in our HyPyr-LossTM hybrid mate­rials, a unique combination of ferrite tiles & hybrid pyramid
absorbers, optimizes EMC measurement performance
between 26 MHz - 40 GHz. These hybrid absorbers require
less volumetric space than traditional absorbers (standard
carbon loaded or thin film coated pyramids).

The advantages of our unique SmartShield High Perfor­mance shielding system are significant with performance
in excess of 100 dB for most frequencies. The construction
features of modular panels with RF connecting joints enable
an easily demountable chamber. This is a major benefit for
our customers where future relocations are necessary.

The EMC-3 is just one of a range of pre-defined EMC
test chamber designs. Others include:

• EMC-MC (Mini compact)

• EMC-3C (Compact 3 m test range)

• EMC-5 (Compliant 5 m test range)

• EMC-10 (Compliant 10 m test range)

Our vast management experience of more than 26 years
combined with specialized design tools such as Solidworks
3D, allow us to offer our customers customized, turnkey
capabilities. We are able to modify and develop our existing
designs to meet any requirement you may have.
With customer satisfaction as priority, our advanced
development and production facilities, accredited to
ISO 9001 & ISO 14001, ensure all products achieve low
maintenance and long life.

PRODUCT CONFIGURATIONS

Dimensions (shielding) 8.9 m x 5.6 m x 5.8 m

Performance range 26 MHz - 40 GHz

Emission performance CISPR-16 fully compliant 3 m site

Immunity performance EN 61000-4-3 fully compliant 3 m site

Standard equipment SmartShield RF shielded room, raised floor
Absorber lining: HyPyr-LossTM Ferrite & Hybrid lining

QTY TYPE
1 0.9 m x 2.1 m personnel door
1 Mains filter 240 V 50/60 Hz, 32 A
4 Attenuvents (300 mm x 300 mm)
1 Consumer unit
6 Single phase sockets
4 Lights
4 n-type connectors
4 BNC type connectors
2 Fiber optic penetration waveguides
1 Penetration tube w/ cap - 5 cm

Accessories • Access doors- manual,semi & fully automatic

• Turntable, Masts & Controllers

• 3 phase mains filters

• Control data/ line filters

• Test and Measurement EMC systems

• Air conditioning

• CCTV & Audio system

• Fire detection/suppression

• Chamber validation/calibration

• Control room

• Amplifier room

TECHNICAL DATA

Full compliance testing • IEC 61000-4-3/EN 61000-4-3
for Radiated Immunity • ISO 11452

• SAE J551

• CISPR 25

Full compliance testing • ANSI-C63.4
for Radiated Emissions • FCC parts 15 & 18

• EN 50147-2

• EN 55011/CISPR 11

• EN 55016/CISPR 16

• EN 55022/CISPR 22

• EN 55025

• VCCI V - 3/ 2004.04

Quality standards • ETSI - UKAS accredited

• ISO17025; ISO9001

• Environmental standard ISO 14001
