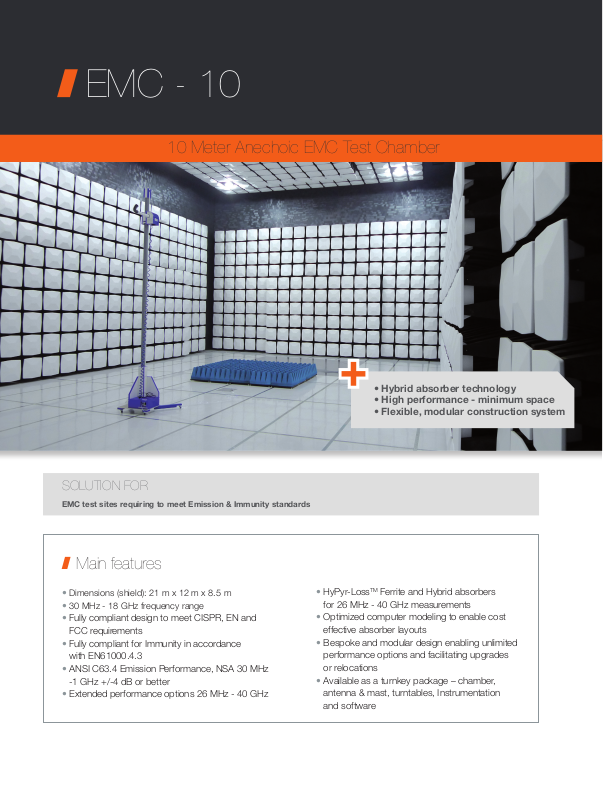

ORBIT FR EMC-10 User Manual
EMC - 10
10 Meter Anechoic EMC Test Chamber
SOLUTION FOR
EMC test sites requiring to meet Emission & Immunity standards
Main features
• Dimensions (shield): 21 m x 12 m x 8.5 m
• 30 MHz - 18 GHz frequency range
• Fully compliant design to meet CISPR, EN and
FCC requirements
• Fully compliant for Immunity in accordance
with EN61000.4.3
• ANSI C63.4 Emission Performance, NSA 30 MHz
-1 GHz +/-4 dB or better
• Extended performance options 26 MHz - 40 GHz
+
• HyPyr-LossTM Ferrite and Hybrid absorbers
for 26 MHz - 40 GHz measurements
• Optimized computer modeling to enable cost
effective absorber layouts
• Bespoke and modular design enabling unlimited
performance options and facilitating upgrades
or relocations
• Available as a turnkey package – chamber,
antenna & mast, turntables, Instrumentation
and software
• Hybrid absorber technology
• High performance - minimum space
• Flexible, modular construction system
The 10 meter test range is the Gold Standard EMC chamber design, ensuring fully compliant
Emission and Immunity testing. This chamber combines the SmartShield high performance
chamber with our specifically matched HyPyr-LossTM Ferrite and hybrid absorber solution.
Measurement results are outstanding and proven in many of our customer’s accredited facilities.
The EMC-10 chamber's small overall size results from the
use of our modular SmartShield chamber lined with our
AEPH HyPyr-LossTM absorber technology. This unique design requires less volumetric space than traditional absorbers. It enables 4 meter antenna scans above the ground
plane and will accommodate large dimension EUTs with
turntables of 4m diameter or more.
Our vast management experience of more than 26 years
combined with specialized design tools such as Solidworks
3D, allow us to offer customized, turnkey capabilities. We
are able to modify and develop existing designs to meet any
requirement you may have.
With customer satisfaction as priority, our advanced development and production facilities, accredited with ISO 9001
& ISO 14001, ensure all products achieve low maintenance
and long life.
The EMC-10 is just one of a range of pre-defined EMC
test chamber designs. Others include:
• EMC-MC (Mini compact)
• EMC-3C (Compact 3 m test range)
• EMC-3 (Compliant 3 m test range)
• EMC-5 (Compliant 5 m test range)
PRODUCT CONFIGURATIONS
Dimensions (shielding) 21 m x 12 m x 8.5 m
Performance range 26 MHz - 40 GHz
Emission performance CISPR-16 fully compliant 10 m site
Immunity performance EN 61000-4-3 fully compliant 10 m site
Standard equipment • SmartShield RF shielded room
• Absorber lining: HyPyr-LossTM Ferrite
& Hybrid lining
• Raised floor
QTY TYPE
1 3.0 m x 3.0 m personnel door
1 Mains filter 240 V 50/60 Hz, 32 A
8 Attenuvents (300 mm x 300 mm)
1 Consumer unit
10 Single phase sockets
4 Lights
4 n-type connectors
4 BNC type connectors
2 Fiber optic penetration waveguides
1 Penetration tube w/ cap - 5 cm
Accessories • Access doors- manual, semi & fully automatic
• Turntable, Masts & Controllers
• Vehicle Dynamometers
• 3 phase mains filters
• Control data/ line filters
• Test and Measurement EMC systems
• Exhaust extraction
• Air conditioning
• CCTV & Audio system
• Fire detection/suppression
• Chamber validation/calibration
• Control room
• Amplifier room
TECHNICAL DATA
Full compliance testing • IEC 61000-4-3/EN 61000-4-3
for Radiated Immunity • ISO 11452
• SAE J551
• CISPR 25
Full compliance testing • ANSI-C63.4
• FCC parts 15 & 18
• EN 50147-2
• EN 5011/CISPR 11
• EN 55016/ CISPR 16
• EN 55022/CISPR 22
• VCCI V - 3/ 2004.04
• SAE J-551
• CISPR 25
Quality standards • ETSI - UKAS accredited
• ISO 17025; ISO 9001
• Environmental standard ISO 14001
