ORBIT FR Dual polarized OEW User Manual
MEASUREMENT PROBES
>
Dual Polarized Open-Ended Waveguide
With Interchangeable Apertures
Typical 3D radiation pattern
DOEW 6000
MEASUREMENT PROBES
> Main use:
• Dual polarized fi eld probe for near-fi eld and far-fi eld
measurement
• Calibration and polarization reference
> Delivered documents:
• Measured return loss and port-to-port coupling
•

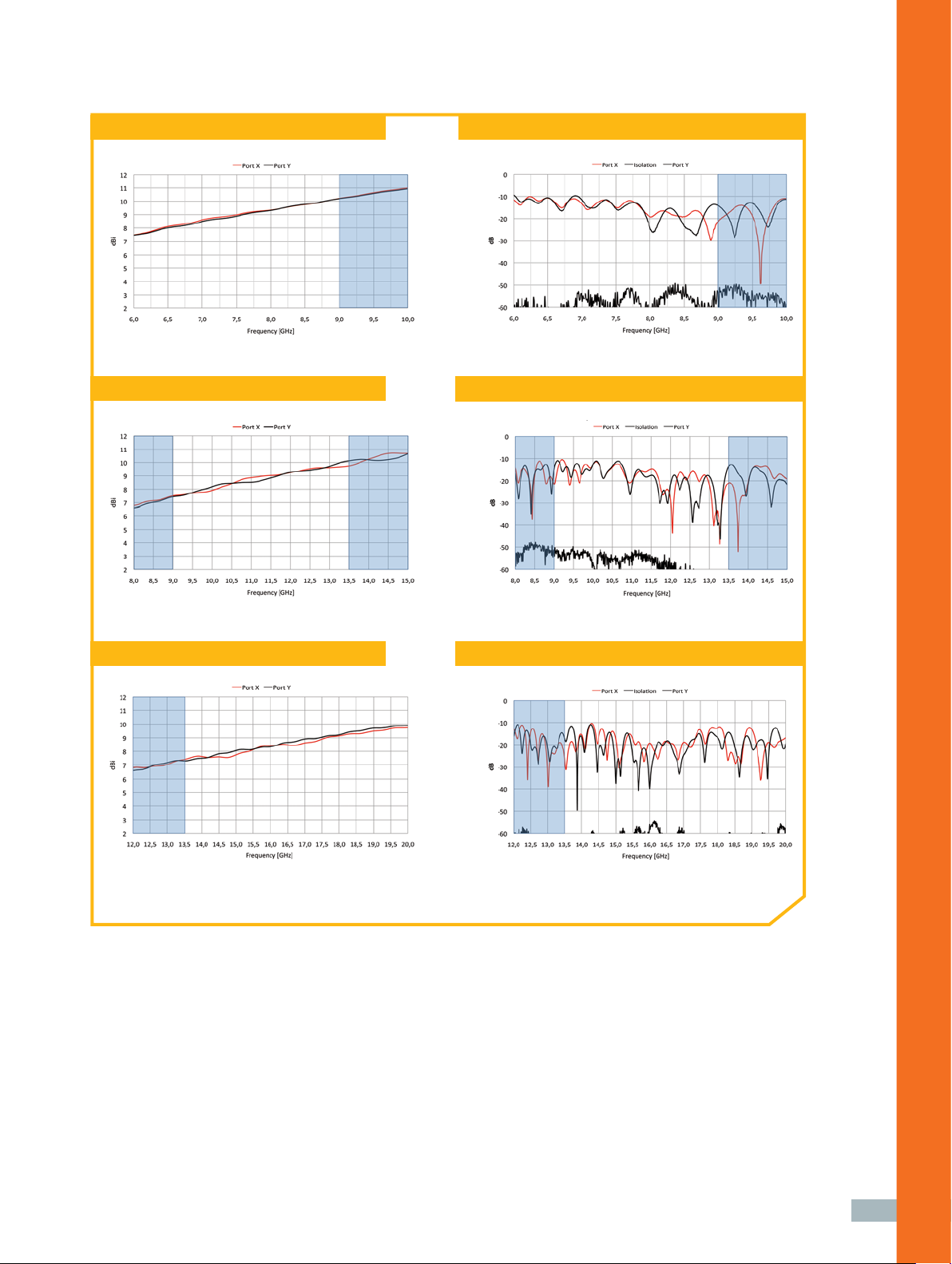

Typical performance data (TYMEDATM)
> Surface treatment:
• Alodine 1200 according to MIL-C 5541E class 3
• Blue paint
> Included equipment:
• Mounting fl ange
• Removable absorber plates
> Related services:
• Calibration and maintenance
• Customization
• Available with integrated RF switch upon request
➊ TECHNICAL PERFORMANCE
• Avoid any additional alignment procedures
when aperture is changed
• Minimize interaction between probe
and the antenna under test
➋ DESIGN
• Apertures integrated with a wideband dual
polarized orthomode junction
• Tapered ends to minimize diffraction effects
• Lightweight for easy handling
• Easily interchangeable apertures
➌ REPEATABILITY
• Repeatable radiation performance due to the
axial symmetry of the interchangeable apertures
• Stiff and robust mechanical design
• Standard SATIMO circular interface for precision
centering
• Precision machined
• High precision PC 3.5 mm Female connectors
• Precision pin for accurate polarization alignment
> Measurement antennas
43
Electrical characteristics
Part number DOEW 6000 DOEW 18000
Frequency range 6 - 20 GHz divided into three sub-bands 18 - 40 GHz divided into two sub-bands
(1:1.5 bandwidth ratio each) (1:1.5 bandwidth ratio each)
Average gain > 7 dBi > 7 dBi
Average VSWR 2.0:1 2.0:1
Polarization Dual linear Dual linear
Port-to-port isolation 45 dB 45 dB
Impedance 50 Ohms 50 Ohms
Absorbers AEMI AEP-4 AEMI AEC-1.5
Mechanical characteristics
Part number DOEW 6000 DOEW 18000
Dimensions* L x D X Ø 362 x 216 x 400 mm 231 x 85 x 400 mm
Apertures Threaded termination Threaded termination
Weight* 2 kg 1.9 kg
Connector K female
Material Aluminum
Treatment Alodine 1200
(1)
K Female
(2)
Aluminum
Alodine 1200
Color Blue Blue
Interface (Standard) Ø 110 mm 110 mm
*Approximately
(1) SWMI type 1032-10SF
(2) MIL-C 5541 E class 3
(1)
(2)
Mechanical drawing
D
Ø
L
44
