CR-M
I CR-M

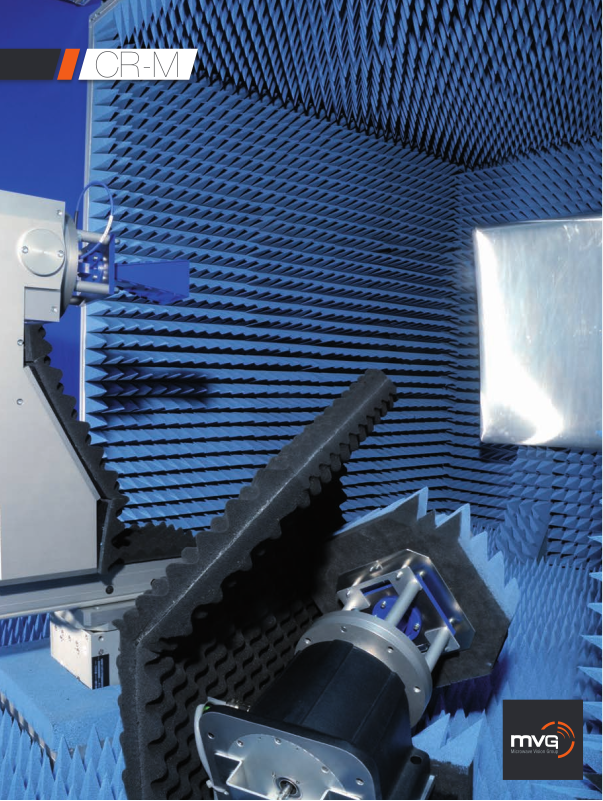

CR-M is a portable, mini-compact range suited to antenna measurement applications where
space is limited or the flexibility of a portable system is required. The system is particularly
well-suited for high frequency antenna and production testing.
+
• Portable and compact
• High frequency measurements
SOLUTION FOR
• Characterization of Small, High Gain Antennas
• Millimeter Wave Applications
• Production Testing
Main features
Technology
• Compact Range
Measurement capabilities
• Gain
• 2-D radiation pattern
• Beamwidth
• Cross polarization
• Sidelobe levels
• 3D radiation pattern
• Radiation pattern in any polarization (linear or circular)
Frequency bands
• CR-M12: 8 - 110 GHz
• CR-M14: 4 - 110 GHz
• CR-M16: 4 - 110 GHz
Max. size of DUT
• Up to 20 in (50 cm) diameter
Max. weight of DUT
• Up to 100 lbs (45 kg) for Azimuth (AZ) Only
• Up to 10 lbs (4.5 kg) for Roll/AZ with AL-060-1P
• Up to 50 lbs (23 kg) for Roll/AZ with AL-160-1P
Typical dynamic range
• 80 dB
+
+
+
System configurations
Software
Measurement control, data acquisition and post processing
■ 959 Spectrum (North America only)
■ MiDAS
Equipment
■ Portable shielded anechoic chamber
■ AUT positioner: azimuth and roll axis mode tower with squint axis
(± 10 deg) and manual slide
■ RF absorber*
■ DUT positioner (azimuth)
■ Reflector system
■ Feed horns (One user-selectable band up to 60 GHz included)**
■ Feed polarization rotator
■ Data acquisition workstation
■ AL- 4164 positioner controller***
■ Rotary joints
■ RF cables
Uninterruptible power supply
Vector network analyzer
Add-ons
Feed horns (additional bands)**
RF system upconverters/downconverters above 40 GHz
Channel switching (OFR 9800)
Accessories
Standard gain horns (SGH)**
Mounting fixtures
PIN switch
Services
■ Installation
■ Warranty
■ Training
Post warranty service plans****
* See MVG-EMC Systems catalogs Included Optional Required
for more information
** See the MVG antenna catalog for more information
*** See the ORBIT/FR catalogs for more information
**** Refer to Orbit/FR Service Brochure for more information
(1) 40 GHz
(1)
+
Reflector capable of operation up to several hundred GHz
95
2
System overview
I CR-M
959 Spectrum
or MiDAS
Workstation
VNA
OFR 9800
Switch Controller
(optional)
AL-4160 Series
Positioner
Controller
PIN Switch (optional)
PIN switch (optional)
The basic configuration allows for full 3-D patterns to be
collected using standard Vector Network Analyzers. The
chamber provides a modest level of shielding and easy
access to the DUT positioner and compact range feed
area. The chamber is mounted on a caster assembly for
convenient transportation between different production or
test sites.
A compact range feed polarization rotator enables the
transmit polarization to be changed during a single test or
in between tests. Linked axis motion of the transmit rotator
and roll axis allows for automatic acquisition of E & H plane
patterns in a single test. A squint (elevation) axis allows
E&H plane patterns through the peak of the beam in case
electrical and mechanical boresight do not coincide. The
AL-4160 series controller supports the control of up to four
(4) axes, and allows for simultaneous motion if required.
Optional pre-test or real time switching through the usage
of the OFR 9800 high speed switch controller, that enables
the collection of multiple channel data.
The data acquisition workstation comes equipped with
either the 959 Spectrum or MiDAS software, depending
on location, allowing for a versatile and powerful data
acquisition and analysis tool. Upon request, the compact
range reflector and positioner system without the installation of a portable anechoic chamber can be procurred by
customers with existing anechoic chambers.
96
3
Standard system components
Absorbers
and anechoic
chambers
• Size based on selected quiet
zone size
• Moderate shielding
AEMI absorber catalog
Reflector system
• Rolled edge reflector
configuration
• Corner-fed geometry
• Single-piece reflector
Positioning
subsystem
I CR-M
Positioner controller controls up to 4 axes
• Standard AL-160-1 AZ positioner
• AL-4160 series positioner
controller
• AL-060-1P or AL-160-1P
Roll axis model tower with
squint axis (± 10 deg) and
manual slide
ORBIT/FR positioning
equipment catalog
One person can set up the system in a matter of minutes
97
43
I CR-M
System Specifications
SYSTEMS CR-M12 CR-M16 CR-M20
Reflector Subsystem
Reflector Model AL-23101 AL-23101-16 Al-23101-20
Geometry Corner Fed Corner Fed Corner Fed
Frequency Range 8 to 110 GHz
Quiet Zone Shape Circular Cylinder Circular Cylinder Circular Cylinder
Quiet Zone Dimensions (Ø x depth) 12 x 12 in 16 x 16 in 20 x 20 in
30 x 30 cm 40 x 40 cm 50 x 50 cm
Cross Polarization (typ) 30 dB 30 dB 30 dB
Amplitude Total Variation • 8.2 to 12.4 GHz: 1.7 dB • 6 to 8 GHz: 1.7 dB • 4 to 6 GHz: 1.7 dB
• 12.4 to 18 GHz: 1.5 dB • 8 to 12 GHz: 1.5 dB • 6 to 8 GHz: 1.5 dB
Amplitude Taper 18 to 110 GHz: 1.0 dB 12 to 110 GHz: 1.0 dB 8 to 110 GHz: 1.0 dB
Amplitude Ripple • 18 to 26.5 GHz: ± 0.4 dB • 12 to 18 GHz: ± 0.4 dB • 8 to 12 GHz: ± 0.4 dB
• 26.5 to 40 GHz: ± 0.3 dB • 18 to 40 Ghz: ± 0.3 dB • 12 to 40 GHz: ± 0.3 dB
• 40 to 110 GHz: ± 0.4 dB • 40 to 110 GHz: ± 0.4 dB • 40 to 110 GHz: ± 0.4 dB
Total Phase Variation • 8.2 to 12.4 GHz: 12° • 6 to 8 GHz: 12° • 4 to 6 GHz: 12°
• 12.4 to 18 GHz: 10° • 8 to 12 GHz: 10° • 6 to 8 GHz: 10°
• > 40 GHz: 0.25° x F • > 40 GHz: 0.25° x F • > 40 GHz: 0.25° x F
Phase Taper • 18 to 40 GHz: ± 3° • 12 to 40 GHz: ± 3° • 8 to 40 GHz: ± 3°
• 26.5 to 40 GHz: ± 3° • 18 to 40 GHz: ± 3° • 12 to 40 GHz: ± 3°
Phase Ripple • 18 to 40 GHz: ± 3° • 12 to 40 GHz: ± 3° • 8 to 40 GHz: ± 3°
Reflector Construction Aluminum Rolled Edge Aluminum Rolled Edge Aluminum Rolled Edge
Nominal Reflector Size 24 x 24 in 32 x 32 in 40 x 40 in
60 x 60 cm 80 x 80 cm 100 x 100 cm
Positioning Subsystem
DUT Positioner Roll / Squint / Slide / Azimuth*** Roll / Squint / Slide / Azimuth*** Roll / Squint / Slide / Azimuth***
Manual Slide: 6 inch travel Manual Slide: 8 inch travel Manual Slide: 10 inch travel
Squint: ± 10 deg Squint: ± 10 deg Squint: ± 10 deg
AL-060 Roll AL-060 Roll AL-060 Roll
Feed Positioner AL-060-1P Polarization*** AL-160-1P Polarization*** AL-160-1P Polarization***
Positioner Controller AL-4164*** AL-4164*** AL-4164***
RF Subsystem
Feeds (Frequency-dependant) AL-2309 Series** AL-2309 Series** AL-2309 Series**
Manual Slide: 6 inch travel Manual Slide, 8 inch travel Manual Slide, 10 inch travel
Squint: ± 10 deg Squint ± 10 deg Squint ± 10 deg
AL-060 Roll AL-160 Roll AL-160 Roll
Optional RF Receiver & Accessories • VNA (Vector Network Analyzer) • VNA (Vector Network Analyzer) • VNA (Vector Network Analyzer)
• LNA (Low Noise Amplifier) • LNA (Low Noise Amplifier) • LNA (Low Noise Amplifier)
• Polarization Switch • Polarization Switch • Polarization Switch
• Switch Controller (OFR 9800) • Switch Controller (OFR 9800) • Switch Controller (OFR 9800)
Cabling RF & Control RF & Control RF & Control
Shielded Anechoic Chamber
Chamber Enclosure Construction Aluminum with Hinged Access Aluminum with Hinged Access Aluminum with Doors
Max. Chamber Enclosure Size
(height x width x length) 61 x 52 x 91 in 88 x 75 x 120 in 109 X 94 X 150 in
156 x 131 x 230 cm 223 x 191 x 305 cm 278 x 238 x 381 cm
Anechoic Treatment AEP-6* AEP-6* AEP-8*
* See the MVG-EMC Systems catalog for more information
** See the MVG antenna catalog for more information
*** See the ORBIT/FR catalogs for more information
(1) Could be used down to 6 GHz
(2) Could be used down to 4 GHz
(1)
6 to 110 GHz 4 to 110 GHz
98
5
Typical field probing performance
Scan Direction: hor., CR-Feed: ver., Freq: 26.5 to 40.0 GHz
I CR-M
0,5
0,3
0,1
-0,1
-0,3
-0,5
-0,7
-0,9
Amplitude (dB)Amplitude (dB)
-1,1
-1,3
-1,5
-200 -150 -100 -50 0 50 100 150 200
Cross-range (mm)
0,5
0,3
0,1
-0,1
-0,3
-0,5
-0,7
-0,9
-1,1
-1,3
-1,5
-200 -150 -100 -50 0 50 100 150 200
Cross-range (mm)
5,0
4,0
3,0
2,0
1,0
0,0
-1,0
Phase (deg)Phase (deg)
-2,0
-3,0
-4,0
-5,0
-200 -150 -100 -50 0 50 100 150 200
Cross-range (mm)
5,0
0,0
-5,0
-10,0
-15,0
-20,0
-25,0
-30,0
-35,0
-40,0
-45,0
-50,0
-55,0
-200 -150 -100 -50 0 50 100 150 200
Cross-range (mm)
Co-pol 26.5 Ghz
Co-pol 33.25 Ghz
Co-pol 40.0 Ghz
Cx-pol 26.5 Ghz
Cx-pol 33.25 Ghz
Cx-pol 40.0 Ghz
Product specications and descriptions in this datasheet are subject to change without notice.
Actual products may differ in appearance from images shown.
Copyright MVG 2014
