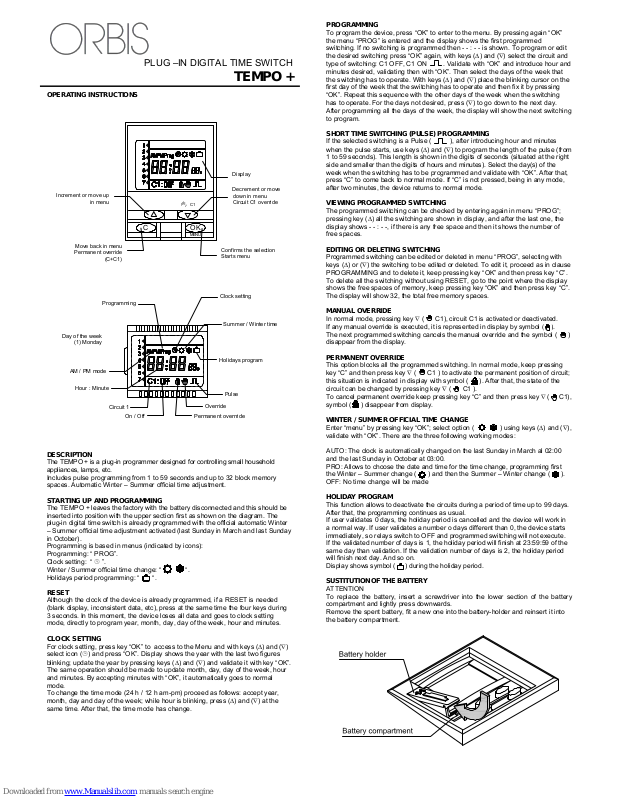

Orbis TEMPO + Operating Instructions Manual

PLUG –IN DIGITAL TIME SWITCH

TEMPO +

OPERATING INSTRUCTIONS

DESCRIPTION

The TEMPO + is a plug-in programmer designed for controlling small household
appliances, lamps, etc.
Includes pulse programming from 1 to 59 seconds and up to 32 block memory
spaces. Automatic Winter – Summer official time adjustment.

STARTING UP AND PROGRAMMING

The TEMPO + leaves the factory with the battery disconnected and this should be
inserted into position with the upper section first as shown on the diagram. The
plug-in digital time switch is already programmed with the official automatic Winter
– Summer official time adjustment activated (last Sunday in March and last Sunday
in October).
Programming is based in menus (indicated by icons):
Programming: “ PROG”.
Clock setting: “  ”.
Winter / Summer official time change: “ “.
Holidays period programming: “ “.

RESET

Although the clock of the device is already programmed, if a RESET is needed
(blank display, inconsistent data, etc), press at the same time the four keys during
3 seconds. In this moment, the device loses all data and goes to clock setting
mode, directly to program year, month, day, day of the week, hour and minutes.

CLOCK SETTING

For clock setting, press key “OK” to access to the Menu and with keys (∆) and (∇)
select icon () and press “OK”. Display shows the year with the last two figures
blinking; update the year by pressing keys (∆) and (∇) and validate it with key “OK”.
The same operation should be made to update month, day, day of the week, hour
and minutes. By accepting minutes with “OK”, it automatically goes to normal
mode.
To change the time mode (24 h / 12 h am-pm) proceed as follows: accept year,
month, day and day of the week; while hour is blinking, press (∆) and (∇) at the
same time. After that, the time mode has change.

PROGRAMMING

To program the device, press “OK” to enter to the menu. By pressing again “OK”
the menu “PROG” is entered and the display shows the first programmed
switching. If no switching is programmed then - - : - - is shown. To program or edit
the desired switching press “OK” again, with keys (∆) and (∇) select the circuit and
type of switching: C1 OFF, C1 ON . Validate with “OK” and introduce hour and
minutes desired, validating then with “OK”. Then select the days of the week that
the switching has to operate. With keys (∆) and (∇) place the blinking cursor on the
first day of the week that the switching has to operate and then fix it by pressing
“OK”. Repeat this sequence with the other days of the week when the switching
has to operate. For the days not desired, press (∇) to go down to the next day.
After programming all the days of the week, the display will show the next switching
to program.

SHORT TIME SWITCHING (PULSE) PROGRAMMING

If the selected switching is a Pulse ( ), after introducing hour and minutes
when the pulse starts, use keys (∆) and (∇) to program the length of the pulse (from
1 to 59 seconds). This length is shown in the digits of seconds (situated at the right
side and smaller than the digits of hours and minutes). Select the day(s) of the
week when the switching has to be programmed and validate with “OK”. After that,
press “C” to come back to normal mode. If “C” is not pressed, being in any mode,
after two minutes, the device returns to normal mode.

VIEWING PROGRAMMED SWITCHING

The programmed switching can be checked by entering again in menu “PROG”;
pressing key (∆) all the switching are shown in display, and after the last one, the
display shows - - : - -, if there is any free space and then it shows the number of
free spaces.

EDITING OR DELETING SWITCHING

Programmed switching can be edited or deleted in menu “PROG”, selecting with
keys (∆) or (∇) the switching to be edited or deleted. To edit it, proceed as in clause
PROGRAMMING and to delete it, keep pressing key “OK” and then press key “C”.
To delete all the switching without using RESET, go to the point where the display
shows the free spaces of memory, keep pressing key “OK” and then press key “C”.
The display will show 32, the total free memory spaces.

MANUAL OVERRIDE

In normal mode, pressing key ∇ ( C1), circuit C1 is activated or deactivated.
If any manual override is executed, it is represented in display by symbol ( ).
The next programmed switching cancels the manual override and the symbol ( )
disappear from the display.

PERMANENT OVERRIDE

This option blocks all the programmed switching. In normal mode, keep pressing
key “C” and then press key ∇ ( C1 ) to activate the permanent position of circuit;
this situation is indicated in display with symbol ( ). After that, the state of the
circuit can be changed by pressing key ∇ ( C1 ).
To cancel permanent override keep pressing key “C” and then press key ∇ ( C1),
symbol ( ) disappear from display.

WINTER / SUMMER OFFICIAL TIME CHANGE

Enter “menu” by pressing key “OK”; select option ( ) using keys (∆) and (∇),
validate with “OK”. There are the three following working modes:

AUTO: The clock is automatically changed on the last Sunday in March al 02:00
and the last Sunday in October at 03:00.
PRO: Allows to choose the date and time for the time change, programming first
the Winter – Summer change ( ) and then the Summer – Winter change ( ).
OFF: No time change will be made

HOLIDAY PROGRAM

This function allows to deactivate the circuits during a period of time up to 99 days.
After that, the programming continues as usual.
If user validates 0 days, the holiday period is cancelled and the device will work in
a normal way. If user validates a number o days different than 0, the device starts
immediately, so relays switch to OFF and programmed switching will not execute.
If the validated number of days is 1, the holiday period will finish at 23:59:59 of the
same day than validation. If the validation number of days is 2, the holiday period
will finish next day. And so on.
Display shows symbol ( ) during the holiday period.

SUSTITUTION OF THE BATTERY

ATTENTION
To replace the battery, insert a screwdriver into the lower section of the battery
compartment and lightly press downwards.
Remove the spent battery, fit a new one into the battery-holder and reinsert it into
the battery compartment.

Decrement or move
down in menu
Circuit C1 override

Increment or move up

in menu

Move back in menu

Permanent override

(C+C1)

C

Confirms the selection
Starts menu

C1

OK

MENU

Display

Permanent overrride

Override

Holidays program

Summer / Winter time

Clock setting

Day of the week

(1) Monday

AM / PM mode

Hour : Minute

On / Off

Programming

Circuit 1

Pulse

TECHINCAL FEATURES

Power supply As indicated on the
device
Switching capacity: 16 A / 250 V~ cos

φ= 1

10 A / 250 V~ cos φ= 0,6
Contact type and material Changeover AgSnO2
Power consumption: 6 VA 1 circuit (aprox.1 W)
Action type: 1B, 1S, 1T and 1U
Memory spaces: 32
Type of switchings: ON
OFF
PULSE (from 1 to 59 s)
Switching accuracy: Better than 1 second
Operating accuracy: ≤ ± 1 s/ day at 23 ºC
Power reserve: 5 years (Lithium battery)
at 23 ºC
Operating temperature: - 10 ºC to + 45 ºC
Protection category: IP 20 according to

EN 60529

Protection class: II according to EN 60335

when mounted as

intended
Pollution situation: Normal
Sealable cover

PROGRAMMING EXAMPLE

We want to connect a load from 09:00 to 18:00 from Monday to Friday.
(It is considered that there are no other programming).

DIMENSIONS

PULSE PROGRAMMING EXAMPLE

We want to connect a bell at 09:00 for 15 seconds at Monday, Thursday and
Saturday.

A016.16.53103

NORMAL

MODE

As we want to program an
activation, we press ( )
to change to ON

To program
hour

OK

OK

OK

OK

OK

OK

OK

C

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK

Select
desired
hour

To validateTo program

minutes

Select the desired
days of week by
pressing OK.
Not select by
pressing ( ).

To program

disconnection

To program

hour

Select desired

hour

To program

minutes

Program the days

of the week

If no more
switching has to
be programmed

NORMAL

MODE

NORMAL

MODE

As we want to
program a pulse,
we press ( ) to
change to ON ( )

OK

OK

C

OK

OK

OK

OK

OK

OK

OK

OK

Press to
see symbol

Program desired

hour

Program desired

minutes

Program pulse length in

seconds

Select the days
of the week

NORMAL

MODE

ORBIS TECNOLOGÍA ELÉCTRICA, S.A.

Lérida, 61 E–28020 MADRID

Teléfono:+ 34 91 5672277; Fax:[phone]

E-mail: info@ orbis.es

http://www.orbis.es

62

110

55

95

MENU
