Crush PiX 20L
Page 2
9
2
Crush PiX 20L
THANK YOU!
Thank you for choosing Orange. You are now a member of the
‘Legendary British Guitar Amplifier’ owners club!
Since 1968 when the company was founded, Orange has been
a pioneering force in the guitar amplification industry. Today,
with a team of the world’s finest amplifier engineers, Orange
continues to push back the boundaries of conventional tube
amplifier design.
Our commitment to craftsmanship and quality control has
allowed our amplifiers to stand the test of time, giving their owners as much pleasure now, as the day
they were bought. To maintain this level of excellence, each Orange amplifier is put through many
rigorous test procedures before leaving the factory.
The warmth, tonal quality and rich harmonics generated by a valve ampli fier cannot be reproduced
by ‘artificial’ means. Many guitarists have reached the same conclusion: neither the transistor nor
microchip is a suitable alternative to valve technology.
This booklet contains valuable technical and safety information Please take the time to read this
manual as the information may enhance the sound and performance of your amplifier. We are
confident that you will be delighted with your new purchase and that it will provide you with many
years of enjoyment.
Page 3
9
3
Crush PiX 20L
CONTENTS
CONTENTS ............................................................................................................................................... 3
CONTACT DETAILS ................................................................................................................................... 4
IMPORTANT SAFETY INFORMATION ....................................................................................................... 5
USING YOUR AMPLIFIER ......................................................................................................................... 8
Front Panel Features ............................................................................................................................... 9
Rear Panel Features .............................................................................................................................. 11
SPECIFICATIONS .................................................................................................................................... 12
FREE EXTENDED WARRANTY OFFER ..................................................................................................... 13
Page 4
9
4
Crush PiX 20L
CONTACT DETAILS
Orange Amplification
OMEC House
108 Ripon Way
Borehamwood
Hertfordshire
WD6 2JA
ENGLAND
Tel: +44 20 8905 2828
Fax: +44 20 8905 2868
Orange USA
2065 Peachtree Industrial Ct.
Suite 208
Atlanta, GA 30341
USA
Tel: 1-404-303-8196
Fax: 1-404-303-7176
Page 5
9
5
Crush PiX 20L
IMPORTANT SAFETY INFORMATION
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of un-insulated ‘dangerous
voltage’ within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons. Terminals labelled as
“Speaker Outputs” must be connected to a speaker cabinet of the
designated load rating using an un-shielded two conductor cable for speaker use at all times
during operation
The exclamation point within an equilateral triangle and "WARNING" are
intended to alert the user to the presence of important operating
instructions. Failure to heed the instructions will result in severe injury or
death.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near liquid.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Page 6
9
6
Crush PiX 20L
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades, one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Servicing: Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
• Refer all servicing to qualified service personnel.
• Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions: (a) When the power-supply cord or
plug is damaged; (b) If liquid has been spilled, or objects have fallen into the product; (c) If the
product has been exposed to rain or water; (d) If the product does not operate normally by
following the operating instructions. Adjust only those controls that are covered by the
operating instructions. Improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal
operation; (e) if the product has been dropped or damaged in any way; (f) when the product
exhibits a distinct change in performance - this indicates a need for service.
• Replacement Parts: When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
Page 7
9
7
Crush PiX 20L

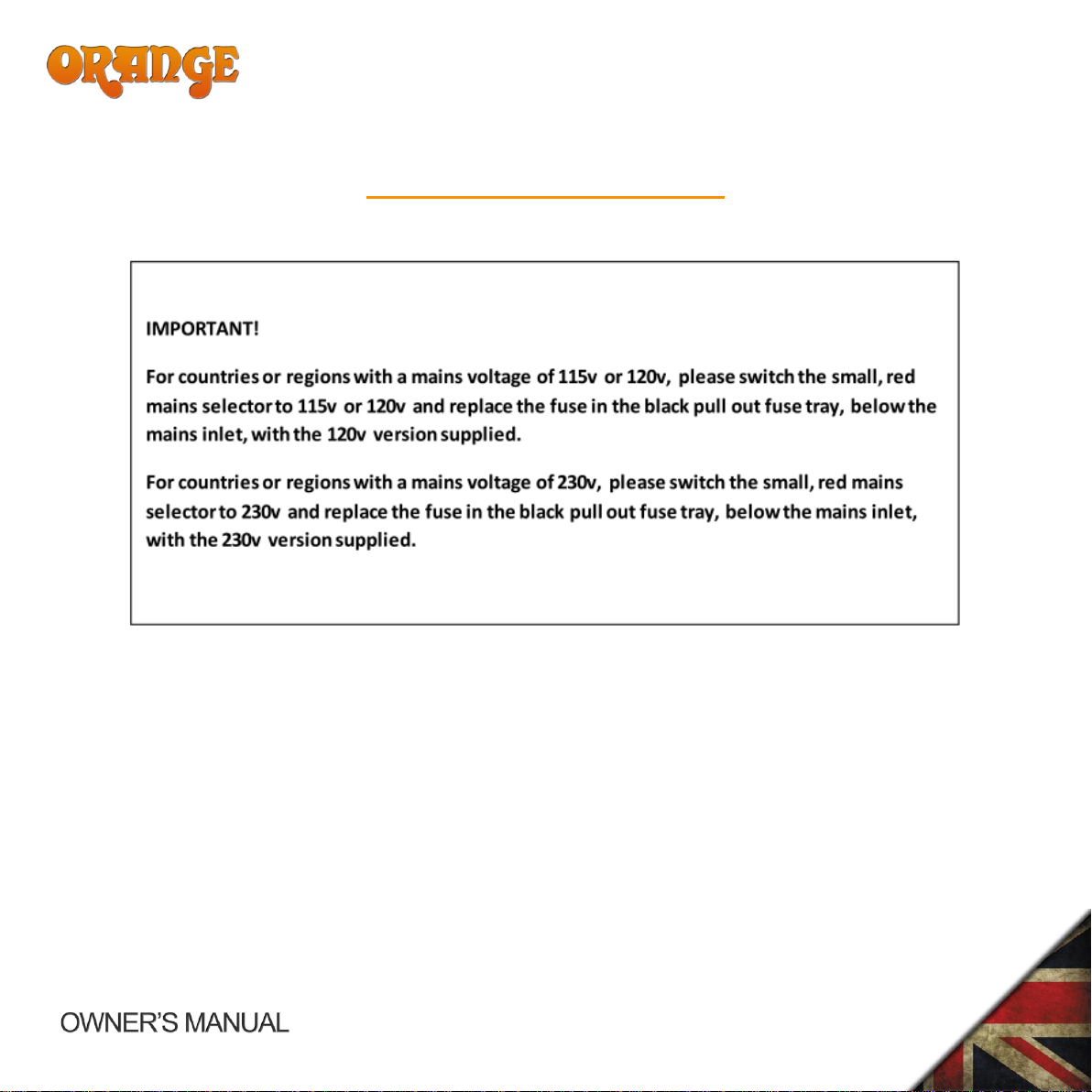

The voltage selector switch and mains fuse are factory set for the
region in which your amplifier is intended to be sold. Do not
tamper with this switch without express permission from
Orange Music Electronic Company Ltd.
Connect the supplied mains cord to the AC Mains Input on the amplifier to your
AC mains wall outlet. This Class I electrical equipment must be earthed. The
correct mains fuse value for your region are displayed on the unit, close to
the AC Mains Input. Replace only with the same type and value. If the mains
fuse repeatedly blows, contact your Orange dealer.
Page 8
9
8
Crush PiX 20L
USING YOUR AMPLIFIER
Fuses:
100/120V – T630mA
230/240V – T315mA
Page 9
9
9
Crush PiX 20L
FRONT PANEL FEATURES

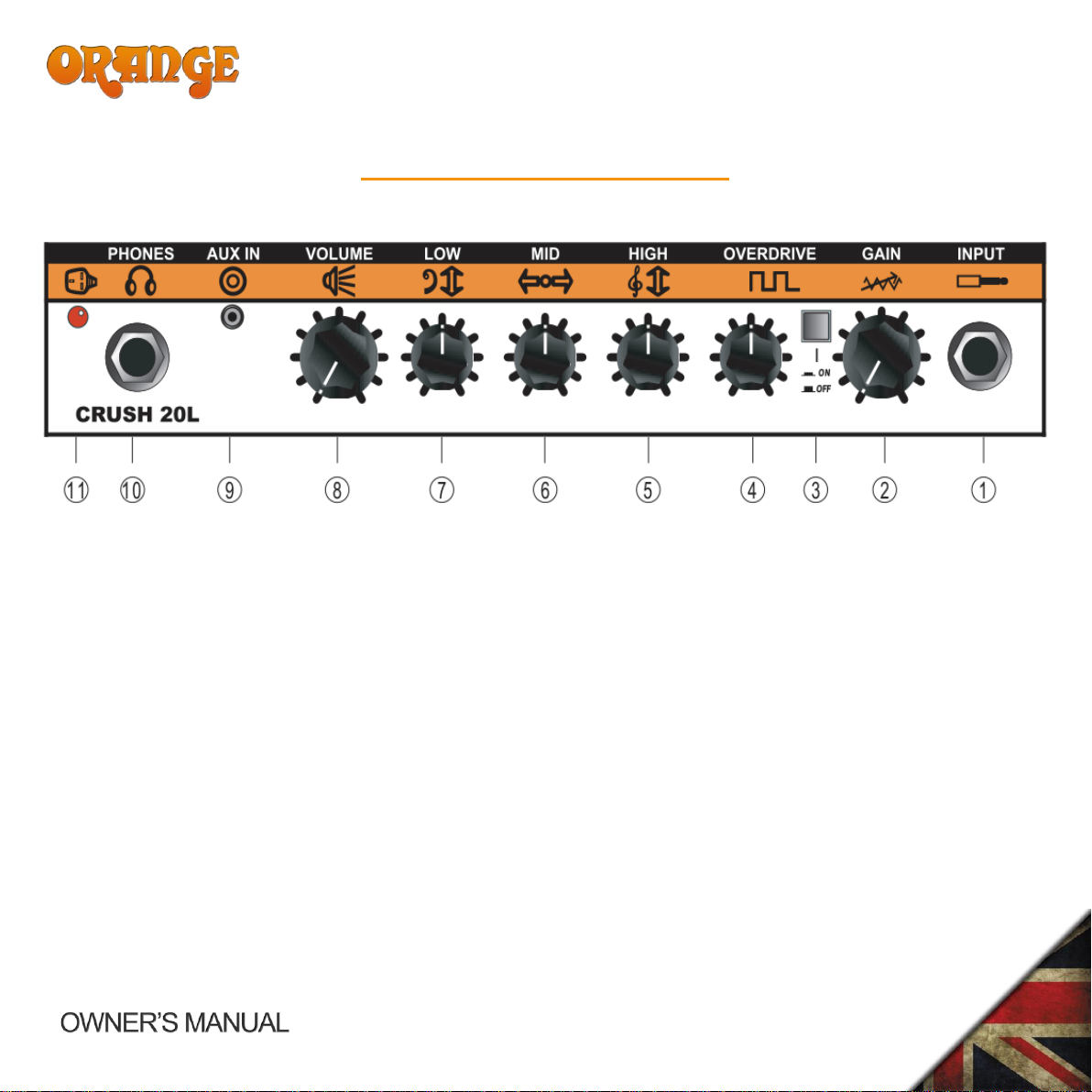

1. Input Jack Socket
Plug your instrument into this jack socket.
2. Gain Control
This controls pre-gain level.
3. Overdrive Switch
Use this switch to select the Overdrive(switch depressed) or the Clean channel(switch in the out
position)
4. Overdrive Level
This controls the amount of distortion ranging from overdrive to high gain.
Page 10
9
10
Crush PiX 20L
5. High
Provides high frequency equalization if required.
6. Mid
Provides middle frequency equalization with cut and boost.
7. Low
Provides low frequency equalization as required.
8. Volume
Controls the overall volume of the amplifier.
9. Aux In
Use this 1/8" stereo mini jack to connect the output from CD or MP3 player, laptop, etc, to the
amp(the jacks are internally summed to a mono signal.)
10. Phones
For use with most stereo headphones.
CAUTION: To avoid possible damage to your hearing, do not use headphones for extended
periods of time at extremely loud levels.
11. Power Indicator
LED indicates whether the power switch is ON or OFF.
Page 11
9
11
Crush PiX 20L

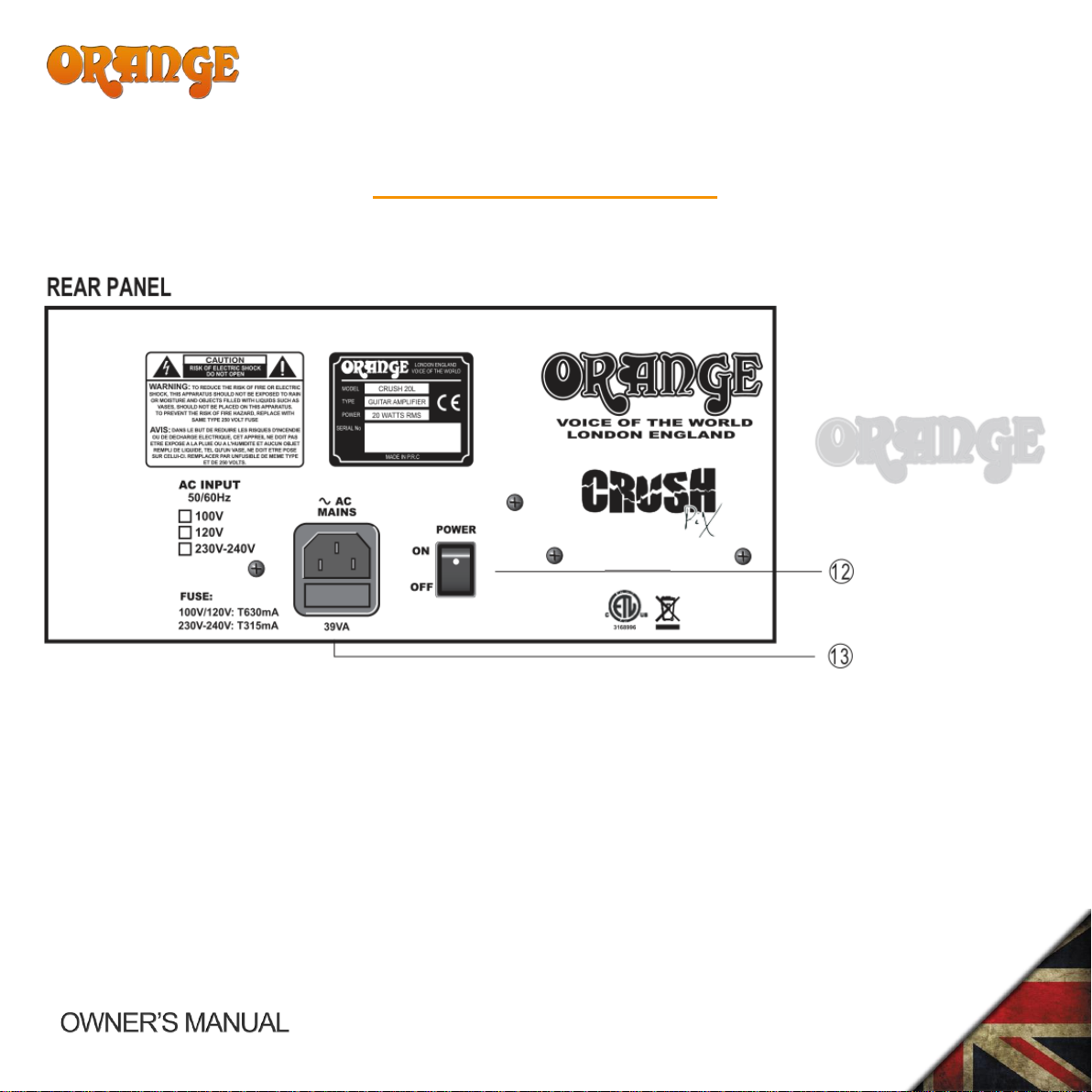

REAR PANEL FEATURES

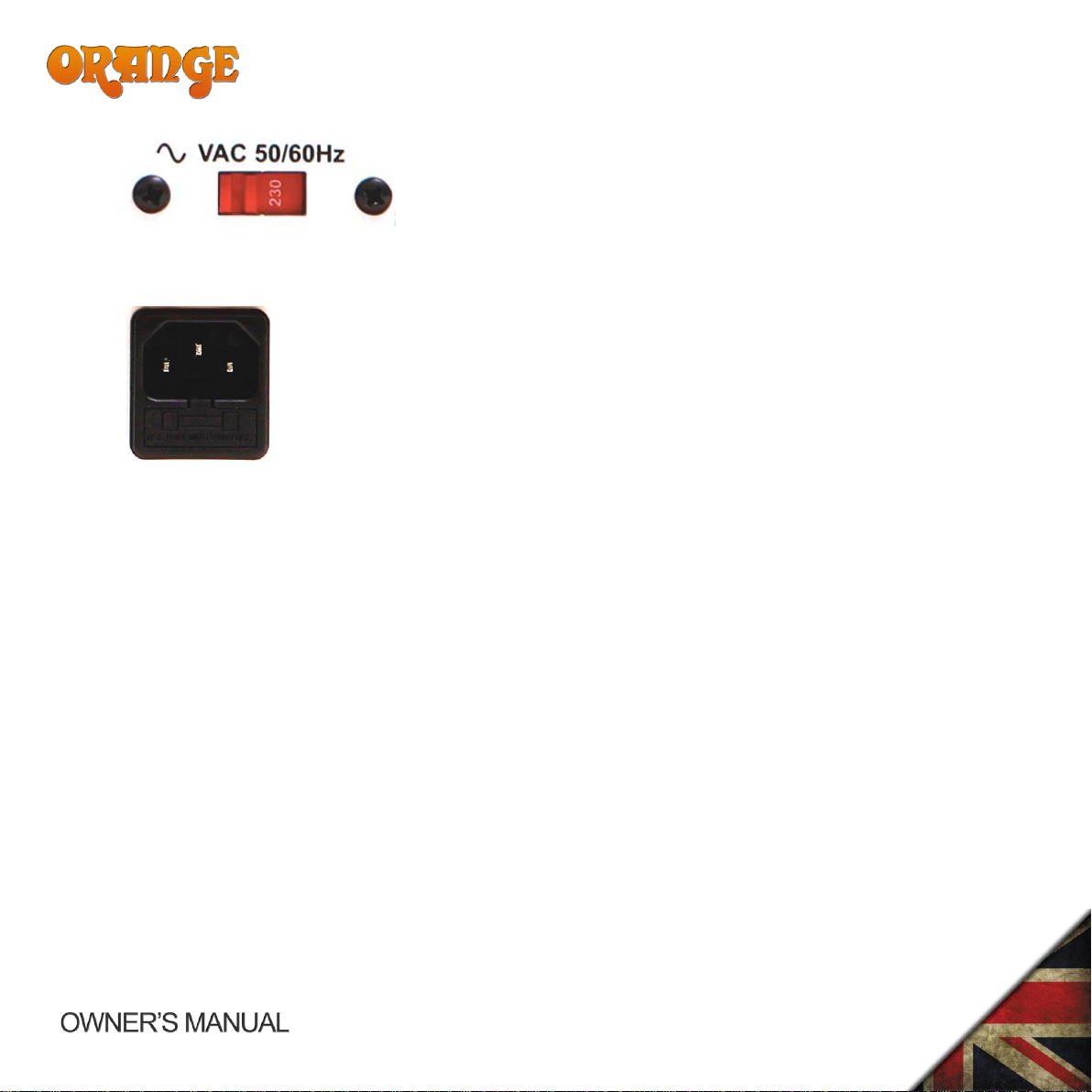

12. A/C Main Power Switch
This switch turns the AC MAIN power on/off
13. AC Inlet and Fuseholder
Connect the supplied standard 3-pin “IEC” plug here.
Page 12
9
12
Crush PiX 20L

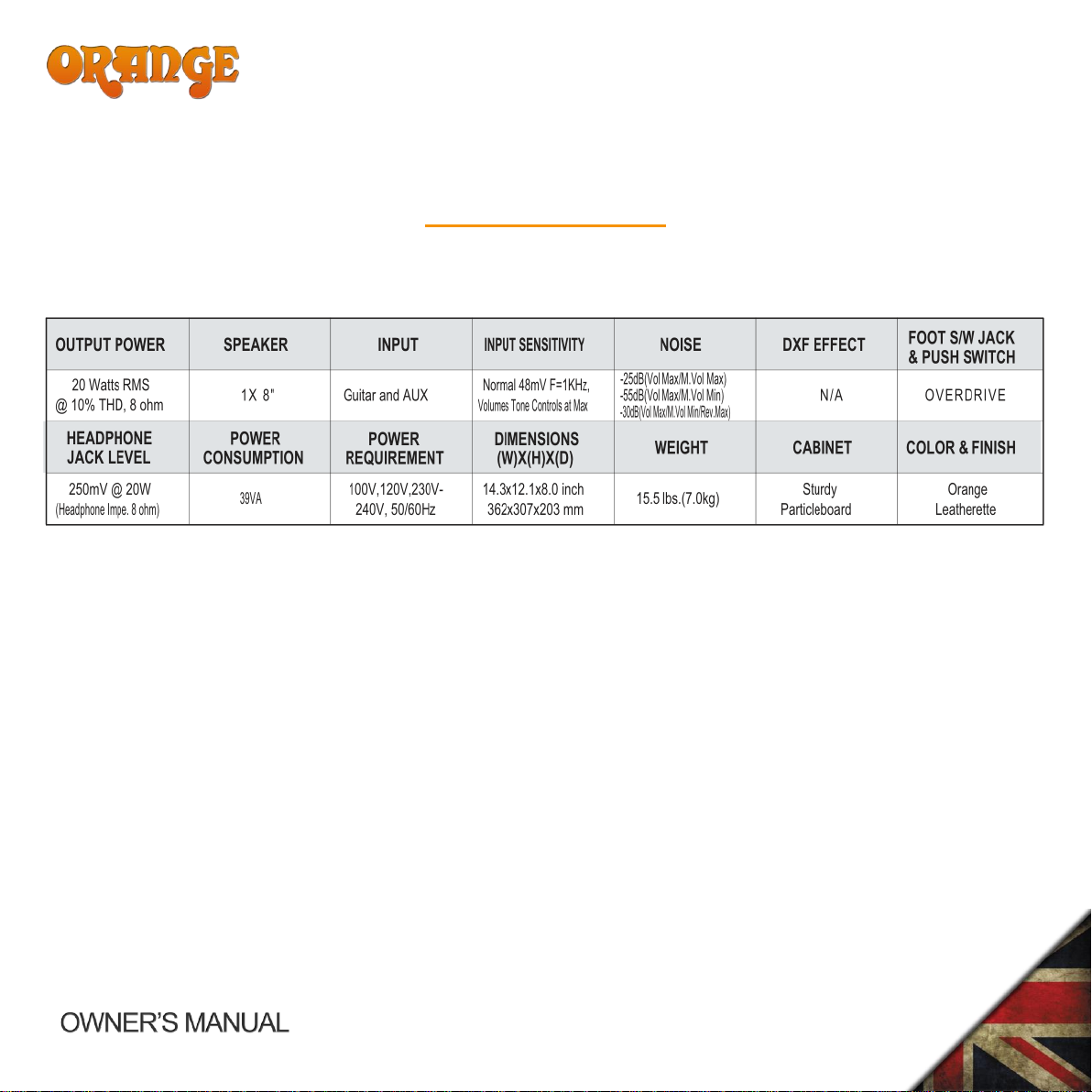

SPECIFICATIONS
Page 13
9
13
Crush PiX 20L
FREE EXTENDED WARRANTY OFFER
Orange amplifiers are under warranty for one year subject to consumer protection laws in the
country of purchase and distributor’s terms and conditions, an additional year can be added by
registering.
Valves and speakers supplied with an Orange amp or purchased separately at our online store are
covered for 90 days from the date of purchase.
The warranty status of any Orange product is subject to its being used for its intended purpose in
suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange
product which has been misused in any way whatsoever.
