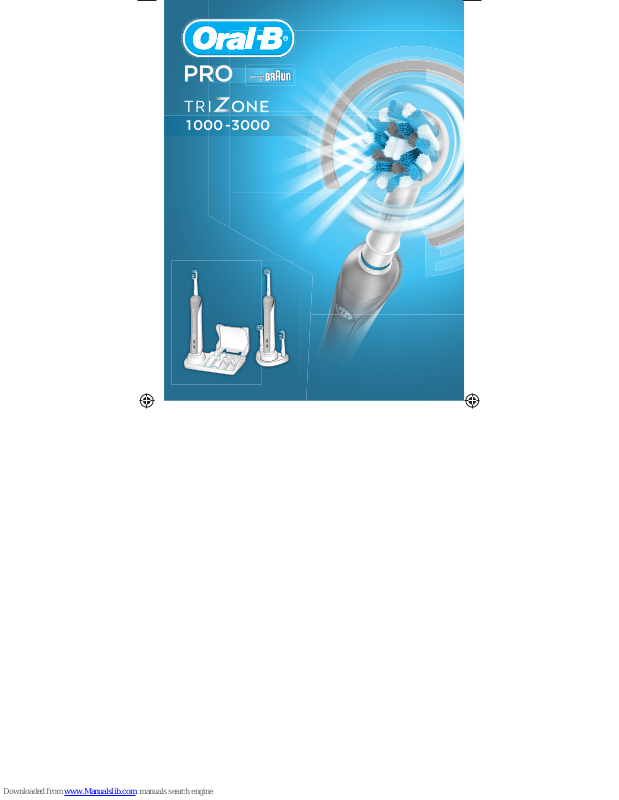

Oral-B Pro TriZone 1000, TriZone 3000, TriZone 2000, Pro TriZone 3000, Pro TriZone 2000 Quick Manual

Download

Page 1

Oral

1000-3000

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 2

Oral-B

Oral

Oral-

Oral

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 3

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 4

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 5

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 6

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 7

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 8

English

Thank you for choosing Oral-B. This toothbrush has been designed to offer you and your family a unique brushing experience that is both safe and effective.

Before operating this toothbrush, please read these instructions carefully and save this manual for future reference.

IMPORTANT

•

Periodically check the cord for damage. If cord is damaged, take the charging unit to an Oral-B Service Centre. A damaged or non-functioning unit should no longer be used. Do not modify or repair the product. This may cause fire, electric shock or injury.

•

This product is not intended for use by children under age three. Children from 3 to 14 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use the toothbrush, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

•

Cleaning and maintenance shall not be performed by children.

•

Children shall not play with the appliance.

•

Use this product only for its intended use as described in this manual. Do not use attachments which are not recommended by the manufacturer.

•

Replace brush (head) every 3 months or sooner if brush head becomes loose due to damage.

WARNING

• If the product is dropped, the brush head should be replaced before the next use even if no damage is visible.

• Do not place the charger in water or liquid or store where it can fall or be pulled into a tub or sink. Do not reach for it when fallen into water. Unplug immediately.

• Do not disassemble the product except when disposing of the battery. When taking out the battery for disposal of the unit, use caution not to short the positive (+) and negative (–) terminals.

• When unplugging, always hold the power plug instead of the cord. Do not touch the power plug with wet hands. This can cause an electric shock.

• If you are undergoing treatment for any oral care condition, consult your dental professional prior to use.

• This toothbrush is a personal care device and is not intended for use on multiple patients in a dental practice or institution.

Specification

For voltage specifications refer to the bottom of the charging unit.

Description

a Brush head b Pressure sensor light c On/off button (mode selection)

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 9

d Handle e Charge indicator light f Low charge indicator light g Basic charger h Brush head holder (depending on model) i Brush head compartment with protective cover

(depending on model)

Connecting and charging

Your toothbrush has a waterproof handle, is electrically safe and designed for use in the bathroom.

• Plug the basic charger (g) or the assembled charging unit (see picture B/C) into an electrical outlet and place the toothbrush handle (d) on the charging unit.

• The green charge indicator light (e) flashes while the handle is being charged. Once it is fully charged, the light turns off. A full charge can take up to 22 hours and enables up to seven days of regular brushing (twice a day, 2 minutes) (picture 1). Note: After deep discharge, the green light might not flash immediately; it can take up to 10–15 minutes.

• When the rechargeable battery is low, the red low charge indicator light (f) starts flashing after turning off the toothbrush.

• For everyday use, the toothbrush handle can be stored on the plugged-in charging unit to maintain it at full power. Overcharging is impossible.

• To maintain the maximum capacity of the rechargeable battery, unplug the charging unit and fully discharge the handle with regular use at least every 6 months.

Using your toothbrush

Brushing technique

Wet brush head and apply any kind of toothpaste. To avoid splashing, guide the brush head to your teeth before switching on the appliance (picture 2). When brushing your teeth with one of the Oral-B oscillating-rotating brush heads guide the brush head slowly from tooth to tooth, spending a few seconds on each tooth surface (picture 5). When using the Oral-B «TriZone» brush head place the toothbrush bristles against the teeth at a slight angle towards the gumline. Apply light pressure and start brushing in back and forth motions, just like you would do with a manual toothbrush (picture 6). With any brush head start brushing the outsides, then the insides and finally the chewing surfaces. Brush all four quadrants of your mouth equally. You may also consult your dentist or dental hygienist about the right technique for you.

In the first days of using any electric toothbrush, your gums may bleed slightly. In general, bleeding should stop after a few days. Should it persist after 2 weeks, please consult your dentist or dental hygienist.

Brushing modes (depending on model)

PRO 1000

PRO 3000

TriZone 3000

Brushing modes

✓✓✓

Daily Clean – Standard for daily mouth cleaning

✓✓

Sensitive – Gentle, yet thorough cleaning for sensitive areas

✓✓

Whitening – Exceptional polishing for occasional or everyday use

✓✓

Gum Care – Gentle massage of gums

How to switch between modes: Your toothbrush automatically starts in the «Daily Clean» mode. To switch to the other modes, successively press the on/off button. If you wish to turn off your toothbrush from the «Sensitive» mode e.g., push and hold down the on/off button until the motor stops.

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 10

Professional Timer

A short stuttering sound at 30-second intervals reminds you to brush all four quadrants of your mouth equally (picture 3). A long stuttering sound indicates the end of the professionally recommended 2-minute brushing time. The elapsed brushing time is memorised even when the handle is briefly switched off during brushing. When pausing longer than 30 seconds the timer resets.

Pressure Sensor

Protecting your teeth and gums from hard brushing, your toothbrush has a pressure control feature installed. If too much pressure is applied, the red pressure sensor light (b) will light up reminding you to reduce pressure (picture 4). In addition you will also hear a different sound while brushing. Periodically check the operation of the pressure sensor by pressing lightly on the brush head during use.

Brush heads

Oral-B offers you a variety of different Oral-B brush heads that fit your Oral-B toothbrush handle.

Our oscillating-rotating brush heads can be used for tooth-bytooth precision cleaning.

Oral-B CrossAction brush head

Our most advanced brush head. Angled bristles for a precise clean. Lifts and powers away plaque.

Oral-B FlossAction brush head

features micropulse bristles that get deep in hard-toreach areas between your teeth, gently removing hidden plaque.

Oral-B Precision Clean brush head

cups each tooth with a curved bristle trim and reaches deep between teeth at the same time.

Oral-B Sensitive brush head

features an extra soft bristle structure that is gentle on teeth and gums.

Oral-B ProWhite brush head

features a dentist-inspired polishing cup to remove surface stains from coffee, tea and tobacco for effective brightening. Please note that children under 12 years old should not use the Oral-B ProWhite brush head.

Our sweeping TriZone brush head can be used with all common brushing techniques.

Oral-B TriZone brush head

features triple zone cleaning action for outstanding plaque removal, even in between teeth.

Oral-B brush heads feature light blue INDICATOR

bristles to help you monitor brush head replacement need. With thorough brushing, twice a day for two minutes, the blue color will fade halfway approximately within 3 months, indicating the need to replace your brush head. If the bristles splay before the color recedes, you may exert too much pressure on teeth and gums.

We do not recommend using the Oral-B FlossAction or Oral-B ProWhite brush head with braces. You may use the Oral-B Ortho brush head, specifically designed to clean around braces and wires.

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 11

Warranty replacement brush heads

Oral-B warranty will be voided if electric rechargeable handle damage is found to be attributed to the use of non-Oral-B replacement brush heads.

Oral-B does not recommend the use of non Oral-B replacement brush heads.

• Oral-B has no control over the quality of non-Oral-B replace-

ment brush heads. Therefore, we cannot ensure the cleaning performance of non-Oral-B replacement brush heads, as communicated with the electric rechargeable handle at time of initial purchase.

• Oral-B cannot ensure a good fit of non-Oral-B replacement brush

heads.

• Oral-B cannot predict the long-term effect of non-Oral-B replace-

ment brush heads on handle wear.

All Oral-B replacement brush heads carry the Oral-B logo and meet Oral-B’s high quality standards. Oral-B does not sell replacement brush heads or handle parts under any other brand name.

Cleaning recommendations

After brushing, rinse your brush head carefully under running water with the handle switched on. Switch off and remove the brush head. Clean both parts separately under running water and wipe them dry before reassembling the toothbrush. Disassemble the charging unit (depending on model) before cleaning. The brush head holder is dishwasher-safe. The charger should be cleaned with a damp cloth only (picture 7).

Subject to change without notice.

Environmental Notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose in household waste, but for recycling take to electric waste collection points provided in your country.

Guarantee

We grant 1 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use, especially regarding the brush heads, as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Oral-B Braun Service Centre.

Leporello, 80x220 mm, 12 pages, 2/2c = black + PMS300u

Page 12

If you should require further assistance, please call our Consumer Service line.

Internet:

www.oralb.com www.oral-b.co.kr www.braun.com www.service.braun.com

Braun GmbH Frankfurter Straße 145 61476 Kronberg/Germany

Charger Type 3757 Handle Type 3756

96841239/VI-14 Korea/GB
