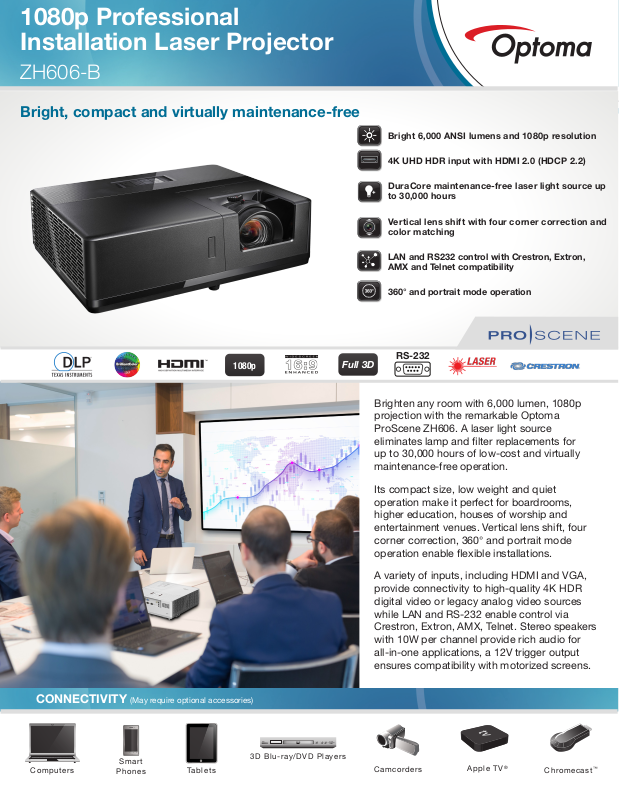

1080p Professional
Installation Laser Projector
ZH606-B
Bright, compact and virtually maintenance-free
Bright 6,000 ANSI lumens and 1080p resolution
4K UHD HDR input with HDMI 2.0 (HDCP 2.2)
DuraCore maintenance-free laser light source up
to 30,000 hours
Vertical lens shift with four corner correction and
color matching
LANand RS232 control with Crestron, Extron,
AMX and Telnet compatibility
360° and portrait mode operation
1080p
Full 3D
RS-232
Brighten any room with 6,000 lumen, 1080p
projection with the remarkable Optoma
ProScene ZH606. A laser light source
eliminates lamp and lter replacements for
up to 30,000 hours of low-cost and virtually
maintenance-free operation.
Its compact size, low weight and quiet
operation make it perfect for boardrooms,
higher education, houses of worship and
entertainment venues. Vertical lens shift, four
corner correction, 360° and portrait mode
operation enable exible installations.
A variety of inputs, including HDMI and VGA,
provide connectivity to high-quality 4K HDR
digital video or legacy analog video sources
while LAN and RS-232 enable control via
Crestron, Extron, AMX, Telnet. Stereo speakers
with 10W per channel provide rich audio for
all-in-one applications, a 12V trigger output
ensures compatibility with motorized screens.
CONNECTIVITY (May require optional accessories)
Computers
Smart
Phones
Tablets
3D Blu-ray/DVD Players
Camcorders
Apple TV
®
Chromecast
™
Page 2
1080p Professional Installation Laser Projector - ZH606-B
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Texas Instrum ents™ 0.65” 1080 p DMD
Color Wheel 4 segment RGBY
Native Resolution 1080p
Maximum Resolution 4K (4096 x 2160, 60Hz)
Brightness 6,000 A NSI lumens
Contrast Ratio 300,000:1 (Ex treme Black en abled) 2,000:1 full on/ full of f
Displayable Colors 1.07 billion
Lamp L ife an d Type* Up to 30,00 0 hrs (Eco), 20,00 0 hrs (Normal )
Light Sour ce Type* DuraCore Laser
Proje ction Met hod 360°, front, rea r, ceiling mount, ta ble top
Keystone Correction ±30° horizontal and vertical
Geometry Four corner adjustment
Lens S hif t 21% vertic al
Uniformity 85%
Offset 106%
Aspe ct Ratio 16:9 (native), 4:3comp atible
Throw Ratio 1.2-1.9:1
Projection Distance 4.3’- 32.8
Image Size 31” – 301”
Projection Lens F=2.5-3.0 f=17.6 3-31.63
Optical Zoom 1.6x
Digital Zoom 0.8 - 2.0x
Audio 2 x 10W (stereo)
Noise Level 33db
Remote Control Full size remote with laser pointer
360° and Portrait mode operation¹ Yes (limitations apply on 36 0° single axis installation.
Please c heck user manual for more deta ils)
Operating Temperature 41–104°F (5 –40°C), 85% max humidit y
Power Suppl y AC input 100 –240V, 50–60Hz, auto -switching
Power Consumption Bright: 415W (typical), 477W (max)
Eco: 182W (typical), 209W (max)
High Altitude Operating temperature at se a level up to 10,0 00 feet =
104° F (max); Mus t manua lly switch to high altitude mode
from 5,000 feet and above (using OSD menu) to ma intain
optimal functionality.
COMPATIBILITY SPECIFICATIONS
Computer Compatibility VGA, SVGA, HDT V(720P), WXGA, WXGA+, SXGA , SXGA+,
UXGA, HDTV(1080p), WUXGA, 4K UHD (24/30/50/60Hz),
4K (DCI) (24/30Hz)
Video Input Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p
4K UHD 2160p (24/50/60 Hz)
3D Compatibility
Vertical Scan Rate 24 ~ 85 Hz (120Hz for 3D fe ature projector)
Horizontal Scan Rate 15.375 ~ 91.146 KHz
User Controls Graphic user interface and on-screen
menuin27languages
I/O Connection Ports 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x composite,
1x VGA, 1x compo site, 1x VGA out, 1x audio in,
1x mic/audio in, 1x USB-A (p ower), 1x 12V trigge r
Control 1x RJ-45, 1x RS-232C
Loop Through (Au dio) No
†
Supports all HDMI 1.4a man dator y 3D formats (Fra me
pack, si de-by-side, top-bottom) and up conver ts frame
rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72
frames per eye). 3D glasse s are needed and are sold
separately. Refer to user manual fo r details.
PHYSICAL SPECIFICATIONS
Security Kensington® lock port, password (OSD)
Weight 12.3 lbs
Dimensions (W x H x D) 14.7” x 4.6” x 11.9”
1 6 7
2 3 4 5
11
8 9
13
1. HDMI 2
2. HDMI 1/MHL
3. USB Power-Out
4. VGA-In
5. Composite-In
Power On
Mode
10
6. Audio-In/Mic-In
7. 12V-Out
8. RJ-45
9. RS232
10. VGA-Out
12
14
11. Audio-In 2
12. Audio-Out
13. AC Power
14. Lock
Power Off
Mute
Four Directional
Select Keys
Source
Re-sync
Menu
Volume
Format
Freeze
S-Video
VGA
HDBaseT
Video
B-NC
YPbPr
Warranty
3-year or 20,000 hour light source warranty (whichever comes rst), 3-year Optoma
Express advance exchange warranty on the projector.
What’s in the Box
ZH606-B, AC power cable, remote, batteries, quick start guide and warranty card
Optional Accessories
Remote, mount
Accessory Part Numbers
Universal ceiling mount: BM-5001U
Remote: BR-3075W
UPC 796435 44 453 2
Zoom
HDMI1
HDMI2
HDMI3
DVI
3D
DisplayPort
*Light source life is dependent on brightness mode, display mode, usage, environmental conditions and
more. Light source brightness can decrease over time.
†
Watching 3D projection while wearing 3D glasses for an extended period of time may cause
headaches or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D
projection and rest.
¹Portrait orientation must follow the recommended positions. Please consult the user manual for
further information.
