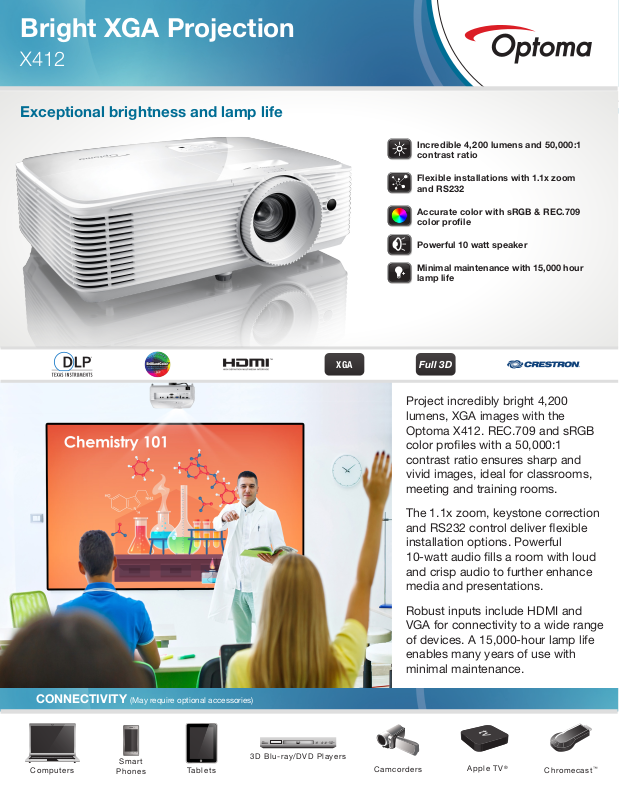

Optoma X412 Product Sheet
Bright XGA Projection
X412
Exceptional brightness and lamp life
Incredible 4,200 lumens and 50,000:1
contrast ratio
Flexible installations with 1.1x zoom
and RS232
Accurate color with sRGB & REC.709
color profile
Powerful 10 watt speaker
Minimal maintenance with 15,000 hour
lamp life
XGA
Full 3D
Project incredibly bright 4,200
lumens, XGA images with the
Optoma X412. REC.709 and sRGB
color proles with a 50,000:1
contrast ratio ensures sharp and
vivid images, ideal for classrooms,
meeting and training rooms.
The 1.1x zoom, keystone correction
and RS232 control deliver exible
installation options. Powerful
10-watt audio lls a room with loud
and crisp audio to further enhance
media and presentations.
Robust inputs include HDMI and
VGA for connectivity to a wide range
of devices. A 15,000-hour lamp life
enables many years of use with
minimal maintenance.
CONNECTIVITY (May require optional accessories)
Computers
Smart
Phones
Tablets
3D Blu-ray/DVD Players
Camcorders
Apple TV
®
Chromecast
™
Bright XGA Projection - X412
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Texas Instruments 0.65” XGA DMD
Color Wheel 6 Segment; RYGCWB
Native Resolution XGA (1024 x 768)
Maximum Resolution UXGA (1600 x 1200)
Brightness 4,200 ANSI lumens
Contrast Ratio 50,000:1
Displayable Colors 1.07 billion
Lamp L ife* 4,000/10,000/15,000 (Bright/Eco/Dynamic)
Light Sourc e Type* 245W lamp
Proje ctio n Meth od front, rear, ceiling mount, ta ble top
Keystone Correction ±40 degree (ver tical)
Geometry Keystone correction
Lens S hif t N/A
Uniformity 85%
Offset 115% ±5%
Aspe ct Rat io 4:3 (native), 16:9, LBX and a uto compatible
Throw Ratio 1.9 4 ~2 .16 :1
Projection Distance 3.3’-32.8’ (without zoom)
Image Size 27.5”-304.4”
Projection Lens F=2.41–2.53, F=21.86-24mm
Optical Zoom 1.1x
Digital Zoom 0.8 - 2.0x
Audio 10W
Noise Level 26 dB
Remote Control Full size remote
360° and Portrait Mode Operation No
Operating Temperature 41–104°F (5 –40°C), 85% max humidity
Power Supply AC input 100 - 240V, 50 - 60 Hz, auto-switching
Power Consumption 325W max, 295W typical (Bright mode),
225W max, 205W typical (Eco Mode)
High Altitude Operating te mperature at sea l evel up to 10,00 0 feet =
104° F (max); Mus t manually switch to high altitude mode
from 5,000 feet and above (using OSD menu) to maintain
optimal functionality
COMPATIBILITY SPECIFICATIONS
Computer Compatibility VGA, SVGA, HDTV(720P), XGA , XGA+, SXGA, SXGA+,
UXGA , HDT V(1080p), WUXGA
Video Input Compatibility PAL, SECAM, 576i/p, NTSC, 48 0i/p, HDT V 720p/1080 i/1080p
3D Compatibility
Vertical Scan Rate 50~ 85 Hz (120Hz for 3D feature projector)
Horizontal Scan Rate 15.375 ~91.146 KHz
Inpu t lag 32ms
I/O Connection Ports 2x HDMI 1.4a, 1x VGA , 1x audio in, 1x USB-A, 1x VGA out,
Control RS232
†
Supports all HDMI 1.4a mandatory 3D formats ( Frame
pack, si de-by-side, top-bottom) and up converts frame
rate from 60Hz to 120Hz or 24Hz to 144Hz ( i.e. 60 or 72
frames per eye). 3D glasses are needed and are s old
separately. Refer to u ser manual for details.
1x audio out
PHYSICAL SPECIFICATIONS
Security Kensington® lock port, password (OSD)
Weight 7.7 lbs
Dimensions (W x H x D) 12.4(W) x9.5 (D) x4.5(H)
1
2 3 4 5
6 7
9
1. HDMI
2. HDMI
3. USB-Power/out
4. Audio-Out
Power On
Freeze
Left
10
5. VGA-In
6. VGA-Out
7. Audio-In
8. RS232
8
9. AC power
10. Kensington lock
Switch
Mute
Right
Four Directional
Enter
Select Keys
Laser
Page +
Keystone
Menu
VGA
HDMI
User 1
Source
Page -
Volume
3D
Video
User 3
Resync
User 2
Brightness
Warranty
1 Year limited parts and labor warranty on the projector, 90 days lamp warranty
What’s in the Box
X412 projector, AC power cord, remote control, batteries for remote, quick start user
manual
Accessories
Lamp (replacement): BL-FU245A
Remote (replacement): BR-5080C
Carrying case: BK-4028
Universal ceiling mount: OCM815W
Universal ceiling mount: OCM818W-RU
Universal ceiling mount: BM-5001
4K UHD Casting and mirroring adapter: UHDCast Pro
QuickCast Pro 4K HDMI starter kit: QCP-SK-4K-HDMI (1 TX and 1 RX)
QuickCast Pro 4K HDMI starter kit: QCP-4K-KIT (2 TX, 1 RX, 1 Cradle)
UPC 796435 44 393 1
Light source life is dependent on brightness mode, display mode, usage, environmental conditions and
more. Light source brightness can decrease over time.
Watching 3D projection while wearing 3D glasses for an extended period of time may cause headaches
or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D projection and rest.
Optoma.com
Copyright © 2019 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks
of Texas Instruments™. All other trademarks are the property of their respective owners. All
specications subject to change at any time. 05272020
