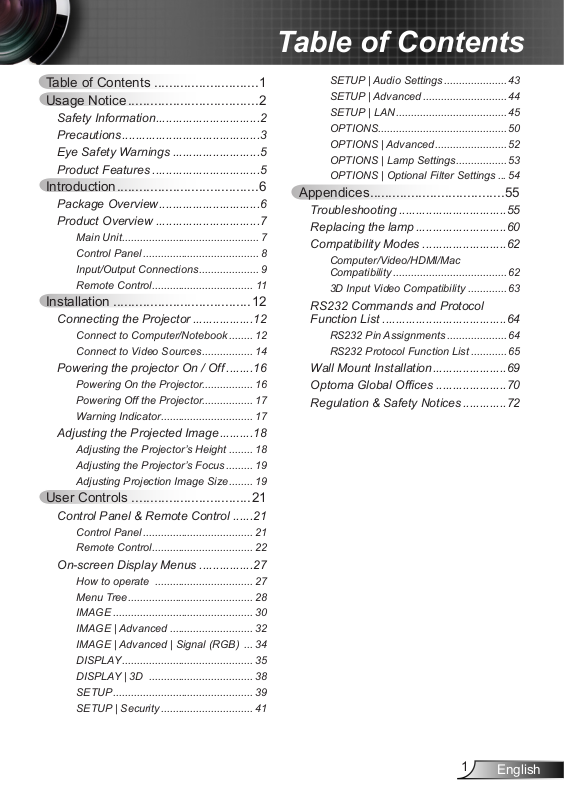

Table of Contents ............................1
Usage Notice ...................................2
Safety Information ...............................2
Precautions .........................................3
Eye Safety Warnings ..........................5
Product Features ................................5
Introduction ......................................6
Package Overview ..............................6
Product Overview ...............................7
Main Unit ..............................................7
Control Panel ....................................... 8
Input/Output Connections .................... 9
Remote Control .................................. 11
Installation .....................................12
Connecting the Projector ..................12
Connect to Computer/Notebook ........ 12
Connect to Video Sources ................. 14
Powering the projector On / Off ........16
Powering On the Projector .................16
Powering Off the Projector .................17
Warning Indicator ...............................17
Adjusting the Projected Image ..........18
Adjusting the Projector’s Height ........ 18
Adjusting the Projector’s Focus ......... 19
Adjusting Projection Image Size ........ 19
User Controls ................................21
Control Panel & Remote Control ......21
Control Panel ..................................... 21
Remote Control ..................................22
On-screen Display Menus ................27
How to operate .................................27
Menu Tree .......................................... 28
IMAGE ............................................... 30
IMAGE | Advanced ............................ 32
IMAGE | Advanced | Signal (RGB) ... 34
DISPLAY ............................................ 35
DISPLAY | 3D ................................... 38
SETUP ............................................... 39
SETUP | Security ............................... 41
SETUP | Audio Settings ..................... 43
SETUP | Advanced ............................ 44
SETUP | LAN ..................................... 45
OPTIONS ........................................... 50
OPTIONS | Advanced ........................ 52
OPTIONS | Lamp Settings ................. 53
OPTIONS | Optional Filter Settings ... 54
Appendices ....................................55
Troubleshooting ................................55
Replacing the lamp ...........................60
Compatibility Modes .........................62
Computer/Video/HDMI/Mac
Compatibility ...................................... 62
3D Input Video Compatibility .............63
RS232 Commands and Protocol
Function List .....................................64
RS232 Pin Assignments .................... 64
RS232 Protocol Function List ............ 65
Wall Mount Installation ......................69
Optoma Global Ofces .....................70
Regulation & Safety Notices .............72
2
English

Usage Notice

Safety Information

The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampliers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specied by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):
Unit has been dropped.Power supply cord or plug has been damaged.Liquid has been spilled on to the projector.Projector has been exposed to rain or moisture.Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in re or electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
3
English
Usage Notice

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt and damage your eyes.
Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
Warning- Please do not open or disassemble the projector as
this may cause electric shock.
Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
60-61.
Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows warning messages.
Warning- Reset the “Lamp Reset” function from the on-screen
display “OPTIONS | Lamp Settings” menu after replacing the lamp module (refer to page 53).
When the lamp
reaches the end of its life, the pro-
jector will not turn back on until the lamp module has
been replaced. To replace the
lamp, follow the
procedures listed under “Replacing
the Lamp” section
on pages 60-61.
Warning- When switching the projector off, please ensure
the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
Warning- Do not use lens cap when projector is in operation.

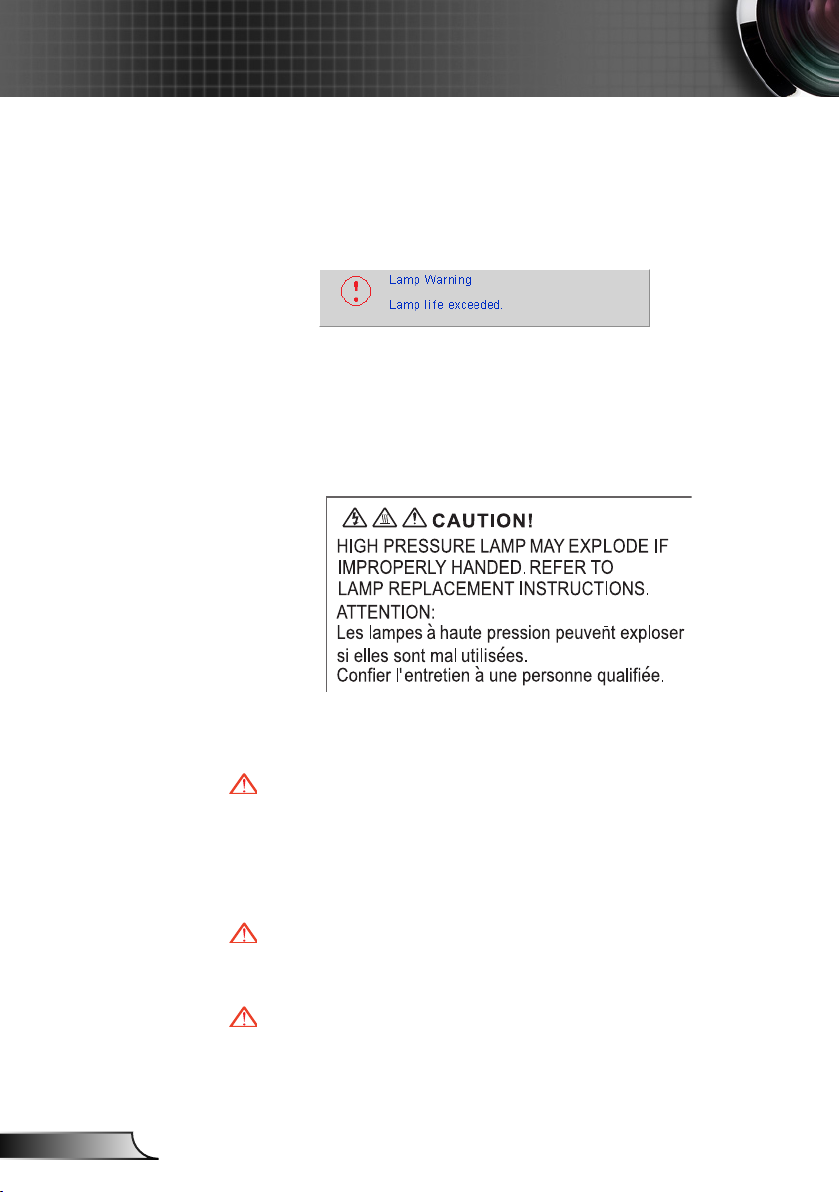

Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon
as possible.
Warning- Do not look into or point the laser pointer on your
remote control into your or someone’s eyes. Laser pointer can cause permanent damage to eyesight.
4
English
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 40°C.
Relative Humidity is 5 - 40°C, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
5
English
Usage Notice

Eye Safety Warnings

Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
In order to minimize the lamp power, use room blinds to
reduce ambient light levels.

Product Features

Monitor loop
through only sup­ported in VGA1-
In/YPbPr.
XGA (1024x768) / WXGA (1280x800) Native resolution
HD compatible – 720p and 1080p supported
VGA monitor loop through
(works in standby mode > 0.5W)
BrilliantColorTM Technology
Security Bar and Kensington Lock
RS232 control
Rapid shutdown
Built-in speakers
Network support
Full 3D
Eco+ and Quick Resume
6
English

Introduction

Menu

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.
Due to different
applications in
each Country, some regions may have
different accessories.
Projector with lens cap
2 × AAA Batteries
Documentation :
User’s Manual

Warranty Card

Quick Start Card

WEEE Card

(for EMEA only)
STOP Card

(for US Only)
Power Cord
IR Remote Control
VGA Cable
7
English
Introduction

Product Overview

Main Unit

The interface
is subject to model’s speci­cations.
Do not block
projector in/out
air vents.
8
9
5
4
6
7
1
3
2
8
Control Panel1. Focus Ring2.
Speaker3. Zoom Lens4.
Input / Output Connections6. Power Socket7.
Ventilation (inlet)8. Ventilation (outlet)9.
IR Receiver5.
8
English
Introduction
/
/

Control Panel

2 31
4
510
69
8
Power LED1. Lamp LED 2. Temp LED3. Enter / Help4.
Menu5.
Re-Sync6. Keystone Correction7. Four Directional Select Keys8.
Source9. Power/Standby button10.
7
9
English
Introduction
HDMI
VGA-OUT
RS-232C
VGA2-IN/YPbPr
VIDEO
S-VIDEO
AUDIO-IN
AUDIO-OUT
MOUSE
(SERVICE)
VGA1-IN/YPbPr/
Type A

Input/Output Connections

5421 3 86 7
Monitor loop
through only sup­ported in VGA1-
IN/YPbPr.
9 1211
10
USB Connector / Type-B (Connect to PC for Remote Mouse 1. function) HDMI Connector2. Composite Video Input Connector3. S-Video Input Connector4. VGA-Out Connector (Monitor Loop-through Output)5.
VGA1-In/YPbPr/6. Connector (PC Analog Signal/Component Video Input/HDTV/YPbPrr/
Wireless function via VGA Dongle)
RS-232 Connector (9-pin DIN Type)7. Audio Input connector (3.5mm mini jack)8. Power Socket9. VGA2-In/YPbPr Connector 10. (PC Analog Signal/Component Video Input/HDTV/YPbPr)
Kensington11.
TM
Lock Port
Audio Output Connector (3.5mm Mini Jack)12.
10
English
Introduction
RJ-45
MOUSE
(SERVICE)
HDMI
VGA-OUT
RS-232C
VGA2-IN/YPbPr
VGA1-IN/YPbPr/
VIDEO
AUDIO1-IN
(VGA1/VGA2)
AUDIO2-IN
(VIDEO)
AUDIO-OUT
MIC
Type B
Monitor loop
through only sup­ported in VGA1-
IN/YPbPr.
431 2 85 7
9 1312
10 14
11
6
RJ-45 Networking Connector1. USB Connector / Type: mini-USB (Connect to PC for Re-2. mote Mouse function)
HDMI Connector3. VGA-Out Connector (Monitor Loop-through Output)4.
VGA1-In/YPbPr/5. Connector (PC Analog Signal/Component Video Input/HDTV/YPbPrr/
Wireless function via VGA Dongle)
Composite Video Input Connector6. Audio 1 Input connector (3.5mm mini jack) 7. (for VGA1/VGA2) Audio 2 Input connector (3.5mm mini jack) 8.
(for Video)
Power Socket9. RS-232 Connector (9-pin DIN Type)10. VGA2-In/YPbPr Connector 11. (PC Analog Signal/Component Video Input/HDTV/YPbPr)
Kensington12.
TM
Lock Port
Microphone Input Connector13. Audio Output Connector (3.5mm Mini Jack)14.
11
English
Introduction

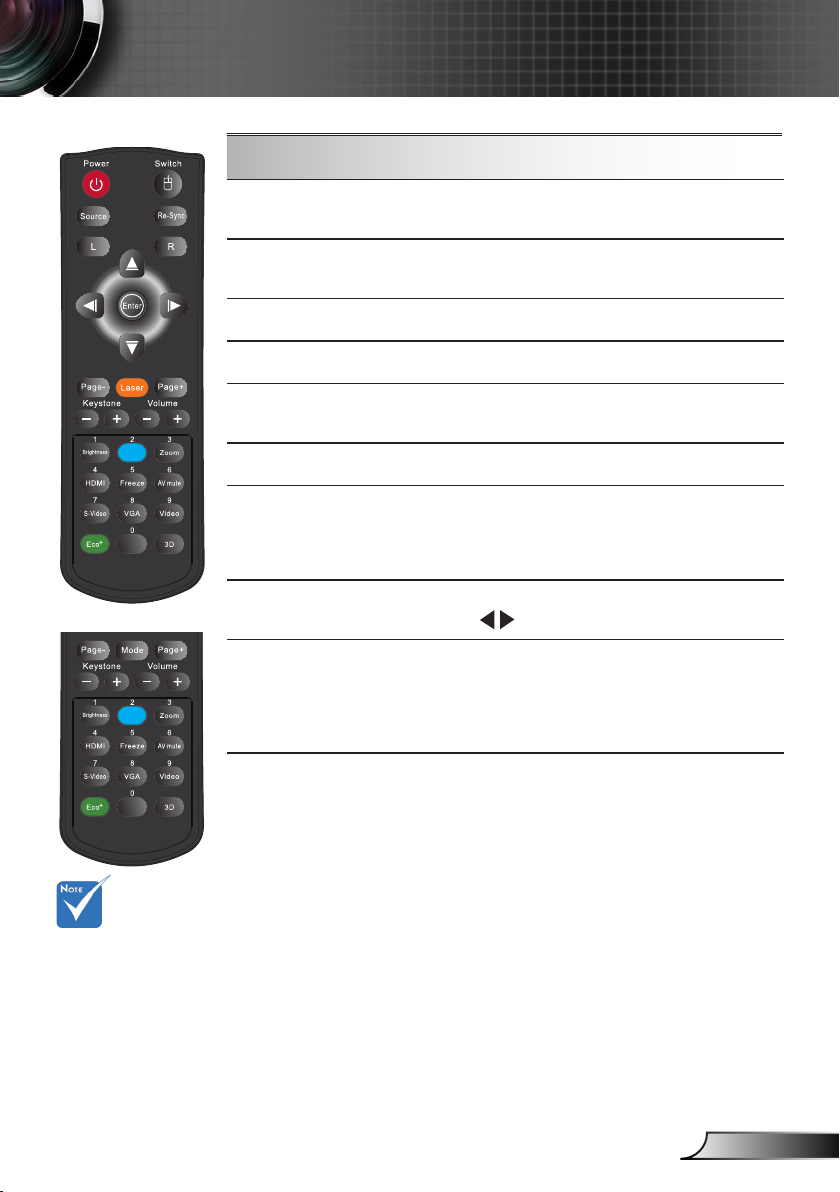

Remote Control

Menu
Menu
1
The interface
is subject to model’s speci­cations.
2
3
4 9
5
6
19
20
21
22
23
24
26
25
27
10
11
12
13
14
15
16
17
18
7
IR LED Indicator1.
8
Power On/Off2. Source3. Mouse Left Click4. Enter5. Four Directional Select 6.
Keys / Mouse control Mouse on/off7. Re-Sync8. Mouse Right Click9.
Laser Pointer10. Page Up11. Volume +/-12. Menu13.
Zoom14. AV mute15.
Video 16. 3D17. VGA18.
Page Down19. Keystone +/-20.
Brightness21. HDMI22. S-Video23. Eco+24.
Numbered keypad 25. (for password input) Freeze26.
Mode27.
12
English

Installation

AUDIO-IN
AUDIO OUT
RS-232C
VGA-OUT
VGA2-IN/YPbPr
HDMI
S-VIDEO
VIDEO
VGA1-IN/YPbPr/
MOUSE
(SERVICE)
mol ex
MOLEX
E62405SP
R

Connecting the Projector

Connect to Computer/Notebook

Type A
Due to the
difference in applications for
each country, some regions may
have different accessories.
(*) Optional
accessory
The interface is
subject to model’s specications .
2
3
4 5
6
1
7 8
Audio OutputMonitor Output
1....................................................................................................Power Cord
2....................................................................................................*USB Cable
3...........................................................................................*DVI/HDMI Cable
4.....................................................................................................VGA Cable
5................................................................................................*RS232 Cable
6.........................................................................................*Audio Input Cable
7.............................................................................................*VGA Out Cable
8......................................................................................*Audio Output Cable
13
English
Installation
RJ-45
MOUSE
(SERVICE)
HDMI
VGA-OUT
RS-232C
VGA2-IN/YPbPr
VGA1-IN/YPbPr/
VIDEO
AUDIO1-IN
(VGA1/VGA2)
AUDIO2-IN
(VIDEO)
AUDIO-OUT
MIC
molex
MOLEX
E62405SP
R
Type B
Due to the
difference in applications for
each country, some regions may
have different accessories.
(*) Optional
accessory
The interface is
subject to model’s specications .
Audio OutputMonitor Output
1
2 3
9
8
6
7
5
4
1..............................................................................................*Network Cable
2.............................................................................................*VGA Out Cable
3......................................................................................*Audio Output Cable
4....................................................................................................Power Cord
5....................................................................................................*USB Cable
6...........................................................................................*DVI/HDMI Cable
7................................................................................................*RS232 Cable
8.....................................................................................................VGA Cable
9.........................................................................................*Audio Input Cable
14
English
Installation
AUDIO-IN
AUDIO OUT
RS-232C
VGA-OUT
VGA2-IN/YPbPr
HDMI
S-VIDEO
VIDEO
MOUSE
(SERVICE)
VGA1-IN/YPbPr/
E62405SP
R

Connect to Video Sources

Type A
Due to the
difference in applications for
each country, some regions may
have different accessories.
(*) Optional
accessory
The interface is
subject to model’s specications .
DVD Player, Set-top Box,
HDTV receiver
2
1
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
4
5
3
7
S-Video Output
8
6
Audio Output
1....................................................................................................Power Cord
2..................................................................................................*HDMI Cable
3................................................*15-Pin to 3 RCA Component/HDTV Adaptor
4.............................................................................*3 RCA Component Cable
5.........................................................................................*Audio Input Cable
6................................................................................*Composite Video Cable
7.............................................................................................. *S-Video Cable
8......................................................................................*Audio Output Cable
15
English
Installation
RJ-45
MOUSE
(SERVICE)
HDMI
VGA-OUT
RS-232C
VGA2-IN/YPbPr
VGA1-IN/YPbPr/
VIDEO
AUDIO1-IN
(VGA1/VGA2)
AUDIO2-IN
(VIDEO)
AUDIO-OUT
MIC
E62405SP
R
Type B
Due to the
difference in applications for
each country, some regions may
have different accessories.
(*) Optional
accessory
The interface is
subject to model’s specications .
Composite Video Output
Audio Output
1
2
3
6
8
4
5
2
7
DVD Player, Set-top Box,
HDTV receiver
1................................................................................*Composite Video Cable
2.........................................................................................*Audio Input Cable
3......................................................................................*Audio Output Cable
4....................................................................................................Power Cord
5..................................................................................................*HDMI Cable
6................................................*15-Pin to 3 RCA Component/HDTV Adaptor
7.............................................................................*3 RCA Component Cable
8........................................................................................ *Microphone Cable
16
English
Installation
/
When Power mode
(Standby) is set
to Eco (<0.5W), the VGA output and Audio pass-
through will be deactivated when
the projector is in
standby.

Powering the projector On / Off

Powering On the Projector

1. Remove the lens cap. (optional)
2. Securely connect the power cord and signal cable. When
connected, the POWER/STANDBY LED will turn Amber.
3. Turn on the lamp by pressing “ ” button either on the top of the projector or on the remote. The POWER/STANDBY LED will now turn Green.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you will be asked to select the preferred language and power saving mode.
4. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to “OPTIONS”. Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys on the remote control to switch between inputs.
Turn on the
projector rst and
then select the signal sources.
2
POWER/STANDBY
1
Lens Cap (optional)
17
English
Installation

Powering Off the Projector

1. Press the “ ” button on the remote control or on the control panel to turn off the projector.
The following message will be displayed on the screen.
Press the “ ” button again to conrm otherwise the
message will disappear after 15 seconds. When you press the “ ” button for the second time, the fan will start cool­ing the system and will shut down.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle and the POWER/STANDBY LED will Flash Green. When the POWER/STANDBY LED lights solid Amber, the projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply
press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a power
off procedure.
Contact the

nearest service center if the
projector displays these symptoms.
See pages
70-71 for more information.

Warning Indicator

When the warning indicators (see below) come on,
the projector will automatically shutdown:
“LAMP” LED indicator is lit red and if “POWER/STANDBY
indicator ashes amber.
“TEMP” LED indicator is lit red and if “POWER/STANDBY
indicator ashes amber. This indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
“TEMP” LED indicator ashes red and if “POWER/STAND-
BY” indicator ashes amber.
Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please contact your nearest service center for assistance.
18
English
Installation

Adjusting the Projected Image

Adjusting the Projector’s Height

The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to modify on the
underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining
feet as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
19
English
Installation
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)

Adjusting the Projector’s Focus

To focus the image, rotate the focus ring until the image is clear.
XGA series: The projector will focus at distances from 2.46
to 3.61 feet (0.75 to 1.10 meters). Up to 0.4 to 10 meters with mechanism travel.
WXGA series: The projector will focus at distances from 2.56
to 3.70 feet (0.78 to 1.13 meters). Up to 0.4 to 10 meters with mechanism travel.
Focus Ring

Adjusting Projection Image Size

XGA series: Projection Image Size from 59” to 86” (1.50 to
2.18 meters). Up to 300” with mechanism travel.
WXGA series: Projection Image Size from 69” to 98” (1.75 to
2.49 meters). Up to 300” with mechanism travel.
20
English
Installation
XGA
Diagonal length
(inch) size of
4:3 Screen
40.00 0.81 0.61 32.00 24.00 0.51 0.51 1.67 1.67 0.09 3.60
60.00 1.22 0.91 48.00 36.00 0.76 0.76 2.50 2.50 0.14 5.40
70.00 1.42 1.07 56.00 42.00 0.89 0.89 2.92 2.92 0.16 6.30
80.00 1.63 1.22 64.00 48.00 1.02 1.02 3.34 3.34 0.18 7.20
90.00 1.83 1.37 72.00 54.00 1.14 1.14 3.76 3.76 0.21 8.10
100.00 2.03 1.52 80.00 60.00 1.27 1.27 4.17 4.17 0.23 9.00
120.00 2.44 1.83 96.00 72.00 1.53 1.53 5.01 5.01 0.27 10.80
150.00 3.05 2.29 120.00 90.00 1.91 1.91 6.26 6.26 0.34 13.50
180.00 3.66 2.74 144.00 108.00 2.29 2.29 7.51 7.51 0.41 16.20
250.00 5.08 3.81 200.00 150.00 3.18 3.18 10.43 10.43 0.57 22.50
300.00 6.10 4.57 240.00 180.00
Screen Size W x H Projection Distance (D)
(m) (inch) (m) (feet)
Width Height Width Height wide tele wide tele (m) (inch)
3.82 3.82 12.52 12.52 0.69 27.00
Offset (Hd)
WXGA
Diagonal length
(inch) size of
16:10 Screen
40.00 0.86 0.54 33.92 21.20 0.45 0.45 1.47 1.47 0.07 2.63
60.00 1.29 0.81 50.88 31.80 0.67 0.67 2.21 2.21 0.10 3.94
70.00 1.51 0.94 59.36 37.10 0.79 0.79 2.58 2.58 0.12 4.60
80.00 1.72 1.08 67.84 42.40 0.90 0.90 2.95 2.95 0.13 5.26
90.00 1.94 1.21 76.32 47.70 1.01 1.01 3.31 3.31 0.15 5.91
100.00 2.15 1.35 84.80 53.00 1.12 1.12 3.68 3.68 0.17 6.57
120.00 2.58 1.62 101.76 63.60 1.35 1.35 4.42 4.42 0.20 7.89
150.00 3.23 2.02 127.20 79.50 1.68 1.68 5.52 5.52 0.25 9.86
180.00 3.88 2.42 152.64 95.40 2.02 2.02 6.63 6.63 0.30 11.83
250.00 5.38 3.37 212.00 132.50 2.81 2.81 9.20 9.20 0.42 16.43
300.00 6.46 4.04 254.40 159.00
Screen Size W x H Projection Distance (D)
(m) (inch) (m) (feet)
Width Height Width Height wide tele wide tele (m) (inch)
3.37 3.37 11.05 11.05 0.50 19.72
Offset (Hd)
This table is for user’s reference only.
21
English

Control Panel & Remote Control

/
/

Control Panel

Using the Control Panel

User Controls

POWER
RE-SYNC
Enter / Help
SOURCE
Menu
Four Directional
Select Keys
Keystone
Lamp LED Indicate the projector’s lamp status.
Temp LED Indicate the projector’s temperature status.
POWER/
STANDBY LED
/
Refer to the “Power On/Off the Projector” section on
pages 16-17.
Automatically synchronize the projector to the input
source.
Conrm your item selection.
Help Menu (only available when OSD menu is not
shown).
Press “SOURCE” to select an input signal.
Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, Press “Menu” again.
Use to select items or make adjust­ments to your selection.
Use to adjust image distortion caused by tilting the projector. (±40 degrees)
Indicate the projector’s status.
22
English
User Controls
Menu
Menu

Remote Control

Using the Remote Control
Power
L Button
R Button
Page +
Page -
Enter
Source
Re-Sync
Four Directional
Select Keys
PC/Mouse Control
Keystone +/-
Refer to the “Power On/Off the Projector”
section on pages 16-17.
Mouse left click.
Mouse right click.
Use this button to page up.
Use this button to page down.
Conrm your item selection.
Press “Source” to select an input signal.
Automatically synchronizes the projector to
the input source.
Use to select items or make
adjustments to your selection.
Use for emulation of USB mouse via USB when you press “Switch”
button.
Adjust image distortion caused by tilting the
projector.
The interface
is subject to model’s speci­cations.
Volume +/-
Brightness
3D
Menu
HDMI
Adjust to increase / decrease the volume.
Adjust the brightness of the image.
Press the “3D” to turn the 3D OSD menu on/off.
Press “Menu” to launch the on-screen
display (OSD) menu. To exit OSD, press
“Menu” again.
Press “HDMI” to choose HDMI source.
Loading...
+ 51 hidden pages
