English

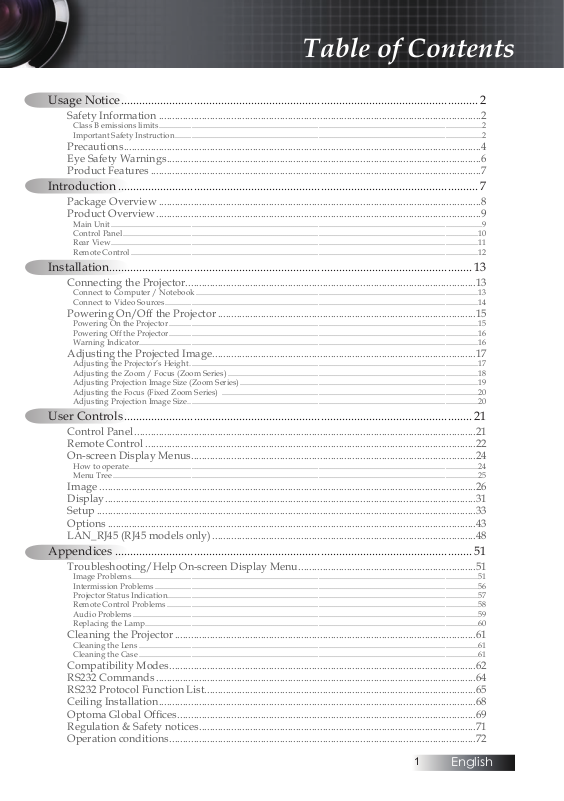

Table of Contents
Usage Notice ...................................................................................................................... 2
Safety Information ........................................................................................................................2
Class B emissions limits ................................................................................................................................................................ 2
Important Safety Instruction ........................................................................................................................................................ 2
Precautions .....................................................................................................................................4
Eye Safety Warnings .....................................................................................................................6
Product Features ...........................................................................................................................7
Introduction ....................................................................................................................... 7
Package Overview ........................................................................................................................8
Product Overview .........................................................................................................................9
Main Unit ........................................................................................................................................................................................9
Control Panel ................................................................................................................................................................................ 10
Rear View ......................................................................................................................................................................................11
Remote Control ............................................................................................................................................................................12
Installation ........................................................................................................................ 13
Connecting the Projector ............................................................................................................13
Connect to Computer / Notebook ............................................................................................................................................ 13
Connect to Video Sources ........................................................................................................................................................... 14
Powering On/Off the Projector ................................................................................................15
Powering On the Projector .........................................................................................................................................................15
Powering Off the Projector ......................................................................................................................................................... 16
Warning Indicator........................................................................................................................................................................16
Adjusting the Projected Image ..................................................................................................17
Adjusting the Projector’s Height ...............................................................................................................................................17
Adjusting the Zoom / Focus (Zoom Series) ............................................................................................................................18
Adjusting Projection Image Size (Zoom Series) ...................................................................................................................... 19
Adjusting the Focus (Fixed Zoom Series) ...............................................................................................................................20
Adjusting Projection Image Size ................................................................................................................................................20
User Controls ................................................................................................................... 21
Control Panel ...............................................................................................................................21
Remote Control ...........................................................................................................................22
On-screen Display Menus ..........................................................................................................24
How to operate .............................................................................................................................................................................24
Menu Tree ..................................................................................................................................................................................... 25
Image ............................................................................................................................................26
Display ..........................................................................................................................................31
Setup .............................................................................................................................................33
Options .........................................................................................................................................43
LAN_RJ45 (RJ45 models only) ..................................................................................................48
Appendices ...................................................................................................................... 51
Troubleshooting/Help On-screen Display Menu ..................................................................51
Image Problems............................................................................................................................................................................51
Intermission Problems ................................................................................................................................................................56
Projector Status Indication..........................................................................................................................................................57
Remote Control Problems ..........................................................................................................................................................58
Audio Problems ...........................................................................................................................................................................59
Replacing the Lamp .....................................................................................................................................................................60
Cleaning the Projector ................................................................................................................61
Cleaning the Lens ........................................................................................................................................................................61
Cleaning the Case ........................................................................................................................................................................61
Compatibility Modes ..................................................................................................................62
RS232 Commands .......................................................................................................................64
RS232 Protocol Function List .....................................................................................................65
Ceiling Installation ......................................................................................................................68
Optoma Global Ofces ...............................................................................................................69
Regulation & Safety notices .......................................................................................................71
Operation conditions ..................................................................................................................72
1
English
Usage Notice
Safety Information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THE PROJECTOR TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Read these instructions –before using this projector.
2. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions :
A. Do not block any ventilation openings. To ensure reliable
operation of the projector and to protect it from overheating,
put the projector in a position and location that will not
interfere with its proper ventilation. For example, do not
place the projector on a bed, sofa, carpet, or similar surface
that may block the ventilation openings. Do not put it in an
enclosure, such as a bookcase or a cabinet that may keep air
from owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce
the risk of re or electric shock, do not expose the projector to
rain or moisture.
C. Do not install near any heat sources, such as radiators, heaters,
stoves or other apparatus (including ampliers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is required
when the projector has been damaged in any way, such as:
r Power supply cord or plug is damaged.
r Liquids have spilled or objects have fallen into the apparatus.
r The projector has been exposed to rain or moisture, does not
operate normally, or has been dropped.
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of import operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
2
English
Usage Notice
Do not attempt to service this projector yourself. Opening or
removing covers may expose you to dangerous voltages or
other hazards. Please call Optoma to be referred to an
authorized service center near you.
8. Do not let objects or liquids enter the projector as they may touch
dangerous voltage points or short-out parts that could result in a
re or electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone
except properly qualied service personnel.
3
English
Usage Notice
Precautions
▀■ Warning - Do not look into the projector’s lens when the lamp is
▀■ Warning - To reduce the risk of re or electric shock, do not
▀■ Warning - Please do not open or disassemble the projector as this
▀■ Warning - When replacing the lamp, please allow unit to cool down,
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
on. The bright light may damage your eyes.
expose this projector to rain or moisture.
may cause electric shock.
and follow all replacement instructions. See pages 60.
When the
v
lamp reaches
the end of its
life, the
projector will
not turn back
on until the
lamp
module has
been replaced.
To replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on page 60.
▀■ Warning - This projector will detect the life of the lamp itself. Please
be sure to change the lamp when it shows warning
messages.
▀■ Warning - Use the “Lamp Reset” function from the on-screen display
“Options|Lamp Settings” menu after replacing the lamp
module (see page 47).
▀■ Warning - When switching the projector off, please ensure the
cooling cycle has been completed before disconnecting
the power. Allow 90 seconds for the projector to cool
down.
▀■ Warning - Do not use the lens cap when projector is in operation.
▀■ Warning - When the lamp is approaching the end of its life, the
message “Lamp is approaching the end of its useful
life” displays on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
▀■ Warning - To reduce the risk of injury to the eyes, do not look directly
into the laser beam on the remote control and do not point
the laser beam into anyone’s eyes. This remote control is
equipped with a Class II laser that emits radiation.
4
English
Usage Notice
Do:
v Turn off the product before cleaning.
v Use a soft cloth moistened with a mild detergent to clean the
display housing.
v Disconnect the power plug from the AC outlet if the product
is not being used for a long period of time.
Do not:
v Block the ventilation slots and openings on the unit.
v Use abrasive cleaners, waxes or solvents to clean the unit.
v Use under the following conditions:
- In extremely hot, cold or humid environments. Ensure that
the ambient room temperature is within 5-40 °C and relative
humidity is 10-85% (max.), non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.
5
English
Usage Notice
Eye Safety Warnings
▀■ Avoid staring directly into the projector’s beam of light at all times.
▀■ Minimize standing facing into the beam. Keep your back to the
beam as much as possible.
▀■ Using a stick or laser pointer is recommended to avoid the need
for the presenter to enter the beam.
▀■ Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters
look at the audience, they do not also have to stare at the
projector lamp. The best way to achieve this is by ceiling-
mounting the projector rather than placing it on oor or table
top.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power needed, use room blinds
to reduce ambient light levels.
6
English
Introduction
Product Features
This product is a single chip 0.55” SVGA and XGA series DLP® projector. Outstanding features include:
u Texas Instruments Single chip DLP® Technology
u Computer Compatibility:
Apple Macintosh, iMac, and VESA Standards:
UXGA, SXGA+, SXGA, WXGA, WUXGA, XGA, SVGA, VGA
u Video Compatibility:
■
NTSC, NTSC4.43
■
PAL/PAL-M/PAL-N/SECAM
■
SDTV and EDTV compatible
■
HDTV compatible (720p, 1080i, 1080p)
u Auto source detection with user denable settings
u
Fully featured IR remote control with laser pointer and
mouse control
u User friendly multilingual On Screen Menu
u Advanced digital keystone correction and high
quality full screen image re-scaling
u User friendly control panel
u One built-in speaker with 2 Watt amplier
u Macintosh and PC compatible
u HDMI 1.3 compatible
(Dependent on the model)
u Instant On Screen Help
u Closed Captioning equipped
u Auto Keystone (Dependent on the model)
7
English
Fo
cus
Zo
om
Contrast
Introduction
Package Overview
This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer
immediately if anything is missing.
v
Due to the
difference in
applications
for each
country,
some regions
may have
different
accessories.
Projector with lens cap
Zoom Series/Fix Zoom Series
IR Remote Control
(with 2 x AAA Batteries)
Power Cord 1.8m VGA Cable 1.8m USB Cable
(Mini type) 1.8m
(optional)
Carrying Case
(optional)
RGB to Component
Adapter
(optional)
SCART to RGB &
S-Video Adapter
(optional)
Documentation:
User’s Manual
þ
Warranty Card
þ
Quick Start Card
þ
WEEE Card
þ
8
English
Fo
cus
Zo
om
1
2
3
4
5
6
7
8
9
11
10
13
12
v
Due to the
difference
application
for each
model.
Function is
dependent
on the model
purchased.
Introduction
Product Overview
Main Unit
1. Control Panel 8. Front IR Receiver
2. Zoom
(
Zoom series only
)
9. Rear IR Receiver
3. Focus 10. Kensington™ Lock
4. Lens 11. Tilt-Adjustment Foot
5. Lens CAP 12. Input/Output Connections
6. Elevator foot 13. Power Socket
7. Elevator button
9
English
.
Keystone +
.
Keystone -
.
Source Re-Sync
.
Enter/Help Menu AV-Mute
PowerLampTemp
Power
1
67891011
3 4 52
Introduction
Control Panel
1. Keystone + / ▲
2.
3. Temp LED 8. Menu
4. Lamp LED 9. Re-Sync / ►
5. Power LED 10. Keystone - / ▼
6. Power 11. Source / ◄
7. AV-Mute
Enter / Help
(See page 51 Appendices for help function.)
10
English
Rear View
1 42 5 6 7 8
913 11 101214
3
1. RJ45 Connector (dependent on model)
2. Composite Video Input
3. Audio Input L/R RCA Connectors
v
Due to the
difference
application
for each
model.
Function is
dependent
on the model
purchased.
4. VGA 2/ SCART/ YPbPr Connector
(dependent on model)
5. VGA 1/ SCART/ YPbPr Connector
6. VGA Out (dependent on model)
7. HDMI Connector (dependent on model)
8. Rear IR receiver
9. KensingtonTM Lock Port
10. Audio Out 3.5mm Jack
Introduction
11. RS-232 Connector
12.
Mini USB Connector (for remote mouse function)
13. Power Socket
14. S-Video Connector
11
English
1
3
5
2
4
9
7
23
20
19
1415
24
8
12
11
10
13
16
17
18
21
22
6
Introduction
v
Due to the
difference in
applications
for each
country,
some regions
may have
different
accessories.
Remote Control
1. Indicator LED
2. Power On/Off
3. Laser Pointer
4. Page Up
5. Mouse Right Click
6. Four Directional
Select Keys
7. Re-Sync
8. Page Down
9. Volume +/-
10. Menu
11. Zoom
12. AV mute
13. Video Source
14. VGA Source
15. Freeze
16. S-Video Source
17. Contrast
18. Brightness
Number Buttons
19.
(for password input)
20. Keystone +/-
21. Source
22. Enter/Help
23. Mouse Left Click
24. PC/Mouse control
12
English
v Due to the
3
4
2
6
7 8 9
10
5
11
1
difference in
applications
for each
country, some
regions may
have different
accessories.
Connecting the Projector
Connect to Computer / Notebook
1. Power Cord
2. Mini USB Cable (Optional)
3. S-Video Cable (Optional)
4. Composite Video Cable (Optional)
5. Audio-in (Optional RCA to 3.5mm jack cable)
6. Audio-out (Optional 3.5mm jack cable)
7. VGA 2 Cable
8. VGA 1 Cable
9. VGA Out Cable
10. HDMI Cable (Optional)
11. RS-232 Cable (Optional)
Installation
13
English
4
DVD Player, Set-top Box,
HDTV receiver
Audio Out
L R
Audio In
10
9
Video Output
Audio - Out
3
6
2
4
5
7
8
1
Installation
Connect to Video Sources
v Due to the
difference in
applications for
each country,
some regions
may have
different
accessories.
1. Power Cord
2. S-Video Cable (optional)
3. RCA Type audio cable (optional)
4. Component Cable (optional)
5. RGB to Component Adapter (optional)
6. SCART to RGB & S-Video Adapter (optional)
7. VGA Cable
8. HDMI Cable (optional)
9. Audio-out (Optional RCA to 3.5mm jack cable)
10. Composite Video Cable (optional)
14
English
v Turn on the
projector rst
and then
select the
signal sources.
Installation
Powering On/Off the Projector
Powering On the Projector
1. Remove the lens cover.
2. Connect the power cord to the projector.
3. Turn On the connected devices.
4. Ensure the Power LED is ashing and then press the power
button to turn On the projector.
The projector’s startup logo screen displays and connected
devices are detected. If the connected device is a PC, press the
appropriate keys on the computer keyboard to switch the
display output to the projector. (Check the user manual of the
PC to determine the appropriate Fn key combination to change
display output.)
See Security Setting on page 39 if security lock is enabled.
5. If more than one input device is connected, press the “Source”
button sequentially to switch between devices.
For direct source selection, see page 23.
(DVD and HDTV are supported through the VGA connector)
15
English
Installation
Powering Off the Projector
1. Press POWER to turn off the projector lamp, a message displays on the
projector’s screen.
2. Press POWER again to conrm, otherwise the message disappears
after 15 seconds.
3.
The cooling fans continue to operate for about 10 seconds for cooling
cycle
(If you wish to turn the projector back on, you must wait until the
projector has completed the cooling cycle and has entered standby
mode. Once in standby mode, simply press POWER to restart the
projector.)
4. Turn off the main power switch. Disconnect the power cord from
the electrical outlet and the projector.
5. Do not turn on the projector immediately following a power off
procedure.
Warning Indicator
v When the LAMP LED indicator lights red, the projector will
automatically shut itself down. Please contact your local reseller
or service center. See pages 57-58.
v When the TEMP LED is on a steady (not ashing) red, the pro-
jector will automatically shut itself down. Under normal
conditions, the projector can be switched on again after it has
cooled down. If the problem persists, you should contact your
local dealer or our service center. See pages 57-58.
v When the POWER LED repeatedly blinks six (6) times in
conjunction with the LAMP LED blinking a single time, it
indicates the fan has failed. Please contact your local dealer or
our service center. See pages 57-58.
.
16
English
1
2
3
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator foot for adjusting the image height.
To raise the image:
1. Press the elevator button u.
2. Raise the image to the desired height angle v, then release the
button to lock the elevator foot into position.
3. Use screw in foot w to ne-tune the display angle.
To lower the image:
1. Press the elevator button.
2. Lower the image, then release the button to lock the elevator
feet into position.
3. Use screw in foot w to ne-tune the display angle.
17
English
.
Keystone +
.
Keystone -
.
Source Re-Sync
.
Enter/Help Menu AV-Mute
PowerLampTemp
Power
Installation
Adjusting the Zoom / Focus (Zoom Series)
You may turn the zoom ring to zoom in or out. To focus the image,
rotate the focus ring until the image is clear. The projector will focus
at distances from 3.28 to 38.7 feet (1 to 11.8 meters).
Use the keystone buttons to correct image distortion. They can be
found on the remote control and on the projector’s control panel.
18
English
3.28' (1m)
11.2' (3.4m)
18' (5.5m)
25.3' (7.7m)
32.8' (10m)
38.7' (11.8m)
Height
Diagonal
Width
86.7"
(220.2 cm)
25.5"
(64.8cm)
140.2"
(356.2 cm)
196.3"
(498.7 cm)
255"
(647.6 cm)
300.8"
(764.2 cm)
HdHd
77.5"
(196.8 cm)
22.8"
(57.9cm)
125.3"
(318.3 cm)
175.4"
(445.6 cm)
227.8"
(578.7 cm)
268.8"
(682.9 cm)
Installation
Adjusting Projection Image Size (Zoom Series)
Screen
(Diagonal)
Screen size
Hd
Distance
Max.
Min.
Max
(WxH).
Min.
(WxH)
Max.
Min.
25.5”
(64.8cm)
22.8”
(57.9cm)
20.4” x 15.3”
51.8 x 38.9cm
18.2” x 13.7”
46.3 x 34.7cm
2.1” (5.4cm) 7.2” (18.5cm)
1.9” (4.9cm) 6.5” (16.5cm)
3.28’ (1m) 11.2’ (3.4m) 18’ (5.5m) 25.3’ (7.7m) 32.8’ (10m) 38.7’ (11.8m)
86.7”
(220.2cm)
77.5”
(196.8cm)
69.4” x 52.0”
176.2 x 132.1cm
62”” x 45.5”
157.4 x 118.1cm
140.2”
(356.2cm)
125.3”
(318.3cm)
112.1” x 84.1”
285 x 213.7cm
100.2” x 75.2”
254.6 x 191cm
11.8”
(29.9cm)
10.5”
(26.7cm)
196.3”
(498.7cm)
175.4”
(445.6cm)
157.1” x 117.8”
399 x 299.2cm
140.3” x 105.3”
356.5 x 267.4cm
16.5”
(41.9cm)
14.7”
(37.4cm)
255”
(647.6cm)
227.8”
(578.7cm)
204” x 153”
518.1 x 388.6cm
182.3” x 136.7”
463 x 347cm
21.4”
(54.4cm)
19.1”
(48.6cm)
300.8”
(764.2cm)
268.8”
(682.9cm)
240.7” x 180.5”
611.4 x 458.5cm
215.1” x 161.3”
546.3 x 409.7cm
25.2”
(64.2cm)
22.6”
(57.4cm)
19
English
Installation
4.9'(1.5m)
11.2'(3.4m)
18'(5.5m)
25.3'(7.7m)
32.8'(10m)
40'(12.2m)
Height
Diagonal
Width
83.7"
(212.5cm)
36.9”
(93.8cm)
135.3"
(343.8cm)
189.5"
(481.3cm)
246.1"
(625cm)
300.2"
(762.5cm)
Hd
Adjusting the Focus (Fixed Zoom Series)
The Fixed Zoom Series’ lens is xed and does not provide a zoom
function. To focus the image, rotate the focus ring until the image is
clear. The projector will focus at distances from 4.9 to 40 feet (1.5 to
12.2 meters).
Adjusting Projection Image Size
20
Screen
(Diagonal)
Screen size
Hd
Distance
36.9”
(93.8cm)
29.5” x 22.2”
75 x 56.3 cm
3.1” (7.9cm) 7” (17.9cm) 11.4” (28.9cm) 15.9” (40.4cm) 20.7” (52.5cm) 25.2” (64.1cm)
4.9’ (1.5m) 11.2’ (3.4m) 18’ (5.5m) 25.3’ (7.7m) 32.8’ (10m) 40’ (12.2m)
83.7”
(212.5cm)
66.9” x 50.2”
170 x 127.5 cm
135.3”
(343.8cm)
108.3” x 81.2”
275 x 206.3cm
189.5”
(481.3cm)
151.6” x 113.7”
385 x 288.8cm
2 .1”
(625cm)
196.9” x 147.6”
500 x 375cm
300.2”
(762.5cm)
240.2” x 180.1”
610 x 457.5cm
English
.
Keystone +
.
Keystone -
.
Source Re-Sync
.
Enter/Help Menu AV-Mute
PowerLampTemp
Power
Control Panel
Using the Control Panel
▲/Keystone+
(Up arrow)
◄/Source
(Left arrow)
Enter / Help
►/Re-Sync
(Right arrow)
Menu
AV-Mute
Power
Power LED
Lamp LED
Temp LED
•Adjust the image Keystone positively.
•
Navigates and changes settings in the OSD.
•
Press Source to select an input signal.
•
Navigates and changes settings in the OSD.
Conrm your item selection./
Press to activate Help function
(disabled in OSD menus).
See page 51 Appendices for help function.
•Automatically synchronizes the projector to
the input source.
•
Navigates and changes settings in the OSD.
Press Menu to launch the on-screen display
(OSD) menu. To exit OSD, Press Menu again.
Momentarily turns off / on the audio and video.
Refer to the “Power On/Off the Projector”
section on page 15.
Green
Flashing
Green
Off Unit is powered off.
On
Off Lamp is in normal state.
On System over temperature
Off Normal state
User Controls
Unit is powered on and working
correctly
Unit is on stand-by/cooling down.
Lamp not ready—do not press the
power button.
.
21
English
User Controls
Remote Control
Using the Remote Control
Power
Laser
Four
Directional
Select Keys
PC / Mouse
control
L Button Mouse left click.
R Button Mouse right click.
Page + Use this button to page up.
Page - Use this button to page down.
8 /?
v
Due to the
difference in
applications
for each
country,
some regions
may have
different
accessories.
Source Press Source to select an input signal.
Re-Sync
Keystone +/-
Volume +/-
Refer to the “Power On/Off the
Projector” section on page 15.
Aim the remote at the viewing screen,
press and hold this button to activate
the laser pointer.
Use ▲▼◄► to select items or make
adjustments to your selection.
The PC/Mouse control can be used to
control mouse movement. The mouse
function is enabled using the USB
cable to connect your computer and
the projector.
Conrm your item selection. /
Press to activate Help function
(disabled in OSD menus).
See page 51 Appendices for help function.
Automatically synchronizes the
projector to the input source.
Adjusts image distortion caused by
tilting the projector. (±30 degrees)
Adjusts to increase/decrease the
volume.
22
English
User Controls
Using the Remote Control
Brightness Adjust the brightness of the image.
Press Menu to launch the on-screen
Menu
Zoom Press +/- to zoom in of an image.
Contrast
Freeze Press Freeze to pause the screen image.
AV Mute
S-Video
VGA
Video
display (OSD) menu. To exit OSD,
Press Menu again.
Press Contrast to adjust the contrast
of the image.
Momentarily turns off/on the audio
and video.
Press S-Video to choose S-Video
source.
Press VGA to choose source from
VGA- IN connector.
Press Video to choose Composite
video source.
v
Due to the
difference in
applications
for each
country,
some regions
may have
different
accessories.
23
English
Main Menu
Sub Menu
Setting
User Controls
On-screen Display Menus
The Projector has multilingual On-screen Display menus that allow you to
make image adjustments and change a variety of settings. The projector will
automatically detect the source.
How to operate
1. To open the OSD menu, press Menu on the Remote Control or
Projector Keypad.
2. When OSD is displayed, use ◄► keys to select any item in the
main menu. While making a selection on a particular page, press
▼ or Enter to enter sub menu.
3. Use ▲▼ keys to select the desired item and adjust the settings by
◄► key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press Enter to conrm, and the screen will return to the main
menu.
6. To exit, press Menu again. The OSD menu back to last level
projector will automatically save the new settings.
24
English
Menu Tree
User Controls
25
English
User Controls
Display Mode
There are many factory presets optimized for various types of images.
Presentation: Good color and brightness from PC input.
4
Bright: Maximum brightness from PC input.
4
Movie: For home theater.
4
sRGB: Standardised accurate color.
4
Blackboard: Tuned for blackboard usage.
4
Classroom: Recommended settings for classroom.
4
User1: User’s own settings.
4
User2: User’s own settings.
4
The initial default settings of this mode is from Movie mode.
Any further adjustments by the user in User1/2 will be saved in this
mode for future use.
Brightness
Adjust the brightness of the image.
Press ◄ to darken image.
4
Press ► to lighten the image.
4
Contrast
The contrast controls the degree of difference between the lightest and
darkest parts of the picture.
Press ◄ to decrease the contrast.
4
Press ► to increase the contrast.
4
Sharpness
Adjusts the sharpness of the image.
Press ◄ to decrease the sharpness.
4
Press ► to increase the sharpness.
4
26
English
User Controls
Saturation
Adjusts a video image from black and white to full color saturation.
Press ◄ to decrease the amount of saturation in the image.
4
Press ► to increase the amount of saturation in the image.
4
Tint
Adjusts the color balance of red and green.
Press ◄ to increase the amount of green in the image.
4
Press ► to increase the amount of red in the image.
4
Color Setting
Enter the Color Setting menu. Select the Red/Green/Blue Gain for
brightness adjustments and Bias for contrast adjustments for the whole
picture. Individual color adjustments for Cyan, Magenta, Yellow can also
be adjusted. See page 28 for more details.
Advanced
Enter the Advanced menu. Select advanced display options such as
BrilliantColorTM, Degamma, Color Temp., Color Space, Input Source,
De-Interlace, and Exit. See page 29 for more information.
27
English
User Controls

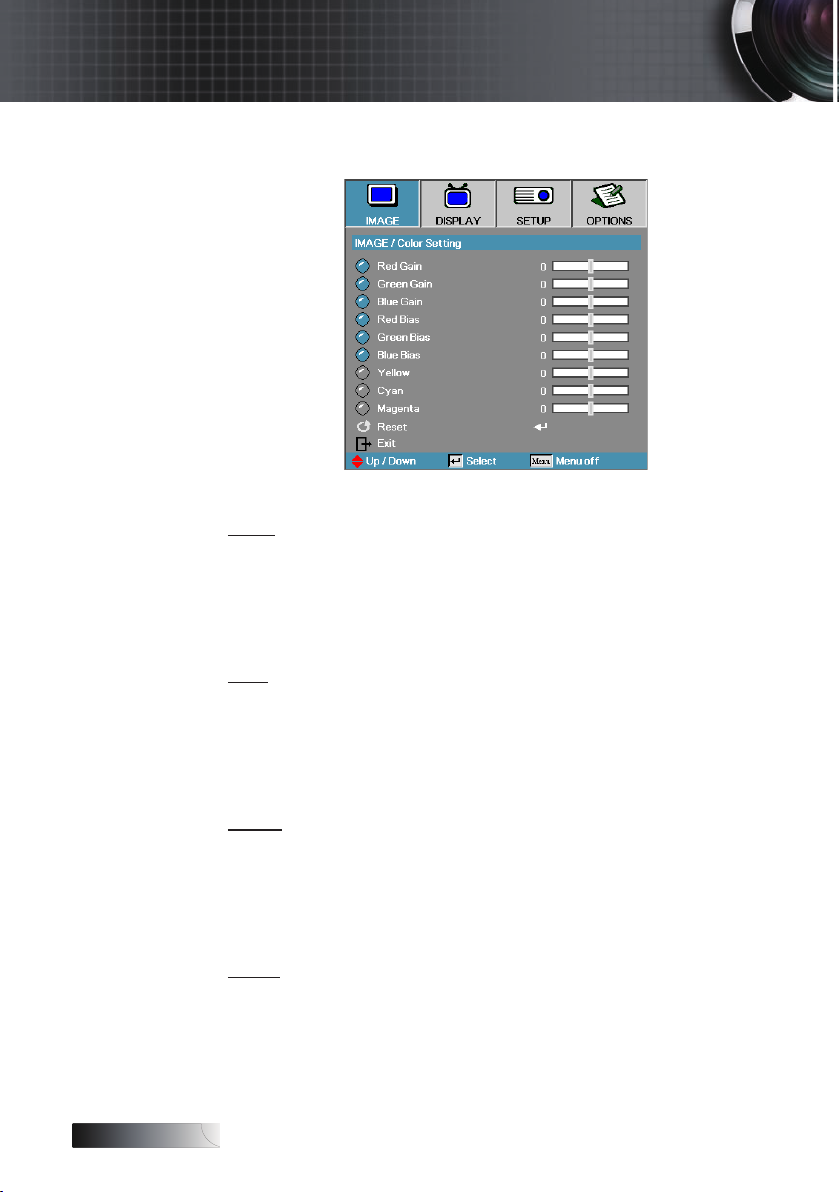

Image | Color Setting
Gain
Set RGB Gain to adjust the Brightness of the following Colors:
Red—increase or decrease the gain value for red.
4
Green—increase or decrease the gain value for green.
4
Blue—increase or decrease the gain value for blue.
4
Bias
Set RGB Bias to adjust the Contrast of the following Colors:
Red—increase or decrease the bias value for red.
4
Green—increase or decrease the bias value for green.
4
Blue—increase or decrease the bias value for blue.
4
Color
Set values to adjust the level of the following colors:
Yellow—increase or decrease the color value for yellow.
4
Cyan—increase or decrease the color value for cyan.
4
Magenta—increase or decrease the color value for magenta.
4
Reset
Reset all Color Setting values to the factory default.
28
English
Image | Advanced
User Controls
BrilliantColor
This adjustable item utilizes a new color-processing algorithm and
system level enhancements to enable higher brightness while providing
true, more vibrant colors in picture. The range is from 0 to 10. If you
prefer a stronger enhanced image, adjust toward the maximum setting.
For a smoother, more natural image, adjust toward the minimum setting.
TM
Degamma
This allows you to choose a degamma table that has been ne-tuned to
bring out the best image quality for the input.
Film—for home theater.
4
Video—for video or TV source.
4
Graphics—for image source.
4
PC—for PC or computer source.
4
Color Temp
Adjust the color temperature. Cold temperature, the screen looks colder;
with Warm temperature, the screen looks warmer.
Color Space
Select an appropriate color matrix type from AUTO, RGB, YUV.
Input Source
Enter the Input Source submenu. Select the sources to scan for at startup.
See page 30 for more information.
De-interlace
Press the cursor ◄ or ► button to select different De-interlace modes. This
function converts an interlaced video signal into progressive signal.
On: Use this mode for Films.
4
Off: Use this mode for Video or TV sources.
4
29
English
User Controls
Image | Advanced | Input Source
Input Source
Use this option to enable / disable input sources. Press ▲ or ▼ to select
v If all sources
are deselected,
the projector
cannot display
any images.
Always leave at
least one source
selected.
a source, then press ◄ or ► to enable / disable it. Press Enter to nalize
the selection. The projector will not search inputs that are de-selected.
v Function is
dependent on
the model
purchased.
30
English
User Controls
Display
Format
Use this function to choose your desired aspect ratio.
4:3: This format is for 4x3 input sources not enhanced for Wide screen TV.
4
16:9 I: This format is for 16x9 input sources, like HDTV and DVD
4
enhanced for Wide screen TV.
16:9 II: The non-standard wide-screen display format of the projector.
4
Part of the original image will be cut if the image aspect ratio is less
than 1.67:1.
Native: Depends on the resolution of the input source – No scaling is
4
performed.
Auto: Automatically selects the appropriate format.
4
31
English
User Controls
Display
Overscan
Overscan function removes the noise in a video image. Overscan the
image to remove video encoding noise on the edge of video source.
Zoom
Press ◄ to reduce the size of the image.
4
Press ► to magnify an image on the projected screen.
4
H Image Shift
Shifts the projected image position horizontally.
Press ◄ to move the image left on the projected screen.
4
Press ► to move the image right on the projected screen.
4
V Image Shift (16:9 only)
Shifts the projected image position vertically (in 16:9 format only).
Press ► to move the image up on the projected screen.
4
Press ◄ to move the image down on the projected screen.
4
Auto Keystone (dependant on model)
Automatically adjusts the projected image to be a perfect
rectangle on the screen.
V Keystone
Press ◄ or ► to compensate for vertical image distortion when the
projector is positioned at an angle to the screen.
32
English
User Controls

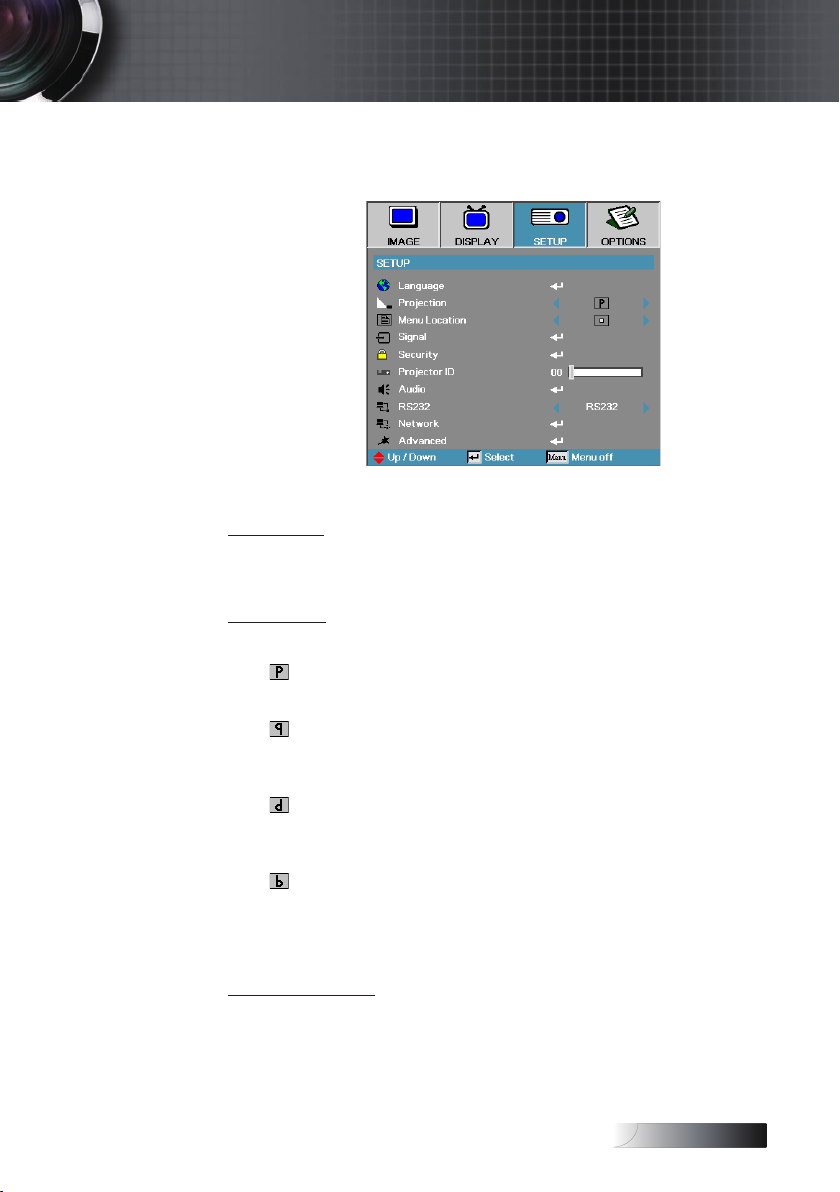

Setup
Language
Enter the Language menu. Select the multilingual OSD menu.
See page 35 for more information.
Projection
Select projection method:
Front Desktop
4
The factory default setting.
Rear Desktop
4
When you select this function, the projector reverses the image so you
can project from behind a translucent screen.
Front Ceiling
4
When you select this function, the projector turns the image upside
down for ceiling-mounted projection.
Rear Ceiling
4
When you select this function, the projector reverses and turns the
image upside down at same time. You can project from behind a
translucent screen with ceiling mounted projection.
Menu Location
Choose the menu location on the display screen.
33
English
User Controls
Setup
Signal
Enter the Signal menu. Set projector signal properties.
See page 36 for more information.
Security
Enter the Security menu. Access the projector’s security features.
See page 37 for more information.
Projector ID
Select a two digit projector ID from 0 through 99.
Audio
Enter the Audio menu. Set audio level properties. See page 40 for more
information.
RS232
Allows RS232 control of an individual projector.
Network (RJ45 model only)
Allows LAN via web browser (Internet Explore) to control of projector. See
pages 48-50 for more information.
Advanced
Enter the Advanced menu. Select the screen display during startup.
See page 42 for more information.
34
English
User Controls
Setup | Language
Language
Choose the multilingual OSD menu. Press ENTER ( ) into the sub
menu and then use the Left (◄) or Right (►) key to select your preferred
language.
35
English
User Controls
Setup | Signal
Frequency
Change the display data frequency to match the frequency of your
computer’s graphics card. If you experience a vertical ickering bar, use
this function to make an adjustment.
Phase
Phase synchronizes the signal timing of the display with the graphics
card. If you experience an unstable or ickering image, use this function
to correct it.
H. Position
Press ◄ to move the image left.
4
Press ► to move the image right.
4
V. Position
Press ◄ to move the image down.
4
Press ► to move the image up.
4
36
English
Setup | Security
Security Timer
Enter the Security Timer sub menu.
User Controls
v No password
is required to
access Setup
| Security
unless the
Security Timer
or Security
Setting are
enabled.
Enter the Months, Days, and hours that the projector can be used without
entering the password. Exiting to the Setup menu activates the Security
Timer.
Once activated, the projector requires a password on the specied dates
and times to allow power on and access to the security menu.
If the projector is in use and the Security Timer is active, the following
screen displays 60 seconds before the password is required.
37
English
User Controls
Setup | Security
Change Password
v If the incorrect
password is
entered three
times, the
device auto
shutdowns after
10 seconds.
Use this submenu to change the security password for the projector.
1. Select Change Password from the Security submenu. The Conrm
Change Password dialog box displays.
2. Select Yes.
v If the new
passwords
do not match,
the password
screen
redisplays.
3. Enter the default password <1> <2> <3> <4> <5>.
A second password screen displays.
4. Enter the new password twice for verication.
38
English
User Controls
Setup | Security
Security Setting
Enable or disable the security password.
Enabled—the current password is required to power on the projector
4
and access the Security menu.
Disabled—no password is required for any function.
4
When security is enabled, the following screen displays at startup and
before access to the Security menu is allowed:
39
English
User Controls
Setup | Audio
Volume
Press ◄ to decrease the volume of voice.
Press ► to increase the volume of voice.
Mute
Toggle the audio on or off.
Off—the speaker volume is turned on.
4
On–the speaker volume is turned off.
4
40
English
User Controls
Setup | Network
Network (RJ45 Models Only)
Press Enter to apply Network settings. If the connection is successful,
the OSD display will show the following dialogue box.
Network State—to display network information.
4
DHCP:
4
On: Assign an IP address to the projector from the DHCP server
automatically.
Off: Assign an IP address manually.
IP Address—Select an IP address
4
Subnet Mask—Select subnet mask number.
4
Gateway—Select the default gateway of the network connected to the
4
projector.
DNS—Select DNS number.
4
Apply—Press Enter to apply the selection.
4
41
English
User Controls
Setup | Advanced
Logo
Select the screen to display during startup.
Optoma—the supplied default startup screen.
4
User—customized screen capture using the Logo Capture function.
4
Logo Capture
v Only one
startup screen
can be saved
at once.
Subsequent
captures
overwrite
previous les
limited in
1.5MB.
Capture a displayed screen to use as the startup screen.
1. Display the desired screen on the projector.
2. Select Logo Capture from the Advanced menu.
A conrmation screen displays.
3. Select OK. Screen capture in progress will display.
When nished, Screen capture Succeeded will display.
The captured screen is saved as User in the logo menu.
Closed Captioning
Select the screen to display closed captioning
Off–the supplied default setting.
4
On–closed captioning text is displayed if available.
4
42
English
User Controls
Options
Source Lock
Lock the current source as the only available source, even if the cable is
unplugged.
On—only the current source is recognized as an input source.
4
Off—all sources selected in Image | Advanced | Input Source are
4
recognized as an input source.
High Altitude
Adjust the fan speed to reect the environment.
On—increases fan speed for high temperature, humidity, or altitude.
4
Off—regular fan speed for normal conditions.
4
Information Hide
Suppress informational messages on the projected screen.
On—no status messages appear on screen during operation.
4
Off— status messages appear as normal on screen during operation.
4
43
English
User Controls
Options
Keypad Lock
Lock the buttons on the projector top panel.
On—a warning message displays to conrm keypad lock.
4
Off—projector keypad functions as normal.
4
Background Color
Select the desired background color for the projected image when no
source is detected.
Advanced
Enter the Advanced menu. See page 45 for more details.
Lamp Setting
Enter the Lamp Setting menu. See pages 46-47 for more details.
Reset
Reset all Options to default factory settings.
44
English
User Controls
Options | Advanced
Direct Power On
Enable or disable Direct Power On.
On—the projector powers on automatically when AC power is supplied.
4
Off— the projector must be powered on as normal.
4
Auto Power Off
Set the Auto Power Off interval. The projector powers off the lamp after
30 minutes of no signal by default. The following warning is displayed 60
seconds before power off.
Sleep Timer
Set the Sleep Timer interval. The projector powers off after the specied
time period of inactivity (regardless of signal). The following warning is
displayed 60 seconds before power off.
Eco Standby (<1W)
Set the Eco Standby On, power consumption will under 1W.
45
English
User Controls
Options | Lamp Setting
Lamp Hour
Displays the number of hours the lamp has been active. This item is for
display only.
Lamp Reminder
Enable or disable the lamp life span reminder.
On—a warning message displays when remaining lamp life is less
4
than 30 hours.
Off—no warning message displays.
4
Brightness Mode
Select the lamp brightness mode.
Bright—the default setting.
4
STD—lower brightness setting to conserve lamp life.
4
46
English
User Controls
Options | Lamp Setting
Lamp Reset
After replacing the lamp, reset the lamp counter to accurately reect the
new lamp’s life span.
1. Select Lamp Reset.
A conrmation screen displays.
2. Select Yes to reset the lamp counter to zero.
47
English
User Controls
LAN_RJ45 (RJ45 models only)
For simplicity and ease of operation, the Optoma projector provides diverse networking and remote management features.
The LAN/RJ45 function of the projector through a network, such as re-
v Projector
connects to
LAN, please
use Ethernet
Normal Cable.
v Peer-to-peer
(PC connects
to Projector
directly),
please use
Ethernet
Crossover
Cable.
motely manage: Power On/Off, Brightness and Contrast settings. Also,
projector status information, such as: Video-Source, Sound-Mute, etc.
LAN_RJ45
1.
Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2.
On the PC (Laptop), select Start -> Control Panel-> Network Connections.
48
English
User Controls
3. Right Click on your Local Area Connection, and select Property.
4. In the Properties window, select the General tab, and select Internet
Protocol (TCP/IP).
5. Click Properties.
6. Fill in the IP address and Subnet mask, then press OK.
49
English
User Controls
7. Press the Menu button on the projector.
8. Select OSD-> SETUP-> Network-> Enabled.
9. Input the following:
IP Address: 192.168.1.2
4
Subnet Mask: 255.255.255.0
4
Gateway: 0.0.0.0
4
DNS Server: 0.0.0.0
4
10. Press Apply (Enter) to conrm settings.
11. Open a web browser (ex, Microsoft Internet Explorer).
12. In the Address bar, input the IP address: 192.168.1.2.
13. Press Enter.
The projector is setup for remote management. The LAN/RJ45 function
displays as follows.
50
English
Appendices
Troubleshooting/ Help On-screen Display Menu
If you experience a problem with your projector, please refer to the
following information. If a problem persists, please contact your local
reseller or service center.
Image Problems
No image appears on-screen
Ensure all the cables and power connections are correctly and
4
securely connected as described in the Installation section.
Ensure all the pins of connectors are not bent or broken.
4
51
English
Appendices
4
4
Partial, scrolling or incorrectly displayed image
4
4
Check if the projection lamp has been securely installed. Please
refer to the Replacing the lamp section.
Make sure you have removed the lens cap and the projector is
switched on.
Press “Re-Sync” on the remote.
If you are using a PC:
For Windows 95, 98, 2000, XP:
1. Open the My Computer icon, the Control Panel folder, and
then double click on the Display icon.
2. Select the Settings tab.
3. Verify that your display resolution setting is lower than or
equal to UXGA (1600 x 1200).
4. Click on the Advanced Properties button.
If the projector is still not projecting the whole image, you
will also need to change the monitor display you are using.
Refer to the following steps.
5. Verify the resolution setting is lower than or equal to UXGA
(1600 x 1200).
6. Select the Change button under the Monitor tab.
7. Click on Show all devices. Next, select Standard monitor
types under the SP box; choose the resolution mode you
need under the “Models” box.
8. Verify that the resolution setting of the monitor display is
lower than or equal to UXGA (1600 x 1200). (*)
52
English
Acer
�
[Fn]+[F5]
Asus � [Fn]+[F8]
Dell
�
[Fn]+[F8]
Gateway � [Fn]+[F4]
Mac Apple:
System Preference � Display � Arrangement � Mirror
display
IBM/Lenovo �[Fn]+[F7]
[Fn]+[F4]
HP/Compaq
NEC �� [Fn]+[F3]
Toshiba � [Fn]+[F5]
Appendices
If you are using a Notebook:
4
1. First, follow the steps above to adjust resolution of the
computer.
2. Press the toggle output settings. Example: [Fn]+[F4]
If you experience difculty changing resolutions or your
monitor freezes, restart all equipment including the projector.
53
English
Appendices
The screen of the Notebook or PowerBook computer
is not displaying your presentation
4
If you are using a Notebook:
Some Notebooks may deactivate their own screens when a
second display device is in use. Each has a different way to
be reactivated. Refer to your computer’s manual for detailed
information.
Image is unstable or ickering
Use Phase to correct it. See page 36 for more information.
4
Change the monitor color setting on your computer.
4
54
English
Appendices
Image has vertical ickering bar
Use Frequency to make an adjustment. See page 36 for more
4
information.
Check and recongure the display mode of your graphic card
4
to make it compatible with the projector.
Image is out of focus
Make sure the lens cap is removed.
4
Adjusts the Focus Ring on the projector lens.
4
Make sure the projection screen is between the required
4
distances from the projector. See pages 19-20 for more
information.
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will
show the best image in 16:9 format in OSD. If you play 4:3 format
DVD title, please change the format as 4:3 in projector OSD. If the
image is still stretched, you will also need to adjust the aspect ratio
by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type
4
on your DVD player.
Image is too small or too large
Adjust the Zoom Ring on the top of the projector.
4
Move the projector closer to or further from the screen.
4
Press [Menu] button on the remote control or projector panel,
4
go to Display | Format and try the different settings.
55
English
Appendices
Image has slanted sides
v Use of
Keystone is not
recommended.
4
4
Image is reversed
If possible, reposition the projector so that it is centered on the
screen and below the bottom of the screen.
Press [Keystone +/-] on the remote control until the sides are
vertical.
Select Setup | Projection from the OSD and adjust the
4
projection direction.
Intermission Problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord
4
and wait at least 60 seconds before reconnecting power.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and
4
may make a loud popping sound. If this happens, the
projector will not turn on until the lamp module has been
replaced. To replace the lamp, follow the procedures in
Replacing the Lamp on page 60.
56
English
Projector Status Indication
Steady light
�
No light
�
Appendices
Message
Over Temp O O
Lamp Fail O O
Thermal Break
Status Error
Lamp Door Sensor
Detect High
DMD Error
Color Wheel Error
Fan 1 error
(Lamp Fan)
Fan 2 error
(Power Fan)
Fan 3 error
(Blower Fan)
Fan 4 error
(DMD Fan)
Power LED Lamp LED Temp LED
(Green) (Red) (Red)
4 4
7
8
9
O O
O O
O O
6 1
6 2
6 3
6 4
The digit represents the number of led blinks.
O
O
O
O
O
57
English
Appendices
Message Reminders
4
4
Remote Control Problems
If the remote control does not work
4
4
4
4
Replacing the lamp:
Out of range: (see the following for more information)
Check the operating angle for the remote control is
approximately ±15°.
Make sure there are no obstructions between the remote control
and the projector. Move to within 7m (23 ft) of the projector.
Make sure the batteries are inserted correctly.
Replace weak batteries in the remote control.
58
English
Appendices
Audio Problems
There is no sound
Adjust the volume on the remote control.
4
Adjust the volume of the audio source.
4
Check the audio cable connection.
4
Test the source audio output with other speakers.
4
Have the projector serviced.
4
The sound is distorted
Check the audio cable connection.
4
Test the source audio output with other speakers.
4
Have the projector serviced.
4
59
English
Appendices
Replacing the Lamp
The projection lamp should be replaced when it burns out. It should
only be replaced with a certied replacement part, which you can
order from your local dealer.
Important:
The lamp contains a certain amount of mercury and should be
4
Avoid touching the glass surface of the new lamp, doing so may
4
Be sure to turn off and unplug the projector at least an hour before
4
disposed of according to local ordinance regulations.
shorten its operation life.
Warning:
replacing the lamp. Failure to do so could result in a severe burn.
1. Loosen the two captive screws on the lamp compartment cover.
2. Remove the lamp compartment cover.
3. Remove the two screws from the lamp module.
4. Lift the module handle up and pull rmly on the module handle to
remove the lamp module.
5. Insert the replacement lamp and push down rmly. Tighten the
captive screws to hold the lamp in place.
6. Replace the lamp compartment lid and tighten the captive screws.
After replacing the lamp, the lamp hours counter must be reset. See
page 47 for more information.
60
English
Appendices
Cleaning the Projector
Cleaning the projector to remove dust and grime will help ensure
trouble-free operation.
Warning:
Be sure to turn off and unplug the projector at least an hour before
4
cleaning. Failure to do so could result in a severe burn.
Use only a dampened cloth when cleaning. Do not allow water to
4
enter the ventilation openings on the projector.
If a little water gets into the projector interior while cleaning, leave
4
unplugged in a well-ventilated room for several hours before using.
If a lot of water gets into the projector interior when cleaning, have
4
the projector serviced.
Cleaning the Lens
You can purchase optic lens cleaner from most camera stores. Refer to
the following to clean the pro-jector lens.
1. Apply a little optic lens cleaner to a clean soft cloth.
(Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
Do not use abrasive cleaners or solvents.
4
To prevent discoloration or fading, avoid getting cleaner on the
4
projector case.
Cleaning the Case
Refer to the following to clean the projector case.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as
used to wash dishes), and then wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive
alcohol-based cleaners.
61
English
Appendices
Compatibility Modes
Computer Compatibility
PAL/SECAM - 50
v For wide
screen
resolution
(WXGA), the
compatibility
support is
dependent on
Notebook/PC
models.
WXGA-800 1280 x 800 60
Signal Resolution Refresh Rate (Hz)
NTSC - 60
VESA 640 x 350 70.1/ 85.1
640 x 400 70.1 / 85.1
720 x 350 70
720 x 400 70/ 85
720 x 576 50/ 60
VGA 640 x 480 60/ 67/ 72.8/ 75/ 85
SVGA 800 x 600 56.3/ 60.3/ 75/ 72.2/ 80/ 85.1
832 x 624 72/ 75
1024 x 576 50/ 60
XGA 1024 x 768 60/ 70.1/ 72/ 75/ 85
1152 x 864 60/ 70/ 75/85
HD720 1280 x 720 50/ 60/ 75/ 85
WXGA 1280 x 768 60/ 70/ 75/ 85
SXGA 1280 x 1024 60/ 75/85
SXGA+ 1400 x 1050 60
UXGA 1600 x 1200 60
1600 x 1050 60
WUXGA 1920 x 1200 60/ 75
HDTV 1920 x 1080 25/30
1920 x 1080i 50/ 60
1920 x 1080p 24/25/30/50/ 60
1280 x 720 60
1280 x 720p 50/ 60
SDTV 720 x 576 50
720 x 576i 50
720 x 576p 50
62
English
Appendices
Signal Resolution Refresh Rate (Hz)
720 x 480 60
720 x 480i 60
720 x 480p 60
Apple Mac Compatibility
Resolution
800x600 60 o o - -
800x600 72 o o o o
800x600 75 o o o o
800x600 85 o o o o
1024x768 60 o o o o
1024x768 70 o o o o
1024x768 75 o o o o
1024x768 85 o o o o
1280x720 60 o o o o
1280x720 75 o o - o
1280x720 85 o o - o
1280x768 60 o o - o
1280x768 75 o o o o
1280x768 85 o o - o
1280x800 60 o o o o
1280x1024
1280x1024
1680x1050
1920x1200
Macbook
Hz- Analog Analog Analog Analog
60 - o o o
75 - o o -
60 o o - -
60 o o - -
Macbook Pro
(Intel)
Power Mac G5Power Mac
G4
63
English
9 8 7 6
5 4 3 2 1
Appendices
RS232 Commands
RS232 Connector
Pin No Specication
1 N/A
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 N/A
64
English
RS232 Protocol Function List
RS232 Command Table.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------0069:etaRduaB
Data Bits: 8
enoN:ytiraP
Stop Bits: 1
enoN:lortnoCwolF
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F
Cable type used: Cross over
10=XX -99, projector's ID, XX=00 is for all projectors
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to pro jector
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code noitpircseDnoitcnuF
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0/ 2 7E 30 30 30 30 20 30/ 32 0D Power OFF
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX01 1 7E 30 30 30 31 20 31 0D Resync
nOetuMVAD0130223030303E7120XX~
ffOD023/030223030303E72/020XX~
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 2 7E 30 30 30 34 20 32 0D Unfreeze
~XX11 1 7E 30 30 31 31 20 31 0D IR Function On
ffOD023/030213130303E72/011XX~
~XX12 1 7E 30 30 31 32 20 31 0D HDMI
~XX12 5 7E 30 30 31 32 20 35 0D VGA 1
~XX12 6 7E 30 30 31 32 20 36 0D VGA 2
~XX12 7 7E 30 30 31 32 20 37 0D VGA 1 SCART
~XX12 8 7E 30 30 31 32 20 38 0D VGA 1 Component
oediv-SD0930223130303E7921XX~
~XX12 10 7E 3030 31 32 20 31 30 0D Video
~XX12 12 7E 3030 31 32 20 31 32 0D VGA 2 SCART
~XX12 13 7E 3030 31 32 20 31 33 0D VGA 2 Component
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation
thgirBD0230203230303E7202XX~
eivoMD0330203230303E7302XX~
BGRsD0430203230303E7402XX~
1resUD0530203230303E7502XX~
2resUD0630203230303E7602XX~
~XX20 7 7E 30 30 32 3 0 20 37 0D Blackboard
moorssalCD0830203230303E7802XX~
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX21 n 7E 30 30 32 31 20 a 0D Brightness n= -50 (a=2D 35 30) - +50 (a=35 30 )
)0353=a(05+-)0353D2=a(05-=ntsartnoCD0a0223230303E7n22XX~
~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n= -15 (a=2D 31 35) - +15 (a=31 35)
~XX45 n 7E 30 30 34 34 20 a 0D Saturation n= -50 (a=2D 35 30) - +50 (a=35 30)
)0353=a(05+-)0353D2=a(05-=ntniTD0a0253430303E7n44XX~
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
)0353=a(05+-)0353D2=a(05-=nniaGdeRroloCD0a0243230303E7n42XX~
)0353=a(05+-)0353D2=a(05-=nniaGneerGD0a0253230303E7n52XX~
)0353=a(05+-)0353D2=a(05-=nniaGeulBD0a0263230303E7n62XX~
)0353=a(05+-)0353D2=a(05-=nsaiBdeRD0a0273230303E7n72XX~
)0353=a(05+-)0353D2=a(05-=nsaiBneerGD0a0283230303E7n82XX~
)0353=a(05+-)0353D2=a(05-=nsaiBeulBD0a0293230303E7n92XX~
)0353=a(05+-)0353D2=a(05-=nnayCD0a0203330303E7n03XX~
)0353=a(05+-)0353D2=a(05-=nwolleYD0a0213330303E7n13XX~
)0353=a(05+-)0353D2=a(05-=natnegaMD0a0223330303E7n23XX~
teseRD0130233330303E7133XX~
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor
TM
n= 0 (a=30) – 10 (a=31 30)
~XX35 1 7E 30 30 33 35 20 31 0D Degamma Film
oediVD0230253330303E7253XX~
scihparGD0330253330303E7353XX~
CPD0430253330303E7453XX~
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX36 1 7E 30 30 33 36 20 31 0D Colour Temp. Warm
muideMD0230263330303E7263XX~
dloCD0330263330303E7363XX~
~XX37 1 7E 30 30 33 37 20 31 0D Colour Space Auto
BGRD0230273330303E7273XX~
VUYD0330273330303E7373XX~
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1AGVD0530293330303E7593XX~
oediV-SD0930293330303E7993XX~
oediVD003130293330303E70193XX~
~XX40 1 7E 30 30 34 30 20 31 0D De-interlace On
ffOD023/030203430303E72/004XX~
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
3:4tamroFD0130203630303E7106XX~
l-9:61D0230203630303E7206XX~
ll-9:61D0330203630303E7306XX~
eivtaND0530203630303E7606XX~
otuAD0730203630303E7706XX~
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
)0313=a(01–)03=a(0=nnacsrevOD0a0213630303E7n16XX~
)0333=a(03+-)0333D2=a(03-=nmooZD0a0223630303E7n26XX~
~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n= -50 (a=2D 35 30) - +50 (a=35 30)
RS232 Commands
v
Due to the
difference
application
for each
model.
Function is
dependent
on the model
purchased.
Appendices
65
English
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n= -24 (a=2D 32 34) - +24 (a=32 34)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n= -30 (a=2D 33 30) - +30 (a=33 30)
~XX69 1 7E 30 3 0 36 39 20 31 0D Auto Keystone On
~XX69 0/2 7E 30 30 36 39 20 30/32 0D Off
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX70 1 7E 30 30 37 30 20 31 0D Language English
~XX70 2 7E 30 30 37 30 20 32 0D German
~XX70 3 7E 30 30 37 30 20 33 0D French
~XX70 4 7E 30 30 37 30 20 34 0D Italian
~XX70 5 7E 30 30 37 30 20 35 0D Spanish
~XX70 6 7E 30 30 37 30 20 36 0D Portuguese
~XX70 7 7E 30 30 37 30 20 37 0D Polish
~XX70 8 7E 30 30 37 30 20 38 0D Dutch
~XX70 9 7E 30 30 37 30 20 39 0D Swedish
~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish
~XX70 12 7E 30 3 0 37 30 20 31 32 0D Greek
~XX70 13 7E 30 3 0 37 30 20 31 33 0D Traditional Chinese
~XX70 14 7E 30 3 0 37 30 20 31 34 0D Simplified Chinese
~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese
~XX70 16 7E 30 3 0 37 30 20 31 36 0D Korean
~XX70 17 7E 30 30 37 30 20 31 37 0D Russian
~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian
~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak
~XX70 20 7E 30 3 0 37 30 20 32 30 0D Arabic
~XX70 21 7E 30 3 0 37 30 20 32 31 0D Thai
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop
~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop
~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling
~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX72 1 7E 30 30 37 32 20 31 0D Menu Locati on Top Left
~XX72 2 7E 30 30 37 32 20 32 0D Top Right
~XX72 3 7E 30 30 37 32 20 33 0D Centre
~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left
~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX73 n 7E 30 3 0 37 33 20 a 0D Signal Frequency n= 0 (a=30) – 31 (a=33 31)
~XX74 n 7E 30 30 37 34 20 a 0D Phase n= -5 (a=2D 35) - +5 (a=35)
~XX75 n 7E 30 3 0 37 35 20 a 0D H. Position n= -5 (a=2D 35) - +5 (a=35)
~XX76 n 7E 30 30 37 36 20 a 0D V. Position n= -5 (a=2D 35) - +5 (a=35)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX77 n 7E 30 3 0 37 37 20 aabbcc 0D Security Security Timer Hour /Day/ Month n=hh/dd/mm
hh= 0 (a=30) ~ 24 (a=32 34)
dd= 0 (a=30) ~ 30 (a=33 30)
mm= 0 (a=30) ~ 12 (a=31 32)
~XX78 1 7E 30 3 0 37 38 20 31 0D Security Settings Enable
~XX78 0/ 2 7E 30 30 37 38 20 30/32 0D Disable
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n=0 (a=30)- 99 (a=39 3 9)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX80 1 7E 30 30 38 30 20 31 0D Audio Mute On
~XX80 0/ 2 7E 30 30 38 30 20 30/32 0D Off
~XX81 n 7E 30 30 38 31 20 a 0D Volume n= 0 (a=30) – 10 (a=31 30)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma
~XX82 2 7E 30 30 38 32 20 32 0D User
~XX83 1 7E 30 30 38 33 20 31 0D Logo capture
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX100 1 7E 30 3 0 31 30 30 20 31 0D Source Lock On
~XX100 0/ 2 7E 30 30 31 30 30 20 30/3 2 0D Off
~XX101 1 7E 30 3 0 31 30 31 20 31 0D High Altitude On
~XX101 0/ 2 7E 30 30 31 30 31 20 30/3 2 0D Off
~XX102 1 7E 30 3 0 31 30 32 20 31 0D Information Hide On
~XX102 0/ 2 7E 30 30 31 30 32 20 30/3 2 0D Off
~XX103 1 7E 30 3 0 31 30 33 20 31 0D Keypad Lock On
~XX103 0/ 2 7E 30 30 31 30 33 20 30/3 2 0D Off
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX104 1 7E 30 3 0 31 30 34 20 31 0D Background Colour Blue
~XX104 2 7E 30 3 0 31 30 34 20 32 0D Black
~XX104 2 7E 30 30 31 30 34 20 33 0D Red
~XX104 2 7E 30 3 0 31 30 34 20 34 0D Green
~XX104 2 7E 30 3 0 31 30 34 20 35 0D White
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX105 1 7E 30 3 0 31 30 35 20 31 0D Advanced Direct Power On On
~XX105 0/ 2 7E 30 30 31 30 35 20 30/3 2 0D Off
~XX106 n 7E 30 30 3 1 30 36 20 a 0D Auto Pow er Off (min) n=0 (a=30)-180 (a=31 38 30) (multiple of 5)
~XX107 n 7E 30 30 3 1 30 37 20 a 0D Sleep Timer (min) n=0 (a=30)-995 (a=39 39 35) (multiple of 5)
~XX114 1 7E 30 30 31 31 34 20 31 0D ECO Standby (<1W) On
~XX114 0/ 2 7E 30 30 31 31 34 20 30/3 2 0D ECO Standby (<1W) Off
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX108 1 7E 30 3 0 31 30 38 20 31 0D Lamp Setting Lamp Hour
~XX109 1 7E 30 3 0 31 30 39 20 31 0D Lamp Reminder On
~XX109 0/ 2 7E 30 30 31 30 39 20 30/3 2 0D Off
~XX110 1 7E 30 3 0 31 31 30 20 31 0D Bright Mode Bright
~XX110 2 7E 30 3 0 31 31 30 20 32 0D STD
~XX111 1 7E 30 3 0 31 31 31 20 31 0D Lamp Reset Yes
~XX111 0/ 2 7E 30 30 31 31 31 20 30/3 2 0D No
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX112 1 7E 30 3 0 31 31 32 20 31 0D Reset Yes
Appendices
66
English
~XX112 0/ 2 7E 30 30 31 31 32 20 30/3 2 0D No
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to Remote
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX140 1 7E 30 3 0 31 34 30 20 31 0D Power
~XX140 3 7E 30 3 0 31 34 30 20 33 0D Remote Mouse Up
~XX140 4 7E 30 3 0 31 34 30 20 34 0D Remote Mouse Left
~XX140 5 7E 30 3 0 31 34 30 20 35 0D Remote Mouse Enter
~XX140 6 7E 30 3 0 31 34 30 20 36 0D Remote Mouse Right
~XX140 7 7E 30 3 0 31 34 30 20 37 0D Remote Mouse Down
~XX140 8 7E 30 3 0 31 34 30 20 38 0D Mouse Left Click
~XX140 9 7E 30 3 0 31 34 30 20 39 0D Mouse Right Click
~XX140 10 7E 30 30 31 34 30 20 31 30 0D Up/Page +
~XX140 11 7E 30 30 31 34 30 20 31 31 0D Left/Source
~XX140 12 7E 30 30 31 34 30 20 31 32 0D Enter (for projection MENU)
~XX140 13 7E 30 30 31 34 30 20 31 33 0D Right/Re-SYNC
~XX140 14 7E 30 30 31 34 30 20 31 34 0D Down/Page -
~XX140 15 7E 30 30 31 34 30 20 31 35 0D Keystone +
~XX140 16 7E 30 30 31 34 30 20 31 36 0D Keystone -
~XX140 17 7E 30 30 31 34 30 20 31 37 0D Volume -
~XX140 18 7E 30 30 31 34 30 20 31 38 0D Volume +
~XX140 19 7E 30 30 31 34 30 20 31 39 0D Brightness
~XX140 20 7E 30 30 31 34 30 20 32 30 0D Menu
~XX140 21 7E 30 30 31 34 30 20 32 31 0D Zoom
~XX140 22 7E 30 30 31 34 30 20 32 32 0D Contrast
~XX140 23 7E 30 30 31 34 30 20 32 33 0D Freeze
~XX140 24 7E 30 30 31 34 30 20 32 34 0D AV Mute
~XX140 25 7E 30 30 31 34 30 20 32 35 0D S-Video
~XX140 26 7E 30 30 31 34 30 20 32 36 0D VGA
~XX140 27 7E 30 30 31 34 30 20 32 37 0D Video
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND from projector automatically
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HE X Code Function Projector Return Description
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------when got invalid command NG
when standby/warming/cooling/out of range INFOn n : 0/1/2 /3 = Standby / Warming / Cooling / Out of Range
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
READ from projector
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HE X Code
Function Projector Return Description
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source OKn n: 0/2/4/5= None/VGA/S-Video/Video
~XX122 1 7E 30 30 31 32 32 20 31 0D Software Version OKaaaa
~XX123 1 7E 30 30 3 1 32 33 20 31 0D Display Mode OKn n: 0/1/2/3/4/5=Presentati on/Bright/Movie/sRGB/user1/user2
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n: 0/1=off/on
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn
~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio OKn n: 0/1/2/4/7 =4:3/16:9I/16:9II/Native/auto
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature OKn n: 0/1/2=Warm/Medium/cold
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n: 0/1/2/3=Front-Desktop/Rear-Desktop/Front-Ceiling/Rear-Ceiling
~XX150 1 7E 30 3 0 31 35 30 20 31 0D Information OKabbbbcdddde a : 1/0=On/Off
b bbb: Lamp Hour
c: source 0/2/4/5= None/VGA/S-Video/Video
dd dd: FW version
e : Display mode 0/1/2/3/4/5=Presentation/Bright/Movie/sRGB/user1/user2
~XX151 1 7E 30 3 0 31 35 31 20 31 0D Model Name OKn n : 1/2/3/4=ES520/EX530/ EX520/EX530
~XX152 1 7E 30 30 31 35 32 20 31 0D RS232 Version No OKn
Appendices
67
English
Appendices
Ceiling Installation
To prevent damage to your projector please use the recommended
mounting package for installation.
v Damage to the
projector as a
result of
incorrect
installation
voids the
warranty.
v Ensure at least
10cm clearance
between the
ceiling and the
underside of
the projector.
v Avoid locating
the projector
near heat
sources such as
air conditioning
and heaters.
Excess heat
may cause the
projector to
power off.
To ensure compliance, only use a UL Listed ceiling mount and
screws that meet the following specications:
Screw Type: M4
4
Maximum screw length: 10 mm
4
Minimum screw length: 7.5 mm
4
Refer to the following diagram to ceiling mount the projector.
106 cm (3.7 ft.)
42 cm (1.3 ft.)
151.5 cm (4.9 ft.)
238 cm (7.8 ft.)
68
151.5 cm (4.9 ft.)
66.5 cm (2 ft.)
151.5 cm (4.9 ft.)
English
Appendices
Optoma Global Ofces
For service or support please contact your local ofce.
USA
715 Sycamore Drive
Milpitas, CA 95035, USA
Tel : 408-383-3700 Fax : 408-383-3702
www.optomausa.com Service : services@optoma.com
Canada
5630 Kennedy Road, Mississauga,
ON, L4Z 2A9, Canada
Tel : 905-361-2582 Fax : 905-361-2581
www.optoma.ca Service :
Europe
42 Caxton Way, The Watford Business Park
Watford, Hertfordshire, WD18 8QZ, UK
Tel : +44 (0) 1923 691 800 Fax : +44 (0) 1923 691 888
www.optoma.eu
Service Tel : +44 (0)1923 691865 Service : service@tsc-europe.com
canadacsragent@optoma.com
France
Bâtiment E 81-83 avenue Edouard Vaillant
92100 Boulogne Billancourt, France
Tel.: +33 1 41 46 12 20 Fax : +33 1 41 46 94 35
Service : savoptoma@optoma.fr
Spain
C/ José Hierro, 36 Of, 1C
28529 Rivas Vacia, Madrid, Spain
Tel.: +34 91 499 06 06 Fax : +34 91 670 08 32
Deutschland
Werftstrasse 25 D40549
Düsseldorf, Germany
Tel : +49 (0) 211 506 6670 Fax : +49 (0) 211 506 66799
Service : info@optoma.de
69
English
Appendices
Scandinavia
Grev Wedels Plass 2
3015 Drammen, Norway
Tel : +47 32 26 89 90 Fax : +47 32 83 78 98
Service : info@optoma.no
Latin America
715 Sycamore Drive
Milpitas, CA 95035, USA
Tel : 408-383-3700 Fax : 408-383-3702
www.optoma.com.br www.optoma.com.mx
Korea
WOOMI TECH.CO.,LTD
4F,Minu Bldg.3.tw3-14, Kangnam-Ku, seoul,135-815, KOREA
Tel : +82+2+34430004 Fax : +82+2+34430005
Japan
東京都足立区綾瀬3-25-18
株式会社オーエスエム
サポートセンター:0120-46-5040
E-mail : info@osscreen.com www.os-worldwide.com
Taiwan
5F., No. 108, Minchiuan Rd., Shindian City,
Taipei Taiwan 231, R.O.C.
Tel : +886-2-2218-2360 Fax : +886-2-2218-2313
www.optoma.com.tw asia.optoma.com
Service : services@optoma.com.tw
Hong Kong
Unit A, 27/F Dragon Centre, 79 Wing Hong Street,
Cheung Sha Wan, Kowloon, Hong Kong
Tel : +852-2396-8968 Fax : +852-2370-1222
www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., Changning District
Shanghai, 200052, China
Tel : +86-21-62947376 Fax : +86-21-62947375
www.optoma.com.cn
70
English
Notice: Shielded cables
All connections to other computing devices must be
made using shielded cables to maintain compliance
with FCC regulations.
Caution
Changes or modifi cations not expressly approved by the
manufacturer could void the user’s authority, which is
granted by the Federal Communications Commission,
to operate this projector.
Appendices
Regulation & Safety notices
This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the limits for
a Class B digital device pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against
harmful interference in a residential installation. This device
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this device does cause harmful
interference to radio or television reception, which can be
determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
4
Increase the separation between the device and receiver.
4
Connect the device into an outlet on a circuit different from that
4
to which the receiver is connected.
Consult the dealer or an experienced radio/television technician
4
for help.
71
English
Disposal instructions
Do not throw this electronic device into the
trash when discarding. To minimize pollution
and ensure utmost protection of the global
environment, please recycle it.
Appendices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme
NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2004/108/EC (including amendments)
4
Low Voltage Directive 2006/95/EC
4
R & TTE Directive 1999/5/EC (if product has RF function)
4
72
