OPTOMA EP781 User Manual

Page 1
English
i

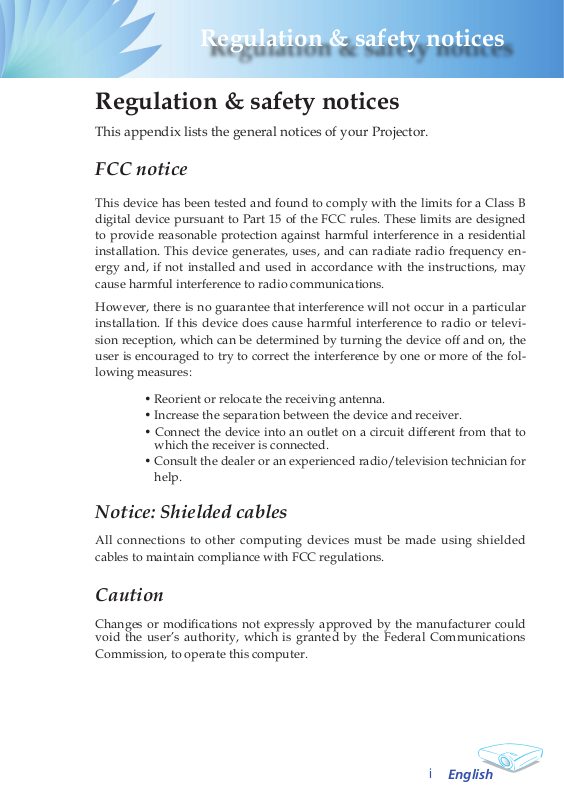

Regulation & safety notices
Regulation & safety notices
This appendix lists the general notices of your Projector.
FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency en­ergy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or televi­sion reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the fol­lowing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Caution
Changes or modications not expressly approved by the manufacturer could
void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.
Page 2
English
ii
Regulation & safety notices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interfer­ence that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Declaration of Conformity for EU countries
EMC Directive 89/336/EEC (including amendments) Low Voltage Directive 73/23/EEC (amended by 93/68/EEC)
R & TTE Directive 1999/EC (if product has RF function)
Page 3
English
1
Table of Contents
Table of Contents .........................................................................................1
Usage Notice ................................................................................................2
Safety Information ................................................................................................2
Precautions...........................................................................................................3
Eye Safety Warnings ............................................................................................5
Introduction................................................................................................... 6
Product Features ..................................................................................................6
Package Overview................................................................................................7
Product Overview .................................................................................................8
Main Unit ........................................................................................................................8
Control Panel .................................................................................................................9
Connection Ports .........................................................................................................10
Remote Control with Mouse Function and Laser Pointer ............................................11
Installation .................................................................................................. 12
Connecting the Projector ....................................................................................12
Connect the Computer/Notebook ................................................................................12
Connect the Video .......................................................................................................13
Powering On/Off the Projector............................................................................14
Powering On the Projector ...........................................................................................14
Powering Off the projector ...........................................................................................15
Warning Indicator .........................................................................................................15
Adjusting the Projected Image............................................................................16
Adjusting the Projector Image Height ..........................................................................16
Adjusting the Projector Zoom / Focus ..........................................................................17
Adjusting Projected Image Size ................................................................................... 17
User Controls .............................................................................................18
Control Panel & Remote Control ........................................................................18
On-Screen Display Menus..................................................................................21
How to Operate ...........................................................................................................21
Menu Tree ....................................................................................................................22
Image-I ........................................................................................................................23
Image-II .......................................................................................................................25
Colour Setting ..............................................................................................................27
Language ..................................................................................................................... 29
Management ................................................................................................................ 30
Lamp & Power .............................................................................................................36
Appendices................................................................................................. 37
Troubleshooting ..................................................................................................37
Replacing the Lamp............................................................................................41
Compatibility Modes ...........................................................................................42
RS232 Commands .............................................................................................43
Ceiling Mount Installation ...................................................................................44
Optoma Global Ofces .......................................................................................45
Page 4
English
2
Usage Notice
Safety Information
The lightning ash with arrowheard within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous volt-
age” within the product’s enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of import operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Read these instructions –before using this projector.
2. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions
A. Do not block any ventilation openings
To ensure reliable operation of the projector and to protect it from over-
heating, put the projector in a position and location that will not inter­fere with its proper ventilation. For example, do not place the projector on a bed, sofa, carpet, or similar surface that may block the ventilation openings. Do not put it in an enclosure, such as a bookcase or a cabinet
that may keep air from owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce the
risk of re or electric shock, do not expose the projector to rain or mois­ture.
C. Do not install near any heat sources, such as radiators, heaters,
stoves or other apparatus (including ampliers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is required
when the projector has been damaged in any way:
Such as power supply cord or plug is damaged.Liquid has been spilled or objects have fallen into the apparatus.The projector has been exposed to rain or moisture, does not oper-
ate normally, or has been dropped. Do not attempt to service this projector yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma to be referred to an authorized service center near you.
8. Do not let objects or liquids enter the projector –as they may touch
dangerous voltage points or short-out parts that could result in a re or
electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone except
properly qualied service personnel.
Page 5
English
3
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recom­mended in this user’s guide to maximize the life of your unit.
Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt your eyes.
Warning- To reduce the risk of re or electric shock, do not expose
this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows warn­ing messages.
Warning- Reset the “Lamp Reset ” function from the On Screen
Display “Lamp Setting” menu after replacing the lamp module (Refer to page 36).
Warning- When switching the projector off, please ensure the
projector completes its cooling cycle before disconnect­ing power.
Warning- Turn on the projector rst and then the signal sources.
Warning- Do not use lens cap when projector is in operation.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this hap­pens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp”. (See page 41)
Page 6
English
4
Usage Notice
Do:
Turn off the product before cleaning.Use a soft cloth moistened with mild detergent to clean the
display housing.
Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Don’t:
Block the slots and openings on the unit provided for ventila-
tion.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.
Page 7
English
5
Usage Notice
Eye Safety Warnings
Avoid staring directly into the projector beam at all times.Minimize standing facing into the beam. Keep your back to
the beam as much as possible.
A stick or laser pointer is recommended to avoid the need for
the user to enter the beam.
Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters look at the audience, they do not also have to stare at the pro­jector lamp. The best way to achieve this is by ceiling-mount-
ing rather than oor or table-mounting the projector.
When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the screen.
In order to minimize the lamp power needed, use room blinds
to reduce ambient light levels.
Page 8
English
6
Introduction
Product Features
Congratulations and Thank You for choosing Optoma projec­tor. This product is a XGA single chip 0.7” Darkchip3 DLP® projector. Outstanding features include:
True XGA, 1024 x 768 addressable pixels
Texas Instruments Single chip DLP® Technology
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and
HDTV compatible (480i/p, 576i/p, 720p, 1080i)
Multi-Auto functions: Auto detection, Automatic saving
of user adjustments
Full function IR remote control with laser pointer
User friendly multilingual on screen menu
Advanced digital keystone correction and high quality
full screen image re-scaling
User friendly control panel
Two built-in speakers with 2 Watt amplier
Multiple for Audio inputs
UXGA, SXGA+, SXGA compression and SVGA, VGA re-
sizing
Mac compatible
DVI support (HDCP compliant)
Support Network function (LAN/RS232)
Page 9
English
7
Introduction
Power Cord 1.8m VGA Cable 1.8m
Wireless Remote
Controller
Composite Video Cable
1.8m
Projector with lens cap
Package Overview
This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.
Documents :

User’s Guide

Quick Start Card

Warranty Card

Quick Troubleshooting Guide

WEEE Card
SCART VGA/S-Video
Adaptor
(Optional Accessory)
Due to the
difference in applications for each country, some regions may have different accessories.
2 x AA Batteries
RS232 Cable 1.8mUSB Cable 1.8m
S-Video Cable 1.8m
Page 10
English
8
Introduction
1. Control Panel
2. Zoom Lever
3. Focus Ring
4. Elevator Button (one on each side)
5. Elevator Foot (one on each side)
6. Zoom Lens
7. IR Receivers
8. Power Socket
9. Connection Ports
Main Unit
Product Overview
1 2
8
2
7
4
3
565
4
9
1
7
Page 11
English
9
Introduction
Control Panel
1. IR Receiver
2. Power/Standby LED
3. Temp Indicator LED
4. Lamp Indicator LED
5. Keystone +/-
6. Re-Sync
7. Power/Standby
8. Four Directional Select Keys
9. Menu (On/Off)
10. Source Select
11. Enter
7
3
9
2
4
11
5
1
6
10
5
9 8 7
3
9
2
4
11
5
1
6
10
5
9 8
Page 12
English
10
Introduction
Connection Ports
1. DVI-D Input Connector (PC Digital/HDTV/HDCP Input)
2. VGA1-In Connector (PC Analog signal/HD/Component Video Input)
3. Audio Input Connector (For DVI-D or VGA1-In)
4. S-Video Input Connector
5. Audio Input Connector (For S-Video or Composite)
6. Composite Video Input Connector
7. Networking Connector RJ45
8. Monitor Loop-through Output Connector
9. VGA2-In SCART Connector (PC Analog signal/SCART RGB/HD/Component Video Input)
10. Audio Input Connector (For VGA2-In SCART)
11. Audio Output Connector
12. RS232 Connector
13. Power Socket
14. USB Connector (Connect to PC for Remote Mouse function)
15. KensingtonTM Lock Port
7
64
13
2 53
9
1
8 9 10 141211 15
Page 13
English
11
Introduction
Remote Control with Mouse Function and Laser Pointer
1. Power
2. Re-Sync
3. Keystone Correction
4. Display Format
5. Mouse
6. Mouse Right Click
7. Page Up
8. Page Down
9. Four Directional Select Keys
10. Enter
11. S-Video Source
12. Composite Video Source
13. DVI Source
14. Source Lock
15. Button LED
16. Laser Button
17. AV Mute
18. Freeze
19. Display Mode
20. Mouse Left Click
21. Zoom In
22. Zoom Out
23. Clear
24. Menu
25. VGA1 Source
26. VGA2 Source
27. Number Buttons
16
17
18
19
2
3
4
1
5
20
21
22
24
6
7
10
8
9
23
27
15
25
26
12
11
14 13
Page 14
English
12
Installation
Connecting the Projector
Due to the
difference in applications for each country, some regions may have different accessories.
1...............................................................................................................Power Cord
2................................................................................................................. USB Cable
3......................................................................................................... Network Cable
4.............................................................................................................. RS232 Cable
5...................................................................................................Audio Input Cable
6................................................................................................. VGA to VGA Cable
7.....................................................................................................DVI to DVI Cable
8................................................................................................Audio Output Cable
Connect the Computer/Notebook
1
5
4
8
7
6
VGA
Audio Output (For Active Speakers)
RS232
USB
DVI
2
3
Page 15
English
13
Installation
Connect the Video
Due to the
difference in applications for each country, some regions may have different accessories.
1...............................................................................................................Power Cord
2.......................................................................................... Composite Video Cable
3...................................................................................................Audio Input Cable
4...........................................................................................................S-Video Cable
5......................................................VGA to 3 RCA Component/HDTV Adapter
6........................................................................RCA Component Cable for YPbPr
7............................................................................................HDMI to DVI Adapter
8..............................................................................................................HDMI Cable
9................................................................................................. VGA to VGA Cable
10...........................................................................SCART VGA/S-Video Adapter
11..............................................................................................Audio Output Cable
1
2
3
S-Video Output
Video Output
DVD Player, Set-top Box,
HDTV receiver
6
7
Audio Output
(For Active Speakers)
10
9
4
DVD Player, Set-top Box,
HDTV receiver
3
5
8
11
3
Page 16
English
14
Installation
Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely connected. The Power LED will turn red.
3. Turn on the lamp by pressing “Power/Standby” button on the control panel. And the Power LED will turn green.
4. Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically within “Management” menu; check that “Source Lock” has been set to “Off”.
If the screen displays “No Signal”, please make sure the
signal cables are securely connected.
To access the built-in test pattern, please press the “AV
Mute” button, then up arrow.
If you connect multiple sources at the same time, use the
“Source” button on the control panel or direct source key on remote control to switch.
Powering On/Off the Projector
Turn on the
projector rst and
then the signal sources.
Lens Cap
21
Power/Standby
Text Pattern
Page 17
English
15
Installation
Warning Indicator
When the “TEMP” indicator turns red, it indicates the pro-
jector has overheated. The projector will automatically shut itself down.
When the “LAMP” indicator turns red, it indicates a prob-
lem with the lamp. Turn off the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center. See page 45.
When the “LAMP” indicator ashes red, it indicates the
fan has failed. Stop using the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center. See page 45.
Powering Off the Projector
1. Press the “Power/Standby” button to turn off the projector lamp; you will see a message
displayed on the projector’s screen. Press the “Power/
Standby” button again to conrm, otherwise the message
will disappear after 5 seconds.
2. The cooling fans continue to operate for about 30 seconds for
cooling cycle and the Power LED will ash red. When the Power LED stops ashing, the projector has entered standby
mode.
Once in standby mode, simply press “Power/Standby” but-
ton to restart the projector.
3. Disconnect the power cord from the electrical outlet and the projector.
4. Do not turn on the projector immediately following a power off procedure.
Page 18
English
16
Installation
Adjusting the Projected Image
Adjusting the Projector Image Height
Elevator Feet
Elevator Buttons
The projector is equipped with elevator feet for adjusting the image height.
To raise the image:
1. Press the elevator buttons
.
2. Raise the image to the desired height angle , then release
the button to lock the elevator feet into position.
3. Use screw in feet to ne-tune the display angle.
To lower the image:
1. Press the elevator buttons.
2. Lower the image, then release the button to lock the eleva­tor feet into position.
3. Use screw in foot to ne-tune the display angle.
Tilt Adjusting Foot
3 3
2
11
Page 19
English
17
Installation
61.5"
(156.3cm)
102.5"
(260.4cm)
143.5"
(364.6cm)
184.5"
(468.8cm)
250.2"
(635.4cm)
24.6"
(62.5cm)
73.8"
(187.5cm)
123.0"
(312.5cm)
172.2"
(437.5cm)
221.5"
(562.5cm)
300.2"
(762.5cm)
3.3'
(1.0m)
40.0'(12.2m)
29.5'(9.0m)
23.0'(7.0m)
16.4'(5.0m)
9.8'(3.0m)
20.5"
(52.1cm)
Width
Height
D
i
a
g
o
n
a
l
Hd
Focus Ring
Zoom Lever
Adjusting the Projector Zoom / Focus
You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances from 3.3 to 40.0 feet (1.0 to
12.2 meters).
Adjusting Projection Image Size
This graph is for user’s reference only.
Screen
(Diagonal)
Max.
24.6”(62.5cm) 73.8”(187.5cm) 123.0”(312.5cm) 172.2”(437.5cm) 221.5”(562.5cm) 300.2”(762.5cm)
Min.
20.5”(52.1cm) 61.5”(156.3cm) 102.5”(260.4cm) 143.5”(364.6cm) 184.5”(468.8cm) 250.2”(635.4cm)
Screen
Size
Max.
(WxH)
19.68”x 14.76”
50.0 x 37.5cm
59.04” x 44.28”
150.0 x 112.5cm
98.4” x 73.8”
250.0 x 187.5cm
137.76” x 103.32”
350.0 x 262.5cm
177.20” x 132.90”
450.0 x 337.5cm
240.16” x 180.12”
610.0 x 457.5cm
Min.
(WxH)
16.40” x 12.30”
41.7 x 31.3cm
49.20” x 36.90”
125.0 x 93.8cm
82.0” x 61.5”
208.3 x 156.2cm
114.8” x 86.1”
291.7 x 218.8cm
147.6” x 110.7”
375.0 x 281.3cm
200.16” x 150.12”
508.3 x 381.2cm
Hd
Max.
2.21” (5.6cm) 6.64” (16.9cm) 11.07” (28.1cm) 15.50” (39.4cm) 19.94” (50.6cm) 27.02” (68.6cm)
Min.
1.85” (4.7cm) 5.54” (14.1cm) 9.23” (23.4cm) 12.92” (32.8cm) 16.61” (42.2cm) 22.52” (57.2cm)
Distance
3.3’ (1.0m) 9.8’ (3.0m) 16.4’ (5.0m) 22.3’ (7.0m) 29.5’ (9.0m) 40.0’ (12.2m)
Page 20
English
18
User Controls
Control Panel & Remote Control
There are two ways for you to control the functions: Remote Control and Control Panel.
Using the Control Panel
Power/
Standby
Refer to the “Power On/Off the Projector” section on pages 14-15.
Source
Press “Source” to select an input signal.
Menu
Turns the menu On or Off.
Four Direc­tional Select Keys
Use to navigate through the menus.
Enter
Conrm your item selection.
/
Keystone
Adjusts image distortion caused by tilting the projector (±16 degrees).
Re-Sync
Automatically synchronizes the projector to the input source.
Page 21
English
19
User Controls
Using the Remote Control
Power
Refer to the “Power On/Off the Projector” section on pages 14-15.
Re-Sync
Automatically synchronizes the projector to the input source.
Keystone
Adjusts image distortion caused by tilting the projector (±16 degrees).
Display Format
Display the “Display Format” section of the on­screen display menu to select the desired aspect ratio.
Laser
Button
Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.
AV Mute
Momentarily turns off the audio and video. Press this button again to unlock.
Freeze
Press “Freeze” to pause the screen image. Press this button again to unlock.
Volume +/-
Increases/decreases speaker volume.
Display Mode
Select the display mode from PC, Photo, Video, sRGB and User.
Mouse Control
Use this button to navigate the mouse on the page.
Mouse Right Click
Mouse right click.
Mouse Left Click
Mouse left click.
Pg
Page Up
Use this button to page up.
Pg
Page Down
Use this button to page down.
Zoom In
Zoom in to magnify the image.
Zoom Out
Zoom out to reduce the image.
Four Directional Select Keys
Use to navigate through the menus.
Menu
Display or exits the on-screen display menus for projector.
Page 22
English
20
User Controls
Clear
Clear your selection.
Enter
Conrm your item selection.
Source Lock
Select auto detection all connector ports or lock current connector port. (See page 30 for more)
Video
Choose composite video source.
S-Video
Choose S-Video source.
VGA1
Choose primary VGA-In source.
VGA2
Choose secondary VGA-In or SCART source.
DVI
Choose DVI-D source.
Page 23
English
21
User Controls
The Projector has multilingual On Screen Display menus that allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to Operate
1. To open the OSD menu, press “Menu” on the Remote Control or
Control Panel.
2. When OSD is displayed, use keys to select any item in the
main menu. While making a selection on a particular page, press
key to enter sub menu.
3. Use keys to select the desired item and adjust the settings by
key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Menu” to conrm, and the screen will return to the main
menu.
6. To exit, press “Menu” again. The OSD menu will close and the
projector will automatically save the new settings.
On Screen Display Menus
Main Menu
Sub Menu
Setting
Page 24
English
22
User Controls
Menu Tree
Page 25
English
23
User Controls
Display Mode
There are many factory presets optimized for various types of im-
ages.
PC: For computer or notebook. (brightest image)
Photo: For optimum colour at high brightness.
Video: For playing video in a bright environment.
sRGB: For standard PC colour. (best colour reproduction)
User: Memorize user’s settings.
Brightness
Adjust the brightness of the image.
Press the to darken image.
Press the to lighten the image.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.
Press the to decrease the contrast.
Press the to increase the contrast.
White Peaking
Use the white peaking control to set the white peaking level of DMD chip. 0 stands for minimal peaking, and 10 stands for maxi­mum peaking. If you prefer a brighter image, adjust towards the maximum setting. For a smooth and more natural image, adjust towards the minimum setting.
Image-I
Page 26
English
24
User Controls
Colour Temperature
Adjusts the colour temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer.
Each display mode has its own colour temperature and can memo­rize user’s selection. For example:
Display mode PC Photo Video sRGB User
Colour Temp. sRGB Low User High Mid
When you adjust the colour setting item, the colour temperature will be set as “User” automatically. And this set “User” is the same for all display mode. (See the section of “Colour Setting” for details).
Saturation
Adjusts a video image from black and white to fully saturated colour.
Press the to decrease the amount of saturation in the image.
Press the to increase the amount of saturation in the image.
Sharpness
Adjusts the sharpness of the image.
Press the to decrease the sharpness.
Press the to increase the sharpness.
“Saturation”
functions is only supported under Video mode.
Page 27
English
25
User Controls
Frequency
“Frequency” changes the display data frequency to match the frequency of your computer’s graphic card. If you experience a
vertical ickering bar, use this function to make an adjustment.
Phase
“Phase” synchronizes the signal timing of the display with the
graphic card. If you experience an unstable or ickering image, use
this function to correct it.
H. Position (Horizontal Position)
Press the to move the image left.
Press the to move the image right.
V. Position (Vertical Position)
Press the to move the image down.
Press the to move the image up.
Degamma
This allows you to choose a degamma table that has been ne-tuned
to bring out the best image quality for the input.
Aspect Ratio
Use this function to choose your desired aspect ratio.
4:3 : The input source will be scaled to t the projection screen.
16:9 : The input source will be scaled to t the width of the
screen.
Window: When a 4:3 image is bigger than a 16:9 screen, select
the “Window” mode to t the image onto the screen without
changing the projection distance.
Image-II
“Frequency”,
“Phase”, “H. position” and “V. position” functions are only supported under Computer mode.
Page 28
English
26
User Controls
LBX: This format is for non-16x9, letterbox source and for users who use external 16x9 lens to display 2.35:1 aspect ratio using full resolution.
Input Signal
Display area
Picture area
Display on Screen
Ver. Shift (16:9):
Image Position at window mode will also be moved accordingly.
Ver. Shift (16:9)
Adjust the image position up or down, when you select the aspect ratio of 16:9.
Press the to move the image down.
Press the to move the image up.
Page 29
English
27
User Controls
Colour
Full Range: Adjust the Red, Green and Blue color for all screen.
Enhance Individual: Adjust the Red, Green, Blue, Yellow, Cyan and Magenta colors for advanced adjustment of the individual colors.
Colour
PC
UL MHS
UL M HS
Video
UL M HS
sRGB
UL M HS
User
UL M HS
From The Same
Colour Setting
Icon Colour
Temp.
L Low
M Mid
H High
S sRGB
U User
When you adjust the colour setting item, the colour temperature will be set as “User” automatically. And this set “User” is the same for all display mode. For example:
+ Red- Red
Full Range: + Red
Enhance Red
Page 30
English
28
User Controls
Different color setting will be memorized at 4 different source groups. But they will be same under same source.
DVI/VGA
Component-p (480p/576p/720p/1080i)
Component-i (480i/576i)
Video / S-Video
When we adjust color setting the current color temperature will be memorized before it auto switch to “User”. Because the memorized color temperature will be a base of “User”. For example:
1.) Colour temp. is High.
2.) User creates his favorite color based on “High” setting of colour temperature. So when user switches colour temperature to “User”,
will nd the image color temperature close to “High”.
Page 31
English
29
User Controls
Language
Language
Choose the multilingual OSD menu. Use the or key to select your preferred language.
Press “Enter” to nalize the selection.
Page 32
English
30
User Controls
Menu Location
Choose the menu location on the display screen.
Projection
Front-Desktop
The factory default setting.
Rear-Desktop
When you select this function, the projector reverses the image so you can project from behind a translucent screen.
Front-Ceiling
When you select this function, the projector turns the image upside down for ceiling-mounted projection.
Rear-Ceiling
When you select this function, the projector reverses and turns the image upside down. You can project from behind a translucent screen with ceiling mounted projection.
Source Lock
Auto: The projector will search all connection port.
Lock: The projector will lock connection port.
Horizontal Keystone
Press the or to adjust image distortion horizontally and makes a squarer image.
Vertical Keystone
Press the or to adjust image distortion vertically and makes a squarer image.
Zoom
Press the to reduce the size of an image.
Press the to magnify an image on the projection screen.
Management
Page 33
English
31
User Controls
PIP
Choose “On” to select on the PIP screen, Choose “Off” to select off
the PIP screen.
PIP Position
Choose the PIP screen position on the display screen.
PIP Source Switch
Press “Enter” to switch PIP screen source. (see page 32)
Management
Volume
Press to decrease the volume.
Press to increase the volume.
RS232 Port
RS232: Allows RS232 control of an individual projector.
Network: Allows LAN via web browser (Internet Exploer) to
control of projector.
Reset
Choose “Enter” to return the adjustments and settings to the factory default values.
Top-Left
Bottom-Left
Top-Right
Bottom-Right
Page 34
English
32
User Controls
PIP RULE TABLE
Sub source
Main source
DVI-D VGA Componet-p S-video Video
DVI-D (digital RGB / HDCP)
VGA (analog RGB)
Componet-p (480p/576p/720p/1080i)
S-video
Video
Logo
Use this function to select your desired startup screen. If you change the setting from one to another, when you exit the OSD menu, the new setting will take effect on next open.
Optoma: The default startup screen of Optoma projector.
User: Use memorize picture from “Logo Capture” function.
Logo Capture
Press “Enter” to immediately capture a picture what on the display
screen.
Security Settings
First Time:
1. Press “Enter” to set password.
2.ThePasswordis4digits,DEFAULTVALUEis“0000”.(rsttime)
3. Use
number buttons on the remote to select your password, and then
press“Enter”keytoconrmyourselection.
Security Timer: Can be select the time (month/day/hour)
function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again (Use number buttons on remote. To change password, follow change password instructions above).
Change Password:
1. Press “Enter” to input old password.
Page 35
English
33
User Controls
2. Use number button to enter current password, and then press “Enter” key again to reveal next OSD menu.
3. Scroll down to highlight Password, and then press “En
-
ter” to activate.
4. Enter new password (4 digits in length) using the number
buttons on the remote, then press “Enter” to conrm.
5. Enter new password again and press “Enter” to conrm.
Security settings:
Enable: Choose “Enable” to enable security verication when
turning on the projector.
Disable: Choose “Disable” to be able to switch on the
projector without password verication.
LAN
Press “Enter” to apply LAN settings. If the connection is successful, the OSD display will show the following dialogue box.
Network State: To display network information.
DHCP:
Enable: Assign an IP address to the projector from the DHCP
server automatically.
Disable: Assign an IP address manually.
IP Address: Select an IP address.
Subnet Mask: Select subnet mask number.
Gateway: Select the default gateway of the network connected to
the projector.
DNS: Select DNS number.
Apply: Press “Enter” to apply the selection.
Information
To display source information on the screen.
Page 36
English
34
User Controls
1. Fill in a new IP, a subnet mask, a gateway and a DNS in the dialogue box .
2. Then choose apply and press "Enter" botton to effectuate the
conguration process.
3. Open your web browser and type in from the OSD LAN screen then the web page will display as below:
4: Open "Control Panel" to control your projector.
How to use web browser to control your projector
When you used
the projector IP address, you will can not link to your service server.
Page 37
English
35
User Controls
For example: Use Microsoft Internet Explorer (IE) web browser to control the projector
, the IP address is http: // 10.0.50.100.
Step 1: Find an IP Address (10.0.50.100) from LAN function of projector.
Step 2: Select apply and press "Enter" button to submit function or press "menu" key to
exit.
Step 3: To open Network Connections, click Start, click Control Panel, click Network
and Internet Connections, and then click Network Connections. Click the
connection you want to congure, and then, under Network Tasks , click Change settings of this connection.
Step 4: On the General tab, under This
connection uses the following items, click Internet Protocol (TCP/IP), and then click
"Properties."
Step 5: Click Use the following IP
address, and type in as below:
1)IPaddress:10.0.50.XXX
2)Subnetmask:255.255.0.0
3)Defaultgateway:10.0.50.254
Step 6: To open Internet Options, click
IE web browser, click Internet Options, click the Connections tab and click "LAN Settings."
Step 7: The Local Area Network (LAN)
Setting dialog box appears, In the Proxy Server area, cancel the
Use a proxy server for your LAN check box., then click "OK" button
twice.
Step 8: Open your IE and type in the IP
address of 10.0.50.100 in the URL then press "Enter" key. The web page will display as below:
Step 9: Open "Control Panel" to control
your projector.
Page 38
English
36
User Controls
Lamp & Power
STD Mode
Choose “On” to dim the projector lamp which will lower power consumption and extend the lamp life by up to 130%. Choose ”Off” to return to BRIGHT mode.
High Altitude
Choose “On” to turn on High Altitude mode. Operates the fans at full speed continuously to allow for proper high altitude cooling of
the projector.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. Then projector
will automatically power off when the countdown has nished. (In
minutes)
Sleep Timer (min)
Sets the countdown timer interval. The timer will begin, with or without a signal input. Then the projector will automatically
power off then the sleep timer countdown has nished. (In
minutes)
Projection Hour
Displays the projection time.
Lamp Hours
Displays the cumulative lamp operating time.
Lamp Reset
Resets the lamp life hour counter after replacing the lamp.
Page 39
English
37
Appendices
Problem: No image appears on screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure the pins of connectors are not crooked or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is
switched on.
Ensure that the “AV Mute” feature is not turned on.
Problem: Left of right edge of the image is missing or the im­age is unstable or noisy
Press “Re-Sync” on the remote control or on control panel.
If you are using a PC:
For Windows 3.x:
1. In the Windows Program Manager, double click the “Windows
Setup” icon in the Main group.
2. Verify that your display resolution setting is less than
or equal
to 1600 x 1200.
For Windows 95, 98, 2000, XP:
1. From the “My Computer” icon, open the “Control Panel”
folder, and double click the “Display” icon.
2. Select the “Settings” tab.
3. Click on the “Advanced Properties” button.
If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.
4. Verify the resolution setting is less than or equal to 1600 x 1200
resolution.
Troubleshooting
Ifyouexperiencetroublewiththeprojector,refertothefollow­inginformation.Iftheproblempersists,pleasecontactyour localresellerorservicecenter,seepage45fordetails.
Page 40
English
38
Appendices
5. Select the “Change” button under the “Monitor” tab.
6. Click on “Show all devices.” Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need under the “Models” box.
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the
computer.
2. Press the toggle output settings. example: [Fn]+[F4]
Compaq
[Fn]+[F4] Dell [Fn]+[F8] Gateway  [Fn]+[F4] IBM [Fn]+[F7] Mac Apple:
System Preference Display Arrangement Mirror display
Packard
[Fn]+[F4]
Hewlett NEC [Fn]+[F3] Toshiba [Fn]+[F5]
If you experience difculty changing resolutions or your monitor
freezes, restart all equipment including the projector.
Problem: The screen of the Notebook or PowerBook computer is not displaying a presentation
If you are using a Notebook PC:
Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer’s documentation for detailed information.
Problem: Image is unstable or ickering
Use “Phase” to correct it. (See page 25)
Change the monitor colour setting on your computer.
Problem: Image has vertical ickering bar
Use “Frequency” to make an adjustment. (See page 25)
Check and recongure the display mode of your graphic card to
make it compatible with the product.
Problem: Image is out of focus
Adjust the Focus Ring on the projector lens.
Page 41
English
39
Appendices
Message
Power-LED
Temp-LED Lamp-LED
(Green) (Red)
Standby State (Input power cord)
Warming Flashing
Normal Mode
Cooling Flashing
Error (Lamp failed)
Error (Fan failed) Flashing
Error (Over Temp.)
Make sure the projection screen is between distance 3.3 to 40.0 feet
(1.0 to 12.2 meters) from the projector. (See page 17)
Problem: The image is stretched when displaying 16:9 DVD
The projector automatically detects 16:9 DVD and adjusts the aspect ratio by digitizing to full screen with 4:3 default setting.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
Please select 4:3 aspect ratio type on your DVD player if you are
playing a 16:9 DVD.
If you can’t select 4:3 aspect ratio type on your DVD player, please select 4:3 aspect ratio in the on screen menu.
Problem: Image is reversed
Select “ManagementProjection” from the OSD and adjust the
projection direction. (See page 30)
Problem: Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp”. (See page 41)
Problem: LED lighting message
Steady light  No light 
Page 42
English
40
Appendices
Problem: Message Reminders
Fan fail:
Over temperature:
Power Off:
 Replace the lamp:
Page 43
English
41
Appendices
Replacing the Lamp
The projector keeps track of the lamp usage. It will show you a warning message:
When you see this message, change the lamp as soon as pos­sible. Make sure the projector has cooled down for at least 30 minutes before changing the lamp.
Warning: Lamp compartment is hot! Allow 30 minutes to cool down before changing lamp!
Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.
Lamp Replacement Procedure:
1. Turn off the power by pressing the Power/Standby button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Push up and remove the cover.
5. Use a screwdriver to remove the 3 screws from the lamp
module.
6. Pull out the lamp module.
To replace the lamp module, reverse the previous steps.
2
3
1
4
Page 44
English
42
Appendices
Remark : “*”compressed computer image.
Compatibility Modes
Mode Resolution
(ANALOG) (DIGITAL)
V.Frequency
(Hz)
H.Frequency
(kHz)
V.Frequency
(Hz)
H.Frequency
(kHz)
VESA VGA 640 x 350 70 31.5 70 31.5
VESA VGA 640 x 350 85 37.9 85 37.9
VESA VGA 640 x 400 85 37.9 85 37.9
VESA VGA 640 x 480 60 31.5 60 31.5
VESA VGA 640 x 480 72 37.9 72 37.9
VESA VGA 640 x 480 75 37.5 75 37.5
VESA VGA 640 x 480 85 43.3 85 43.3
VESA VGA 720 x 400 70 31.5 70 31.5
VESA VGA 720 x 400 85 37.9 85 37.9
VESA SVGA 800 x 600 56 35.2 56 35.2
VESA SVGA 800 x 600 60 37.9 60 37.9
VESA SVGA 800 x 600 72 48.1 72 48.1
VESA SVGA 800 x 600 75 46.9 75 46.9
VESA SVGA 800 x 600 85 53.7 85 53.7
VESA XGA 1024 x 768 60 48.4 60 48.4
VESA XGA 1024 x 768 70 56.5 70 56.5
VESA XGA 1024 x 768 75 60.0 75 60.0
VESA XGA 1024 x 768 85 68.7 85 68.7
* VESA SXGA 1152 x 864 70 63.8 70 63.8
* VESA SXGA 1152 x 864 75 67.5 75 67.5
* VESA SXGA 1152 x 864 85 77.1 85 77.1
* VESA SXGA 1280 x 1024 60 63.98 60 63.98
* VESA SXGA 1280 x 1024 75 79.98 75 79.98
* VESA SXGA 1280 x 1024 85 91.1 85 91.1
* VESA SXGA+ 1400 x 1050 60 63.98 60 63.98
* VESA UXGA 1600 x 1200 60 75 60 75
Mode Resolution
(ANALOG) (DIGITAL)
V.Frequency
(Hz)
H.Frequency
(kHz)
V.Frequency
(Hz)
H.Frequency
(kHz)
MAC LC 13” 640 x 480 66.66 34.98 *** ***
MAC II 13” 640 x 480 66.68 35 *** ***
MAC 16” 832 x 624 74.55 49.725 *** ***
MAC 19” 1024 x 768 75 60.24 *** ***
* MAC 1152 x 870 75.06 68.68 *** ***
MAC G4 640 x 480 60 31.35 *** ***
i MAC DV 1024 x 768 75 60 *** ***
* i MAC DV 1152 x 870 75 68.49 *** ***
* i MAC DV 1280 x 960 60 60 *** ***
Page 45
English
43
Appendices
VGA-In Connector
RS232 Commands
Pin no. Name
I/O (From Projec-
tor Side
1
TXD
OUT
2 RXD IN
3 GND __
Pin no. Spec.
1
R(RED)/Cr
2
G(GREEN)/Y
3 B(BLUE)/Cb
4 NC
5 GND
6 GND
7 GND
8 GND
9 DDC 5V
10 HOT_DET
11 NC
12 DDC Date
13 HS/CS
14 VS
15 DDC Clock
12345
678910
1112131415
1
2
3
RS232 Connector
Page 46
English
44
Appendices
Please note that
damage resulting from incorrect installation will invalidate the warranty.
Ceiling Mount Installation
1. To prevent damaging your projector, please use the ceiling mount package for installation.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attached a mount to the projector
meet the following specications:
Screw type: M3
Maximum screw length: 10mm
Minimum screw length: 8mm
Warning:
1. If you buy the ceiling mount from another manufacturer, please ensure that there is at least 10cm distance between the bottom cover of the projector and the ceiling.
2. Avoid placing the projector near sources of heat such as air­conditioning units and heaters otherwise it may overheat and shut down automatically.
126.00
63.00
111.00
40.00
66.00
(To Lens Center)
83.75
396.60(Min.)/596.60(Max.)
Page 47
English
45
Appendices
Optoma Global Ofces
Forserviceorsupportpleasecontactyourlocalofce.
USA
715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax: 408-383-3702 www.optomausa.com Service : service@optoma.com
Canada
5630 Kennedy Road, Mississauga, ON, L4Z 2A9, Canada Tel : 905-882-4228 Fax: 905-882-4229 www.optoma.com
Europe
42 Caxton Way, The Watford Business Park Watford, Hertfordshire, WD18 8QZ, UK Tel : +44 (0) 1923 691 800 Fax: +44 (0) 1923 691 888 www.optomaeurope.com Service Tel : +44 (0)1923 691865 Service : service@tsc-europe.com
Taiwan
5F., No. 108, Minchiuan Rd. Tel : +886-2-2218-2360 Shindian City, Taipei Taiwan 231, Fax: +886-2-2218-2313 R.O.C. www.optoma.com.tw Service : services@optoma.com.tw asia.optoma.com
Hong Kong
Rm. 2507, 25/F., China United Plaza, No. 1008 Tai Nan West St., Kowloon, H.K. Tel : +852-2396-8968 Fax: +852-2370-1222 www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., Tel : +86-21-62947376 Changning District Fax: +86-21-62947375 Shanghai, 200052, China www.optoma.com.cn
Latin America
715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax: 408-383-3702 www.optoma.com.br www.optoma.com.mx
Loading...
