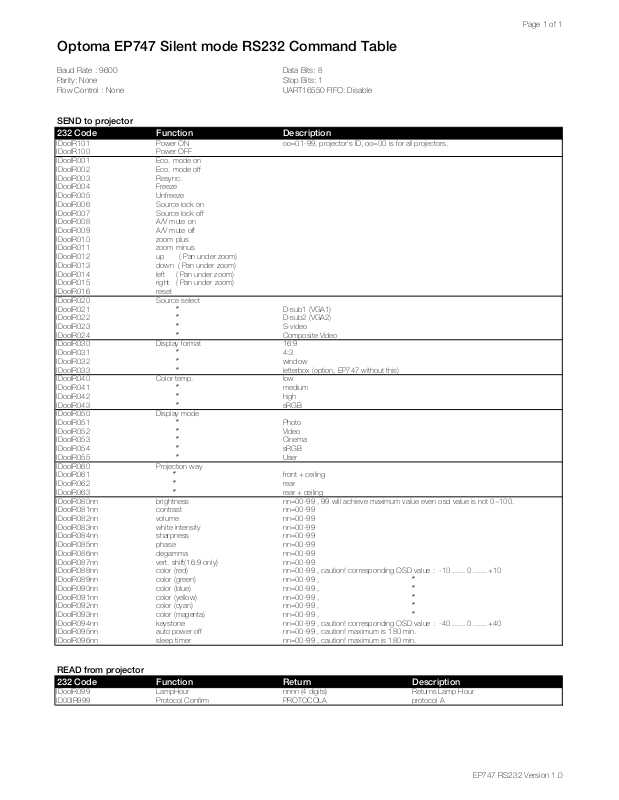

Optoma EP747 Silent mode RS232 Command Table

r

f

w

f

v

w

v

r

Baud Rate : 9600 Data Bits: 8
Parity: None Stop Bits: 1
Flow Control : None UART16550 FIFO: Disable

SEND to projecto

232 Code Function Description

IDooIR101 Power ON oo=01-99, projector's ID, oo=00 is for all projectors.
IDooIR100 Power OFF
IDooIR001 Eco. mode on
IDooIR002 Eco. mode off
IDooIR003 Resync.
IDooIR004 Freeze
IDooIR005 Unfreeze
IDooIR006 Source lock on
IDooIR007 Source lock off
IDooIR008 A/V mute on
IDooIR009 A/V mute of
IDooIR010 zoom plus
IDooIR011 zoom minus
IDooIR012 up ( Pan under zoom)
IDooIR013 down ( Pan under zoom)
IDooIR014 left ( Pan under zoom)
IDooIR015 right ( Pan under zoom)
IDooIR016 reset
IDooIR020 Source select
IDooIR021 ″ D-sub1 (VGA1)
IDooIR022 ″ D-sub2 (VGA2)
IDooIR023 ″ S-video
IDooIR024 ″ Composite Video
IDooIR030 Display format 16:9
IDooIR031 ″ 4:3
IDooIR032 ″
IDooIR033 ″ letterbox (option, EP747 without this)
IDooIR040 Color temp. low
IDooIR041 ″ medium
IDooIR042 ″ high
IDooIR043 ″ sRGB
IDooIR050 Display mode
IDooIR051 ″ Photo
IDooIR052 ″ Video
IDooIR053 ″ Cinema
IDooIR054 ″ sRGB
IDooIR055 ″ User
IDooIR060 Projection way
IDooIR061 ″
IDooIR062 ″ rear
IDooIR063 ″ rear + ceiling
IDooIR080nn brightness nn=00-99 , 99 will achieve maximum value even osd value is not 0~100.
IDooIR081nn contrast nn=00-99
IDooIR082nn
IDooIR083nn
IDooIR084nn sharpness nn=00-99
IDooIR085nn phase nn=00-99
IDooIR086nn degamma nn=00-99
IDooIR087nn

IDooIR088nn color (red) nn=00-99 , caution! corresponding OSD value : -10 ...... 0 ...... +10

IDooIR089nn color (green) nn=00-99 , ″
IDooIR090nn color (blue) nn=00-99 , ″
IDooIR091nn color (yellow) nn=00-99 , ″
IDooIR092nn color (cyan) nn=00-99 , ″
IDooIR093nn color (magenta) nn=00-99 , ″

IDooIR094nn keystone nn=00-99 , caution! corresponding OSD value : -40 ...... 0 ...... +40

IDooIR095nn auto power off nn=00-99 , caution! maximum is 180 min.
IDooIR096nn sleep timer nn=00-99 , caution! maximum is 180 min.

olume nn=00-99

hite intensity nn=00-99

ert. shift(16:9 only) nn=00-99

indow

ront + ceiling

Page 1 of 1

READ from projecto

232 Code Function Return Description

IDooIR099 LampHour nnnn (4 digits) Returns Lamp Hour
ID00IR999 Protocol Confirm PROTOCOLA protocol A

EP747 RS232 Version 1.0
