Optoma DU400 User guide

DLP® Projector

User manual

English

2

TABLE OF CONTENTS

SAFETY ............................................................................................... 4

Important Safety Instruction....................................................................................................... 4

3D Safety Information ................................................................................................................ 5

Copyright ................................................................................................................................... 6

Disclaimer .................................................................................................................................. 6

Trademark Recognition ............................................................................................................. 6

FCC ........................................................................................................................................... 7

Declaration of Conformity for EU countries ............................................................................... 7

WEEE ........................................................................................................................................ 7

INTRODUCTION .................................................................................. 8

Package Overview..................................................................................................................... 8

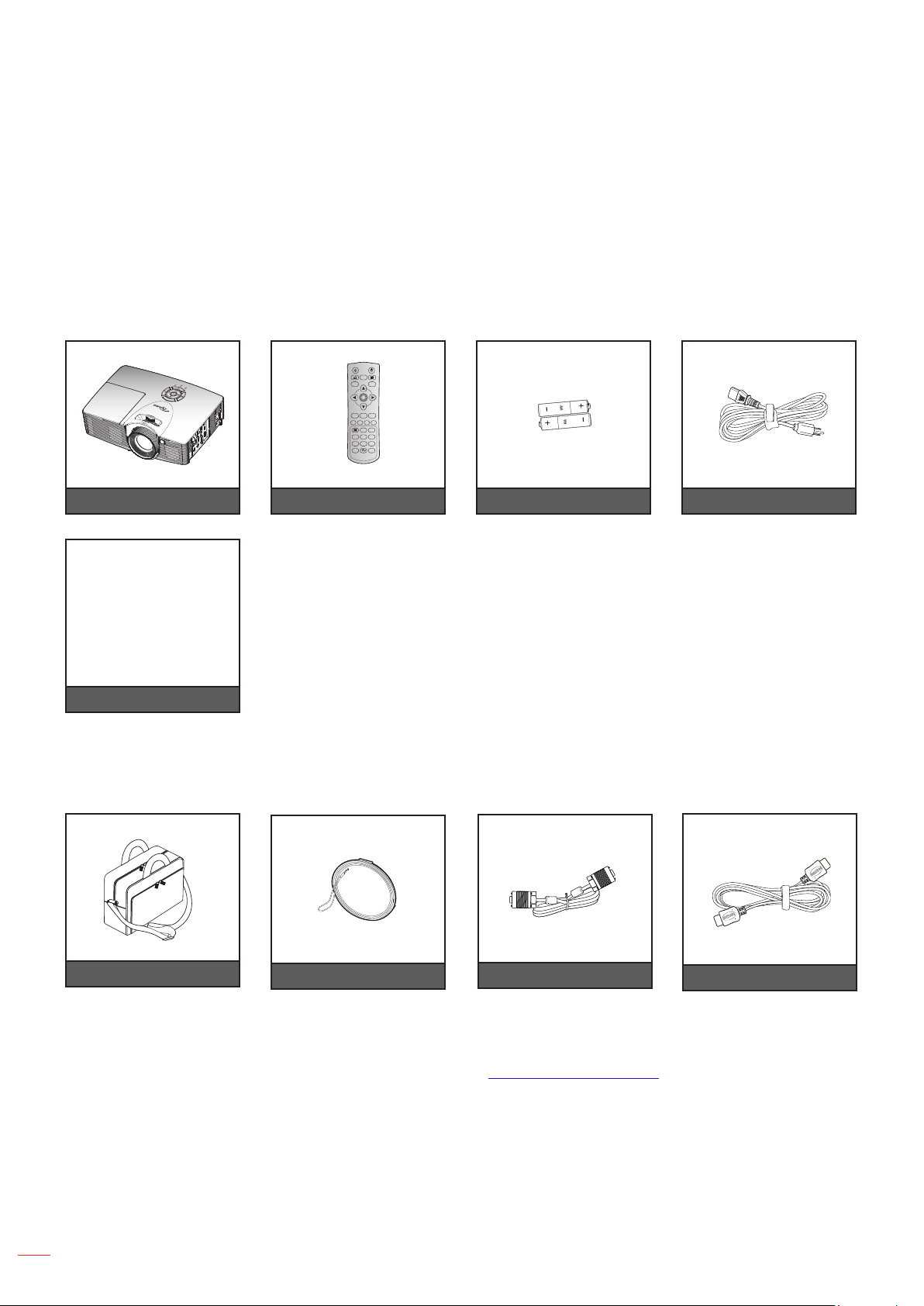

Standard accessories ................................................................................................................ 8

Optional accessories ................................................................................................................. 8

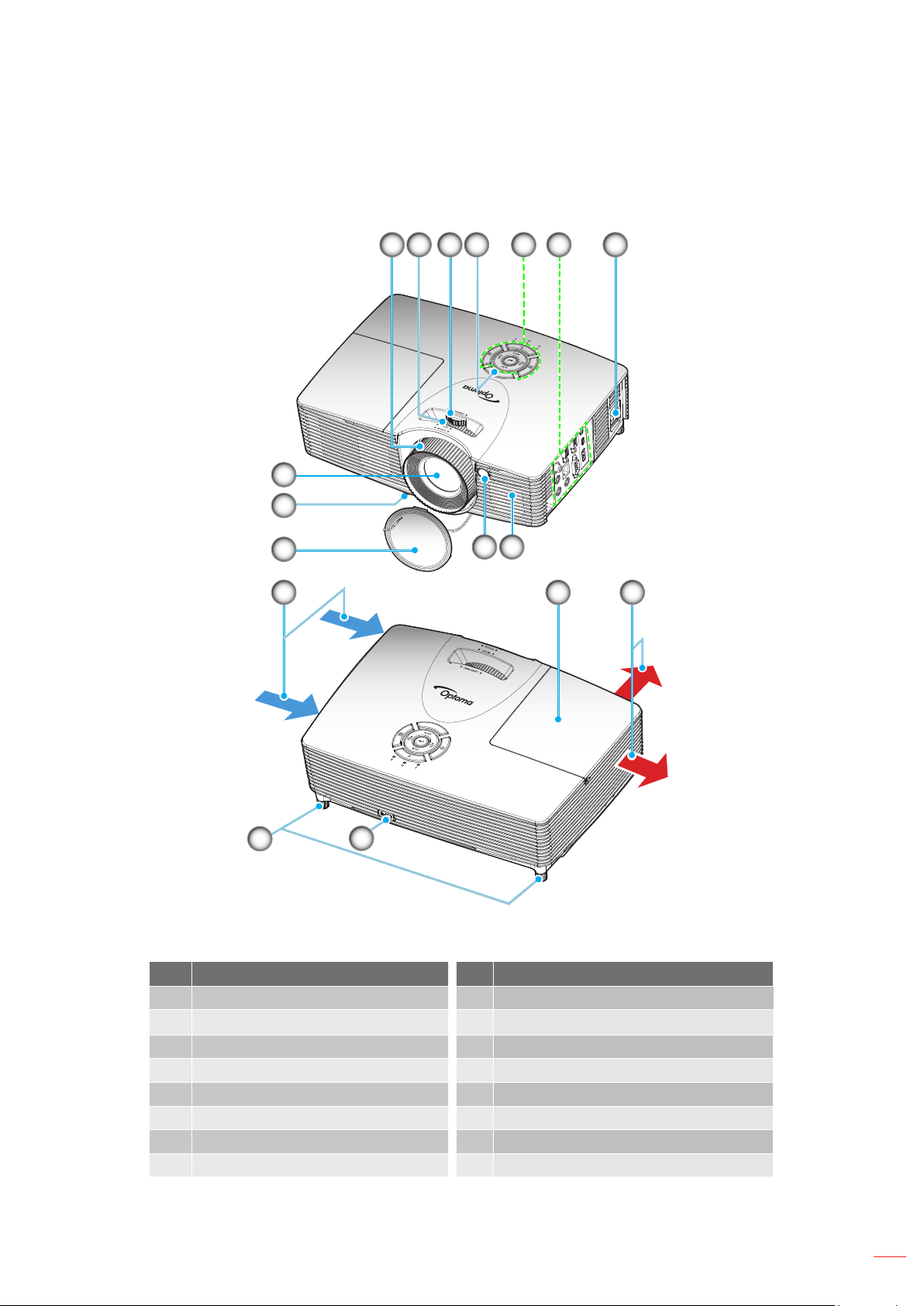

Product Overview ...................................................................................................................... 9

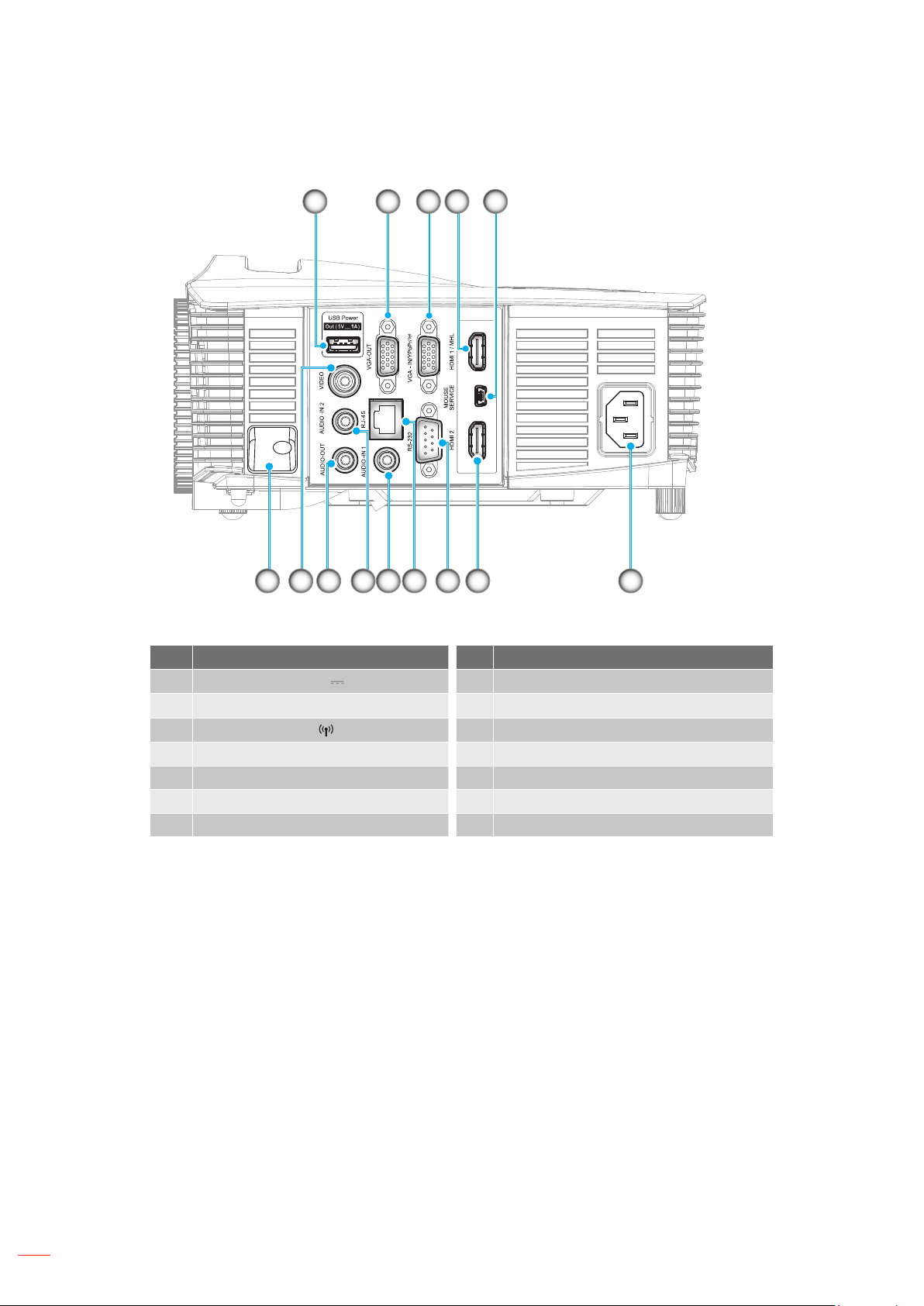

Connections.............................................................................................................................. 10

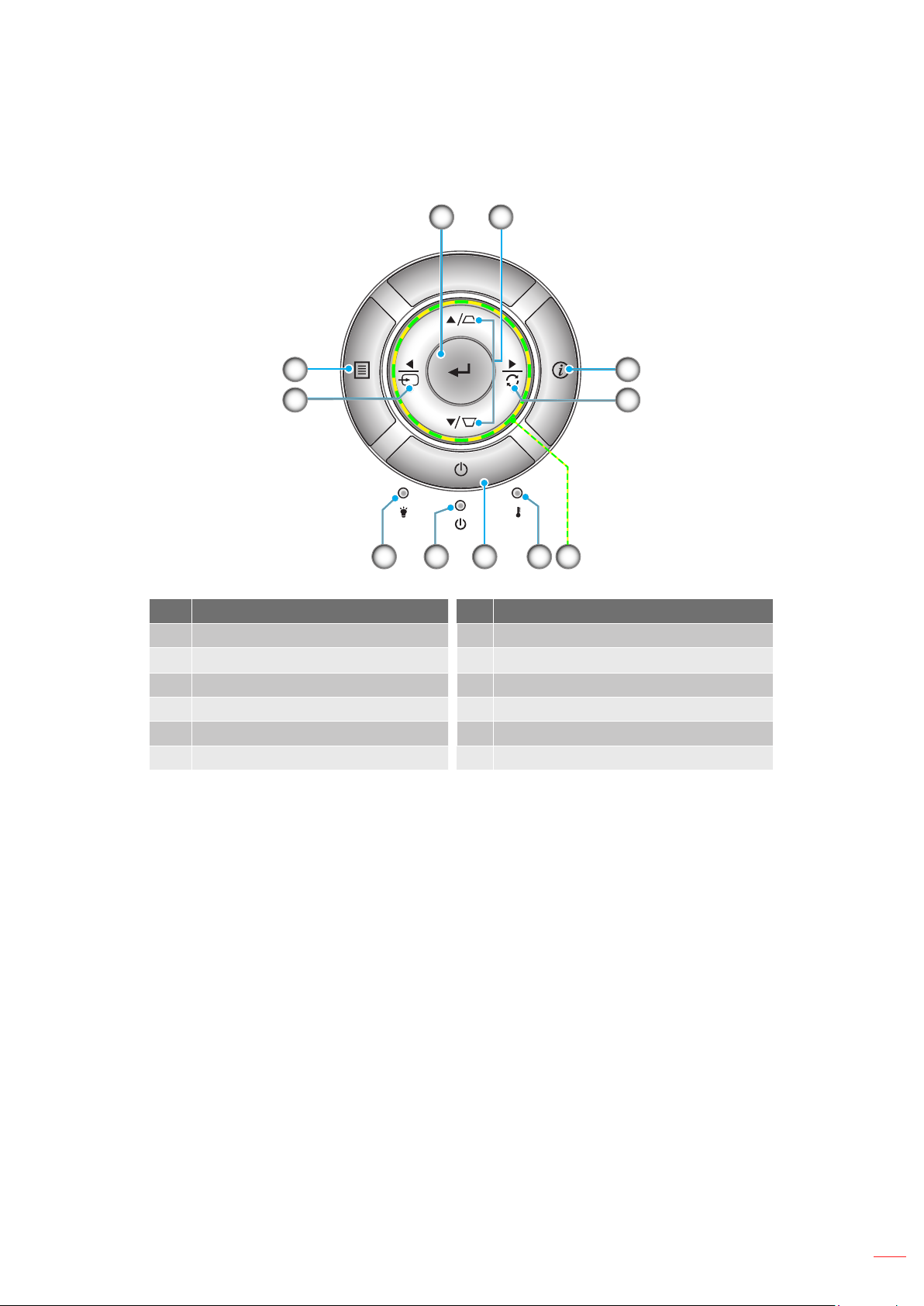

Keypad ..................................................................................................................................... 11

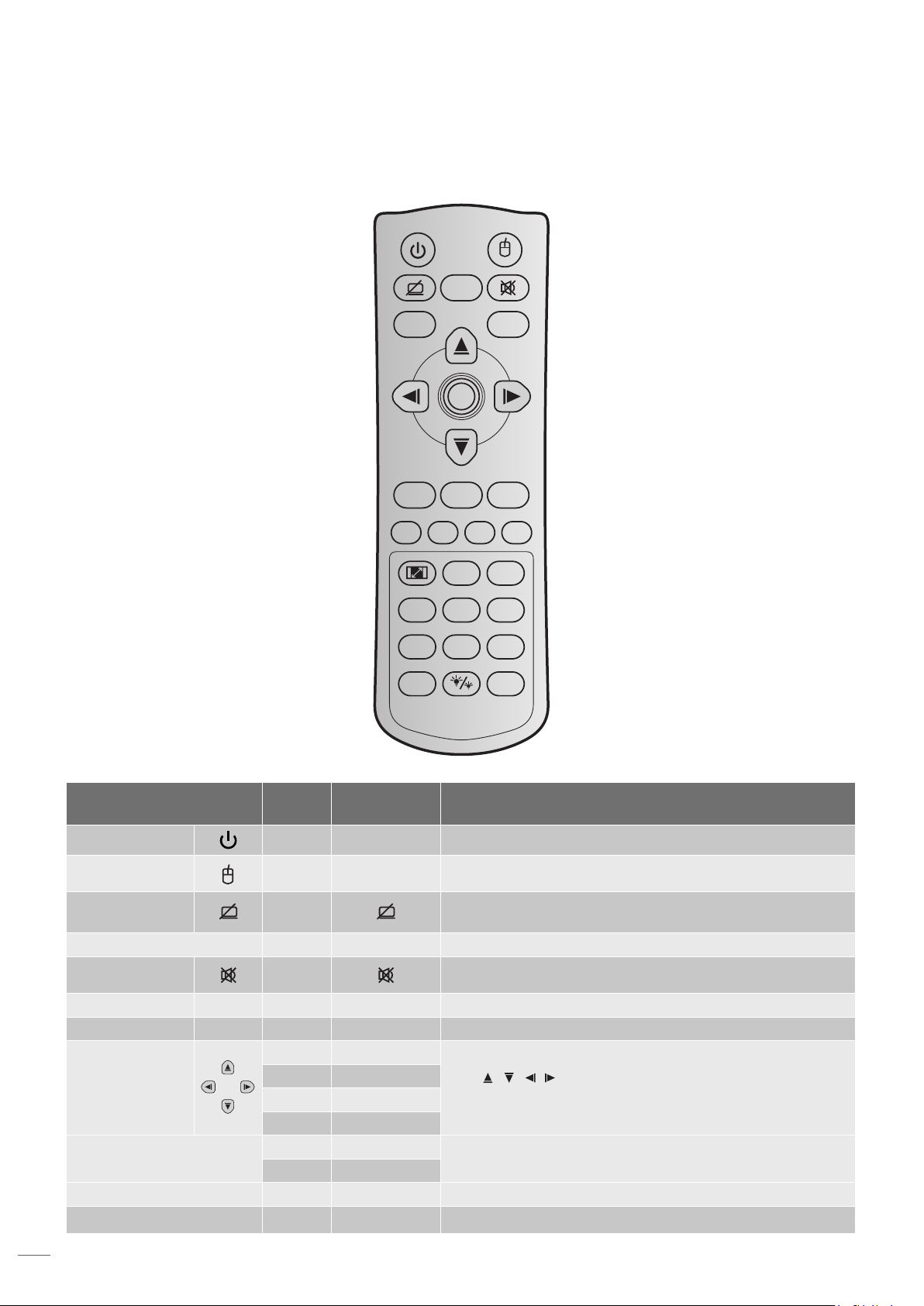

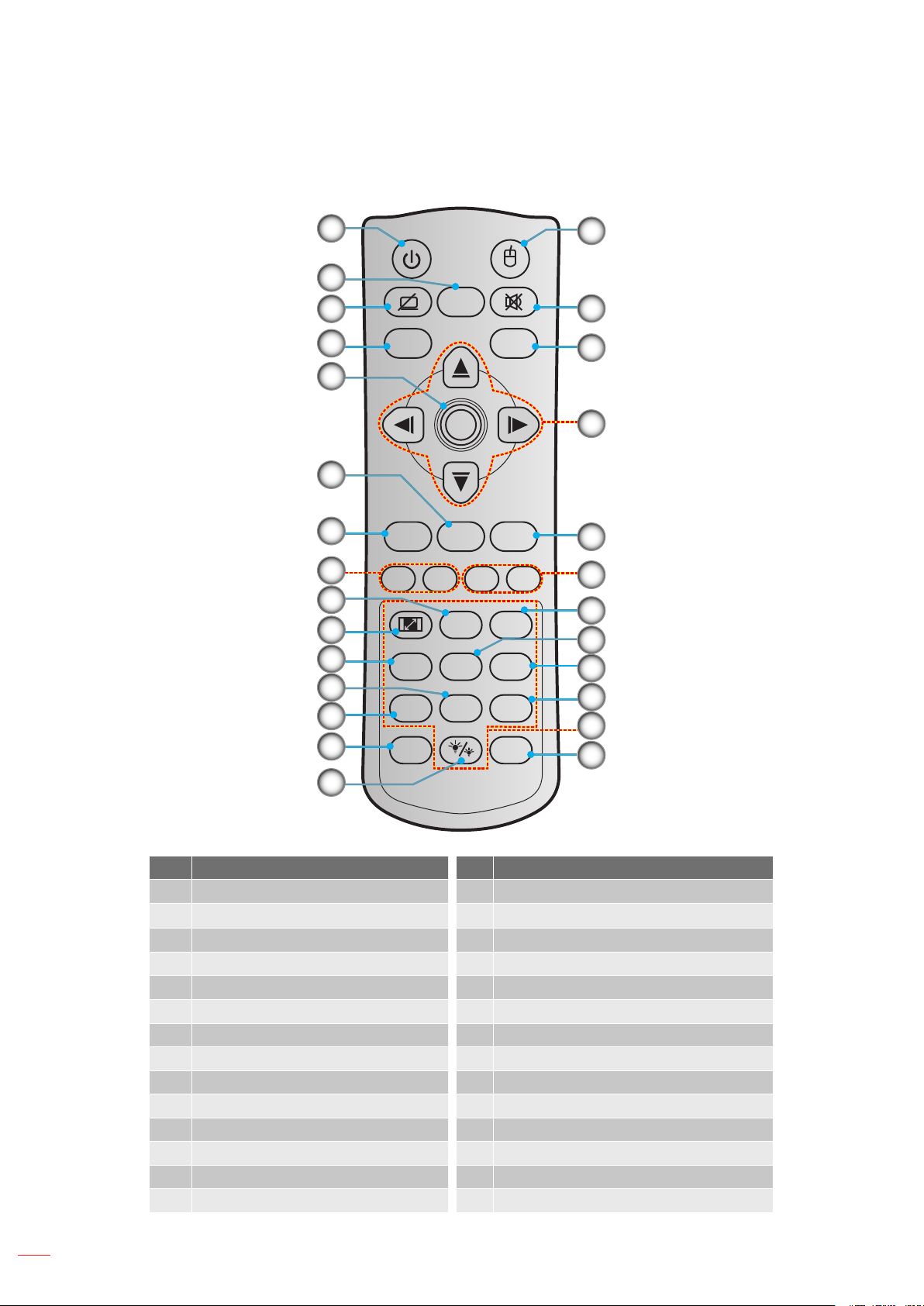

Remote control ......................................................................................................................... 12

SETUP AND INSTALLATION ............................................................. 13

Installing the projector .............................................................................................................. 13

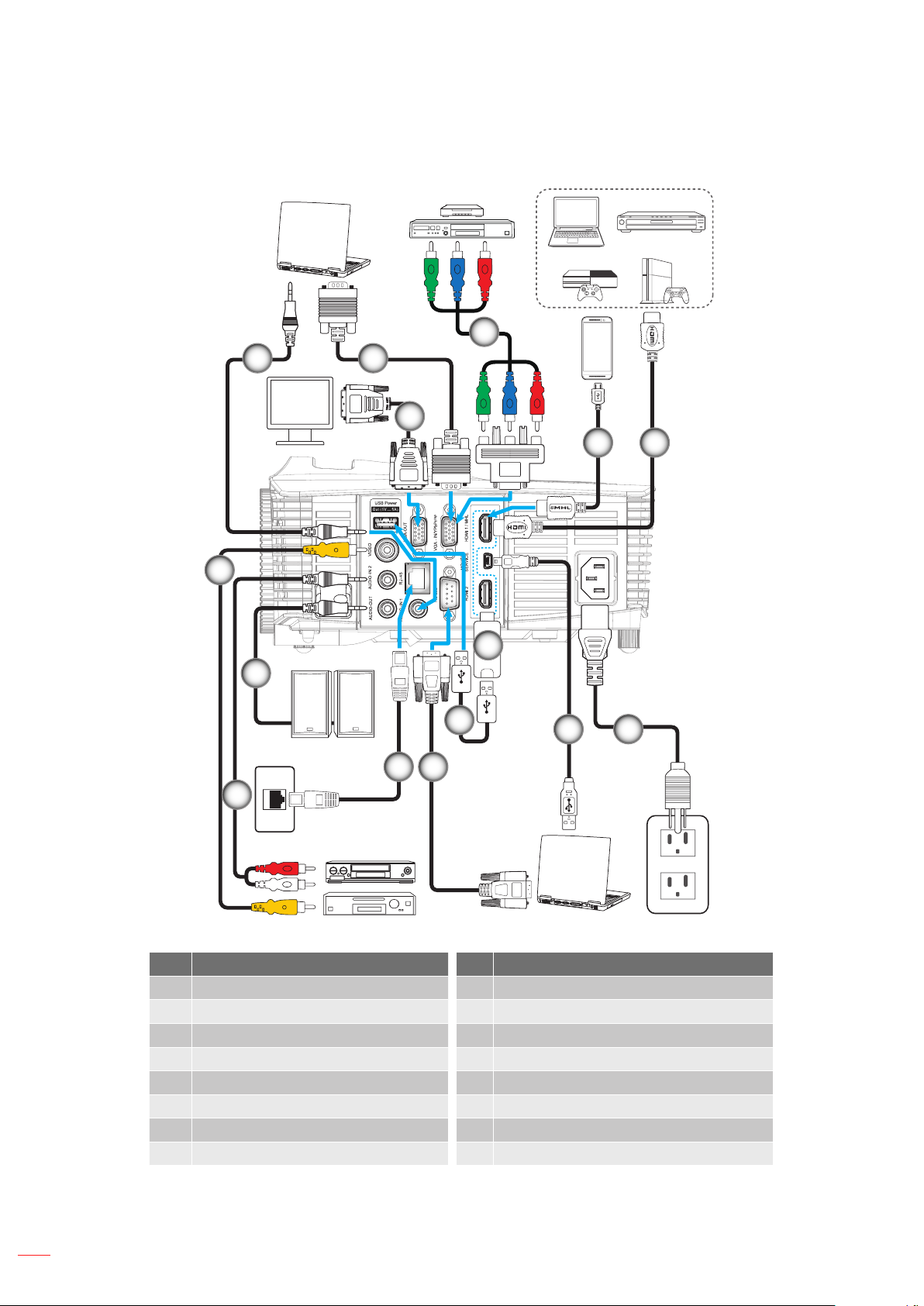

Connecting sources to the projector ......................................................................................... 14

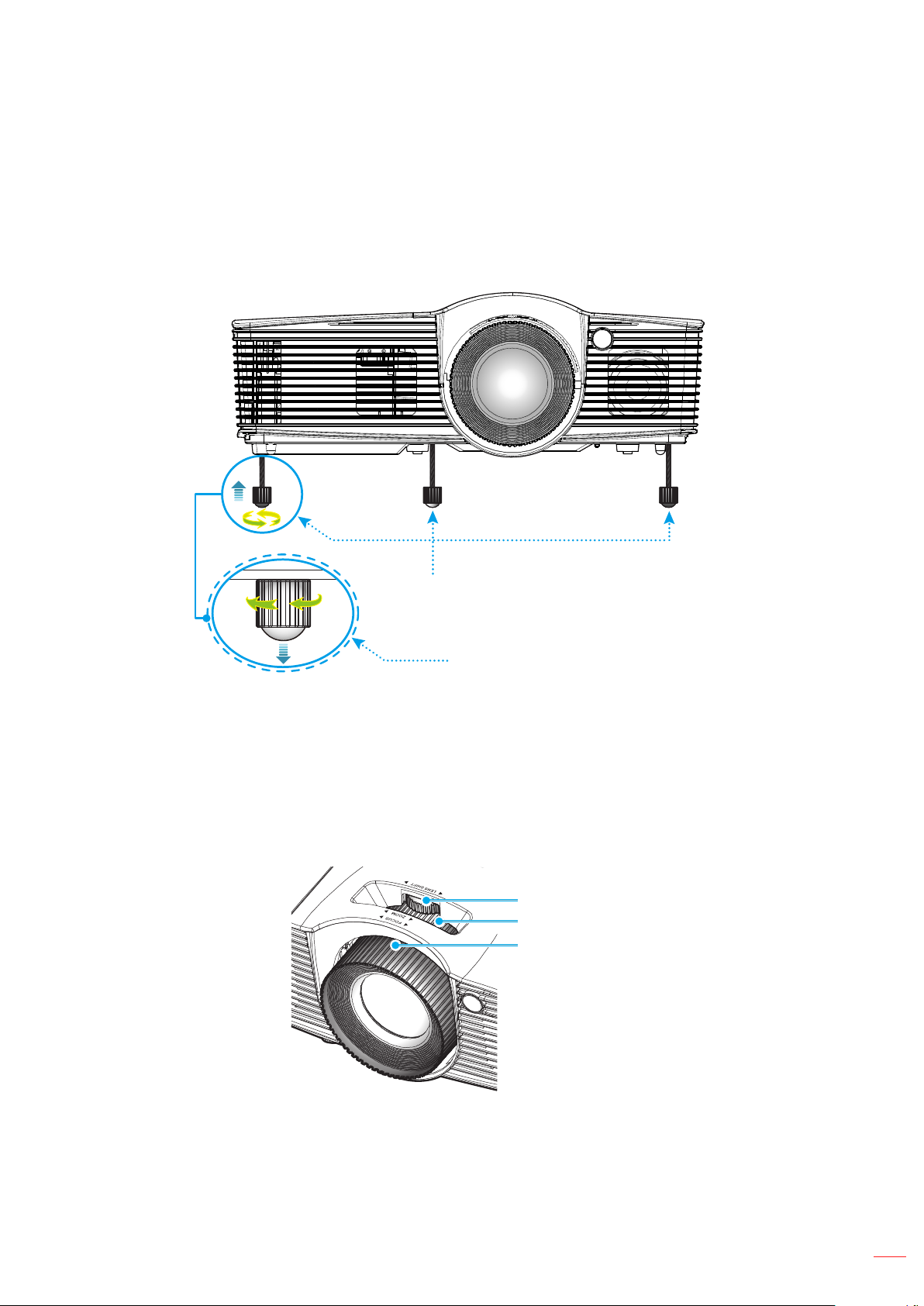

Adjusting the projector image ................................................................................................... 15

Remote setup ........................................................................................................................... 16

USING THE PROJECTOR .................................................................. 18

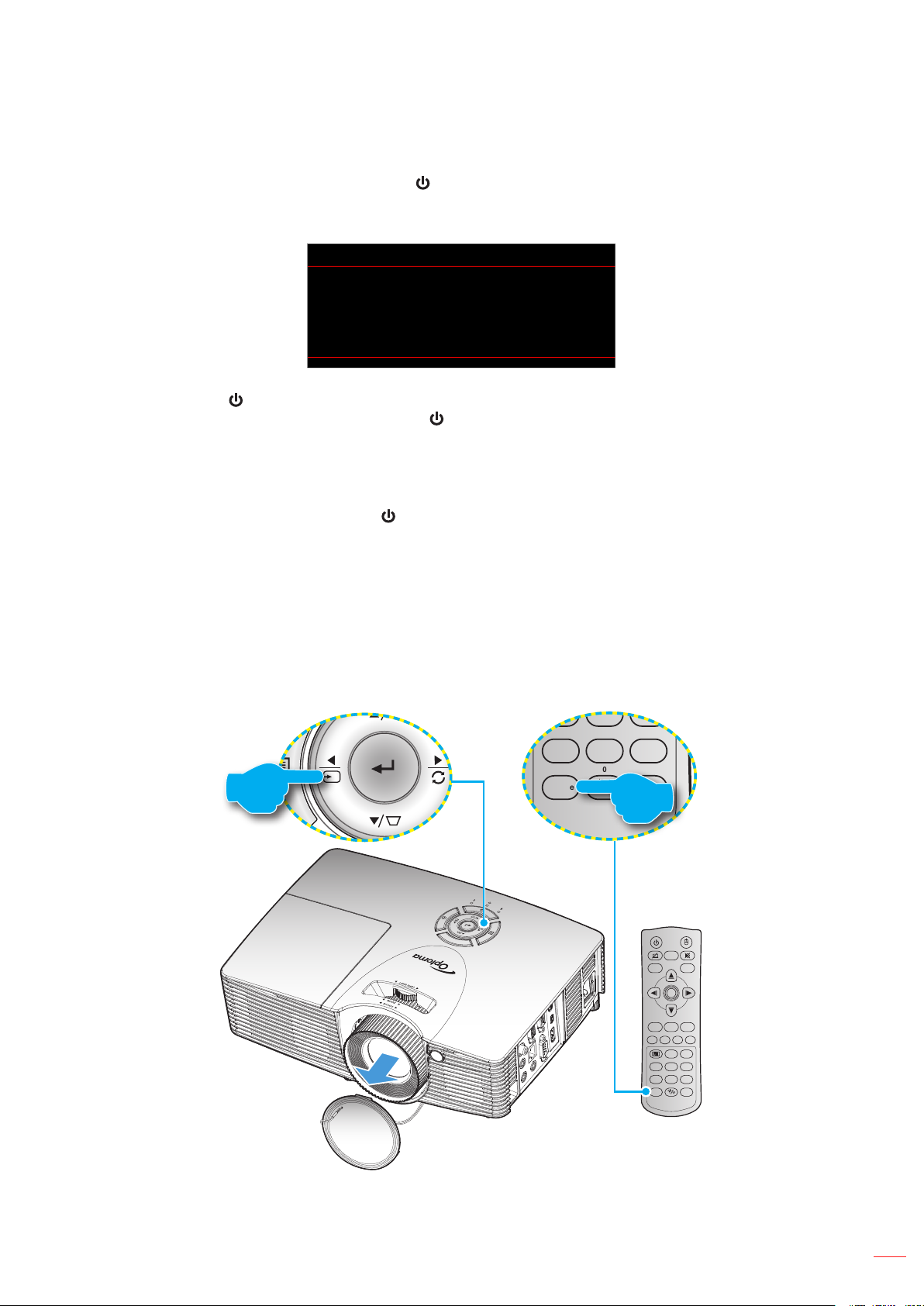

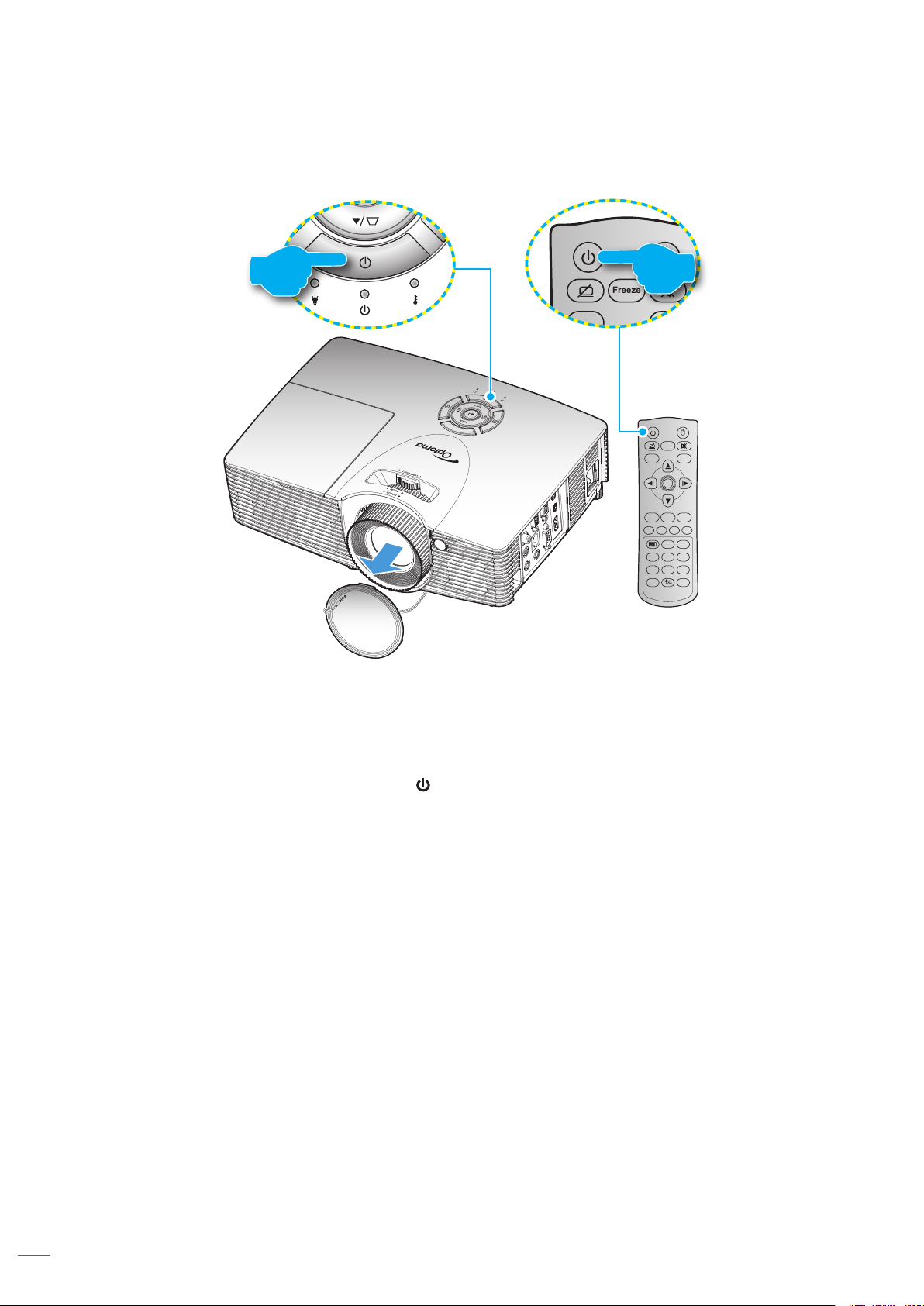

Powering on / off the projector.................................................................................................. 18

Selecting an input source ......................................................................................................... 19

Menu navigation and features .................................................................................................. 20

OSD Menu tree......................................................................................................................... 21

Display image settings menu.................................................................................................... 29

Display 3D menu ...................................................................................................................... 31

Display aspect ratio menu ........................................................................................................ 32

Display edge mask menu ......................................................................................................... 37

Display zoom menu .................................................................................................................. 37

Display image shift menu ......................................................................................................... 37

Display keystone menu ............................................................................................................ 38

Audio mute menu ..................................................................................................................... 38

Audio volume menu .................................................................................................................. 38

Audio input menu...................................................................................................................... 38

English

3

Audio out (Standby) menu ........................................................................................................ 38

Setup projection menu.............................................................................................................. 38

Setup screen type menu........................................................................................................... 38

Setup lamp settings menu ........................................................................................................ 38

Setup lter settings menu ......................................................................................................... 39

Setup power settings menu ...................................................................................................... 39

Setup security menu ................................................................................................................. 40

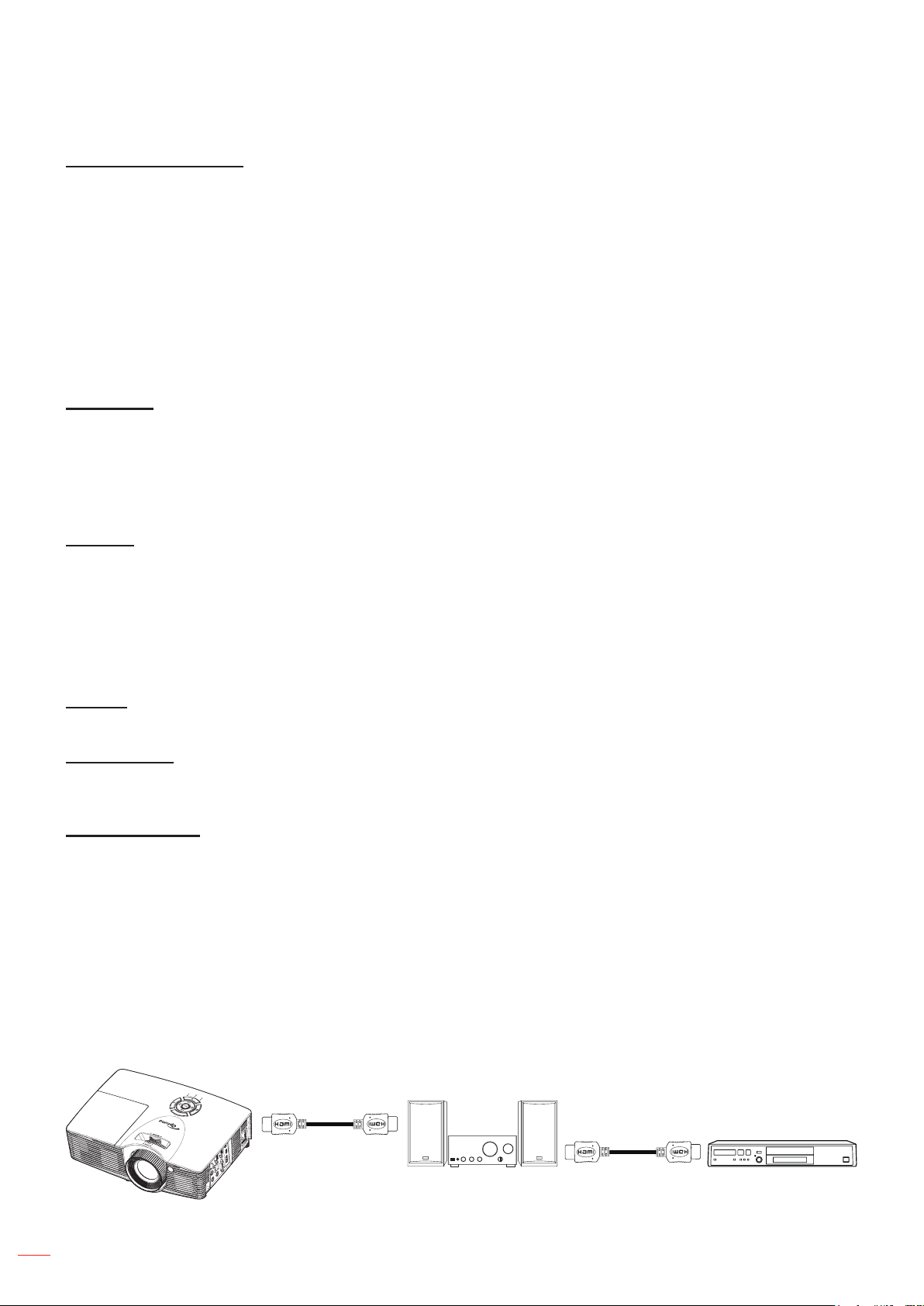

Setup HDMI link settings menu ................................................................................................ 40

Setup test pattern menu ........................................................................................................... 41

Setup remote settings menu..................................................................................................... 41

Setup projector ID menu........................................................................................................... 41

Setup options menu.................................................................................................................. 41

Setup reset all menu................................................................................................................. 42

Network LAN menu .................................................................................................................. 43

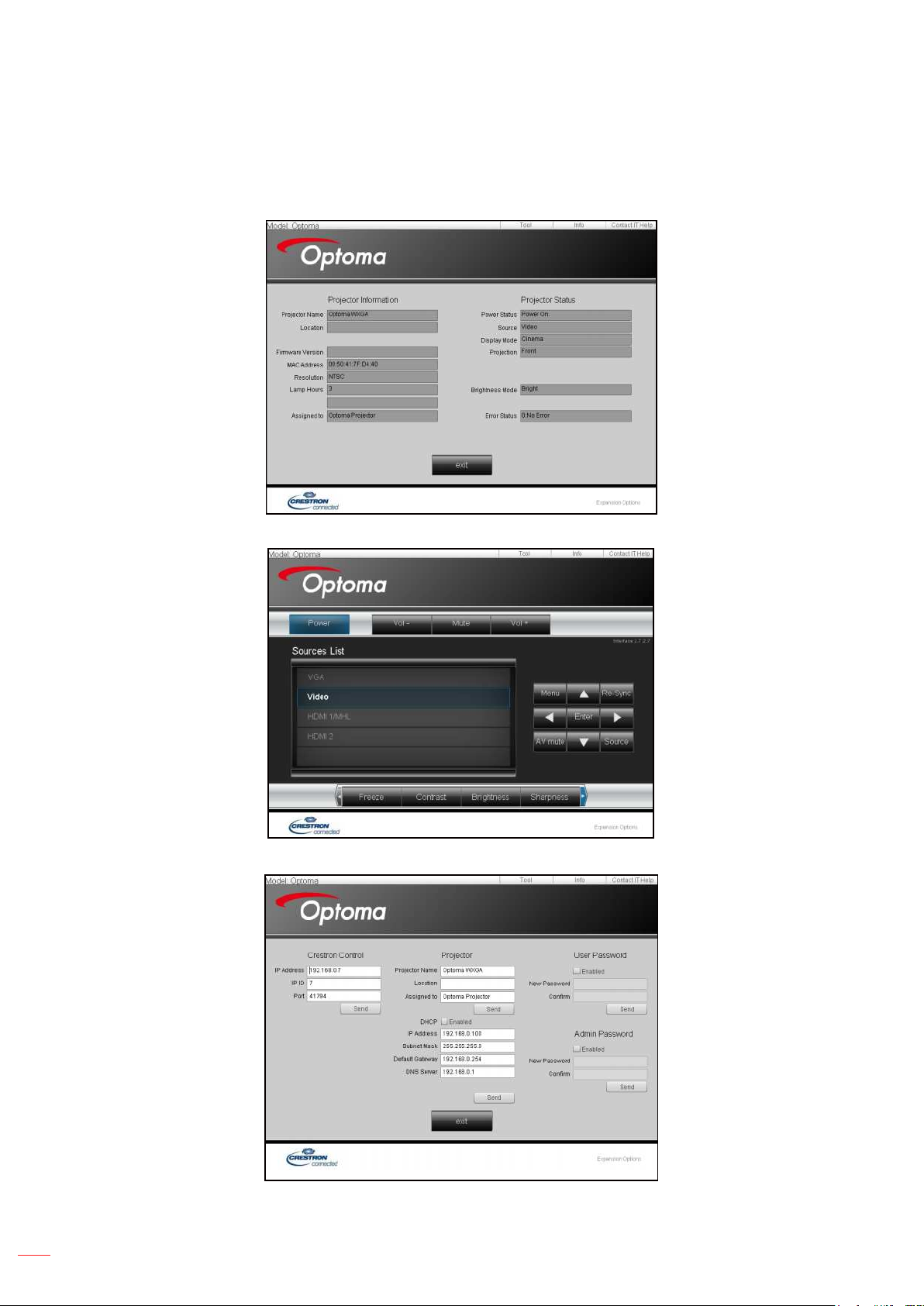

Network control menu............................................................................................................... 44

Setup network control settings menu ....................................................................................... 45

Info menu.................................................................................................................................. 50

3D Setup................................................................................................................................... 51

MAINTENANCE .................................................................................. 52

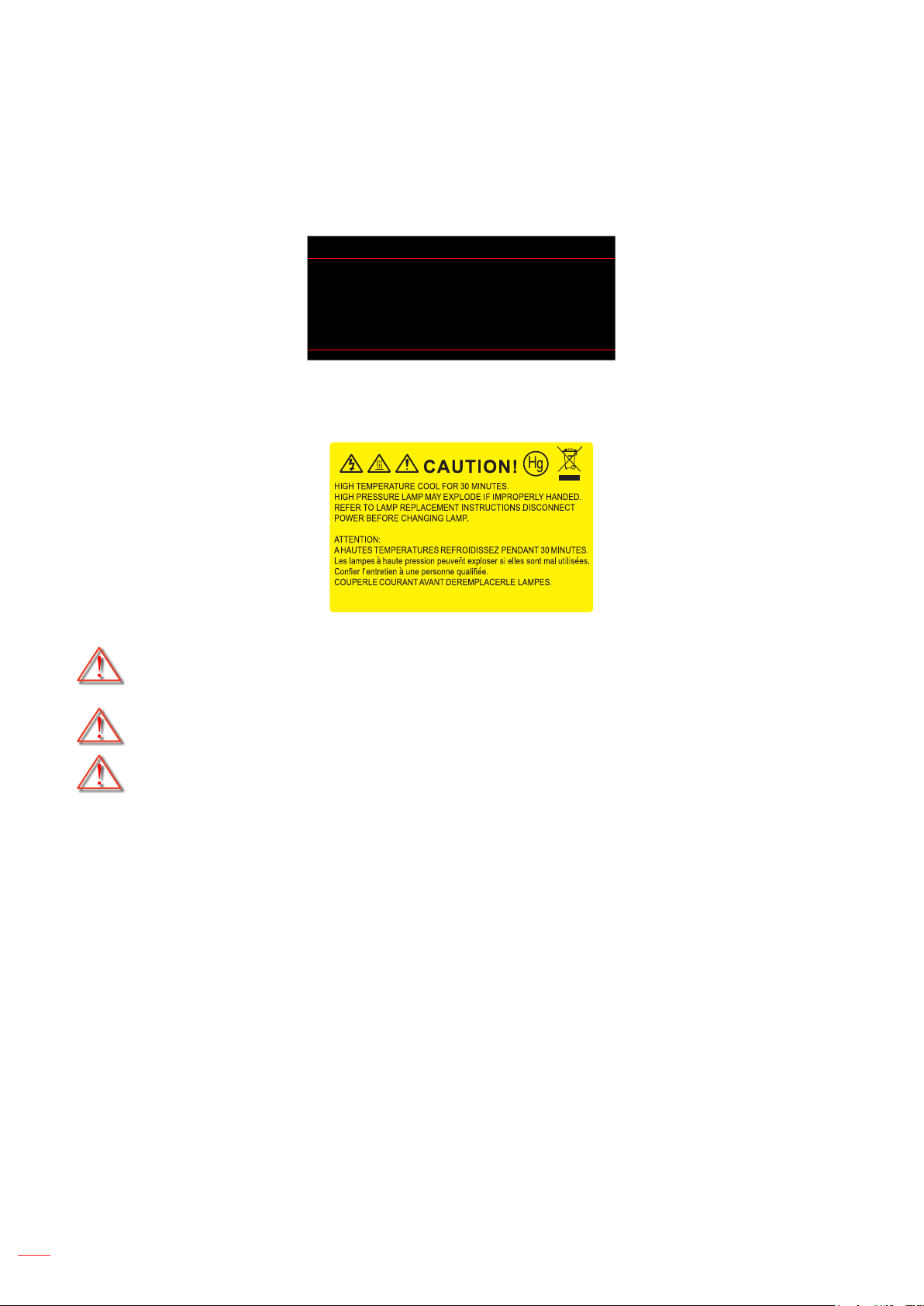

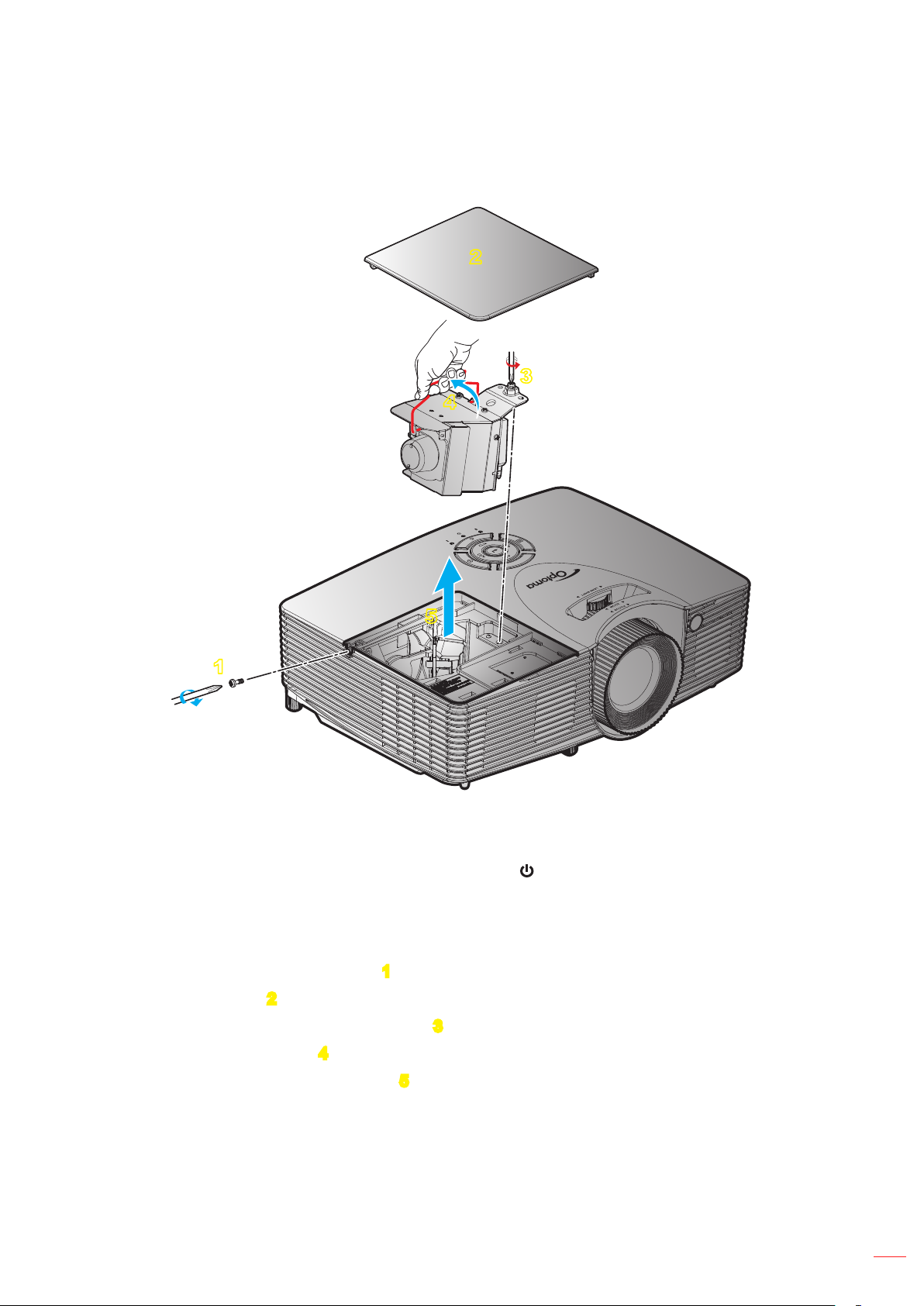

Replacing the lamp ................................................................................................................... 52

Replacing the lamp (continued) ................................................................................................ 53

Installing and cleaning the dust lter ........................................................................................ 54

ADDITIONAL INFORMATION ............................................................ 55

Compatible resolutions ............................................................................................................. 55

Image size and projection distance .......................................................................................... 56

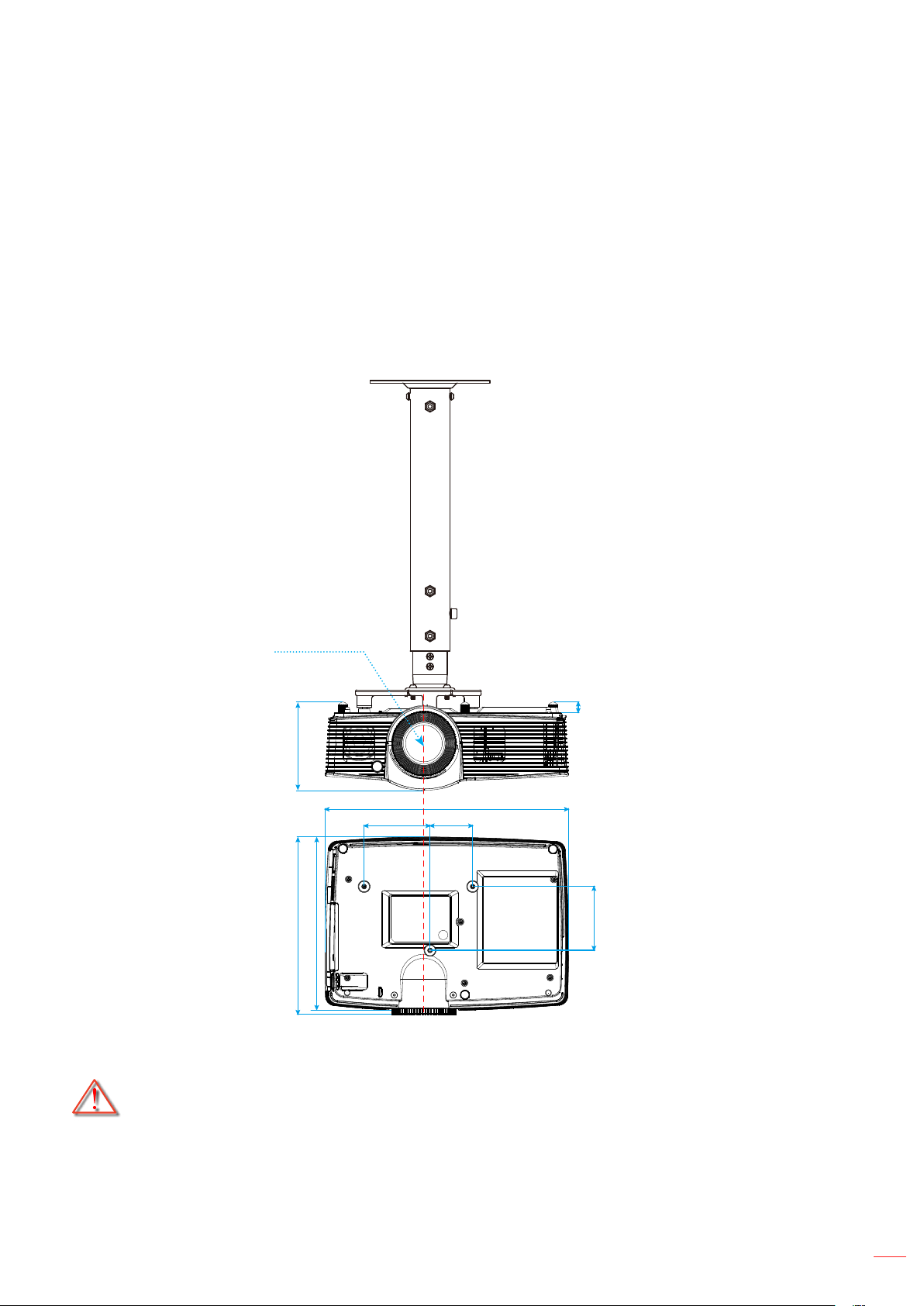

Projector dimensions and ceiling mount installation ................................................................. 61

IR remote codes ....................................................................................................................... 62

Using the Information button .................................................................................................... 64

Troubleshooting ........................................................................................................................ 64

Warning indicators .................................................................................................................... 66

Specications ........................................................................................................................... 68

Optoma global ofces ............................................................................................................... 70

English

4

SAFETY

The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Important Safety Instruction

Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from 
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air ow.

To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not 
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.

Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short 
out parts that could result in re or electric shock.

Do not use under the following conditions: 

In extremely hot, cold or humid environments. ±
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%

In areas susceptible to excessive dust and dirt. ±

Near any appliance generating a strong magnetic eld. ±

In direct sunlight. ±

Do not use the projector in places where ammable gases or explosives gases may be present in the 
atmosphere. The lamp inside the projector becomes very hot during operation and the gases my ignite
and result in a re.

Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be 
(but not limited to):

Unit has been dropped. ±

Power supply cord or plug has been damaged. ±

Liquid has been spilled on to the projector. ±

Projector has been exposed to rain or moisture. ±

Something has fallen in the projector or something is loose inside. ±

Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the 
projector may become damaged.

Do not block the light coming out of the projector lens when in operation. The light will heat the object 
and my melt, cause burns or start a re.

Please do not open or disassemble the projector as this may cause electric shock. 
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous 

voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings. 
The unit should only be repaired by appropriate service personnel. 

English

5

Only use attachments/accessories specied by the manufacturer. 
Do not look into straight into the projector lens during operation. The bright light may harm your eyes. 
When replacing the lamp, please allow the unit to cool down. Follow instructions as described on 

pages 53-54.
This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows 

warning messages.
Reset the "Lamp Reset" function from the on-screen display Setup Lamp Settings menu after 

replacing the lamp module (refer to page 38).
When switching the projector off, please ensure the cooling cycle has been completed before 

disconnecting power. Allow 90 seconds for the projector to cool down.
When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show 

on the screen. Please contact your local reseller or service center to change the lamp as soon as
possible.

Turn off and unplug the power plug from the AC outlet before cleaning the product. 
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners, 

waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time. 

When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has beenNote:
replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages
53-54.

Do not setup the projector in places where it might be subjected to vibration or shock. 
Do not touch the lens with bare hands 
Remove battery/batteries from remote control before storage. If the battery/batteries are left in the 

remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it 

can adversely affect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may affect the 

projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices  .

3D Safety Information

Please follow all warnings and precautions as recommended before you or your child use the 3D function.

Warning

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be
closely supervised when viewing these images.

Photosensitive Seizure Warning and Other Health Risks

Some viewers may experience an epileptic seizure or stroke when exposed to certain ashing images 
or lights contained in certain Projector pictures or video games. If you suffer from, or have a family
history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.

Even those without a personal or family history of epilepsy or stroke may have an undiagnosed 
condition that can cause photosensitive epileptic seizures.

Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or 
under the inuence of alcohol should avoid utilizing the unit's 3D functionality.

If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a 
medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements
such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions;
(9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults
to experience these symptoms. Parents should monitor their children and ask whether they are
experiencing these symptoms.

English

6

Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye 
strain and decreased postural stability. It is recommended that users take frequent breaks to lessen
the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the
above symptoms, immediately discontinue use of this device and do not resume using it for at least
thirty minutes after the symptoms have subsided.

Watching 3D projection while sitting too close to the screen for an extended period of time may 
damage your eyesight. The ideal viewing distance should be at least three times the screen height. It
is recommended that the viewer's eyes are level with the screen.

Watching 3D projection while wearing 3D glasses for an extended period of time may cause a 
headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D
projection and rest.

Do not use the 3D glasses for any other purpose than for watching 3D projection. 
Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles, 

etc.) may be physically harmful to you and may weaken your eyesight.
Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your 

3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run
into, knocked down, broken or fallen over.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.

© Copyright 2015

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.

DLP , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColorTM is a
trademark of Texas Instruments.

All other product names used in this manual are the properties of their respective owners and are
Acknowledged.

English

7

FCC

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on is
encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. 
Increase the separation between the device and receiver. 
Connect the device into an outlet on a circuit different from that to which the receiver is connected. 
Consult the dealer or an experienced radio/television technician for help. 

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.

Caution

Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and

2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.
Remarque l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

Declaration of Conformity for EU countries

EMC Directive 2004/108/EC (including amendments) 
Low Voltage Directive 2006/95/EC 
R & TTE Directive 1999/5/EC (if product has RF function) 

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.

INTRODUCTION

Freeze

Power Switch

L

R

Keystone Volume

Page

-

-+-

+

1 2

Menu33D

4

HDMI5VGA6Video

7

User18User29User3

Source0Resync

Page+Laser

Enter

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.

Standard accessories

Projector Remote control 2x AAA batteries Power lead

CD User Manual



Warranty Card*



Basic User Manual



Documentation

Optional accessories

Carry bag

Note:

Lens cap

VGA cable

HDMI cable

8

Optional accessories vary depending on model, specication and region. 
* For European warranty information please visit  www.optomaeurope.com.

English

INTRODUCTION

Product Overview

11

10

5 63 721 4

4 8

12 1315

10

9

14

Do not block projector inlet or outlet air vents.Note:

No Item No Item

1. Focus Ring 9 Lens Cap

2.

Zoom Ring

Tilt-Adjustment Feet

10.

3. Lens Shift Ring 11. Lens

4. IR Receiver 12. Lamp Cover

5. Keypad 13. Ventilation (outlet)

6. Input / Output 14. Kensington

7. Power Socket 15. Ventilation (inlet)

8. Speaker

TM

Lock Port

English

9

English

10

INTRODUCTION

Connections

21 3 54

101113 1214

Remote mouse requires special remote control.Note:

No Item No Item

1. USB Power Out (5V 1A) Connector 8. RS-232 Connector

2. VGA-OUT Connector 9. RJ-45 Connector

3.

VGA2 In/YPbPr / Connector

4. HDMI 1 / MHL Connector 11. AUDIO-IN 2 Connector

5. MOUSE / SERVICE Connector 12. AUDIO-OUT Connector

6. Power Socket 13. VIDEO Connector

7. HDMI 2 Connector 14. Security Bar

8 7 69

10. AUDIO-IN 1 Connector

English

11

INTRODUCTION

Keypad

1

11

10 4

89

2

3

5

67

No Item No Item

Enter

1.
Keystone Correction

2.
Information

3.
Re-Sync

4.
Four Directional Select Keys

5.
Temp LED

6.

Power

7.
On/Standby LED

8.
Lamp LED

9.
Source

10.
Menu

11.

INTRODUCTION

Freeze

Power Switch

L

R

Keystone Volume

Page

-

-

+

-

+

1 2

Menu

3

3D

4

HDMI5VGA6Video

7

User18User29User3

Source

0

Resync

Page+Laser

Enter

Remote control

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

Some keys may have no function for models that do not support these features.Note:

No Item No Item

1. Power On / Off 15. Brightness Mode
Freeze 16. Mouse On / Off

2.

3. Display Blank / Audio Mute 17. Mute

4. Mouse Left Click 18. Mouse Right Click

5. Enter 19. Four Directional Select Keys

6. Laser 20. Page +

7. Page - 21. Volume - / +

8. Keystone - / + 22. 3D Menu On / Off

9. Menu 23. VGA

10. Aspect Ratio 24. Video

11. HDMI 25. User 3

12. User 2 26. Numeric Keypad (0-9)

13. User 1 27. Resync

14. Source

12

English

SETUP AND INSTALLATION

Installing the projector

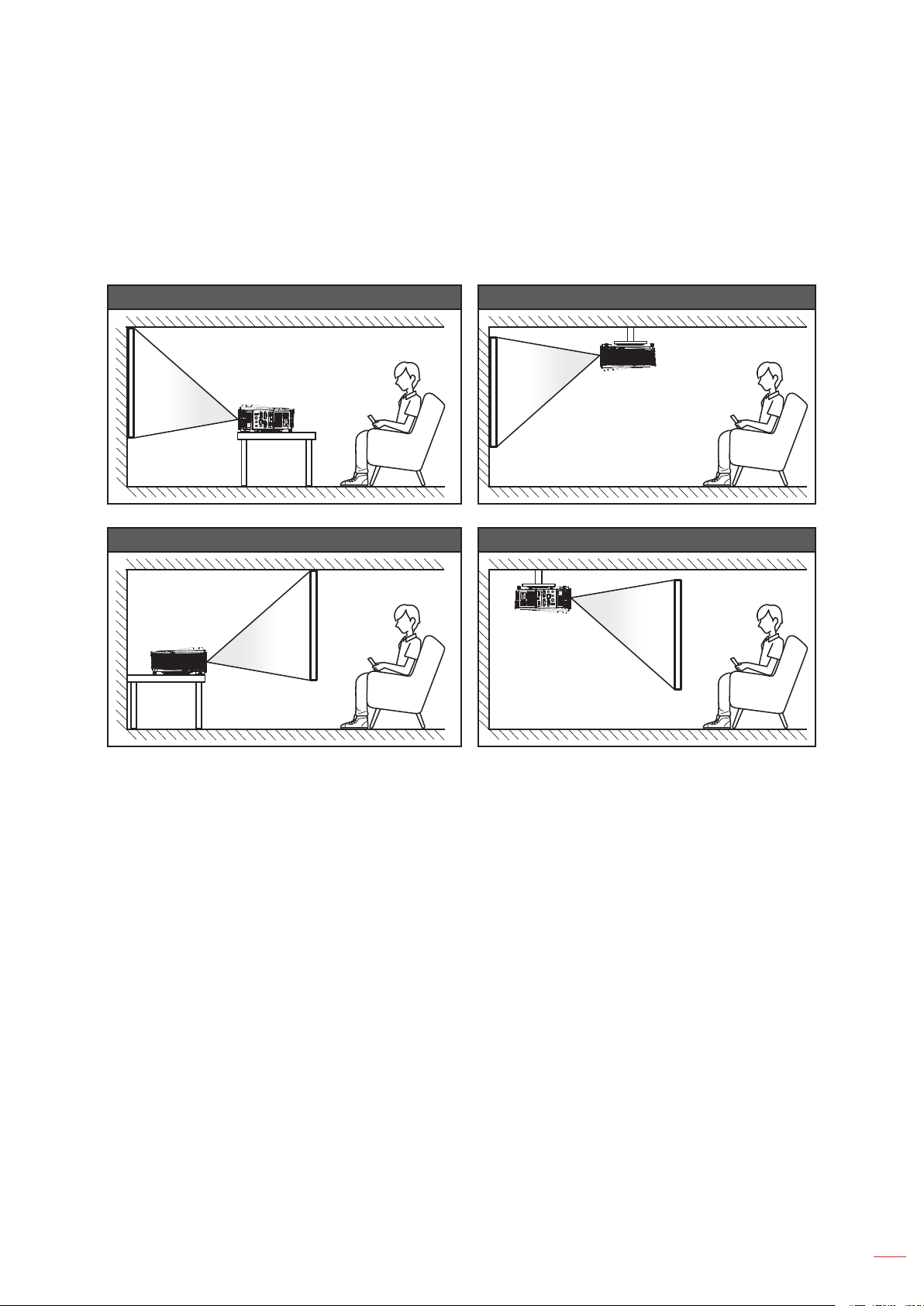

Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration

the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.

Table mount front Ceiling mount front

Table mount rear Ceiling mount rear

Projector should be placed at on a surface and 90 degrees / perpendicular to the to the screen.

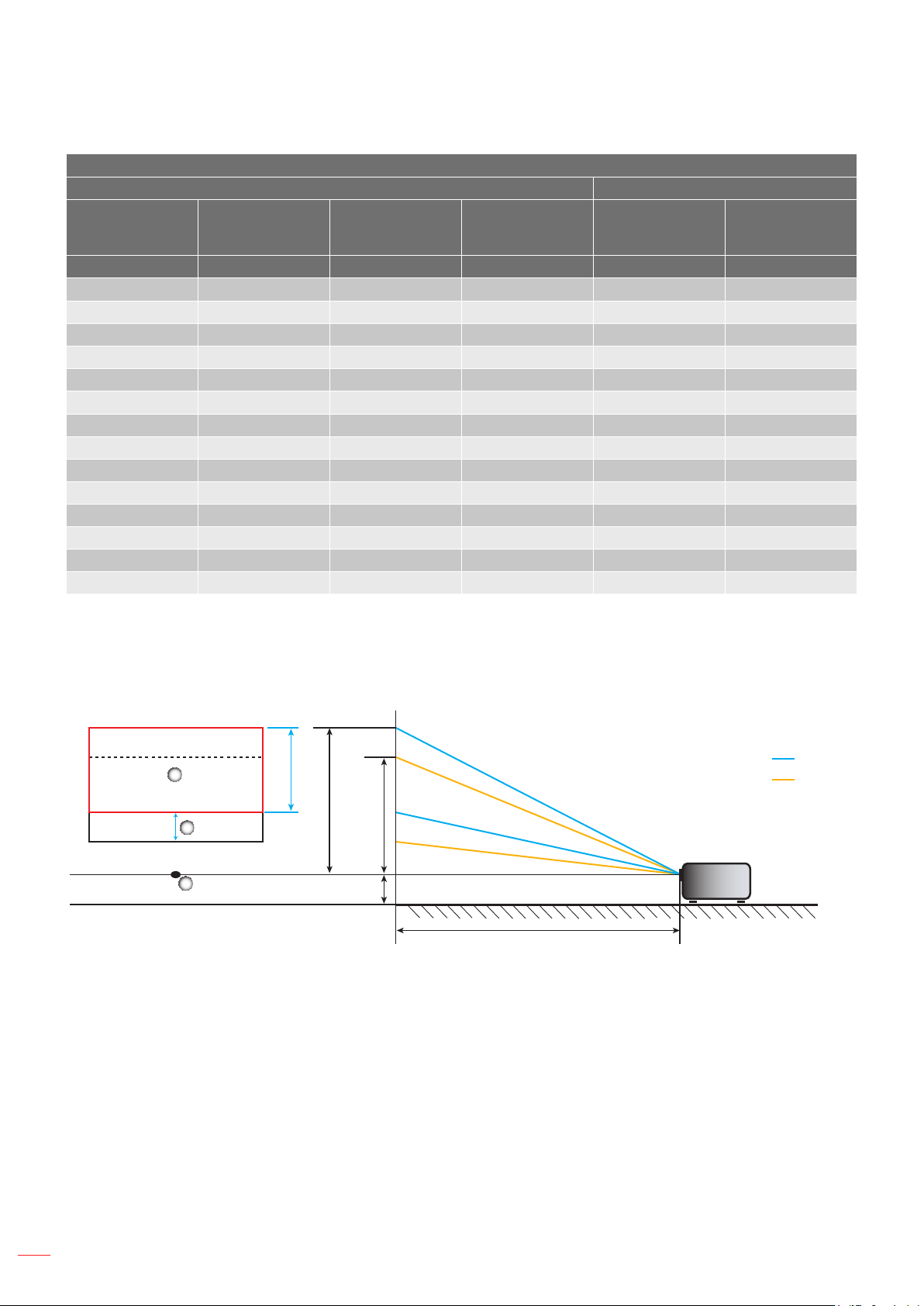

How to determine projector location for a given screen size,  please refer to distance table on pages

56-60.

How to determine screen size for a given distance,  please refer to distance table on pages 56-60.

The further away the projector is placed from the screen the projected image size increases and vertical Note:
offset also increases proportionally.

IMPORTANT!

Do not operate the projector in any orientation other that table top or ceiling mount. The projector should
be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate
the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard
installation advise please contact Optoma.

English

13

English

14

SETUP AND INSTALLATION

MOLEX

Connecting sources to the projector

4

14

13

15

1

3

2

5

9

10

1112

8

6

7

No Item No Item

1. Audio In Cable 9. HDMI Dongle

2. VGA Out Cable 10. USB Power Cable

3. VGA Cable 11. RS232 Cable

4. RCA Component Cable 12. RJ-45 Cable

5. MHL Cable 13. Audio In Cable

6. HDMI Cable 14. Video Cable

7. Power Cord 15. Audio Out Cable

8. USB Cable (mouse control)

English

15

SETUP AND INSTALLATION

Adjusting the projector image

Image height

The projector is equipped with elevator feet for adjusting the image height.

Locate the adjustable foot you wish to adjust on the underside of the projector.1.
Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.2.

Zoom, focus, and lens shift

To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease 
the projected image size.

To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and 
legible.

To adjust the lens, turn the lens shift ring to the left or to the right to adjust lens to the left, or right. 

Tilt-Adjustment Feet

Tilt-Adjustment Ring

Lens Shift Ring
Zoom Ring

Focus Ring

The projector will focus at a distance of 1.3m to 7.1m.Note:

English

16

SETUP AND INSTALLATION

Remote setup

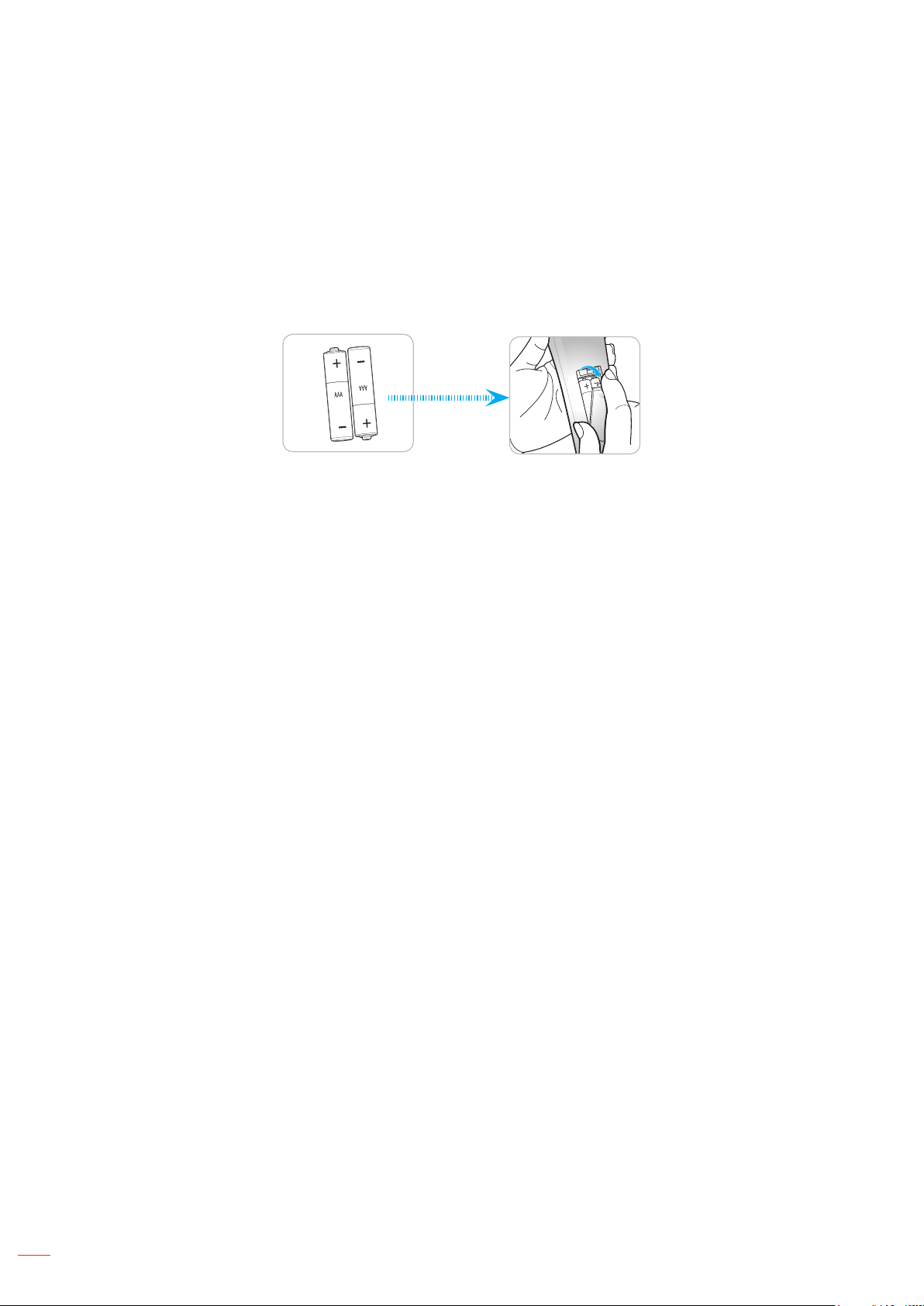

Installing / replacing the batteries

Two AAA size batteries are supplied for the remote control.

Remove the battery cover on the back of the remote control.1.
Insert AAA batteries in the battery compartment as illustrated.2.
Replace back cover on remote control.3.

Replace only with the same or equivalent type batteries.Note:

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

Do not mix batteries of different types. Different types of batteries have different characteristics. 
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or 

cause chemical leakage in old batteries.
Remove batteries as soon as they are depleted. Chemicals that leak from batteries that come in 

contact with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions. 
If you will not be using the remote control for an extended period of time, remove the batteries. 
When you dispose of the batteries, you must obey the law in the relative area or country. 

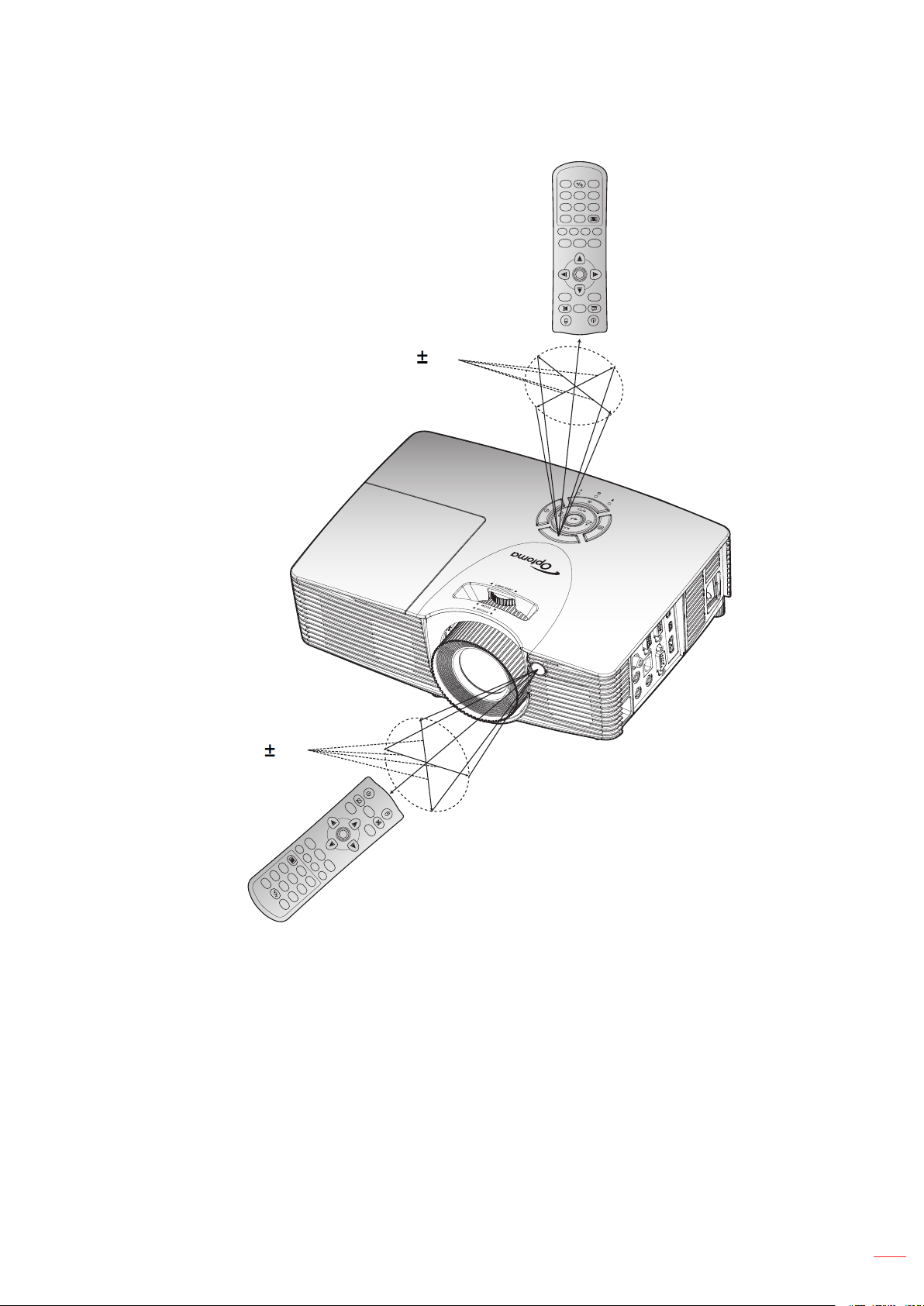

Effective range

Infra-Red (IR) remote control sensor is located on the top side and on the front side of the projector. Ensure to hold
the remote control at an angle within 30 degrees perpendicular to the projector's front IR remote control sensor
and 20 degrees perpendicular to the projector’s top IR remote control sensor to function correctly. The distance
between the remote control and the sensor should not be longer than 7 meters (~ 23 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector 
that might obstruct the infra-red beam.

Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps 
directly.

Please keep the remote controller away from uorescent lamps for over 2 meters or the remote 
controller might become malfunction.

If the remote control is closed to Inverter-Type uorescent lamps, it might become ineffective from time 
to time.

If the remote control and the projector are within a very short distance, the remote control might 
become ineffective.

When you aim at the screen, the effective distance is less than 5 m from the remote control to the 
screen and reecting the IR beams back to the projector. However, the effective range might change
according to screens.

English

17

SETUP AND INSTALLATION

Freeze

Power Switch

L

R

Keystone Volume

Page

-

-

+

-

+

1

2

Menu

3

3D

4

HDMI

5

VGA

6

Video

7

User1

8

User2

9

User3

Source

0

Resync

Page+

Laser

Enter

Freeze

Power Switch

L

R

Keystone Volume

Page

-

-+-

+

1 2

Men u33D

4

HDM I5VGA6Vid eo

7

Use r18Use r29Use r3

Source

0

Resync

Page+Laser

Enter

Approx. 15°

Approx.

10°

USING THE PROJECTOR

Freeze

Power Switch

L

R

Keystone Volume

Page

-

-+-

+

1 2

Menu33D

4

HDMI5VGA6Video

7

User18User29User3

Source0Resync

Page+Laser

Enter

Freeze

Power Switch

L

R

Powering on / off the projector

or

Powering on

The rst time the projector is turned on, you will be prompted to select the preferred language, projectionNote:
orientation, and other settings.

Lens cap (*)

Remove the len’s cap(*).1.
Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will 2.
turn red.

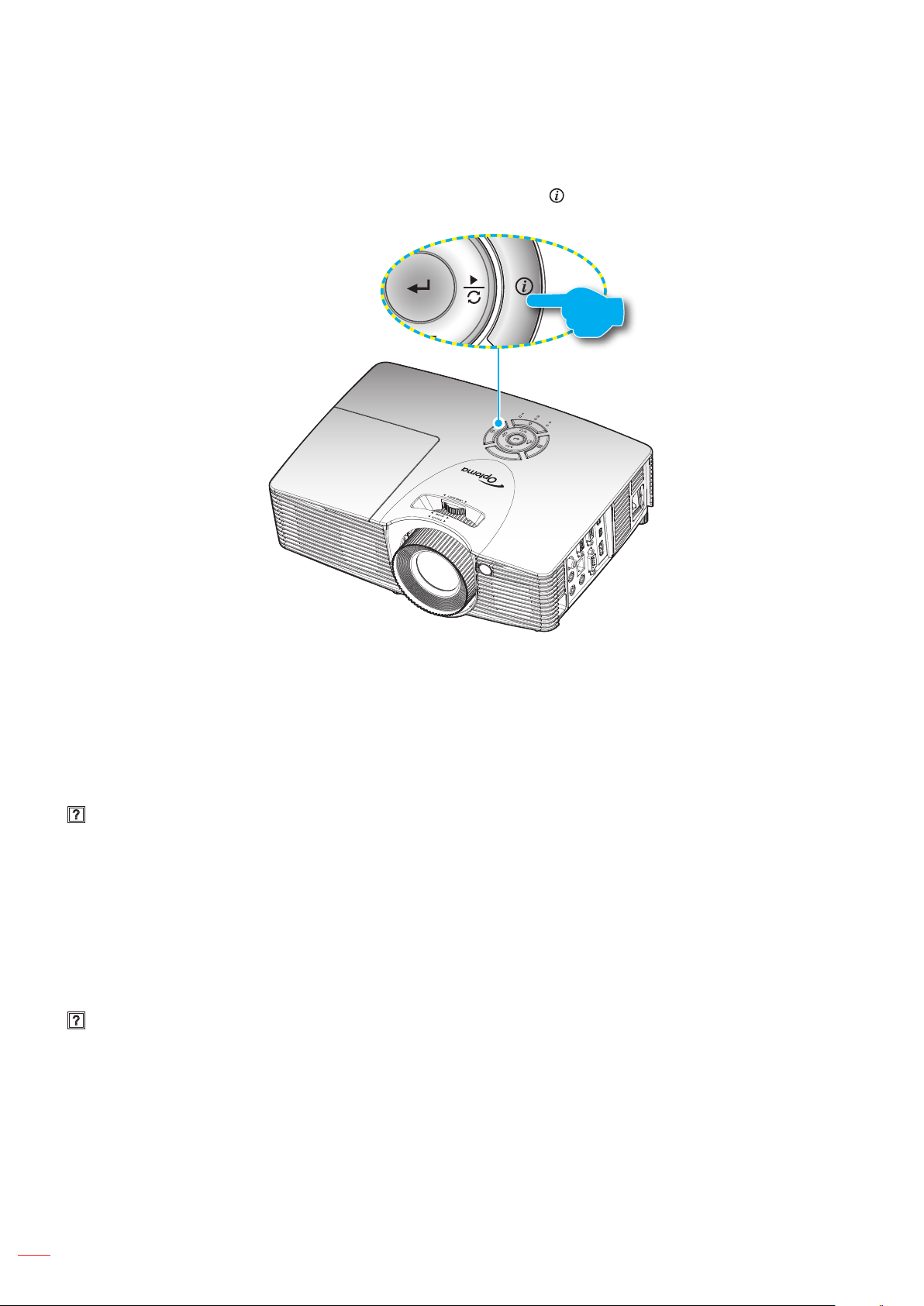

Turn on the projector by pressing the 3. " " either on the projector keypad or the remote control.

A start up screen will display in approximately 10 seconds and the On/Standby LED will be ashing 4.
green or ashing blue.

18

English

USING THE PROJECTOR

Freeze

Power Switch

L

R

Keystone Volume

Page

-

-+-

+

1 2

Menu33D

4

HDMI5VGA6Video

7

User18User29User3

Source0Resync

Page+Laser

Enter

Freeze

Power Switch

L

R

Keystone Volume

Page

-

-

+

-

+

1 2

Menu33D

4

HDMI5VGA6Video

7

User18User29User3

Source

0

Resync

Page+Laser

Enter

Powering off

Turn off the projector by pressing the 1. " " either on the projector keypad or the remote control.
The following message will be displayed:2.

Power Off?

Press power key again.

Press the 3. " " again to conrm, otherwise the message will disappear after a period of time (by default
after 10 seconds). When you press the " " button for the second time, the projector will shut down.

The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/4.
Standby LED will ash green or ash blue. When the On/Standby LED turns solid red, this indicates
the projector has entered standby mode. If you wish to turn the projector back on, you must wait until
the cooling cycle has nished and the projector has entered standby mode. When the projector is in
standby mode, simply press the " " button again to turn on the projector.

Disconnect the power lead from the electrical outlet and the projector.5.

Power Off

It is not recommended that the projector is turned on immediately, right after a power off procedure.Note:

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on
the projector keypad or the remote control to select the desired input.

or

English

19

English

20

USING THE PROJECTOR

Menu navigation and features

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect the source.

To open the OSD menu, press the 1. key on the projector keypad or the “Menu” key on the remote control.
When OSD is displayed, use the 2. or keys to select any item in the main menu. While making a

selection on a particular page, press the / key on the projector keypad or the “Enter” key on the
remote control to enter sub menu.

Use the 3. or keys to select the desired item in the sub menu and then press the / key
on the projector keypad or the “Enter” key on the remote control to view further settings. Adjust the
settings by using the or keys.

Select the next item to be adjusted in the sub menu and adjust as described above.4.
Press the 5. / key on the projector keypad or the “Enter” key on the remote control to conrm, and

the screen will return to the main menu.
To exit, press the 6. key on the projector keypad or the “Menu” key on the remote control. The OSD

menu will close and the projector will automatically save the new settings.

Main Menu

Sub Menu

Display

Image Settings
3D

Aspect Ratio
Edge Mask

Zoom

Image Shift

Keystone

Select Exit Enter

Navigation guide

Settings

English

21

USING THE PROJECTOR

OSD Menu tree

Main

Menu

Display Image Settings

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Presentation
Bright

Cinema

Display Mode
[Data]

Wall Color [Data]

Brightness -50~50

Contrast -50~50
Sharpness 1~15
Color -50~50

Tint -50~50

Film

Video

Graphics

Gamma

Color Settings

Standard(2.2)

1.8

2.0

2.4

BrilliantColor

Color
Temperature
[Data model]

Color Matching

TM

Color

Hue -50~50 [Default: 0]

Saturation -50~50 [Default: 0]

Gain -50~50 [Default: 0]

Game

sRGB

DICOM SIM.
User
3D

Off [Default]

Blackboard

Light Yellow

Light Green

Light Blue

Pink

Gray

1~10

Warm

Standard

Cool

Cold

R [Default]

G

B

C

Y

M

W

English

22

USING THE PROJECTOR

Main

Menu

Display

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Cancel [Default]

Yes

Cancel [Default]

Yes

Auto [Default]

RGB

YUV

Auto [Default]

RGB(0~255)

RGB(16~235)

YUV

0

7.5

Off

On [Default]

-10~10 (depends on signal)
[Default: 0]

-5~5 (depends on signal)
[Default: 0]

-5~5 (depends on signal)
[Default: 0]

Bright

Eco.

Dynamic

Eco+

Off

DLP-Link [Default]

IR

Color Settings

Image Settings

Signal

Brightness Mode
[Lamp Base ­Data]

Reset

3D 3D Mode

Color Matching

RGB Gain/Bias

Color Space [Not
HDMI Input]

Color Space
[HDMI Input]

White Level 0~31 (depends on signal)

Black Level -5~5 (depends on signal)

IRE

Automatic

Frequency

Phase 0~31 [Default: 0]

H. Position

V. Position

Reset

Exit

Red Gain -50~50

Green Gain -50~50

Blue Gain -50~50

Red Bias -50~50

Green Bias -50~50

Blue Bias -50~50

Reset

Exit

English

23

USING THE PROJECTOR

Main

Menu

Display

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

3D [Default]

3D - 2D

3D

Aspect Ratio

Edge Mask 0~10 [Default: 0]

Zoom -5~25 [Default: 0]

3D Format

3D sync invert

H: 0; V: -50

L

R

Auto [Default]

SBS

Top and Bottom

Frame Sequential

On

Off [Default]

4:3

16:9

16:10 [WXGA / WUXGA models]

LBX [except SVGA / XGA models]

Native

Auto

Audio

H: -50; V: 0

H: 50; V: 0

Image shift

Keystone -40~40 [Default: 0]

Mute

Volume 0-10 [Default: 5]

Audio Input

Audio Out
(Standby)

H: 0; V: 50

H: -50; V: 0

H: 0; V: -50

H: 50; V: 0

H: 0; V: 50

HDMI1 / MHL Audio 1 / Audio 2 / Default [Default]
HDMI2 Audio 1 / Audio 2 / Default [Default]

VGA

Video

[Default: H: 0; V: 0]

Off [Default]
On

Audio 1 / Audio 2 [Default depednds
by connector]

Audio 1 / Audio 2 [Default depednds
by connector]

Off [Default]
On (X416/W416/EH416/WU416)

Setup Projection

Front [Default]

Rear

Ceiling-top

Rear-top

English

24

USING THE PROJECTOR

Main

Menu

Setup

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Screen Type

Lamp Settings

Filter Settings

Power Settings

Security

[WXGA / WUXGA
models]

Lamp Reminder

Lamp Reset

Filter Usage
Hours

Optional Filter
Installed

Filter Reminder

Filter Reset

Direct Power On

Signal Power
On*

Auto Power Off
(min)

Sleep Timer
(min)

Quick Resume

Power Mode
(Standby)*

USB Power

Wireless

Security

Security Timer

Change
Password

Always On

Month 0~12 [Default: 0]

Day 0~30 [Default: 0]

Hour 0~24 [Default: 0]

Exit

16:9
16:10 [Default]
Off
On [Default]
Cancel [Default]
Yes

(read only)

Yes

No

Off

300hr

500hr [Default]

800hr

1000hr

Cancel [Default]

Yes

Off [Default]

On

Off [Default]

On
0~180 (5 min increments)

[Default: 20]
0~990 (30 min increments)

[Default: 0]
Yes

No [Default]

Off [Default]

On

Active

Eco. [Default]

Off [Default]

On

Auto

Off [Default]

On

Off [Default]

On

English

25

USING THE PROJECTOR

Main

Menu

Setup

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

HDMI Link

Inclusive of TV

HDMI Link
Settings

Power On Link*

Power Off Link

Test Pattern Test Pattern

IR Function

User1

Remote
Settings

[depends on
remote]

User2

Off [Default]

On

No [Default]

Yes
Mutual
PJ --> Device [Default]

Device --> PJ

Off [Default]

On

Green Grid

Magenta Grid

White Grid

White

Off [Default]

On [Default]

Off
HDMI 2 [Default]
Test Pattern

LAN

Brightness

Contrast
Sleep Timer
Color Matching

Color Temperature
Gamma
Projection

Lamp Settings

Zoom

Freeze

MHL

HDMI 2

Test Pattern

LAN

Brightness

Contrast

Sleep Timer

Color Matching

Color Temperature

Gamma
Projection
Lamp Settings

Zoom

Freeze

MHL [Default]

English

26

USING THE PROJECTOR

Main

Menu

Setup

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

HDMI 2

Test Pattern

LAN

Brightness

Contrast

Remote
Settings

[depends on
remote]

Projector ID 00~99

Options Language

User3

Sleep Timer [Default]

Color Matching

Color Temperature

Gamma

Projection

Lamp Settings

Zoom

Freeze

MHL

English [Default]
Deutsch

Français

Italiano

Español

Português

Polski

Nederlands

Svenska

Norsk/Dansk

Suomi

ελληνικά

繁體中文

簡体中文

日本語

한국어

Русский

Magyar

Čeština

ไทย

Türkçe

Tiếng Việt

Bahasa Indonesia

Română

Slovakian

English

27

USING THE PROJECTOR

Main

Menu

Setup Options

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Closed
Captioning

Menu Settings

Input Source

Input Name

High Altitude

Display Mode
Lock

Keypad Lock

Information Hide

Logo

Logo Capture

Background
Color

Menu Location

Menu Timer

HDMI1/MHL

HDMI2

VGA

Video

CC1

CC2

Off [Default]

Top Left

Top Right

Center [Default]

Bottom Left

Bottom Right

Off

5sec

10sec [Default]

HDMI1/MHL

HDMI2

VGA

Video

Default [Default]

Custom

Default [Default]

Custom

Default [Default]

Custom

Default [Default]

Custom

Off [Default]

On

Off [Default]

On

Off [Default]

On

Off [Default]

On

Default [Default]

Neutral

User

Cancel [Default]

Yes

None [Default]

Blue

Red

Green

Grey
Logo

English

28

USING THE PROJECTOR

Main

Menu

Setup Reset

Network

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

LAN

Control

Reset OSD

Reset to Default

Network Status (read only)

MAC Address (read only)

DHCP

IP Address 192.168.0.100 [Default]
Subnet Mask 255.255.255.0 [Default]
Gateway 192.168.0.254 [Default]
DNS 192.168.0.51 [Default]

Reset

Crestron

Extron

PJ Link

AMX Device
Discovery

Telnet

HTTP

Cancel [Default]

Yes

Cancel [Default]

Yes

Off [Default]

On

Off
On [Default]

NOTE: Port 41794.

Off
On [Default]

NOTE: Port 2023.

Off

On [Default]

NOTE: Port 4352

Off
On [Default]

NOTE: Port 9131

Off
On [Default]

NOTE: Port 23

Off
On [Default]

NOTE: Port 80

English

29

USING THE PROJECTOR

Main

Menu

Information

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Regulatory
Serial Number
Source

Resolution 00x00

Refresh Rate 0.00Hz

Display Mode
Power

mode(standby)

Bright 0 hr

Eco. 0 hr

Lamp Hours

Network Status

IP Address

Projector ID 00~99
Filter Usage

Hours
Brightness

Mode

FW Version

Dynamic 0 hr

Eco+ 0 hr

Total

System

LAN

MCU

Note:

If the Signal setting is set to Automatic, the Phase, frequency items are hidden. If the “Signal” setting 

is set to a specic input source, the phase, frequency items will appear for user to manually tune and

saved in settings.
When you made the changes on the “IR Function”, “Projection”, or “Keypad Lock” function, a 

conrmation message will appear on the screen. Select “Yes” to save the settings.

Each display mode can be adjusted and saved the value. 
*Optional feature depends on model and region. 

Display image settings menu

Display Mode (data mode only)

There are many factory presets optimized for various types of images.

Presentation  : This mode is suitable for showing PowerPoint presentations when the projector is
connected to the PC.

Bright  : Maximum brightness from PC input.
Cinema  : Select this mode for home theater.
Game  : Select this mode to increase the brightness and response time level for enjoying video games.
sRGB  : Standardized accurate color.
DICOM SIM.  : This mode can project a monochrome medical image such as an X ray radiography,

MRI, etc.

User  : Memorize user’s settings.

English

30

USING THE PROJECTOR

3D  : To experience the 3D effect, you need to have 3D glasses. Make sure your PC/portable device

has a 120 Hz signal output quad buffered graphics card and a 3D Player installed.

Wall Color (data-mode only)

Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard,
light yellow, light green, light blue, pink, and gray.

Brightness

Adjust the brightness of the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Sharpness

Adjust the sharpness of the image.

Color

Adjust a video image from black and white to fully saturated color.

Tint

Adjust the color balance of red and green.

Gamma

Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.

Film  : For home theater.
Video  : For video or TV source.
Graphics  : For PC / Photo source.
Standard(2.2)  : For standardized setting.

1.8/ 2.0/ 2.4  : For specic PC / Photo source.

Color Settings

Congure the color settings.

BrilliantColor 
enable higher brightness while providing true, more vibrant colors in picture.

Color Temperature (data-mode only)  : Select a color temperature from warm, standard, cool, or cold.
Color Matching  : Select the following options:

Color: Adjust the red (R), green (G), blue (B), cyan (C), yellow (Y), magenta (M), and white (W) ±
level of the image.

Hue: Adjust the color balance of red and green. ±
Saturation: Adjust a video image from black and white to fully saturated color. ±

TM

: This adjustable item utilizes a new color-processing algorithm and enhancements to

Gain: Adjust the image brightness. ±
Reset: Return the factory default settings for color matching. ±
Exit: Exit the “Color Matching” menu. ±

RGB Gain/Bias:  This settings allows to congure the brightness (gain) and contrast (bias) of an
image.

Reset: Return the factory default settings for RGB gain/bias. ±
Exit: Exit the “RGB Gain/Bias” menu. ±

Color Space (non-HDMI input only)  : Select an appropriate color matrix type from the following: auto,

English

31

USING THE PROJECTOR

RGB, or YUV.
Color Space (HDMI input only)  : select an appropriate color matrix type from the following: auto,

RGB(0-255), RGB(16-235), and YUV.

White Level:  Allow user to adjust White Level when inputting Video signals.
Black Level:  Allow user to adjust Black Level when inputting Video signals.
IRE:  Allow user to adjust IRE value when inputting Video signals.

IRE is only available with NTSC video format.Note:

Signal

Adjust the signal options.

Automatic  : Congure automatically the signal (the frequency and phase items are grayed out). If
automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.

Frequency  : Change the display data frequency to match the frequency of your computer’s graphic
card. Use this function only if the image appears to icker vertically.

Phase  : Synchronize the signal timing of the display with the graphic card. If the image appears to be
unstable or ickers, use this function to correct it.

H. Position  : Adjust the horizontal positioning of the image.
V. Position  : Adjust the vertical positioning of the image.

Brightness Mode (for lamp base -data)

Adjust the brightness mode settings for lamp-based projectors.

Bright  : Choose “Bright” to increase the brightness.
Eco.  : Choose “Eco.” to dim the projector lamp which will lower power consumption and extend the

lamp life.
Dynamic  : Choose “Dynamic” to dim the lamp power which will be based on brightness level of the

content and adjust lamp power consumption between 100% and 30% dynamically. The lamp life will
be extended.

Eco+  : When Eco+ mode is activated, the brightness level of the content is automatically detected to
signicantly reduced lamp power consumption (up to 70%) during periods of inactivity.

Reset

Return the factory default settings for color settings.

Display 3D menu

3D Mode

Use this option to disable the 3D function or select the appropriate the 3D function.

Off  : Select “Off” to turn off 3D mode.
DLP-Link  : Select to use optimized settings for DLP 3D Glasses.
IR  : Select “IR” to use optimized setting for IR 3D Glasses.

3D - 2D

Use this option to specify how the 3D content should appear on the screen.

3D:  Display 3D signal.

L (Left):  Display the left frame of 3D content.

R (Right):  Display the right frame of 3D content.

English

32

USING THE PROJECTOR

3D Format

Use this option to select the appropriate 3D format content.

Auto  : When a 3D identication signal is detected, the 3D format is selected automatically.

SBS  : Display 3D signal in “Side-by-Side” format.

Top and Bottom  : Display 3D signal in “Top and Bottom” format.

Frame Sequential  : Display 3D signal in “Frame Sequential” format.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

Display aspect ratio menu

Aspect Ratio

Select the aspect ratio of the displayed image between the following options:

4:3  : This format is for 4:3 input sources.

16:9  : This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.

16:10 (for WXGA and WUXGA models only)  : This format is for 16:10 input sources, like widescreen

laptops.

LBX (except SVGA and XGA models)  : This format is for non-16x9, letterbox source and if you use
external 16x9 lens to display 2.35:1 aspect ratio in full resolution.

Native  : This format displays the original image without any scaling.

Auto  : Automatically selects the appropriate display format.

Note:

Detailed informations about LBX mode: 

Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image ±
will not look right when displaying image in 16:9 mode. In this situation, please try to use the
4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image

in 16:9 display. For this type of content, you can use LBX mode to ll the image on the 16:9

display.

If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 ±

content (include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is

enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp
power and vertical resolution are fully utilized.

To use the superwide format, do the following: 

Set the screen aspect ratio to 2.0:1.a)

Select “Superwide” format.b)

Align the projector image correctly on the screen.c)

English

33

USING THE PROJECTOR

XGA scaling table:

Source 480i/p 576i/p 1080i/p 720p

4x3 Scale to 1024x768.

16x9 Scale to 1024x576.

Native No scaling will be made; the image is displayed with the resolution based on input source.

Auto -If source is 4:3, the screen type will be scaled to 1024x768.

-If source is 16:9, the screen type will be scaled to 1024x576.

-If source is 15:9, the screen type will be scaled to 1024x614.

-If source is 16:10, the screen type will be scaled to 1024x640.

XGA auto mapping rule:

Auto

4:3

Wide Laptop

SDTV

HDTV

WXGA scaling table (screen type 16x10):

Note:

Supported screen type 16:9 (1280x720), 16:10 (1280x800). 
When screen type is 16:9, the16x10 format becomes unavailable. 
When screen type is 16:10, the 16x9 format becomes unavailable. 

H-resolution V-resolution 1024 768

Input resolution Auto/Scale

640 480 1024 768

800 600 1024 768
1024 768 1024 768
1600 1200 1024 768
1280 720 1024 576
1280 768 1024 614
1280 800 1024 640

720 576 1024 576

720 480 1024 576
1280 720 1024 576
1920 1080 1024 576

If you select auto option then the display mode will be also automatically changed. 

16 : 10 screen 480i/p 576i/p 1080i/p 720p PC

4x3 Scale to 1066x800.

16x10 Scale to 1280x800.

LBX Scale to 1280x960, then get the central 1280x800 image to display.

Native mode 1:1 mapping centered. 1:1 mapping

display
1280x800.

Auto -Input source will be t into 1280x800 display area and be kept its original aspect ratio.

-If source is 4:3, the screen type will be scaled to 1066x800.

-If source is 16:9, the screen type will be scaled to 1280x720.

-If source is 15:9, the screen type will be scaled to 1280x768.

-If source is 16:10, the screen type will be scaled to 1280x800.

1280x720
centered.

1:1 mapping
centred.

English

34

USING THE PROJECTOR

WXGA auto mapping rule (screen type 16x10):

Auto

4:3

Wide Laptop

SDTV

HDTV

WXGA scaling table (screen type 16x9):

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC

4x3 Scale to 960x720.

16x9 Scale to 1280x720.

LBX Scale to 1280x960, then get the central 1280x720 image to display.

Native mode 1:1 mapping centered. 1:1 mapping

H-resolution V-resolution 1280 800

Input resolution Auto/Scale

640 480 1066 800

800 600 1066 800
1024 768 1066 800
1280 1024 1066 800
1400 1050 1066 800
1600 1200 1066 800
1280 720 1280 720
1280 768 1280 768
1280 800 1280 800

720 576 1280 720

720 480 1280 720
1280 720 1280 720
1920 1080 1280 720

display
1280x720.

1280x720
centered.

1:1 mapping
centred.

Auto -If this format is select, screen type will automatically become 16:9 (1280x720).

-If source is 4:3, the screen type will be scaled to 960x720.

-If source is 16:9, the screen type will be scaled to 1280x720.

-If source is 15:9, the screen type will be scaled to 1200x720.

-If source is 16:10, the screen type will be scaled to 1152x720.

English

35

USING THE PROJECTOR

WXGA auto mapping rule (screen type 16x9):

Auto

4:3

Wide Laptop

SDTV

HDTV

1080P scaling table:

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC

4x3 Scale to 1440x1080.

16x9 Scale to 1920x1080.

LBX Scale to 1920x1440, then get the central 1920x1080 image to display.

Native mode 1:1 mapping centered.

Auto -If this format is select, screen type will automatically become 16:9 (1920x1080).

H-resolution V-resolution 1280 720

No scaling will be made; the image is displayed with the resolution based on input source.

Input resolution Auto/Scale

640 480 960 720

800 600 960 720
1024 768 960 720
1280 1024 960 720
1400 1050 960 720
1600 1200 960 720
1280 720 1280 720
1280 768 1200 720
1280 800 1152 720

720 576 1280 720

720 480 1280 720
1280 720 1280 720
1920 1080 1280 720

-If source is 4:3, the screen type will be scaled to to 1440x1080.

-If source is 16:9, the screen type will be scaled to 1920x1080.

-If source is 16:10, the screen type will be scaled to 1920x1200 and cut
1920x1080 area to display.

1080P auto mapping rule:

Auto

4:3

Wide Laptop

SDTV

HDTV

H-resolution V-resolution 1920 1080

Input resolution Auto/Scale

640 480 1440 1080

800 600 1440 1080
1024 768 1440 1080
1280 1024 1440 1080
1400 1050 1440 1080
1600 1200 1440 1080
1280 720 1920 1080
1280 768 1800 1080
1280 800 1728 1080

720 576 1350 1080

720 480 1620 1080
1280 720 1920 1080
1920 1080 1920 1080

English

36

USING THE PROJECTOR

WUXGA scaling table for 1920x1200 DMD (screen type 16x10):

Note:

Supported screen type 16:10 (1920x1200), 16:9 (1920x1080). 
When screen type is 16:9, the 16x10 format becomes unavailable. 
When screen type is 16:10 the 16x9 format becomes unavailable. 
If you select auto option then the display mode will be also automatically changed. 

16 : 10 screen 480i/p 576i/p 1080i/p 720p PC

4x3 Scale to 1600x1200.

16x9 Scale to 1920x1080.

16x10 Scale to 1920x1200.

LBX Scale to 1920x1440, then get the central 1920x1200 image to display.

Native mode 1:1 mapping centered.

No scaling will be made; the image is displayed with the resolution based on input source.

Auto -If this format is selected, screen type will automatically become 16:10 (1920x1200).

-If source is 4:3, the screen type will be scaled to 1600x1200.

-If source is 16:9, the screen type will be scaled to 1920x1080.

-If source is 16:10, the screen type will be scaled to 1920x1200.

WUXGA auto mapping rule (screen type 16x10):

Auto

4:3

Wide Laptop

SDTV

HDTV

H-resolution V-resolution 1920 1200

Input resolution Auto/Scale

640 480 1600 1200

800 600 1600 1200
1024 768 1600 1200
1280 1024 1600 1200
1400 1050 1600 1200
1600 1200 1600 1200
1280 720 1920 1080
1280 768 1920 1152
1280 800 1920 1200

720 576 1350 1080

720 480 1620 1080
1280 720 1920 1080
1920 1080 1920 1080

English

37

USING THE PROJECTOR

WUXGA scaling table for 1920x1200 DMD (screen type 16x9):

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC

4x3 Scale to 1440x1080.

16x9 Scale to 1920x1080.

LBX Scale to 1920x1440, then get the central 1920x1080 image to display.

Native mode 1:1 mapping centered.

No scaling will be made; the image is displayed with the resolution based on input source.

Auto -If this format is selected, screen type will automatically become 16:9 (1920x1080).

-If source is 4:3, the screen type will be scaled to 1440x1080.

-If source is 16:9, the screen type will be scaled to 1920x1080.

-If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to
display.

WUXGA auto mapping rule (screen type 16x9):

Auto

4:3

Wide Laptop

SDTV

HDTV

H-resolution V-resolution 1920 1080

Input resolution Auto/Scale

640 480 1440 1080

800 600 1440 1080
1024 768 1440 1080
1280 1024 1440 1080
1400 1050 1440 1080
1600 1200 1440 1080
1280 720 1920 1080
1280 768 1800 1080
1280 800 1728 1080

720 576 1350 1080

720 480 1620 1080
1280 720 1920 1080
1920 1080 1920 1080

Display edge mask menu

Edge Mask

Use this function to remove the video encoding noise on the edge of video source.

Display zoom menu

Zoom

Use to reduce or magnify an image on the projection screen.

Display image shift menu

Image Shift

Adjust the projected image position horizontally (H) or vertically (V).

English

38

USING THE PROJECTOR

Display keystone menu

Keystone

Adjust the image distortion caused by tilting the projector.

Audio mute menu

Mute

Use this option to temporarily turn off the sound.

On:  Choose the “On” to turn mute on.
Off:  Choose the “Off” to turn mute off.

“Mute” function affects both internal and external speaker volume.Note:

Audio volume menu

Volume

Adjust the volume level.

Audio input menu

Audio Input

The default audio settings are on the side panel of the projector. Use this option to reassign the available Audio
Input to the selected image source.

Audio out (Standby) menu

Audio Out (Standby)

Choose the “On” or “Off” to turn on or off the audio out while the lamp is turned off.

Setup projection menu

Projection

Select the preferred projection between front, rear, ceiling-top, and rear-top.

Setup screen type menu

Screen Type (for WXGA and WUXGA models only)

Choose the screen type from 16:9 and 16:10.

Setup lamp settings menu

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The
message will appear 30 hours before suggested replacement of lamp.

Lamp Reset

Resets the lamp hour counter after replacing the lamp.

English

39

USING THE PROJECTOR

Setup lter settings menu

Filter Usage Hours

Display the lter time.

Optional Filter Installed

Set the warning message setting.

Yes:  Display warning message after 500 hours of use.

“Filter Usage Hours / Filter Reminder / Filter Reset” will only appear when “Optional Filter Installed” is “Yes”.Note:

No:  Turn off warning message.

Filter Reminder

Choose this function to show or hide the warning message when the changing lter message is displayed. The
available options include 300hr, 500hr, 800hr, and 1000hr.

Filter Reset

Reset the dust lter counter after replacing or cleaning the dust lter.

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the “Power” key on the projector keypad or on the remote control.

Signal Power On*

Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected,
without pressing the “Power” key on the projector Keypad or on the remote control.

Note:

If the “Signal Power On” option is turned “On”, the power consumption of the projector in standby 
mode will be over 3W.

*Optional feature depends on model and region. 

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power off when the countdown has nished (in minutes).

Sleep Timer (min)

Congure the sleep timer.

Sleep Timer (min):  Sets the countdown timer interval. The countdown timer will start, with or without
a signal being sent to the projector. The projector will automatically power off when the countdown has
nished (in minutes).

The Sleep Timer is reset every time when the projector is powered off.Note:

Always On:  Choose to set the sleep timer always on feature on or off.

Quick Resume

Set the quick resume setting.

On:  If the projector is accidentally turned off, this feature allows the projector to be instantly powered
on again, if selected within a period of 100 seconds.

Off:  The fan will start cooling the system after 10 seconds when user turns off the projector.

English

40

USING THE PROJECTOR

Power Mode (Standby)*

Set the power mode setting.

Active:  Choose “Active” to return to normal standby.
Eco.:  Choose “Eco.” to save power dissipation further < 0.5W.

Note:

If the “Signal Power On*” option is turned “On” or the “Audio Out (Standby)” option is turned “On”, the 
power consumption of the projector in standby mode will be over 3W.

The fans will still run in active standby if “Signal Power On” is enabled. 
*Optional feature depends on model and region. 

USB Power

Set the USB power mode setting.

Off:  Choose “Off” to turn off USB power mode.
On:  Choos “On” to turn off USB power mode.
Auto:  Choose “Auto” to set USB power mode automatically.

Wireless

Set the wireless mode setting.

Off:  Choose “Off” to disable wireless mode.
On:  Choose “On” to enable wireless mode.

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

Security Timer

Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this
time has elapsed you will be requested to enter your password again.

Change Password

Use to set or modify the password that is prompted when turning the projector on.

Setup HDMI link settings menu

Note:

When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control 
them on the same power on or power off status using the HDMI Link control feature in the projector’s
OSD. This lets one device or multiple devices in a group power on or power off via HDMI Link Feature.

In a typical conguration, your DVD player may be connected to the projector through an amplier or

home theater system.

HDMI

Apmlier

HDMI

DVD Player

English

41

USING THE PROJECTOR

HDMI Link

Enable/disable the HDMI Link function. The inclusive TV, power on link, and power off link options will only
available if the setting is set to “On”.

Inclusive of TV

Set to “Yes” if you prefer both TV and projector to be automatically turned off at the same time. To prevent both
devices to be turned off at the same time, set the setting to “No”.

Power On Link*

CEC power on command. Select between the following options:

Mutual:  Both projector and CEC device will be turned on simultaneously.
PJ -> Device:  The CEC device will be turned on only after the projector is switched on.
Device -> PJ  : The projector will be switched on only after the CEC device is turned on.

*Optional feature depends on model and region.Note:

Power Off Link

Enable this function to let both HDMI Link and projector to be automatically turned off at the same time.

Setup test pattern menu

Test Pattern

Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off).

Setup remote settings menu

IR Function

Set the IR function setting.

On:  Choose “On”, the projector can be operated by the remote control from front or top IR receiver.
Off:  Choose “Off”, the projector can’t be operated by the remote control from front or top IR receiver.

By selecting “Off”, you will be able to use the Keypad keys.

User1/ User2/ User3

Assign the default function for User1, User2, or User3 between HDMI 2, test pattern, LAN, brightness, contrast,
sleep timer, color matching, color temperature, gamma, projection, lamp settings, zoom, freeze, and MHL.

Setup projector ID menu

Projector ID

ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.

Setup options menu

Language

Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch,
Swedish, Norwegian/Danish, Finnish, Greek, traditional Chinese, simplied Chinese, Japanese, Korean, Russian,
Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, Slovakian.

Closed Captioning

Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input
signal contains closed captions, you can turn on the feature and watch the channels. The available options include
“Off”, “CC1”, and “CC2”.

English

42

USING THE PROJECTOR

Menu Settings

Set the menu location on the screen and congure menu timer settings.

Menu Location  : Select the menu location on the display screen.
Menu Timer  : Set the duration where the OSD menu stays visible on the screen.

Input Source

Select the input source between HDMI1/MHL, HDMI2, VGA, and video.

Input Name

Use to rename the input function for easier identication. The available options include HDMI1/MHL, HDMI2, VGA,
and video.

High Altitude

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Display Mode Lock

Choose “On” or “Off” to lock or unlock adjusting display mode settings.

Keypad Lock

When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the
remote control. By selecting “Off” or pressing the key on the Keypad for 7 seconds, you will be able to reuse the
Keypad.

Information Hide

Enable this function to hide the information message.

On:  Choose “On” to hide the info message.
Off:  Choose “Off” to show the “searching” message.

Logo

Use this function to set the desired startup screen. If changes are made, they will take effect the next time the
projector is powered on.

Default:  The default startup screen.
Neutral:  Logo is not displayed on startup screen.
User  : Use stored picture from “Logo Capture” function.

Logo Capture

Use to capture an image of the picture currently displayed on the screen.

Note:

For a successful logo capture, ensure that the image does not exceed the projectors native resolution. 
If logo capture is still unsuccessful please try using a less detailed image.

This feature is exclusively for capturing logos and not for capturing large-scale images. 

Background Color

Use this function to display a blue, red, green, grey color, none, or logo screen when no signal is available.

Setup reset all menu

Reset

Reset OSD:  Return the factory default settings for OSD.
Reset to Default:  Return the factory default settings for Setup menu settings.

English

43

USING THE PROJECTOR

Network LAN menu

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

DHCP

Use this option to enable or disable the DHCP function.

On  : Projector will obtain an IP address automatically from your network.
Off  : To assign IP, subnet mask, gateway, and DNS conguration manually.

Exiting OSD will automatically apply the entered values.Note:

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

How to use web browser to control your projector

Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address.1.
Open the web browser in your PC and type in the projector’s IP address (“Network > LAN > IP 2.
Address”).
Enter the user name and password, and click “Login”.3.
The projector’s conguration web interface opens.

Note:

The default user name and password is “admin”. 
The steps in this section is based on Windows 7 operating system  .

English

44

USING THE PROJECTOR

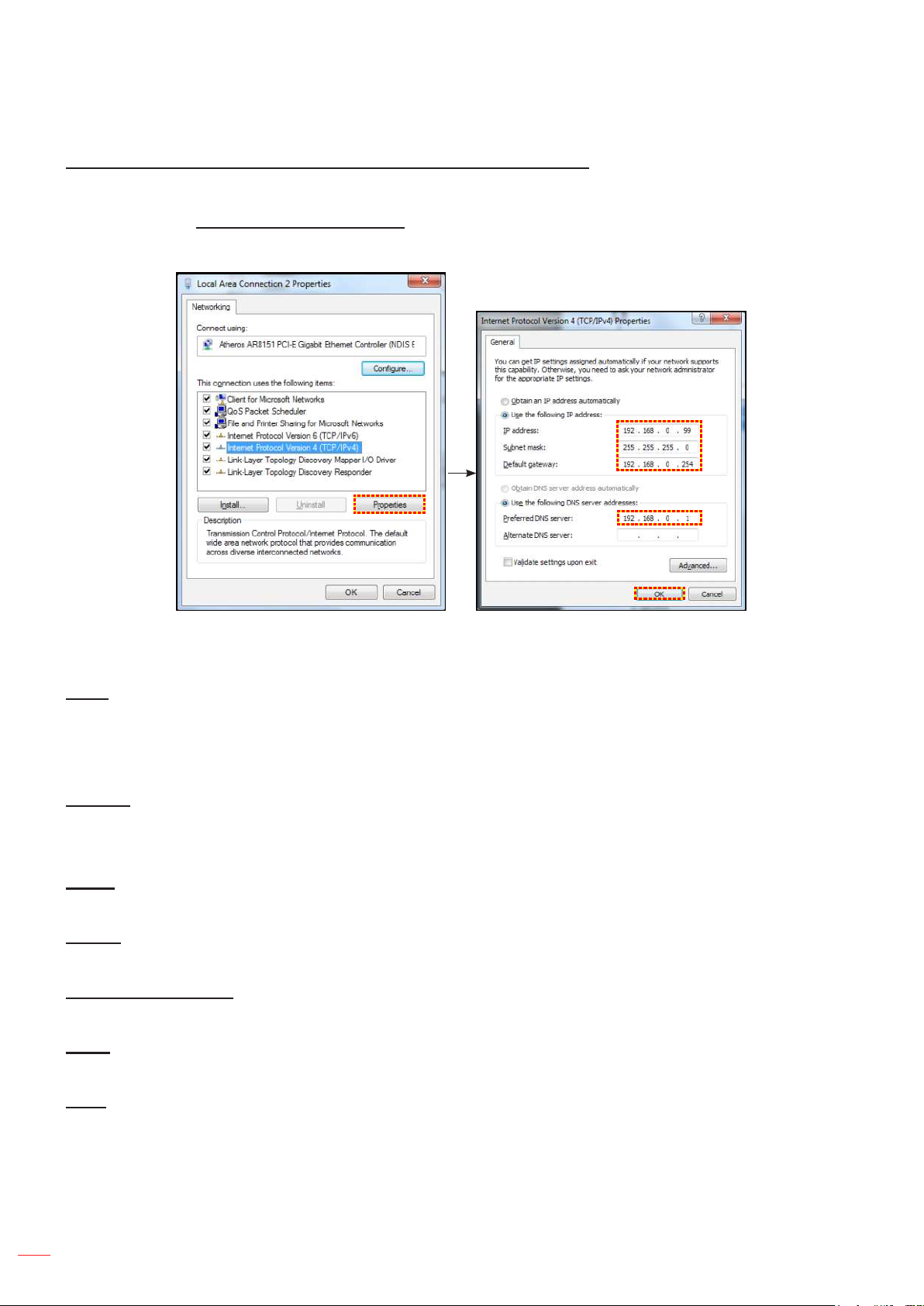

Making a direct connection from your computer to the projector*

Turn “Off” the DHCP option on the projector.1.
Congure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”).2.
Open 3. Network and Sharing Center page on your PC, and assign the identical network parameters to
your PC as set on projector. Click “OK” to save the parameters.

Open the web browser on your PC and type in to the URL eld the IP address, assigned in step 3. 4.
Then press “Enter” key.

Reset

Reset all values for LAN parameters.

Network control menu

Crestron

Use this function to select the network function (port: 41794).
For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

Extron

Use this function to select the network function (port: 2023).

PJ Link

Use this function to select the network function (port: 4352).

AMX Device Discovery

Use this function to select the network function (port: 9131).

Telnet

Use this function to select the network function (port: 23).

HTTP

Use this function to select the network function (port: 80).

English

45

USING THE PROJECTOR

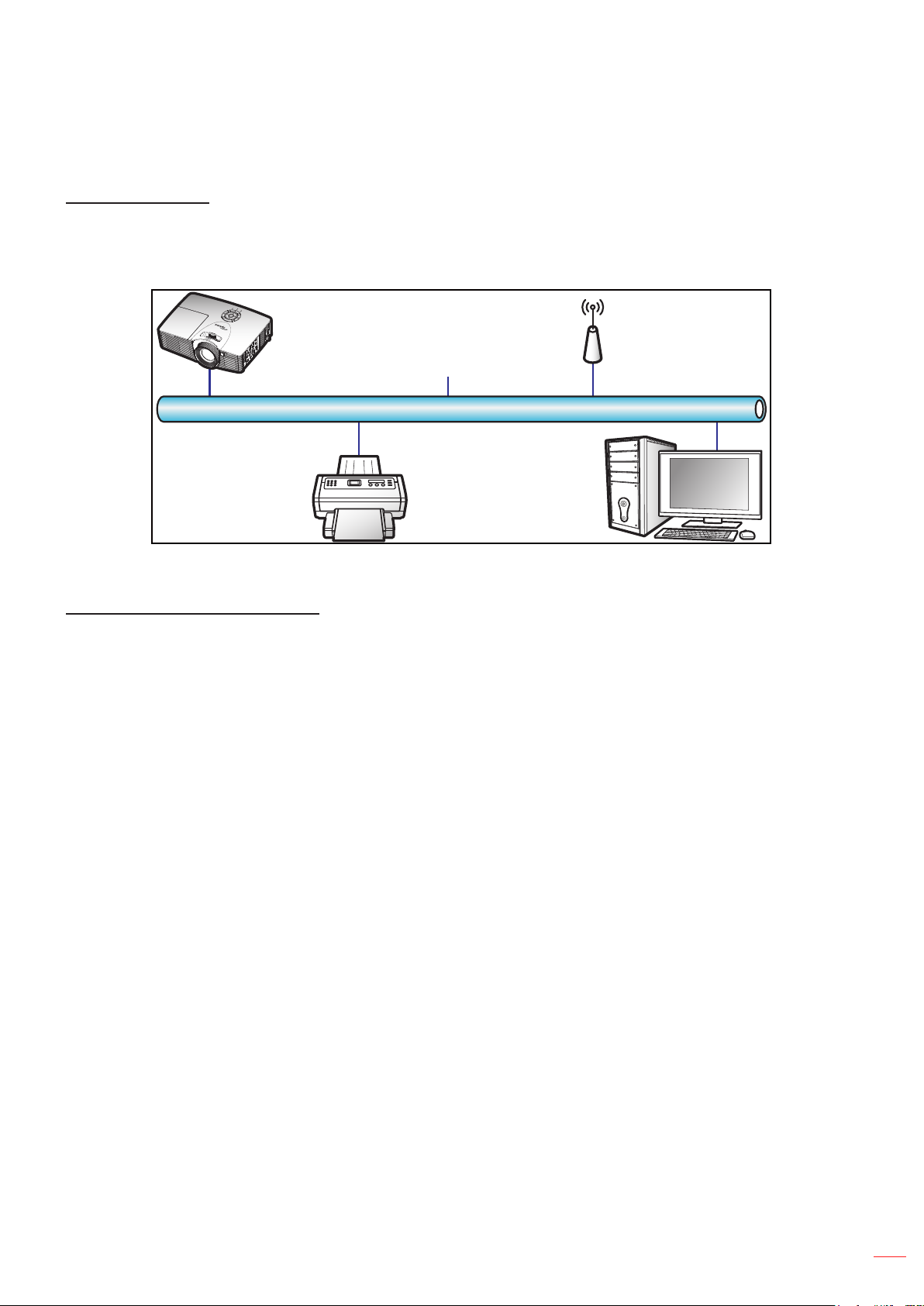

Setup network control settings menu

LAN_RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features.
The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness,
and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Projector

(Ethernet)

Wired LAN terminal functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible
with Crestron / Extron / AMX (Device Discovery) / PJLink.

Crestron is a registered trademark of Crestron Electronics, Inc. of the United States. 
Extron is a registered trademark of Extron Electronics, Inc. of the United States. 
AMX is a registered trademark of AMX LLC of the United States. 
PJLink applied for trademark and logo registration in Japan, the United States of America, and other 

countries by JBMIA.
The projector is supported by the specied commands of the Crestron Electronics controller and related software,
for example RoomView®.

http://www.crestron.com/
This projector is compliant to support Extron device(s) for reference.
http://www.extron.com/
This projector is supported by AMX ( Device Discovery ).
http://www.amx.com/
This projector supports all commands of PJLink Class1 (Version 1.00).
http://pjlink.jbmia.or.jp/english/
For more detailed information about the various types of external devices which can be connected to the LAN /

RJ45 port and remote control the projector, as well as the supported commands for these external devices, please
contact the Support-Service directly.

English

46

USING THE PROJECTOR

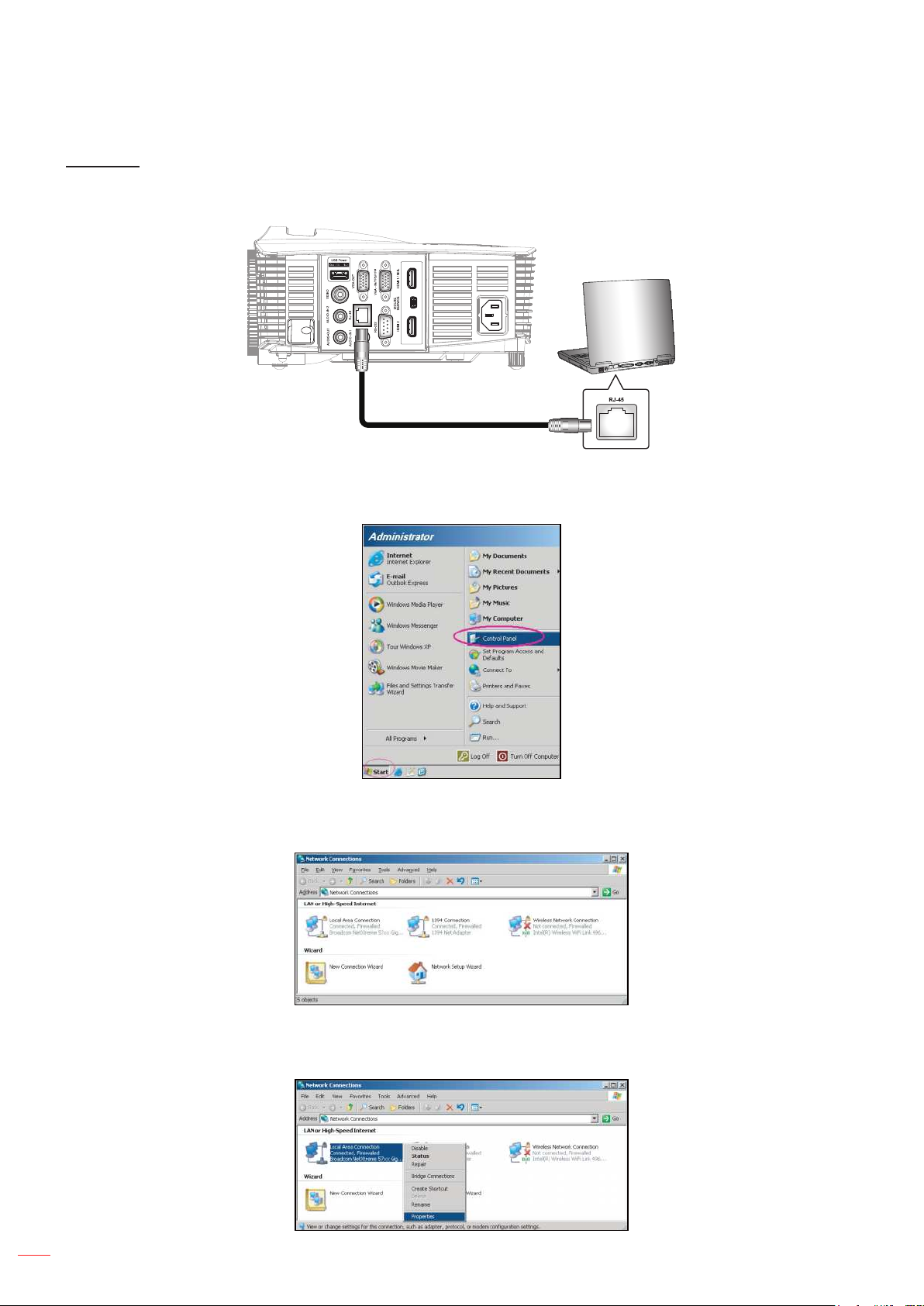

LAN RJ45

Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).1.

On the PC (Laptop), select 2. Start > Control Panel > Network Connections.

Right-click on the L3. ocal Area Connection, and select Property.

In the 4. Properties window, select the General tab, and select Internet Protocol (TCP / IP).

English

47

USING THE PROJECTOR

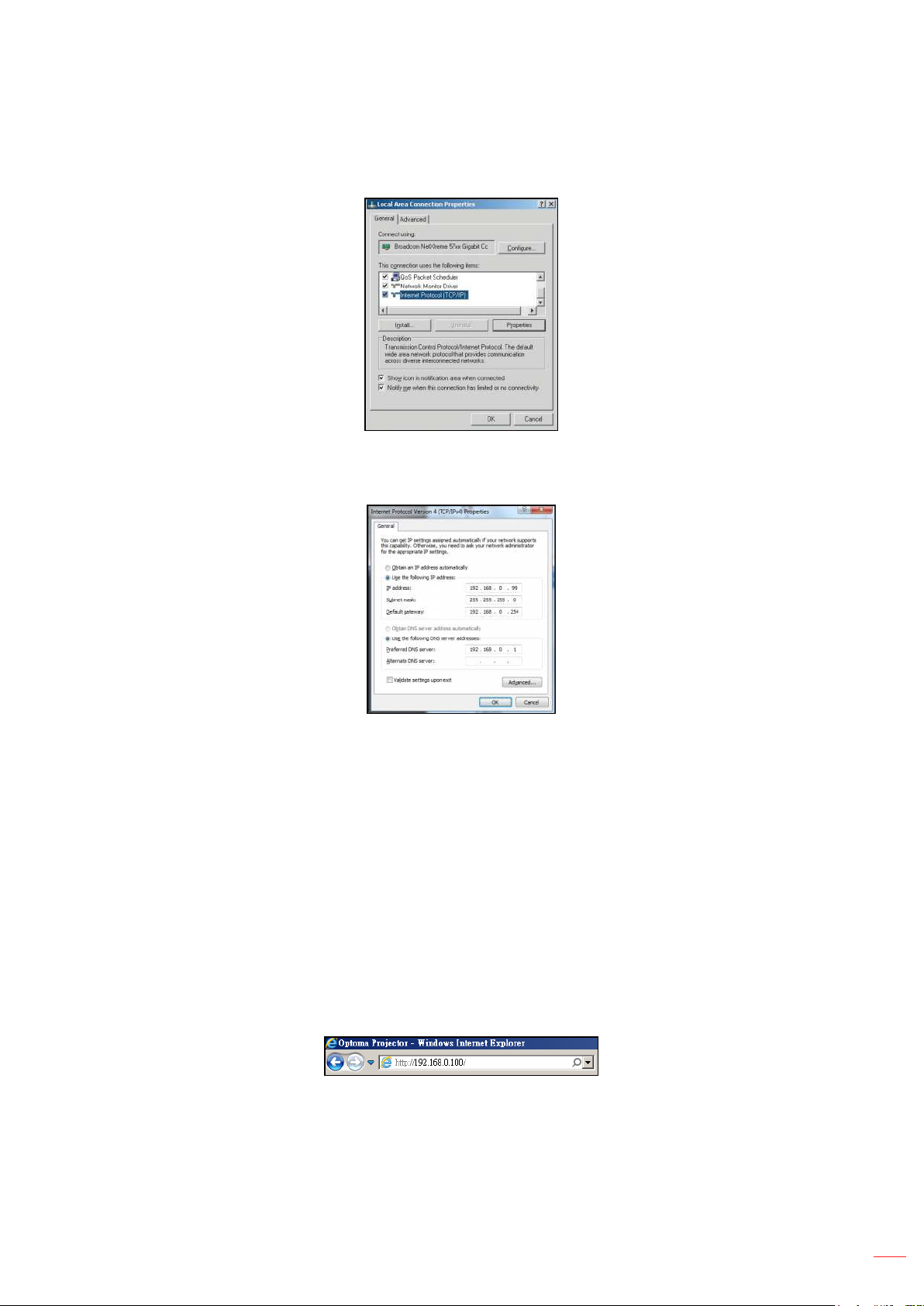

Click “Properties”.5.

Type in the IP address and Subnet mask, then press “OK”.6.

Press the “Menu” button on the projector.7.

Open on projector 8. Network > LAN.

Enter the following connection parameters:9.

DHCP: Off ±
IP Address: 192.168.0.100 ±
Subnet Mask: 255.255.255.0 ±
Gateway: 192.168.0.254 ±
DNS: 192.168.0.1 ±

Press “Enter” to conrm settings.10.

Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher 11.

installed.

In the Address bar, input the projector’s IP address: 192.168.0.100.12.

English

48

USING THE PROJECTOR

Press “Enter”.13.

The projector is setup for remote management. The LAN / RJ45 function displays as follows:

Information page

Main page

Tool page

English

49

USING THE PROJECTOR

Contact IT helpdesk

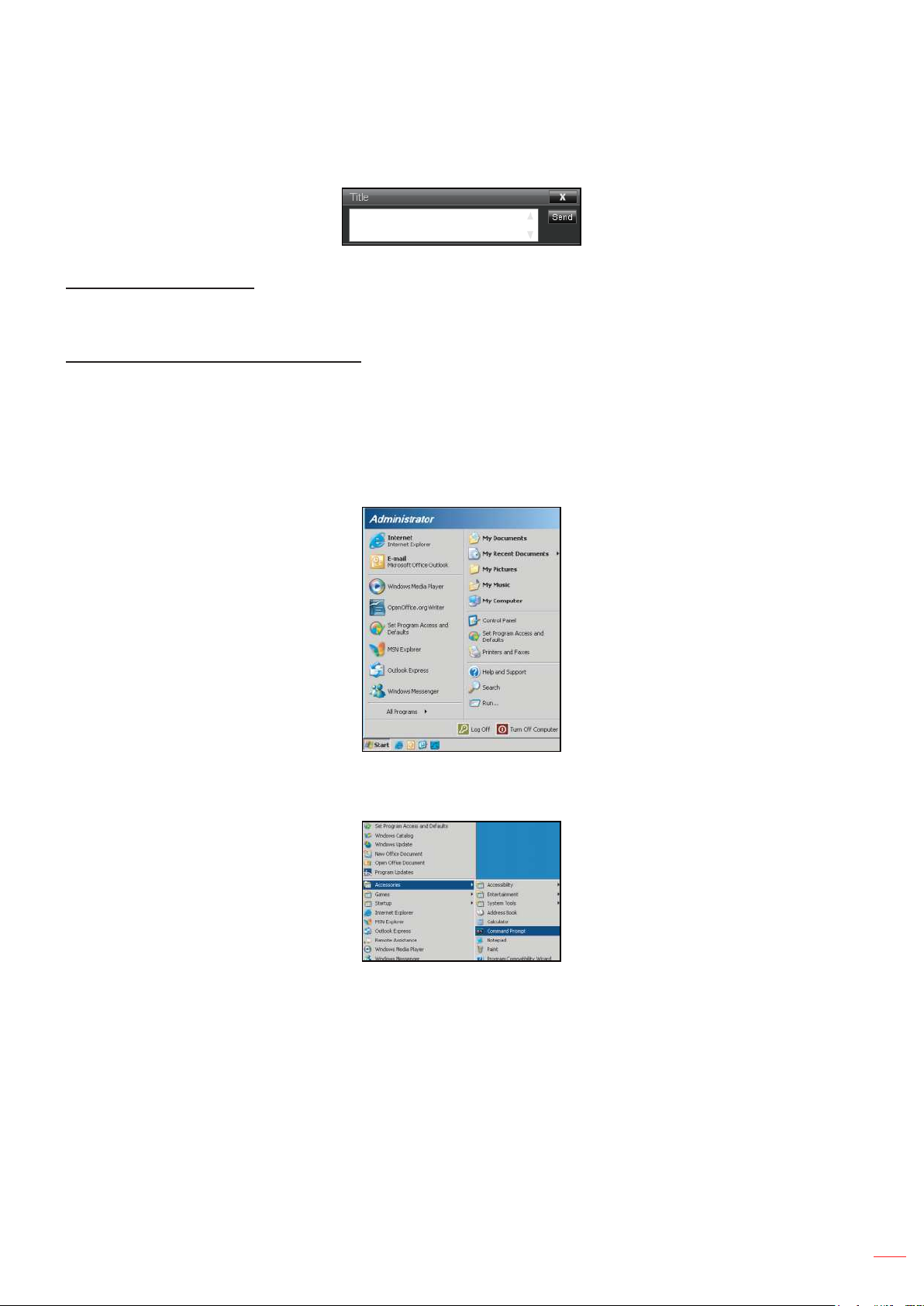

RS232 by Telnet Function

There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45
interface.

Quick Start-Guide for “RS232 by Telnet”

Check and get the IP address on OSD of the projector. 

Make sure that the PC / laptop can access the web-page of the projector. 

Make sure that “Windows Firewall” setting is set disabled in case of “TELNET” function ltering out by 

PC / laptop.

.

Select 1. Start > All Programs.> Accessories > Command Prompt.

Input the command format as follows: 2.

telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed) ±
(ttt.xxx.yyy.zzz: IP-Address of the projector) ±

If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the 3.

RS232 command will be workable.

English

50

USING THE PROJECTOR

Specication for “RS232 by TELNET”:

Telnet: TCP.1.

Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).2.

Telnet utility: Windows “TELNET.exe” (console mode).3.

Disconnection for RS232-by-Telnet control normally: Close4.

Windows Telnet utility directly after TELNET connection ready.5.

Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for ±
Telnet-Control application.

Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for ±
Telnet-Control.

Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms). ±

Info menu

View the projector information as listed below:

Regulatory 

Serial Number 

Source 

Resolution 

Refresh Rate 

Display Mode 

Power Mode (Standby) 

Lamp Hours in total and in a set mode as listed below: 

Bright ±
Eco. ±
Dynamic ±
Eco+ ±
Total ±

Network status 

IP Address 

Projector ID 

Filter Usage Hours 

Brightness Mode 

FW Version (system, LAN, MCU) 

English

51

USING THE PROJECTOR

3D Setup

Turn on your projector.1.

Connect your 3D source. For example, 3D Blu ray, Games console, PC, Set top box, etc.2.

Ensure you have inserted 3D content or selected the 3D channel.3.

Turn on your 3D glasses. Please refer to the 3D glasses user manual on how to operate the 3D 4.

glasses.

Your projector will automatically display 3D from a 3D Blu ray. For 3D via a set top box or PC, you will 5.

be required to adjust the settings in the 3D menu.

For 3D via Blu ray

3D will automatically be displayed.

Menu > "Display" > "3D" > "3D Mode" > "DLP" 

For 3D via a PC or Set top box

3D will not be displayed automatically. Depending on the 3D content the image will either be displayed side by side
or top and bottom. Please refer to the following table.

Top and bottom

SBS SBS

Top and bottom

For side by side images, select "SBS" in the menu. Menu > "Display" > "3D" > "3D Format" > "SBS". 

For top and bottom images, select "top and bottom" in the menu. Menu > "Display" > "3D" > "3D 

Format" > "Top and bottom".

If the 3D image does not look correct, you may also be required to adjust the 3D sync invert. Turn this

on if the image looks odd. Menu > "Display" > "3D" > "3D Sync Invert" > "On".

If input video is normal 2D, please press “3D” and switch to “Auto”. If “SBS” mode is active, 2D videoNote:
content will not be displayed correctly. Please change back to “Auto” when 3D via a PC only works with
certain resolutions. Please check the compatibility on page 56.

MAINTENANCE

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message
will appear on the screen.

Warning

Lamp Warning

Lamp life exceeded.

When you see this message, please contact your local reseller or service center to change the lamp as soon as
possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is
recommended to wear safety glasses if changing the bulb when ceiling mounted. Caution must be used
to prevent any loose parts from falling out of projector.

Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The
bulb may shatter and cause injury if it is dropped.

52

English

MAINTENANCE

1

3

4

2

5

Replacing the lamp (continued)

Procedure:

Switch off the power to the projector by pressing the "1. " button on the remote control or the projector

keypad.

Allow the projector to cool down for at least 30 minutes.2.

Disconnect the power cord.3.

Unscrew the screw on the cover. 4. 1

Open the cover. 5. 2

Unscrew the screw on the lamp module. 6. 3

Lift up the lamp handle. 7. 4

Remove the lamp module carefully. 8. 5

To replace the lamp module, reverse the previous steps.9.

Turn on the projector and reset the lamp timer.10.

Lamp Reset: (i) Press "Menu" > (ii) Select "Setup" > (iii) Select "Lamp Settings" > (iv) Select "Lamp

Reset" > (v) Select "Yes".

English

53

MAINTENANCE

1

2

Note:

The screw on the lamp cover and the lamp cannot be removed. 

The projector cannot be turned on if the lamp cover has not been placed back on the projector. 

Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean 

the lamp module if it was accidentally touched.

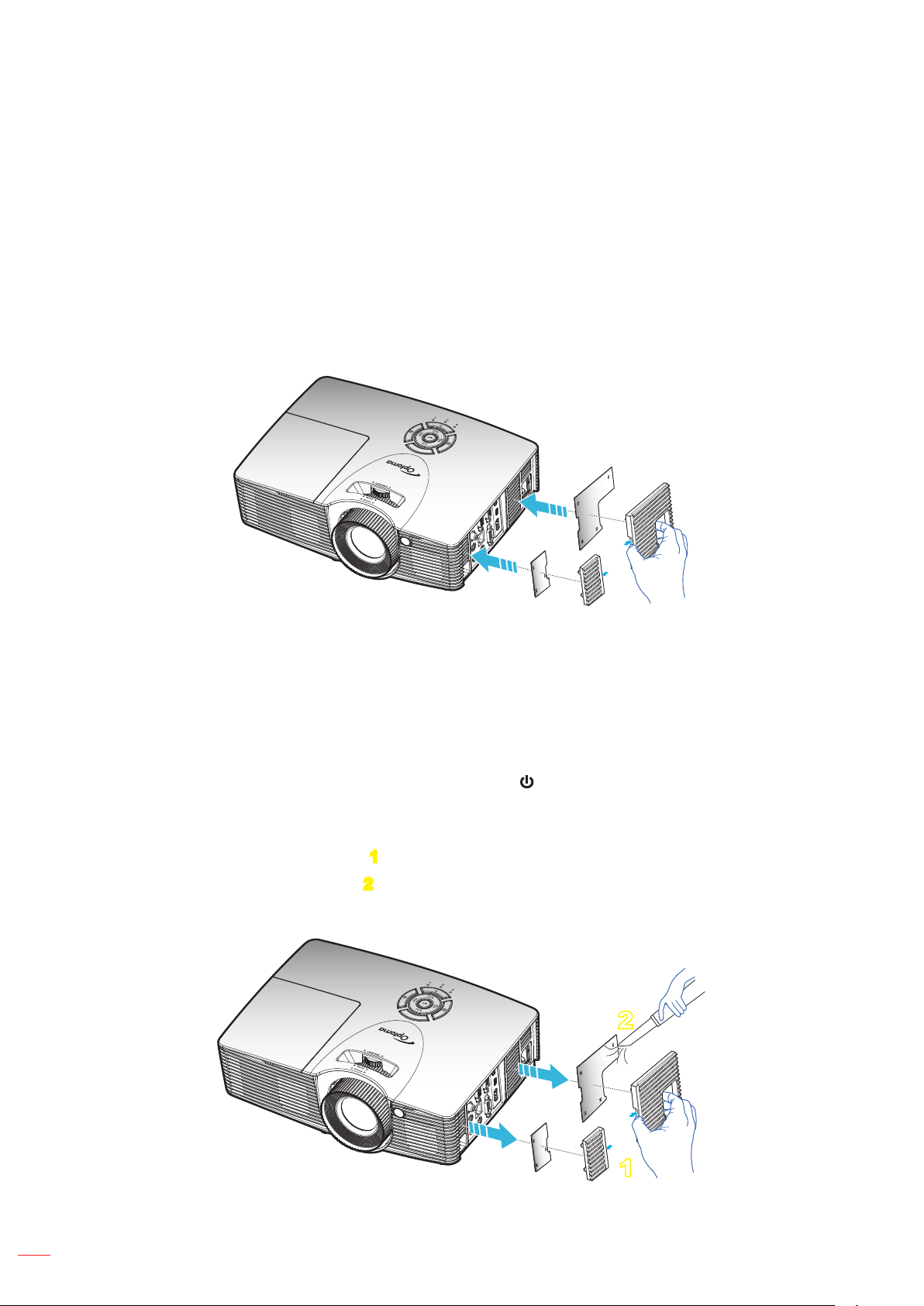

Installing and cleaning the dust lter

Installing the dust lter

Dust lters are only required/supplied in the selected regions with excessive dust.Note:

Cleaning the dust lter

We recommend you to clean the dust lter every three months. Clean it more often if the projector is used in a
dusty environment.

Procedure:

Switch off the power to the projector by pressing 1. the " " button on the remote control or the projector

keypad.

Disconnect the power cord.2.

Remove the dust lter carefully.3. 1

Clean or replace the dust lter.4. 2

To install the dust lter, reverse the previous steps.5.

54

English

ADDITIONAL INFORMATION

Compatible resolutions

Digital compatibility

B0/Established

Timing

720x400 @ 70Hz XGA/WXGA: Native timing: 640x480p @ 60Hz 1280x720p @ 60Hz

640x480 @ 60Hz 1440x900 @ 60Hz XGA: 720x480p @ 60Hz 1366x768 @ 60Hz
640x480 @ 67Hz 1024x768 @ 120Hz 1024x768 @ 60Hz 1280x720p @ 60Hz 1920x1080i @ 50Hz
640x480 @ 72Hz 1280x800 @ 60Hz WXGA: 1920x1080i @ 60Hz 1920x1080p @ 60Hz
640x480 @ 75Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 720(1440)x480i @ 60Hz 1920x1200 @ 60Hz(RB)
800x600 @ 56Hz 1680x1050 @ 60Hz 1280x720 @ 60Hz 1920x1080p @ 60Hz

800x600 @ 60Hz 1280x720 @ 60Hz 1080P: 720x576p @ 50Hz

800x600 @ 72Hz 1280x720 @ 120Hz 1920x1080 @ 60Hz 1280x720p @ 50Hz
800x600 @ 75Hz 1600x1200 @ 60Hz WUXGA: 1920x1080i @ 50Hz
832x624 @ 75Hz 1080P/WUXGA: 1920x1200 @ 60Hz(RB) 720(1440)x576i @ 50Hz
1024x768 @ 60Hz 1280 x 720 @ 60Hz 1920x1080p @ 50Hz
1024x768 @ 70Hz 1280 x 800 @ 60Hz 1920x1080p @ 24Hz
1024x768 @ 75Hz 1280 x1024 @ 60Hz 1920x1080p @ 30Hz
1280x1024 @ 75Hz 1400 x 1050 @ 60Hz
1152x870 @ 75Hz 1600 x 1200 @ 60Hz

B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing

1280 X 768 @ 60Hz

1440 x 900 @ 60Hz

1280 x 720 @ 120Hz

1024 x 768 @ 120Hz

Analog compatibility

B0/Established

Timing

720x400 @ 70Hz XGA/WXGA: Native timing: 1366x768 @ 60Hz

640x480 @ 60Hz 1440 x 900 @60Hz XGA: 1920x1080 @ 60Hz
640x480 @ 67Hz 1024 x 768 @120Hz 1024x768 @ 60Hz 1920x1200 @ 60Hz

640x480 @ 72Hz 1280 x 800 @60Hz WXGA:
640x480 @ 75Hz 1280 x 1024 @60Hz 1280x800 @ 60Hz;
800x600 @ 56Hz 1680 x 1050 @60Hz 1280x720 @ 60Hz
800x600 @ 60Hz 1280 x 720 @60Hz 1080P:
800x600 @ 72Hz 1280 x 720 @120Hz 1920x1080 @ 60Hz
800x600 @ 75Hz 1600 x 1200 @60Hz WUXGA:
832x624 @ 75Hz 1080P/ WUXGA: 1920x1200 @ 60Hz(RB)
1024x768 @ 60Hz 1280x720 @ 60Hz

1024x768 @ 70Hz 1280x800 @ 60Hz

1024x768 @ 75Hz 1280x1024 @ 60Hz
1280x1024 @ 75Hz 1400x1050 @ 60Hz

1152x870 @ 75Hz 1600x1200 @ 60Hz

B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing

(RB)

1280x768 @ 60Hz

1440x900 @60Hz

1280x720 @ 120Hz

1024x768 @ 120Hz

English

55

English

56

True 3D video compatibility

HDMI 1.4b 3D
Input

Input resolution

HDMI 1.4b

Input timing

1280x720P @ 50Hz Top - and - Bottom

1280x720P @ 60Hz Top - and - Bottom
1280x720P @ 50Hz Frame packing
1280x720P @ 60Hz Frame packing

1920x1080i @ 50 Hz Side- by-Side (Half)
1920x1080i @ 60 Hz Side- by-Side (Half)
1920x1080P @ 24 Hz Top - and- Bottom

1920x1080P @ 24 Hz Frame packing
1920x1080i @ 50Hz
1920x1080i @ 60Hz
1280x720P @ 50Hz
1280x720P @ 60Hz
800x600 @ 60Hz
1024x768 @ 60Hz
1280x800 @ 60Hz
1920x1080i @ 50Hz
1920x1080i @ 60Hz
1280x720P @ 50Hz
1280x720P @ 60Hz
800x600 @ 60Hz
1024x768 @ 60Hz
1280x800 @ 60Hz
480i HQFS 3D format is eld sequential

Side-by-Side(Half) SBS mode is on

Top-and-Bottom TAB mode is on

Note:

If 3D input is 1080p@24hz, the DMD should replay with integral multiple with 3D mode. 

Support NVIDIA 3DTV Play if there is no patent fee from Optoma 1080i@25hz and 720p@50hz will 

run in 100 hz; other 3D timing will run in 120hz.

1080i@25hz and 720p@50hz will run in 100hz; other 3D timing will run in 120hz. 

Image size and projection distance

(X416_C11_XGA)

Desired Image Size Projection Distance (C)

Diagonal Width Height Wide Tele

m inch m inch m inch m feet m feet

0.76 30 0.61 24 0.46 18 / / 1.2 3.94

1.02 40 0.81 32 0.61 24 1.1 3.61 1.5 4.92

1.27 50 1.02 40 0.76 30 1.4 4.59 1.9 6.23

1.52 60 1.22 48 0.91 36 1.7 5.58 2.3 7.55

1.78 70 1.42 56 1.07 42 2.0 6.56 2.7 8.86

2.03 80 1.63 64 1.22 48 2.3 7.55 3.1 10.17

2.29 90 1.83 72 1.37 54 2.5 8.20 3.5 11.48

2.54 100 2.03 80 1.52 60 2.8 9.19 3.8 12.47

3.05 120 2.44 96 1.83 72 3.4 11.15 4.6 15.09

3.81 150 3.05 120 2.29 90 4.2 13.78 5.8 19.03

4.57 180 3.66 144 2.74 108 5.1 16.73 6.9 22.64

5.08 200 4.06 160 3.05 120 5.7 18.70 7.7 25.26

6.35 250 5.08 200 3.81 150 7.1 23.29 9.6 31.50

7.62 300 6.10 240 4.57 180 8.5 27.89 11.5 37.73

English

57

Vertical +

(Max) (A)

cm cm cm cm cm cm

52.6 44.9 7.7 N/A 0.0 0.0

70.1 59.8 10.3 N/A 0.0 0.0

87.6 74.8 12.9 N/A 0.0 0.0

105.2 89.7 15.5 N/A 0.0 0.0

122.7 104.7 18.0 N/A 0.0 0.0

140.2 119.6 20.6 N/A 0.0 0.0

157.7 134.6 23.2 N/A 0.0 0.0

175.3 149.5 25.8 N/A 0.0 0.0

210.3 179.4 30.9 N/A 0.0 0.0

262.9 224.3 38.6 N/A 0.0 0.0

315.5 269.1 46.4 N/A 0.0 0.0

350.5 299.0 51.5 N/A 0.0 0.0

438.2 373.8 64.4 N/A 0.0 0.0

525.8 448.5 77.3 N/A 0.0 0.0

Note:

Vertical Lens Shift values are always calculated from the Center of Projection Lens. Therefore the 

distance 5.4 cm (2.13 inch) from the Base to the Center of Projection Lens needs to be added to each

Vertical Lens Shift value.

Zoom ratio is 1.4x. 

(EH416_C16_1080P)

Lens Shift Range

PJ lens Center to top of image Image Shift Range

Vertical -

(D) = (A) - (B)

(Min) (B)

Vertical range at

any Horizontal

position

Horizontal +

(Right)

Horizontal -

(Left)

Desired Image Size Projection Distance (C)

Diagonal Width Height Wide Tele

m inch m inch m inch m feet m feet

0.91 36 0.80 31.38 0.45 17.65 1.1 3.61 1.8 5.91

1.02 40 0.89 34.86 0.5 19.6 1.2 3.94 2.0 6.56

1.27 50 1.11 43.58 0.62 24.5 1.5 4.92 2.5 8.20

1.52 60 1.33 52.29 0.75 29.4 1.9 6.23 3.0 9.84

1.78 70 1.55 61.01 0.87 34.3 2.2 7.22 3.5 11.48

2.03 80 1.77 69.73 1 39.2 2.5 8.20 4.0 13.12

2.29 90 1.99 78.44 1.12 44.1 2.8 9.19 4.5 14.76

2.54 100 2.21 87.16 1.25 49 3.1 10.17 5.0 16.40

3.05 120 2.66 104.59 1.49 58.8 3.7 12.14 6.0 19.69

3.81 150 3.32 130.74 1.87 73.5 4.6 15.09 7.4 24.28

4.57 180 3.98 156.88 2.24 88.2 5.6 18.37 8.9 29.20

5.08 200 4.43 174.32 2.49 98.1 6.2 20.34 9.9 32.48

6.35 250 5.53 217.89 3.11 122.6 7.7 25.26 / /

7.62 300 6.64 261.47 3.74 147.1 9.3 30.51 / /

English

58

ADDITIONAL INFORMATION

Lens Shift Range

PJ lens Center to top of image Image Shift Range

Vertical +

(Max) (A)

cm cm cm cm cm cm

52.0 44.3 7.7 N/A 0.0 0.0

57.8 49.3 8.5 N/A 0.0 0.0

72.2 61.6 10.7 N/A 0.0 0.0

86.7 73.9 12.8 N/A 0.0 0.0

101.1 86.2 14.9 N/A 0.0 0.0

115.6 98.5 17.0 N/A 0.0 0.0

130.0 110.8 19.2 N/A 0.0 0.0

144.5 123.2 21.3 N/A 0.0 0.0

173.3 147.8 25.6 N/A 0.0 0.0

216.7 184.7 32.0 N/A 0.0 0.0

260.0 221.7 38.3 N/A 0.0 0.0

288.9 246.3 42.6 N/A 0.0 0.0

361.1 307.9 53.2 N/A 0.0 0.0

433.4 369.5 63.9 N/A 0.0 0.0

Vertical -

(Min) (B)

Vertical Shift

Range

Vertical range at

any Horizontal

position

Horizontal +

(Right)

Horizontal -

(Left)

Note:

Vertical Lens Shift values are always calculated from the Center of Projection Lens. Therefore the 

distance 5.4 cm (2.13 inch) from the Base to the Center of Projection Lens needs to be added to each

Vertical Lens Shift value.

Zoom ratio is 1.6x. 

(W416_C16_WXGA)

Desired Image Size Projection Distance (C)

Diagonal Width Height Wide Tele

m inch m inch m inch m feet m feet

0.91 36 0.78 30.53 0.48 19.08 1.1 3.61 1.8 5.91

1.02 40 0.86 33.92 0.54 21.2 1.2 3.94 2.0 6.56

1.27 50 1.08 42.4 0.67 26.5 1.6 5.25 2.5 8.20

1.52 60 1.29 50.88 0.81 31.8 1.9 6.23 3.0 9.84

1.78 70 1.51 59.36 0.94 37.1 2.2 7.22 3.5 11.48

2.03 80 1.72 67.84 1.08 42.4 2.5 8.20 4.0 13.12

2.29 90 1.94 76.32 1.21 47.7 2.8 9.19 4.5 14.76

2.54 100 2.15 84.8 1.35 53 3.1 10.17 5.0 16.40

3.05 120 2.58 101.76 1.62 63.6 3.7 12.14 6.0 19.69

3.81 150 3.23 127.2 2.02 79.5 4.7 15.42 7.4 24.28

4.57 180 3.88 152.64 2.42 95.4 5.6 18.37 8.9 29.20

5.08 200 4.31 169.6 2.69 106 6.2 20.34 9.9 32.48

6.35 250 5.38 212 3.37 132.5 7.8 25.59 / /

7.62 300 6.46 254.4 4.04 159 9.3 30.51 / /

English

59

ADDITIONAL INFORMATION

Lens Shift Range

PJ lens Center to top of image Image Shift Range

Vertical +

(Max) (A)

cm cm cm cm cm cm

54.5 46.6 7.9 N/A 0.0 0.0

60.5 51.8 8.7 N/A 0.0 0.0

75.7 64.8 10.9 N/A 0.0 0.0

90.8 77.7 13.1 N/A 0.0 0.0

105.9 90.7 15.3 N/A 0.0 0.0

121.1 103.6 17.5 N/A 0.0 0.0

136.2 116.6 19.6 N/A 0.0 0.0

151.3 129.5 21.8 N/A 0.0 0.0

181.6 155.4 26.2 N/A 0.0 0.0

227.0 194.3 32.7 N/A 0.0 0.0

272.4 233.1 39.3 N/A 0.0 0.0

302.6 259.0 43.6 N/A 0.0 0.0

378.3 323.8 54.5 N/A 0.0 0.0

453.9 388.5 65.4 N/A 0.0 0.0

Vertical -

(Min) (B)

Vertical Shift

Range

Vertical range at

any Horizontal

position

Horizontal +

(Right)

Horizontal -

(Left)

Note:

Vertical Lens Shift values are always calculated from the Center of Projection Lens. Therefore the 

distance 5.4 cm (2.13 inch) from the Base to the Center of Projection Lens needs to be added to each

Vertical Lens Shift value.

Zoom ratio is 1.6x. 

(WU416_C16)

Desired Image Size Projection Distance (C)

Diagonal Width Height Wide Tele

m inch m inch m inch m feet m feet

0.91 36 0.78 30.53 0.48 19.08 1.1 3.61 1.7 5.58

1.02 40 0.86 33.92 0.54 21.2 1.2 3.94 1.9 6.23

1.27 50 1.08 42.4 0.67 26.5 1.5 4.92 2.4 7.87

1.52 60 1.29 50.88 0.81 31.8 1.8 5.91 2.9 9.51

1.78 70 1.51 59.36 0.94 37.1 2.1 6.89 3.4 11.15

2.03 80 1.72 67.84 1.08 42.4 2.4 7.87 3.8 12.47

2.29 90 1.94 76.32 1.21 47.7 2.7 8.86 4.3 14.11

2.54 100 2.15 84.8 1.35 53 3.0 9.84 4.8 15.75

3.05 120 2.58 101.76 1.62 63.6 3.6 11.81 5.7 18.70

3.81 150 3.23 127.2 2.02 79.5 4.5 14.76 7.2 23.62

4.57 180 3.88 152.64 2.42 95.4 5.4 17.72 8.6 28.22

5.08 200 4.31 169.6 2.69 106 6.0 19.69 9.6 31.50

6.35 250 5.38 212 3.37 132.5 7.5 24.61 / /

7.62 300 6.46 254.4 4.04 159 9.0 29.53 / /

English

60

ADDITIONAL INFORMATION

A

V

5.4 cm

C

B

V+

V-

1

3

2

Lens Shift Range

PJ lens Center to top of image Image Shift Range

Vertical +

(Max) (A)

Vertical -

(Min) (B)

Vertical Shift

Range

cm cm cm cm cm cm

53.0 45.6 7.5 N/A 0.0 0.0

58.9 50.6 8.3 N/A 0.0 0.0

73.6 63.3 10.4 N/A 0.0 0.0

88.4 75.9 12.4 N/A 0.0 0.0

103.1 88.6 14.5 N/A 0.0 0.0

117.8 101.2 16.6 N/A 0.0 0.0

132.6 113.9 18.7 N/A 0.0 0.0

147.3 126.5 20.7 N/A 0.0 0.0

176.7 151.9 24.9 N/A 0.0 0.0

220.9 189.8 31.1 N/A 0.0 0.0

265.1 227.8 37.3 N/A 0.0 0.0

294.6 253.1 41.5 N/A 0.0 0.0

368.2 316.4 51.8 N/A 0.0 0.0

441.8 379.6 62.2 N/A 0.0 0.0

Vertical range at

any Horizontal

position

Horizontal +

(Right)

Horizontal -

(Left)

Note:

Vertical Lens Shift values are always calculated from the Center of Projection Lens. Therefore the 

distance 5.4 cm (2.13 inch) from the Base to the Center of Projection Lens needs to be added to each

Vertical Lens Shift value.

Zoom ratio is 1.6x. 

1. Center of projector lens.

2. Projection image while lens shift at the highest postion

3. Vertical shift range : 10% V

English

61

ADDITIONAL INFORMATION

82.30

314.22

85.00

55.00

228.79

223.21

113.85

13.50

Projector dimensions and ceiling mount installation

To prevent damage to your projector, please use the Optoma ceiling mount.1.

If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to 2.

the projector meet the following specications:

 Screw type: M4*3

Minimum screw length: 10mm 

Please note that damage resulting from incorrect installation will void the warranty.Note:

Warning:

Lens

Unit: mm

If you buy a ceiling mount from another company, please be sure to use the correct screw size. 
Screw size will vary depending on the thickness of the mounting plate.

Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector. 
Avoid installing the projector near a heat source. 

English

62

ADDITIONAL INFORMATION

Freeze

Power Switch

L

R

Keystone Volume

Page

-

-

+

-

+

1 2

Menu33D

4

HDMI5VGA6Video

7

User18User29User3

Source

0

Resync

Page+Laser

Enter

IR remote codes

Key

Power 81 Power on/off Press to turn on / off the projector.

Switch 3E Switch Press to switch the USB mouse on / off.

Display blank /
audio mute

Freeze 8B Freeze Press to freeze the projector image.

Key

code

8A

Printing-key

denition

Description

Press to hide / unhide the screen picture and turn off / on
audio.

Mute 92 Press to momentarily turn off / on the audio.

Mouse left click L CB L Use as mouse left click.
Mouse right click R CC R Use as mouse right click.

Four
directional select
keys

Enter

Page - C2 Page- Press to page down.
Laser N/A Laser Use as laser pointer.

C6 Up arrow
C8 Left arrow
C9 Right arrow

Use to select items or make adjustments to
your selection.

C7 Down arrow
C5 Enter

CA Enter

Conrm your item selection.

English

63

ADDITIONAL INFORMATION

-

+

-

+

Key

Key

code

Printing-key

denition

Description

Page + C1 Page+ Press to page up.

Keystone

Volume

85 Keystone+
84 Keystone-

8C Volume +

8F Volume -

Press to adjust image distortion caused by tilting the pro­jector.

Press to adjust to increase / decrease the volume.

Press to change aspect ratio of a displayed image. 

Aspect ratio / 1 98

/ 1

Use as numeric keypad number "1". 
Press to display or exit the on-screen display menus 

Menu / 2 88 Menu/2

for projector.
Use as numeric keypad number "2". 

Press to manually select a 3D mode that matches 

3D / 3 93 3D/3

your 3D content.
Use as numeric keypad number "3". 

Press to choose HDMI source. 

HDMI / 4 86 HDMI/4

Use as numeric keypad number "4". 
Press to choose VGA source. 

VGA / 5 D0 VGA/5

Use as numeric keypad number "5". 
Press to choose composite video source. 

Video / 6 D1 Video/6

Use as numeric keypad number "6". 

User1 / 7; User2 / 8;
User3 / 9

D2 User 1/7
D3 User 2/8
D4 User 3/9

User dened keys. Please see page  41 to setup.
Use as numeric keypad numbers "7", "8", and "9" 

accordingly.

Source C3 Source Press to select an input signal.

Press to automatically adjust the picture brightness 

Brightness
mode / 0

96

/ 0

to give an optimum contrast performance.
Use as numeric keypad number "0". 

Re-sync C4 Re-Sync

Press to automatically synchronize the projector to the
input source.

English

64

ADDITIONAL INFORMATION

Using the Information button

The Information function ensures easy setup and operation. Press the button on the keypad to open the
Information menu.

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.

Image problems

No image appears on-screen

Ensure all the cables and power connections are correctly and securely connected as described in the 

"Installation" section.

Ensure the pins of connectors are not crooked or broken. 

Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp" 

section.

Ensure that the "AV Mute" feature is not turned on. 

Image is out of focus

Adjust the Focus Ring on the projector lens. 

Make sure the projection screen is between the required distance from the projector. (Please refer to 

pages 56-60).

English

65

ADDITIONAL INFORMATION

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format 

on projector side.

If you play the LBX format DVD title, please change the format as LBX in projector OSD. 

If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD. 

Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player. 

Image is too small or too large

Adjust the zoom ring on the top of the projector. 

Move the projector closer to or further from the screen. 

Press "Menu" on the projector panel, go to "Display --> Aspect Ratio". Try the different settings. 

Image has slanted sides:

If possible, reposition the projector so that it is centered on the screen and below the bottom of the 

screen.

Use "Display--> Geometric Correction --> V Keystone” and “Display--> Geometric Correction --> H 

Keystone” from the OSD to make an adjustment.

Image is reversed

Select "Setup--> Projection" from the OSD and adjust the projection direction. 

Blurry double image

Press "3D" button and switch to "Off" to avoid normal 2D image is blurry double image. 

Two images, side-by-side format

Press "3D" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side. 

Image does not display in 3D

Check if the battery of 3D glasses is drained. 

Check if the 3D glasses is turned on. 

When the input signal is HDMI 1.3 2D (1080i side-by-side half), press "3D" button and switch to "SBS". 

Other problems

The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before 

reconnecting power.

Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this 

happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp,

follow the procedures in the "Replacing the Lamp" section on pages 53-54.

English

66

ADDITIONAL INFORMATION

Remote control problems

If the remote control does not work

Check the operating angle of the remote control is pointed within ±15° horizontally and ±10° vertically 

to the IR receivers on the projector.

Make sure there are not any obstructions between the remote control and the projector. Move to within 

7 m (23 ft) of the projector.

Make sure batteries are inserted correctly. 

Replace batteries if they are exhausted. 

Warning indicators

When the warning indicators (see below) light up or ash, the projector will automatically shutdown:

"LAMP" LED indicator is lit red and if "On/Standby" indicator ashes amber. 

"TEMP" LED indicator is lit red and if "On/Standby" indicator ashes amber. This indicates the 

projector has overheated. Under normal conditions, the project can be switched back on.

"TEMP" LED indicator ashes red and if "On/Standby" indicator ashes amber. 
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or

ash, please contact your nearest service center for assistance.

LED lightning messages

Message

Standby state
(Input power cord)

Power on (Warming)

Power on and Lamp

lighting

Power off (Cooling)

Quick Resume (100
secs)

Error (Over temp.) Flashing

Error (Fan failure) Flashing Flashing

Error (Lamp failure) Flashing

Power LED Power LED

(Red) (Green or Blue) (Red) (Red)

Steady light

Flashing
(0.5 sec off /

0.5 sec on)

Steady light

Flashing
(0.5 sec off /

0.5 sec light). Back
to red steady light
when cooling fan
turns off.

Flashing
(0.25 sec off /

0.25 sec light)

Temp-LED

Lamp-LED

Power off: 

Power Off

Power Off?

Press power key again.

English

67

ADDITIONAL INFORMATION

Lamp warning: 

Warning

Lamp Warning

Lamp life exceeded.

Temperature warning: 

Warning

TEMPERATURE TOO HIGH

Please:

1. Make sure air in and outlets are not blocked.

2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.

Fan failed: 

Out of display range: 

Out Of Range

Power down warning: 

Warning

FAN LOCKED

The projector will switch off automatically

Please contact a service center for repair.

HDMI

Power Down

Power Down Timer Active

Power down in sec.

Security timer alarm: 

Warning

Security Timer Alarm

Time Out in sec.

English

68

ADDITIONAL INFORMATION

Specications

Optical Description

Maximum resolution

Lens - Manual zoom and manual focus

- Up to UXGA, 1600 x1200, 60Hz WUXGA for WXGA 16:10

- 1920x1200 @60hz only supported for RB (Reduced Blanking)

- In Bright mode (Normal mode) 3000 hours standard @260W, 50% survival rate

Lamp

Image size (diagonal)

Projection distance

- In STD mode (Eco mode) 5000 hours typical @220W, 50% survival rate

- In ImageCare (Normal mode) 5500 hours typical @260W, 50% survival rate

- In ImageCare (Eco mode) 7000 hours typical @220W, 50% survival rate

XGA format:

- 40.47”~300.3” (focus range with optimized @60” image size)

WXGA format:

- 25.66”~301.15”

1080p format:

- 26.2”~301.1”

WUXGA format:

- 26.94”~302.9” (focus range with optimized @60” image size)

XGA format:

- 1.3m~7.1m (focus range with optimized @1.42m throw distance)

WXGA format:

- 1.3m~9.6m (focus range with optimized @1.913m)

1080p format:

- 1.3m~9.4m (focus range with optimized @1.873m)

WUXGA format:

- 1.30m~9.2m (focus range with optimized @1.822m throw distance)

Electrical Description

- HDMI 1.4a

- HDMI 1.4a + MHL (v2.2)

Inputs

Outputs

Control

Color reproduction 1073.4 Million color

- VGA (YPbPr/RGB/wireless)

- Audio 3.5mm *2

- Composite video

- VGA

- Audio 3.5mm

- USB-A Power

- RS232

- USB mouse/Service

- RJ-45

English

69

ADDITIONAL INFORMATION

Electrical Description

Scan rate

Built-in speaker Yes, 10W

Power requirement 100 - 240V ±10 50/60Hz

Input current 2.5-1.0 A

Mechanical Description

Installation orientation Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear

Dimensions

Weight <3.1 kg

Environmental conditions Operating: 5 ~ 40°C, 10% to 85% humidity (non-condensing)

All specications are subject to change without notice. ote

- Horizontal scan rate: 15.375~91.146 KHz

- Vertical scan rate: 24~ 85 Hz (120Hz for 3D featured projector)

- 314 mm (W) x 223.8 mm (D) x 100.35 mm (H) (without feet)

- 314 mm (W) x 223.8 mm (D) x 113.85 mm (H) (with feet)

ADDITIONAL INFORMATION

Optoma global ofces

For service or support, please contact your local ofce.

USA

3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com [email protected]

Canada

3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com [email protected]

Latin America

3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com [email protected]

Europe

42 Caxton Way, The Watford Business Park
Watford, Hertfordshire,
WD18 8QZ, UK [phone]
www.optoma.eu [phone]
Service Tel : [phone] [email protected]

Benelux BV

Randstad 22-123 [phone]
1316 BW Almere [phone]
The Netherlands
www.optoma.nl

Japan

東京都足立区綾瀬3-25-18
株式会社オーエス [email protected]
コンタクトセンター:0120-380-495 www.os-worldwide.com

Taiwan

12F., No.213, Sec. 3, Beixin Rd., [phone]
Xindian Dist., New Taipei City 231, [phone]
Taiwan, R.O.C. [email protected]
www.optoma.com.tw asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,
79 Wing Hong Street, [phone]
Cheung Sha Wan, [phone]
Kowloon, Hong Kong www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd., [phone]
Changning District [phone]
Shanghai, 200052, China www.optoma.com.cn

France

Bâtiment E [phone]
81-83 avenue Edouard Vaillant [phone]
92100 Boulogne Billancourt, France [email protected]

Spain

C/ José Hierro,36 Of. 1C [phone]
28522 Rivas VaciaMadrid, [phone]
Spain

Deutschland

Wiesenstrasse 21 W [phone]
D40549 Düsseldorf, [phone]
Germany [email protected]

Scandinavia

Lerpeveien 25 [phone]
3040 Drammen [phone]
Norway [email protected]

PO.BOX 9515
3038 Drammen
Norway

Korea

WOOMI TECH.CO.,LTD. +82+2+34430004
4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430005
Seoul,135-815, KOREA
korea.optoma.com

70

English

www.optoma.com
