SAFETY

The lightning 㿿ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of su῿cient
magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

Please follow all warnings, precautions and maintenance as recommended in this user’s guide.

Important Safety Instruction

• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded co�ee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air 㿿ow.

• To reduce the risk of ⿿re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampli⿿ers
that emits heat.

• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in ⿿re or electric shock.

• Do not use under the following conditions:

± In extremely hot, cold or humid environments.

(i) Ensure that the ambient room temperature is within 0°C ~ 40°C
(ii) Relative humidity is up to 80%

± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic ⿿eld.
± In direct sunlight.

• Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be

(but not limited to):

± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.

• Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the

projector may become damaged.

4

• Do not block the light coming out of the projector lens when in operation. The light will heat the object
and may melt, cause burns or start a ⿿re.

• Please do not open or disassemble the projector as this may cause electric shock.

• Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous

voltages or other hazards. Please call Optoma before you send the unit for repair.

• See projector enclosure for safety related markings.

• The unit should only be repaired by authorized service personnel.

• Only use attachments/accessories speci⿿ed by the manufacturer.

• Do not look into straight into the projector lens during operation. The bright light may harm your eyes.

• This projector will detect the life of the light source itself.

English

• When switching the projector o�, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.

• Turn o� and unplug the power plug from the AC outlet before cleaning the product.

• Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,

waxes or solvents to clean the unit.

• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

• Do not setup the projector in places where it might be subjected to vibration or shock.

• Do not touch the lens with bare hands.

• Remove battery/batteries from remote control before storage. If the battery/batteries are left in the

remote for long periods, they may leak.

• Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely a�ect the quality of the projector performance.

• Please follow the correct projector orientation installation as non standard installation may a�ect the
projector performance.

• Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

Laser Radiation Safety Information

• This product is classi⿿ed as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and
also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector)
as de⿿ned in IEC 62471:5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

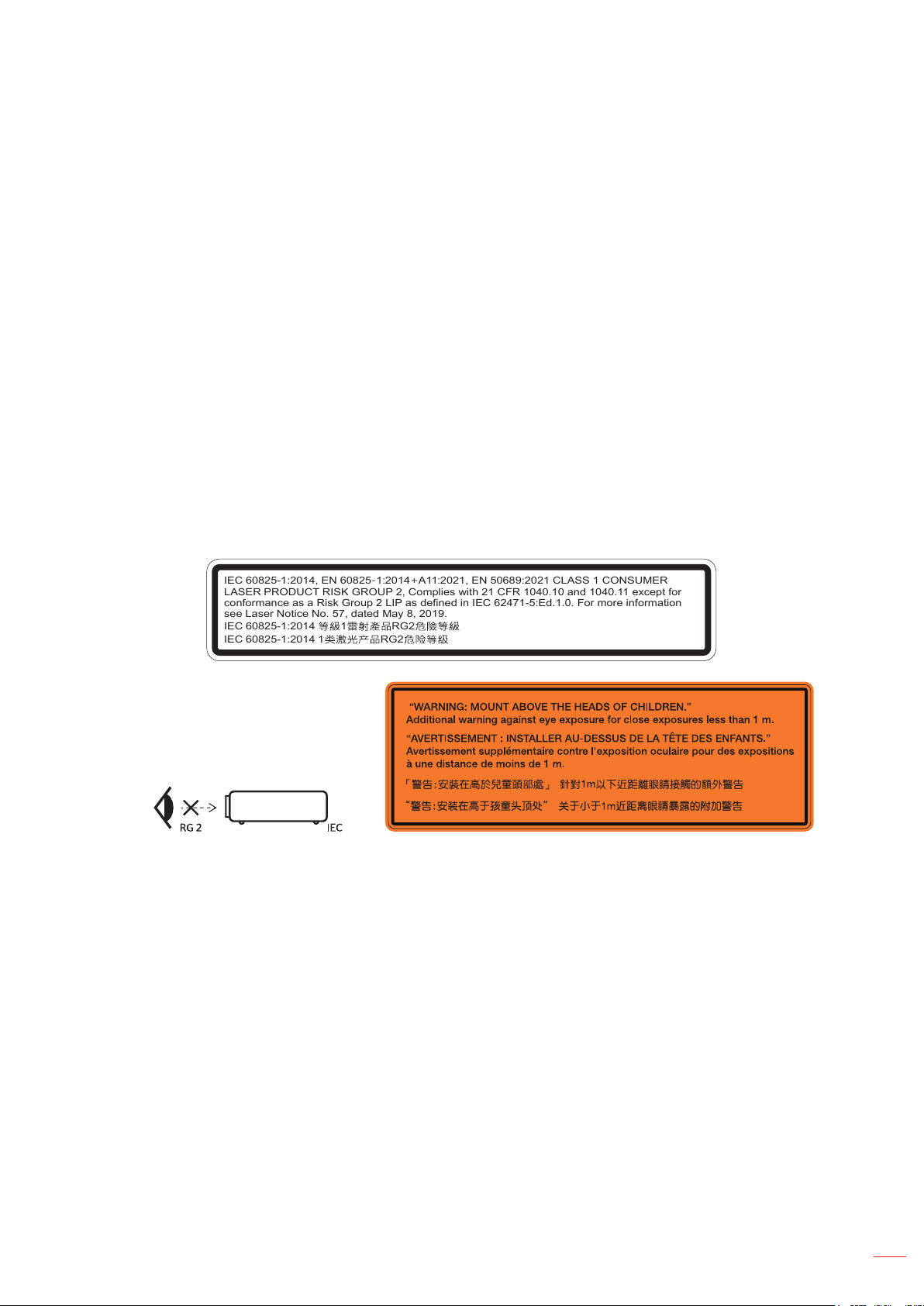

IEC 60825-1:2014, EN 60825 1 2014 A11 2021, EN 50689:2021 CLASS 1 CONSUMER-: + :
LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for

conformance as a Risk Group 2 LIP as de⿿ned in IEC 62471-5:Ed.1.0. For more information
see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 1 RG2
IEC 60825-1:2014 1 RG2

• As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

• This projector is class 1 laser product of IEC/EN 60825-1:2014 and risk group 2 with the requirements

of IEC 62471-5:2015.

• Supervise children: no staring, and avoid use of optical aids!

• Notice is given to supervise children and to never allow them to stare into the projector beam at any

distance from the projector.

• Notice is given to use caution when using the remote control for starting the projector while in front of
the projection lens.

• Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the
beam.

• When turning on the projector, make sure no one within projection range is looking at the lens.

• Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being

projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light
coming out of the lens, can cause an unpredictable outcome such as a ⿿re or injury to the eyes.

• Caution - use of controls or adjustments or performance of procedures other than those speci⿿ed
herein may result in hazardous radiation exposure.

English

5

• Do not open or disassemble the projector as this may cause damage by the exposure of laser
radiation.

• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.

Not following the control, adjustment or operation procedure may cause damage by the the exposure of laser
radiation.

Laser Notice

IEC 60825-1:2014: CLASS 1 LASER PRODUCT - RISK GROUP 2.
The product’s intended use as a consumer laser product and compliant with EN 50689:2021.
CLASS 1 CONSUMER LASER PRODUCT
EN 50689:2021

6

English

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.

© Copyright 2023

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and speci⿿cally disclaims any implied warranties of
merchantability or ⿿tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-De⿿nition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.

DLP®, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColorTM is a

trademark of Texas Instruments.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.

FCC

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device o� and on is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit di�erent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.

Caution

Changes or modi⿿cations not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.

English

7

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and

2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EU (including amendments)

• Low Voltage Directive 2014/35/EU

• RED 2014/53/EU (if product has RF function)

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.

Cleaning the Lens

• Before cleaning the lens, be sure to turn o� the projector and unplug the power cord to allow it to
completely cool down.

• Use a compressed air tank to remove the dust.

• Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ⿿ngers.

• Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is

damaged due to the cleaning process, it is not covered by the warranty.

Warning: Do not use a spray containing 㿿ammable gases to remove dust or dirt from the lens. This
may cause a ⿿re due to excessive heat inside the projector.

Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface ⿿lm
to peel o�.

Warning: Do not wipe or tap the lens with a hard object.

8

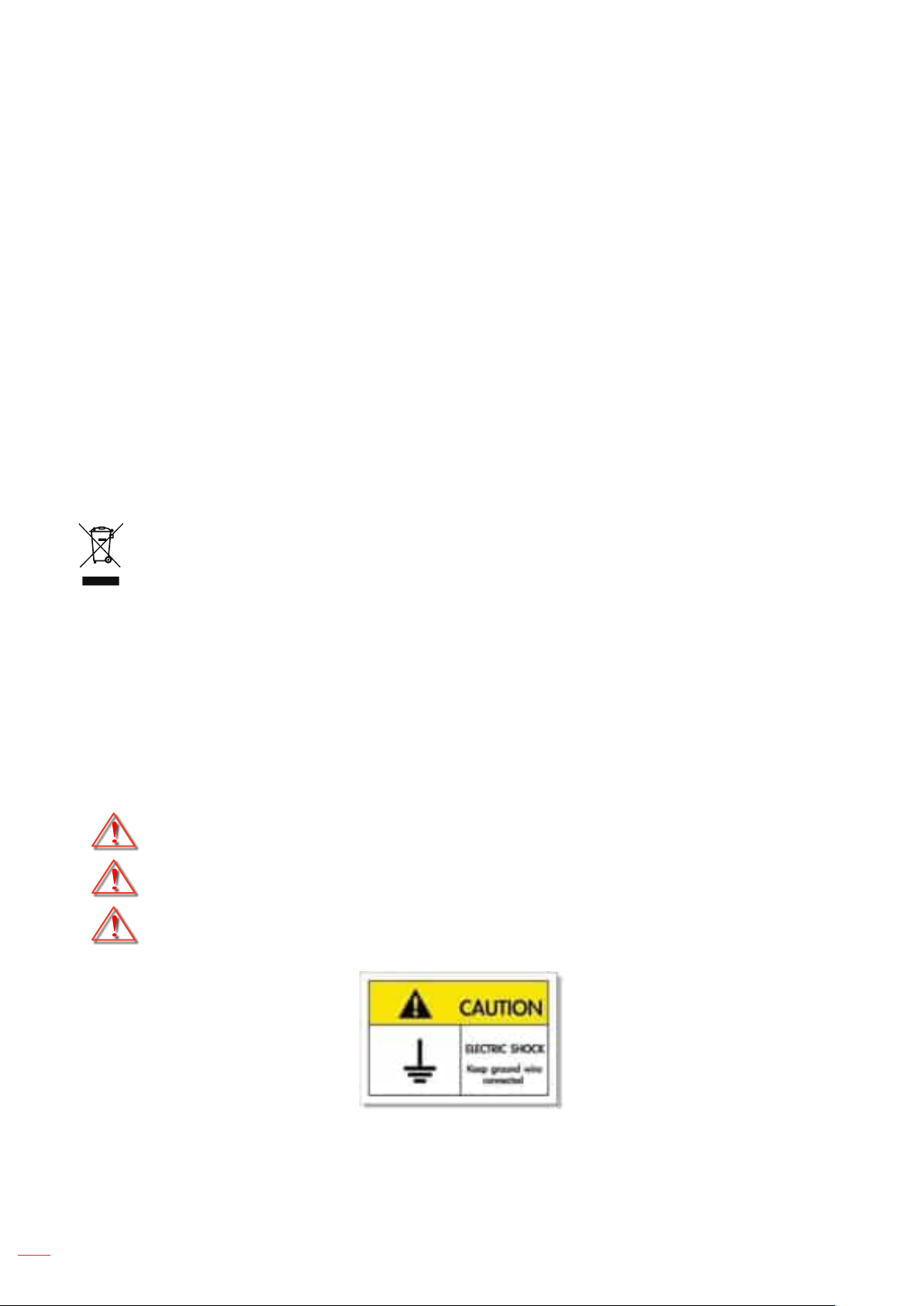

To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).

Ground the power cord

This device is designed to function when the power cord is grounded. If the power cord is not
grounded, it may cause an electric shock. Please ensure that the power cord is directly connected to
the wall socket and properly grounded.

Do not use the 2-pin plug adapter for conversion.

English

INTRODUCTION

Thank you for purchasing an Optoma laser projector. For full list of features please visit the product page on our
website, where you will also ⿿nd additional information and documentation such as FAQs.

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, speci⿿cation and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some speci⿿c regions. Please consult your dealer for detailed information.

Standard accessories

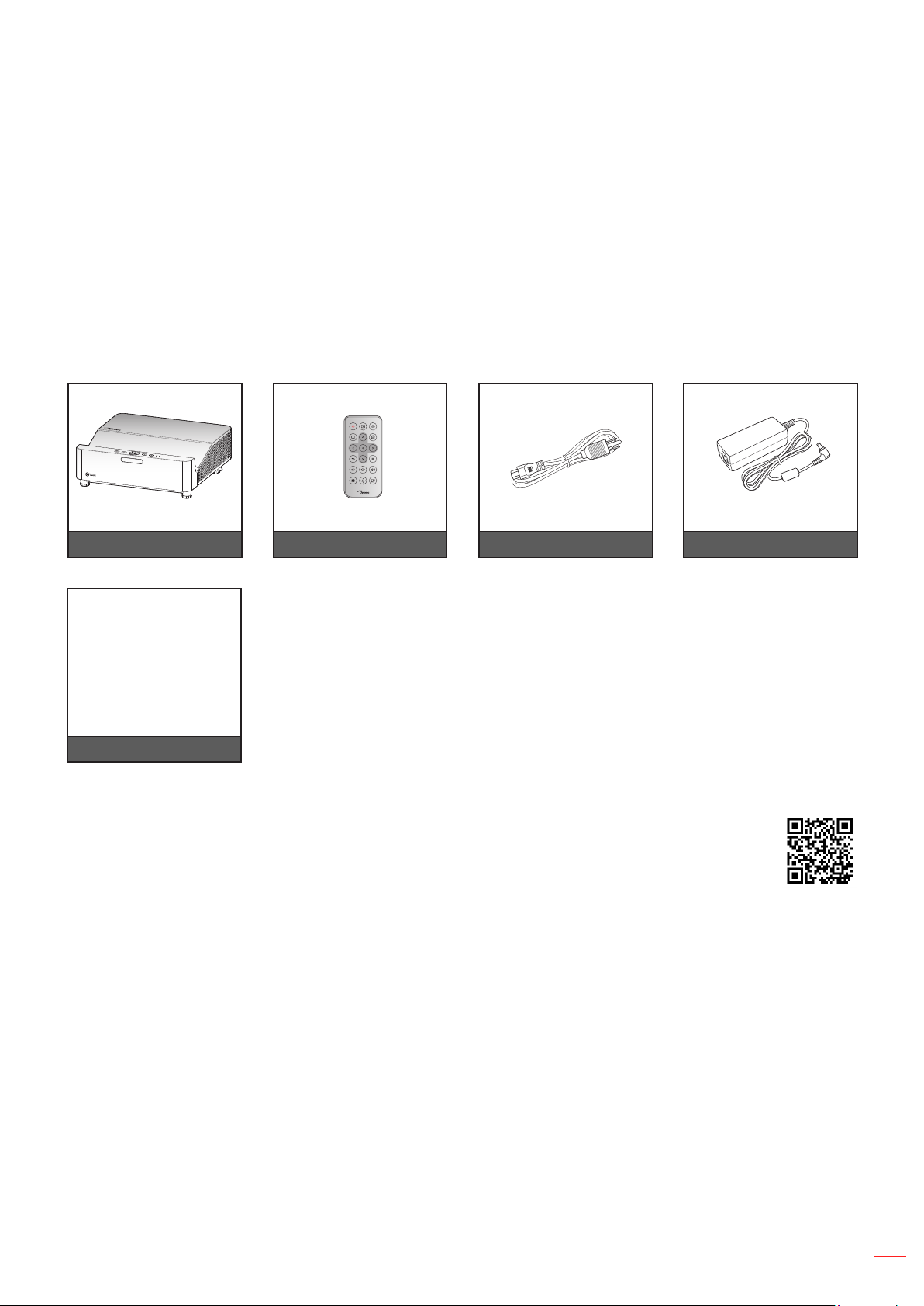

Projector Remote control Power cable

Quick start user manual



Documentation

Note:

• For access to the setup information, user manual, warranty information, and product updates
– please scan the QR Code or visit the following URL:
https://www.optoma.com/support/download

Power adapter

English

9

INTRODUCTION

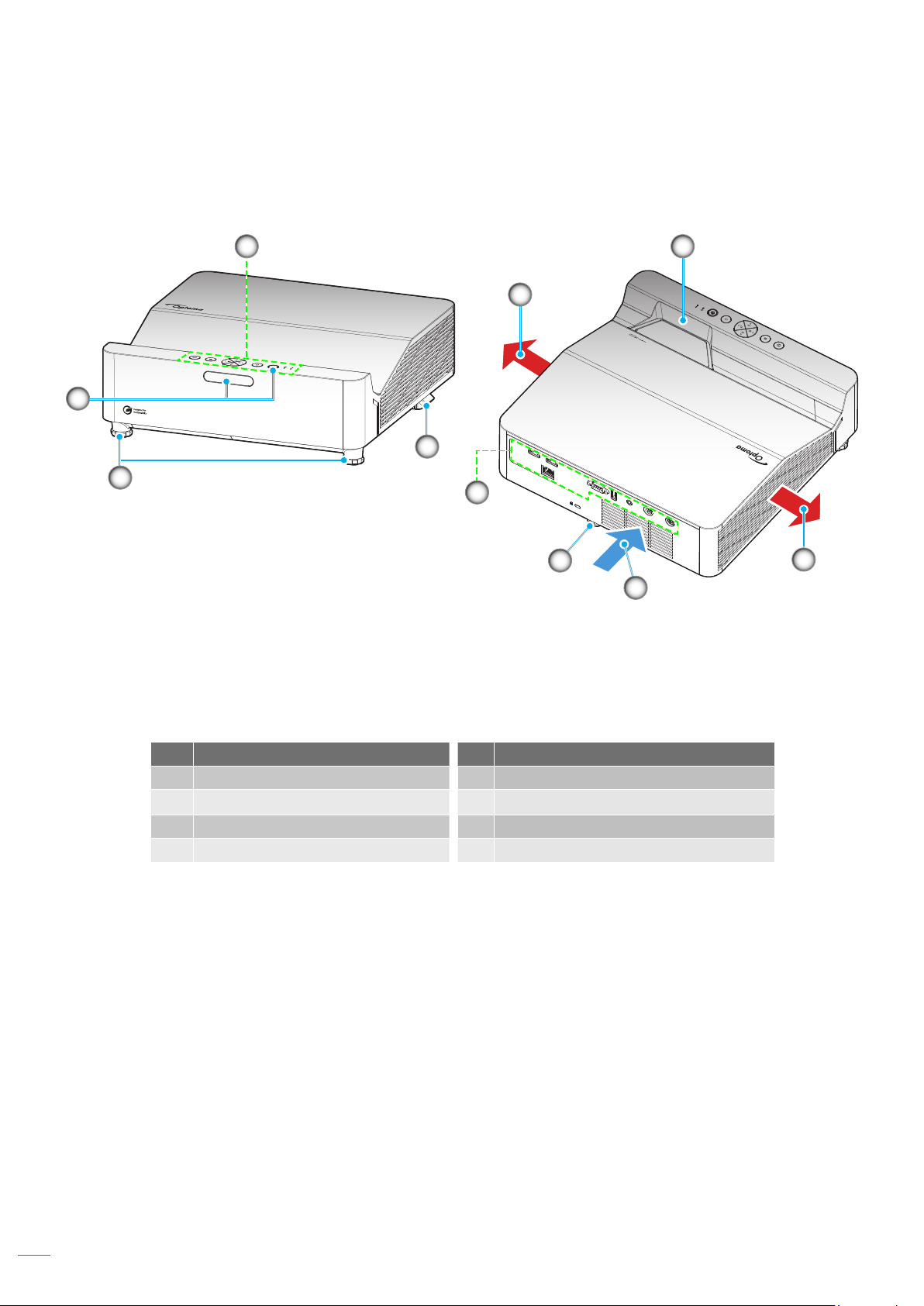

Product Overview

2

5

1

3

4

8

4

7

6

Note:

• Do not block projector intake and exhaust vents.

• When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.

5

No Item No Item

1. IR Receivers 5. Ventilation (outlet)

2.

Keypad

6.

Lens

3. Focus Lever 7. Ventilation (inlet)

4. Tilt-Adjustment Feet 8. Input / Output

10

English

INTRODUCTION

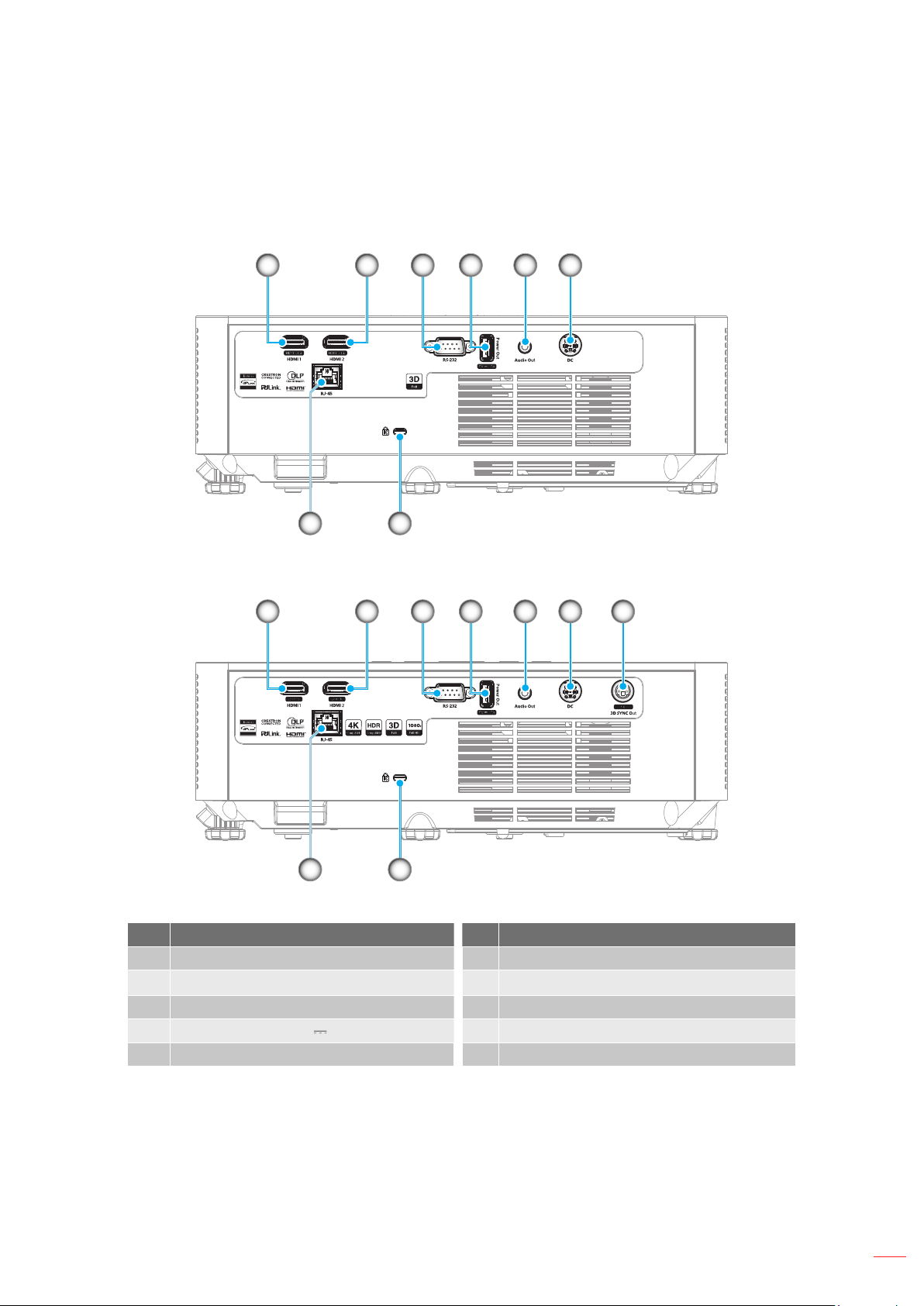

Connections

WXGA model

1 2 3 4 5 6

1080p model

No Item No Item

1. HDMI 1 Connector 6. DC Jack

2.

3. RS-232 Connector 8. RJ-45 Connector

4. USB Power Out (5V 1.5A) Connector 9. 3D SYNC Out (5V, 0.75A) Connector*

5. Audio Out Connector

1 2 3 4 5 6 9

HDMI 2 Connector

8

8

7

7

KensingtonTM Lock Port

7.

Note:

• Signal mode support varies from di⿿erent model in each sales region.

• *The WXGA model does not support the 3D SYNC Out function.

English

11

INTRODUCTION

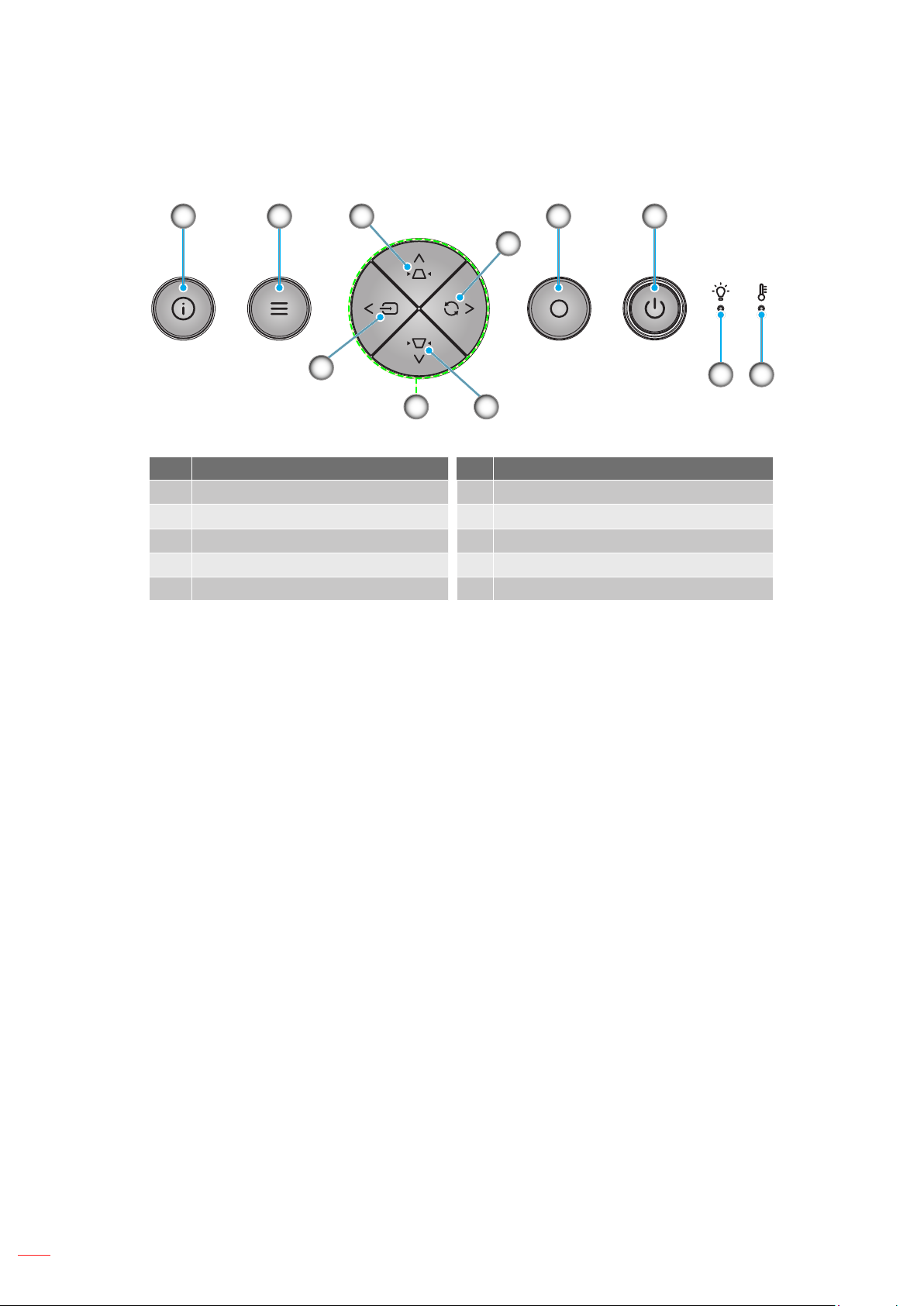

Keypad

10

3

4

9

3

1 6

2 5

No Item No Item

1. Information 6. Power, Power LED, and IR Receiver

2.

Menu

7.

Temp LED

3. Keystone Correction 8. Lamp LED

4. Re-Sync 9. Four Directional Select Keys

5. Enter 10. Source

78

12

English

INTRODUCTION

Remote control

1

2

3

4

5

6

7

8

9

15

14

13

12

11

10

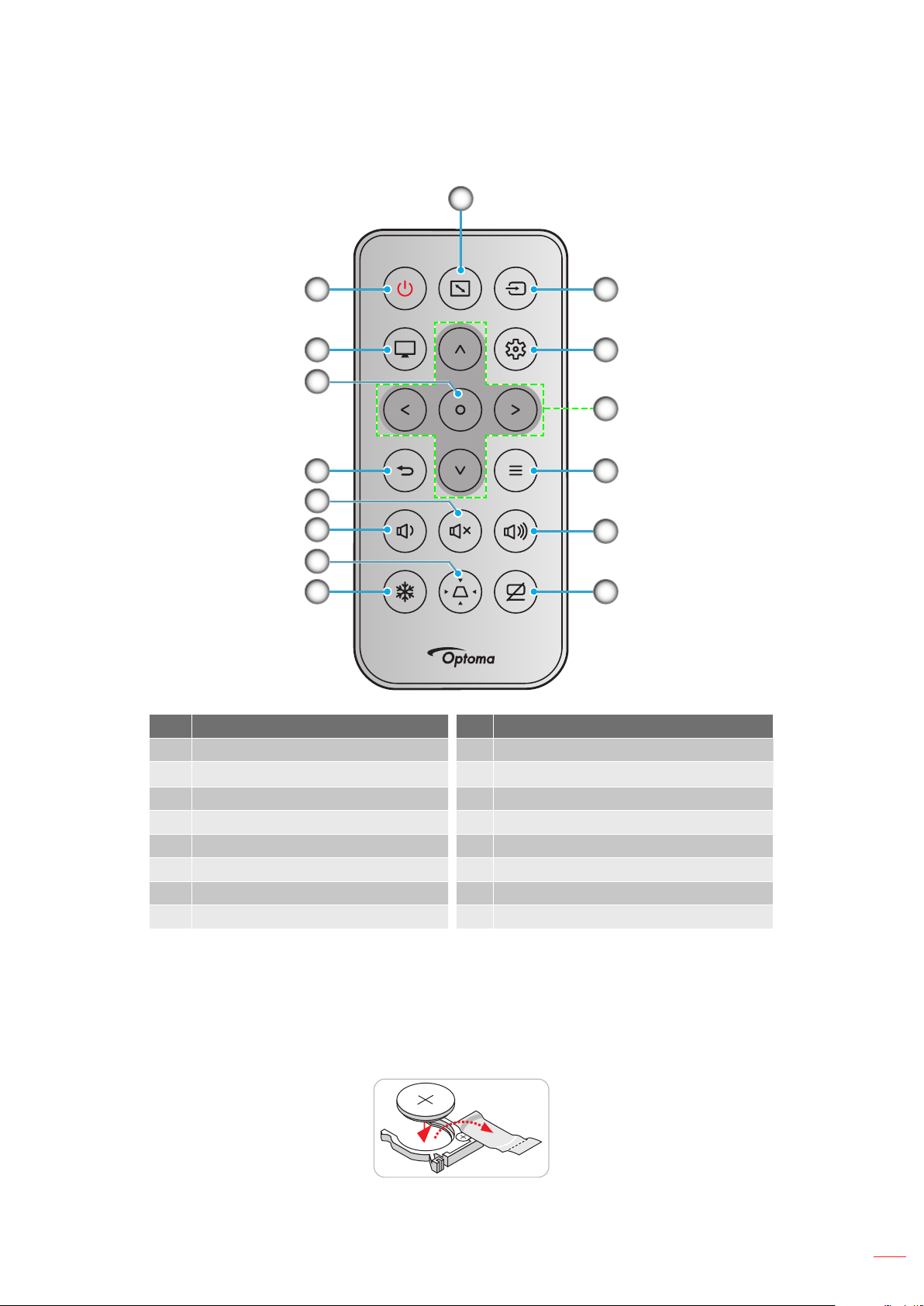

No Item No Item

1. Aspect Ratio 9. Freeze
Power On / O� 10. AV Mute

2.

3. Mode 11. Volume +

4. Enter 12. Menu

5. Return 13. Four Directional Select Keys

6. Mute 14. Settings/Setup Menu

7. Volume - 15. Source

8. Keystone Correction

Note:

• Some keys may have no function for models that do not support these features.

• Before using the remote control for the �rst time, remove the transparent insulation tape. See page
18 for battery installation.

• The inclusion of the battery for the remote control may vary depending on the region.

S

T

L

O

V

CR2025

3

English

13

SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration

the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.

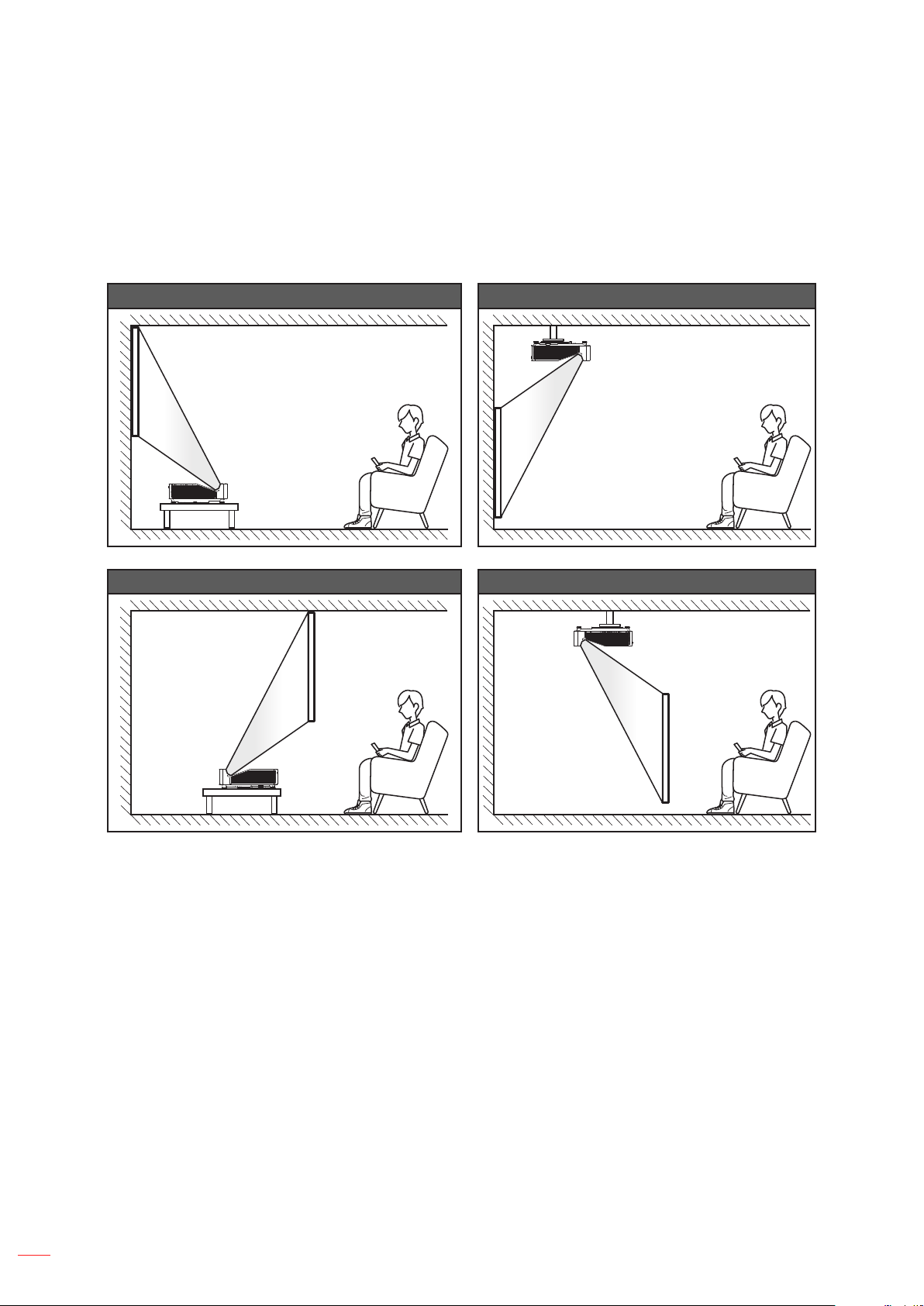

Table mount front Ceiling mount front

Table mount rear Ceiling mount rear

Projector should be placed 㿿at on a surface and 90 degrees / perpendicular to the screen.

• How to determine projector location for a given screen size, please refer to distance table on pages

58~59.

• How to determine screen size for a given distance, please refer to distance table on pages

58~59.

Note: The further away the projector is placed from the screen the projected image size increases and vertical

o⿿set also increases proportionally.

14

English

SETUP AND INSTALLATION

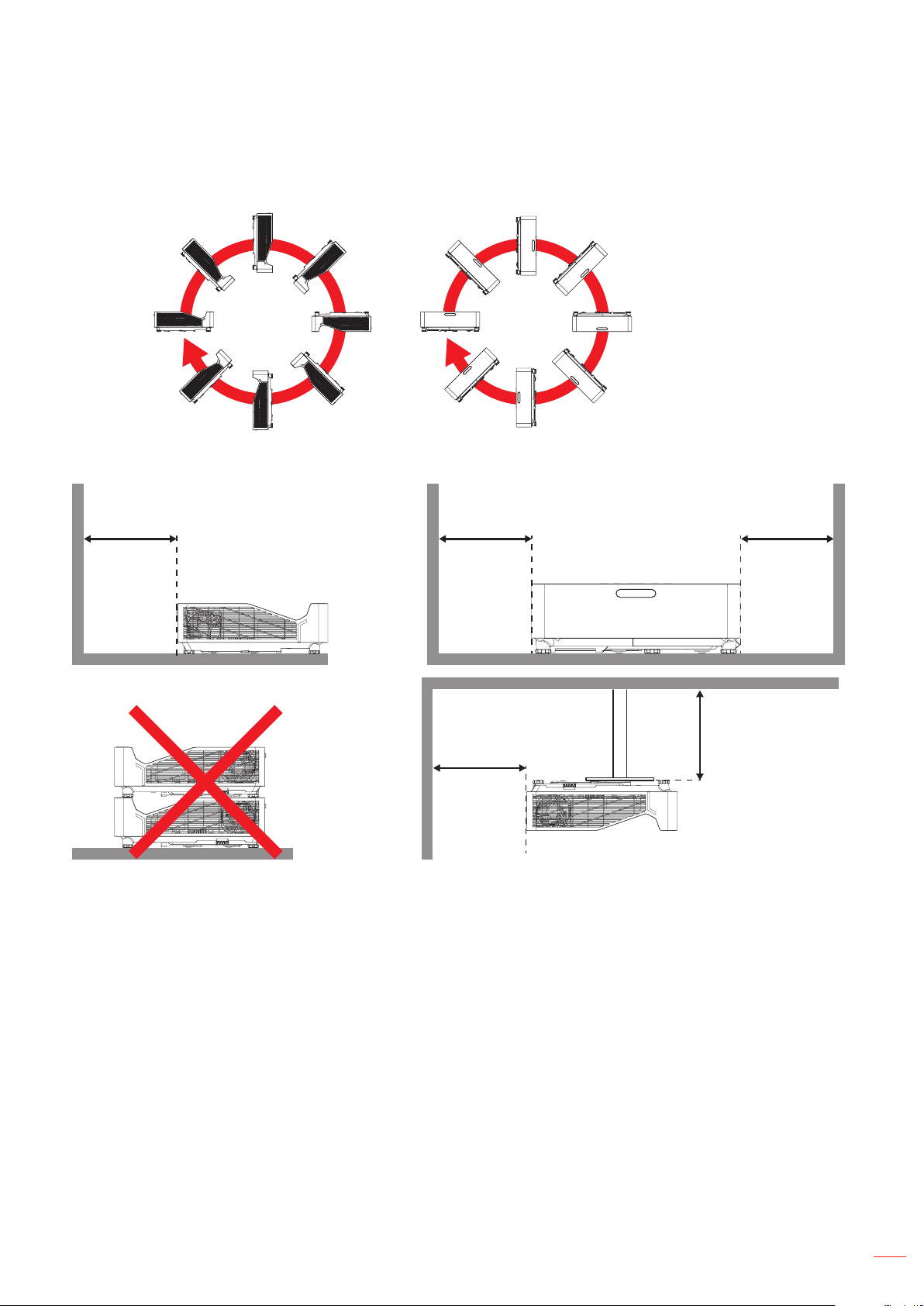

Projector installation notice

• 360° free orientation operation

• Allow at least 30 cm clearance around the exhaust vent.

Minimum 100mm
(3.94 inches)

• Ensure that the intake vents do not recycle hot air from the exhaust vent.

• When operating the projector in an enclosed space, ensure that the surrounding air temperature within

the enclosure does not exceed operation temperature while the projector is running, and the air intake
and exhaust vents are unobstructed.

• All enclosures should pass a certi⿿ed thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the
acceptable operation temperature range.

Minimum 300mm
(11.81 inches)

Minimum 100mm
(3.94 inches)

Minimum 300mm

(11.81 inches)

Minimum 100mm
(3.94 inches)

English

15

SETUP AND INSTALLATION

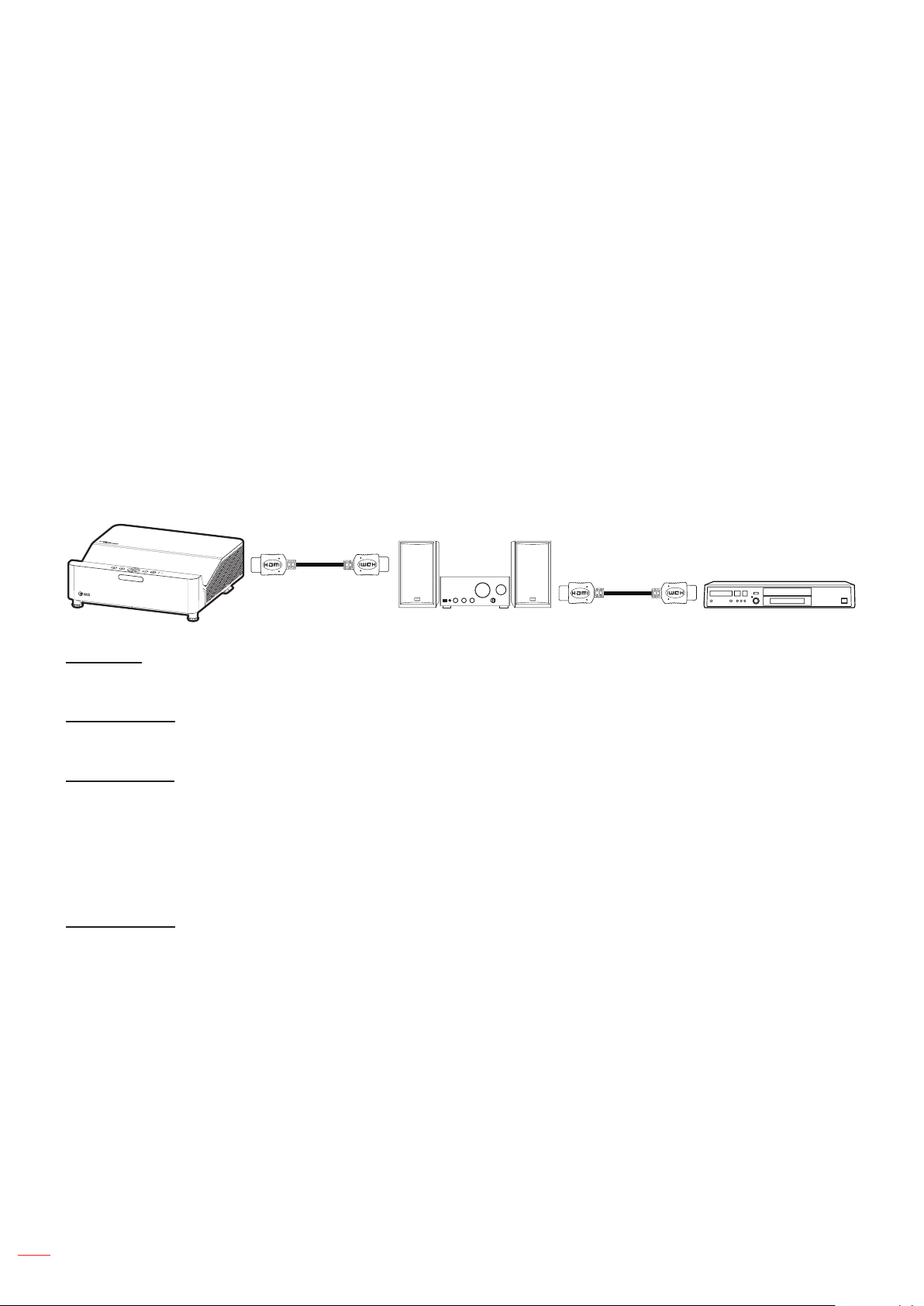

Connecting sources to the projector

6

5

3

2

1

4

*

7

8

9

16

Note:

English

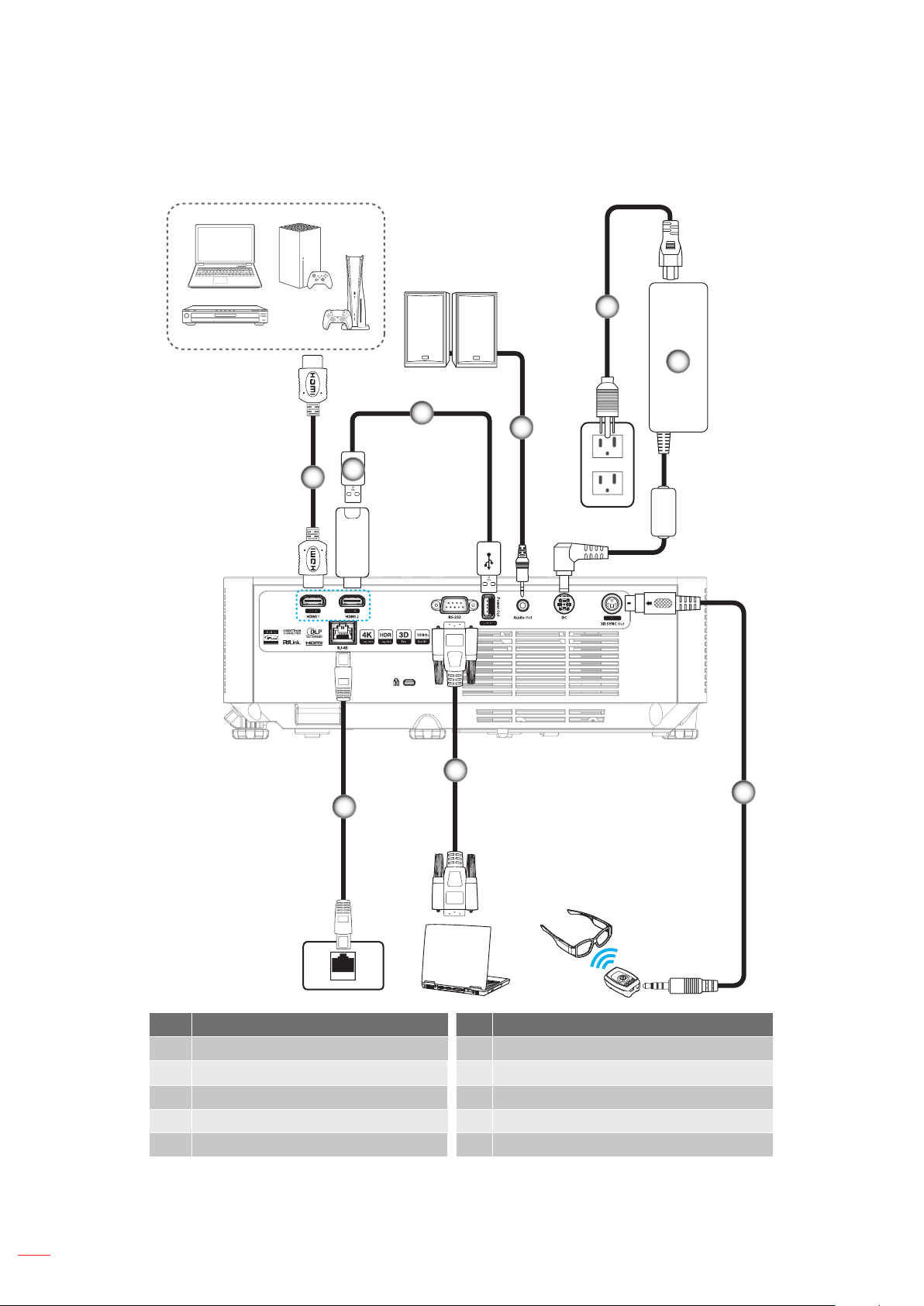

No Item No Item

1. HDMI Cable 6. Power Cable
HDMI Dongle

2.

3. USB Power Cable 8. RJ-45 Cable

4. Audio Out Cable 9. 3D Emitter Cable*

5. Power Adapter

• To ensure the best image quality and avoid connection errors, we recommend the use of High Speed

or Premium Certi�ed HDMI cables up to 5 meters.

• *Only 1080p model supports 3D SYNC Out function.

RS232 Cable

7.

SETUP AND INSTALLATION

Adjusting the projector image

Image height

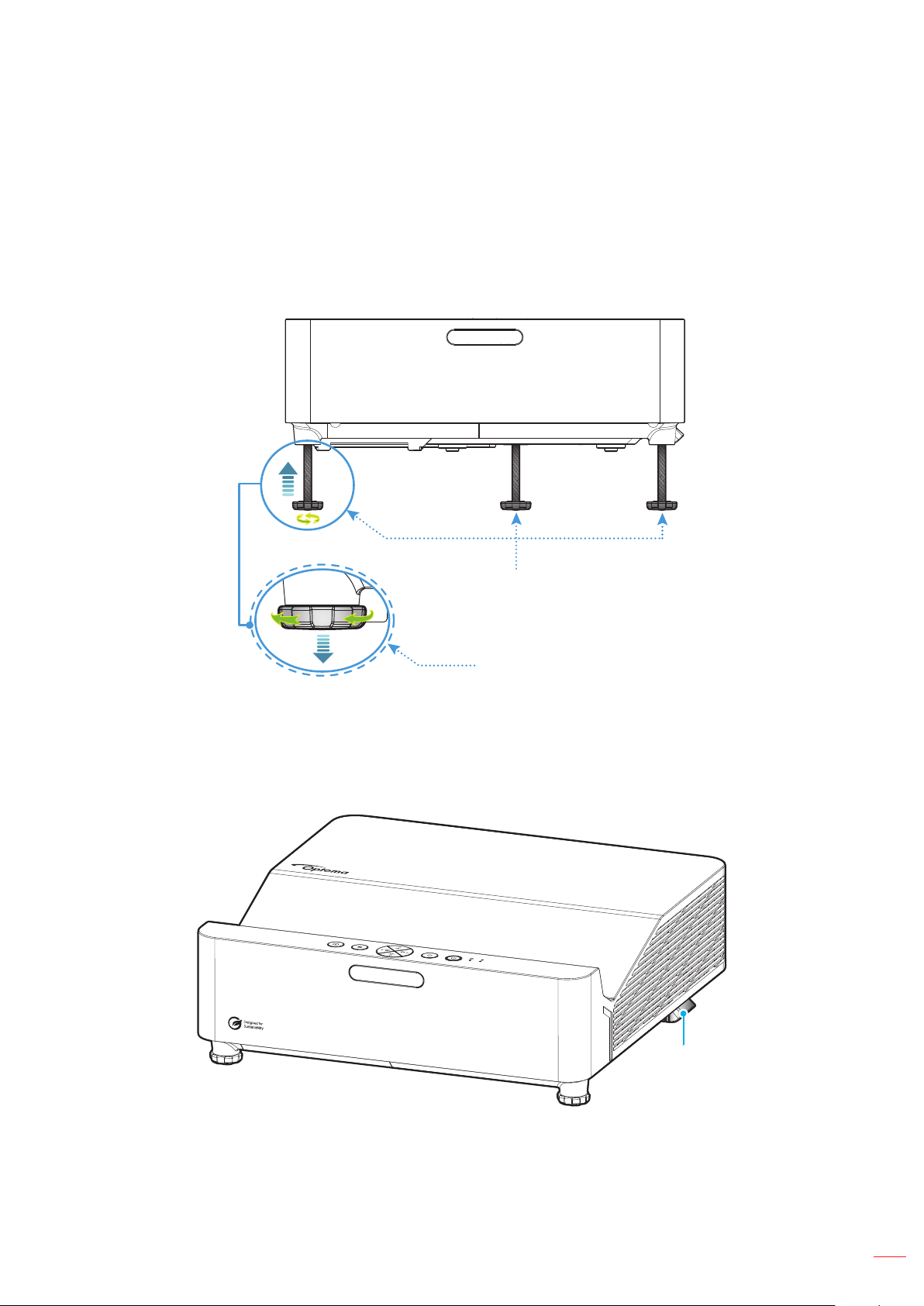

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to adjust on the underside of the projector.

2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Tilt-Adjustment Feet

Tilt-Adjustment Ring

Focus

To adjust the focus, slide the focus lever up or down until the image is sharp and legible.

Focus Lever

English

17

SETUP AND INSTALLATION

M

3

V

O

L

T

S

CR2025

Remote setup

Installing / replacing the batteries

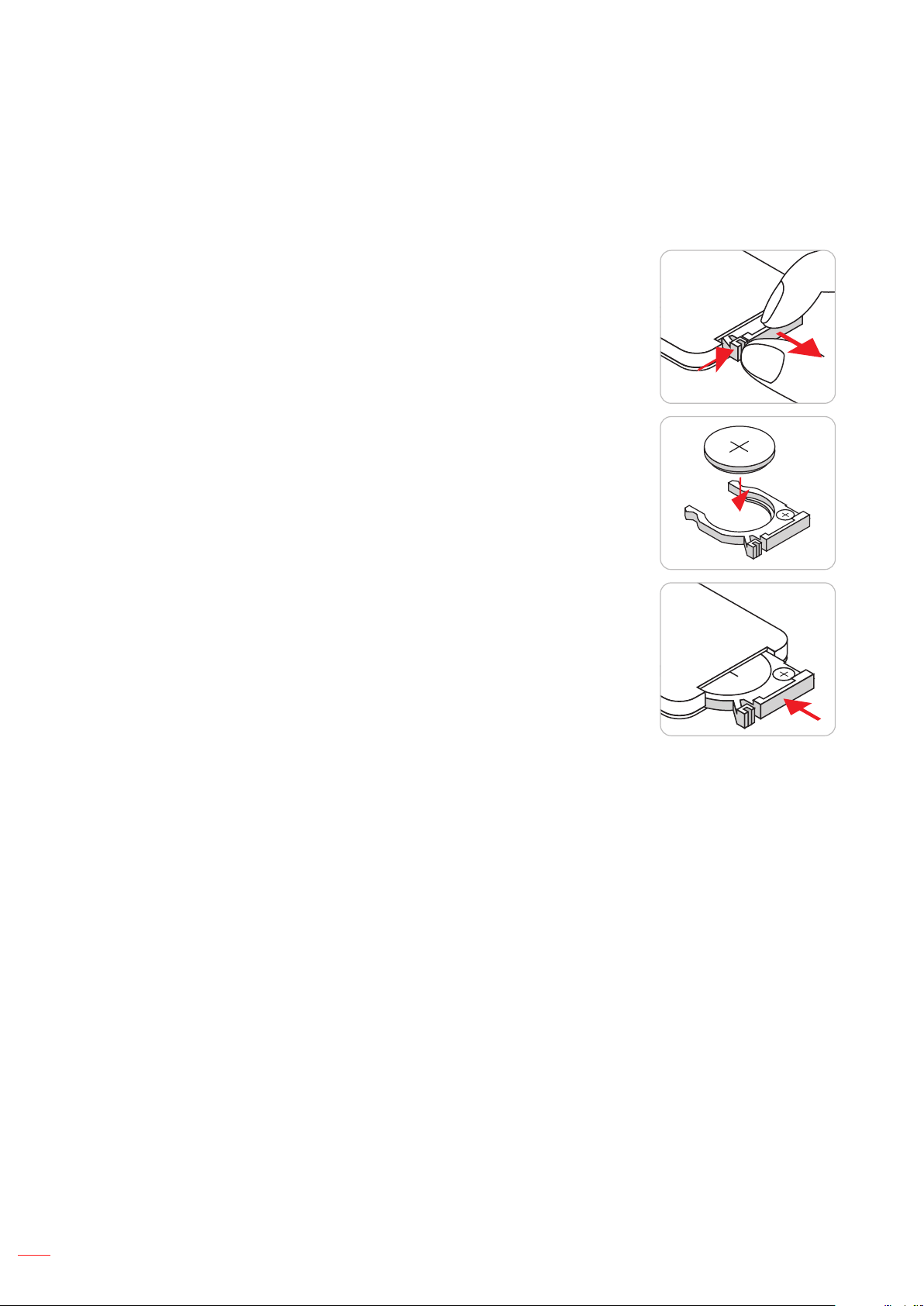

1. Press ⿿rmly and slide the battery cover o�.

2. Install new battery into the compartment. Remove the old battery and
install new one (CR2025). Ensure that the side with a “+” is facing
up.

CR2025

3

S

T

L

O

V

3. Put the cover back.

CAUTION: To ensure safe operation, please observe the following precautions:

• Use CR2025 type battery.

• Avoid contact with water or liquid.

• Do not expose the remote control to moisture or heat.

• Do not drop the remote control.

• If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.

• Risk of an explosion if battery is replaced by an incorrect type.

• Dispose of used battery according to the instructions.

• Do not ingest battery, Chemical Burn Hazard.

• This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can

cause severe internal burns in just 2 hours and can lead to death.

• Keep new and used batteries away from children.

• If the battery compartment does not close securely, stop using the product and keep it away from

children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate

medical attention.

Note: The inclusion of the battery for the remote control may vary depending on the region.

18

English

SETUP AND INSTALLATION

E�ective range

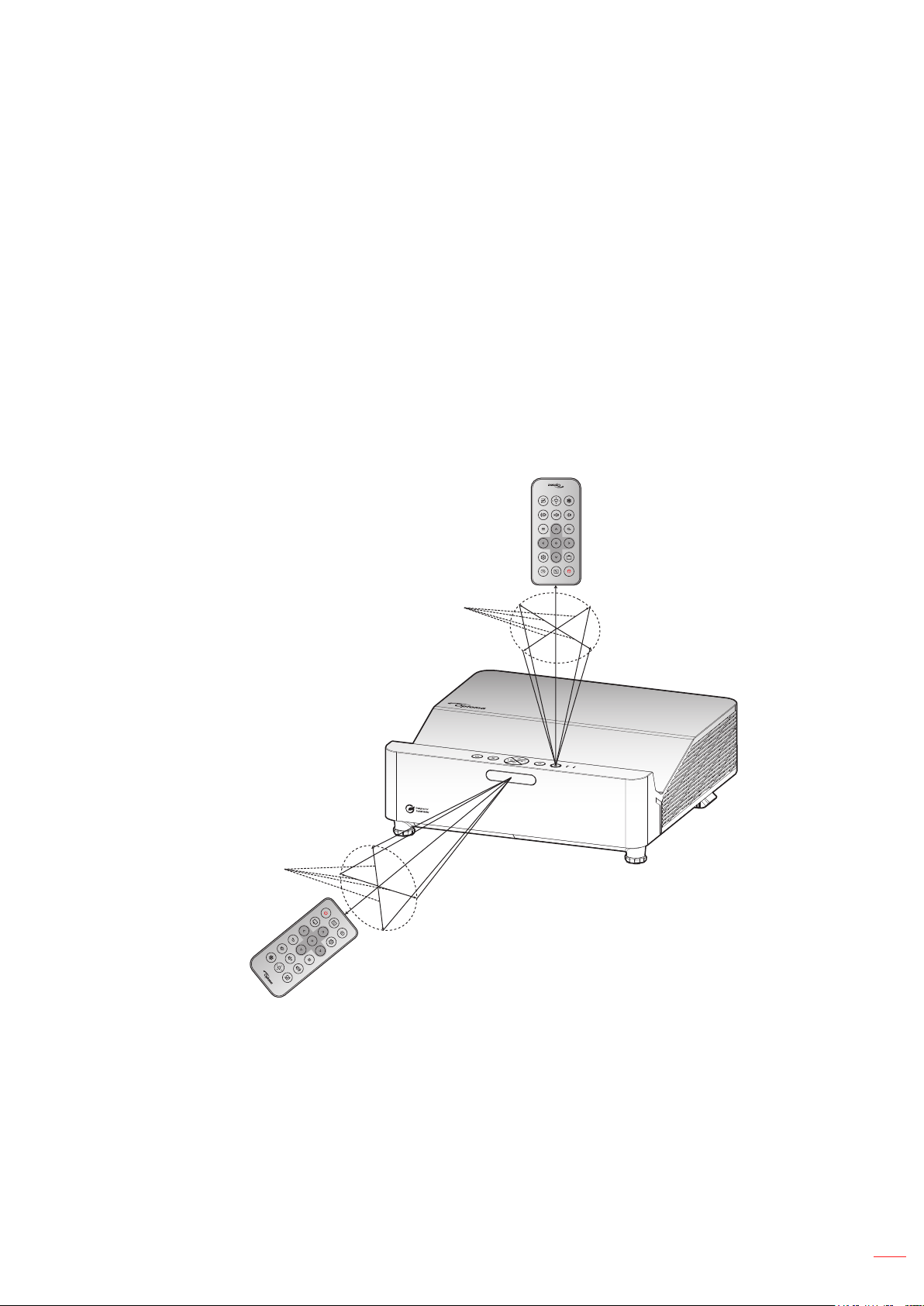

Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure that the remote
control is held at an angle 30 degrees perpendicular to the projector’s IR remote control sensor to ensure correct
functionality. The distance between the remote control and the sensor should not be longer than 6 meters (19.7 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector

that might obstruct the infra-red beam.

• Make sure the IR transmitter of the remote control is not being shined by sunlight or 㿿uorescent lamps

directly.

• Please keep the remote controller away from 㿿uorescent lamps for over 2 m or the remote controller

may malfunction.

• If the remote control is close to Inverter-Type 㿿uorescent lamps, it might become ine�ective from time

to time.

• If the remote control and the projector are within a very short distance of one another, the remote

control might become ine�ective.

Approx. ± 15°

Approx. ± 15°

English

19

USING THE PROJECTOR

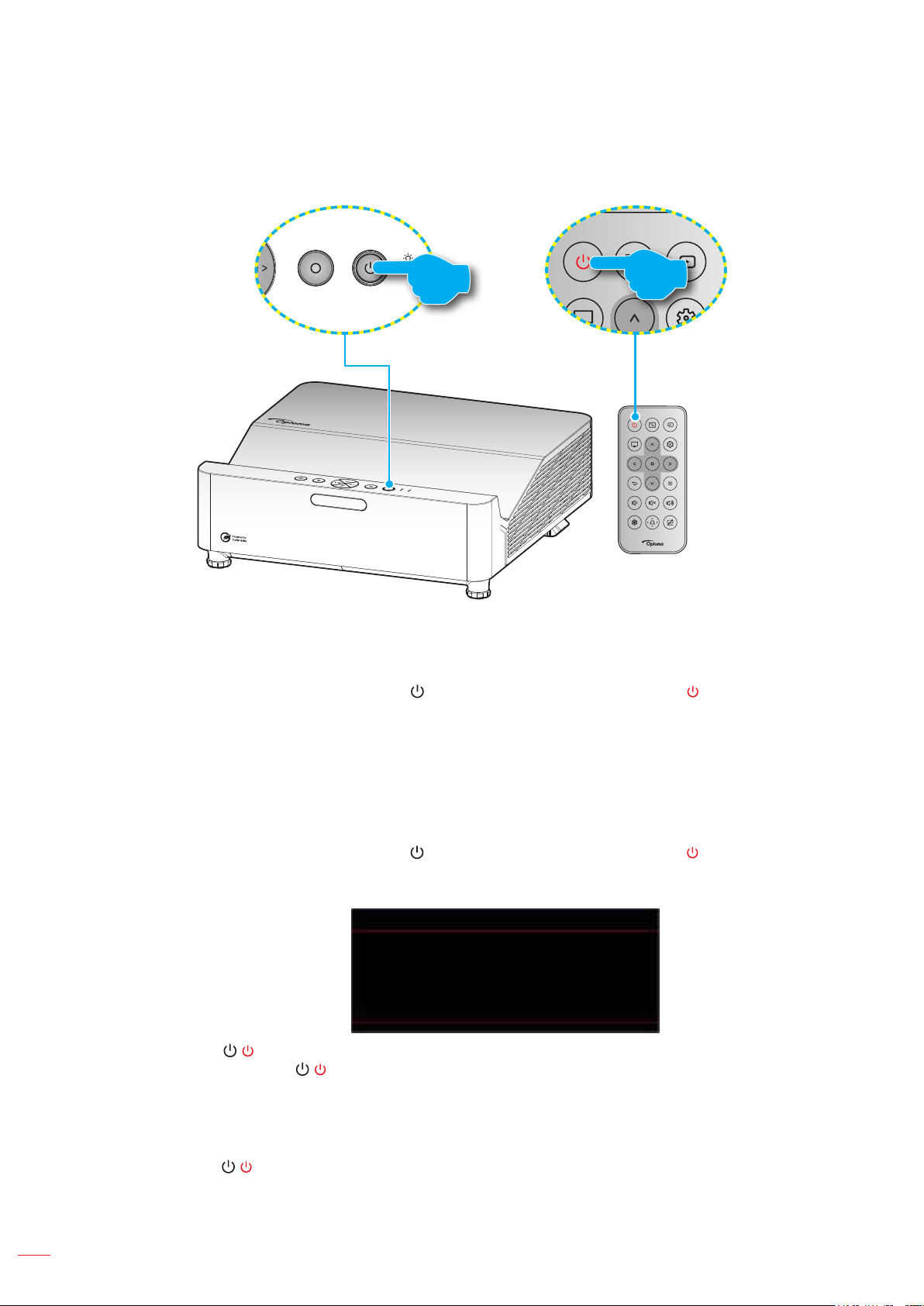

Powering on / o� the projector

or

Powering on

1. Securely connect the power lead and signal/source cable. When connected, the Power LED starts
breathing red.

2. Turn on the projector by pressing the button on the projector keypad or the button on the remote
control.

3. A start up screen will display in approximately 10 seconds and the Power LED will be 㿿ashing blue.

Note: The �rst time the projector is turned on, you will be prompted to select the preferred language, projection

orientation, and other settings.

Powering o�

1. Turn o� the projector by pressing the button on the projector keypad or the button on the remote
control.

2. The following message will be displayed:

Power O�

Press power key again.

3. Press the / button again to con⿿rm, otherwise the message will disappear after 15 seconds.
When you press the / button for the second time, the projector will shut down.

4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the Power
LED will 㿿ash blue. When the Power LED turns solid red, this indicates the projector has entered
standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has
⿿nished and the projector has entered standby mode. When the projector is in standby mode, simply
press the / button again to turn on the projector.

5. Disconnect the power lead from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately, right after a power o⿿ procedure.

English

20

USING THE PROJECTOR

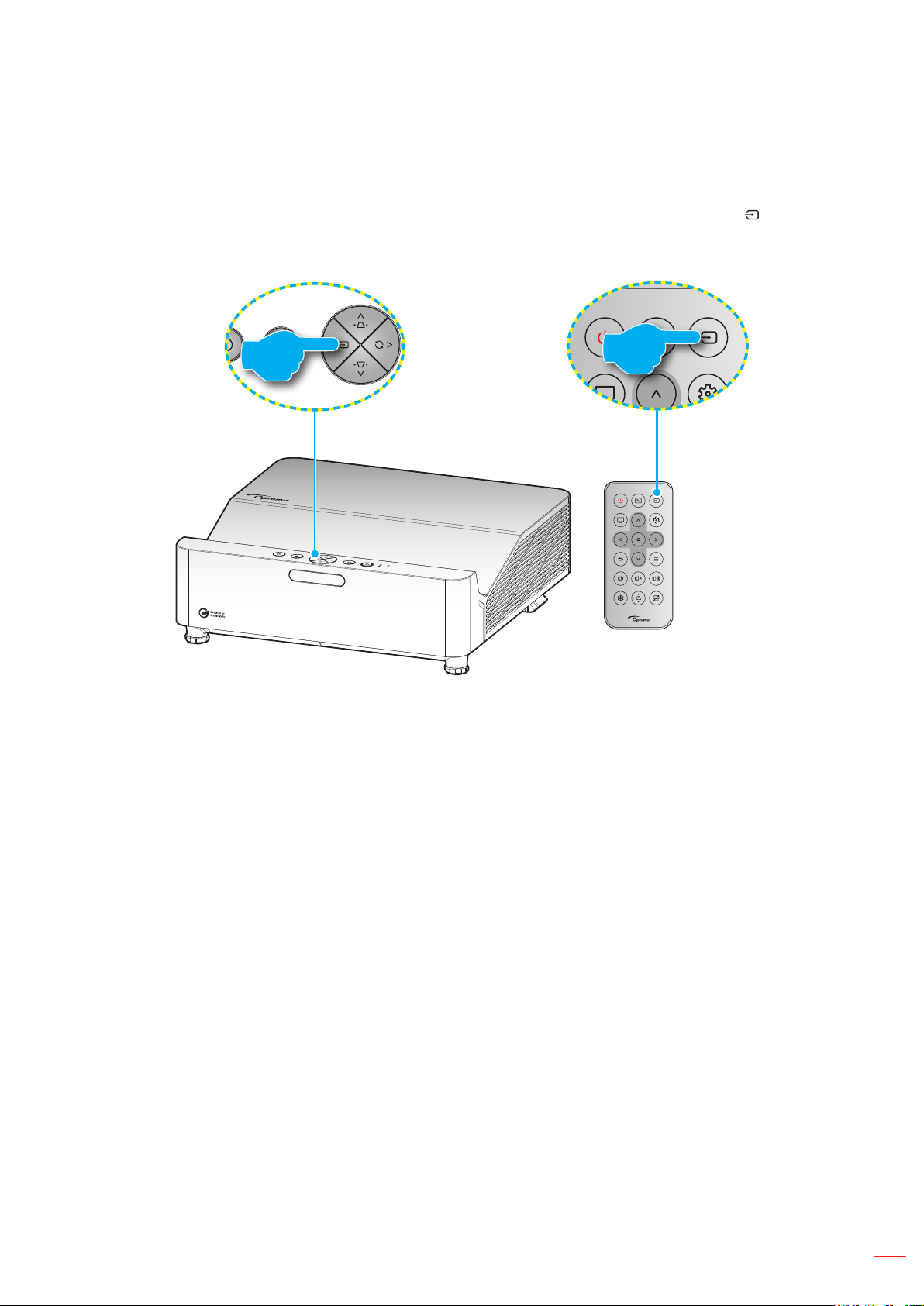

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the
projector keypad or remote control to select the desired input.

or

English

21

USING THE PROJECTOR

Menu navigation and features

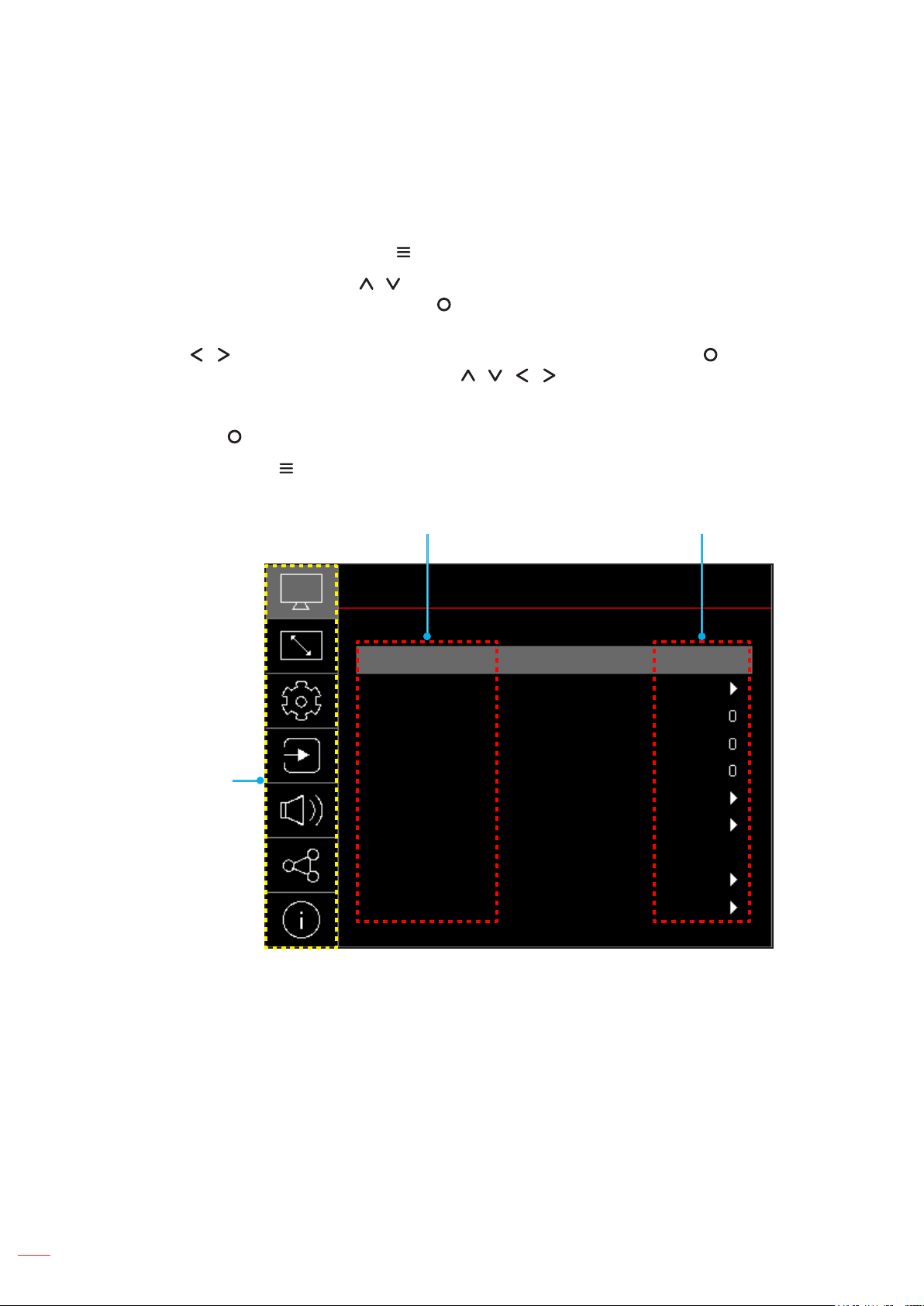

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect the source.

1. To open the OSD menu, press the button on the projector keypad or remote control.

2. When OSD is displayed, use / keys to select any item in the main menu. While making a
selection on a particular page, press the button on the projector keypad or remote control to enter

sub menu.

3. Use / keys to select the desired item in the sub menu and then press the button to view
further settings. Adjust the settings by using / / / keys.

4. Select the next item to be adjusted in the sub menu and adjust as described above.

5. Press the button to con⿿rm, and the screen will return to the main menu.

6. To exit, press the button again. The OSD menu will close and the projector will automatically save
the new settings.

Submenus Settings

Main Menu

Picture Mode
Dynamic Range
Brightness
Contrast
Sharpness
Gamma
Color Settings
Wall Color
3D
Reset


Bright

O�

22

English

USING THE PROJECTOR

OSD Menu tree

Note: The OSD menu tree items and features are subject to models and region. Optoma reserve the right to add

or remove items to improve product performance without notice.

Main

Menu


Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Vivid
HDR [for HDMI 2.0 models]
HLG [for HDMI 2.0 models]
Cinema
Game

Picture Mode

Dynamic Range
[for HDMI 2.0
models]

Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15

Gamma

Color Settings

HDR / HLG

Color

Tint

BrilliantColor™

Color
Temperature

CMS

Color Space

Color

Hue
Saturation
Value

(Luminance)

Reset

Sport
Golf simulation
Reference
Isf mode
Bright
DICOM SIM.
3D
Auto
O�

Film
Graphics

1.8

2.0

2.2

2.4

-50 ~ 50

-50 ~ 50
1 ~ 10
Warm
Standard
Cool
Cold
White / Red / Green / Blue / Cyan /

Magenta / Yellow

-50 ~ 50

-50 ~ 50

-50 ~ 50

No
Yes
HDMI Input: Auto / RGB(0~255) /

RGB(16~235) / YUV

English

23

USING THE PROJECTOR

Main

Menu


Display

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

O�
Blackboard
Light Yellow

Wall Color

3D Mode

3D Sync Type

3D-2D
Conversion

3D

3D Format

3D Sync Invert

Reset

Reset

Projection
Orientation

Light Source
Mode

Dynamic Black

Gaming Mode

Screen Type
[Only support for
WXGA]

Aspect Ratio

Light Green
Light Blue
Pink
Grey
O�
On
DLP-Link
3D Sync
3D

L

R
Auto
SBS
Top and Bottom
Frame Sequential
O�
On
No
Yes

Front
Rear
Ceiling-Top
Rear-Top
Eco.
Power =100% / 95% / 90% / 85%

/ 80% / 75% / 70% / 65% / 60% /
55% / 50%

(100%~20%)- Password lock
O�
On
O�
On
16:9
16:10

4:3
16:9 [WXGA Depends on Screen

Type]
16:10 [WXGA Depends on Screen

Type]
21:9
Native
Auto

24

English

USING THE PROJECTOR

Main

Menu

Display

Setup

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

V Keystone

Geometric
Correction

Digital Zoom Zoom

Image Shift

Reset

Test Pattern

Language

H Keystone -5 ~ 5
Four Corners
Reset

H

V

Reset

-5 ~ 5

-5 ~ 25

-100 ~ 100

-100 ~ 100

Green Grid
Magenta Grid
White Grid

White

O�
English
Deutsch
Français
Italiano
Español
Português
Polski
Nederlands
Svenska
Norsk
Dansk
Suomi
ελληνικά

繁體中文

簡体中文

日本語

한국어

Русский
Magyar
Čeština

ไทย

Türkçe

Tiếng Việt
Bahasa Indonesia
Română

English

25

USING THE PROJECTOR

Main

Menu

Setup

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Top left

Top right

Menu Location

Menu Settings

Menu Timer

Information Hide

High Altitude

Filter Usage
Hours

Optional Filter
Installed

Filter Settings

Filter Reminder

Filter Reset

Direct Power On

Signal Power On

Power Settings

Security

Startup Logo Logo

Auto Power O�
(min.)

Sleep Timer
(min.)

Power Mode
(Standby)

Security

Security Timer

Change
Password

Month
Day
Hour

Center

Bottom left

Bottom right

O�
5s
10s
20s
30s
O�
On
O�
On

(read only)

No
Yes
O�
300hr
500hr
800hr
1000hr
No
Yes
O�
On
O�
On

0 ~ 180 (1 min increments)

0 ~ 990 (30 min increments)

Note: Power Mode (Standby)

is available only in models that
support the network function.

O�
On

Default
Neutral
User

26

English

USING THE PROJECTOR

Main

Menu

Setup

Input

Audio

Control

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

None
Blue

Background
Color

Reset OSD

Reset

Reset to Default

Auto Source

Auto Input
Switch

HDMI Link

Inclusive of TV

HDMI CEC
Settings

Reset

Volume

Mute

Reset
Device ID

Remote Settings IR Function

Keypad Settings Keypad Lock

LAN

Power On Link

Power O� Link

Network Status (read only)
MAC Address (read only)

DHCP

IP Address 192.168.0.100
Subnet Mask 255.255.255.0
Gateway 192.168.0.254
DNS 192.168.0.51
Reset

Red
Green
Grey
Logo
No
Yes
No
Yes
O�
On
O�
On
O�
On
No
Yes
Mutual
PJ  Device
Device  PJ
O�
On
No
Yes
0 ~ 100
O�
On

0~99
On
O�
O�
On

O�
On

English

27

USING THE PROJECTOR

Main

Menu

Control

Information

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Crestron
(Port 41794)

Extron
(Port 2023)

PJ Link
(Port 4352)

Control

Reset
Regulatory
Serial Number
Source
Color Info
Light Source

Hours
Picture Mode
Device ID
Filter Usage Hours

Note: Optional dust �lter may vary by regions. Please consult with your local agent.

Light Source
Mode

FW Version

AMX Device
Discovery
(Port 9131)

Telnet (Port 23)

HTTP (Port 80)

DDP

MCU

LAN

O�
On
O�
On
O�
On
O�

On

O�
On
O�
On

28

English

USING THE PROJECTOR

Image menu

Image picture mode menu

There are several prede⿿ned display modes that you can choose from to suit your viewing preference. Each mode
has been ⿿ne-tuned by our expert colour team to ensure superior colour performance for wide range of content.

• Vivid: Selecting this mode balances colour saturation and brightness for a brighter display. Choose
this mode for setups with ambient lighting, or where brighter images/presentations are necessary.

• HDR / HLG: Decodes and displays High Dynamic Range (HDR) / Hybrid Log Gamma (HLG) content
for the deepest blacks, brightest whites, and vivid cinematic color using REC.2020 color gamut.
This mode will be automatically enabled if HDR/HLG is set to Auto (and HDR/HLG Content is sent
to projector – 4K UHD Blu-ray, 1080p/4K UHD HDR/HLG Games, 4K UHD Streaming Video). While
HDR/HLG mode is active, other display modes (Cinema, Reference, etc.) cannot be selected as
HDR/HLG delivers color that is highly accurate, exceeding the color performance of the other display
modes.

Note: This option is only available for 1080p model.

• Cinema: Provides the best balance of detail and colors for watching movies.

• Game: Optimises your projector for maximum contrast and vivid colours allowing you to see shadow

detail when playing video games.

• Sport: Optimises your projector for watching sports playback or playing sports games.

• Golf simulation: a new picture mode is required to penetrate this segment with new color table and

gaming input lag triggered:

• Models needed:

• Reference: This mode reproduces colours as close as possible the image the way the movie director
intended. Color, color temperature, brightness, contrast and gamma settings are all con⿿gured to
Rec.709 color gamut. Select this mode for the most accurate colour reproduction when watching
movies.

• Isf mode: isf day/ night/ 3D across all mainstream models

• Bright: This mode is suitable for environments where extra-high brightness is required, such as using

the projector in well-lit rooms.

• DICOM SIM.: This mode has been created for viewing greyscale images, perfect for viewing X-rays
and scans during medical training*.

Note: *This projector is not suitable for use in medical diagnosis.

• 3D: Optimized settings for watching 3D content.

Note: To experience the 3D e⿿ect, you will need to have compatible DLP Link 3D glasses. See 3D

section for more information.

Image dynamic range menu

HDR / HLG

Con⿿gure the High Dynamic Range (HDR) / Hybrid Log Gamma(HLG) setting and its e�ect when displaying video
from 4K Blu-ray players and streaming devices.

• Auto: Auto detect HDR/HLG signal.

• O�: Turn o� HDR/HLG Processing. When set to O�, the projector will NOT decode HDR/HLG content.

Note: This option is only available for 1080p model.

English

29

USING THE PROJECTOR

Image brightness menu

Adjust the brightness of the image.

Image contrast menu

The contrast controls the degree of di�erence between the lightest and darkest parts of the picture.

Image sharpness menu

Adjust the sharpness of the image.

Image gamma menu

Set up gamma curve type. After the initial setup and ⿿ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.

• Film: For home theater.

• Graphics: For PC / Photo source.

• 1.8 / 2.0 / 2.2 / 2.4: For speci⿿c PC / Photo source.

Image color settings menu

Color

Adjust a video image from black and white to fully saturated color.

Tint

Adjust the color balance of red and green.

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while
providing true, more vibrant colors in picture.

Color Temperature

Select a color temperature from Warm, Standard, Cool, or Cold.

CMS

Select the following options:

• Color: Adjust the red, green, blue, cyan, yellow, magenta, and white level of the image.

• Hue: Adjust the color balance of red and green.

• Saturation: Adjust a video image from black and white to fully saturated color.

• Value (Luminance): Adjust the luminance of the selected color.

• Reset: Return the factory default settings for color adjustment.

Color Space

Select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV.

Image wall color menu

Designed to adjust the colors of the projected image when projecting on to a wall without a screen. Each mode has
been ⿿ne-tuned by our expert colour team to ensure superior color performance.

There are several prede⿿ned modes that you can choose from to suit the colour of your wall. Select between o�,
blackboard, light yellow, light green, light blue, pink, and grey.

Note: For accurate color reproduction, we recommend using a screen.

English

30

USING THE PROJECTOR

Image 3D menu

Note:

• This projector is a 3D ready projector with DLP-Link 3D solution.

• Please ensure that 3D glasses are in use for DLP-Link 3D content before enjoying your video.

• This projector supports frame sequential (page-῿ip) 3D via HDMI1/HDMI2 ports.

• To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not
supported.

• To reach the best performance, resolution 1920x1080 is recommended, please note that 4K (3840x2160)
resolution is not supported in 3D mode.

3D Mode

Use this option to disable or enable the 3D function.

• O�: Select “O�” to turn o� 3D mode.

• On: Select “On” to turn on 3D mode.

3D Sync Type

Use this option to select 3D technology.

• DLP-Link: Select to use optimized settings for DLP 3D Glasses.

• 3D Sync: Select to use optimized settings for IR, RF or polarized 3D Glasses.

3D-2D Conversion

Use this option to specify how the 3D content should appear on the screen.

• 3D: Display 3D signal.

• L: Display the left frame of 3D content.

• R: Display the right frame of 3D content.

3D Format

Use this option to select the appropriate 3D format content.

• Auto: When a 3D identi⿿cation signal is detected, the 3D format is selected automatically.

• Side by Side: Display 3D signal in “Side-by-Side” format.

• Top and Bottom: Display 3D signal in “Top and Bottom” format.

• Frame Sequential: Display 3D signal in “Frame Sequential” format.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

Reset

Return the factory default setting for 3D settings.

• No: Select to cancel Reset.

• Yes: Select to return the factory default settings for 3D.

Image reset menu

Return the factory default settings for image settings.

English

31

USING THE PROJECTOR

Display menu

Display projection orientation menu

Select the preferred projection between front, rear, ceiling-top, and rear-top.

Display light source mode menu

Select a light source mode depending on the installation requirements.

Display dynamic black menu

Use to automatically adjust the picture brightness in order to give optimum contrast performance.

Display gaming mode menu

Enable this feature to reduce response times (input latency) during gaming to 8.6ms (1080p@120Hz). All geometry
settings (example: Keystone, Four Corners) will be disabled when Gaming Mode is enabled. For more information
is below.

Note:

• The input lag by signals is described in the following table:

• The values in the table can vary slightly.

Source Timing Gaming Mode Output Timing Output Resolution Input Lag

1080p60 On 1080p60Hz 1080p 17ms

1080p120 On 1080p120Hz 1080p 8.6ms*

4K60 On 1080p60Hz 1080p 17ms*

1080p60 O� 1080p60Hz 1080p 49.5ms

1080p120 O� 1080p120Hz 1080p 25ms*

4K60 O� 1080P60Hz 1080p 49.6ms*

• *Only supported in 1080p model.

Display screen type menu

Choose the screen type from 16:9 and 16:10.

Note: This option is only available for WXGA model.

32

English

USING THE PROJECTOR

Display aspect ratio menu

Select the aspect ratio of the displayed image between the following options:

• 4:3: This format is for 4:3 input sources.

• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.

• 16:10: This format is for 16:10 input sources.

• 21:9: This format is for 21:9 input sources.

• Native: This format displays the original image without any scaling.

• Auto: Automatically selects the appropriate display format.

WXGA scaling table (screen type 16:10):

16 : 10 screen 480i/p 576i/p 1080i/p 720p PC

4:3 Scale to 1066 x800

16:10 Scale to 1280x800

21:9 Scale to 1280x548

Native mode 1:1 mapping centered. 1:1 mapping

display
1280x800.

Auto - Input source will be ⿿t into 1280x800 display area and be kept its original aspect ratio.

- If source is 4:3, the screen type will be scaled to 1066x800.

- If source is 16:9, the screen type will be scaled to 1280x720.

- If source is 15:9, the screen type will be scaled to 1280x768.

- If source is 16:10, the screen type will be scaled to 1280x800.

- If source is 21:9, the screen type will be scaled to 1280x548.

1280x720
centered.

1:1 mapping
centered.

WXGA auto mapping rule (screen type 16:10):

Auto

4:3

Wide Laptop

SDTV

HDTV

H-resolution V-resolution 1280 800

Input resolution Auto/Scale

640 480 1066 800

800 600 1066 800
1024 768 1066 800
1280 1024 1066 800
1400 1050 1066 800
1600 1200 1066 800
1280 720 1280 720

1280 768 1280 768
1280 800 1280 800

720 576 1280 720

720 480 1280 720
1280 720 1280 720
1920 1080 1280 720

English

33

USING THE PROJECTOR

WXGA scaling table (screen type 16:9):

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC

4:3 Scale to 960x720
16:9 Scale to 1280x720
21:9 Scale to 1280x548

Native mode 1:1 mapping centered. 1:1 mapping

display
1280x720.

Auto - If auto format is selected, the screen type will automatically become 16:9 (1280x720).

- If source is 4:3, the screen type will be scaled to 960x720.

- If source is 16:9, the screen type will be scaled to 1280x720.

- If source is 15:9, the screen type will be scaled to 1200x720.

- If source is 16:10, the screen type will be scaled to 1152x720.

- If source is 21:9, the screen type will be scaled to 1280x548.

WXGA auto mapping rule (screen type 16:9):

1280x720
centered.

1:1 mapping
centred.

Auto

4:3

Wide Laptop

SDTV

HDTV

Input resolution Auto/Scale

H-resolution V-resolution 1280 720

640 480 960 720

800 600 960 720
1024 768 960 720
1280 1024 960 720
1400 1050 960 720
1600 1200 960 720
1280 720 1280 720
1280 768 1200 720
1280 800 1152 720

720 576 1280 720

720 480 1280 720
1280 720 1280 720
1920 1080 1280 720

34

English

USING THE PROJECTOR

1080p scaling table:

16:9 screen 480i/p 576i/p 1080i/p 720p PC

4x3 Scale to 1440x1080

16x9 Scale to 1920x1080

21:9 Scale to 1920x822

Native mode - 1:1 mapping centered.

- No scaling will be made; the image is displayed with the resolution based on input source.

Auto - If auto format is selected, the screen type will automatically become 16:9 (1920x1080).

- If source is 4:3, the screen type will be scaled to 1440 x1080.

- If source is 16:9, the screen type will be scaled to 1920x1080.

- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to
display.

- If source is 21:9, the screen type will be scaled to 1920x822.

1080p auto mapping rule:

Auto

4:3

Wide Laptop

SDTV

HDTV

Input resolution Auto/Scale

H-resolution V-resolution 1920 1080

640 480 1440 1080

800 600 1440 1080
1024 768 1440 1080
1280 1024 1440 1080
1400 1050 1440 1080
1600 1200 1440 1080
1280 720 1920 1080
1280 768 1800 1080
1280 800 1728 1080

720 576 1350 1080

720 480 1620 1080
1280 720 1920 1080
1920 1080 1920 1080

English

35

USING THE PROJECTOR

Display geometric correction menu

V Keystone

Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned
image shape in which the top and bottom are slanted to one of the sides. This is intended for use with vertically
on-axis applications.

H Keystone

Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned
image shape in which the left and right borders of the image are unequal in length. This is intended for use with
horizontally on-axis applications.

Four Corners

This setting allows the projected image to be adjusted from each corner to make a square image when the
projection surface is not level.

Reset

Return the factory default setting for geometric correction settings.

Display digital zoom menu

Use to reduce or magnify an image on the projection screen. Digital Zoom is not the same as optical zoom and can
result in degradation of image quality.

Note: Zoom settings are retained on power cycle of the projector.

Display image shift menu

Adjust the projected image position horizontally (H) or vertically (V).

Display reset menu

Return the factory default settings for display settings.

36

English

USING THE PROJECTOR

Setup menu

Setup test pattern menu

Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (o�).

Setup language menu

Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch,
Swedish, Norwegian, Danish, Finnish, Greek, Traditional Chinese, Simpli⿿ed Chinese, Japanese, Korean, Russian,
Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, and Romanian.

Setup menu settings menu

Menu Location

Select the menu location on the display screen.

Menu Timer

Set the duration where the OSD menu stays visible on the screen.

Information Hide

Enable this function to hide the information message.

Setup high altitude menu

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Setup ⿿lter settings menu

Filter Usage Hours

Display the ⿿lter time.

Optional Filter Installed

Note: Please consult with your local agent regarding the availability of this optional �lter.

Set the warning message setting.

• Yes: Display warning message after 500 hours of use.

Note: “Filter Usage Hours / Filter Reminder / Filter Reset” will only appear when “Optional Filter Installed” is “Yes”.

• No: Turn o� warning message.

Filter Reminder

Choose this function to show or hide the warning message when the changing ⿿lter message is displayed. The
available options include O�, 300hr, 500hr, 800hr, and 1000hr.

Filter Reset

Reset the dust ⿿lter counter after replacing or cleaning the dust ⿿lter.

English

37

USING THE PROJECTOR

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the “Power” key on the projector keypad or on the remote control.

Signal Power On

Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected,
without pressing the “Power” key on the projector Keypad or on the remote control.

Note:

• If the “Signal Power On” option is turned “On”, the power consumption of the projector in standby
mode will be over 3W.

• This function is applicable with HDMI source.

Auto Power O� (min.)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power o� when the countdown has ⿿nished (in minutes).

Sleep Timer (min.)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the
projector. The projector will automatically power o� when the countdown has ⿿nished (in minutes).

Note: The Sleep Timer is reset every time when the projector is powered o⿿.

Power Mode (Standby)

Set the power mode setting.

• Active: Choose “Active” to return to normal standby.

• Eco: Choose “Eco.” to save power dissipation further < 0.5W.

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

• On: Choose “On” to use security veri⿿cation when the turning on the projector.

• O�: Choose “O�” to be able to switch on the projector without password veri⿿cation.

Note: The default password is 1234.

Security Timer

Select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has
elapsed you will be requested to enter your password again.

Change Password

Use to set or modify the password that is prompted when turning the projector on.

English

38

USING THE PROJECTOR

Setup startup logo menu

Logo

Use this function to set the desired startup screen. If changes are made, they will take e�ect the next time the
projector is powered on.

• Default: The default startup screen.

• Neutral: Logo is not displayed on startup screen.

• User: Logo capture tool required.

Note: Please visit the website to download the logo capture tool.

The supported �le format: png/bmp/jpg.

Setup background color menu

Use this function to display a blue, red, green, grey color, none, or logo screen when no signal is available.

Note: If the background color is set to “None”, then the background color is black.

Setup reset menu

Reset OSD

Return the factory default settings for OSD menu settings.

Reset to Default

Return the factory default settings for all settings.

English

39

USING THE PROJECTOR

Input menu

Input auto source menu

Choose this option to let the projector automatically ⿿nd an available input source.

Input auto input switch menu

When HDMI input signal is detected, the projector will automatically switch the input source.

Input HDMI CEC settings menu

Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them

on the same power on or power o⿿ status using the HDMI Link control feature in the projector’s OSD. This
lets one device or multiple devices in a group power on or power o⿿ via HDMI Link Feature in a typical
con�guration, your DVD player may be connected to the projector through an ampli�er or home theater

system.

HDMI

Ampli⿿er

HDMI Link

Enable/disable the HDMI Link function.

Inclusive of TV

If the settings is set to “Yes” then the power on and power o� link options are available.

Power On Link

CEC power on command.

• Mutual: Both projector and CEC device will be turned on simultaneously.

• PJ  Device: The CEC device will be turned on only after the projector is switched on.

• Device  PJ: The projector will be switched on only after the CEC device is turned on.

Power O� Link

Enable this function to let both HDMI Link and projector to be automatically turned o� at the same time.

HDMI

DVD Player

Input reset menu

Return the factory default settings for input settings.

English

40

USING THE PROJECTOR

Audio menu

Audio volume menu

Adjust the volume level.

Audio mute menu

Use this option to temporarily turn o� the sound.

• On: Choose “On” to turn mute on.

• O�: Choose “O�” to turn mute o�.

Note: “Mute” function a⿿ects both internal and external speaker volume.

Audio reset menu

Return the factory default settings for audio settings.

English

41

USING THE PROJECTOR

Control menu

Control device ID menu

ID de⿿nition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232
command.

Note: For a full list of RS232 commands, please refer to the RS232 user manual on our website.

Control remote settings menu

IR Function

Set the IR function setting.

• On: Choose “On”, the projector can be operated by the remote control from the top and front IR
receivers.

• O�: Choose “O�”, the projector can’t be operated by the remote control. By selecting “O�”, you will be
able to use the Keypad keys.

Control keypad settings menu

Keypad Lock

When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the
remote control. By selecting “O�”, you will be able to reuse the Keypad.

Control LAN menu

Con⿿gure the projector’s network settings.

Network Status

Display the network connection status. (Read only)

MAC Address

Display the MAC address. (Read only)

DHCP

Turn on DHCP to automatically acquire IP address, subnet mask, gateway, and DNS.

IP Address

Assign the projector’s IP address.

Subnet Mask

Assign the projector’s subnet mask.

Gateway

Assign the projector’s gateway.

DNS

Assign the projector’s DNS.

English

42

How to use web browser to control
your projector

USING THE PROJECTOR

How to use web browser to control your projector

1. Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address.

2. Open the web browser in your PC and type in the projector’s IP address
(“Control > LAN > IP Address”).

3. Enter the user name and password, and click “Login”.
The projector’s con⿿guration web interface opens.

Note:

• The default user name and password is “admin”.

• The steps in this section is based on Windows 10 operating system.

Making a direct connection from your computer to the projector*

1. Turn “O�” the DHCP option on the projector.

2. Con⿿gure the IP address, Subnet Mask, Gateway, and DNS on projector (“Control > LAN”).

3. Open Network & Internet page on your PC, and assign the identical network parameters to your PC
as set on projector. Click “OK” to save the parameters.

4. Open the web browser on your PC and type in to the URL ⿿eld the IP address, assigned in step 3.
Then press “Enter” key.

Reset

Reset the network settings to default factory values.

English

43

USING THE PROJECTOR

Control control menu

This projector can be controlled remotely by a computer or other external devices through the wired network
connection. It allows the user to control one or more projectors from a remote control center, such as powering the
projector on or o�, and adjusting the image brightness or contrast.

Use the Control submenu to select a control device for the projector.

Crestron

Control the projector with Crestron controller and related software. (Port: 41794)
For more information, please visit http://www.crestron.com.

Extron

Control the projector with Extron devices. (Port: 2023)
For more information, please visit http://www.extron.com.

PJ Link

Control the projector with PJLink v2.0 commands. (Port: 4352)
For more information, please visit http://pjlink.jbmia.or.jp/english.

AMX Device Discovery

Control the projector with AMX devices. (Port: 9131)
For more information, please visit http://www.amx.com.

Telnet

Control the projector using RS232 commands though Telnet connection. (Port: 23)
For more information, refer to “RS232 by Telnet Function” on page 52.

HTTP

Control the projector with web browser. (Port: 80)
For more information, refer to “How to use web browser to control your projector” on page 43.

Note:

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.

• Extron is a registered trademark of Extron Electronics, Inc. of the United States.

• AMX is a registered trademark of AMX LLC of the United States.

• PJLink applied for trademark and logo registration in Japan, the United States of America, and other
countries by JBMIA.

• For more information about the various types of external devices which can be connected to the LAN
/ RJ45 port and remotely control the projector, as well as the supported commands for these external
devices, please contact the Support-Service directly.

44

English

USING THE PROJECTOR

Setup network control settings menu

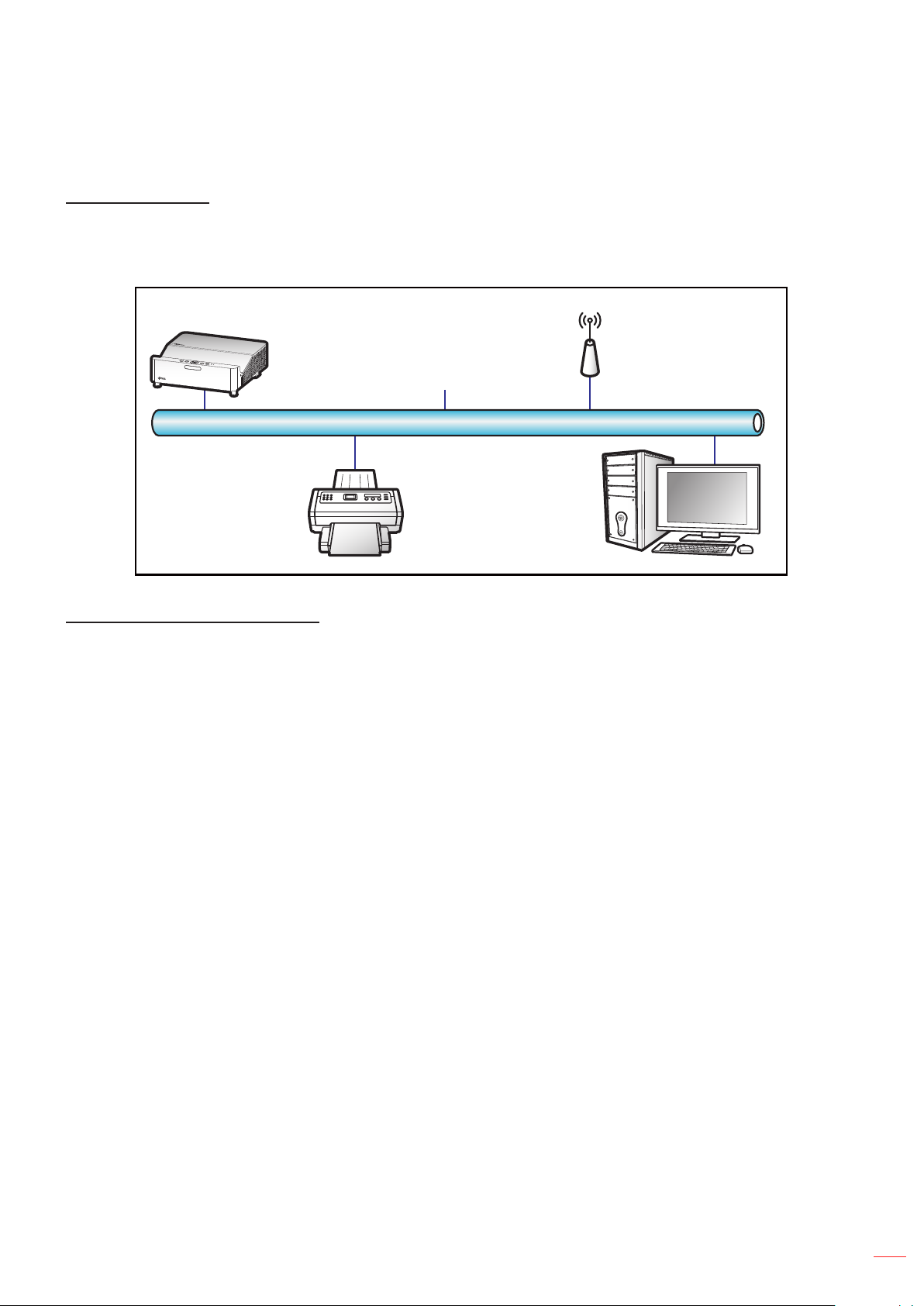

LAN_RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features.
The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / O�, brightness,
and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Projector

(Ethernet)

Wired LAN terminal functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible
with Crestron / Extron / AMX (Device -Discovery) / PJLink.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.

• Extron is a registered trademark of Extron Electronics, Inc. of the United States.

• AMX is a registered trademark of AMX LLC of the United States.

• PJLink applied for trademark and logo registration in Japan, the United States of America, and other

countries by JBMIA.

The projector is supported by the speci⿿ed commands of the Crestron Electronics controller and related software,
for example RoomView®.

http://www.crestron.com/

This projector is compliant to support Extron device(s) for reference.

http://www.extron.com/

This projector is supported by AMX ( Device Discovery ).

http://www.amx.com/

This projector supports all commands of PJLink Class1 (Version 1.00).

http://pjlink.jbmia.or.jp/english/

For more detailed information about the various types of external devices which can be connected to the LAN /
RJ45 port and remote control the projector, as well as the supported commands for these external devices, please
contact the Support-Service directly.

English

45

USING THE PROJECTOR

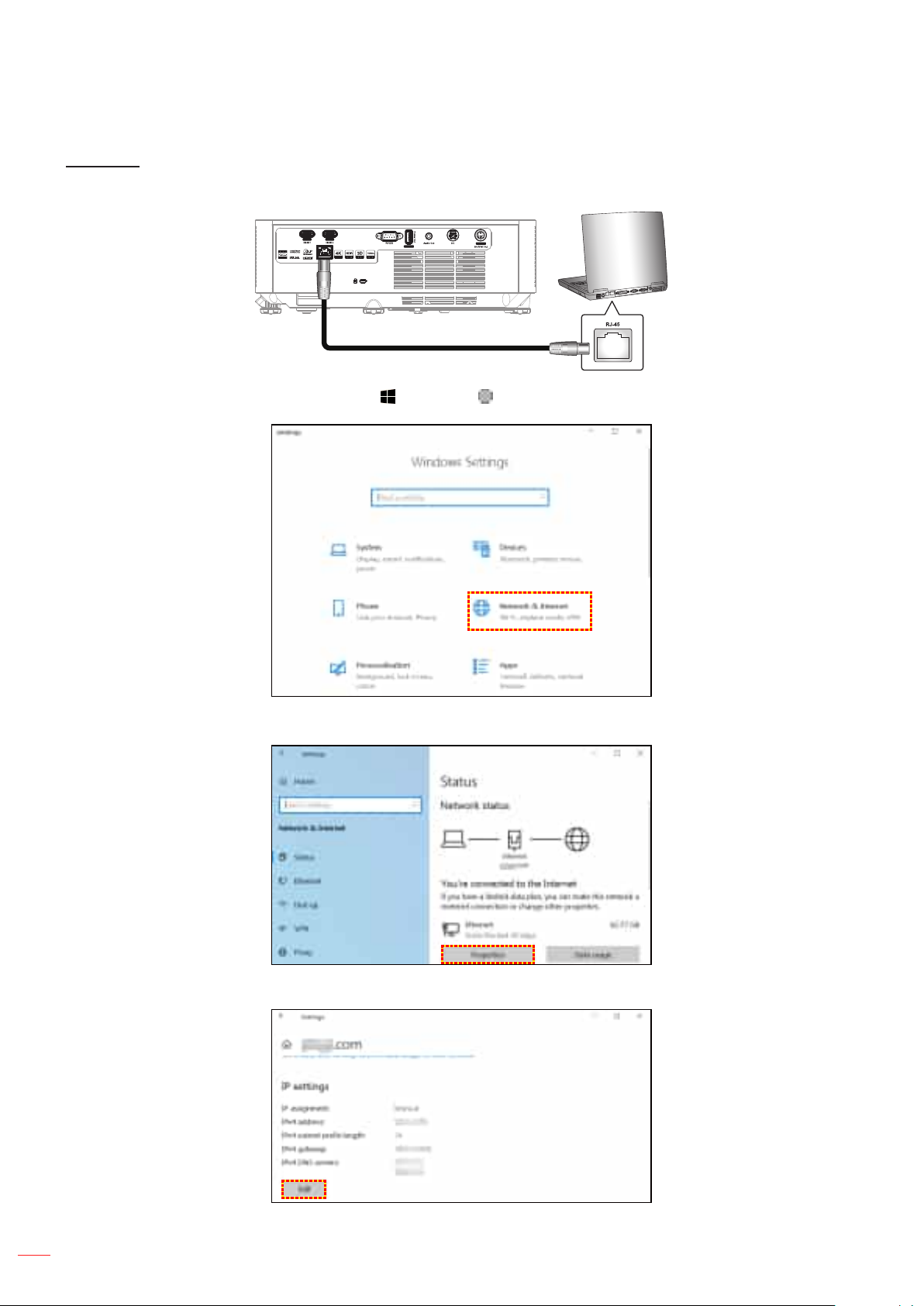

LAN RJ45

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).

2. On the PC (Laptop), select Start > Settings > Network & Internet.

3. In the Ethernet section, select Properties.

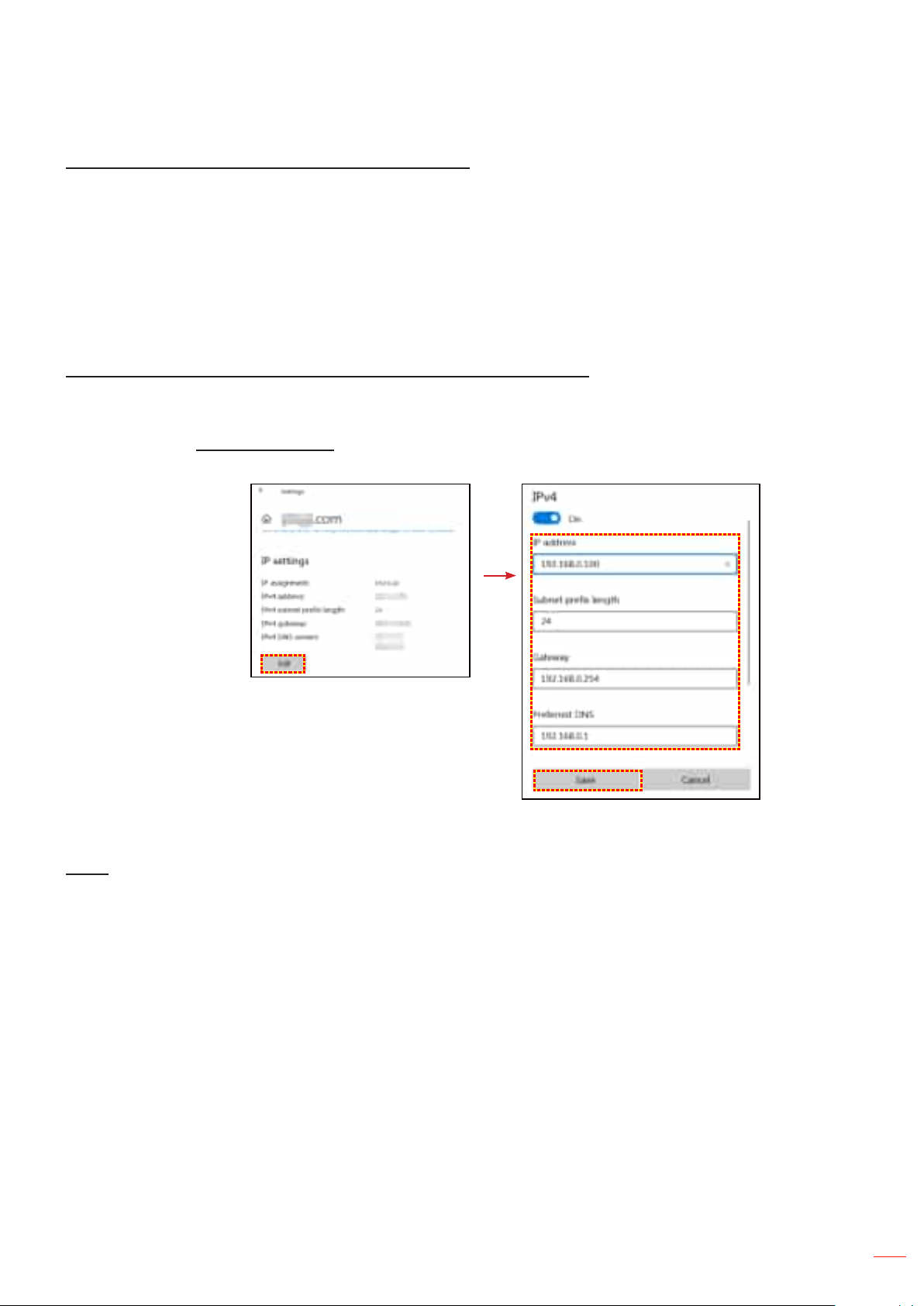

4. In the IP settings section, select Edit.

46

English

USING THE PROJECTOR

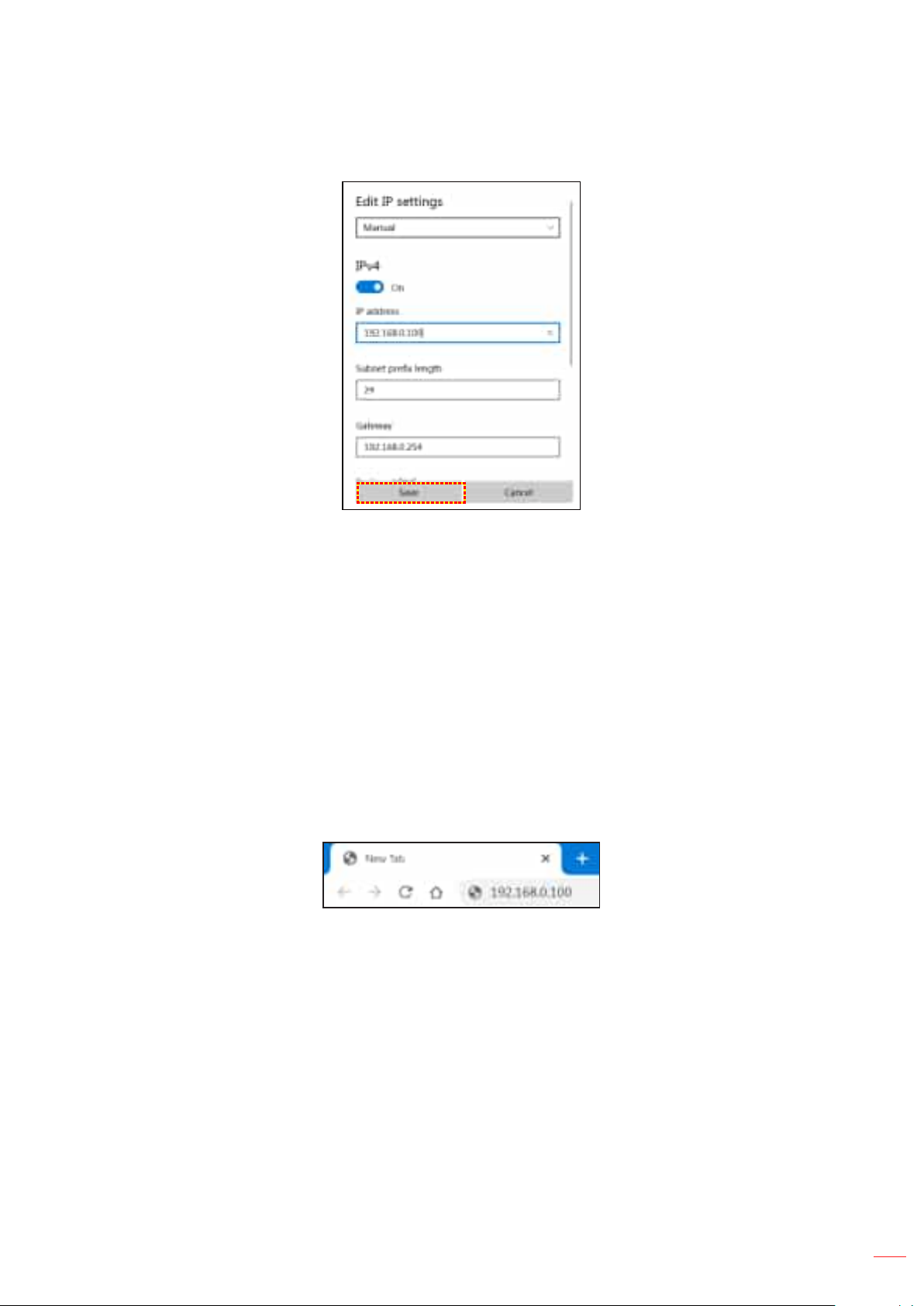

5. Type in the IP address and Gateway, then select “Save”.

6. Press the “Menu” button on the projector.

7. Open on projector Control > LAN.

8. Enter the following connection parameters:

± DHCP: O�
± IP Address: 192.168.0.100
± Subnet Mask: 255.255.255.0
± Gateway: 192.168.0.254
± DNS: 192.168.0.51

9. Press “Enter” to con⿿rm settings.

10. Open a web browser, for example Microsoft Edge or Chrome with Adobe Flash Player 9.0 or higher
installed.

11. In the Address bar, input the projector’s IP address: 192.168.0.100.

12. Press “Enter”.

English

47

USING THE PROJECTOR

The projector is setup for remote management. The LAN / RJ45 function displays as follows:

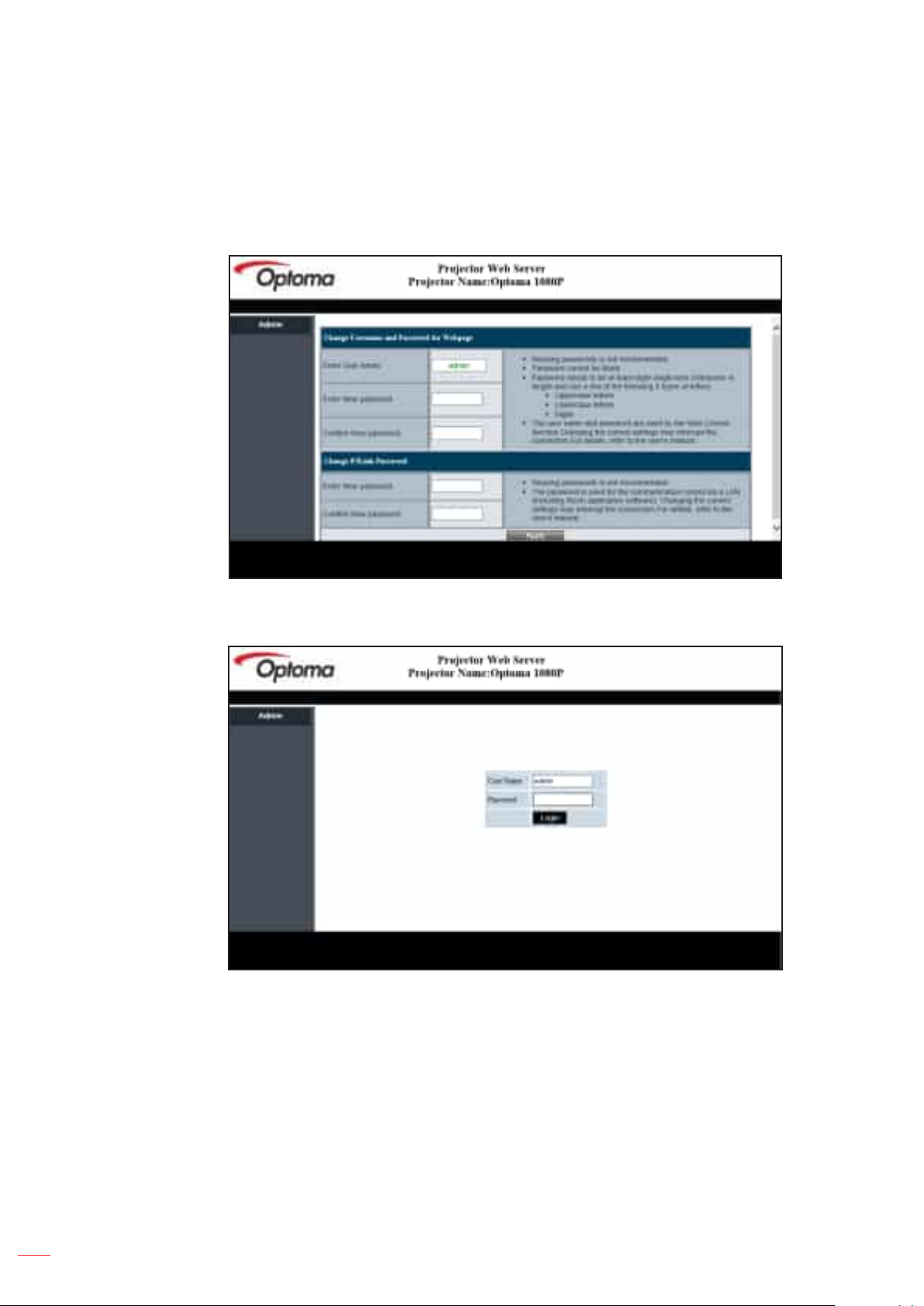

Log in

When you open the web page for the ⿿rst time, you will see a screen like the one below.
Please enter valid user password.

When you open the web page after entering a valid password, you will see a screen like the one
below. Enter the password in the “Password” ⿿eld.

48

English

USING THE PROJECTOR

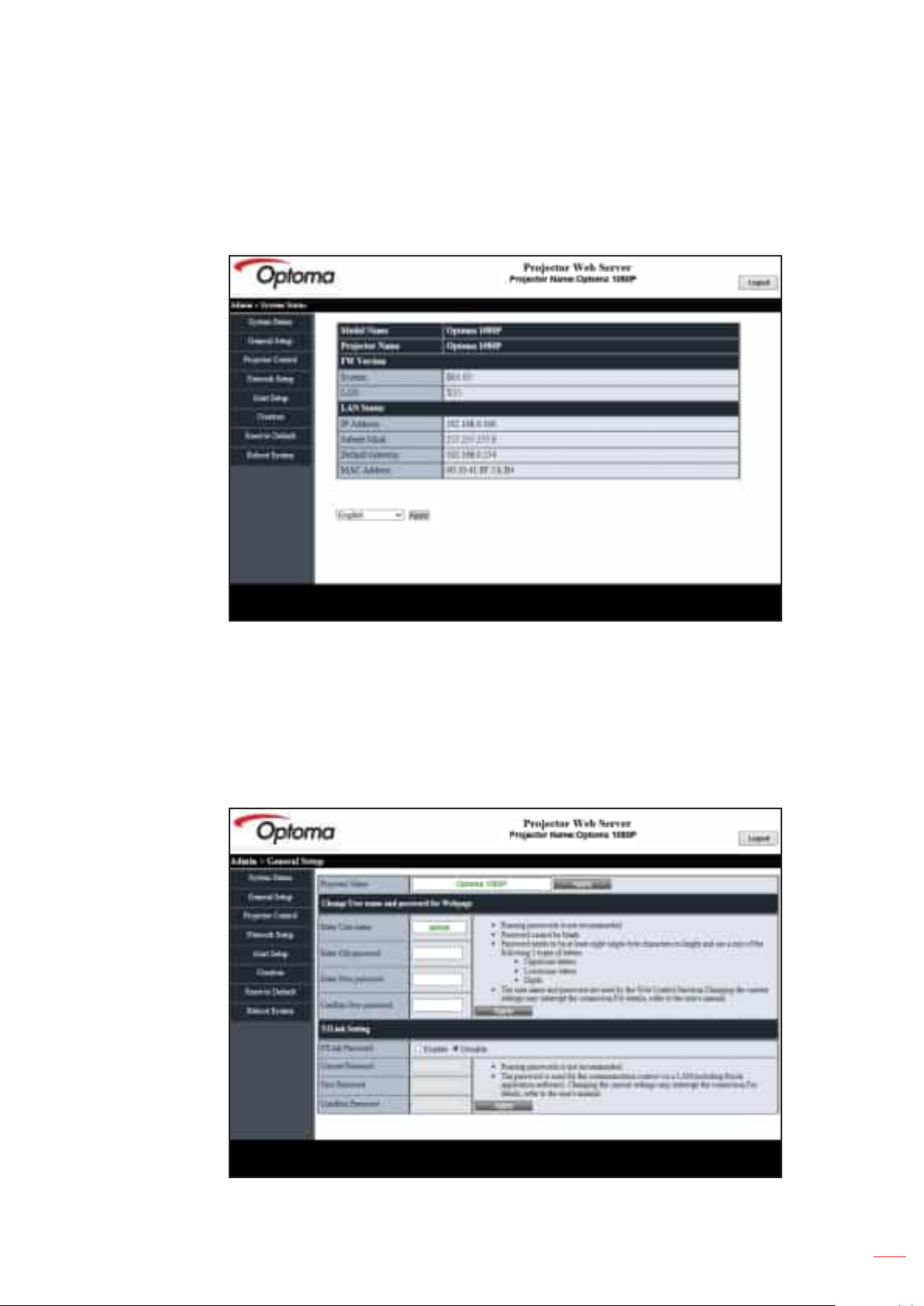

System Status

The current status of the projector is displayed.You can check projector model name, ⿿rmware version,
current LAN con⿿guration, and change the interface language if needed.

The version name displayed on the web page in the diagram may di�er from the actual display.

General Setup

The projector name set here is also used in PJLink control.Only alphanumeric characters can be used
as projector name. The maximum number of characters is 32.

You can use only alphanumeric characters in the password. The minimum number of characters is 8. If
you enter an invalid character, “Invalid Character” warning is displayed.

If the characters of new password and the characters of con⿿rm (new) password do not match, error
message will be displayed. In this case, re-enter the password.

English

49

USING THE PROJECTOR

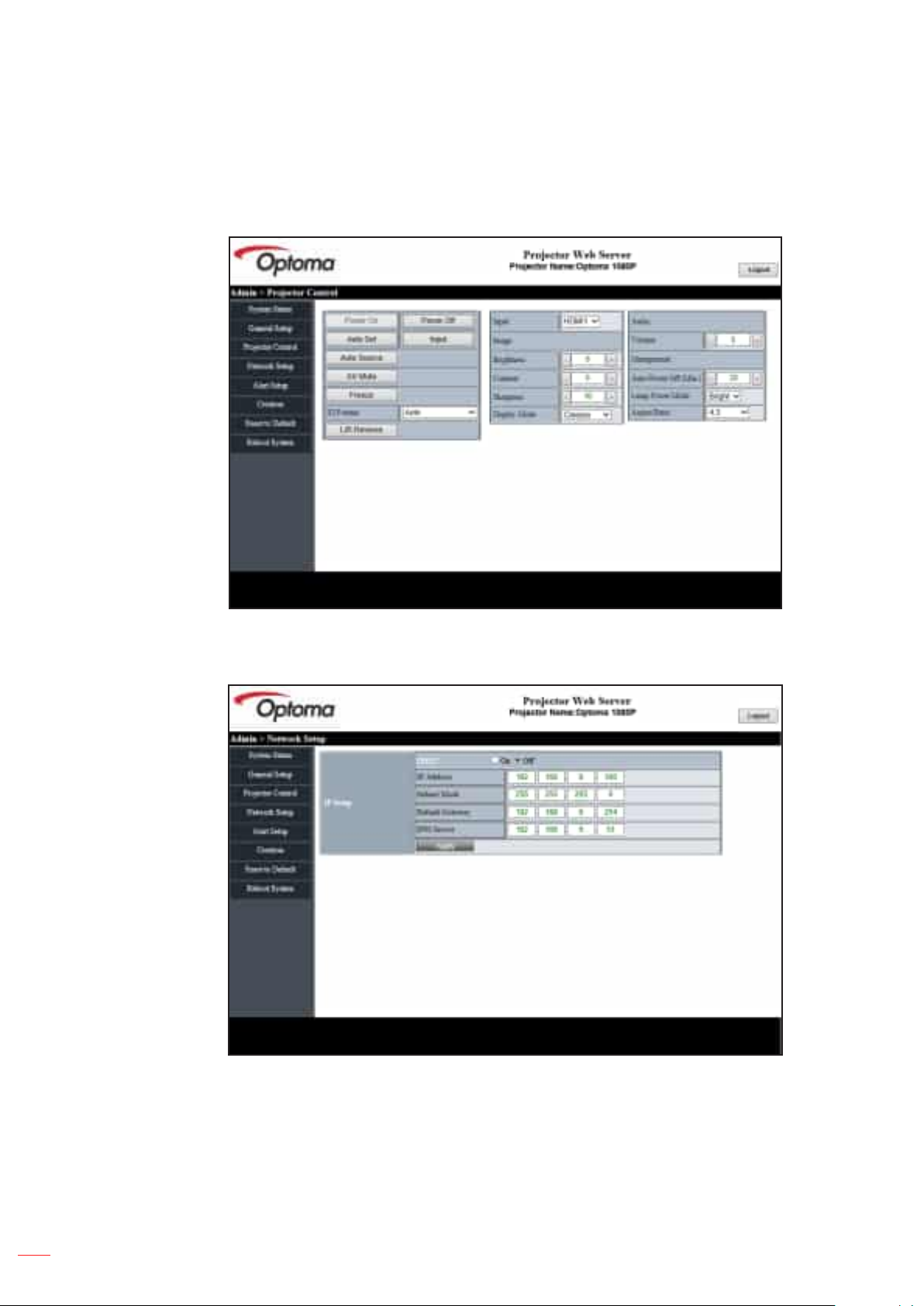

Projector Control

You can control the projector with this item. The items for control are described in this section.
Control button: When you click a button, the corresponding function will be performed.

Network Setup

Set the network of the projector.

50

English

USING THE PROJECTOR

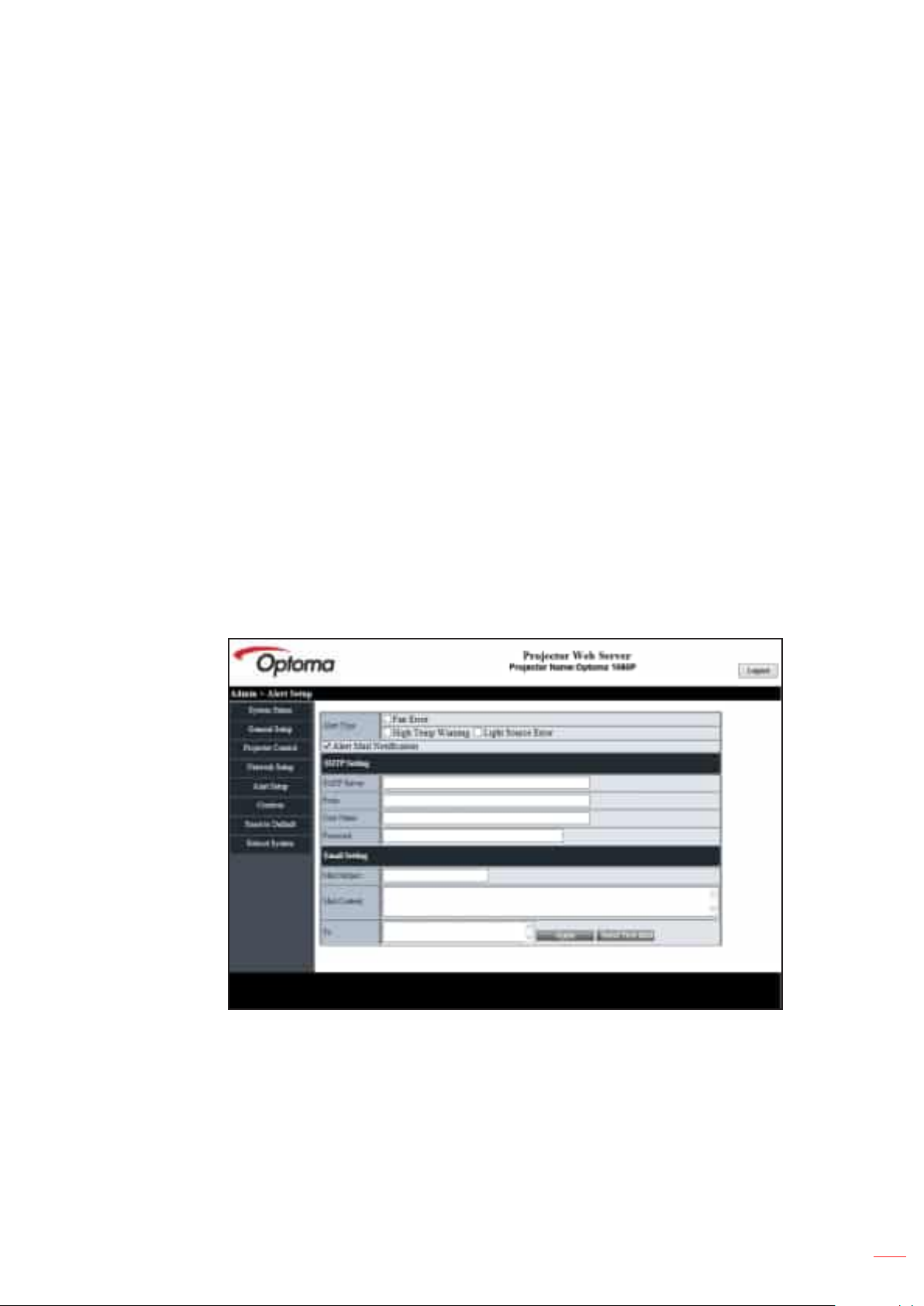

Alert Setup

You can send email alerts when an error occurs. You can carry out settings for alert mail in this
section.

1. Alert types: Check the type of error for which you want to send alert mail.

2. Alert mail noti⿿cation: Check and perform the following settings:

- SMTP Setting: Set the following:
a) SMTP Server: Server address (server name) (SMTP server)
b) From: e-mail address of the sender
c) User Name: User name of the mail server
d) Password: Mail server password.

- Email Setting: Set the following:
a) Mail Subject
b) Mail Content
c) To: Enter the e-mail address of the sender.

3. Click “Apply” to ⿿x the value.

4. Enter the IP address of projector in *xxx.xxx.xxx.xxx.

5. Send Test Mail.
When you click [Send Test Mail], test email will be sent. The text will be “Email Test xxx.xxx.xxx.xxx *”.

English

51

USING THE PROJECTOR

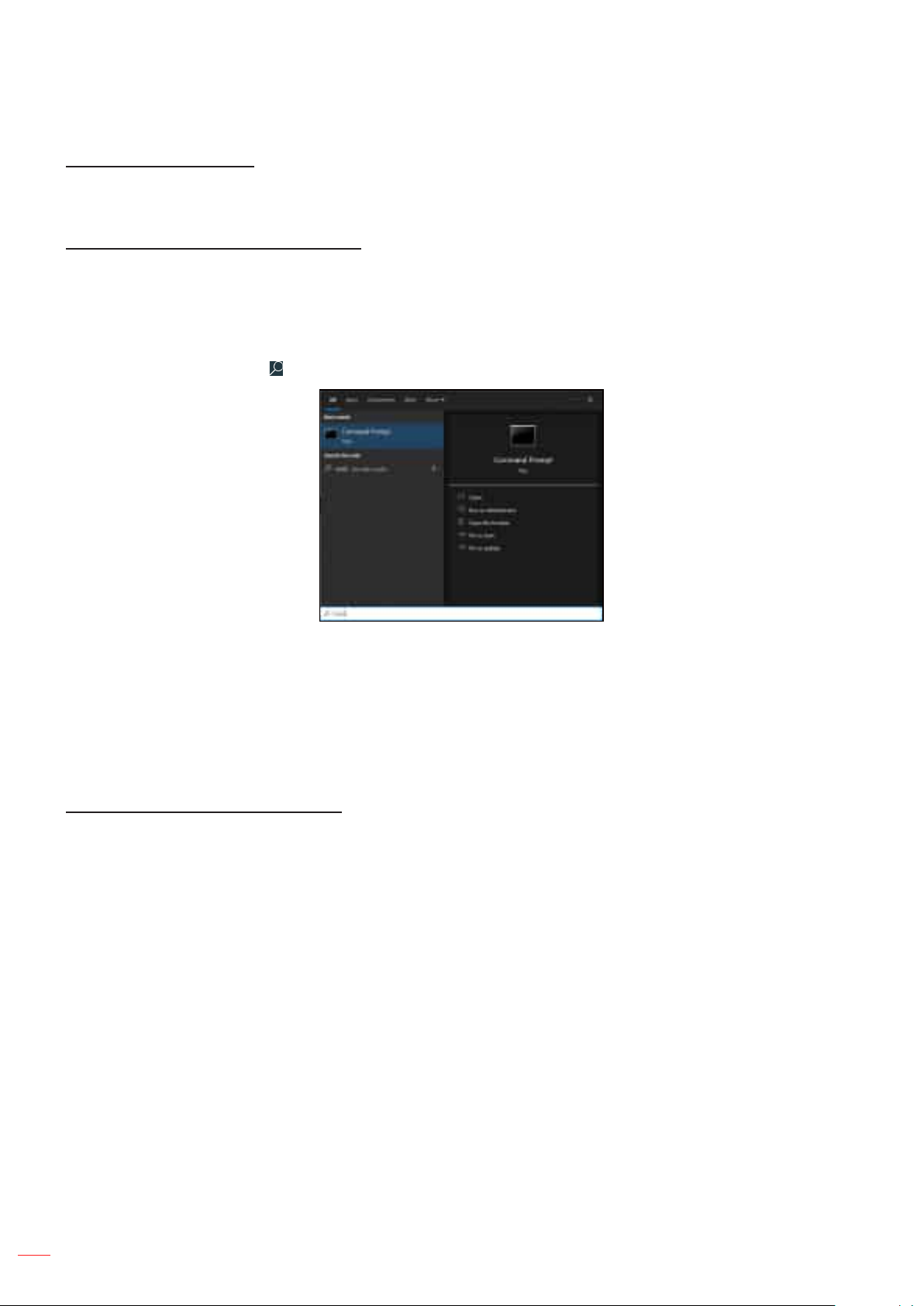

RS232 by Telnet Function

RS232 by Telnet Function

As an alternative method of control, this projector has RS232 command control by TELNET for LAN / RJ45
interface.

Quick Start-Guide for “RS232 by Telnet”

• Check and get the IP address on OSD of the projector.

• Make sure that the PC / laptop can access the web-page of the projector.

• Make sure that “Windows Firewall” setting is set to disabled in case of “TELNET” function ⿿ltering out

by PC / laptop.

1. Click on Search and then enter “cmd” as a search word. Press the “Enter” key.

2. Open the Command Prompt app.

3. Input the command format as follows:

± telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed)
± (ttt.xxx.yyy.zzz: IP-Address of the projector)

4. If Telnet-Connection ready, and user can have RS232 command input, then press the “Enter” key and
Telnet connection should be ready for RS232 command control.

Speci⿿cation for “RS232 by TELNET”:

1. Telnet: TCP.

2. Telnet port: 23 (for further details, please contact the Optoma service team).

3. Telnet utility: Windows “TELNET.exe” (console mode).

4. To end the Telnet session, just close the Command Prompt app window.

5. Windows Telnet utility directly after TELNET connection ready.

± Limitation 1 for Telnet-Control: There cannot be more than 50 bytes for successive network

payload for Telnet-Control application.

± Limitation 2 for Telnet-Control: There cannot be more than 26 bytes for successive RS232

command for Telnet-Control.

± Limitation 3 for Telnet-Control: Minimum delay for next command must be more than 200 (ms).

Control reset menu

Return the factory default settings for control settings.

English

52

USING THE PROJECTOR

Information menu

Information menu

View the projector information as listed below:

• Regulatory

• Serial Number

• Source

• Color Info

• Light Source Hours

• Picture Mode

• Device ID

• Filter Usage Hours

• Light Source Mode

• FW Version

English

53

ADDITIONAL INFORMATION

Compatible resolutions

Input Signal for HDMI

Signal Resolution Refresh Rate(Hz) Notes for Mac

VGA 640 x 480 60/67/72/75 Mac 60/72
SVGA
XGA 1024 x 768 60(*1)/70/120(*1) Mac 60/70/75/85
SDTV(480I) 720 x 480 60
SDTV(480P) 720 x 480 60
SDTV(576I) 720 x 576 50
SDTV(576P) 720 x 576 50
HDTV(720p) 1280 x 720 50(*1)/60/120(*1) Mac 60
WXGA 1280 x 800 60/120 Mac 60
WXGA(*2)

SXGA

SXGA+
UXGA 1600 x 1200 60
HDTV(1080I) 1920 x 1080 50/60

HDTV(1080p) 1920 x 1080 24/30/50/60 Mac 60
UHD(2160p) 3840 x 2160 24/25/30/50/60 Mac 24/30
UHD(2160p) 4096 x 2160 24/25/30/50/60 Mac 24

800 x 600 56/60(*1)/72/75 Mac 60/72

1366 x 768 60

1280 x 1024 60

1440 x 900 60

1400 x 1050 60

Mac 60

Note:

• (*1) 3D timing for 3D Ready projector(STD) and True 3D projector(Option).

• (*2) Windows 8 standard timing.

54

English

ADDITIONAL INFORMATION

True 3D Video Compatibility

Input timing

1280 x 720P @ 50Hz Top-and-Bottom
1280 x 720P @ 60Hz Top-and-Bottom

HDMI 1.4a
3D Input

Input
resolutions

HDMI 1.3

Note:

1280 x 720P @ 50Hz Frame packing
1280 x 720P @ 60Hz Frame packing
1920 x 1080i @ 50Hz Side-by-Side(Half)
1920 x 1080i @ 60Hz Side-by-Side(Half)
1920 x 1080P @ 24Hz Top-and-Bottom
1920 x 1080P @ 24Hz Frame packing
1920 x 1080i @ 50Hz
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080i @ 50Hz
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1024 x 768 @ 120Hz
1280x 720 @ 120Hz

Side-by-Side(Half) SBS mode is on

Top-and-Bottom TAB mode is on

Frame Sequential 3D format is Frame sequential

• If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode

• 1080i@25Hz and 720p@50Hz will run in 100Hz; other 3D timing will run in 120Hz.

• 1080p@24Hz will run 144Hz.

English

55

ADDITIONAL INFORMATION

EDID (Digital)

WXGA

B0 /

Established Timing

720 x 400 @70Hz 1024 x 768 @120Hz Native timing: 640 x 480p 4:3 @60Hz 1366 x 768 @60Hz
640 x 480 @60Hz 1280 x 720 @60Hz 1280 x 800 @60Hz 720(1440) x 576i 4:3 @50Hz 1920 x 1080p @60Hz
640 x 480 @67Hz 1280 x 720 @120Hz 720(1440) x 576i 16:9 @50Hz
640 x 480 @72Hz 1280 x 800 @120Hz 720(1440) x 480i 4:3 @60Hz
640 x 480 @75Hz 1280 x 1024 @60Hz 720(1440) x 480i 16:9 @60Hz
800 x 600 @56Hz 1440 x 900 @60Hz 720 x 576p 4:3 @50Hz
800 x 600 @60Hz 1600 x 1200 @60Hz 720 x 576p 16:9 @50Hz
800 x 600 @72Hz 1680 x 1050 @60Hz 720 x 480p 4:3 @60Hz
800 x 600 @75Hz 720 x 480p 16:9 @60Hz
832 x 624 @75Hz 1280 x 720p 16:9 @50Hz
1024 x 768 @60Hz 1280 x 720p 16:9 @60Hz
1024 x 768 @70Hz 1920 x 1080i 16:9 @60Hz
1024 x 768 @75Hz 1920 x 1080i 16:9 @50Hz
1280 x 1024 @75Hz 1920 x 1080p 16:9 @24Hz

1152 x 870 @75Hz 1920 x 1080p 16:9 @30Hz

B0 /

Standard Timing

B0 /

Detail Timing

B1 /

Video Mode

1920 x 1080p 16:9 @50Hz
1920 x 1080p 16:9 @60Hz

B1 /

Detail Timing

1080p

B0 /

Established Timing

720 x 400 @70Hz 1024 x 768 @120Hz Native timing: 640 x 480p 4:3@60Hz 1366 x 768 @60Hz
640 x 480 @60Hz 1280 x 720 @60Hz 1280 x 800 @60Hz 720(1440) x 576i 4:3@50Hz
640 x 480 @67Hz 128 x 720 @120Hz 720(1440) x 576i 16:9@50Hz
640 x 480 @72Hz 1280 x 800 @60Hz 720(1440) x 480i 4:3@60Hz
640 x 480 @75Hz 1280 x 1024 @60Hz 720(1440) x 480i 16:9@60Hz
800 x 600 @56Hz 1440 x 900 @60Hz 720 x 576p 4:3@50Hz
800 x 600 @60Hz 1400 x 1050 @60Hz 720 x 576p 16:9@50Hz
800 x 600 @72Hz 1600 x 1200 @60Hz 720 x 480p 4:3@60Hz
800 x 600 @75Hz 720 x 480p 16:9@60Hz
832 x 624 @75Hz 1280 x 720p 16:9@50Hz
1024 x 768 @60Hz 1280 x 720p 16:9@60Hz
1024 x 768 @70Hz 1920 x 1080i 16:9@60Hz
1024 x 768 @75Hz 1920 x 1080i 16:9@50Hz
1280 x 1024 @75Hz 1920 x 1080p 16:9@24Hz
1152 x 870 @75Hz 1920 x 1080p 16:9@30Hz

B0 /

Standard Timing

B0 /

Detail Timing

B1 /

Video Mode

1920 x 1080p 16:9@50Hz
1920 x 1080p 16:9@60Hz
1920 x 1080p 16:9@120Hz
3840 x 2160p 16:9@24Hz
3840 x 2160p 16:9@25Hz
3840 x 2160p 16:9@30Hz
3840 x 2160p 16:9@50Hz
3840 x 2160p 16:9@60Hz
4096 x 2160p 256:135@24Hz

B1 /

Detail Timing

56

English

ADDITIONAL INFORMATION

1080p

B0 /

Established Timing

B0 /

Standard Timing

B0 /

Detail Timing

B1 /

Video Mode

4096 x 2160p 256:135@25Hz
4096 x 2160p 256:135@30Hz
4096 x 2160p 256:135@50Hz
4096 x 2160p 256:135@60Hz

B1 /

Detail Timing

English

57

ADDITIONAL INFORMATION

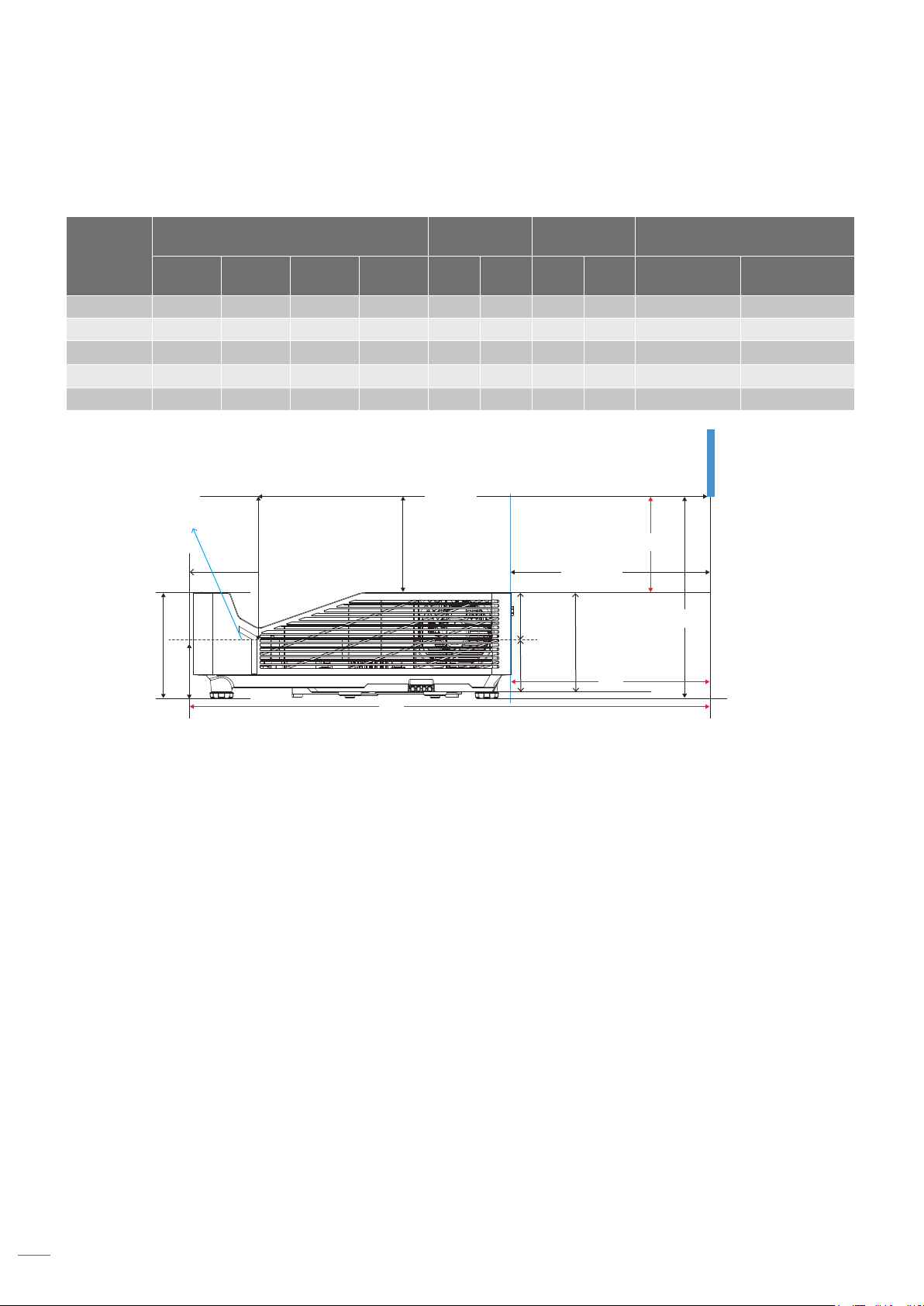

Image size and projection distance

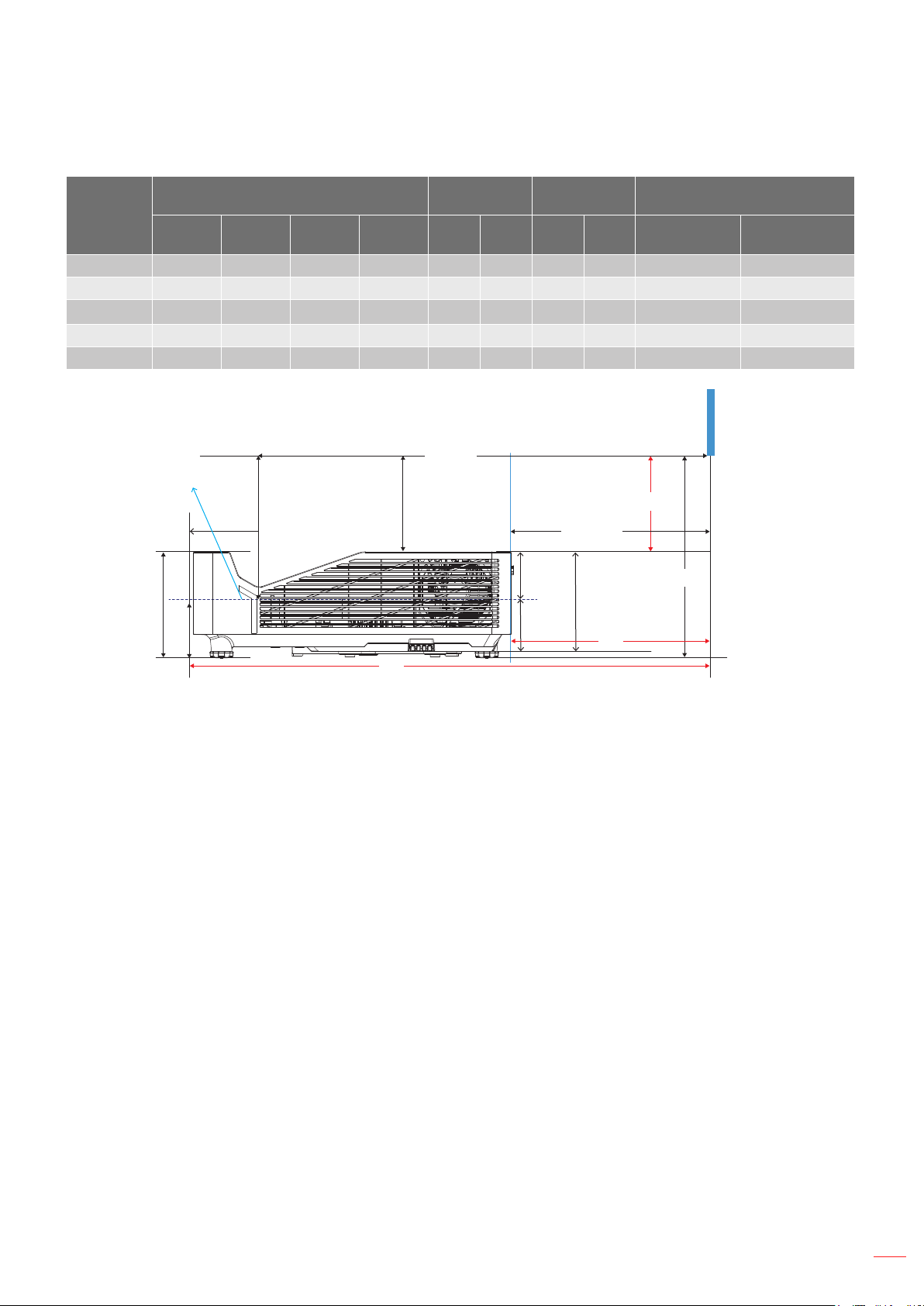

WXGA model

Image Size

(inch)

85" 1.83 1.14 72.08 45.05 0.54 21.30 0.21 8.39 0.072 ~ 0.186 2.83 ~ 7.334
90" 1.94 1.21 76.32 47.70 0.57 22.43 0.24 9.52 0.079 ~ 0.2 3.121 ~ 7.891

102.8" 2.21 1.38 87.17 54.48 0.64 25.31 0.32 12.41 0.098 ~ 0.237 3.867 ~ 9.316
110" 2.37 1.48 93.30 58.30 0.68 26.94 0.36 14.03 0.109 ~ 0.311 4.287 ~ 12.243

120" 2.58 1.62 101.76 63.60 0.74 29.19 0.41 16.29 0.124 ~ 0.339 4.87 ~ 13.356

Width

(m)

Mirror center

109.6mm

55.6mm

Image Size (W x H) DF (±5%) DR (±13%)

Height

(m)

54mm

Width
(inch)

221.4mm

Height

(inch)

DF

m inch m inch m inch

589mm

167.4mm

315.2mm

54.00mm

49.10mm

103.1mm

DR

O�set= 121% ~ 131%

H

277mm

H

Screen

58

English

ADDITIONAL INFORMATION

1080p model

Image Size

(inch)

85" 1.77 1 69.73 39.22 0.53 20.87 0.20 7.96 0.105 ~ 0.211 4.125 ~ 8.292
90" 1.99 1.12 78.44 44.12 0.56 21.97 0.23 9.07 0.114 ~ 0.226 4.493 ~ 8.905

100" 2.21 1.25 87.16 49.03 0.61 24.18 0.29 11.27 0.133 ~ 0.257 5.228 ~ 10.131

110" 2.44 1.37 95.87 53.93 0.67 26.38 0.34 13.48 0.151 ~ 0.342 5.963 ~ 13.482

120" 2.66 1.49 104.59 58.83 0.73 28.59 0.40 15.68 0.17 ~ 0.374 6.699 ~ 14.708

Distance

Width

(m)

Mirror center

109.6mm

55.6mm

Image Size (W x H) DF (±5%) DR (±14%)

Height

(m)

54mm

Width
(inch)

249.1mm

Height

(inch)

DF

m inch m inch m inch

560mm

195.1mm

286.3mm

54.00mm

49.10mm

103.1mm

DR

O�set= 121% ~ 131%

H

304.7mm

H

Screen

English

59

ADDITIONAL INFORMATION

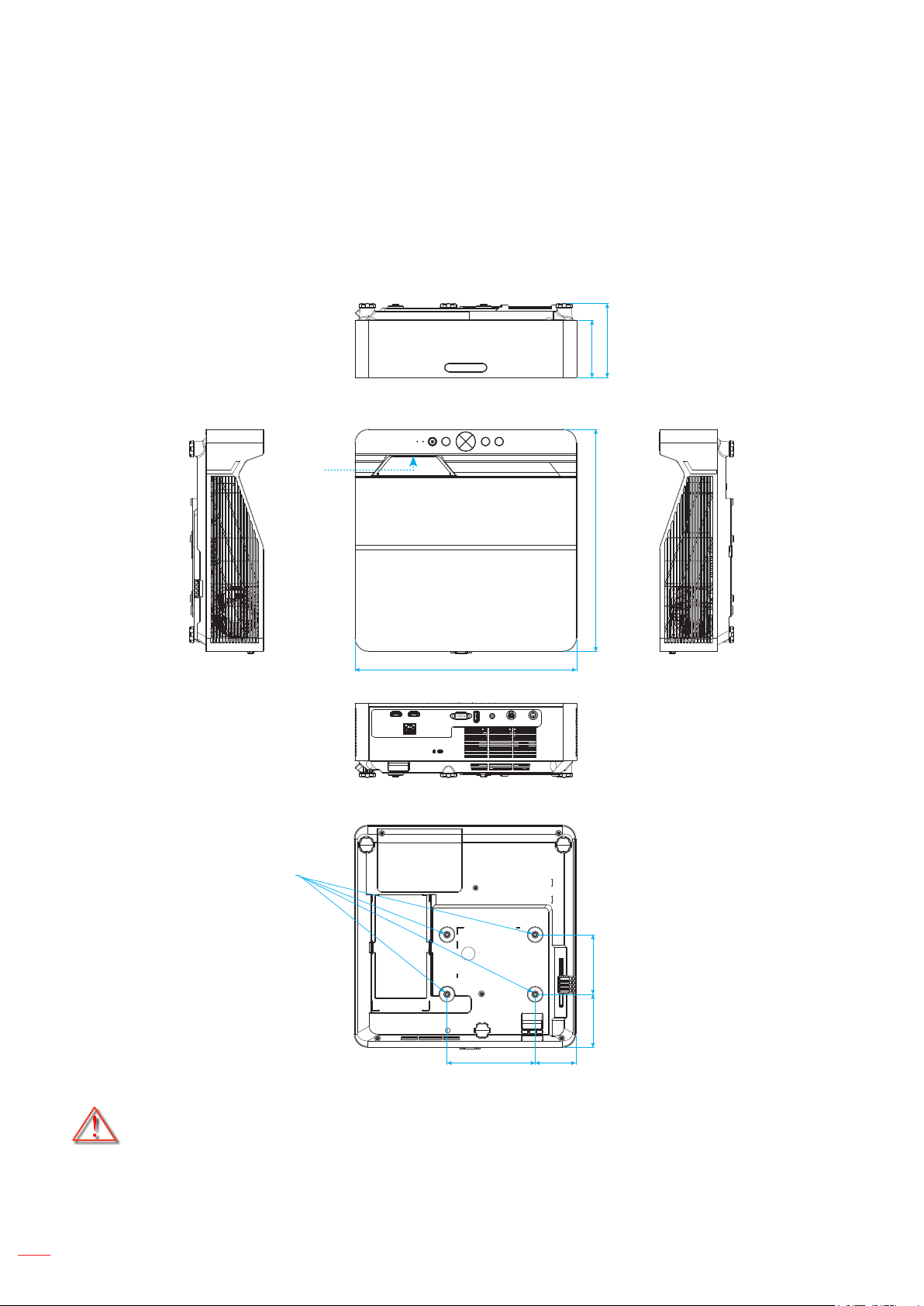

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.

2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to
the projector meet the following speci⿿cations:

• Screw type: M4*10mm

• Minimum screw length: 10mm

109.60

85.00

Lens

SCREW SPEC M4*10mm

(INCLUDE WALL MOUNT METAL)

327.80

327.00

88.0078.31

130.00 60.00

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

• If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.

• Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.

• Avoid installing the projector near a heat source.

English

60

Unit: mm

ADDITIONAL INFORMATION

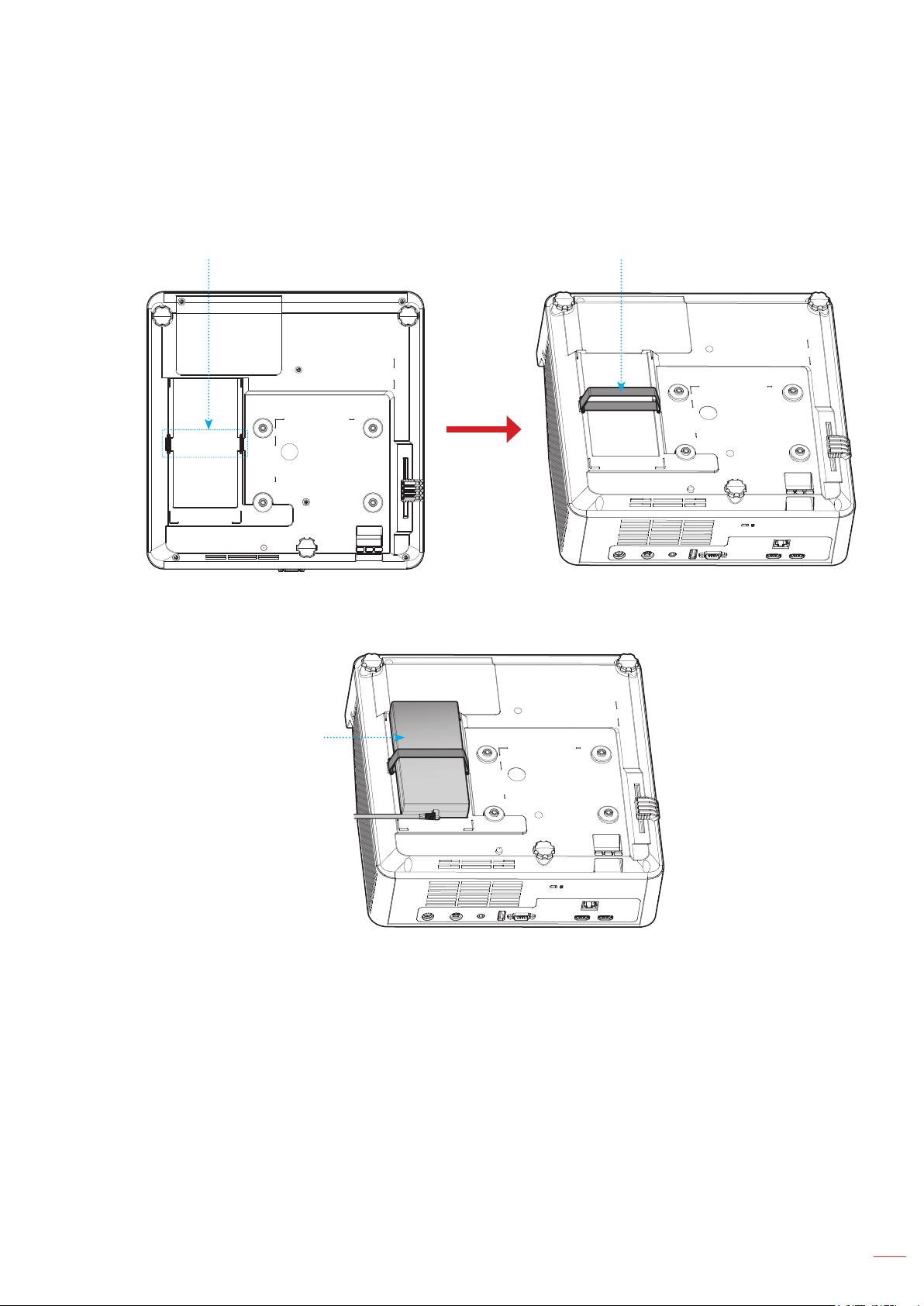

For ceiling mounting, you could purchase a Hook & Loop whose length is over 250mm to ⿿x the AC adapter if
needed.

1. Install the Hook & Loop to the designated holes on the bottom of the projector.

Holes for

Hook & Loop

2. Place the AC adapter onto its slot.

Hook & Loop

Adapter

English

61

ADDITIONAL INFORMATION

IR remote control codes

Key

Power Format 1 32 CD 02 FD Press to turn on / o� the projector.

Aspect ratio Format 1 32 CD 64 9B

Source Format 1 32 CD C3 3C Press to select an input signal.

Mode Format 1 32 CD 5 FA

Four directional
select keys (Up)

Four directional
select keys
(Left)

Four directional
select keys
(Right)

Four directional
select keys
(Down)

Enter Format 1 32 CD 0F F0 Con⿿rm your item selection.

NEC

format

Format 2 32 CD 11 EE

Format 2 32 CD 10 EF

Format 2 32 CD 12 ED

Format 2 32 CD 14 EB

Customer Code Key Code

Byte 1 Byte 2 Byte 3 Byte 4

Description

Press to change the aspect ratio of a
displayed image.

Press to change the Picture mode of
a displayed image.

Press to select items or make
adjustments to your selection.

Settings/Setup
Menu

Return Format 1 32 CD 0D F2

Menu Format 1 32 CD 0E F1

Volume - Format 2 32 CD 8F 70 Press to decrease the volume.

English

62

Format 1 32 CD A8 57 Press to enter the Setup menu.

Press to return to the previous
menu.

Press to display or exit the on­screen display menus.

ADDITIONAL INFORMATION

Key

Mute Format 1 32 CD 52 AD

Volume + Format 2 32 CD 8C 73 Press to increase the volume.

Freeze Format 1 32 CD 06 F9 Press to freeze the projector image.

Keystone Format 1 32 CD 7 F8

AV Mute Format 1 32 CD 03 FC

NEC

format

Customer Code Key Code

Byte 1 Byte 2 Byte 3 Byte 4

Description

Press to momentarily turn o� / on the
audio.

Press to adjust image distortion
caused by tilting the projector.

Press to hide / unhide the screen
picture and turn o� / on audio.

English

63

ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.

Image problems

No image appears on-screen

• Ensure all the cables and power connections are correctly and securely connected as described in the

"Installation" section.

• Ensure the pins of connectors are not crooked or broken.

• Ensure that the "Mute" feature is not turned on.

Image is out of focus

• Slide the focus lever up or down until the image is sharp and legible. (Please see page 17).

• Make sure the projection screen is between the required distance from the projector. (Please refer to

pages 58~59).

The image is stretched when displaying 16:9 DVD title

• When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format

on projector side.

• If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.

• Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

Image is too small or too large

• Move the projector closer to or further from the screen.

• Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the di�erent settings.

Image has slanted sides:

• If possible, reposition the projector so that it is centered on the screen and below the bottom of the

screen.

Image is reversed

• Select "Display  Projection Orientation" from the OSD and adjust the projection direction.

64

English

ADDITIONAL INFORMATION

Other problems

The projector stops responding to all controls

• If possible, turn o� the projector, then unplug the power cord and wait at least 20 seconds before

reconnecting power.

Remote control problems

If the remote control does not work

• Check the operating angle of the remote control is pointed within ±15° to the IR receiver on the
projector.

• Make sure there are not any obstructions between the remote control and the projector. Move to within
6 m (19.7 ft) of the projector.

• Make sure the battery is inserted correctly.

• Replace the battery if it is exhausted.

English

65

ADDITIONAL INFORMATION

Warning indicators

When the warning indicators (see below) light up or 㿿ash, the projector will automatically shutdown:

• “Lamp” LED indicator is lit red and if “Power” indicator 㿿ashes red.

• “Temp” LED indicator is lit red and if “Power” indicator 㿿ashes red. This indicates the projector has

overheated. Under normal conditions, the project can be switched back on.

• “Temp” LED indicator 㿿ashes red and if “Power” indicator 㿿ashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator lights up or
㿿ashes, please contact your nearest service center for assistance.

LED lightning messages

Message

Standby state
(Input power cord)

Power on (Warming)

Power on and Lamp lighting Steady light

Power o� (Cooling)

Error (Lamp failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light

(Red) (Blue) (Red) (Red)

Breathing light

Power LED Temp LED Lamp LED

Flashing

(0.5 sec o� /

0.5 sec on)

Flashing

(0.5 sec o� /

0.5 sec on). Back to

red steady light when

cooling fan turns o�.

• Power o�:

Power O�

Press power key again.

66

• Temperature warning:

Warning

TEMPERATURE TOO HIGH

Please:

1. Make sure air in and outlets are not blocked.

2. Make sure the environment temperature is under 45 degree C.

If the problem persists in spite of the above.

Please contact a service center for repair.

English

ADDITIONAL INFORMATION

Speci⿿cations

Item Description

Native Resolution

Throw ratio

Lens

Image size

Projection distance

I/Os

Colour 1073.4 Million color

Scan rate

F-stop

Focal length

• WXGA: 1280 x 800

• 1080p: 1920 x 1080

• WXGA: 0.266

• 1080p: 0.253

• WXGA: 2.44

• 1080p: 2.44

• WXGA: -3.70mm / e-line 546nm

• 1080p: -3.70mm / e-line 546nm

• WXGA: 88”~117”

• 1080p: 90”~120”

• WXGA: 315mm ±5% base on 102.8”

• 1080p: 286mm ±5% base on 100”

• HDMI 1 (HDMI 1.4b [WXGA model] / HDMI 2.0 [1080p model])

• HDMI 2 (HDCP 2.0 [WXGA model] / HDCP 2.2 [1080p model])

• USB Type-A for ⿿rmware upgrade and power USB 5V/1.5A

• Audio Out 3.5mm

• RS232

• LAN

• 3D Sync Out [1080p model only]

• Horizontal scan rate:

 WXGA: 15KHz ~ 102KHz
 1080p: 15KHz ~ 140KHz

• Vertical scan rate: 24Hz ~ 120Hz

Speaker 15W (output max. 7W)

• Standby mode: < 0.5W

• Brightness Mode: Bright

 Typical 176W range +/-15% @ 110VAC

Power consumption

Input current DC 19.5V, 9.23A
Installation orientations Front, Rear, Ceiling, Rear-top

Dimensions (W x D x H)

Weight 3.9 ±0.2 kg
Environmental Operating in 0~40°C, 80% humidity (max., non-condensing)

Note: All speci�cations are subject to change without notice.

 Typical 173W range +/-15% @ 220VAC

• Brightness Mode: Eco

 Typical 121W range +/-15% @ 110VAC
 Typical 119W range +/-15% @ 220VAC

• Without feet: 327 x 327.8 x 85 mm

• With feet: 327 x 327.8 x 109.6 mm

English

67

ADDITIONAL INFORMATION

Optoma global o῿ces

For service or support, please contact your local o῿ce.

USA

Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-996-4794
Fremont, Ca 94539 [email protected]

Canada

Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-996-4794
Fremont, Ca 94539 [email protected]

Latin America

Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-996-4794
Fremont, Ca 94539 [email protected]

Europe

1 Bourne End Mills
Hemel Hempstead
Hertfordshire [phone]
HP1 2UJ [phone]
United Kingdom [email protected]
www.optoma.eu
Service Tel : [phone]

Benelux BV

Optoma Benelux BV [phone]
Europalaan 770 D [phone]
1363BM Almere
The Netherlands
www.optoma.nl

Japan

https://www.optoma.com/jp/

Taiwan

https://www.optoma.com/tw/

China

Room 2001, 20F, Building 4, [phone]
No.1398 Kaixuan Road, [phone]
Changning District www.optoma.com.cn
Shanghai, 200052, China

Australia

https://www.optoma.com/au/

France

Bâtiment E [phone]
81-83 avenue Edouard Vaillant [phone]
92100 Boulogne Billancourt, France [email protected]

Spain

C/ José Hierro, 36 Of. 1C 28529 Rivas [phone]
VaciaMadrid, Spain [phone]

Deutschland

Optoma Deutschland GmbH [phone]
Am Nordpark 3 [phone]
41069 Mönchengladbach [email protected]
Deutschland

Scandinavia

Postboks 9515 Åskollen [phone]
Kniveveien 29 [phone]
Drammen [email protected]
3036
Norway

Korea

https://www.optoma.com/kr/

68

English

www.optoma.com
